Orientalmotor FE100, FE200 Operating Manual

HP-5026-3

Inverter

FE100/FE200

OPERATING MANUAL

Thank you for purchasing an Oriental Motor product.
This Operating Manual describes product handling procedures and safety precautions.

• Please read it thoroughly to ensure safe operation.

• Always keep the manual where it is readily available.

Table of contents

−2−

1 Introduction ......................................3

2 Safety precautions ...........................5

3 Precautions for use ........................10

4 Preparation.....................................14

4.1 Checking the inverter .................... 14

4.2 Motor/Inverter combinations .........15

4.3 Name and function of each part....17

4.4 Removing/installing the front

panel .............................................19

4.5 Installing/removing the front cover

(sold separately) ...........................21

5 Installation ......................................22

5.1 Installation location .......................22

5.2 Installation condition .....................22

5.3 Installation method........................23

5.4 Installing and wiring in compliance

with EMC Directive........................24

6 Connection.....................................27

6.1 List of connection terminals ..........27

6.2 Connecting the main circuit

terminals .......................................29

6.3 Connecting the I/O signal

terminals .......................................32

6.4 Example of inverter connection.....36

7 Operation....................................... 37

7.1 Setup before operation .................37

7.2 Setting position of motor output

selector switch ..............................38

7.3 Operating the motor...................... 39

7.4 Operation via external input

signals........................................... 41

7.5 Setting the speed.......................... 42

7.6 Timing chart ..................................43

8 Various functions ........................... 44

8.1 Setting the acceleration time and

deceleration time ..........................44

8.2 Switching the display mode ..........45

8.3 Setting the gear ratio ....................46

8.4 Switching the carrier frequency ....50

8.5 Switching between sink input and

source input ..................................51

9 Inspection ...................................... 52

10 Troubleshooting and remedial

actions ........................................... 53

10.1 Troubleshooting ............................53

10.2 Inverter alarms..............................54

11 Appendix........................................ 57

11.1 Cables (sold separately) ...............57

11.2 Front cover (sold separately) ........57

11.3 Recommended peripherals...........58

11.4 Specifications................................60

1 Introduction

– 3 –

1 Introduction

Before using the FE100/FE200 inverter, please read 2 “Safety precautions” on p.5
and Instruction Sheet to understand the correct use of the inverter.
The FE100/FE200 inverter is designed and manufactured for installation in general
industrial equipment. Do not use it for any other purpose. Oriental Motor accepts no
liability for any loss arising from usage of the inverter contrary to this warning.



Overview of this inverter

The FE100/FE200 is a compact inverter that allows for easy operation of a
three-phase induction motor.
Since all required motor operation data are already set in the inverter, all the user
needs is to connect a motor and set the applicable motor output (V/f pattern) to the
inverter, and the motor can be operated right away.



Standards and CE Marking

This product is recognized by UL and certified by CSA, and bears the CE Marking
(Low Voltage Directive and EMC Directives) in compliance with the EN Standards.

Applicable

standards

Certification

body

Standards file No. CE Marking

UL 508C
CSA C22.2 No.14

UL E171462 −

EN 50178
EN 61000-6-2
EN 61000-6-4

Conform to EN standards

Low Voltage Directives
EMC Directives

∗ The I/O signal terminals are insulated to the reinforced insulation standard.



Installation conditions

Installation in equipment (class I equipment)
Overvoltage category II
Pollution degree 2

• If your equipment requires conformance to overvoltage category III, supply the
power via an insulated transformer.

• If your equipment requires conformance to pollution degree 3, store the inverter in
an IP54-compliant enclosure.



Low Voltage Directive

The FE100/FE200 inverter is designed for installation in equipment.

1 Introduction

– 4 –



EMC Directives

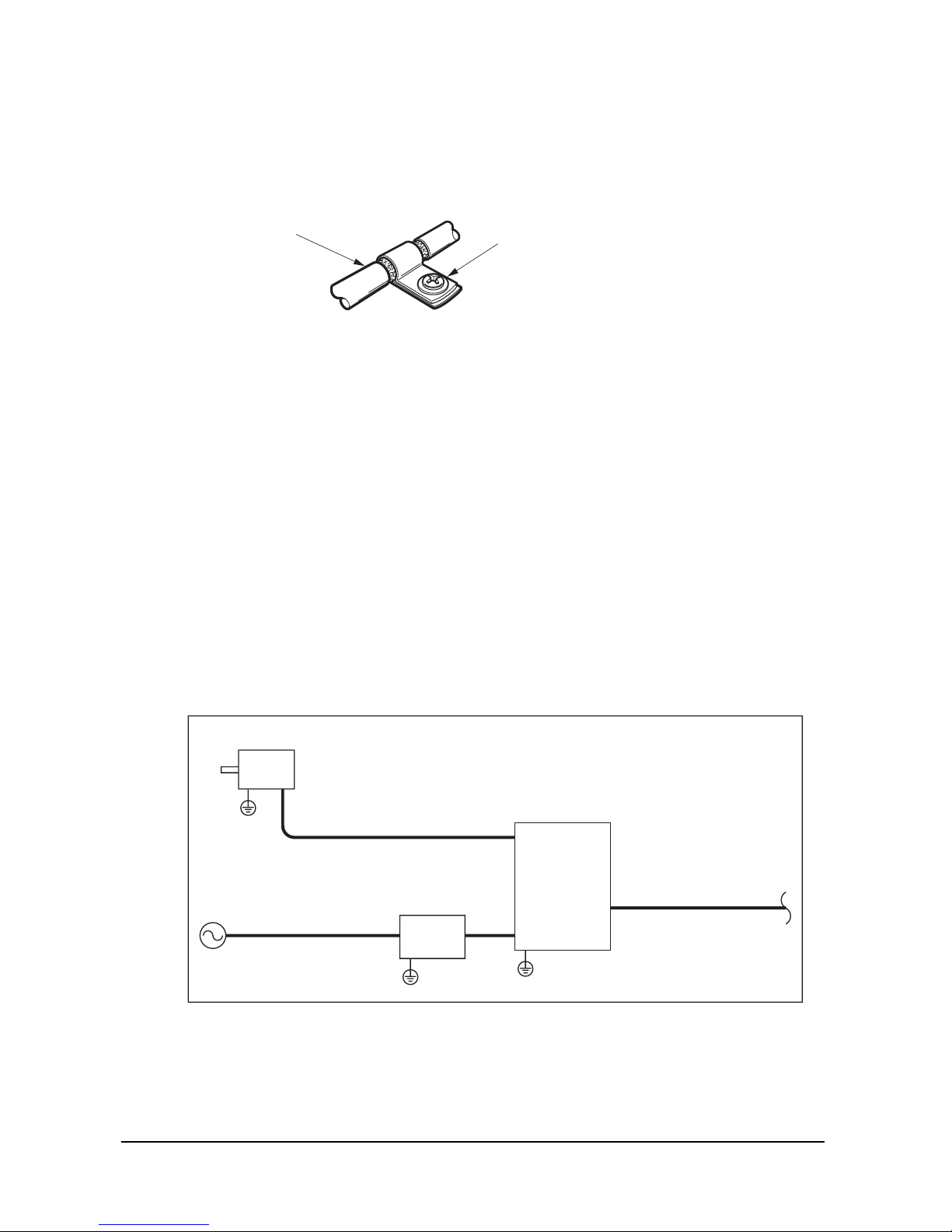

The EMC performance of the FE100/FE200 inverter has been measured in
accordance with “Example of inverter and motor installation/wiring” on p.26. The
user must measure the EMC performance of the final equipment with the
FE100/FE200 assembled into the equipment by referring to 5.4 “Installing and
wiring in compliance with EMC Directive” on p.24



WARNING FOR UL/cUL LISTING MARKING ON INVERTER

• Use 60/75 °C CU wire only or equivalent.

• Maximum surrounding air temperature 50 °C.

• Install device in pollution degree 2 environment.

• Tightening torque and wire range for field wiring terminals are listed as

below.

Location Tightening torque Wire range

Power connection terminal and cable

Motor connection terminal and cable

0.86 to 0.96 N·m AWG14

• This inverter is not designed for use with a power supply of

18000 (12000) Arms or above [maximum voltage: 240 (120) VAC].

• Always use this inverter in combination with a compatible motor by

Oriental Motor (refer to p.15).
The compatible motors listed in this manual are recognized by UL and
certified by CSA and provide an overheat protection function based on
impedance protection or thermal protection.



Hazardous substances

RoHS (Directive 2002/95/EC 27Jan.2003) compliant

2 Safety precautions

– 5 –

2 Safety precautions

Some parts of the FE100/FE200 inverter carry dangerous high voltages.
Only qualified personnel should handle the FE100/FE200.
The cautionary information provided in this chapter is intended to ensure the safe
and correct use of the FE100/FE200 inverter and prevent injury to the user’s
personnel or other people. The operators are advised to familiarize themselves with
the items described herein, before using the FE100/FE200.
For cautionary information pertaining to the motor used with the FE100/FE200,
refer to the operating manual for the motor.

Warning

Failure to observe the handling precaution accompanied by this
symbol may result in death or serious injury.

Caution

Failure to observe the handling precaution accompanied by this
symbol may result in injury or damage to the equipment.

Note

Note

The handling instructions the user must observe in order to
ensure the correct use of the inverter are explained in the
relevant sections throughout this manual.

Warning

General

• Do not use the inverter in a place subject to explosive, flammable or corrosive
gases, where the inverter may come in contact with water, or near flammable
objects. Doing so may result in fire, electric shock or injury.

• Only qualified personnel should install, connect, wire and inspect the inverter.
Allowing unqualified personnel to perform these tasks may result in fire, electric
shock or injury.

• Do not relocate, install, connect or inspect the inverter while the inverter is
receiving power. Perform these tasks after turning off the inverter power. Failure
to do so may result in electric shock.

• Turn on the inverter power after confirming that no operating signals are currently
input and the RUN/STAND-BY switch is set to the STAND-BY side. Turning on
the inverter power when operating signals are being input may cause the motor to
start automatically and cause injury.

Installation

• Use this inverter only with class I equipment. Using it with equipment of any
other class may result in electric shock.

• Be sure to ground the protective grounding terminal (

) of the inverter. Failure

to do so may result in fire or electric shock.

2 Safety precautions

– 6 –

Connection and wiring

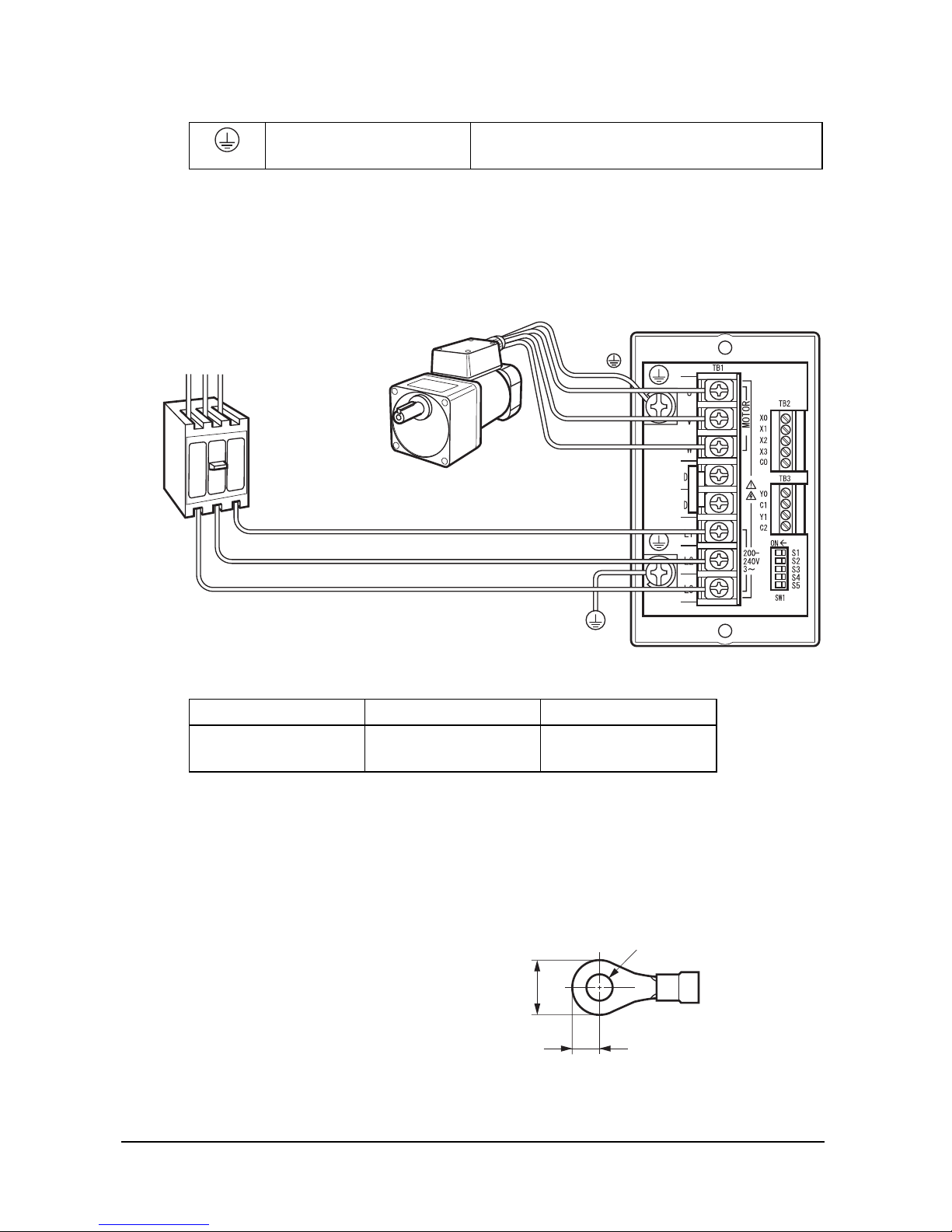

• Connect the inverter properly in accordance with the connection diagram. Failure
to do so may result in fire or electric shock.

• Use cables of the specified sizes. Failure to do so may result in fire.

• Do not forcibly bend, pull or pinch the power supply cable and lead wires or other

inverter cables. Doing so may result in electric shock or fire.

• After connecting the inverter, be sure to install terminal covers (supplied with the
inverter) on the main circuit terminals of the inverter. Failure to do so may result
in electric shock.

• After wiring an emergency-stop circuit, always conduct operation check. Failure
to do so may result in injury.

• Connect the inverter to the power supply via a protective device (such as a
molded-case circuit breaker). Failure to do so may result in fire, injury or damage
to the equipment.

Operation

• Do not operate the inverter with its live parts exposed. Doing so may result in
electric shock.

• Turn off the inverter power in the event of power outage. If not, the motor may
suddenly start once the power is restored, thus causing injury or damage to the
equipment.

• Do not operate the switches with wet hands. Doing so may result in electric shock.

• Do not touch the inverter terminals even when the inverter is not operating.

Install/remove the covers or set the DIP switches after confirming that the inverter
power has been turned off. Failure to observe these instructions may result in
electric shock.

• Provide a separate emergency-stop switch. Absence of an emergency-stop switch
may result in injury.

Maintenance and inspection

• Some of the inverter terminals carry high voltage. To protect against the danger of
electric shock, do not touch the terminals with bare hands within 1 minute after
turning off the inverter power.

• Before commencing any maintenance or inspection work, turn off the inverter
power, confirm that all indicator lamps have turned off, and then wait at least
20 minutes thereafter. The inverter surface and radiating fins are still very hot
immediately after the power is turned off, so touching the inverter in this
condition may result in skin burn(s).

• Do not perform withstand voltage test on the inverter or megger test on its control
circuit. Doing so may result in injury or damage to the equipment.

• Keep the inverter’s radiating fins from collecting dust or other foreign deposits.
Foreign deposits on the radiating fins may cause fire.

• No one other than qualified personnel should be allowed to perform maintenance
or inspection of the inverter or replace any of its parts. When performing
maintenance or inspection or replacing parts, always use insulated tools. Failure to
observe these instructions may result in electric shock or injury.

2 Safety precautions

– 7 –

• Do not disassemble or modify the inverter. Doing so may result in electric shock,
injury or damage to the equipment. Should you require inspection or repair of
internal parts, please contact the Oriental Motor branch or sales office you
purchased your inverter from.

Caution

General

• Do not use the inverter with settings beyond their specified ranges. Doing so may
result in electric shock, injury or damage to the equipment.

• Do not let conductive foreign materials (such as shavings, pins and wire offcuts)
enter the inverter. They may cause fire.

• Do not install or operate the inverter if the inverter is damaged or any of its parts
is missing. Doing so may result in fire, electric shock, injury or damage to the
equipment.

• Do not touch the inverter while operating or for a sufficient period after the
operation was stopped. The inverter is very hot while operating and immediately
after stopping, so touching the inverter in these conditions may result in skin
burn(s).

Installation

• Install the inverter on incombustible material, such as metal. Failure to do so may
result in fire.

• If the inverter is installed in a distribution panel, install a cooling fan and make
sure the ambient temperature does not rise above 50 °C. Failure to do so may
cause the inverter to overheat, resulting in fire or other accident.

• Before operating the motor, always confirm that it is securely affixed. Failure to
do so may result in damage to the equipment.

Connection and wiring

• Use of certain devices and equipment, such as large-output motors, solenoids,
high-frequency power supplies and electric welders, may cause the inverter to
malfunction. Therefore, do not share the power supply to the inverter with any of
these devices and equipment. When wiring the inverter, also separate its signal
line from power lines. Failure to observe these instructions may result in injury or
damage to the equipment.

• Confirm that the rated voltage of the inverter’s input power supply corresponds to
the voltage of the AC power source. If these voltages are different, fire, injury or
damage to the equipment may result.

• Securely tighten the screws of the main circuit terminals and I/O signal terminals.
Failure to do so may result in fire, electric shock or damage to the equipment.

• Do not connect or disconnect the inverter cables or connectors while the inverter
is receiving power. Doing so may result in electric shock, injury or damage to the
equipment.

2 Safety precautions

– 8 –

Operation

• Before turning on the power to the inverter, set the motor output selector switch to
an appropriate position according to the output of the motor to be used with the
inverter. Failure to do so may result in injury or damage to the equipment.

• Use the inverter together with one of the specified motors. Use of any other motor
may result in fire.

• Start the inverter after confirming that an emergency stop can be actuated
promptly in case of problem. Failure to do so may result in injury.

• If any abnormality is observed, immediately turn off the inverter power. Failure to
do so may result in fire, electric shock or injury.

• The motor speed can be easily changed on the inverter to a desired level from low
to high. Before starting the inverter, thoroughly check the allowable speed ranges
of the motor and equipment. Failure to do so may result in injury.

• Do not perform signal checks while the inverter is operating. Doing so may result
in damage to the equipment.

Maintenance and inspection

• Do not let your hands or body touch the inverter’s radiating fins immediately after
the inverter is stopped. It may cause skin burn(s).

• Do not connect or disconnect the inverter cables or connectors while the inverter
is receiving power. Doing so may result in electric shock, injury or damage to the
equipment.

Other

• To dispose of the inverter, disassemble it into parts and components as much as
possible and dispose of individual parts/components as industrial waste.

2 Safety precautions

– 9 –



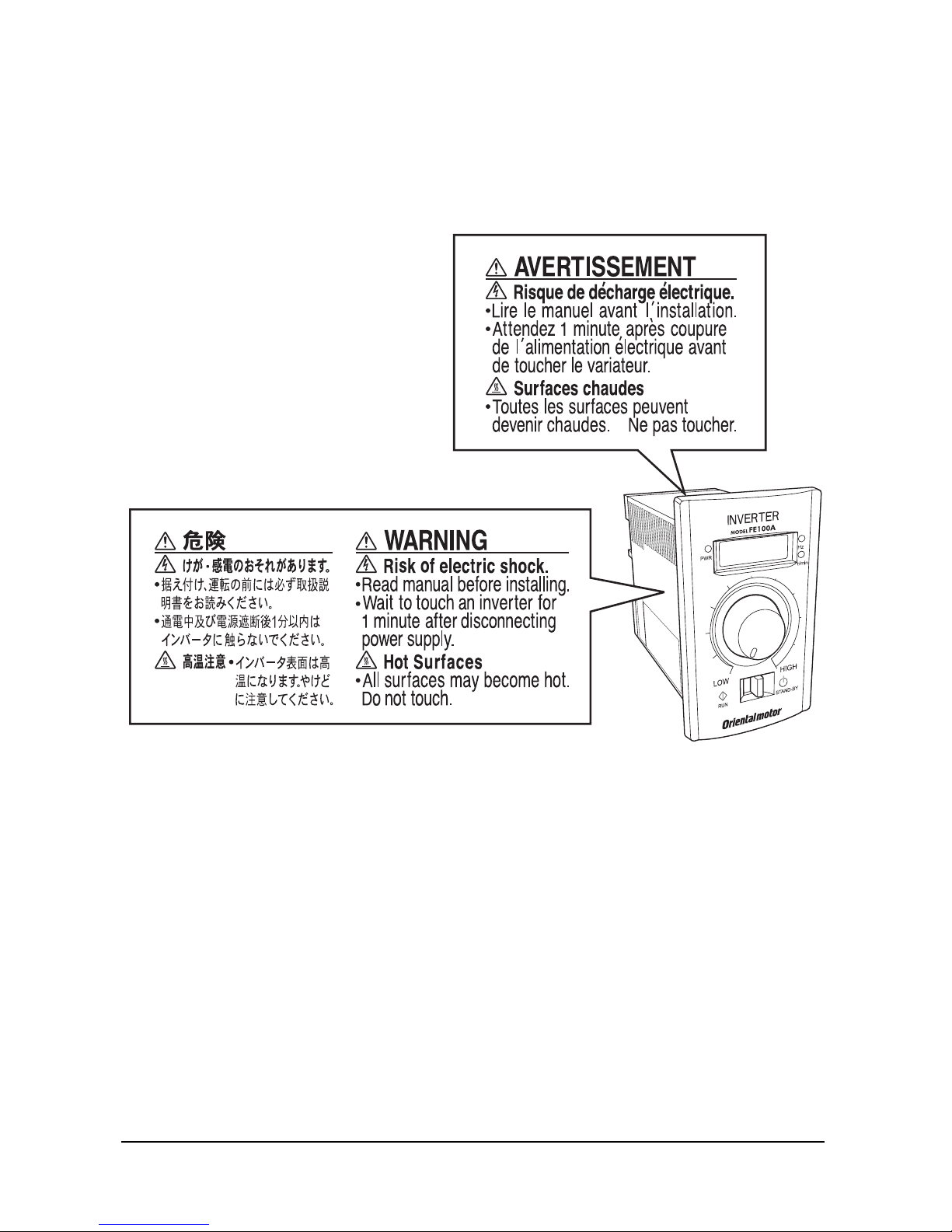

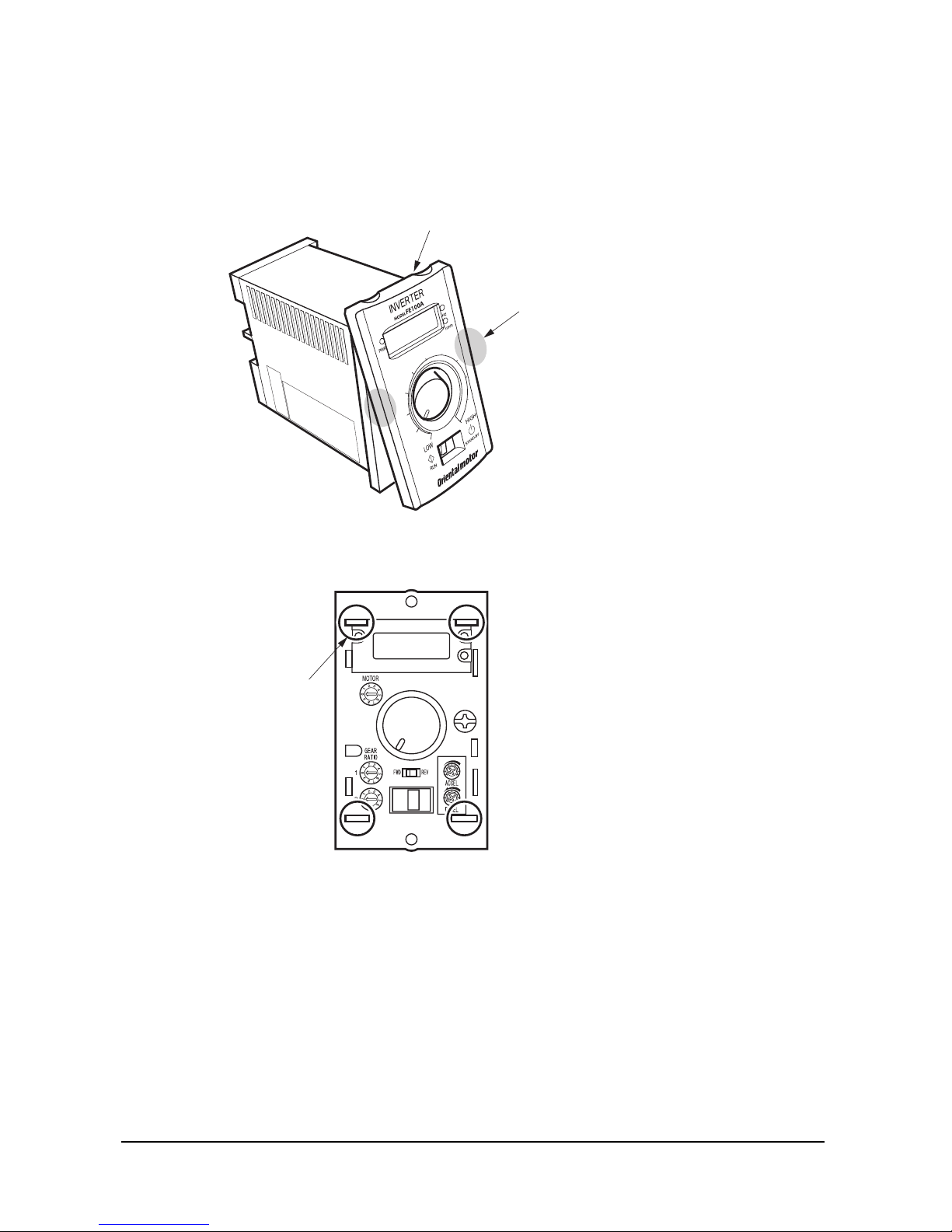

Warning labels

Labels bearing warning messages on inverter handling are found on the inverter in
the following locations (the messages are written in Japanese, English and French).
When handling the inverter, be sure to observe the instructions given on these
warning labels.

3 Precautions for use

– 10 –

3 Precautions for use

This chapter explains the limitations and other items the user must note when using
the inverter.



Selection

• Always use the inverter with Oriental Motor’s three-phase motor. Check the
permitted inverter/motor combinations in 4.2, “Motor/Inverter combinations” on
p.15.

• If a large-capacity power transformer (600 kVA or more) is connected to the
inverter, always install a DC reactor. Installing a DC reactor will improve the
power factor of the power supply. If any thyristor converter, such as a DC drive, is
connected to the inverter’s power supply, always install a DC reactor regardless of
the condition of power supply. For the peripherals that should be used with the
inverter, refer to 11.3 “Recommended peripherals” on p.58. Installing a DC
reactor will lower the DC voltage of the inverter’s main circuit. Therefore, in a
high-speed range the motor torque may drop and thereby cause the inverter’s
output current to rise beyond the rated output current.
Therefore, if you are connecting a DC reactor, keep the load to 80% of the
allowable torque or below so as not to cause the output current to exceed the rated
current.

• The explanations given in this manual assume an operating configuration
consisting of one motor and one inverter. If you need to operate multiple motors
with one inverter, please contact our Customer Service Center.

• Upon detection of abnormality, an appropriate protective function of the inverter
will actuate to automatically stop the inverter output. However, the inverter’s
protective functions cannot stop the motor quickly enough to ensure higher levels
of safety for your equipment. If your equipment requires an emergency-stop
function, provide a mechanical means for stopping the motor/retain the load.



Installation

• When installing the inverter, select a place with clean air free from oil mist, cotton
fly, dust or other suspended matters. Also, install the inverter in a fully sealed
enclosure that shuts out any suspended matters. If the inverter is installed in a
panel, select an appropriate cooling method and enclosure dimensions to keep the
inverter ambience from exceeding the allowable temperature.

• So that the heat generated from the inverter can be effectively exhausted, always
install the inverter vertically with the display side facing up. For the installation
method, refer to 5.2 “Installation condition” on p.22.

3 Precautions for use

– 11 –



Handling

• Impressing voltage on the motor terminals (U, V and W) on the rear of the
inverter may damage the inverter. Before turning on the power, confirm that the
power supply is wired correctly.

• If an electromagnetic contactor is connected between the power supply and
inverter, do not start or stop the inverter using the electromagnetic contactor.
Doing so may damage the inverter.



Peripherals

Installation and selection of protective devices

Install a protective device between the power supply and inverter to protect the
inverter’s primary circuit. For details on selecting an appropriate protective device
for this purpose, refer to 11.3 “Recommended peripherals” on p.58. Since a fully
electromagnetic molded-case circuit breaker can change the operating characteristics
of the inverter by generating harmonic current, select a breaker with a large capacity
if this type of circuit breaker is used. In the case of an earth-leakage breaker, use of a
special earth-leakage breaker for inverter, or a general earth-leakage breaker with a
current sensitivity of 200 mA or more, is recommended.

Use of an electromagnetic contactor between the power supply and
inverter

The inverter can be used without an electromagnetic contactor between the power
supply and inverter. An electromagnetic contactor is sometimes installed between
the power supply and inverter for the purpose of preventing the inverter from
starting automatically upon recovery from a momentary power outage. In this case,
do not use the electromagnetic contactor to start or stop the inverter. Doing so may
damage the inverter.
If an electromagnetic contactor is installed between the inverter and motor, as a rule
do not turn on/off the inverter power while the motor is operating. If an
electromagnetic contactor is provided to switch between the mains and other power
source, always stop the inverter and motor before switching to the mains.
If an electromagnetic contactor is used as a safety device in the event of momentary
power outage, use a delayed-release type electromagnetic contactor.



Improvement of power factor (Elimination of phase-advanced
capacitor)

To improve the power factor of the inverter, connect a DC reactor to the reactor
terminals on the inverter. Connecting a capacitor or surge killer to the inverter’s
output side for the purpose of improving the power factor may generate harmonics
in the inverter output, thus causing the motor to overheat or sustain damage. Also,
overcurrent may flow into the inverter and activate the inverter’s overcurrent
protection function. Therefore, do not connect a capacitor or surge killer to the
inverter.

3 Precautions for use

– 12 –



Radio interference

The inverter’s main circuit generates harmonics. Therefore, communication
equipment used near the inverter may suffer from radio interference. To minimize
the radio interference caused by the inverter, install a mains filter to the inverter
circuit. Radio interference can also be suppressed by housing the cables between the
inverter and motor/power supply in metal ducts and ground the metal ducts.



Cable size and wiring distance

Use a power cable of AWG14 (2.0 mm2) in size. For the wiring between the inverter
and motor, always use a dedicated optional cable (p.57). The maximum wiring
distance between the inverter and motor is 20 m (65.6 ft.) including extensions. If
the wiring distance between the inverter and motor must exceed 20 m (65.6 ft.),
please contact our Customer Service Center.
When operating the inverter via external input signals, keep the control lines as short
as possible. Also, wire the control lines away from the main circuits, relay sequence
circuits and other high-power circuits of peripherals, in order to prevent induction by
peripherals.



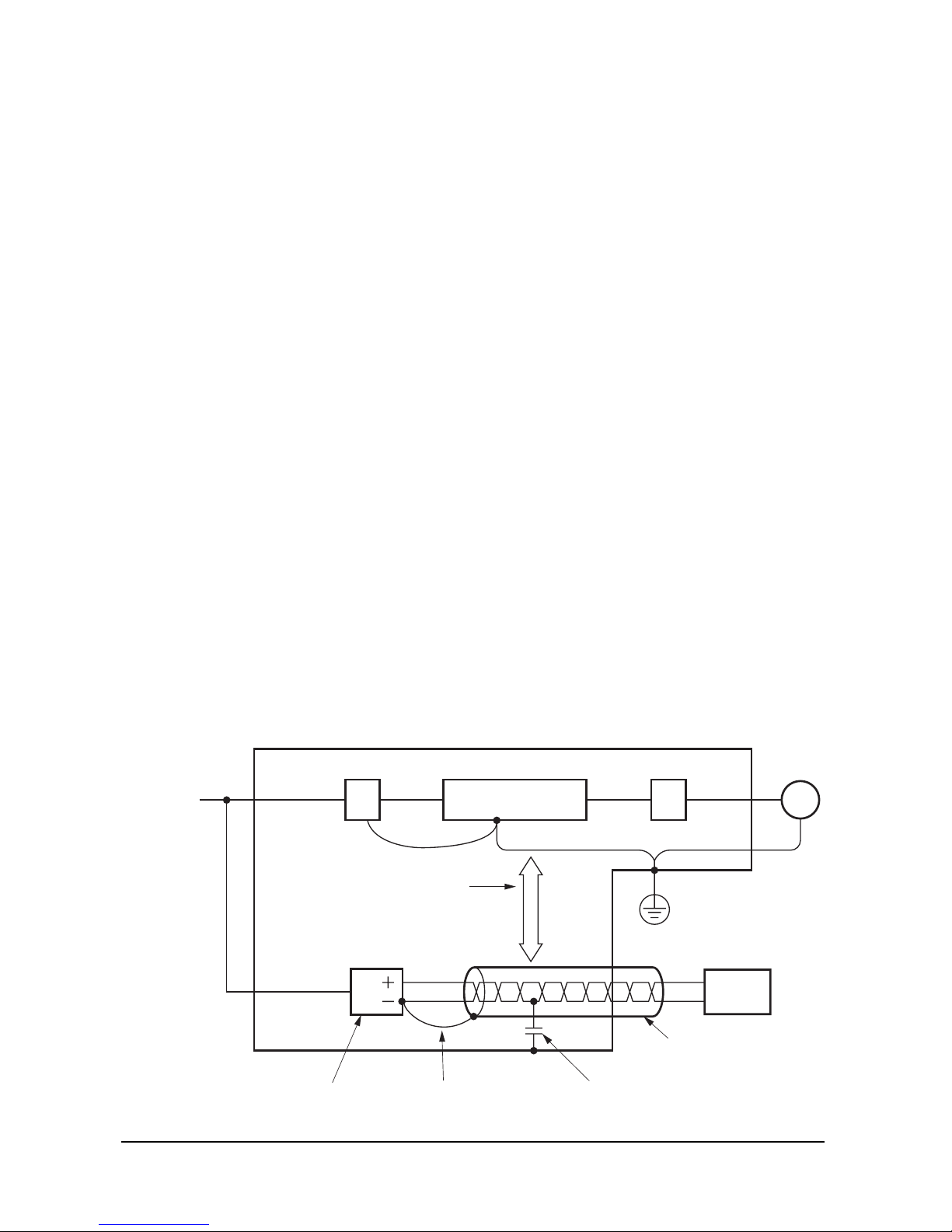

Noise elimination

This inverter adopts PWM control based on high carrier frequency and is therefore
subject to higher levels of electromagnetic noise. Eliminate noise by referring to the
following examples.

• Connect a mains filter to prevent sensor malfunctions and also eliminate AM radio
noise.

• To prevent negative effects by the inductive noise from the inverter’s power lines,
wire the inverter’s signal lines using twisted-pair shielded cables at least 300 mm
(11.8 in.) away from the power lines.

Use a twisted-pair
shielded cable

Ground the shielded

cable to 0 V

Connect a capacitor (0.1 µF)Do not ground the sensor

through the inverter

Mains filterMains filter

Keep a minimum distance of
300 mm (11.8 in.) between
the inverter's power lines
and signal lines

Power
supply

Sensor

Inverter circuit M

Enclosure

Sensor power supply

3 Precautions for use

– 13 –



Countermeasure against harmonic leak current

Stray capacitance exists between the inverter’s power lines and other power lines,
the ground or the connected motor. Harmonic leak current may flow from the
inverter to the motor or peripherals through this stray capacitance, giving unwanted
effects to the motor/peripherals. Since leak current is determined by the wiring
distance between the inverter and motor and also by the inverter’s carrier frequency,
provide the following measures to minimize leak current.

• Use an earth-leakage breaker incorporating harmonic elimination measures (refer
to “Recommended peripherals” on p.58).

• Set the carrier frequency to 10 kHz using the carrier-frequency selector switch
provided on the rear of the inverter.

• Connect a zero-phase reactor (p.58).

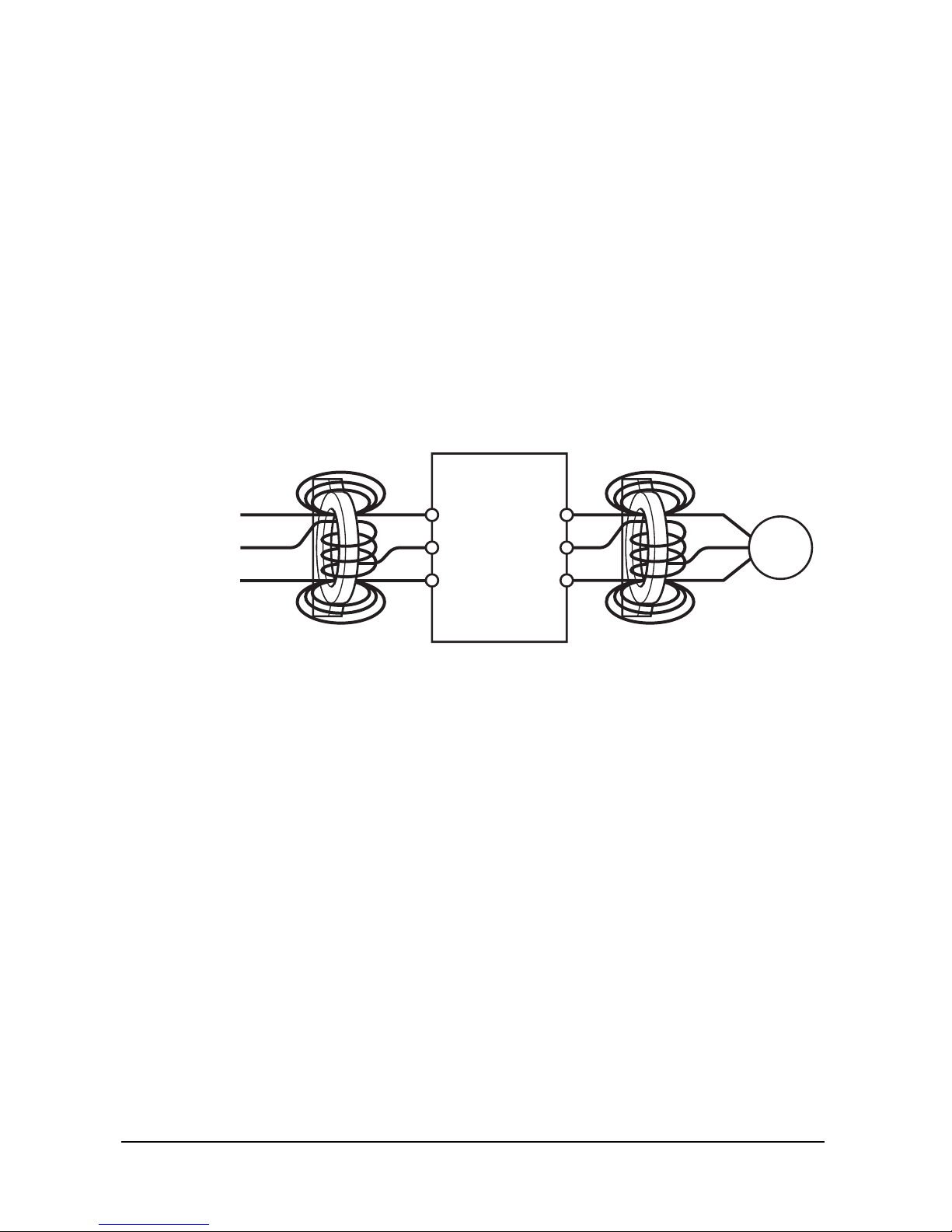

A zero-phase reactor can be connected to either the output or input side of the
inverter. It also has the effect of reducing noise.

FE inverter

Zero-phase reactor Zero-phase reactor

Power
supply

M

L1

L2

L3

R

S

T

U

V

W

Wrap R/S/T and U/V/W lines around cores three times each.

4 Preparation

– 14 –

4 Preparation

This chapter explains the items the user should check before using the inverter, as
well as the name and function of each part of the inverter.

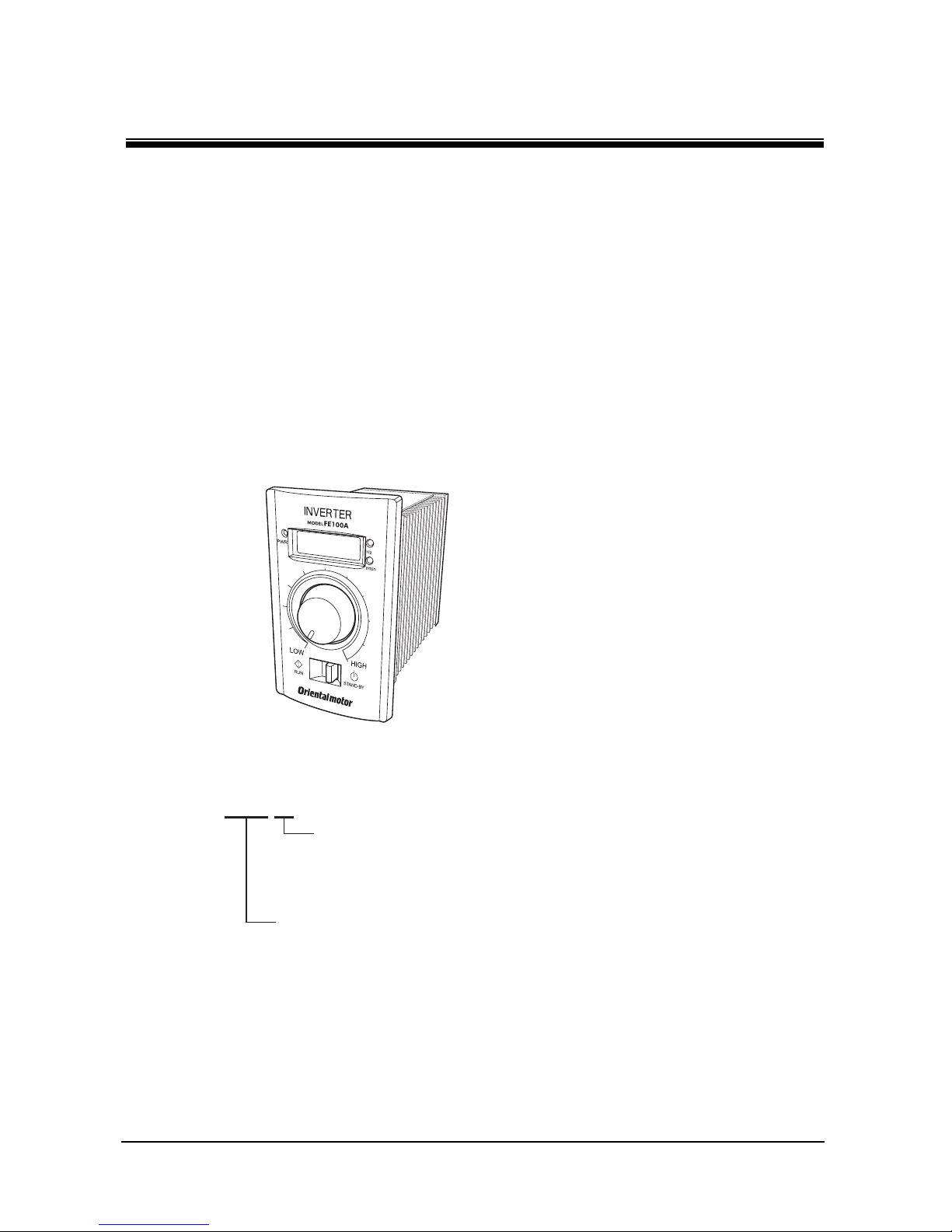

4.1 Checking the inverter

Confirm that both of the items shown below are included.
If you find either of them missing or damaged, please contact the Oriental Motor
branch or sales office you purchased your inverter from.
Check the inverter model specified on the nameplate. For the motors that can be
used with the FE100/FE200 inverter, refer to 4.2 “Motor/Inverter combinations” on
p.15.

• Inverter 1 unit • Operation manual 1 copy

• Instruction Sheet 1 copy



Meaning of the model number

FE 100 A

Power supply input

A: Single-phase, 100-120 V
C: Single-phase, 200-240 V
S: Three-phase, 200-240 V

Maximum supported motor capacity

100: 100 W
200: 200 W

4 Preparation

– 15 –

4.2 Motor/Inverter combinations

The FE100/FE200 inverter can be used with the motors listed in the table below.
Some motor models are shown with  represents a number indicating the applicable
gearhead gear ratio.
Set the motor output selector switch correctly by referring to 7.1 “Setup before
operation” on p.37.

Compatible motors∗1

Inverter model

Motor model

Series Type

Motor

output

(W)

Pinion shaft

∗2

Round shaft

FE100A
FE100C

FE100S

FE200A
FE200C

FE200S
2IK6GN-SW2B 2IK6A-SW2B
2IK6SB-S −

6

2IK6GN-SWT 2IK6A-SWT

 −

25

4IK25GN-SW2T
4IK25GN-SWT
4IK25SB-S

4IK25A-SW2T
4IK25A-SWT
4IK25A-SW2B

 

40

5IK40GN-SW2T
5IK40GN-SWT
5IK40SB-S

5IK40A-SW2T
5IK40A-SWT
5IK40A-SW2B

 

60

5IK60GE-SW2T
5IK60GU-SWT

5IK60A-SW2T
5IK60A-SWT

 

Terminal
box type

90

5IK90GE-SW2T
5IK90GU-SWT

5IK90A-SW2T
5IK90A-SWT

 

6

2IK6GN-SW2
2IK6GN-SW

2IK6A-SW2
2IK6A-SW

 −

15 3IK15GN-SW2 3IK15A-SW2  −

25

4IK25GN-SW2
4IK25GN-SW

4IK25A-SW2
4IK25A-SW

 

40

5IK40GN-SW2
5IK40GN-SW

5IK40A-SW2
5IK40A-SW

 

60

5IK60GE-SW2
5IK60GU-SW

5IK60A-SW2
5IK60A-SW

 

World K

Lead wire
type

90

5IK90GE-SW2
5IK90GU-SW

5IK90A-SW2
5IK90A-SW

 

∗1 All compatible motors are recognized by UL and certified by CSA (UL File Nos. E64197,

E64199).
Applicable standards UL 1004, UL 2111, CSA C22.2 No.77, CSA C22.2 No.100

∗2 The World K series IP65 terminal box type, V series, BH series and FH series are

combination motors, while the FPW series consists of geared motors.

4 Preparation

– 16 –

Compatible motors∗1

Inverter model

Motor model

Series Type

Motor

output

(W)

Pinion shaft

∗2

Round shaft

FE100A
FE100C

FE100S

FE200A
FE200C

FE200S

25 VHI425ST- −  

40 VHI540ST- −  

60 VHI560ST- −  

Terminal
box type

90 VHI590ST- −  

25 VHI425S- −  

40 VHI540S- −  

60 VHI560S- −  

V

Lead wire
type

90 VHI590S- −  

25

FPW425S2-
FPW425S-

−  

40

FPW540S2-
FPW540S-

−  

60

FPW560S2-
FPW560S-

−  

FPW Cable type

90

FPW690S2-
FPW690S-

−  

BH Terminal

box type

200

BHI62ST-
BHI62ST-RH
BHI62ST-RA
BHI82ST-

BHI62ST-A

− 

40 FH44ST-S −   FH Terminal

box type

120 FH512ST-S − − 

∗1 All compatible motors are recognized by UL and certified by CSA (UL File Nos. E64197,

E64199).
Applicable standards UL 1004, UL 2111, CSA C22.2 No.77, CSA C22.2 No.100

∗2 The World K series IP65 terminal box type, V series, BH series and FH series are

combination motors, while the FPW series consists of geared motors.

4 Preparation

– 17 –

4.3 Name and function of each part



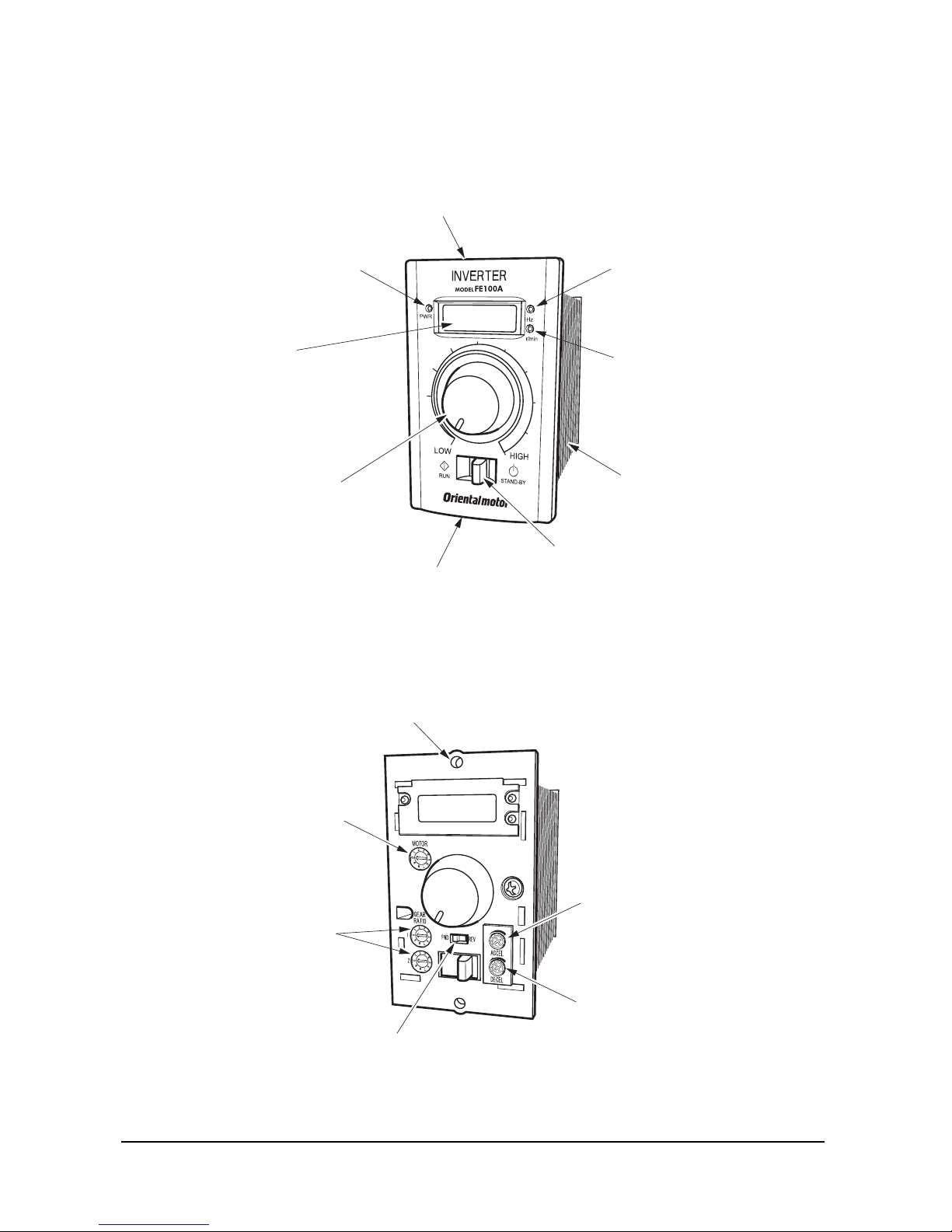

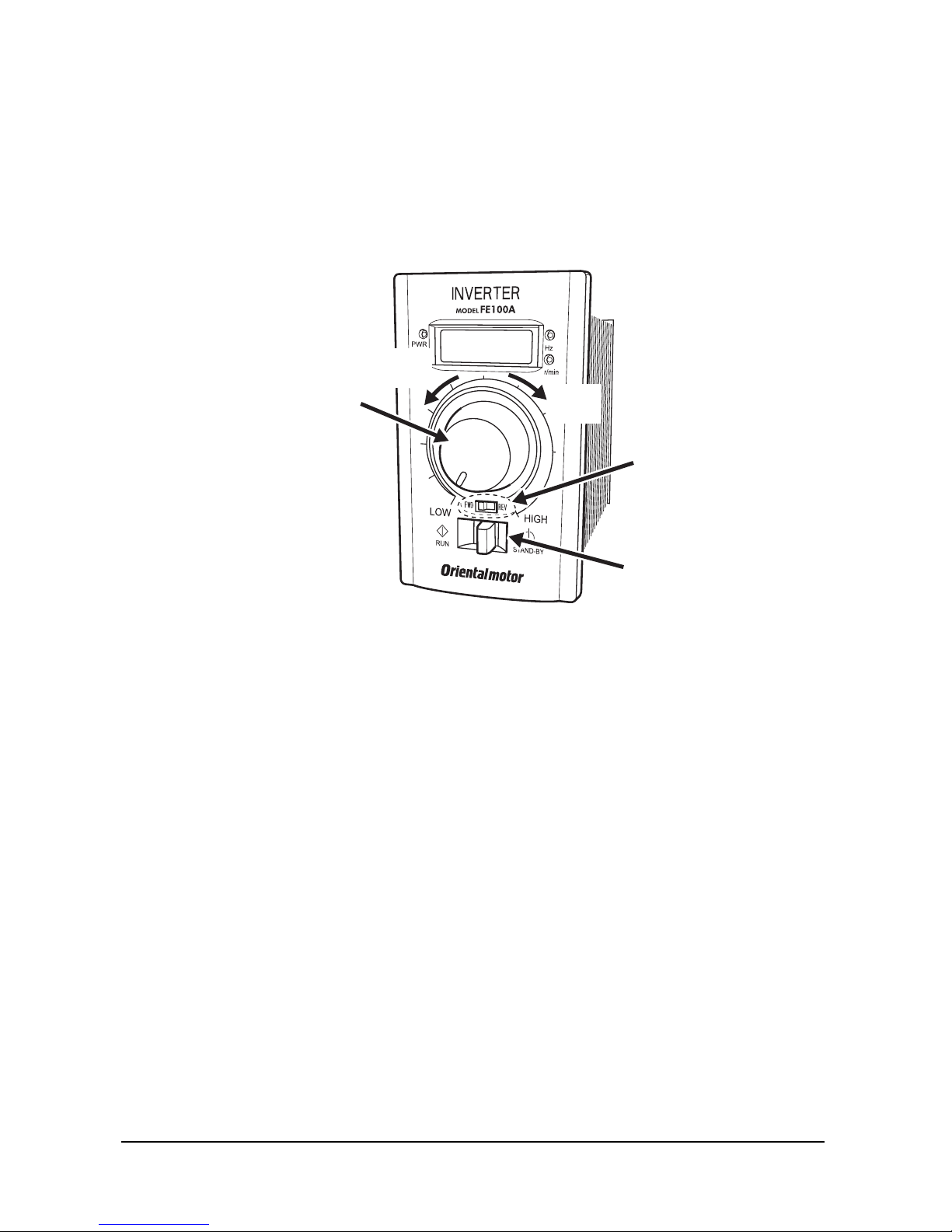

Front view of the inverter

Speed display

The set frequency and speed of
the motor, as well as the alarm
code, if any, are displayed.

Speed potentiometer

This potentiometer is used
to adjust the motor speed.

Vent holes (bottom)

∗Vent holes are also provided
on the opposite side of the
radiating fins.

POWER LED

A green lamp illuminates
when the power is turned on.

RUN/STAND-BY switch

This switch is used to run/stop
the motor.

Radiating fins

Set frequency display LED

An orange light is lit while
a frequency is displayed.

Set speed display LED

An orange light is lit while
an rpm value is displayed.

Front panel

• When the front panel is removed

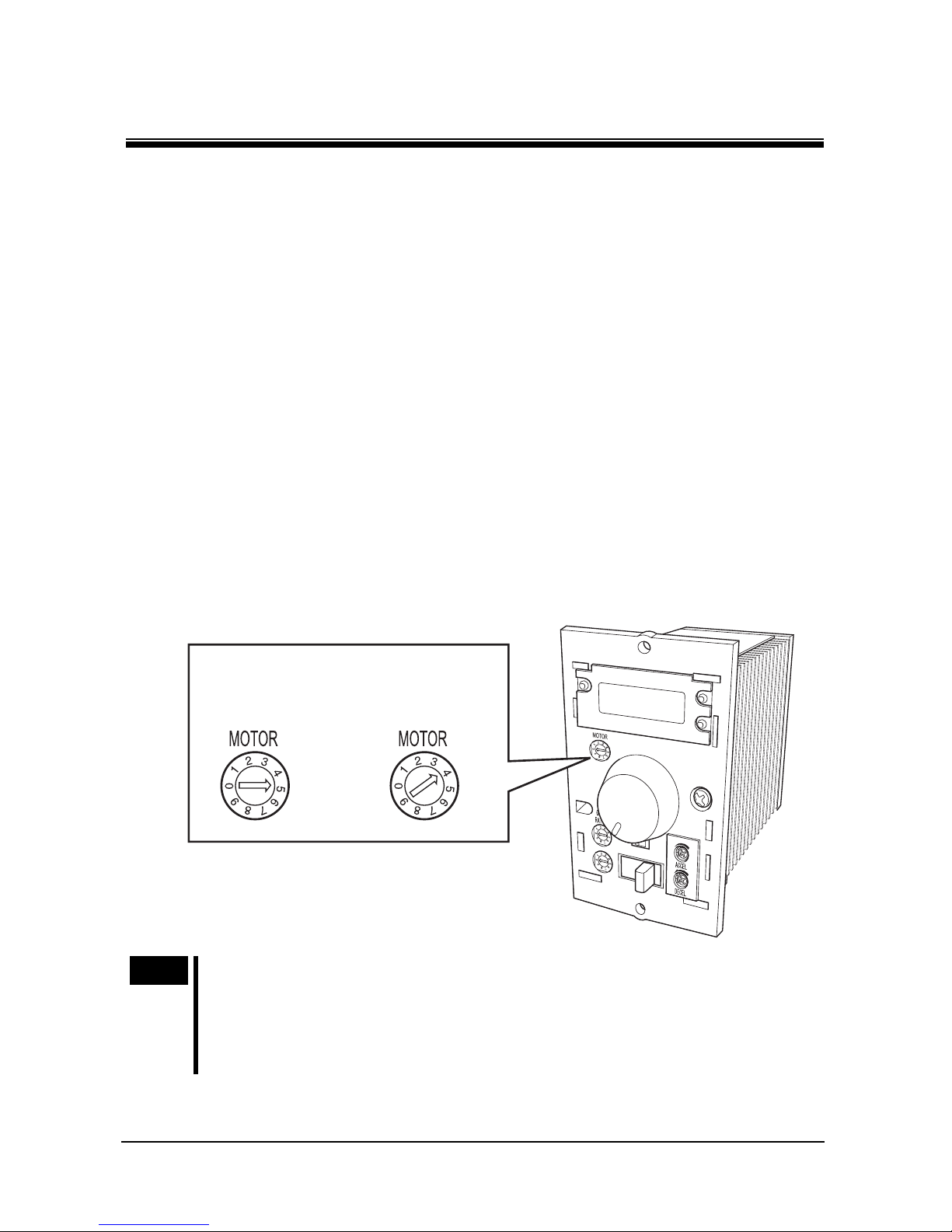

Motor output selector switch

This switch is used to set the
motor output.

Mounting hole

Deceleration-time potentiometer

This potentiometer is used to set
the motor deceleration time.

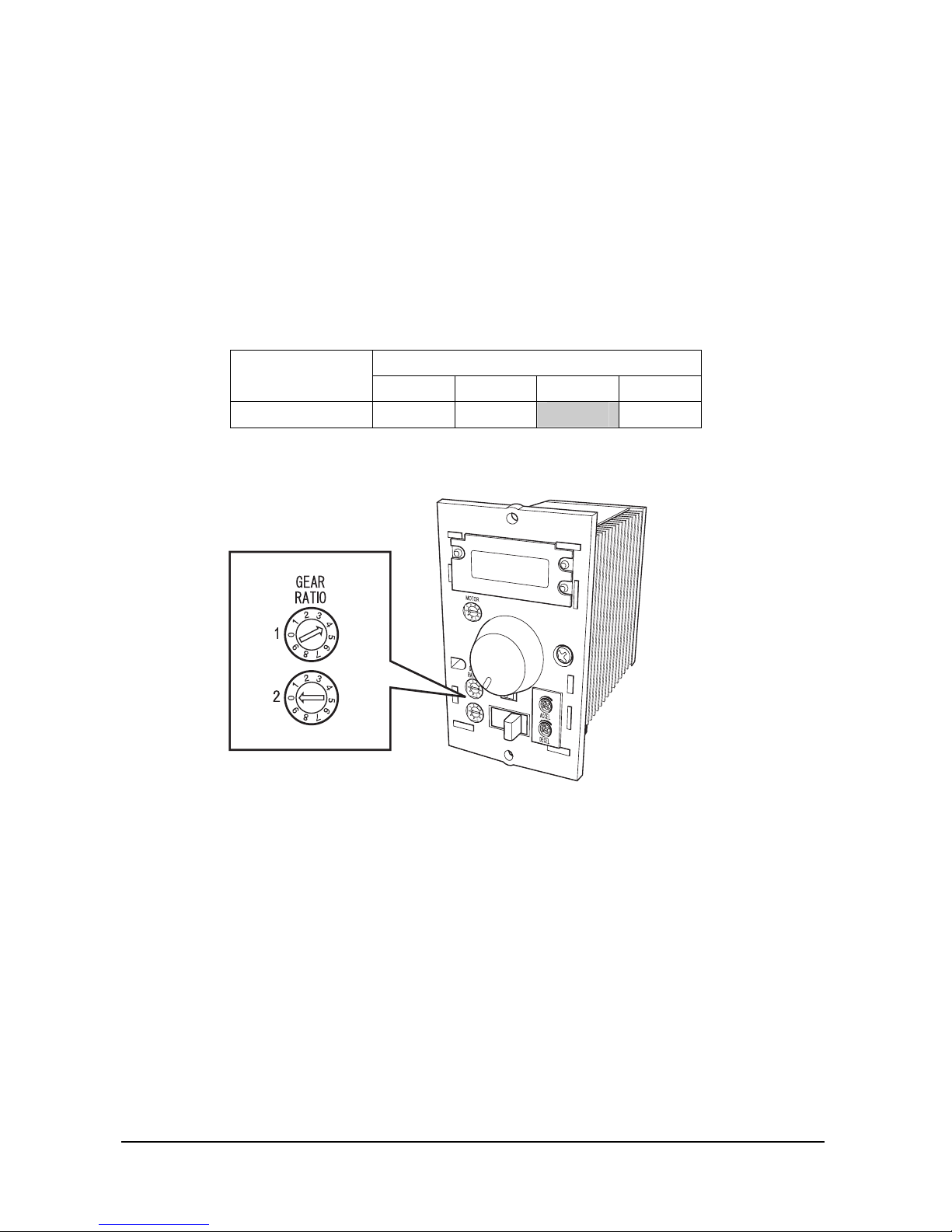

Gear ratio setting switches

These switches are used to set
the gearhead gear ratio. The set
speed is converted to a gear
output shaft speed and displayed.

Motor output selector switch

This switch is used to set the
motor output.

Acceleration-time potentiomete

r

This potentiometer is used to set
the motor acceleration time.

Refer to p.39.

Refer to p.39.

Refer to p.40.

Refer to p.38.

Refer to p.46.

Refer to p.44.

Refer to p.44.

4 Preparation

– 18 –



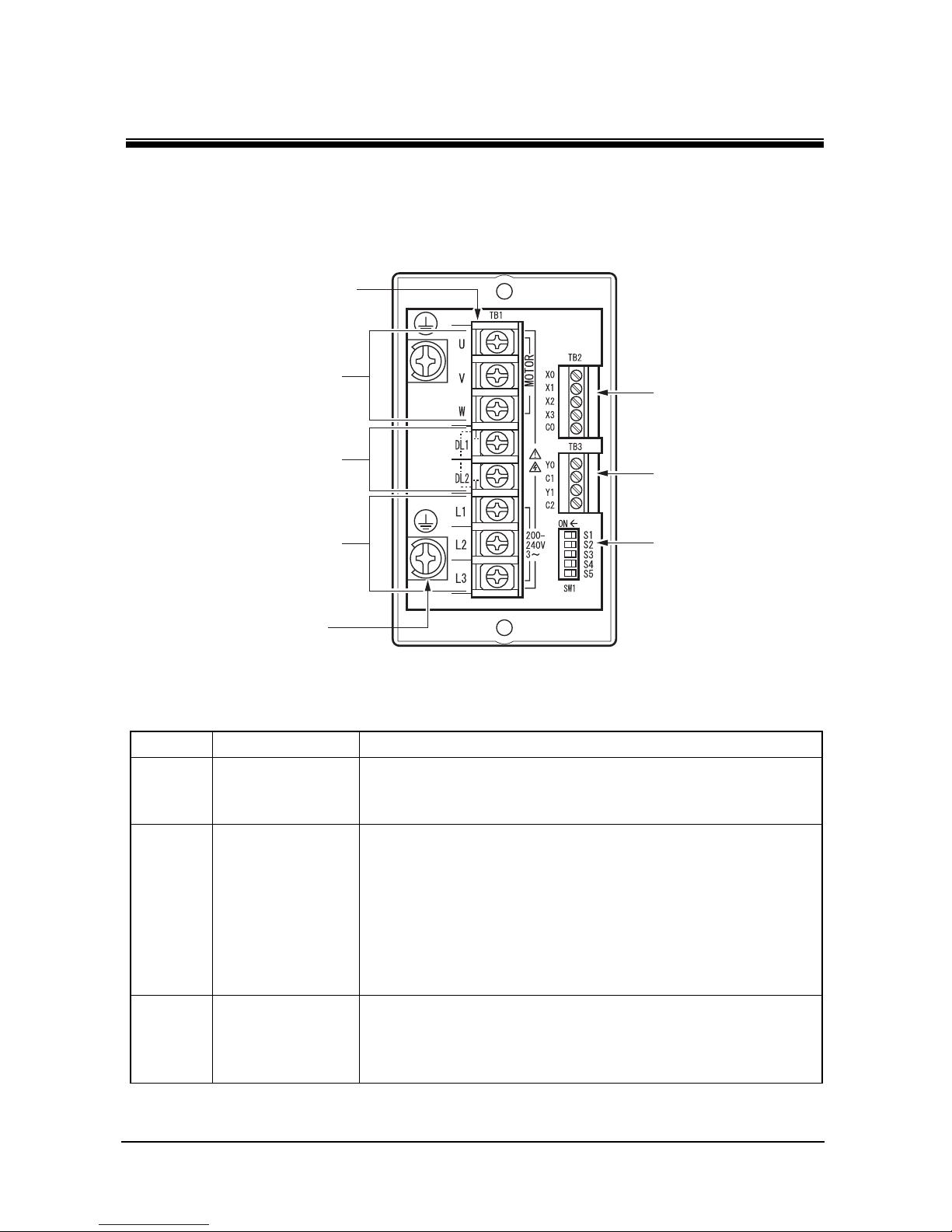

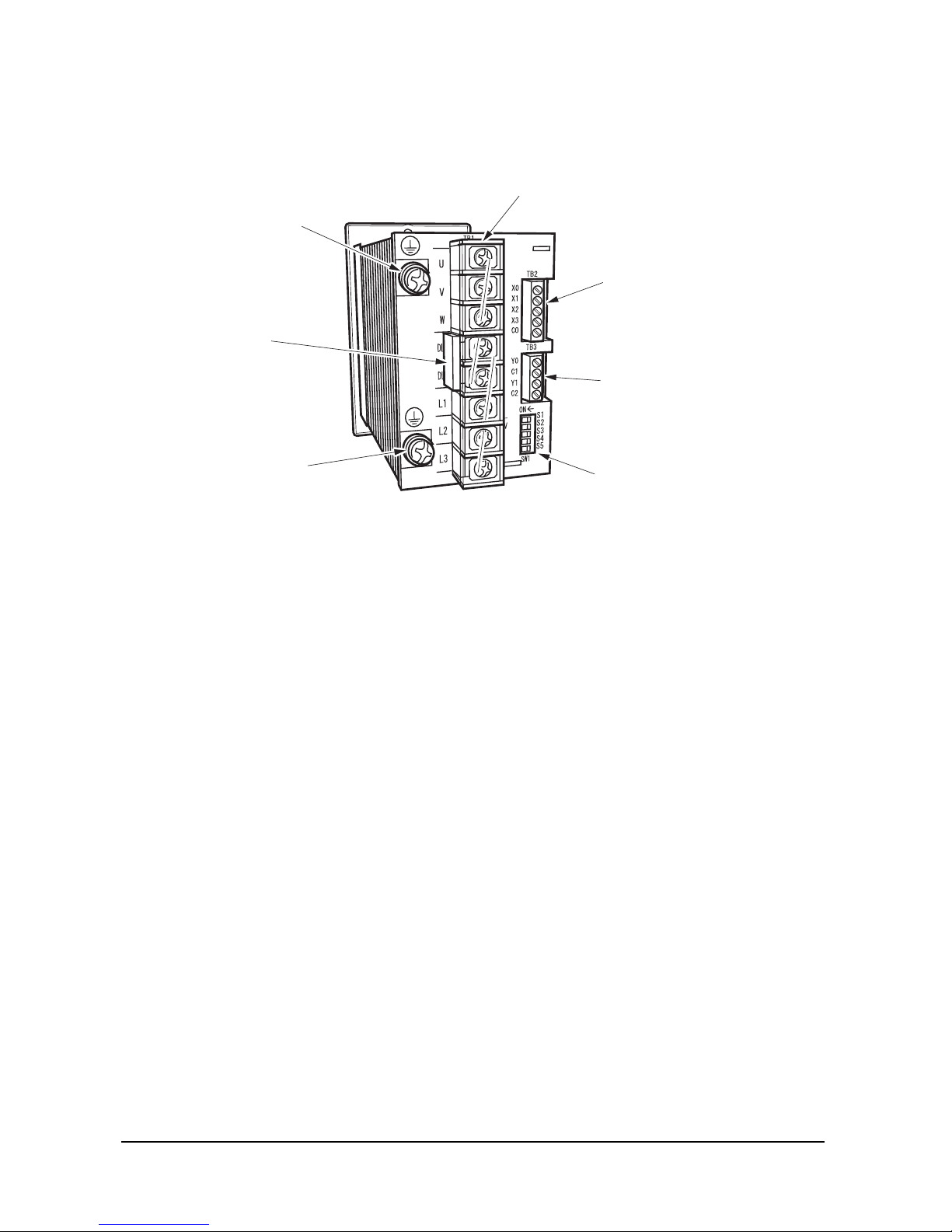

Rear view of the inverter

SW1: DIP switches

Use these switches for
various settings.

Protective Earth
Terminal

Protective Earth
Terminal

Shorting bar

The inverter is shipped
with these terminals
shorted by a shorting bar.

TB1: Main circuit terminals

Connect the motor, DC reactor
and power supply to these terminals.

TB2: Input signal terminals

Connect input signals to these
terminals.

TB3: Output signal terminals

Connect output signals to these
terminals.

Refer to p.28.

Refer to p.28.

Refer to p.28.

Refer to p.27.

Refer to p.27.

Refer to p.27.

Refer to p.27.

4 Preparation

– 19 –

4.4 Removing/installing the front panel

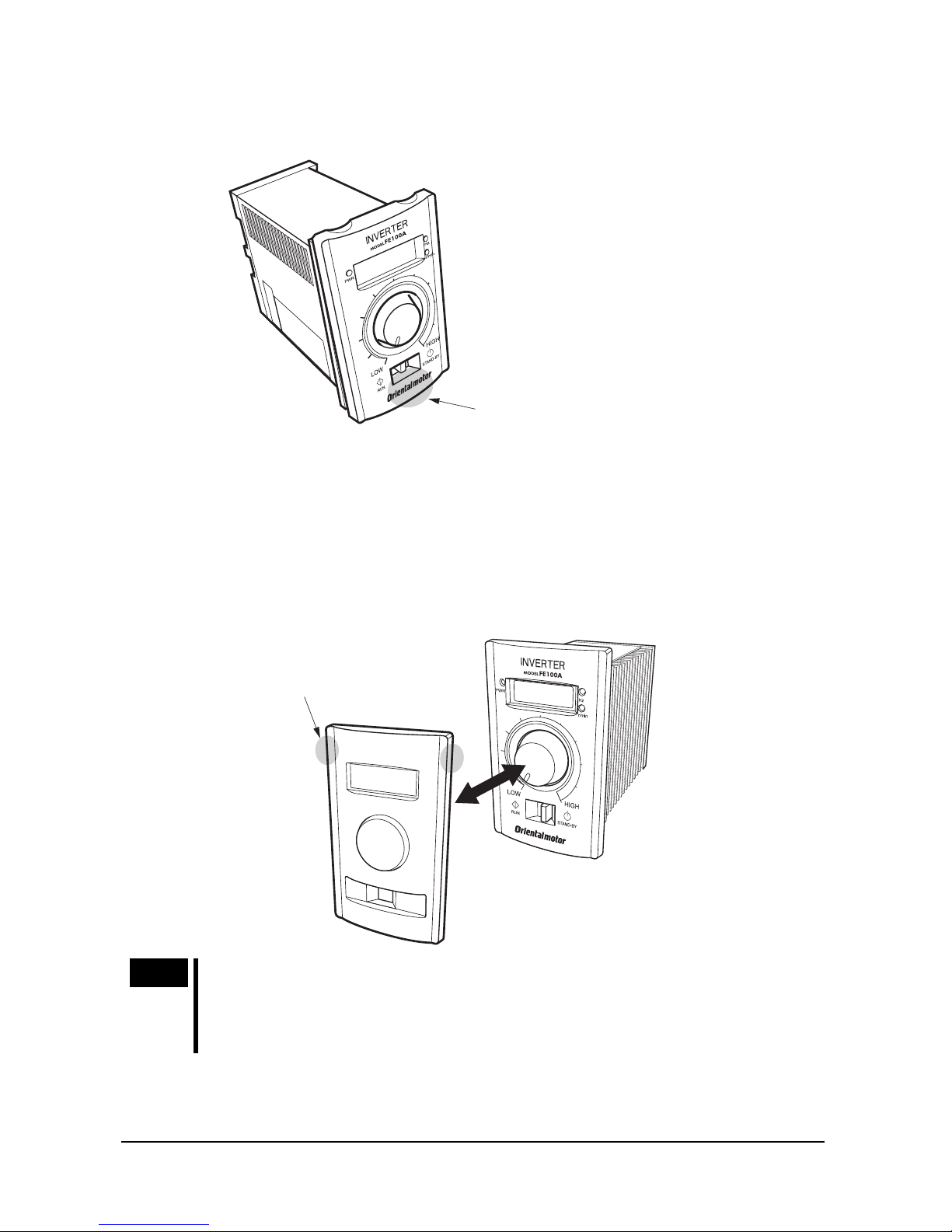

• How to remove the front panel

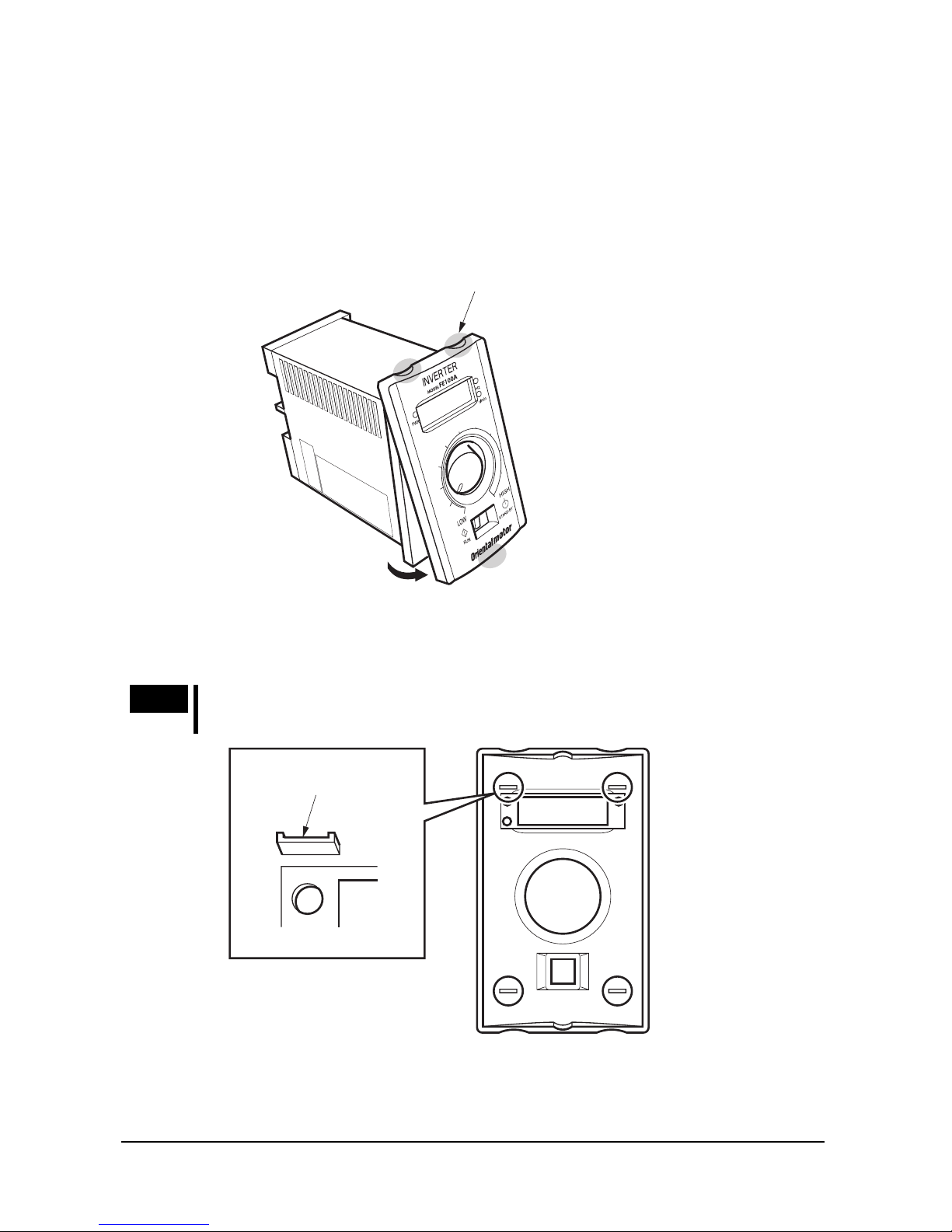

1. Press the top (2 locations) and bottom (1 location) of the front panel

with you fingers and detach the bottom of the panel.

Press the top (2 locations) and
bottom (1 location) with your fingers.

Detach the bottom of
the front panel.

2. Once the bottom is detached, slide the front panel slightly upward to

release the hooks at the back of the panel.

The front panel will come off.

Note

You cannot force open the top of the front panel first. Applying a force to
the top side first may damage the front panel.

Hook

∗ There are a total of four hooks, including two at the top and two at the bottom.

4 Preparation

– 20 –

• How to install the front panel

1. Hold both sides of the front panel and hook it onto the top edge of the

inverter’s front face.

Hold both sides of
the front panel.

Hook the front panel onto the
top edge of the inverter's front face.

2. Guide the two upper hooks at the back of the front panel to engage with

the corresponding holes in the inverter body.

Hook hole

4 Preparation

– 21 –

3. Insert the two lower hooks into the corresponding holes.

Push in the bottom of the front panel until a “click” is heard.

Push in the bottom of the front
panel until a click is heard.

4.5 Installing/removing the front cover (sold separately)

• How to install the front cover

Install the front cover on the front panel by fitting it from the front side.

• How to remove the front cover

Hold both ends of the front cover at the top and pull out the cover.

To remove the front cover,
hold both ends of the cover
at the top and pull out the cover.

Note

The front cover cannot be removed properly if pressure is applied to both
the top and bottom or only to the bottom of the cover. Particularly when
both the top and bottom of the front cover are held, the front panel will
come off together with the front cover.

5 Installation

– 22 –

5 Installation

5.1 Installation location

This inverter is designed and manufactured for installation in equipment.
Install it in a well-ventilated place satisfying the following conditions, where the
inverter can be inspected easily:

• Inside an enclosure

• Ambient temperature: −10 to +50 °C

(+14 to +122 °F) (non-freezing)

• Ambient humidity: 95% or less
(non-condensing)

• Free from explosive or toxic gases
(sulfide gas, etc.) or liquids

• Not exposed to the direct sunlight

• Not subject to significant dust, iron

powder, etc.

• Not subject to water (rain or water
droplets), oil (oil droplets) or other liquids

• Not subject to air of high salt content

• Not subject to continuous vibration or

excessive impact

• Not subject to significant electromagnetic
noise (near a welder, power equipment,
etc.)

• Free from radioactive materials, magnetic
fields or vacuum

• Altitude of 1000 m or below

5.2 Installation condition

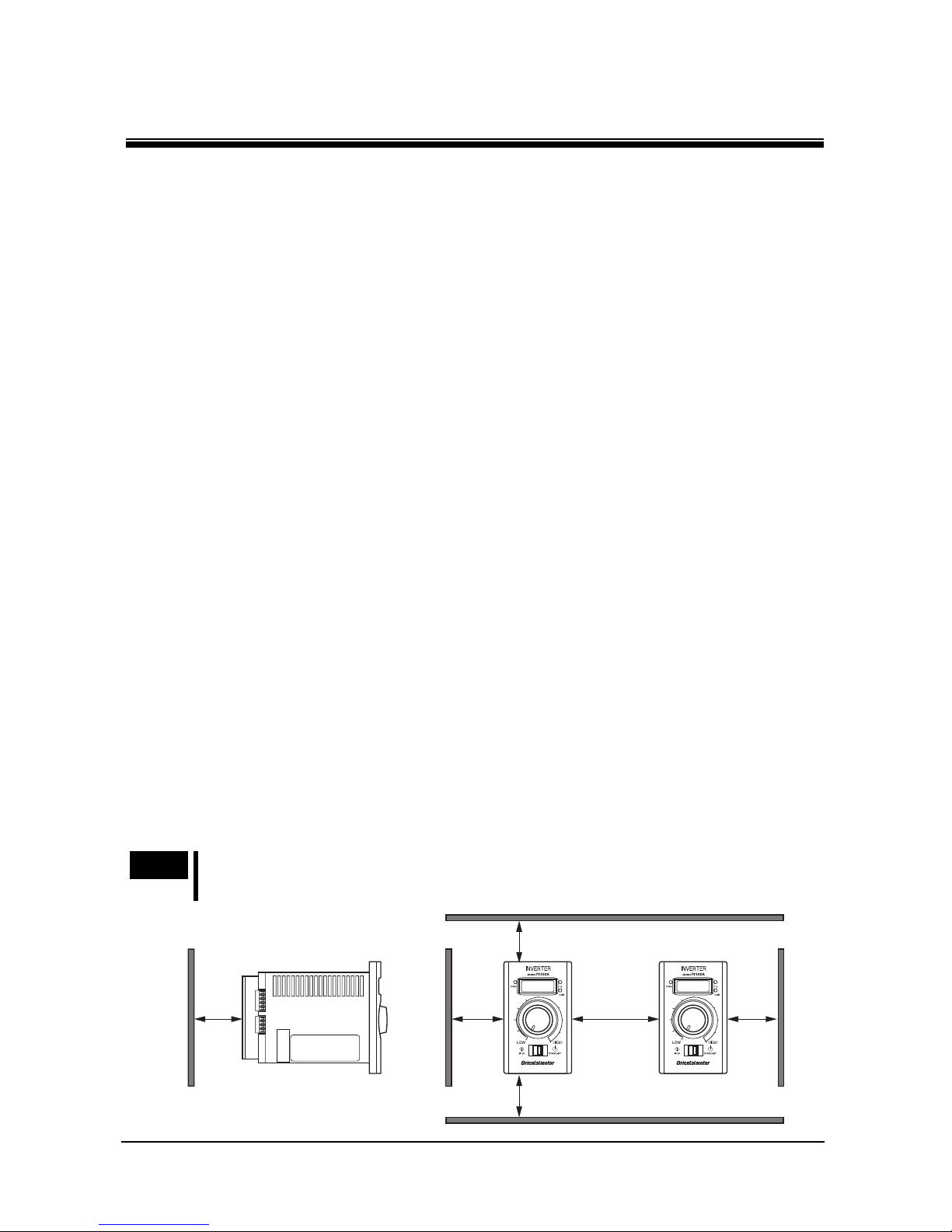

The inverter generates heat. So that the heat generated from the inverter can be
exhausted efficiently, always install the inverter vertically, as shown below. The
inverter should also be installed on a flat metal plate offering excellent vibration
resistance.
Provide a minimum clearance of 30 mm (1.18 in.) in the horizontal direction, or
100 mm (3.94 in.) in the vertical direction, between the inverter and its enclosure or
other equipment inside the enclosure. If two or more inverters are installed side by
side, provide a minimum clearance of 30 mm (1.18 in.) in the horizontal direction,
or 100 mm (3.94 in.) in the vertical direction, between the adjacent inverters.

Note

Do not block the radiating fins or vent holes on the sides and bottom of
the inverter.

30 (1.18)

or more

30 (1.18)

or more

100 (3.94) or more

Unit: mm (in.)

30 (1.18)

or more

100 (3.94) or more

20 (0.79)

or more

5 Installation

– 23 –

5.3 Installation method

Note

• Do not install equipment generating large amounts of heat or high levels

of noise around the inverter.

• If the ambient temperature of the inverter exceeds 50 °C (122 °F),

review the ventilation condition or use a fan to cool the inverter.

1. Open square holes in the metal mounting plate.

2. Remove the inverter’s front panel.

(Refer to 4.4 “Removing/installing the front panel” on p.19.)

3. Use the two mounting holes opened earlier to affix the inverter with

screws (M4 pan-head screw: not supplied with the inverter) and nuts.
Securely tighten the screws/nuts by making sure no gaps remain
between the inverter and metal plate.

Tightening torque: 0.4 to 0.7 N·m (56 to 99 oz-in)

Note

The distance between the inverter’s end face and the front panel is

4.5 mm (1.77 in.). Therefore, do not allow the screw heads to project
more than 4.5 mm (1.77 in.) from the inverter’s end face. If the screw
heads project more than 4.5 mm (1.77 in.), the front panel cannot be
installed.

4. Install the front panel.

(Refer to 4.4 “Removing/installing the front panel” on p.19.)

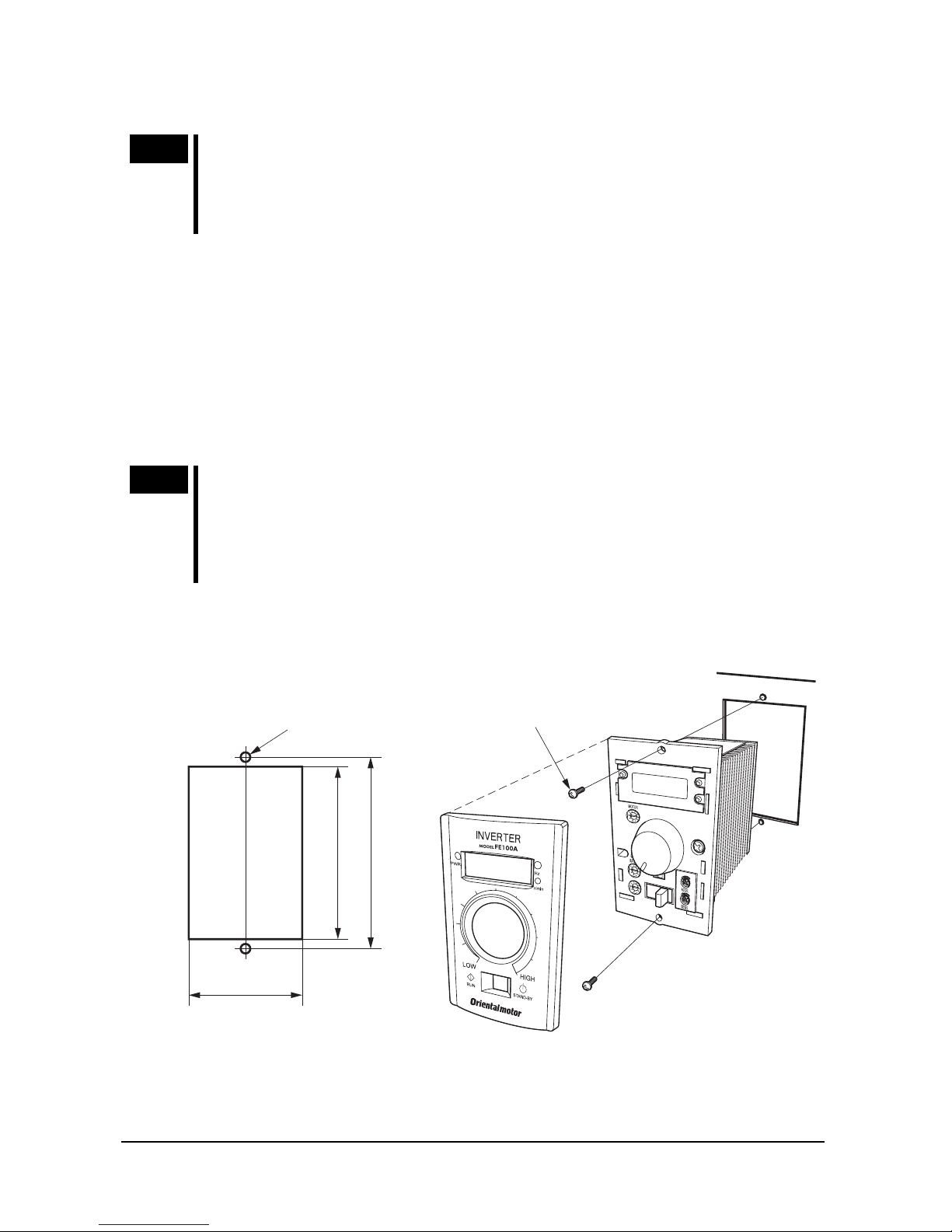

• Metal panel dimensions
[Unit: mm (in.)]

• Installation method

Pan-head screw (2 pcs.×M4)
(Not supplied with the inverter)

2×Ø4.5 (Ø0.18)

90

±0.2

(

3.54

±0.008

)

53 (2.09 )

+ 1
0

+ 0.04
0

81 (3.19 )

+ 1

0

+ 0.04

0

Installing the motor

Install the motor by referring to the operating manual for the motor.

5 Installation

– 24 –

5.4 Installing and wiring in compliance with EMC
Directive



EMC Directives (89/336/EEC, 92/31/EEC)

This inverter is designed and manufactured for installation in equipment. The
requirements of the EMC Directives must be satisfied by the user’s equipment in
which the inverter is assembled.
The following explains the basic methods for installing/wiring the inverter that are
effective in achieving conformance to the EMC Directives by your mechanical
equipment.
Please note that the final conformance of your mechanical equipment to the EMC
Directives will be determined, among others, by the configuration, wiring,
installation condition and degree of hazard of the motor and other control system
equipment or electrical parts used with the inverter. Therefore, it is imperative that
the user conducts EMC tests on their mechanical equipment to confirm the actual
EMC performance level of the equipment.



Applicable Standards

EMI

Emission Tests EN 61000-6-4
Radiated Emission Test EN 55011
Conducted Emission Test EN 55011

EMS

Immunity Tests EN 61000-6-2
Electrostatic Discharge Immunity Test IEC 61000-4-2
Radiation Field Immunity Test IEC 61000-4-3
Fast Transient/Burst Immunity Test IEC 61000-4-4
Surge Immunity Test IEC 61000-4-5
Conductive Noise Immunity Test IEC 61000-4-6
Voltage Dip Immunity Test IEC 61000-4-11
Voltage Interruption Immunity Test IEC 61000-4-11



Installing and wiring in compliance with EMC Directive

Unless effective measures are provided to reduce the EMI (electromagnetic
interference) caused by the inverter in the control system equipment located nearby,
or the inverter’s EMS (electromagnetic susceptibility), EMI/EMS can become a
serious hindrance to the function of the user’s mechanical equipment. Refer to the
installation/wiring methods explained on the following pages to provide appropriate
measures required for conformance to the EMC Directive.

5 Installation

– 25 –



Connecting a mains filter for power supply line

Connect a mains filter in the AC input line to prevent the noise generating in the
inverter from irradiating out via the power supply lines.
Use the following product or an equivalent mains filter.

Manufacturer

Single-phase, 100-120 V
Single-phase, 200-240 V

Three-phase,

200-240 V

OKAYA ELECTRIC
INDUSTRIES CO., LTD.

SUP-EL10-ER-6 3SUP-HU10-ER-6

• Install the mains filter at a position as close as possible to the inverter. Also, use
cable clamps, etc., to securely affix the input and output cables of the mains filter
to the enclosure in order to prevent the cables from separating from the enclosure
surface. Use as thick a cable as possible to connect the grounding terminal of the
mains filter to a grounding point over the minimum distance.

• Do not wire the AC input cable and the mains filter’s output cable in parallel.
Doing so may allow the noise in the enclosure to enter the power supply cable via
stray capacitance and compromise the effect of the mains filter.



Grounding methods

To prevent an electric potential difference from generating at a grounding point,
ground each of the inverter, motor and mains filter over the minimum distance using
as thick a cable as possible. Provide a wide, thick and uniform conductive surface at
each grounding point.

Grounding the inverter

Connect the inverter’s protective grounding terminal to the ground. For the
grounding method, refer to “Grounding” on p.31.

Grounding the motor

Ground the motor by referring to the operating manual supplied with the motor.



Connecting the motor cable

Connect the motor using a dedicated optional cable (p.57) by keeping the cable
length to 20 m (65.6 ft.) or shorter. For the connection method, refer to 6.2
“Connecting the main circuit terminals” on p.29.



Wiring the signal cables

Wire each signal cable of the inverter over the minimum distance using a shielded
cable. For the applicable cable, refer to 6.3 “Connecting the I/O signal terminals” on
p.32.

5 Installation

– 26 –



Wiring a shielded cable

Ground each shielded cable using a metal cable clamp that contacts the entire
periphery of the shielded cable. Install the cable clamp at the tip of the shielded
cable and connect it to an appropriate grounding point.

Cable clamp

Shielded cable



Notes about installation and wiring

• Connect the motor and inverter directly to their grounding points so as not to
generate difference in grounding electrical potential between the motor/inverter
and control system equipment nearby.

• If a relay or electromagnetic switch is used with the inverter, connect a mains
filter or surge absorber to absorb any surge voltage that may generate from the
relay or electromagnetic switch.

• Minimize the wiring length of each cable and do not loop or bundle any extra
length.

• Wire the power cables such as the motor cable and power supply cable separately
from the signal cables, and keep a minimum distance of 300 mm (11.8 in.)
between the two sets of cables. Also keep as much distance as possible between
the AC input cable and output cable of the mains filter. Provide a minimum
distance of 20 mm (0.79 in.) between the motor cable and power supply cable.



Example of inverter and motor installation/wiring

Motor

Inverter

Power supply cable

Motor cable [20 m (65.6 ft.)]

Mains filter

Signal cable
[10 m (32.8 ft.)]

(Shielded cable)

(Shielded cable)

6 Connection

– 27 –

6 Connection

6.1 List of connection terminals

Connect the power supply, motor and I/O signals to the corresponding terminals on
the rear of the inverter.

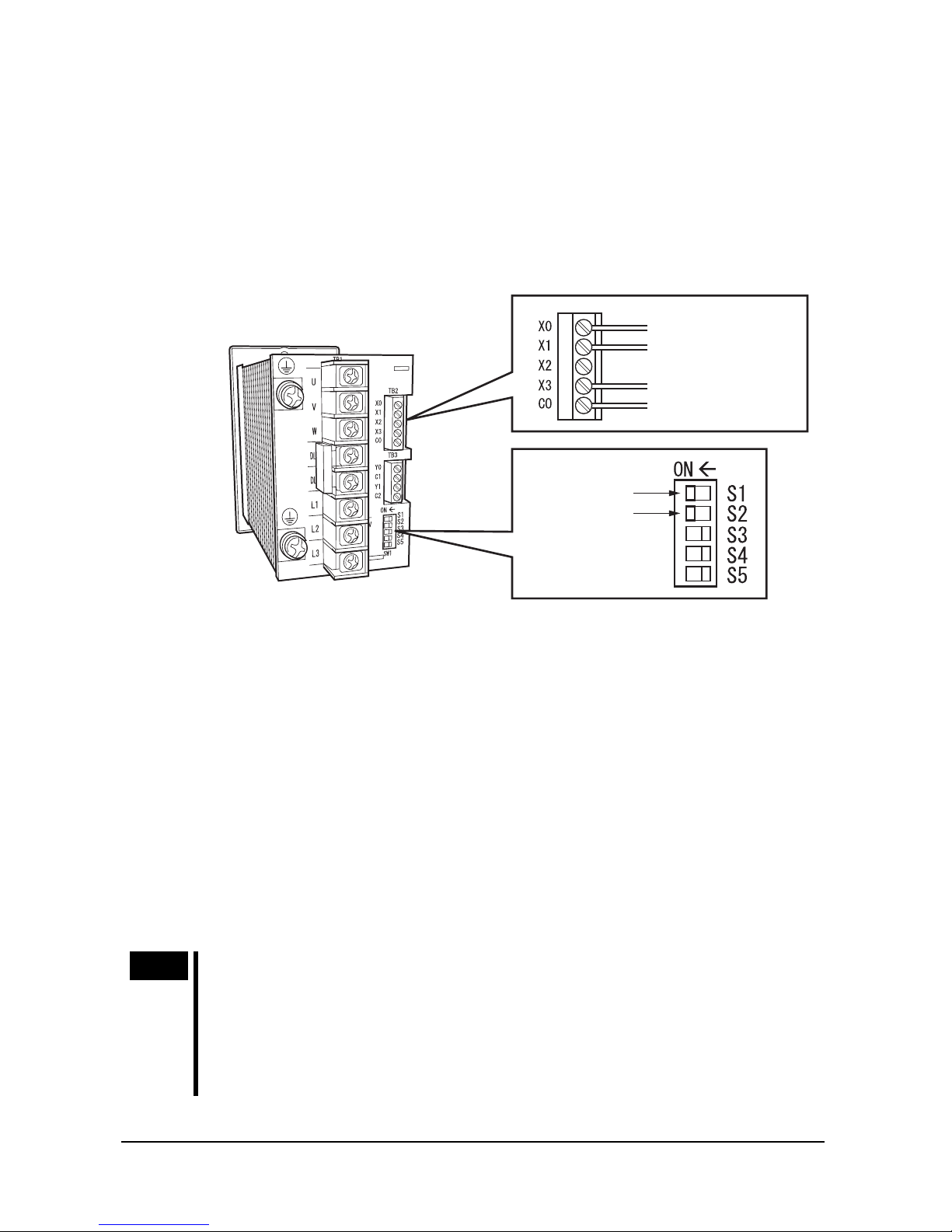

TB2: Input signal
terminals

TB3: Output signal
terminals

SW1: DIP switches

TB1: Main circuit terminals

Protective Earth Terminals
(another terminal is located on top)

Motor terminals

Reactor terminals

Power supply terminals

∗ The inverter is shipped with the DL1 and DL2 terminals shorted by a shorting bar.



Main circuit terminals (TB1)

Terminal Name Function

U
V
W

Motor terminals These terminals are used to connect a motor. The maximum

output voltage corresponds to the inverter’s input power
supply voltage.

DL1
DL2

Reactor terminals Use these terminals to connect a DC reactor if a

large-capacity power transformer is connected, harmonics
must be suppressed or the inverter’s power factor must be
improved. When connecting a DC reactor, remove the
shorting bar. Do not use the removed shorting bar for other
purposes. Also, when connecting a DC reactor, keep the load
to 80% of the allowable torque or below so as not to cause
the output current to exceed the rated current.

L1
L2
L3

Power supply
terminals



These terminals are used to connect a power supply. If your
inverter is of the single-phase type, connect a power supply
to the L1 and L2 terminals. If it is of the three-phase type,
connect a power supply to the L1, L2 and L3 terminals.

∗ With the single-phase type, only two power supply terminals (L1 and L2) are provided.

6 Connection

– 28 –



I/O signal terminals (TB2, TB3)

Terminal

group

Terminal Name Function

X0 RUN/STOP

This terminal is used to control the running and
stopping of the motor. This terminal is enabled when
DIP switch S1 (SW1) is set to ON.

X1 FWD/REV

This terminal is used to control the motor direction.
To change the motor direction, stop the motor first,
and then input a reversing signal. This terminal is
enabled when DIP switch S2 (SW1) is set to ON.

X2 ALARM RESET This terminal is used to reset an alarm condition.

X3 EXTERNAL

SPEED INPUT

The set speed can be adjusted by connecting this
terminal to external DC voltage (0 to 10 VDC).

TB2
(input)

C0 SG (common)

Y0 RUNNING

C1 COMMON

These terminals output a signal indicating that the
inverter is running (26.4 V, 10 mA or less).

Y1 ALARM

TB3
(output)

C2 COMMON

These terminals output an alarm signal. The inverter
will remain in an alarm condition until an alarm reset
signal is input (26.4 V, 10 mA or less).



DIP switches (SW1)

No. Function Description

Factory

setting

S1 Remote/local

switching
(RUN/STOP)

This switch is used to select how to run/stop the
motor.
ON: Use external input signals (remote)
OFF: Use the RUN/STAND-BY switch (local)

OFF

S2 Remote/local

switching
(Direction)

This switch is used to select how to change the
motor direction.
ON: Use external input signals (remote)
OFF: Use the direction selector switch (local)

OFF

S3 Sink/source

switching

This switch is used to select the sink and source
input for external control.
ON: Source input
OFF: Sink input

OFF

S4 Carrier frequency

switching

This switch is used to change the carrier frequency.
Change the default carrier frequency if you want to
reduce the leak current from the inverter-motor cable.
ON: 10 kHz
OFF: 15 kHz

OFF

S5 Speed display

switching

This switch is used to change the unit in which the
set speed is displayed on the speed display.
ON: Display speed in number of revolutions (r/min)
OFF: Display speed in frequency (Hz)

OFF

Note

Turn off the inverter power before setting the DIP switches.

6 Connection

– 29 –



Protective grounding terminal

Protective grounding
terminal (2 locations)

These terminals are used to ground the
inverter.

6.2 Connecting the main circuit terminals

Connect the power supply and motor to the corresponding main circuit terminals
(TB1) using round crimp terminals with insulating cover.
Example: Three-phase, 200-240 V

Power supply
input, molded­case circuit
breaker, earth­leakage breaker
or fuse

R

S

T

Motor



Terminal thread size and applicable cable size

Terminal thread size Tightening torque Applicable cable size

M3.5

0.86 to 0.96 N·m

(123 to 136 oz-in)

AWG14（2.0 mm

2

）

∗ The cable size specified above is based on an assumed maximum ambient temperature of

75 °C (167 °F) and use of copper wire.

Use a power supply cable of AWG14 in size.
Always use a dedicated optional cable (p.57) for wiring between the inverter and
motor.

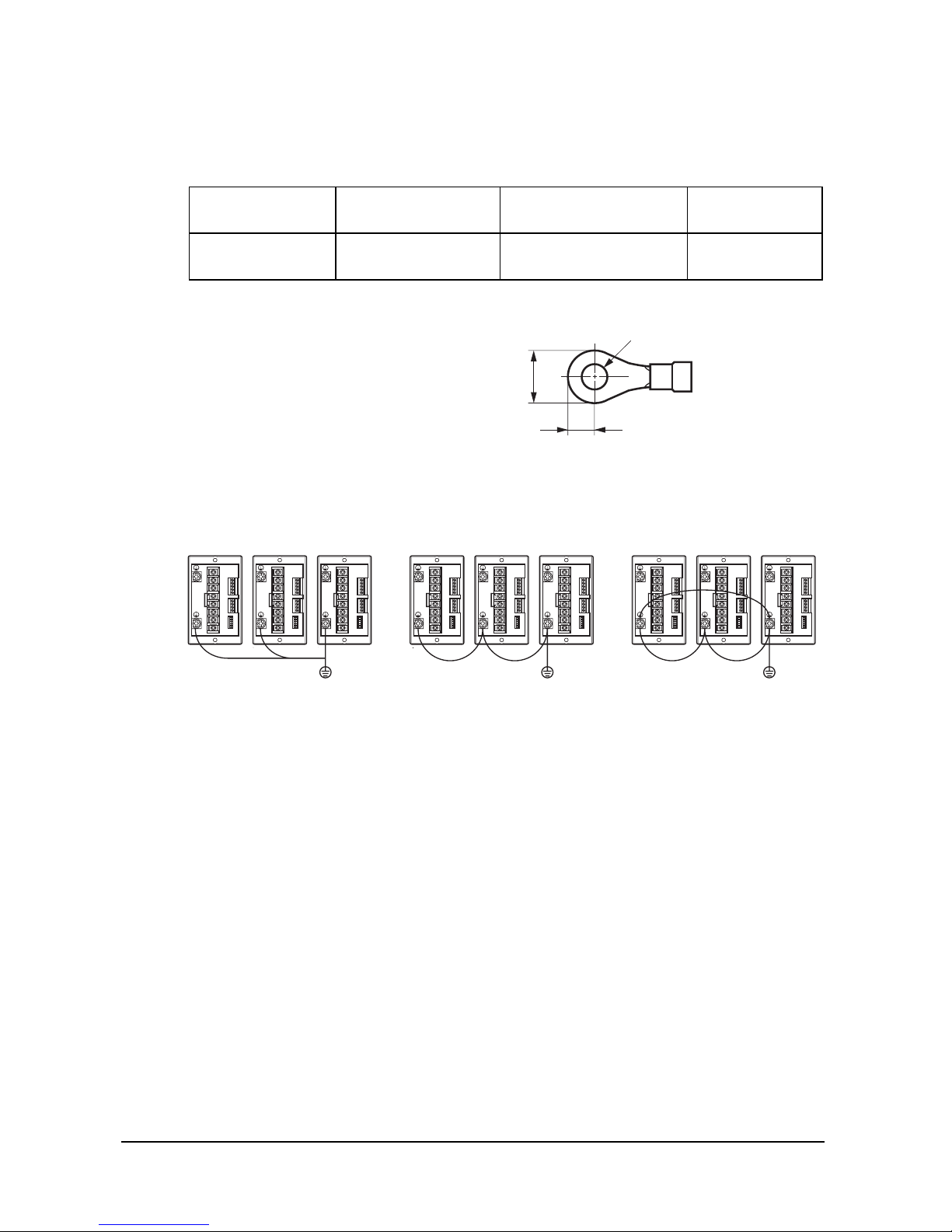

Applicable crimp terminal
[unit: mm (in.)]

Round terminal with insulating cover

3.8 (0.15)

or less

7.2 (0.283)

or less

Ø3.6 (0.142)

or more

6 Connection

– 30 –



Connecting the power supply

Connect the power supply to the power supply terminals via a molded-case circuit
breaker, earth-leakage breaker or fuse as shown in the table below.
If your inverter is of the single-phase type, connect the power supply to the L1 and
L2 terminals. If it is of the three-phase type, connect the power supply to the L1, L2
and L3 terminals.

Note

• Be sure to connect a protective device to protect the cable.

• Always connect the power supply to the power supply terminals.

Connecting it to any other terminal will damage the inverter.

• When reconnecting the power, turn off the power, wait at least

1 minute, and then turn the power back on.

Model number FE100A

FE100C, FE100S
FE200C, FE200S

FE200A

Protective device rating 10 A 5 A 15 A

Molded-case circuit
breaker

NF30 (Mitsubishi Electric Corporation)

Earth-leakage breaker

When connecting an earth-leakage breaker, use a product with
a current sensitivity of 200 mA or more and operating time of 0.1
second or more. Whenever possible, select an earth-leakage
breaker incorporating harmonic measures.

• NV Series [Mitsubishi Electric Corporation (models
manufactured in or after 1998)]

• EG Series, SG Series [Fuji Electric FA Components &
Systems Co., Ltd. (models manufactured in or after 1984)]

Fuse UL class RK5 (or equivalent)



Connecting the motor

Connect the U, V and W terminals on the motor to the U, V and W motor terminals
on the inverter, respectively. Also provide protecting grounding for the motor. If the
grounding resistance exceeds 0.1 Ω, ground the motor directly. In addition, be sure
to use a dedicated optional cable (p.57) for wiring between the inverter and motor.
The maximum wiring distance between the inverter and motor is 20 m (65.6 ft.). If
the motor and inverter must be apart by more than 20 m (65.6 ft.), please contact our
Customer Service Center.
For details on connecting the motor to a terminal box, refer to the operating manual
that came with the motor.

6 Connection

– 31 –



Grounding

Ground the protective grounding terminal.

Terminal thread size and applicable cable size

Terminal thread

size

Tightening torque Applicable cable size

Recommended

size

M4

1.0 to 1.3 N·m

(142 to 184 oz-in)

AWG 18 to 14

(0.75 to 2.0 mm

2

)

AWG14

（2.0 mm2）

Applicable crimp terminal
[unit: mm (in.)]

Round terminal with insulating cover

4.8 (0.189)

or less

9.5 (0.374)

or less

Ø4.1 (0.161)

or more

Do not share the grounding cable with a welder or other power equipment. If
multiple inverters are used, make sure the link cables do not form a loop.

OK OK NG

6 Connection

– 32 –

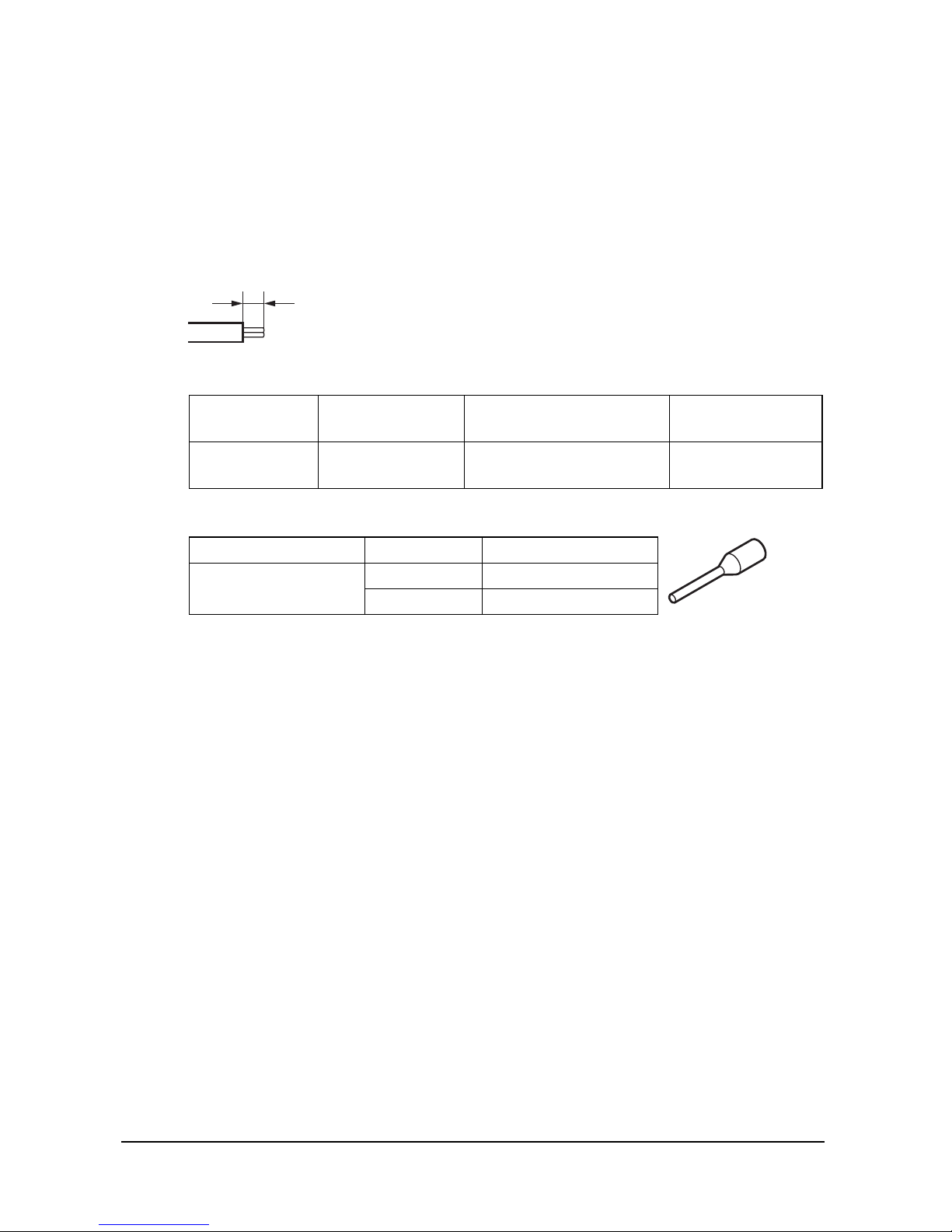

6.3 Connecting the I/O signal terminals

Connect the motor to the I/O signal terminals if you want to operate the motor via
external input signals. Connect the I/O signal cables to the I/O signal terminals (TB2,
TB3). Keep the lengths of cables to 10 m (32.8 ft.) or less and wire them away from
the power lines. To allow speed setting via external signals, use a twisted-pair
shielded cable, shielded cable, etc.
Strip the signal cable by 5.5 mm (0.22 in.) from the end.

5.5 mm (0.22 in.)



Terminal thread size and applicable cable size

Terminal thread

size

Tightening torque Applicable cable size

Recommended

size

M2

0.22 to 0.25 N·m
(31 to 35 oz-in)

AWG20, 18

(0.5 to 0.75 mm

2

)

AWG18

（0.75 mm2）

When using crimp terminals, use the following products.

Manufacturer Part number Applicable wire size

AI0.5-6 AWG20 （0.5 mm2）

PHOENIX CONTACT
GmbH & Co. KG

AI0.75-6 AWG18 （0.75 mm

2

）

6 Connection

– 33 –



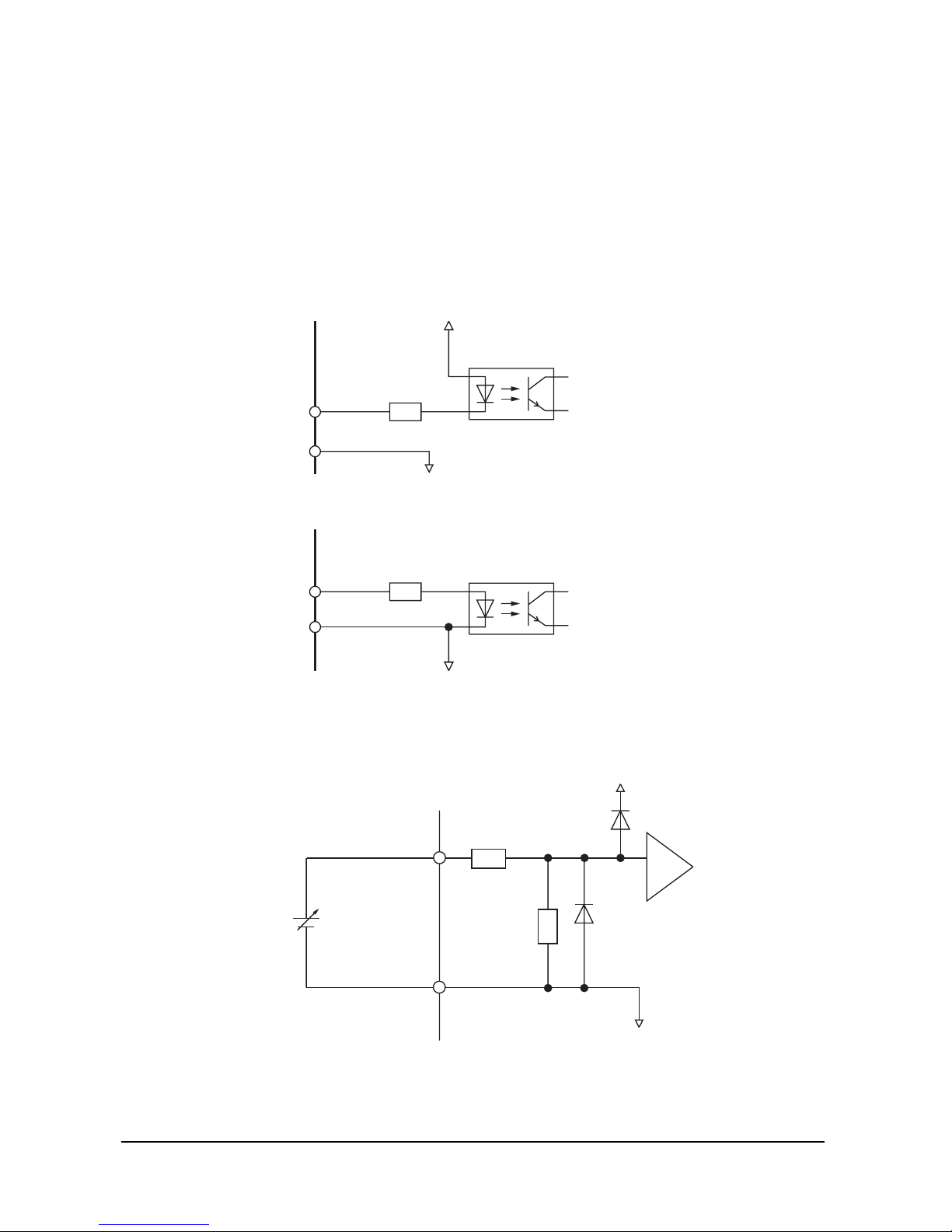

Input signal circuit

The input signals of this inverter are photo-coupler inputs. The input circuit
terminals are insulated to the reinforced insulation standard for protection against
dangerous voltages. If a relay is connected to the input circuit, select a
small-capacity contact-type relay that can switch 24 VDC, 10 mA.
The circuit uses sink input by default. Select sink input or source input in
accordance with the external control equipment used with the inverter.

• Sink input circuit

SG (common)

3.3 kΩ

+15 V

0 V

RUN/STOP

FWD/REV

A

LARM RESET

X0
X1
X2

C0

Input circuit

• Source input circuit

3.3 kΩ

0 V

RUN/STOP

FWD/REV

A

LARM RESET

SG (common)

Input circuit

X0
X1
X2

C0

To support a sequence connection via a source transistor, an external power supply
with a voltage range of +15 to 24 V is required.

• Connecting external DC voltage

Analog frequency command

SG (common)

0 to 10 VDC

1 mA or more

+5 V

10 kΩ

0 V

X3

C0

10 kΩ

6 Connection

– 34 –



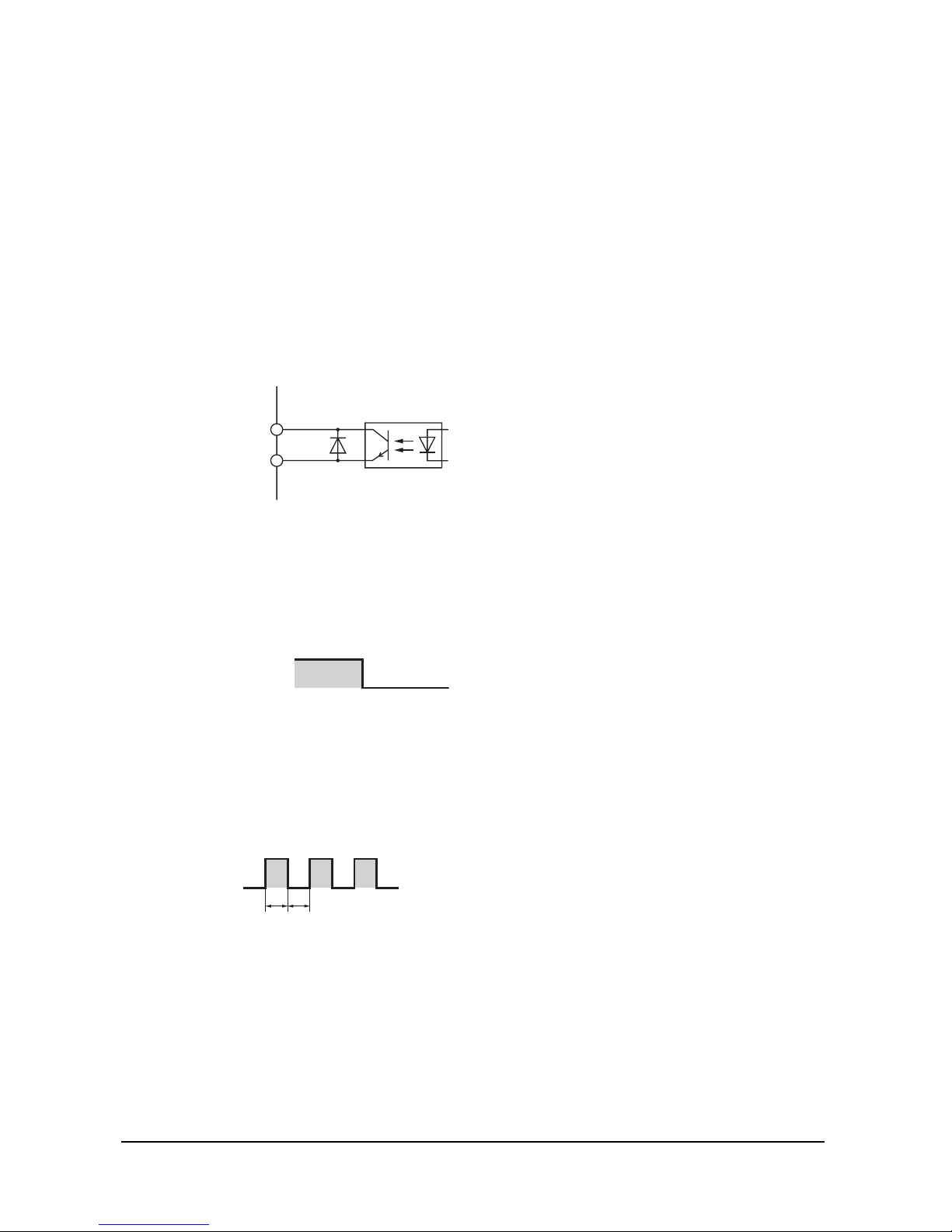

Output signal circuit

The output signals of this inverter are open-collector outputs. Therefore, an external
power supply is needed to operate the output signals. Use an external power supply
with a voltage range not exceeding 26.4 V, and connect a limiting resistor
appropriate for the power supply voltage so as not to cause the current to exceed
10 mA. No external power supply is required if the output signals are not used.
The output circuit terminals are insulated to the reinforced insulation standard for
protection against dangerous voltages.
The output signals of this inverter are transistor open-collector outputs. In other
words, the status of each output signal does not indicate the signal voltage level, but
it represents the ON (energized) or OFF (not energized) status of the internal
photocoupler.

COM

Output circuit

RUNNING

ALARM

Y0
Y1

C1
C2

The RUNNING output remains ON when the inverter is running, and turns OFF
when it is stopped (normally closed).
The ALARM output remains ON when the inverter is normal, and turns OFF when
an alarm generates (normally closed).

Normal

A

larmONOFF

Output

The ALARM output produces a pulsed output waveform while a blinking alarm
code is displayed.

• Output waveform when a blinking
alarm code is displayed

Output

ON

0.3 s 0.3 s

OFF

6 Connection

– 35 –

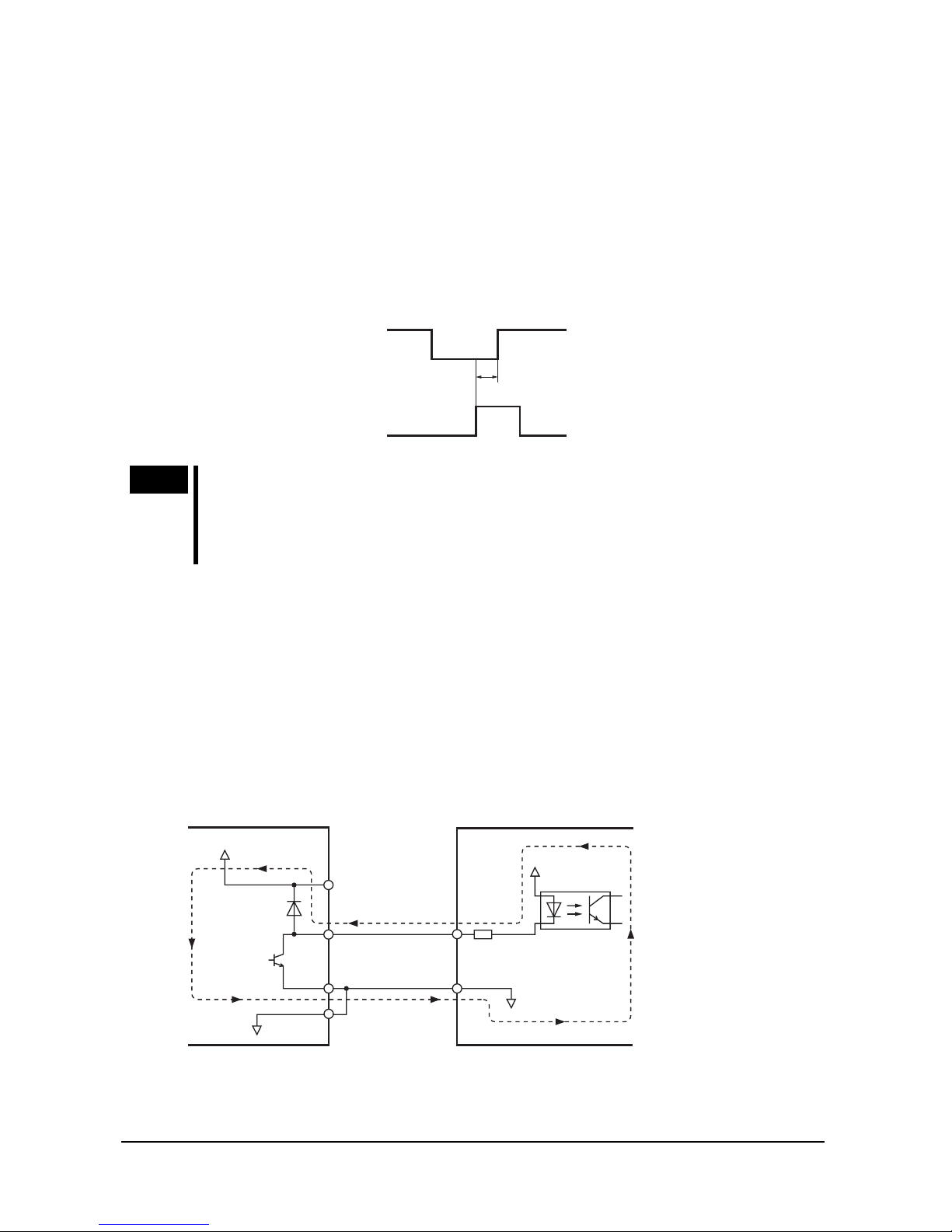

• ALARM RESET input

When an alarm is generated, in most cases it will be automatically reset by an
appropriate protective function of the inverter.
Set the RUN/STAND-BY switch to the STAND-BY side, or also set the X0
(RUN/STOP) input to the STOP side if external input control is used. Then, after
confirming that the motor has stopped completely, turn the ALARM RESET input
ON for at least 20 ms.
Input an alarm reset signal, and once the alarm has been reset, turn the ALARM
RESET input OFF.

A

LARM output

ON

A

LARM RESET input

ON

ON

20 ms

OFF

OFF

OFF

Note

• Always input an alarm reset signal after removing the cause of the

alarm. Continuing to operate the motor without removing the cause of
the alarm may damage the motor.

• The ALARM RESET input is enabled only while the motor is stopped.



Using a controller with a built-in clamp diode

When a controller with a built-in clamp diode is used, a sneak current path may
sometime cause the motor to run even though the controller power is off, if the
inverter power is on. The motor may also run when the controller power and inverter
power are turned on/off simultaneously, because the power capacity of the controller
is different from that of the inverter.
When turning on the power, turn on the controller power first, and then turn on the
inverter power. When turning off the power, turn off the inverter power first, and
then turn off the controller power.

Controller

Inverter

X0 to X2

C0

+15 V

0 V

0 V

+Vcc

Clamp
diode

6 Connection

– 36 –

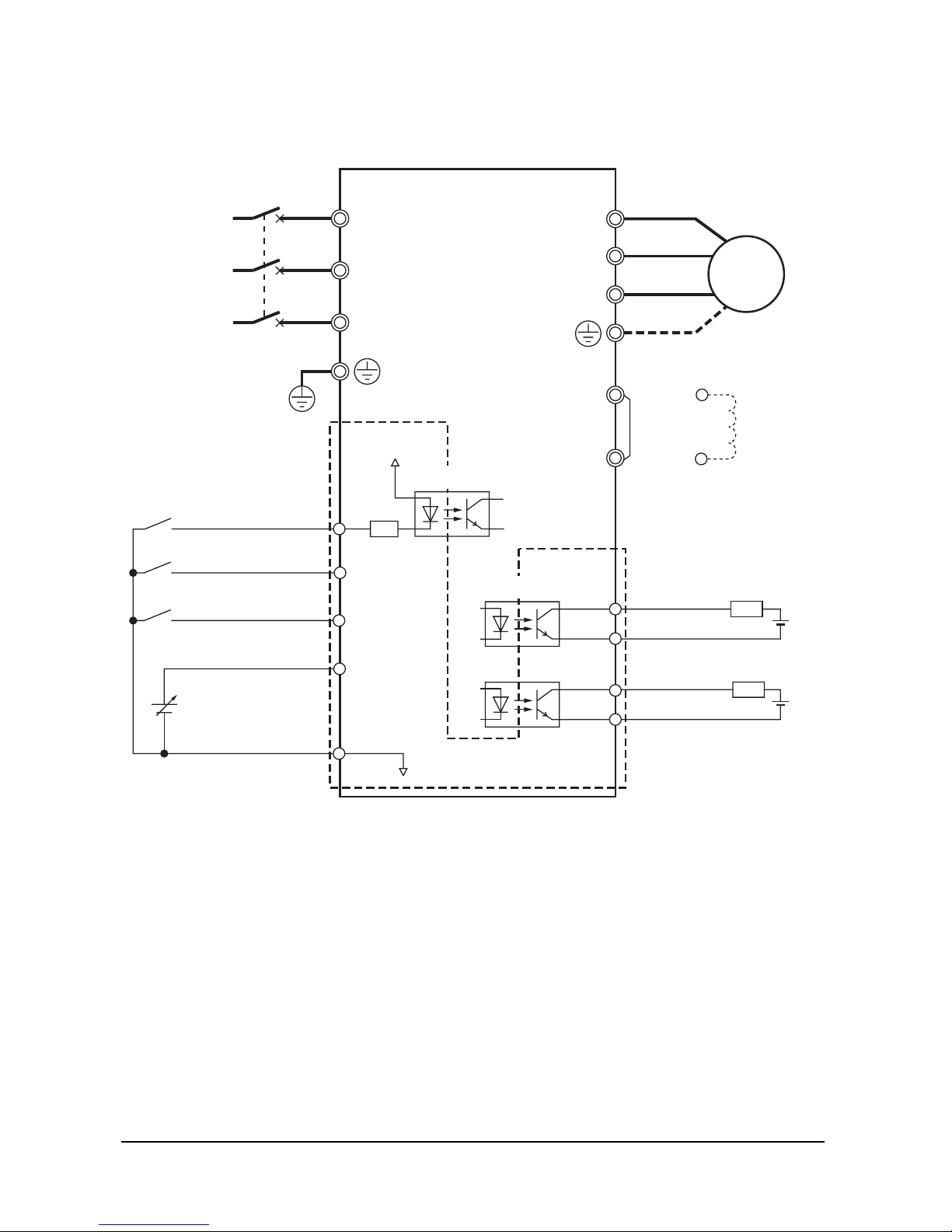

6.4 Example of inverter connection

RUNNING

Output signal
(26.4 VDC,
10 mA or less)

COM

TB3

L1

L2

L3

R

S

T

Molded-case
circuit breaker

ALARM

COM

Y0

Inverter

Y1

DL1

DL2

C1

C2

EXTERNAL SPEED
INPUT

SG (common)

0 to 10 VDC
1 mA
or more

TB2

+15 V

0 V

X0

X1

X2

X3

C0

W

V

U

TB1

Motor

Input circuit

DC reactor

∗2

Shorting
bar

∗2

∗1

∗4

RUN/STOP

∗3

FWD/REV

∗3

ALARM RESET

∗3

Output circuit

∗1 Ground the motor directly if the grounding resistance exceeds 0.1 Ω.
∗2 When connecting a DC reactor, remove the shorting bar.
∗3 The above connections of input signals X0, X1 and X2 assume a sequence connection (0 V

common) via mechanical contacts or a sink transistor.
If using a sequence connection (+15 to 24 V common) via a source transistor, an external
power supply with a voltage range of +15 to 24 V is required.

∗4 The I/O signal terminals are based on SELV circuit. The terminals are insulated to the

reinforced insulation standard for protection and isolation from dangerous voltages.

7 Operation

– 37 –

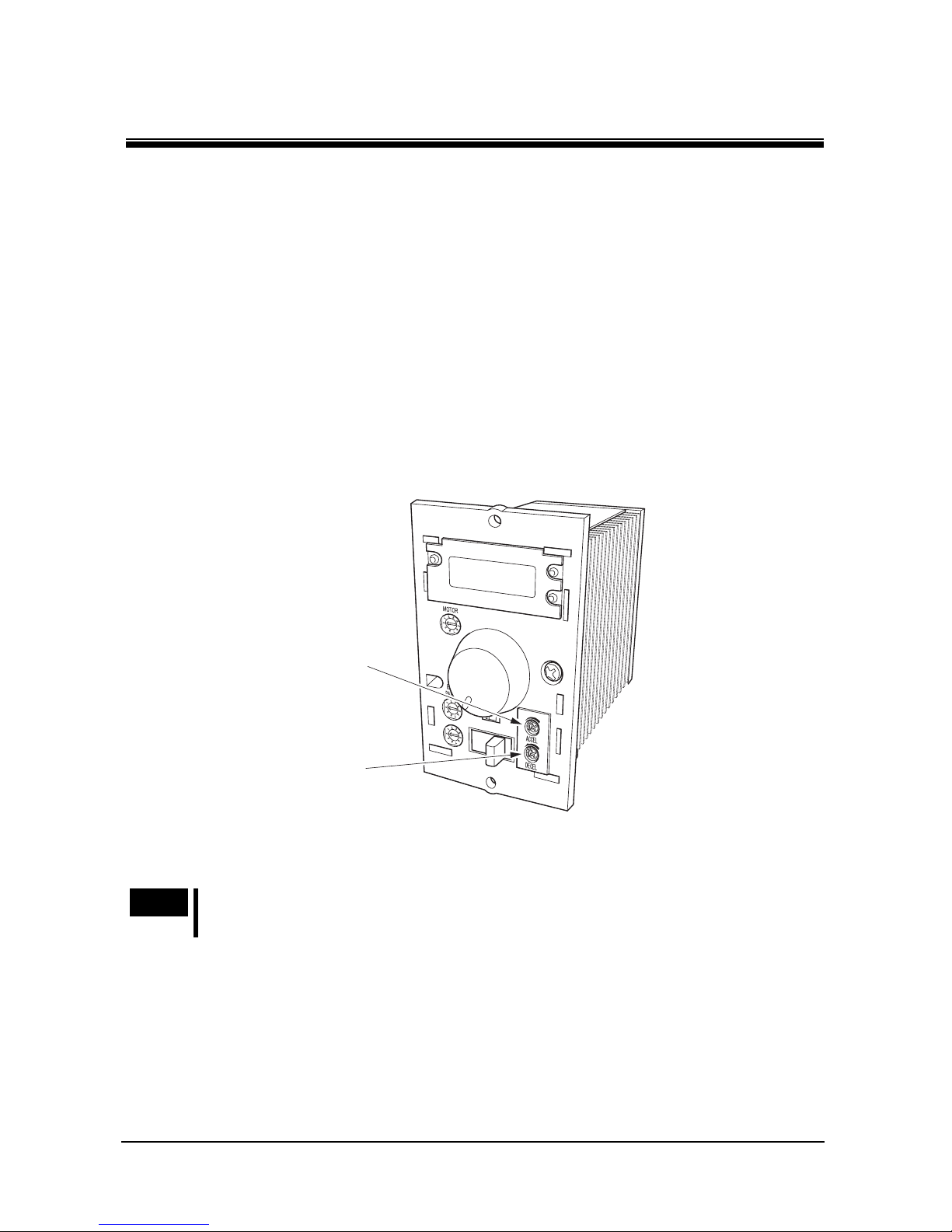

7 Operation

7.1 Setup before operation

Before operating the motor, set to the inverter to the correct output of the connected
motor.
Once the motor output is set, the inverter will automatically determine the
appropriate V/f pattern.

1. Remove the front panel.

(Refer to 4.4 “Removing/installing the front panel” on p.19.)

2. Set the motor output selector switch on the inverter in accordance with

the output of the motor to be used.

Factory setting: Dial setting “5” (90 W) for FE100A, FE100C, FE100S
Dial setting “4” (200 W) for FE200A, FE200C, FE200S
For the setting of each motor, refer to 4.2 “Motor/Inverter combinations” on
p.15.

3. Install the front panel.

(Refer to 4.4 “Removing/installing the front panel” on p.19.)

• FE100A

FE100C
or FE100S

• FE200A

FE200C
or FE200S

Note

Always set the motor output to the inverter before operating the motor.
The inverter will not accept any changes to the motor output setting while
the motor is running. If the motor output is different from the output
setting on the inverter, abnormal heat generation or insufficient torque
may occur, resulting in an alarm.

7 Operation

– 38 –

7.2 Setting position of motor output selector switch



Inverter model: FE100A, FE100C, FE100S

Compatible motor output Setting position of SW

6 W 0

15 W 1

25 W 2

40 W 3

60 W 4

90 W 5∗1

FH series 40 W∗2 6

∗2

∗1 Factory-set position
∗2 This setting position applies only to the FH series 40 W model. For 40 W type motors in all

other series, set the switch to the “40 W” position (corresponding to the graduation mark
“3” on the switch).



Inverter model: FE200A, FE200C, FE200S

Compatible motor output Setting position of SW

25 W 0

40 W 1

60 W 2

90 W 3

200 W 4∗1

FH series 40 W∗2 5

∗2

FH series 120 W 6

∗1 Factory-set position
∗2 This setting position applies only to the FH series 40 W model. For 40 W type motors in all

other series, set the switch to the “40 W” position (corresponding to the graduation mark
“3” on the switch).

7 Operation

– 39 –

7.3 Operating the motor

To operate the motor, all you need is to turn on the inverter power, set the
RUN/STAND-BY switch to the RUN side, and then adjust the speed potentiometer
to a desired setting. Turning the speed potentiometer clockwise will increase the
motor speed.
The acceleration time and deceleration time are set to their defaults (0.1 second).

2

Set the RUN/STAND-BY

switch to the RUN side.

Direction selector switch

High
speed

Low
speed

3

Adjust the speed using

the speed potentiometer.

1

Turn on the inverter power.

Stopping the motor: Set the RUN/STAND-BY switch to the STAND-BY

side.

Changing the direction: Stop the motor, remove the front panel, and then tilt

the direction selector switch to the opposite side.
When the switch is set to the FWD side, the motor
shaft will turn clockwise. When the switch is set to
the REV side, the motor shaft will turn
counterclockwise. The direction indicates the
rotating direction of the motor shaft as viewed from
the motor output shaft. Depending on the gear ratio
of the gearhead, the direction of the gear output shaft

may become opposite to the motor direction.
Changing the acceleration/deceleration time:
The default is 0.1 second for both. To change the

default acceleration/deceleration time, refer to 8.1

“Setting the acceleration time and deceleration time”

on p.44.

7 Operation

– 40 –



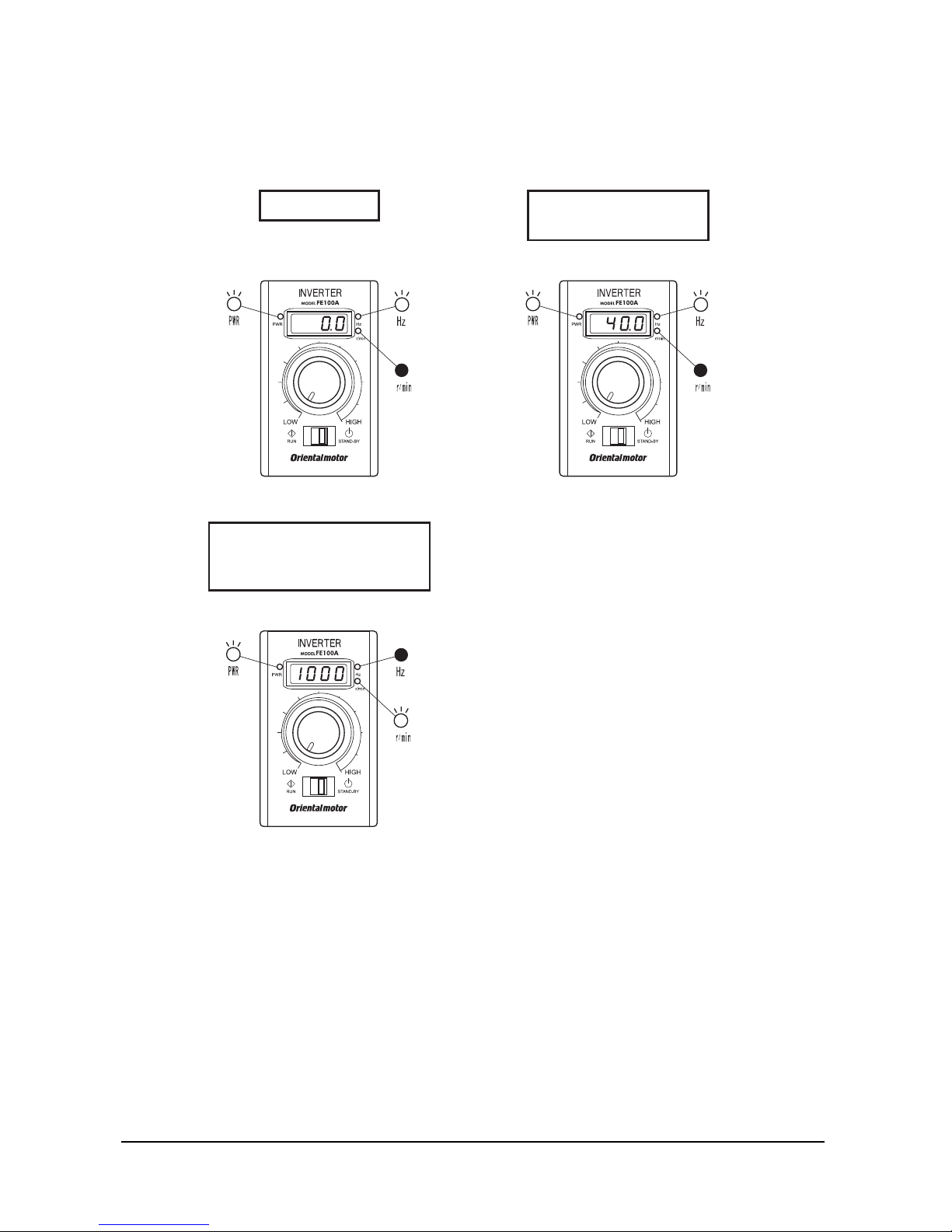

Display examples during operation

Examples of what the display shows when the power is input, while the motor is
running, and in the set speed display mode are given below.

Lit

(green)

Lit
(orange)

Unlit

Lit

(green)

Lit
(orange)

Unlit

Lit

(green)

Unlit

Lit (orange)

Power is input

Motor is running

(set frequency display)

Motor is running (set speed
display): DIP switch S5
(SW1) is ON

7 Operation

– 41 –

7.4 Operation via external input signals

1. Connect external input signals to the X0 terminal (RUN/STOP) and X1

terminal (FWD/REV) by referring to 6.3 “Connecting the I/O signal
terminals” on p.32. To enable speed change using external DC voltage,
connect DC voltage to the X3 terminal (EXTERNAL SPEED INPUT).

2. Set DIP switches S1 and S2 (SW1) to ON.

Set S1 to ON

SG (common)

Set S2 to ON

RUN/STOP
FWD/REV

EXTERNAL SPEED
INPUT

3. Set the motor direction using the X1 terminal (FWD/REV).

OFF: Clockwise
ON: Counterclockwise
(The direction indicates the rotating direction of the motor shaft as viewed
from the motor output shaft.)

4. Run/stop the motor using the X0 terminal (RUN/STOP).

ON: Run the motor
OFF: Stop the motor
The acceleration time and deceleration time are set to their defaults
(0.1 second).

5. Set the motor speed using the DC voltage connected to the X3 terminal

(EXTERNAL SPEED INPUT).

(Refer to 7.5 “Setting the speed” on p.42.)

Note

• When external DC voltage is connected to the inverter, either the speed

set by the X3 terminal (EXTERNAL SPEED SETTING) or speed set by
the inverter’s speed potentiometer, whichever is higher, will be given
priority.

• If you want to set the speed via external DC voltage, turn the speed

potentiometer all the way to the LOW end.

6. To stop the motor, set the X0 terminal (RUN/STOP) to OFF.

7 Operation

– 42 –

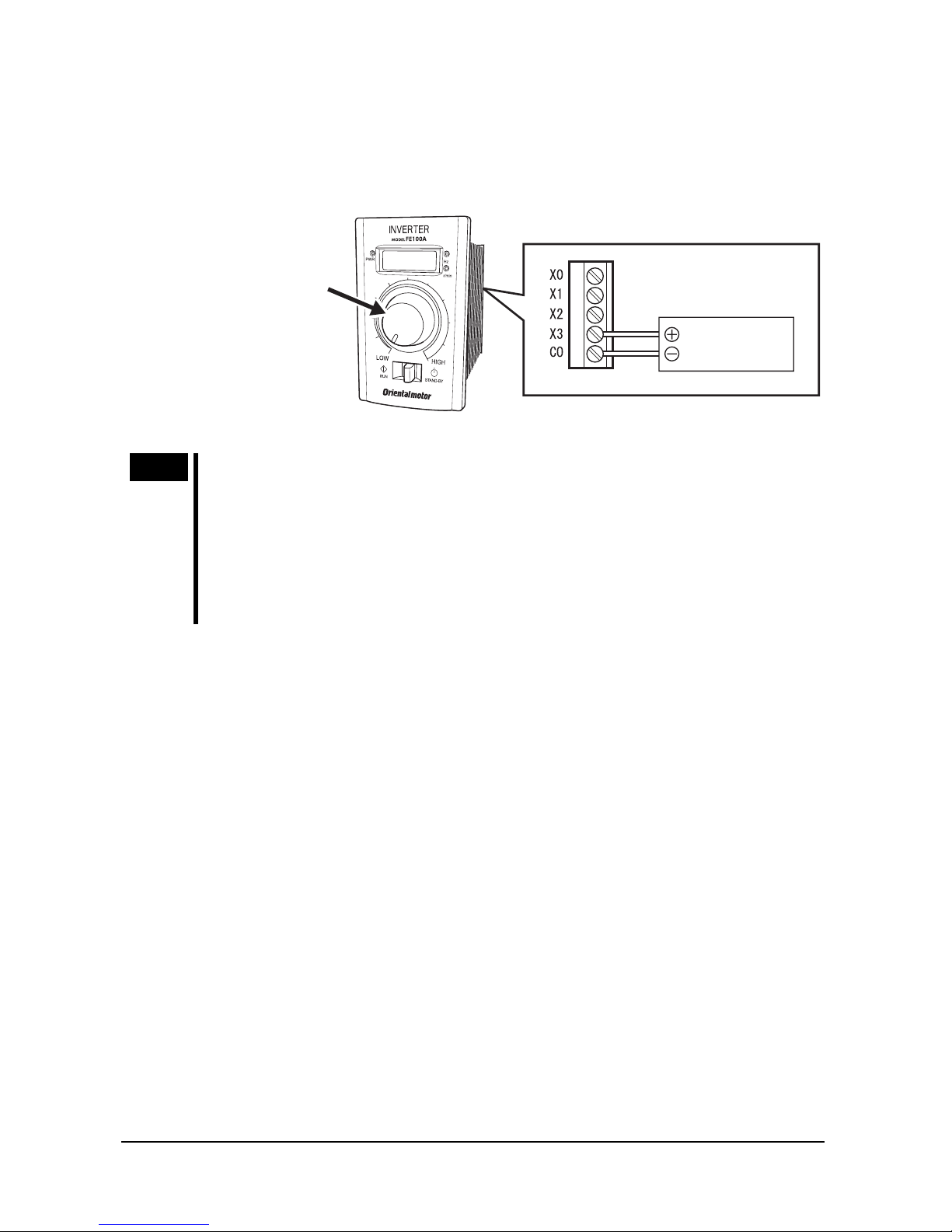

7.5 Setting the speed

The motor speed can be set by one of the following two means:

• Speed potentiometer

• External DC voltage

External DC voltage

Setting by external DC voltage

Setting by the speed
potentiometer

0 to 10 VDC,

1 mA or more

Either way, the speed you have set will be shown on the speed display.

Note

• The speed shown on the speed display is the current setting. It is not

the actual speed of the motor output shaft.

• When external DC voltage is connected to the inverter, either the speed

set by inverter’s speed potentiometer or speed set by external DC
voltage, whichever is higher, will be given priority.

• If you want to set the speed via external DC voltage, turn the speed

potentiometer all the way to the LOW end.

7 Operation

– 43 –

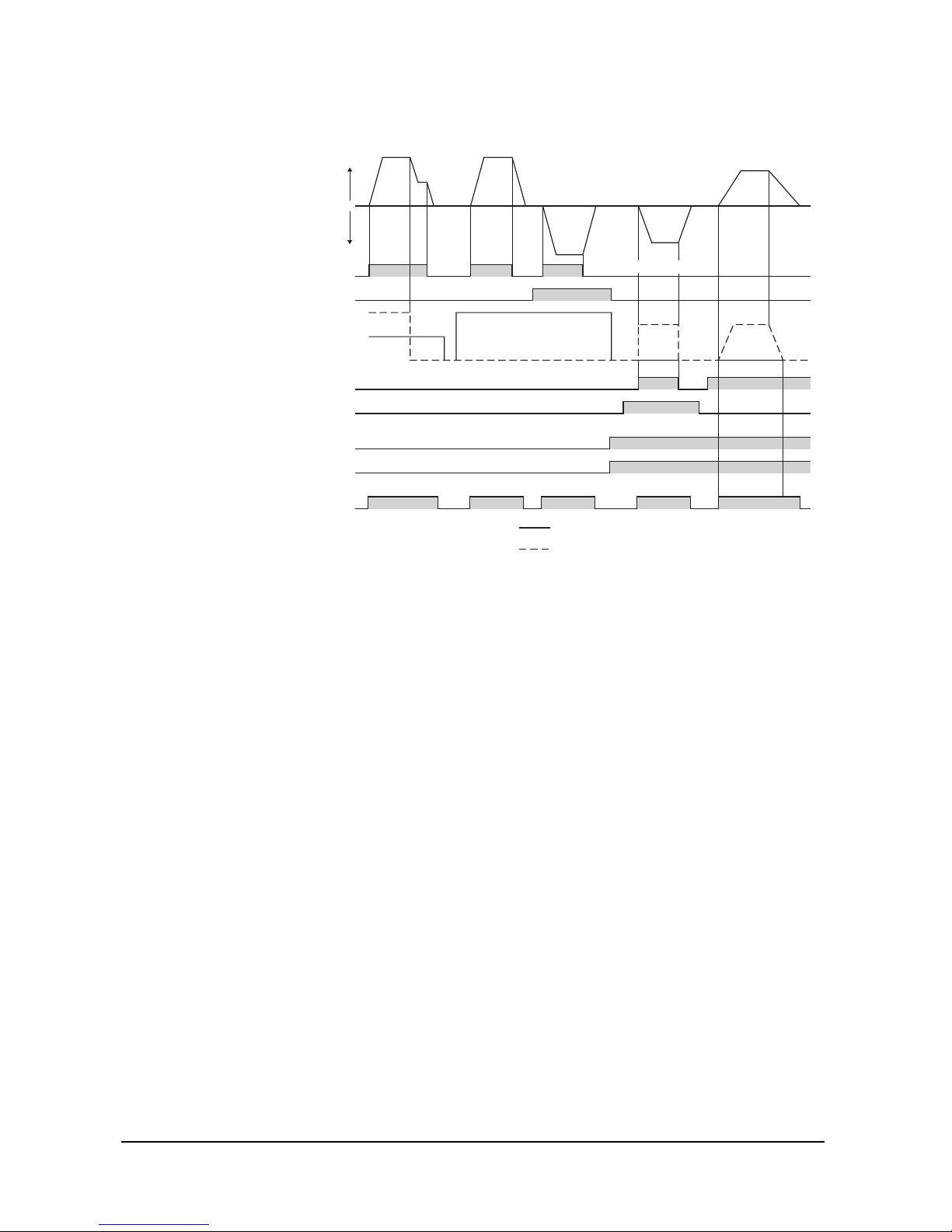

7.6 Timing chart

Clockwise

(FWD)

Counterclockwise

(REV)

RUN RUN RUN

STAND-BY

FWD REV FWD

Speed potentiometer on the inverter

External speed input via external DC voltage

Stopped

Running

Running

FWD REV

Local

Remote

Local

Remote

Motor direction

Switches at
inverter front

RUN/STAND-BY

FWD/REV

Speed (frequency) setting

Input signals

X0_C0

(RUN/STOP)

ON

OFF

ON

OFF

ON

OFF

X1_C0

(FWD/REV)

DIP
switches

S1: Remote/local

(RUN/STOP)

S2: Remote/local

(FWD/REV)

Output signal

Y0_C1

(RUNNING)

∗1 The DIP switches are enabled only when the motor is stopped.

If any of the DIP switches is changed while the motor is running, the new setting will take
effect after the motor stops.

∗2 When external DC voltage is connected to the inverter, either the speed set by the X3

terminal (EXTERNAL SPEED SETTING) or speed set by the inverter’s speed
potentiometer, whichever is higher, will be given priority.

∗3 To switch the motor direction, stop the motor first, and then input a reversing signal.

Changing the motor direction instantaneously while the motor is running may damage the
gearhead or motor due to an impact load.

∗4 The direction indicates the rotating direction of the motor shaft as viewed from the motor

output shaft (FWD: clockwise, REV: counterclockwise). Depending on the gear ratio of the
gearhead, the direction of the gear output shaft may become opposite to the motor direction.

8 Various functions

– 44 –

8 Various functions

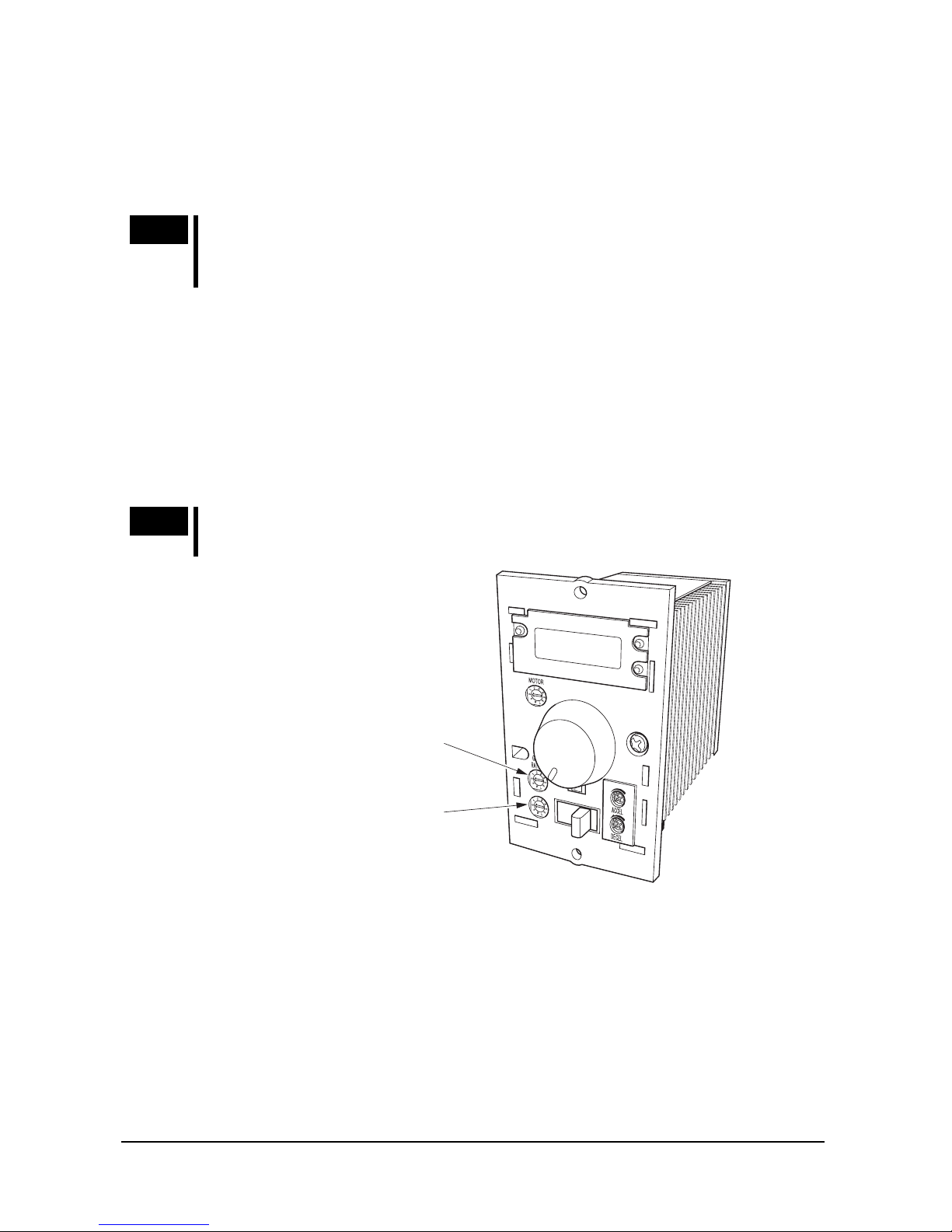

8.1 Setting the acceleration time and deceleration time

The default acceleration/deceleration time is 0.1 second. If necessary, you can set a
desired acceleration/deceleration time in the range of 0.1 to 30 seconds. The
acceleration/deceleration time indicates the setting on the inverter. It does not
indicate how the motor actually behaves.

1. Remove the front panel.

(Refer to 4.4 “Removing/installing the front panel” on p.19.)

2. Set desired acceleration time and deceleration time using the

acceleration-time potentiometer and deceleration-time potentiometer,
respectively.

Acceleration-time
potentiometer

Deceleration-time
potentiometer

3. Install the front panel.

(Refer to 4.4 “Removing/installing the front panel” on p.19.)

Note

Depending on the load condition, the motor may not start if the
acceleration time is too short. In this case, increase the acceleration time.

8 Various functions

– 45 –



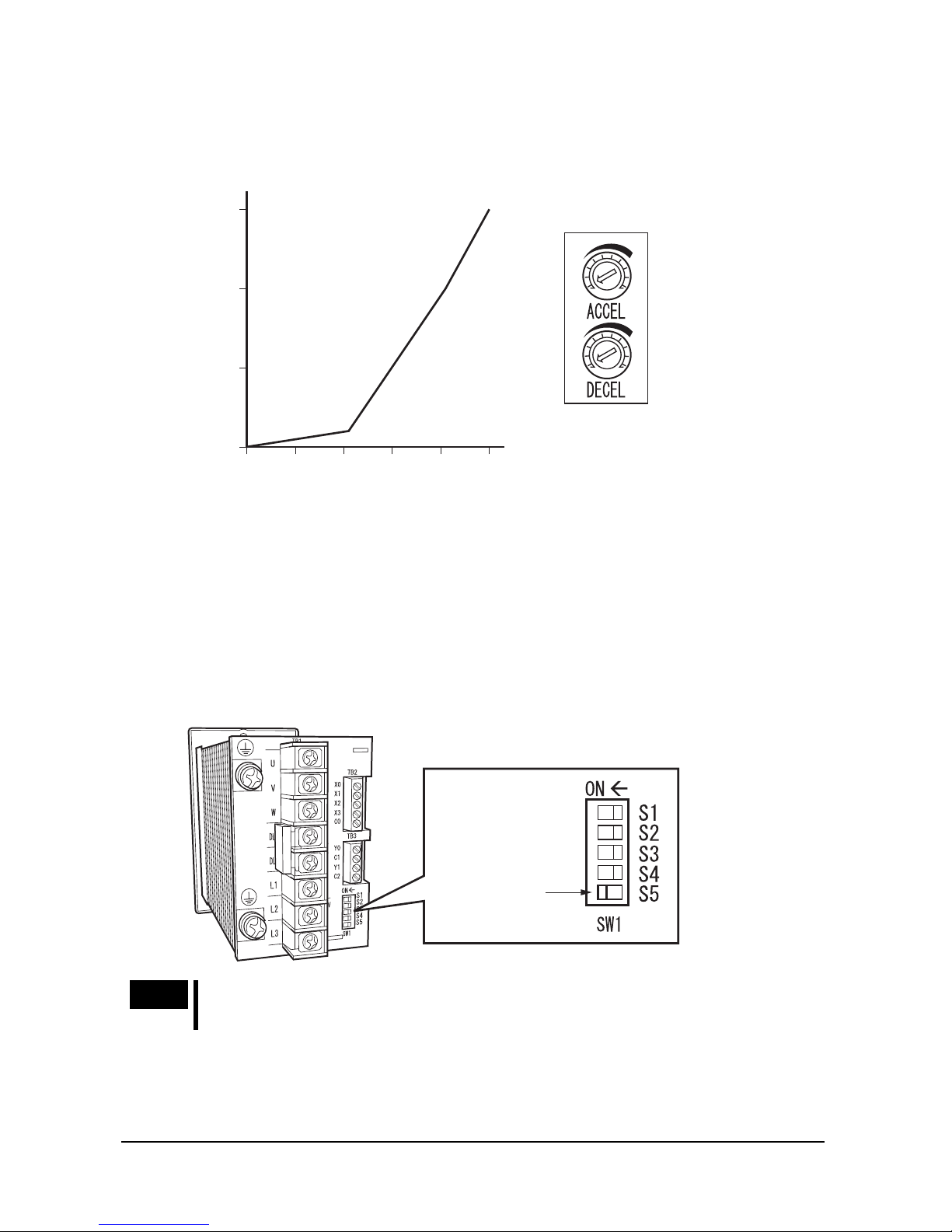

Acceleration/Deceleration time characteristics

The graph below shows the characteristics (representative values) of
acceleration/deceleration time based on a set speed of 2400 r/min (80 Hz).

0

10

Acceleration/deceleration time (sec)

Acceleration/deceleration-time

potentiometer graduation

10

20

30

8.2 Switching the display mode

While the motor is running, the speed display shows the set motor speed in
frequency (Hz). You can change the display mode to show the set speed in number
of revolutions (r/min).
To do this, set DIP switch S5 (SW1) on the rear of the inverter to ON.
Factory setting: OFF (frequency display)

Set S5 to ON

Note

The speed shown on the speed display is the current setting. It is not the
actual speed of the motor output shaft.

8 Various functions

– 46 –

8.3 Setting the gear ratio

The inverter displays the speed of the motor output shaft. To check the speed of the
gearhead output shaft, you can display the gear ratio instead. Set the gear ratio of the
gearhead you are using.

Note

This function is enabled when the set speed is displayed in number of
revolutions on the inverter [DIP switch S5 (SW1) is ON]. The following
operation will not be effective if the frequency is displayed.

1. Remove the front panel.

(Refer to 4.4 “Removing/installing the front panel” on p.19.)

2. Use the gear-ratio setting switches to set the code corresponding to the

gear ratio.

Set the 10’s place using switch 1, and 1’s place using switch 2.
Factory setting: Gear ratio 1 (both switches 1 and 2 are set to “0”.)
Check the gear ratio codes in “List of gear ratios and codes” on p.47. For the
setting method, refer to “Code setting example” on p.48.

Note

Do not set a value other than the codes shown in “List of gear ratios and
codes” It will disable the speed display function.

Gear-ratio setting switches 1
(set the 10's place)

Gear-ratio setting switches 2
(set the 1's place)

3. Install the front panel.

(Refer to 4.4 “Removing/installing the front panel” on p.19.)

8 Various functions

– 47 –



List of gear ratios and codes

Code Special gear ratio

Base

gear ratio

×1 ×10 ×100 ×1000 Gear ratio Code

1 00 20 40 60 134 80

1.2 01 21 41 61 64.2 81

1.25 02 22 42 62 32.1 82

1.5 03 23 43 63 16.2 83

1.57 04 24 44 64 135 84

1.8 05 25 45 65 67.4 85

2 06 26 46 66 32.4 86

2.5 07 27 47 67 143 90

3 08 28 48 68 57.3 91

3.14 09 29 49 69 28.6 92

3.5 10 30 50 70 135 93

3.6 11 31 51 71 67.4 94

4 12 32 52 72 32.4 95

5 13 33 53 73 110 96

6 14 34 54 74 73.5 97

6.28 15 35 55 75 36.7 98

7 16 36 56 76

7.5 17 37 57 77

8 18 38 58 78

9 19 39 59 79

8 Various functions

– 48 –



Code setting example

An example of setting the output shaft speed when a gearhead with a gear ratio of
100 is used is given below.

1. Determine the base gear ratio and multiplication.

A gear ratio of 100 consists of “1 (base gear ratio) ×100 (multiplication)”.

2. Using the base gear ratio and multiplication determined above, look for

a code corresponding to gear ratio 100, and set the gear-ratio setting
switches to indicate the applicable code.

In this example, the corresponding code is “40”.

Code

Base gear ratio

×1 ×10 ×100 ×1000

1 00 20 40 60

3. Set gear-ratio setting switch 1 to “4”, and gear-ratio setting switch 2 to

“0”.

8 Various functions

– 49 –



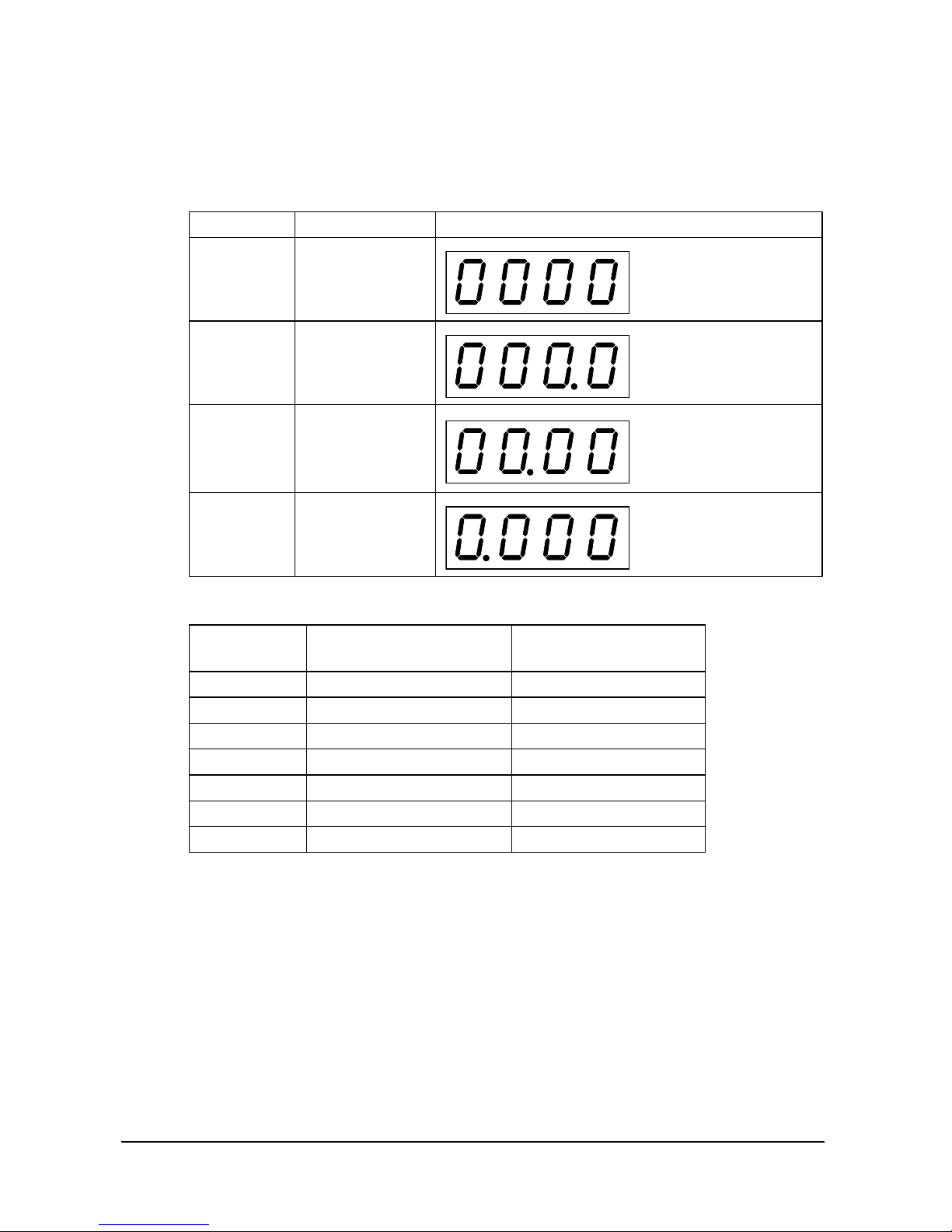

Gear ratio and displayed digits

The speed display shows up to four digits.
Since the effective integer digits will vary depending on the gear ratio, the position
of the decimal point in the displayed/input value will also move.

Gear ratios Codes Displayed position of decimal point

1 to 3 00 to 08

Not displayed.

3.14 to 30 09 to 28,
83,
92

At the second digit
from the right

31.4 to 300 29 to 48,
80, 81, 82, 84,
85, 86, 90, 91,
93 to 98

At the third digit from
the right

314 to 9000 49 to 79

At the fourth digit
from the right

Example: When the speed is 1800 r/min

Gear ratio

Code set by gear-ratio

setting switches

Value on speed display

1×1 00 1800

1×10 20 180.0

1.25×1 02 1440

1.25×100 42 14.40

3.14×1 09 573.2

3.14×1000 69 0.573

64.2 81 28.04

8 Various functions

– 50 –

8.4 Switching the carrier frequency

If the cable between the inverter and motor is long, the leak current from the cable
will increase. To reduce the leak current, lower the carrier frequency from the
default setting of 15 kHz to 10 kHz. (Note, however, that doing so will increase the
buzzing sound from the motor.)
Set DIP switch S4 (SW1) on the rear of the inverter to ON.
Factory setting: OFF (15 kHz)

Set S4 to ON

8 Various functions

– 51 –

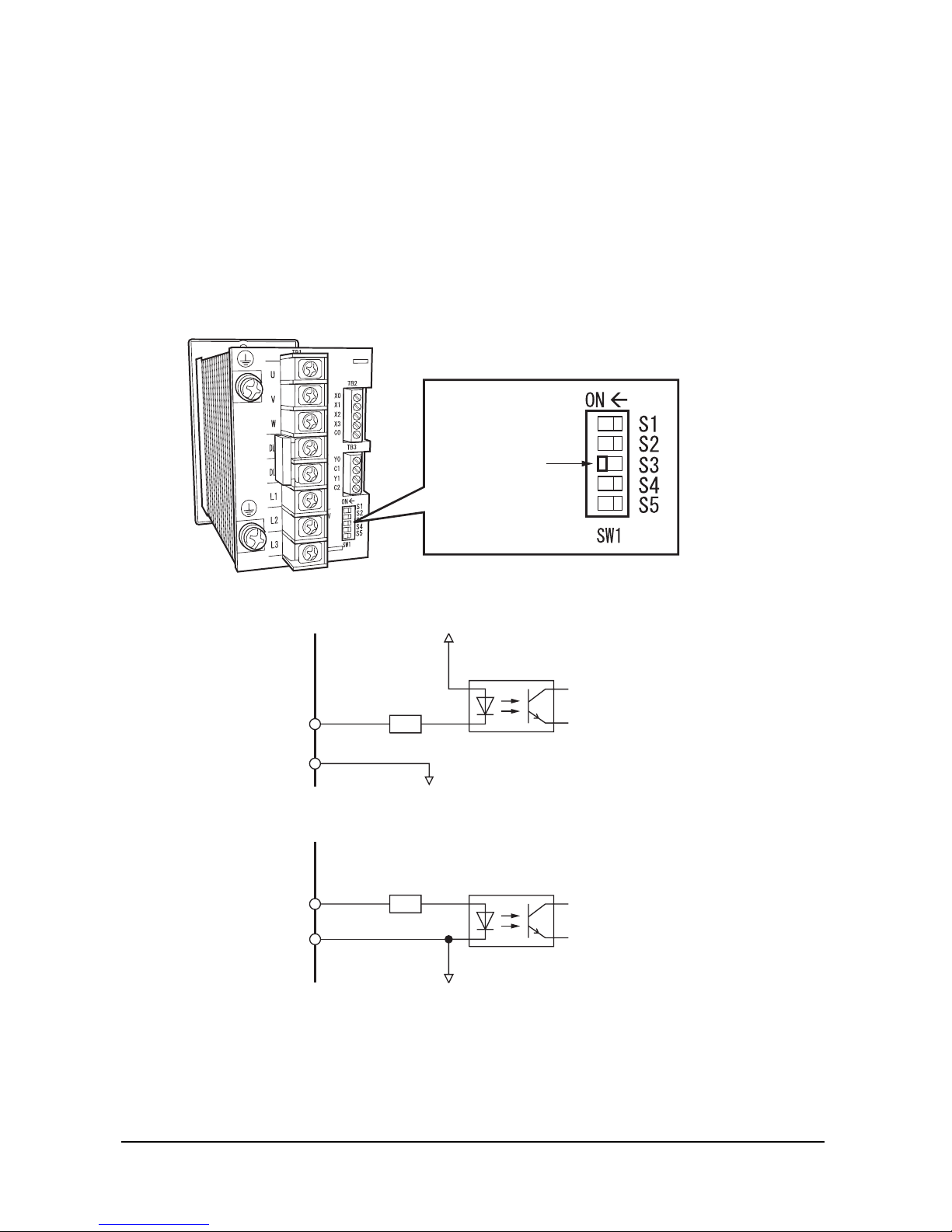

8.5 Switching between sink input and source input

You can switch between the sink mode and source mode for the inverter’s input
circuit using DIP switch S3 (SW1) on the rear of the inverter. Setting S3 to ON will
enable the source input mode.
In a sink circuit, a signal turns ON when current flows out from an applicable input
signal terminal.
In a source circuit, a signal turns ON when current flows into an applicable input
signal terminal.
Factory setting: OFF (sink input)

Set S3 to ON

• Sink input circuit

SG (common)

3.3 kΩ

+15 V

0 V

RUN/STOP

FWD/REV

A

LARM RESET

X0
X1
X2

C0

Input circuit

• Source input circuit

3.3 kΩ

0 V

RUN/STOP

FWD/REV

A

LARM RESET

SG (common)

Input circuit

X0
X1
X2

C0

To use the inverter in the source input mode, an external power supply with a
voltage range of +15 to 24 V is required.

9 Inspection

– 52 –

9 Inspection

It is recommended that the user inspect the items listed below on a regular basis.
If any abnormality is found, stop using the inverter and contact our Customer
Service Center.



Inspection items

• Blockage of the vent holes in the inverter

• Loosening of the inverter mounting screws as well as screws on the main circuit

terminals and I/O signal terminals

• Attachment of dirt and dust to the inverter’s radiator fins

• Deposits of conductive dust or oil mist on the printed circuit boards inside the

inverter

Note

The inverter uses semiconductor elements, so exercise due caution when
handling the inverter. Subjecting it to electrostatic or other external forces
may damage the semiconductor elements in the inverter.

10 Troubleshooting and remedial actions

– 53 –

10 Troubleshooting and remedial

actions

While the motor is running, the motor and/or inverter may malfunction due to data
setting or connection errors. If the motor does not operate correctly, refer to the
information provided in this chapter to take appropriate remedial actions. If the
motor still malfunctions after taking the relevant actions, please contact our
Customer Service Center near you.

10.1 Troubleshooting

Phenomenon Likely cause Remedial action

Poor connection of the
motor cable

Check if the motor is connected correctly.

Activation of the
inverter’s protective
function

If this is the cause, an alarm code should be
displayed on the inverter. Refer to 10.2 “Inverter
alarms” on p.54 to remove the cause that
activated the protective function.

The motor
does not run.

Short acceleration time Depending on the load condition, the motor may

not start if the acceleration time is too short. In
this case, increase the acceleration time.

Wrong connection of
the motor cable

Check if the motor is connected correctly.

Direction input error Input the forward or reverse direction correctly.

The motor
direction is
opposite to the
specified
direction.

Use of a gearhead that
reverses the motor
direction

Change the setting of the direction selector
switch or reverse the direction input.

Misalignment of the
motor (gearhead)
output shaft and the
load shaft

Check the connection condition of the motor
(gearhead) output shaft and load shaft.

Motor
operation is
unstable.

Effect of noise Check the operation only with the motor and

inverter. If effect of noise is observed, review the
current method of isolating the inverter from
noise-generating sources, as well as wiring, and
implement appropriate measures such as
connecting a mains filter.

Long acceleration time Change the acceleration time to an appropriate

value.

The motor
starts too slow.

Large load inertia Check the inertial moment of the load.

Long deceleration time Change the deceleration time to an appropriate

value.

The motor
stops too slow.

Large load inertia Check the inertial moment of the load.

10 Troubleshooting and remedial actions

– 54 –

10.2 Inverter alarms

When any abnormality occurs in the inverter, the motor will stop and the
corresponding alarm code will be shown on the inverter’s speed display. Check the
meaning of each alarm code by referring to the table below.
The alarm output behavior of the inverter will vary depending on how the alarm
code is displayed (steady or blinking). For the alarm output, refer to “Output signal
circuit” on p.34.
When resetting an alarm, be sure to remove the cause of the alarm before resuming
the operation. The reset method will vary depending on how the alarm code is
displayed (steady or blinking). Check an appropriate reset method in “Resetting an
alarm” on p.56.

Alarm code

(as displayed)

Display

condition

Meaning of

alarm

Description Remedial action

Steady Overcurrent

The inverter’s
output current
exceeded approx.
200% of the rated
output current.

• Reduce the load.

• Increase the acceleration/

deceleration time.

• Check if the output part of
the inverter is shorted or
shorted to the ground.

Steady∗1

Blinking

∗1

Overheated
circuit

The inverter’s
internal
temperature rose
above the
allowable level.

• Reduce the load.

• Increase the acceleration/

deceleration time.

• Check if the inverter’s
ambient temperature
exceeds the specification.

• Check the orientation of
the inverter and change
the installation layout if
the inverter’s vent holes
are blocked.

Steady∗1

Blinking

∗1

Overvoltage

The inverter’s
internal voltage
exceeded the
allowable level.

• Reduce the load.

• Increase the acceleration/

deceleration time.

• Check if the power supply
voltage is within the
specification range.

• Check if the inverter is set
to operate on
regenerative power (the
inverter cannot operate on
regenerative power).

10 Troubleshooting and remedial actions

– 55 –

Alarm code

(as displayed)

Display

condition

Meaning of

alarm

Description Remedial action

Blinking Low voltage

The inverter’s
internal voltage
dropped below the
allowable level.

• Check if the power supply
voltage is within the
specification range.

• In the case of a
three-phase input inverter,
check if any of the three
power phases is missing
or a single-phase power
supply is connected.

∗5

Steady

Overheated
motor

∗2

• The built-in

thermal
protector of the
motor actuated.

• Missing phase
in the wiring
between the
motor and
inverter

• Reduce the load.

• Increase the acceleration

/deceleration time.

• Lower the ambient
temperature of the motor.

• Check the motor
connection.

Steady Circuit error

∗3

Error in the CPU
or other built-in
component of the
inverter

If the alarm persists after
inputting an alarm reset
signal, turn off, and then on
the power.

Steady Overload

The inverter’s
output current
remained above
approx. 150% of
the rated output
current for 1 min.

• Reduce the load.

• Increase the acceleration

/deceleration time.

• Set the motor output
selector switch to an
appropriate output level.

Blinking Setting error

The output
selector switch or
gear-ratio setting
switches is/are set
to a value outside
the applicable
setting range.

• Check if the output
selector switch is set to
the correct output of the
motor used with the
inverter.

• Set a code appropriate for
the gear ratio of the
gearhead (87, 88 and 89
on the gear-ratio setting
switches are invalid).

Steady

Ground
fault

∗4

The output side of
the inverter was
shorted to the
ground and ground
fault current flowed
into the inverter as
a result.

Check the wiring between
the inverter and motor to
look for any part that is
shorted to the ground.

10 Troubleshooting and remedial actions

– 56 –

∗1 If the protective function is actuated while the motor is running, the alarm code on the

display will remain steady. If the protective function is actuated while the motor is stopped,
the alarm code will blink.

∗2 If the alarm cannot be reset when a motor with a built-in thermal protector is used, the

motor’s thermal protector may not have been reset. In this case, force-cool the motor using
a fan or otherwise lower the motor temperature.

∗3 If the inverter still malfunctions after the power was turned off, and then on following a

circuit error, the internal circuit may have been damaged. Please contact the Oriental Motor
branch or sales office near you.

∗4 The ground-fault protection will actuate when the motor is started via generation of

ground-fault current while the inverter is receiving power. If the inverter-motor line is
shorted to the ground while the motor is running, large current will flow into the inverter,
prompting the overcurrent protection (AL20) or overvoltage protection (AL22) to be
actuated (These protective functions do not actuate if the line was already shorted to the
ground when the power was input. Always connect an earth-leakage breaker if ground fault
is anticipated).

∗5 In the case of a three-phase input inverter, if any one of the three power leads is missing,

the inverter's protective function may not work accurately under no load or small load.



Resetting an alarm

• When a steady alarm code is displayed

Confirm that the RUN/STAND-BY switch is set to the STAND-BY side, or the X0
input is stopped if external input signal control is used, and then input an alarm reset
signal to reset the alarm. (For the ALARM RESET input, refer to “ALARM RESET
input” on p.35.)
An alarm can also be reset by turning off and then on the inverter power. In this case,
be sure to wait at least 1 minute after turning off the power, before turning it back on.

Note

• When resetting an alarm, always remove the cause of the alarm first.

Resuming the operation without removing the cause may result in
damage.

• The ALARM RESET input is enabled only when the motor is stopped.

• When a blinking alarm code is displayed

Removing the cause of the alarm will automatically reset the alarm.

11 Appendix

– 57 –

11 Appendix

11.1 Cables (sold separately)

The following cables are used to connect the motor and inverter or extend the wiring
length between the two.

Model number Cable length [m (ft.)]

CC01AC04 1 (3.3)

CC02AC04 2 (6.6)

CC03AC04 3 (9.8)

CC05AC04 5 (16.4)

CC10AC04 10 (32.8)

CC20AC04 20 (65.6)

11.2 Front cover (sold separately)

This cover is used to prevent accidental contacts with the inverter’s speed
potentiometer and consequent changes to the correct speed setting. (The front cover
is not waterproof.)
Model number: PAFC01

11 Appendix

– 58 –

11.3 Recommended peripherals

Installation of the following peripherals between the power supply and the inverter’s
main circuit terminals is recommended.

Recommended

peripheral

Description

Always connect a molded-case circuit breaker, earth-leakage breaker
or fuse to protect the circuit.

Model number

FE100A

FE100C

FE100S

FE200C

FE200S

FE200A

Protective device
rating

10 A 5 A 15 A

Molded-case circuit
breaker

NF30 (Mitsubishi Electric Corporation)

Earth-leakage
breaker

When connecting an earth-leakage breaker, use
a product with a current sensitivity of 200 mA or
more and operating time of 0.1 second or more.
Whenever possible, select an earth-leakage
breaker incorporating harmonic measures.

• NV Series [Mitsubishi Electric Corporation
(models manufactured in or after 1998)]

• EG Series, SG Series [Fuji Electric FA
Components & Systems Co., Ltd. (models
manufactured in or after 1984)]

Molded-case circuit
breaker,
earth-leakage
breaker, fuse

Fuse UL class RK5 (or equivalent)

Electromagnetic
contactor

Always connect a surge absorber to the coil.
Electromagnetic contactor

• New SC Series SC-03 (Fuji Electric FA Components & Systems
Co., Ltd.)

Surge absorber ratings: 250 VAC, 0.5 µF, 200 Ω

Control relay Always connect a surge absorber to the coil.

• MY or MM (OMRON Corporation)

• HH-2 Series (Fuji Electric FA Components & Systems Co., Ltd.)

Surge absorber ratings: 250 VAC, 0.1 µF, 100 Ω

DC reactor Install a DC reactor if the inverter is connected to a large-capacity

transformer of 600 kVA or more, or when the power factor of the
power supply must be improved or harmonic elimination is required.
When connecting a DC reactor, keep the load to 80% of the allowable
torque or below so as not to cause the output current to exceed the
rated current.

• X010048 (or X010049 for FE200A) YASKAWA Electric Corporation

11 Appendix

– 59 –

Recommended

peripheral

Description

Zero-phase reactor Insert a zero-phase reactor when implementing the countermeasure

against harmonic leak current.

• FT-3KM F6045GB Fine Met zero-phase reactor (Hitachi Metals,
Ltd.)

Manufacture

Single-phase,

100-120 V

Single-phase,

200-240 V

Three-phase,

200-240 V

Mains filter

OKAYA ELECTRIC
INDUSTRIES CO., LTD.

SUP-EL10-ER-6 3SUP-HU10-ER-6

Note

• Never connect a general LC/RC filter to the inverter’s output circuit.

• Do not connect a phase-advanced capacitor or surge killer to the

input/output sides of the inverter.

• Do not turn on/off the electromagnetic contactor installed between the

inverter and motor while the motor is running.

11 Appendix

– 60 –

11.4 Specifications



Inverter specifications

• Maximum supported motor capacity

FE100A, FE100C, FE100S

100 W

FE200A, FE200C, FE200S

200 W

• Ratings

Input

(Single-phase or

Three-phase)

Output

(Three-phase)

Model

number

Voltage (V) Current (A) Voltage (V) Current (A)

Frequency

(Hz)

FE100A 100-120 2.8 0-200 0.7 0-80

FE200A 100-120 5.4 0-200 1.4 0-80

FE100C 200-240 1.6 0-200 0.7 0-80

FE200C 200-240 3.1 0-200 1.4 0-80

FE100S 200-240 1.0 0-200 0.7 0-80

FE200S 200-240 1.6 0-200 1.4 0-80

• Control characteristics

Control method Sine-wave PWM method (V/f control)

Speed setting range 6.6 to 80 Hz (200 to 2400 r/min)

Frequency setting
method

Speed potentiometer at inverter front/DC voltage input
(0 to 10 VDC)

Acceleration/decelera
tion time

0.1 to 30 seconds (at set speed of 80 Hz)
(factory setting: 0.1 second)

Voltage/frequency
characteristics

Use the rotary switch to select an appropriate setting
according to the motor output.

• Display

7-segment display Set speed, alarm code

LED indicators Power, speed display modes (r/min, Hz)

• Wiring distance between the inverter and motor

Maximum 20 m (65.6 ft.)

• Cooling condition

Natural cooling

11 Appendix

– 61 –

• Functions

External input signals Photocoupler input

RUN/STOP, FWD/REV, ALARM RESET

External output signals Open-collector output

RUNNING, ALARM

Speed display Set speed of the motor is displayed.∗

Remote/local switching
(“RUN/STOP”, “FWD/REV”)

Switching between operation by the
RUN/STAND-BY switch or operation using external
input signals (factory setting: local)

Carrier frequency switching Change the default setting if leak current from the

inverter-motor cable must be reduced.
(factory setting: 15 kHz).

Sink/source switching Switching between sink input using 0 V common or

source input using 24 V common.
(factory setting: sink)

Frequency/rpm switching Either the set frequency or speed can be shown on

the speed display (factory setting: frequency).

Speed display switching
based on gear ratio

The set speed shown on the speed display can be
switched to a desired speed matching the gear ratio.
Up to 96 speeds can be set using two rotary
switches (factory-set gear ratio: 1:1).

∗ This is not the actual speed of the motor shaft.

• Protective functions

When any of the protective functions has been actuated, the inverter will stop the
motor via the base blocking function.
The inverter’s protective functions cover the following abnormalities and errors:
overcurrent, overheated circuit, overvoltage, low voltage, overheated motor, circuit
error, overload (150% of the rated output current for 1 minute), setting error, ground
fault

• Weight

FE100A, FE100C, FE100S 0.4 kg (0.88 lb.)

FE200A, FE200C, FE200S 0.5 kg (1.1 lb.)

11 Appendix

– 62 –



General specifications

• Insulation resistance

The insulation resistance measured by a 500 VDC megger between the main circuit
terminals and the grounding terminal (control circuit terminal) after continuous
operation in normal temperature and humidity is 100 MΩ or more.

• Withstand voltage

No abnormality has been observed after impressing 1.85 kV of 50 or 60 Hz for
1 minute between the main circuit terminals and the grounding terminal (control
circuit terminal) after continuous operation in normal temperature and humidity.

• Service conditions

Service location Indoor (free from corrosive gases or dust)

Ambient temperature −10 to +50 °C (+14 to +122 °F), non-freezing

Storage temperature −15 to +60 °C (+5 to +140 °F)

Humidity 95% or below (non-condensing)

Altitude 1000 m or below

Vibration Free from continuous vibration or excessive impact.

Measure vibration in accordance with the sine-wave
vibration test method under JIS C 60068-2-6.
Frequency range: 10 to 55 Hz, single amplitude: 0.15 mm
Sweep directions: 3 directions (X, Y, Z)
Number of sweeps: 20 times

• Protection structure

IP10 (The front side of the inverter is IP20-compliant.)

• Unauthorized reproduction or copying of all or part of this manual is prohibited.
If a new copy is required to replace an original manual that has been damaged or lost,
please contact your nearest Oriental Motor branch or sales office.

• Oriental Motor shall not be liable whatsoever for any problems relating to industrial
property rights arising from use of any information, circuit, equipment or device provided
or referenced in this manual.

• Characteristics, specifications and dimensions are subject to change without notice.

• While we make every effort to offer accurate information in the manual, we welcome

your input. Should you find unclear descriptions, errors or omissions, please contact the
nearest office.

•

is a registered trademark or trademark of Oriental Motor Co., Ltd., in
Japan and other countries.
Other product names and company names mentioned in this manual may be registered
trademarks or trademarks of their respective companies and are hereby acknowledged.
The third-party products mentioned in this manual are recommended products, and
references to their names shall not be construed as any form of performance guarantee.
Oriental Motor is not liable whatsoever for the performance of these third-party products.

© Copyright ORIENTAL MOTOR CO., LTD. 2008

Printed on Recycled Pape

r

• Please contact your nearest Oriental Motor office for further information.

Technical Support Tel:[phone]
8:30

A.M. to 5:00 P.M., P.S.T. (M-F)

7:30

A.M. to 5:00 P.M., C.S.T. (M-F)

E-mail: [e-mail]
www.orientalmotor.com

Headquarters and Düsseldorf Office
Tel:[phone] Fax:[phone]
Munich Office
Tel:[phone] Fax:[phone]
Hamburg Office
Tel:[phone] Fax:[phone]

Tel:[phone] Fax:[phone]

Tel:[phone] Fax:[phone]

Tel:[phone] Fax:[phone]

Tel:[phone] Fax:[phone]

Tel:[phone] Fax:[phone]

Tel:[phone] Fax:[phone]

KOREA
Tel:[phone]~3 Fax:[phone]

Headquarters Tokyo, Japan
Tel:[phone] Fax:[phone]

Tel:[phone] Fax:[phone]
