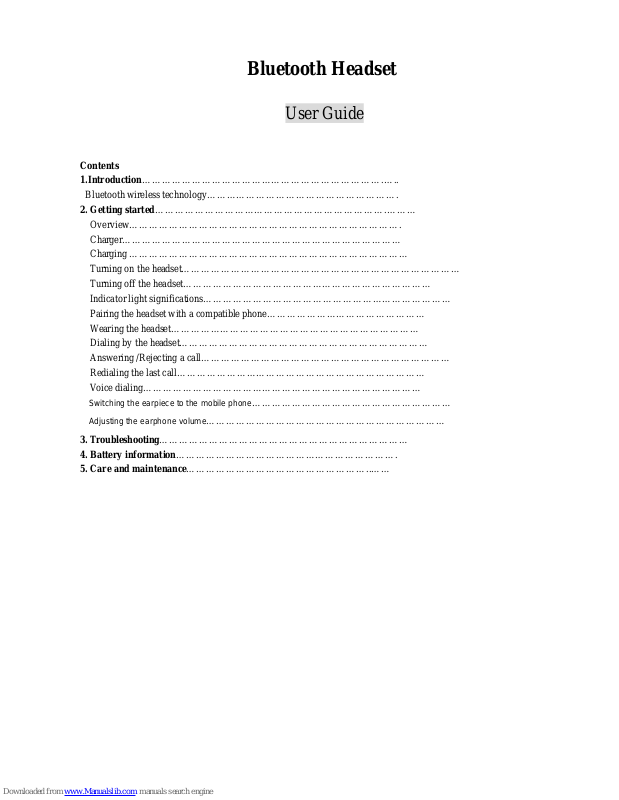

Oricore LB58 User Manual

Bluetooth Headset

User Guide

Contents

1.Introduction……………………………………………………………….…..

Bluetooth wireless technology………………………………………………….

2. Getting started…………………………………………………………….………

Overview……………………………………………………………………….

Charger…………………………………………………………………………

Charging …………………………………………………………………………
Turning on the headset…………………………………………………………………………
Turning off the headset…………………………………………………………………
Indicator light significations…………………………………………………………………
Pairing the headset with a compatible phone…………………………………………
Wearing the headset…………………………………………………………………
Dialing by the headset…………………………………………………………………
Answering /Rejecting a call…………………………………………………………………
Redialing the last call…………………………………………………………………
Voice dialing…………………………………………………………………………

Switching the earpiece to the mobile phone……………………………………………………
Adjusting the earphone volume………………………………………………………………

3. T r oublesh ooting…………………………………………………………………

4. Battery information………………………………………………………….

5. Care and maintenance………………………………………………..……

Introduction

Using the Bluetooth headset Oricore LB-58 will bring you a great convenience in

communication, especially in mobile phones supporting Bluetooth files.

Read this user guide carefully before using the headset. Read also the user guide for your phone,

which provides important safety and maintenance information.

Bluetooth wireless technology.

Bluetooth wireless technology makes it possible to connect compatible communication devices without
using cables. A Bluetooth connection does not require that the phone and the headset be in line of sight,
but both devices should be within 10meters (30feet) of each other.
Notes: Connection can be subject to interference from obstruction, such as walls or other electronic
devices
Oricore LB-58 is Bluetooth version 1.2 compliant. Before using it, please also check whether the mobile
phone is Bluetooth compliant or not with its manufacturer and supplier.

Getting started

1. Over view

The headset contains the following parts as shown in the figures:

Notes: Parts of the headset are magnetic, Metallic materials may be attracted to the headset. Do not place credit
cards or other magnetic storage media near the headset, because information stored on them may be erased.

2.Charger

Check the model number of any charger before using it with this device.The Bluetooth headset LB-58 is
intended for use with the chargers that is included in the package.
Notes: Using other incompliant chargers will betray the terms of Maintenance provision and result in a danger.
For the supplying of the committed chargers, please enquiry your distributors.

3.Charging

This device has an internal, non-removable, rechargeable battery. Do not attempt to remove the battery from the
device as you may damage the device.

1. Before the initial use of the Bluetooth headset, we suggest you to charge the battery fully.

2. Connect the charger cable to the charging socket of the headset and to the wall outlet. The

blue indicator light is

displayed during charging.

3.

Make sure that your headset is fully charged for 2 hours before you start using it ，when the battery is fully charged，

the blue LED will turn off. Disconnect the charger from AC wall outlet （mains socket）and the headset .

4. The talk time of the fully charged charger is up to 7.5 hours while the stand by time is up to 180 hours.
Notes: The talk and standby time may vary when use with different mobile phones, products that use a Bluetooth
connection, usage settings, usage styles, and environments.

When the battery power is insufficient, the headset will

have a quick tone from time to time. At this point, please charge for the headset. We suggest to fully charge the Headset

for at least one time in three months.

Turning on the headset

When being in a turned off station, please press and hold the MFB for 5 seconds, the LED will have 4 quick flashes in blue,

that is to say the headset has been turned on.

Turning off the headset

When being in a turned on station, please press and hold the MFB for 8 seconds, the LED will have 4 quick flashes in blue,

that is to say the headset has been turned off.

Indicator light significations

z Headphones’ blue indicator blinks quickly, which indicates it’s in a paring or there is a call coming in.

z Headphones’ blue indicator blinks quick for 10 times, which indicates matching headset successfully.
z The indicator flashes a time in blue every 3 seconds, which signifies the headset is in standby, not on the phone

model.

z The indicator flashes a time in blue every 5 seconds, which signifies the headset is in connection, calling

patterns.

Pairing the headset with a compatible phone

The pairing will be done wirelessly with encryption and point to point between two Bluetooth compliant

equipments (such as between a Bluetooth compliant mobile phone and headset).

1. Put the Bluetooth headset in an obvious seen place and within a best operation range 1

meter.

2. make sure your headset is turned off

3.

Press and hold the MFB for 8 seconds until the headset LED has a quick f lash i n blue an d is to go into a paring

condition.

4. Activate the Bluetooth feature on the mobile phone, and set the phone to search for Bluetooth devices.

See the user guide of your mobile phone for instructions

5. Select the headset (LB06) from the list of found devices.

6. Enter the pass code 0000 to pair and connect the headset to your phon e.

Notes: When the pairing done, the ind icator flashes in blue for 10 quick times and after that it will flash in
blue a time every 3 seconds. If unsuccessful paring,

the LED will still flash quickly or the mobile phones shows

no Bluetooth devices. At this time, it needs re-pairing.

Connecting mobile phone automatically when turning on the headset

After Bluetooth headset is switched on, it will automatically connect to the last pairing mobile phone.

If the headset is still not connected with your mobile phone please press MFB once, the Bluetooth headset will

connect the last paired mobile phone.

Wearing the headset

According to the habit of wearing headsets, headphones corresponding regulatory position

Dialing by the headset

Matching connected to the success of the method call is possible with the use of mobile phone operators set to

another.

Answering/Rejecting a call

When there is a call coming in, the LED will flash in blue quickly, and the buzzer will sound regulary. To answer the
call, Press the MFB once to accept the call or answer the call via your mobile phone in the normal way.

To reject a call, please have a long press of the button until hear a “du” or use the mobile phone to
reject.

Redialing the last call

When being connected and not in a call, have a long pr ess of the until you hear an indication sound and the n

release, the headset is now redialing the last number.

Voice dialing

When your mobile phone supports the voice dialing function, please press the MFB a time until you hear a

beep and then say the voice tag to voice di al. To reach the best effect, please use the Bluetooth he adset to

record the voice tag.

Notes: Please confirm your mobile phone has recorded the voice tag before appl ying the voice tag function on yo ur
headset.

Switching the earpiece to the mobile phone

When being connected have a long press of the

button and you can use the mobile ph one to answer calls now,

have a long press of the

button again switching to the headset.

Adjusting the earphone volume

When using the headset, please press

to increase the volume.

When using the headset, please press to decrease the volume.

Troubleshooting

If you cannot connect the headset to your phone, do as follows:
1． Ensure that the headset has been charged, switched on, paired with and connected to your phone.
2． Ensure that the Bluetooth feature is activated on your phone.
3． Check that the headset is within 10 meters (30 feet) of your phone and that there are no obstructions between

the headset and the phone, such as walls or other electronic devices.

4．

If the above steps do not solve your problem, please recharge the headset. And remove your mobile phone battery for

a short time and then re-power on it.

Battery information

1．Your device is powered by a rechargeable battery. The full performance of a new battery is achieved only
after two of three complete charge and discharge cycles. The battery can be charged and discharged hundreds
of times, but it will eventually wear out. Recharge your battery only with Compatible chargers designated for

this device.
2．Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged
battery connected to a charger, since overcharging may shorten its lifetime. if left unused, a fully charged
battery will lose its charge over time.
3．Never use any charger that is damaged.
4．Leaving the device in hot or cold places, such as，in a closed car in a summer or winter conditions, will
reduce the capacity and lifetime of the battery. Always try to keep the battery between 15℃ and 25℃ (59ºF
and 77ºF).A device with a hot or cold battery between may not work temporarily, even when the battery is
fully charged. Battery performance is particularly limited in temperatures well below freezing.
5．Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of
batteries according to local regulations.
6．Please recycle then possible. Do not dispose as household waste.

-10-

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated with care. The

suggestion below will help you protect your warranty coverage

1.Keep all accessories and enhancements out of the reach of small children.

2.Keep the headset away from a dusty and dirty areas..

3.·Do not expose the headset to extreme temperature conditions. The best storage temperature range is from

-10℃ to +60℃, or the life of the headset will be influenced.

4. Do not drop, knock, or shake the device.

5. Keep away the headset from incisive object or it will result in scratch and damage.

6. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.

7. Do not paint the device. Paint can clog the moving parts and prevent proper operation.

8. Do not expose the headset in liquid and humidity area.

All of the above suggestions apply equally to your device, battery, charger, or any enhancement. If any
device is not working properly, take it to the nearest authorized service facility.

Compatibility

Works with all Bluetooth-enabled phones and PDA.

To know more our products information, please visit our website: http://www.oricore.com

Product specifications

Version: 1.2

Bluetooth profile supported： Headset，Handsfree

Range of frequency： 2400.0-2483.5GHz spectrum

Nominal charging time： Within 2 hours

Talk time： more than 7.5 hours
