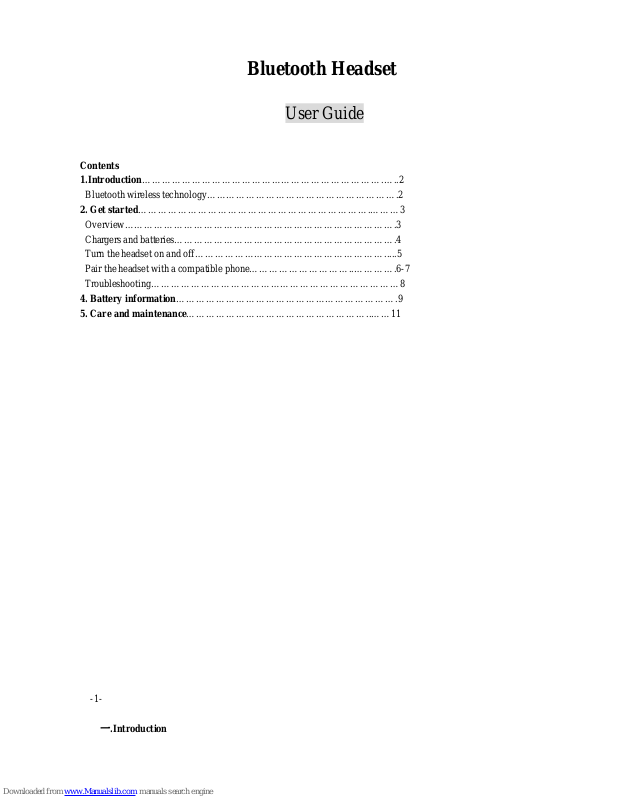

Bluetooth Headset
User Guide
Contents
1.Introduction……………………………………………………………….…..2
Bluetooth wireless technology………………………………………………….2
2. Get started…………………………………………………………….………3
Overview……………………………………………………………………….3
Chargers and batteries………………………………………………………….4
Turn the headset on and off………………………………………………….....5
Pair the headset with a compatible phone…………………………..………….6-7
Troubleshooting…………………………………………………………………8
4. Battery information………………………………………………………….9
5. Care and maintenance………………………………………………..……11
-1-
一.Introduction
Page 2
1. Using the Bluetooth headset Oricore LB-06 will bring you a great convenience in
communication, especially in mobile phones supporting Bluetooth files. Read this user guide
carefully before using the headset. Read also the user guide for your phone, which provides important
safety and maintenance information.
2. Bluetooth wireless technology.
Bluetooth wireless technology makes it possible to connect compatible communication devices without
using cables. A Bluetooth connection does not require that the phone and the headset be in line of sight,
but both devices should be within 10meters (30feet) of each other.
Notes: Connection can be subject to interference from obstruction, such as walls or other electronic
devices
Oricore LB-06 is Bluetooth version 2.0 compliant, which supporting the Bluetooth version1.1 and
Bluetooth version1.2. Before using it, please also check whether the mobile phone is Bluetooth
compliant or not with its manufacturer and supplier.
-2-
二． Get started
1. Over view

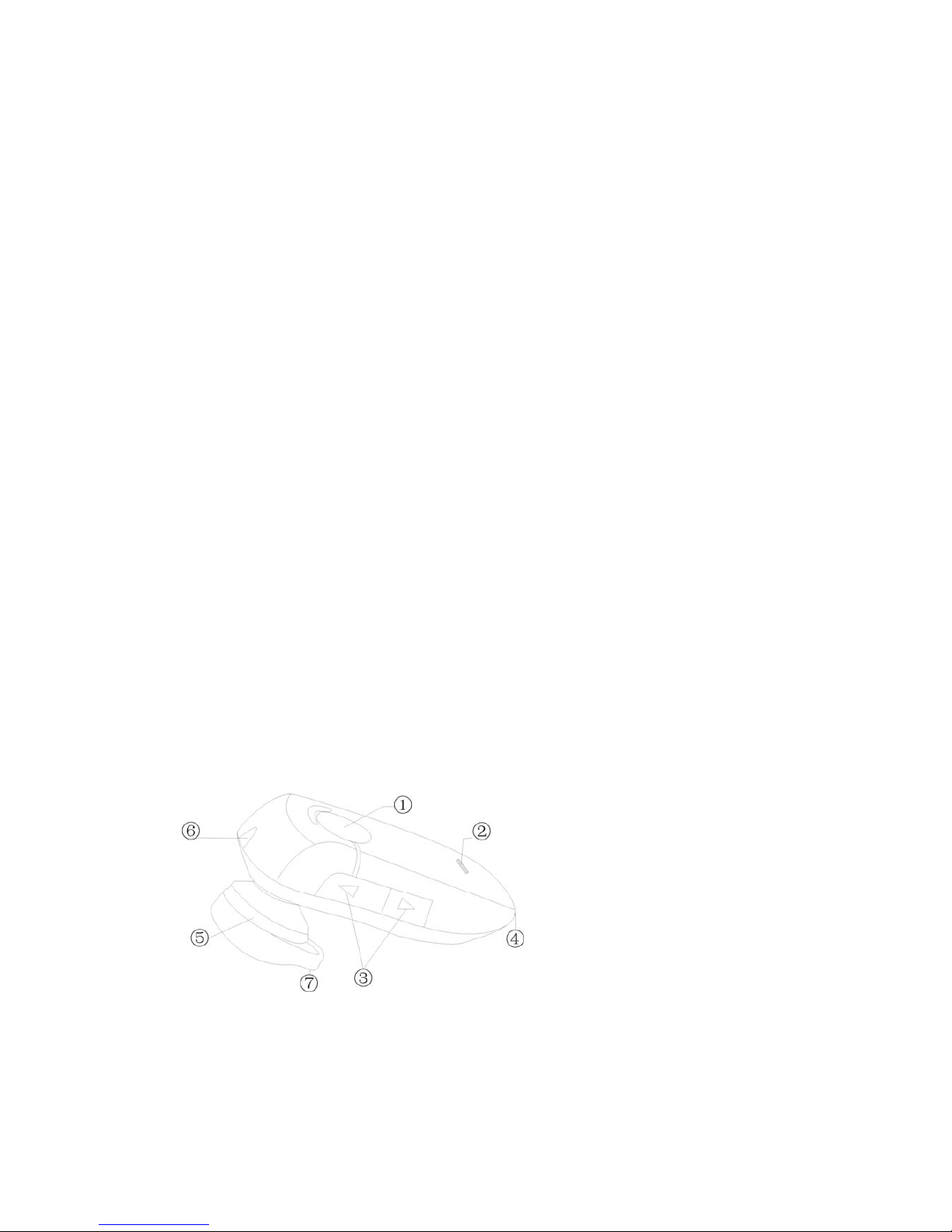

The headset contains the following parts as shown in the figures:
① MFB Button (to turn on/ turn off, pair and to answer/reject calls.)
② LED Indicator
③ Volume button
④ Microphone
⑤ Earpiece
Page 3
⑥ Charging socket
⑦ Earpiece hook
Notes: Parts of the headset are magnetic, Metallic materials may be attracted to the headset. Do not place credit
cards or other magnetic storage media near the headset, because information stored on them may be erased.
2.Charger
Check the model number of any charger before using it with this device.The Bluetooth headset LB06 is intended
for use with the chargers that is included in the package.
Notes: Using other incompliant chargers will betray the terms of Maintenance provision and result in a danger.
For the supplying of the committed chargers, please enquiry your distributors.
3.Charging
This device has an internal, non-removable, rechargeable battery. Do not attempt to remove the battery from the
device as you may damage the device.
1. Before the initial use of the Bluetooth headset, we suggest you to charge the battery fully.
2. Connect the charger cable to the charging socket of the headset and to the wall outlet. The red indicator light is
displayed during charging.
3. The talk time of the fully charged charger is up to 4 hours while the stand by time is up to 100 hours.
Notes: The talk and standby time may vary when use with different mobile phones, products that use a Bluetooth
connection, usage settings, usage styles, and environments.When the battery is running out of power, the red
indicator light starts to flash.
Turn on the headset
To switch on, press and hold the power key for 3 seconds. The blue indicator light starts to flash.
Turn off the headset
To switch off, press and hold the power key for 4 seconds until headset beeps 2 times and the red indicator light is
flashed.
Indicator light significations
z The indicator flashes a time in blue every 4 seconds, which signifies the headset is
in a being used mode.
z The indicator flashes a time in blue every 7 seconds, which signifies the headset is
in a being used mode.
z The indicator flashes in blue for two quick times and then after 3 seconds, it flashes
in blue for two quick times again, which signifies there is a call coming in.
Pair the headset with a compatible phone
1. The pairing will be done wirelessly with encryption and point to point between two Bluetooth compliant
equipments (such as between a Bluetooth compliant mobile phone and headset).
2. Put the Bluetooth headset in an obvious seen place and within a best operation range 1
meter.
3. make sure your headset is turned off
4. push the answer key for 8 seconds until the blue and red light flashes alternately
5. Activate the Bluetooth feature on the mobile phone, and set the phone to search for Bluetooth devices.
See the user guide of your mobile phone for instructions
6. Select the headset (LB06) from the list of found devices.
Page 4
7. Enter the pass code 0000 to pair and connect the headset to your phone.
Notes: When the pairing done, the indicator flashes in blue for three quick times and after that it will flash in
blue a time every 7 seconds. If unsuccessful paring, the indicator will flash in blue and red alternately or the
mobile phones shows no Bluetooth devices. At this time, it needs re-pairing.
Wear the headset
Wear and adjust it according to the ease of your ear.
Dial by the headset
Dialing ways vary with the settings of mobile phones. Such as, the GSM mobile phone uses handsfree to dial
while the CDMA uses headset and handsfree to dial.
Answer/Reject a call
To answer the call, have a short press of the MFB or use the mobile phone to answer, To reject a call, please
have two quick press on the MFB or use the mobile phone to reject.
Redial the last call
Have a long press of the volume button”+”, you will redial the last call.
Voice dialing
When your mobile phone supports the voice dialing function, please press the MFB a time until you hear a
beep and then say the voice tag to voice dial.To reach the best effect, please use the Bluetooth headset to
record the voice tag.
Notes: Please confirm your mobile phone has recorded the voice tag before appl ying the voice tag function on yo ur
headset.
Alternate the earpiece to the mobile phone
When being under a call, have a long press of the MFB button, you will hear the voice from the mobile phone; have a
long press again, it will alternate to the earpiece.
Adjust the earphone volume
Press the volume button to adjust the volume.
T r oubleshooting
If you cannot connect the headset to your phone, do as follows:
1． Ensure that the headset has been charged, switched on, paired with and connected to your phone.
2． Ensure that the Bluetooth feature is activated on your phone.
3． Check that the headset is within 10 meters (30 feet) of your phone and that there are no obstructions between
the headset and the phone, such as walls or other electronic devices.
4．
If the above steps do not solve your problem, please recharge the headset. And remove your mobile phone battery for
a short time and then re-power on it.
Page 5
一． Battery information
1．Your device is powered by a rechargeable battery. The full performance of a new battery is achieved only
after two of three complete charge and discharge cycles. The battery can be charged and discharged hundreds
of times, but it will eventually wear out. Recharge your battery only with Compatible chargers designated for
this device.
2．Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged
battery connected to a charger, since overcharging may shorten its lifetime. if left unused, a fully charged
battery will lose its charge over time.
3．Never use any charger that is damaged.
4．Leaving the device in hot or cold places, such as，in a closed car in a summer or winter conditions, will
reduce the capacity and lifetime of the battery. Always try to keep the battery between 15℃ and 25℃ (59ºF
and 77ºF).A device with a hot or cold battery between may not work temporarily, even when the battery is
fully charged. Battery performance is particularly limited in temperatures well below freezing.
5．Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of
batteries according to local regulations.
6．Please recycle then possible. Do not dispose as household waste.
-10-
二. Care and maintenance
Your device is a product of superior design and craftsmanship and should be treated with care. The
Page 6
suggestion below will help you protect your warranty coverage
1.Keep all accessories and enhancements out of the reach of small children.
2.Keep the headset away from a dusty and dirty areas..
3.·Do not expose the headset to extreme temperature conditions. The best storage temperature range is from
-10℃ to +60℃, or the life of the headset will be influenced.
4. Do not drop, knock, or shake the device.
5. Keep away the headset from incisive object or it will result in scratch and damage.
6. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
7. Do not paint the device. Paint can clog the moving parts and prevent proper operation.
8. Do not expose the headset in liquid and humidity area.
All of the above suggestions apply equally to your device, battery, charger, or any enhancement. If any
device is not working properly, take it to the nearest authorized service facility.
-12-
