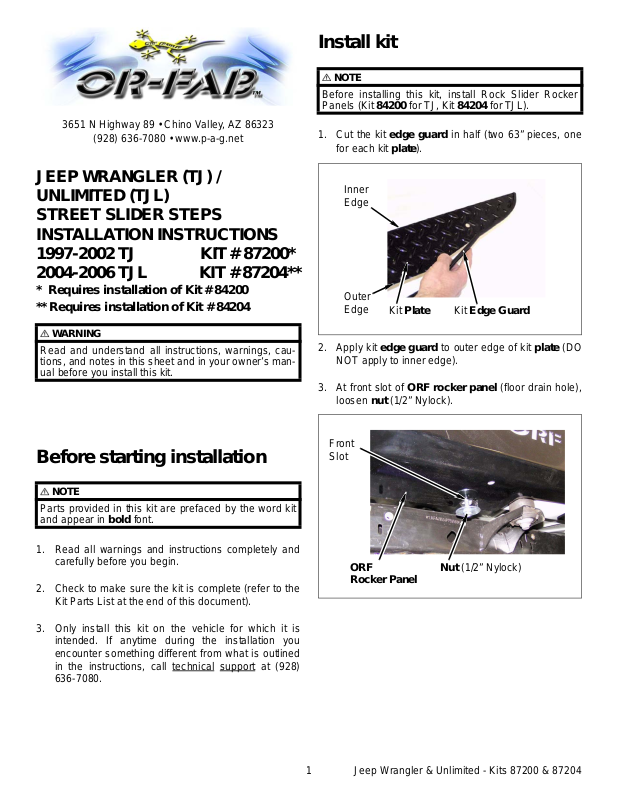

Page 1
3651 N Highway 89 • Chino Valley, AZ 86323
(928) 636-7080 • www.p-a-g.net
JEEP WRANGLER (TJ) /
UNLIMITED (TJL)
STREET SLIDER STEPS
INSTALLATION INSTRUCTIONS
1997-2002 TJ KIT # 87200*
2004-2006 TJL KIT # 87204**
* Requires installation of Kit # 84200
** Requires installation of Kit # 84204
WARNING
Read and understand all instructions, warnings, cautions, and notes in this sheet and in your owner’s manual before you install this kit.
Install kit
NOTE
Before installing this kit, install Rock Slider Rocker
Panels (Kit 84200 for TJ, Kit 84204 for TJL).

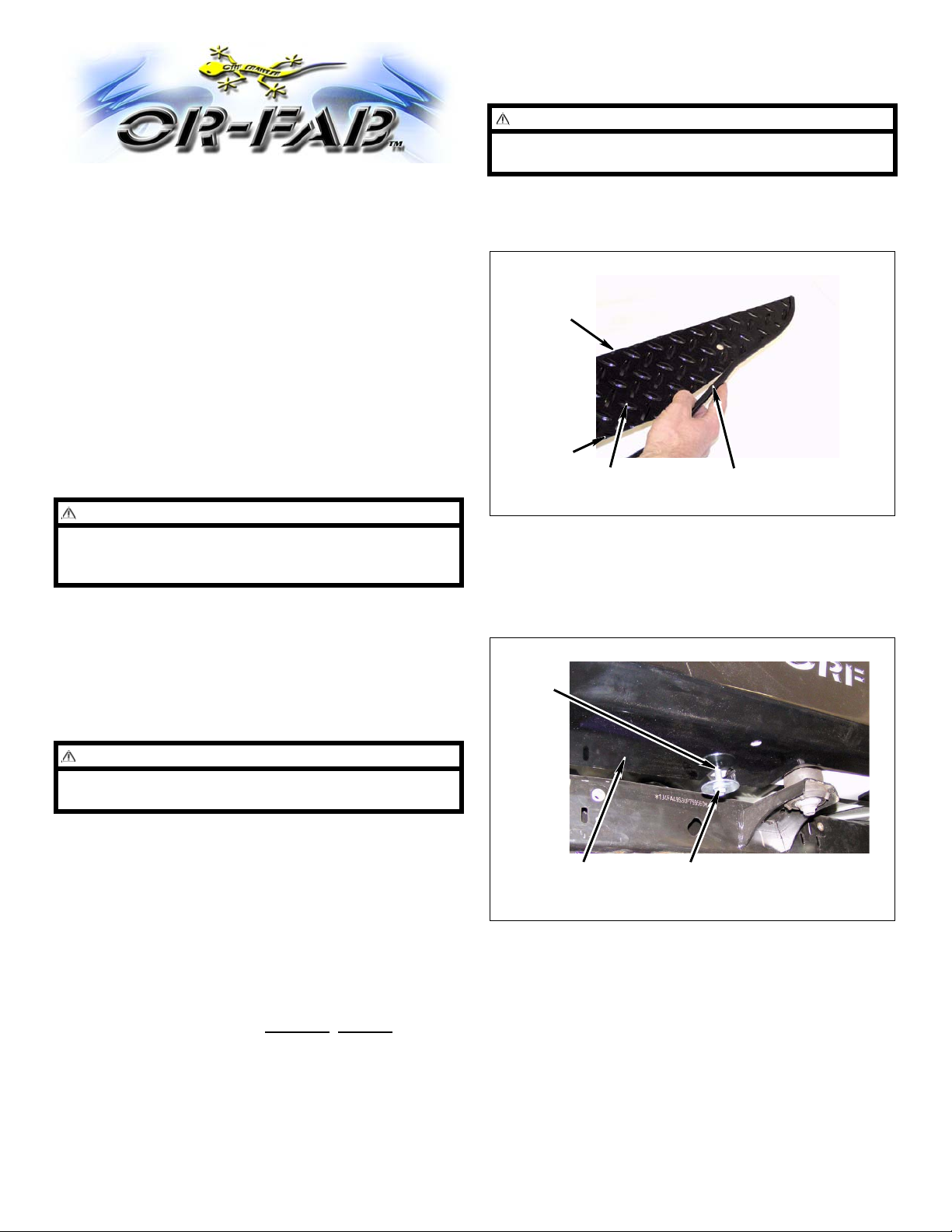

1. Cut the kit edge guard in half (two 63” pieces, one
for each kit plate).
Inner
Edge
Outer
Edge
2. Apply kit edge guard to outer edge of kit plate (DO
NOT apply to inner edge).
3. At front slot of ORF rock er panel (floor drain hole),
loosen nut (1/2” Nylock).
Kit Edge GuardKit Plate
Before starting installation
NOTE
Parts provided in this kit are prefaced by the word kit
and appear in bold font.
1. Read all warnings and instructions completely and
carefully before you begin.
2. Check to make sure the kit is complete (refer to the
Kit Parts List at the end of this document).
3. Only install this kit on the vehicle for which it is
intended. If anytime during the installation you
encounter something different from what is outlined
in the instructions, call technical
636-7080.
support at (928)
Front
Slot
Nut (1/2” Nylock)ORF
Rocker Panel
1 Jeep Wrangler & Unlimited - Kits 87200 & 87204
Page 2

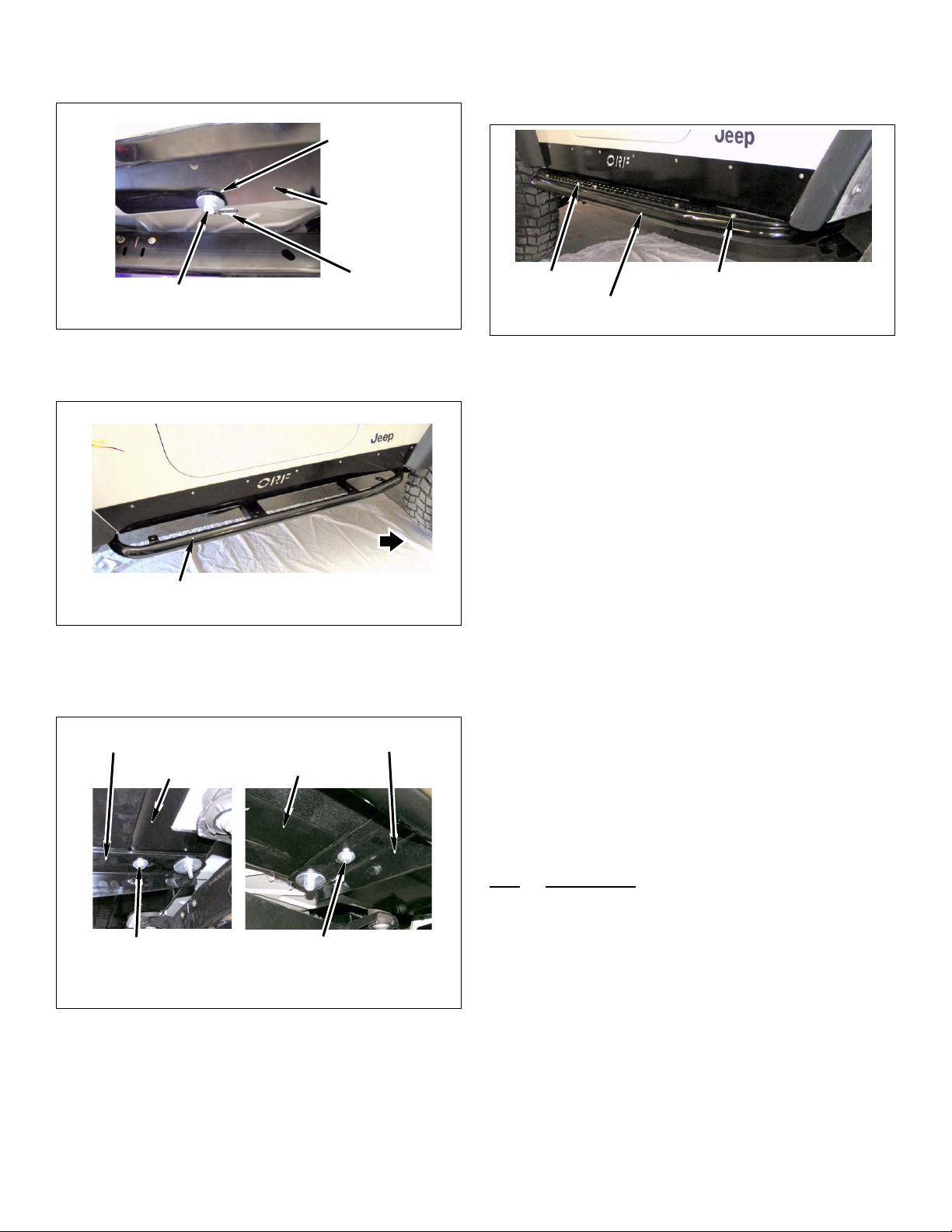

4. At rear slot of ORF rocker panel, loosen nut (3/8”
serrated flange).
Rear Slot
ORF
Rocker Panel
7. Install kit plate on kit side bar with four kit bolts
(3/8” x 1
serrated flange).
1/4” stainless button-head) and nuts (3/8”
Washer
Nut (3/8” Serrated Flange)
5. Install kit side bar between washers
(9/16” ID x 2” OD) and ORF rocker panel.
Front
Kit Side Bar
6. Fasten kit side bar to ORF rocker panel with two kit
bolts (3/8” x 1”) and washers (3/8” USS). DO NOT
tighten.
Kit Plate
Kit Side Bar
8. Align kit side bar parallel with vehicle body.
9. Tighten two kit bolts (3/8” x 1"), nut (3/8” serrated
flange), and nut (1/2” Nylock).
10. Repeat installation for other side of vehicle.
Kit Bolt (3/8” x 1
St ainless Button-Head),
Nut (3/8” Serrated Flange)
1/4”
Accessories
The following accessories are also available:
Kit # 83200: Rock Slider Front Bumper
Kit # 83201: Rock Slider Front Bumper
w/ Grille Guard
Kit Side Bar
ORF Rocker Panel
Kit Bolt (3/8” x 1”),
Washer (3/8” USS)
Rev. 03, Copyright 07/06
Performance Automotive Group
www.p-a-g.net
Kit Side Bar
Kit Bolt (3/8” x 1”),
Washer (3/8” USS)
Kit # 83100: Rock Slider Rear Bumper
Kit Parts List
Qty. Description
4 Bolt, 3/8” x 1"
8 Bolt, 3/8” x 1
1 Edge guard, 10
8 Nut, 3/8” serrated flange
1 Plate, diamond Left
1 Plate, diamond Right
1 Side bar, driver side
1 Side bar, passenger side
4 Washer, 3/8” USS
1/4” stainless button-head
1/2’
2 Jeep Wrangler & Unlimited - Kits 87200 & 87204
