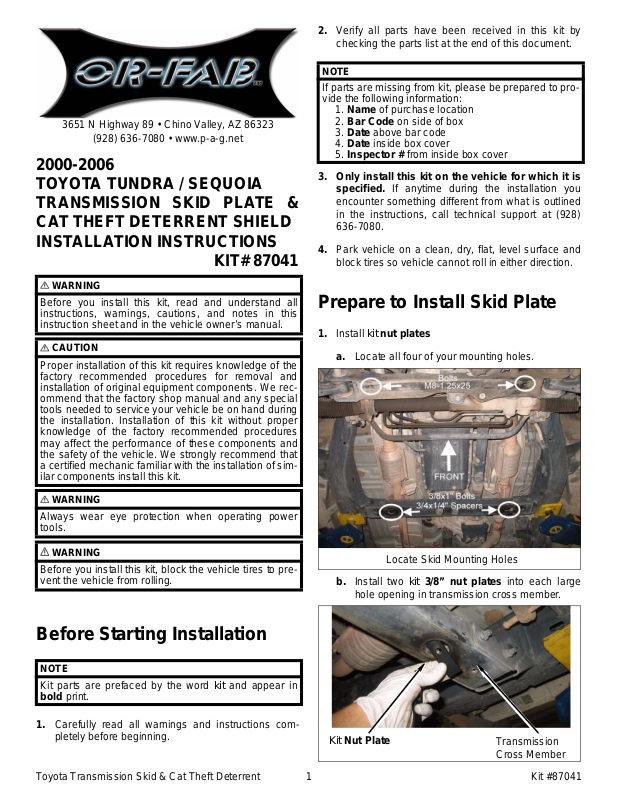

Page 1
3651 N Highway 89 • Chino Valley, AZ 86323
(928) 636-7080 • www.p-a-g.net
2000-2006
TOYOTA TUNDRA / SEQUOIA
TRANSMISSION SKID PLATE &
CAT THEFT DETERRENT SHIELD
INSTALLATION INSTRUCTIONS
KIT# 87041
WARNING
2. Verify all parts have been received in this kit by
checking the parts list at the end of this document.
NOTE
If parts are missing from kit, please be prepared to provide the following information:
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
5. Inspector # from inside box cover
3. Only install this kit on the vehicle for which it is
specified. If anytime during the installation you
encounter something different from what is outlined
in the instructions, call technical support at (928)
636-7080.
4. Park vehicle on a clean, dry, flat, level surface and
block tires so vehicle cannot roll in either direction.
Before you install this kit, read and understand all
instructions, warnings, cautions, and notes in this
instruction sheet and in the vehicle owner’s manual.
CAUTION
Proper installation of this kit requires knowledge of the
factory recommended procedures for removal and
installation of original equipment components. We recommend that the factory shop manual and any special
tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper
knowledge of the factory recommended procedures
may affect the performance of these components and
the safety of the vehicle. We strongly recommend that
a certified mechanic familiar with the installation of similar components install this kit.
WARNING
Always wear eye protection when operating power
tools.
WARNING
Before you install this kit, block the vehicle tires to prevent the vehicle from rolling.

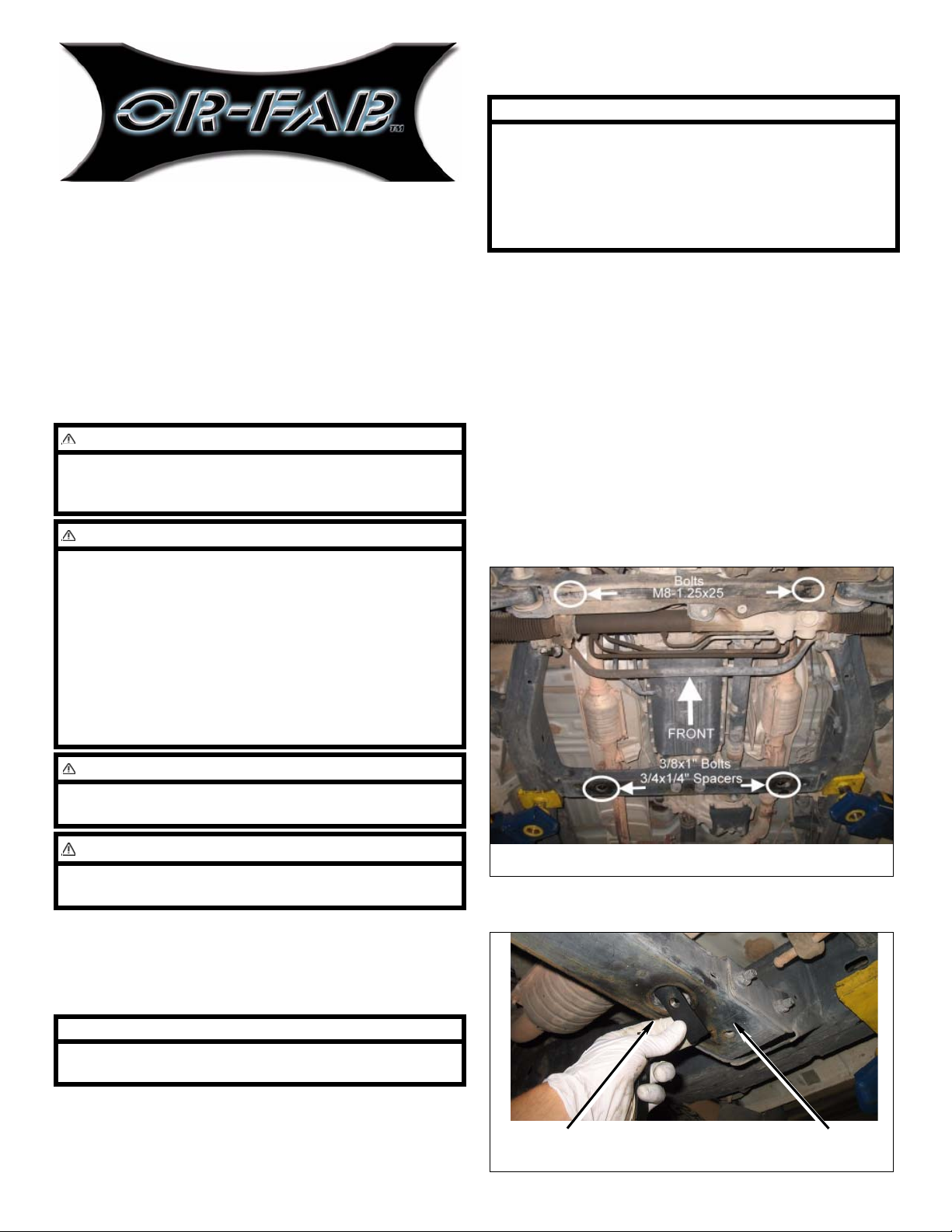

Prepare to Install Skid Plate
1. Install kit nut plates
a. Locate all four of your mounting holes.
Locate Skid Mounting Holes
b. Install two kit 3/8” nut plates into each large
hole opening in transmission cross member.
Before Starting Installation
NOTE
Kit parts are prefaced by the word kit and appear in
bold print.
1. Carefully read all warnings and instructions com-
pletely before beginning.
Toyota Transmission Skid & Cat Theft Deterrent 1 Kit #87041
Kit Nut Plate
Transmission
Cross Member
Page 2

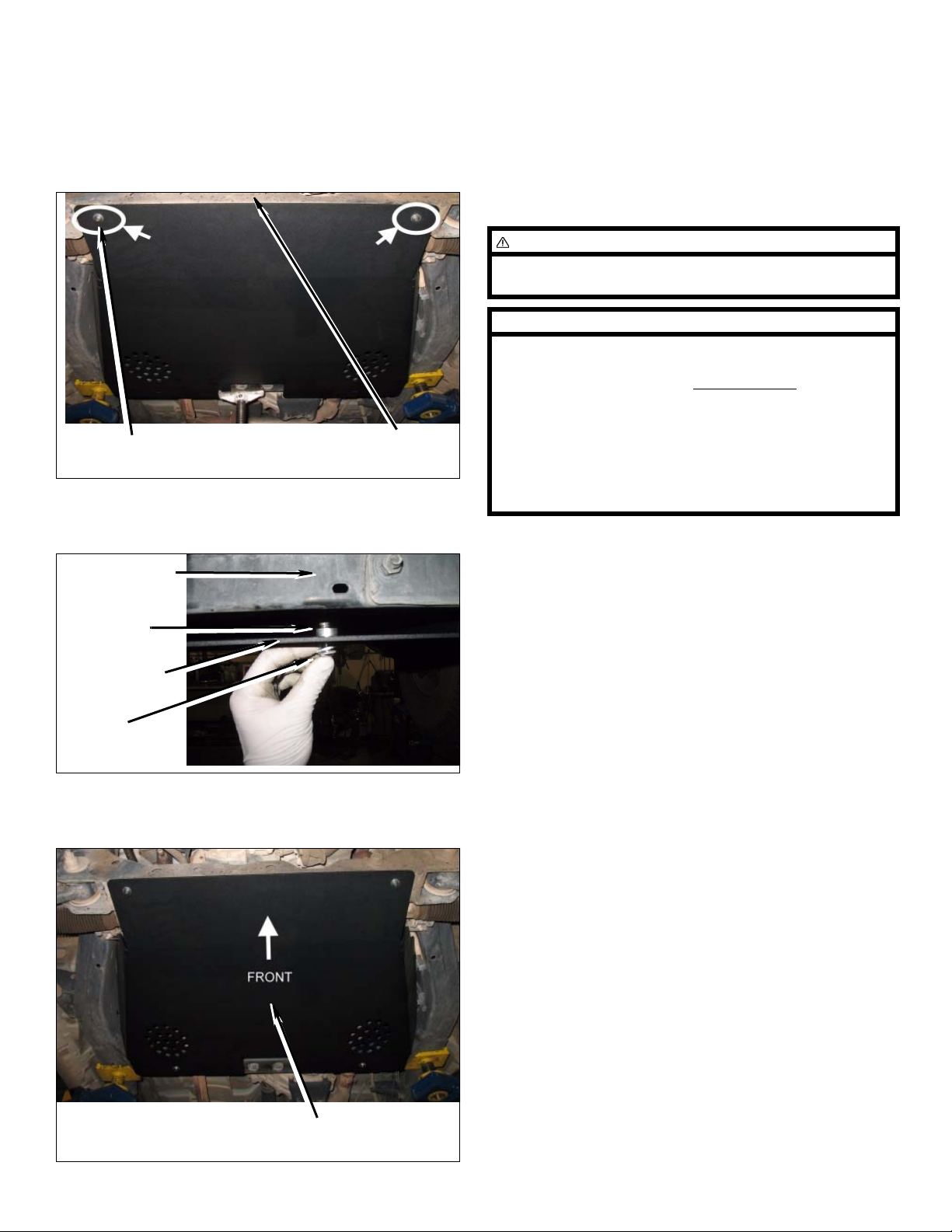

Install Skid Plate
After Completing Installation
1. Install kit skid plate
a. Install front of kit skid plate using two kit bolts
(M8-1.25x25) & washers into rear control arm
cross member existing holes.
Kit Bolts (M8)
b. Using two kit 3/8” washers, spacers & bolts to
secure kit skid plate onto transmission cross
member.
Transmission
Cross Member
Rear Control Arm
Cross Member
Miscellaneous
1. Check all fasteners to ensure they are tight.
2. Ensure all wires, hoses, cables, etc. are properly
connected and there is ample slack.
WARNING
This product is for Off-Road use only. Always make
sure all occupants are wearing seat belts at all times.
NOTE
All warranty information, instruction sheets, and other
documents regarding the installation of this product
must be retained by the vehicle owner
contained in the instructions and on the warranty card
will be required for any warranty claims. The vehicle
owner needs to understand the modifications ma de to
the vehicle and how they affect vehicle handling and
performance. Failure to provide the customer with this
information can result in damage to the vehicle and
severe personal injury.
. Information
Kit Parts List
Qty. Description
Kit Spacer
Kit Skid Plate
Kit 3/8”
Hardware &
Spacer
c. Be sure all of your edges are lined up and clear
any brake lines or fuel lines. Tighten all kit
hardware at this time.
1 Bracket, Skid Plate
1 (Hardware bag)
2 Bolt (3/8” Button Head)
2 Washer (3/8”)
2 Spacer (3/4”x1/4”)
2 Nut Plate (3/8”)
2 Bolt (M8 Button Head)
2 Washers (M8)
Kit Skid Plate Installed
Toyota Transmission Skid & Cat Theft Deterrent 2 Kit #87041
