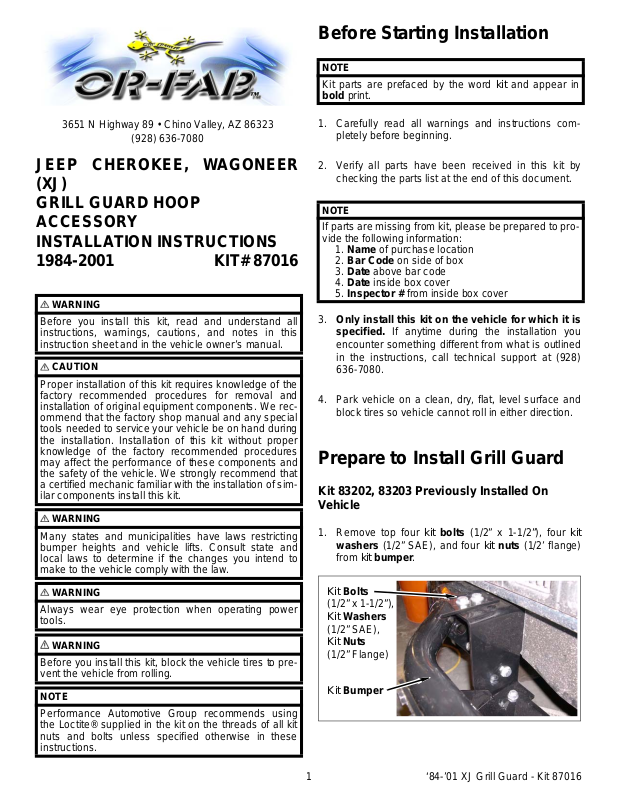

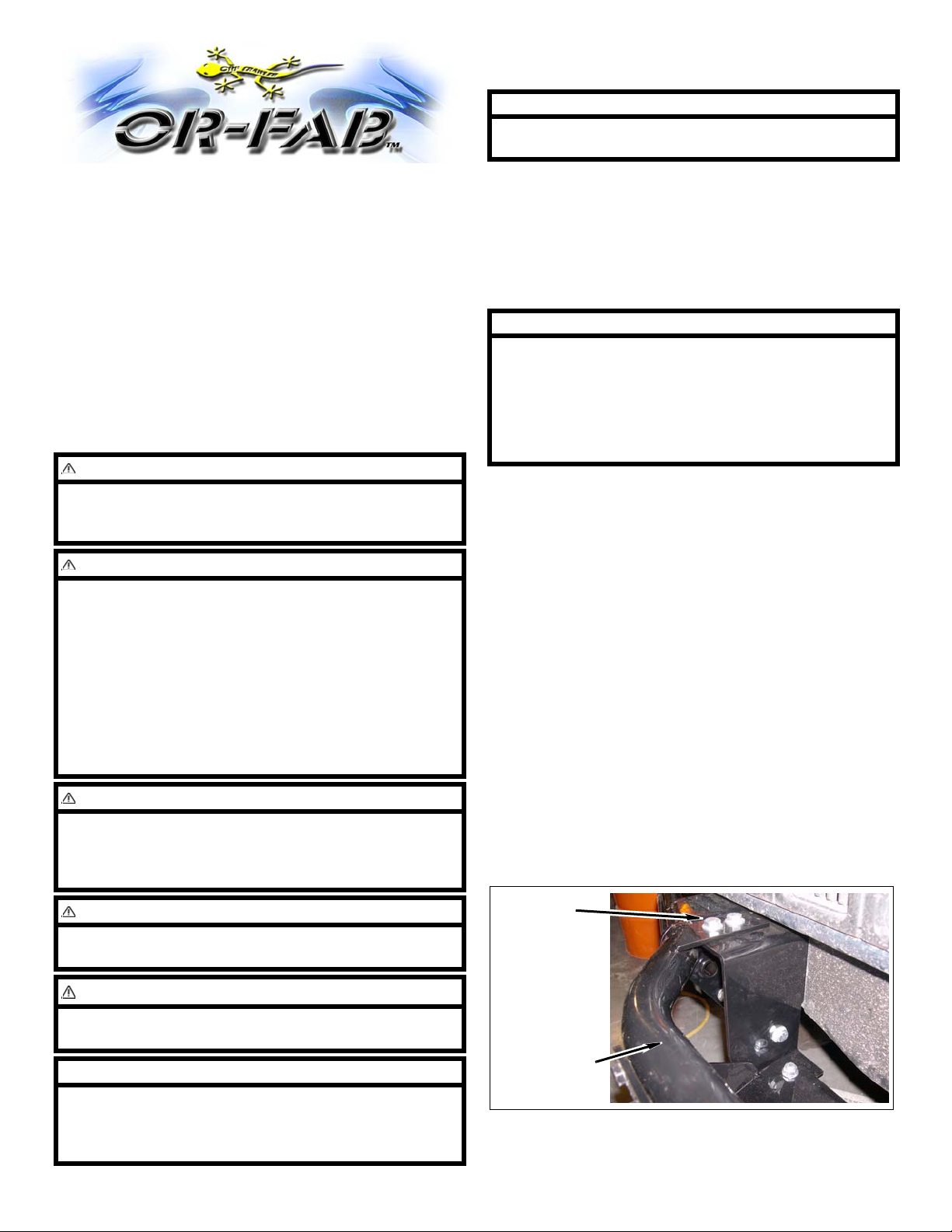

Page 1
Before Starting Installation
NOTE
Kit parts are prefaced by the word kit and appear in
bold print.
3651 N Highway 89 • Chino Valley, AZ 86323
(928) 636-7080
JEEP CHEROKEE, WAGONEER
(XJ)
GRILL GUARD HOOP
ACCESSORY
INSTALLATION INSTRUCTIONS
1984-2001 KIT# 87016
WARNING
Before you install this kit, read and understand all
instructions, warnings, cautions, and notes in this
instruction sheet and in the vehicle owner’s manual.
CAUTION
Proper installation of this kit requires knowledge of the
factory recommended procedures for removal and
installation of original equipment components. We recommend that the factory shop manual and any special
tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper
knowledge of the factory recommended procedures
may affect the performance of these components and
the safety of the vehicle. We strongly recommend that
a certified mechanic familiar with the installation of similar components install this kit.
WARNING
Many states and municipalities have laws restricting
bumper heights and vehicle lifts. Consult state and
local laws to determine if the changes you intend to
make to the vehicle comply with the law.
1. Carefully read all warnings and instructions completely before beginning.
2. Verify all parts have been received in this kit by
checking the parts list at the end of this document.
NOTE
If parts are missing from kit, please be prepared to provide the following information:
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
5. Inspector # from inside box cover
3. Only install this kit on the vehicle for which it is
specified. If anytime during the installation you
encounter something different from what is outlined
in the instructions, call technical support at (928)
636-7080.
4. Park vehicle on a clean, dry, flat, level surface and
block tires so vehicle cannot roll in either direction.
Prepare to Install Grill Guard
Kit 83202, 83203 Previously Installed On
Vehicle
1. Remove top four kit bolts (1/2” x 1-1/2”), four kit
washers (1/2” SAE), and four kit nuts (1/2’ flange)
from kit bumper.
WARNING
Always wear eye protection when operating power
tools.
WARNING
Before you install this kit, block the vehicle tires to prevent the vehicle from rolling.
NOTE
Performance Automotive Group recommends using
the Loctite® supplied in the kit on the threads of all kit
nuts and bolts unless specified otherwise in these
instructions.
Kit Bolts
(1/2” x 1-1/2”),
Kit Washers
(1/2” SAE),
Kit Nuts
(1/2” Flange)
Kit Bumper
1 ‘84-’01 XJ Grill Guard - Kit 87016
Page 2

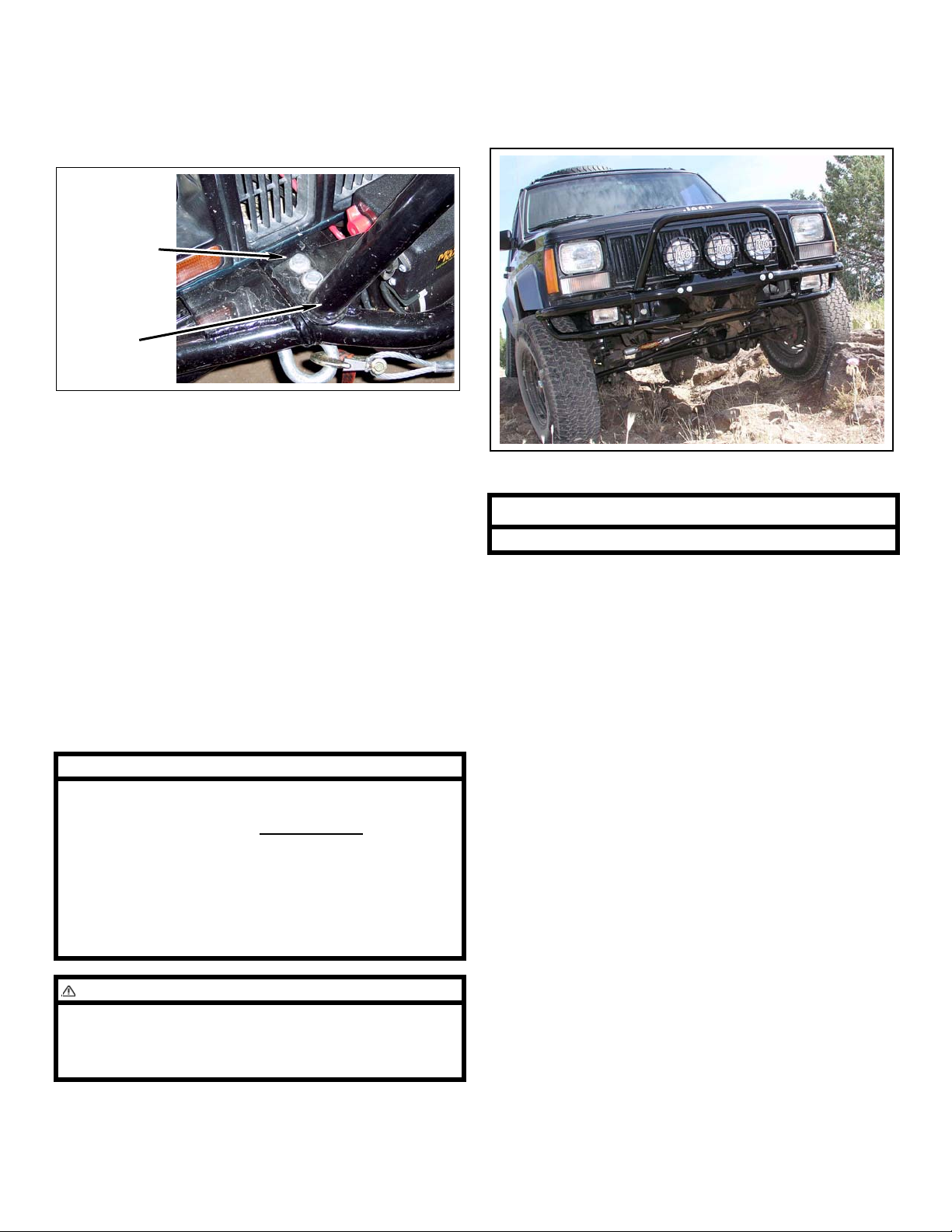

Install Grill Guard
Accessories
1. Install kit grill guard hoop onto kit bumper with four
kit bolts (1/2” x 1-1/2”), four kit washers (1/2” SAE),
and four kit nuts (1/2’ flange).
Kit Bolts
(1/2” x 1-1/2”),
Kit Washers
(1/2” SAE),
Kit Nuts
(1/2” Flange)
Kit Grill
Guard Hoop
After Completing Installation
Miscellaneous
1. Check all fasteners to ensure they are tight.
Kit# 87011 - Multi Light Mount
NOTE
Hi-Lift jacks can be mounted to kit bumper.
2. Ensure all wires, hoses, cables, etc. are properly
connected and there is ample slack..
3. Check steering and suspension in all positions to
ensure that there is no bind and adequate clearance
between all moving, fixed, and heated members.
Check tire-to-bumper clearance and ensure no con-
tact in any position. Test-drive vehicle.
NOTE
All warranty information, instruction sheets, and other
documents regarding the installation of this product
must be retained by the vehicle owner
contained in the instructions and on the warranty card
will be required for any warranty claims. The vehicle
owner needs to understand the modifications made to
the vehicle and how they affect vehicle handling and
performance. Failure to provide the customer with this
information can result in damage to the vehicle and
severe personal injury.
CAUTION
Performance Automotive Group does not recommend
any particular wheel and tire combinations for use with
its bumpers and cannot assume responsibility for the
customer’s choice of wheels and tires.
. Information
Kit Parts List
Qty. Description
1 Grill guard hoop
Rev. 01, Copyright 09/05
Performance Automotive Group
2 ‘84-’01 XJ Grill Guard - Kit 87016
