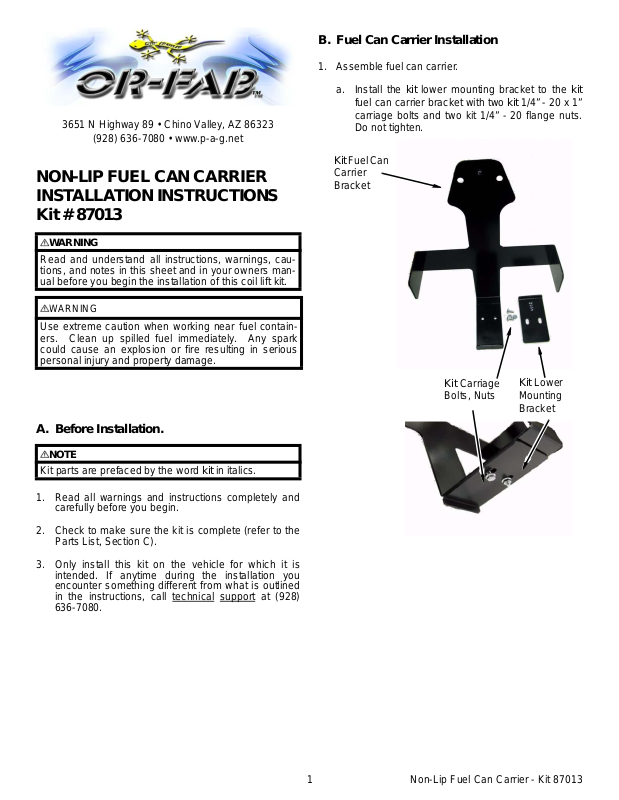

Page 1
3651 N Highway 89 • Chino Valley, AZ 86323
(928) 636-7080 • www.p-a-g.net
NON-LIP FUEL CAN CARRIER
INSTALLATION INSTRUCTIONS
Kit # 87013
WARNING
Read and understand all instructions, warnings, cautions, and notes in this sheet and in your owners manual before you begin the installation of this coil lift kit.
WARNING
Use extreme caution when working near fuel containers. Clean up spilled fuel immediately. Any spark
could cause an explosion or fire resulting in serious
personal injury and property damage.

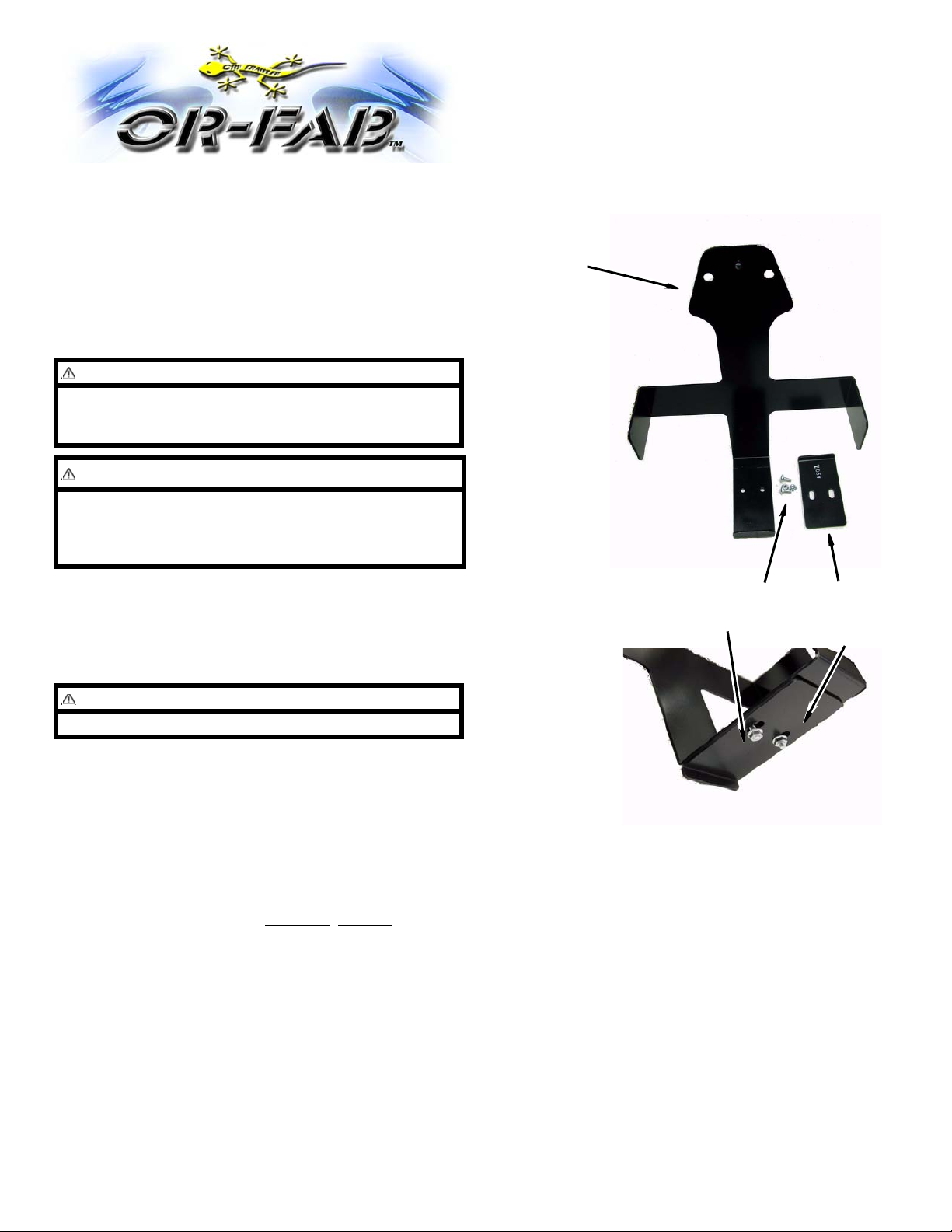

B. Fuel Can Carrier Installation
1. Assemble fuel can carrier.
a. Install the kit lower mounting bracket to the kit
fuel can carrier bracket with two kit 1/4” - 20 x 1”
carriage bolts and two kit 1/4” - 20 flange nuts.
Do not tighten.
Kit Fuel Can
Carrier
Bracket
A. Before Installation.
NOTE
Kit parts are prefaced by the word kit in italics.
1. Read all warnings and instructions completely and
carefully before you begin.
2. Check to make sure the kit is complete (refer to the
Parts List, Section C).
3. Only install this kit on the vehicle for which it is
intended. If anytime during the installation you
encounter something different from what is outlined
in the instructions, call technical
636-7080.
support at (928)
Kit Carriage
Bolts, Nuts
Kit Lower
Mounting
Bracket
1 Non-Lip Fuel Can Carrier - Kit 87013
Page 2

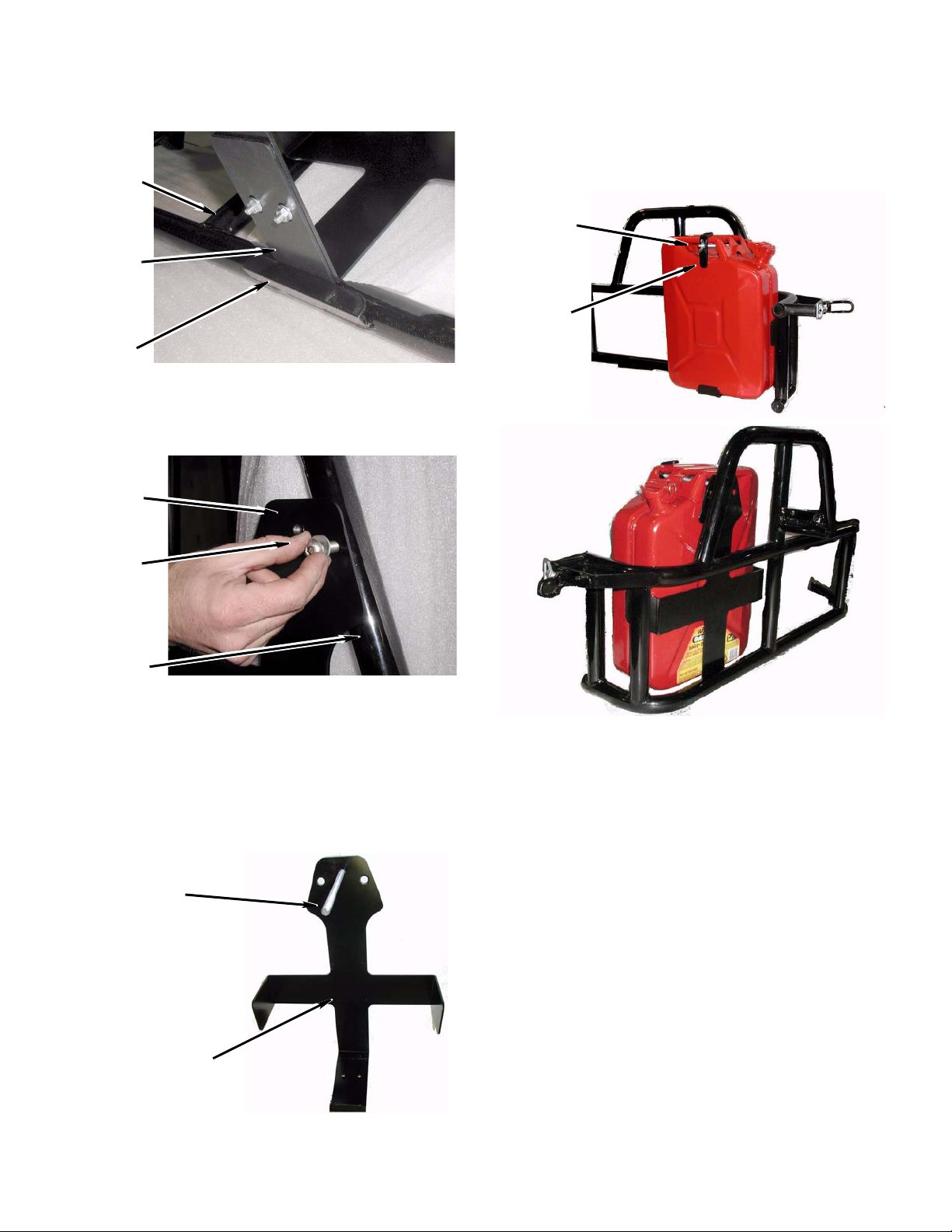

b. Install the fuel can carrier assembly to the ORF
Tire/Fuel Can Carrier. Position lip of lower
mounting bracket into the bracket on the tire/fuel
can carrier.
ORF Tire/
Fuel Can
Carrier.
Kit Lower
Mounting
Bracket
Bracket
c. Install the button head bolt in the upper hole of
the fuel can carrier bracket.
Fuel Can
Carrier
Bracket
f. Install the fuel can on the carrier by inserting the
bottom of the fuel can on the carrier and slide
the all thread through the fuel can handle.
g. Slide the “L” shaped fuel can bracket onto the all
thread. Using the wing nut, tighten the fuel can
to the carrier.
Wing
Nut
“L” Shaped
Fuel Can
bracket
Button
Head Bolt
ORF Tire/
Fuel Can
Carrier.
d. Tighten the two bolts on the lower mounting
bracket and the button head bolt.
e. Install the 8” piece of all thread, provided with
the ORF Tire/Fuel Can Carrier, in the center
threaded hole of the kit fuel can carrier bracket.
All Thread - 8”
C. Kit Parts List
Quantity Description
1 Bolt, 3/8-16 x 1.25 Button Head (SS)
2 Bolt, 1/4-20 x 1” Carriage
1 Bracket, Fuel Can Carrier (non-lip can)
1 Bracket, Fuel Can Clamp
2 Nut, 1/4-20 Flange Nut
1 Washer, 3/8 USS Zinc
Kit Fuel Can Carrier
Bracket
Rev. 02, Copyright 07/06
Performance Automotive Group
www.p-a-g.net
2 Non-Lip Fuel Can Carrier - Kit 87013
