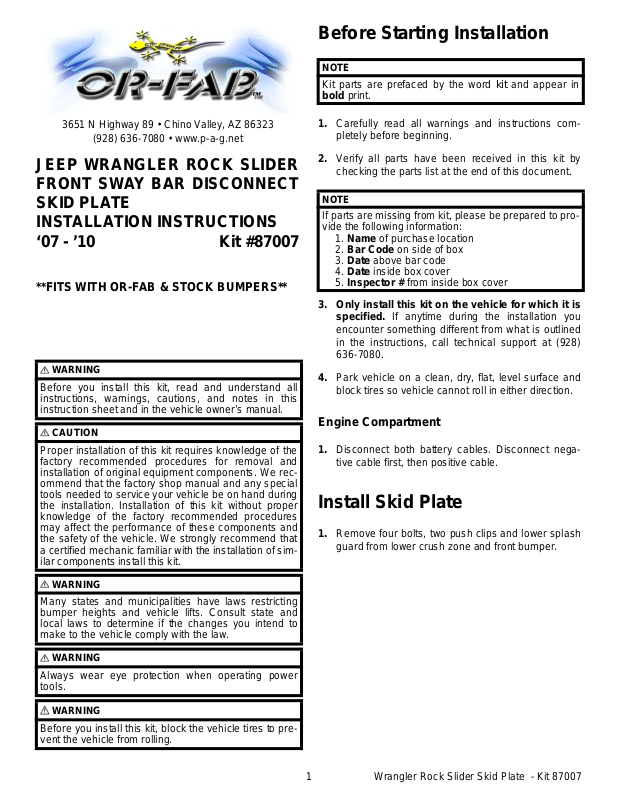

Before Starting Installation
NOTE
Kit parts are prefaced by the word kit and appear in
bold print.
3651 N Highway 89 • Chino Valley, AZ 86323
(928) 636-7080 • www.p-a-g.net
JEEP WRANGLER ROCK SLIDER
FRONT SWAY BAR DISCONNECT
SKID PLATE
INSTALLATION INSTRUCTIONS
‘07 - ’10 Kit #87007
**FITS WITH OR-FAB & STOCK BUMPERS**
WARNING
Before you install this kit, read and understand all
instructions, warnings, cautions, and notes in this
instruction sheet and in the vehicle owner’s manual.
CAUTION
1. Carefully read all warnings and instructions com-
pletely before beginning.
2. Verify all parts have been received in this kit by
checking the parts list at the end of this document.
NOTE
If parts are missing from kit, please be prepared to provide the following information:
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
5. Inspector # from inside box cover
3. Only install this kit on the vehicle for which it is
specified. If anytime during the installation you
encounter something different from what is outlined
in the instructions, call technical support at (928)
636-7080.
4. Park vehicle on a clean, dry, flat, level surface and
block tires so vehicle cannot roll in either direction.
Engine Compartment
Proper installation of this kit requires knowledge of the
factory recommended procedures for removal and
installation of original equipment components. We recommend that the factory shop manual and any special
tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper
knowledge of the factory recommended procedures
may affect the performance of these components and
the safety of the vehicle. We strongly recommend that
a certified mechanic familiar with the installation of similar components install this kit.
WARNING
Many states and municipalities have laws restricting
bumper heights and vehicle lifts. Consult state and
local laws to determine if the changes you intend to
make to the vehicle comply with the law.
WARNING
Always wear eye protection when operating power
tools.
WARNING
Before you install this kit, block the vehicle tires to prevent the vehicle from rolling.
1. Disconnect both battery cables. Disconnect negative cable first, then positive cable.
Install Skid Plate
1. Remove four bolts, two push clips and lower splash
guard from lower crush zone and front bumper.
1 Wrangler Rock Slider Skid Plate - Kit 87007
Page 2

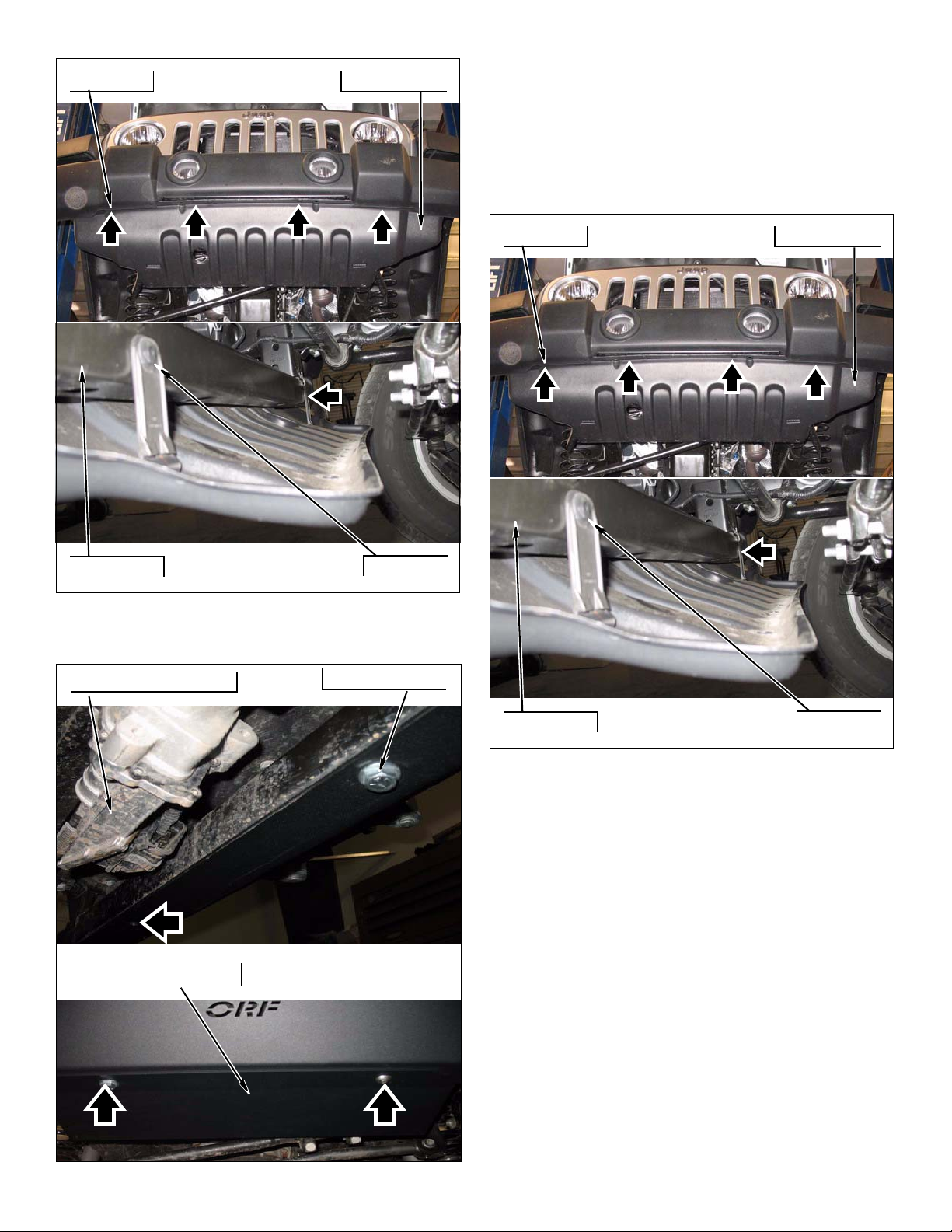

3. Stock bumpers & splash sheilds Installation
Push Clips Splash Guard
a. Install thick washer between crush zone and
skid plate to give the skid plate the proper
spacing for the electronic sway bar disconnect.
b. Install four bolts, two push clips and lower
splash guard from lower crush zone and front
bumper.
Push Clips Splash Guard
Crush Zone
2. Skid Plate Installation: Place 1/2” hardware with
skid plate into center holes of crush zone. Tighten
all skid plate hardware..
Sway Bar Disconnect
Install Skid Plate
Push Clips
Mounting Holes
Crush Zone
Push Clips
2 Wrangler Rock Slider Skid Plate - Kit 87007
Page 3
After Completing Installation
Engine Compartment
1. Connect both battery cables. Connect positive cable
first, then negative cable.
Miscellaneous
1. Check all fasteners to ensure they are tight.
2. Ensure all wires, hoses, cables, etc. are properly
connected and there is ample slack.
NOTE
All warranty information, instruction sheets, and other
documents regarding the installation of this product
must be retained by the vehicle owner
contained in the instructions and on the warranty card
will be required for any warranty claims. The vehicle
owner needs to understand the modifications ma de to
the vehicle and how they affect vehicle handling and
performance. Failure to provide the customer with this
information can result in damage to the vehicle and
severe personal injury.
. Information
Kit Parts List
Dynamic Vehicle Check
1. Check steering in both directions to ensure that
there is no bind. Check operation of clutch, brake
system, and parking brake. Check operation of
transmission and transfer case. Ensure there is full
engagement in all gears and 4WD ranges. Check
battery connections and electrical component operations. Test-drive vehicle.
2. Check steering and suspension in all positions to
ensure that there is no bind and adequate clearance
between all moving, fixed, and heated members.
Check tire-to-bumper clearance and ensure no contact in any position. Test-drive vehicle.
WARNING
Retorque all fasteners after 500 miles and after off road
use. All body lift components should be visually
inspected and fasteners retorqued during routine vehicle servicing.
CAUTION
Performance Automotive Group does not recommend
any particular wheel and tire combinations for use with
its products and cannot assume responsibility for the
customer’s choice of wheels and tires. Refer to your
owner's manual for recommended tire sizes and warnings related to the use of oversized tires. Larger wheel
and tire combinations increase stress and wear on
steering and suspension components, which leads to
increased maintenance and higher risk for component
failure. Larger wheel and tire combinations also alter
speedometer calibration, braking effectiveness, center
of gravity, and handling characteristics. Consult an
experienced local off road shop to find what wheel and
tire combinations work best with your vehicle.
Qty. Description
1 Skid Plate1
1 Hardware Pack
2 Bolt, Button Head (1/2”-13 x 1-1/2”)
2 Nut, Flange (1/2”-13)
4 Large Thick Washer
3 Wrangler Rock Slider Skid Plate - Kit 87007
