4. Park the vehicle on a clean, dry, flat, level surface
and block the tires so the vehicle cannot roll in either
direction.

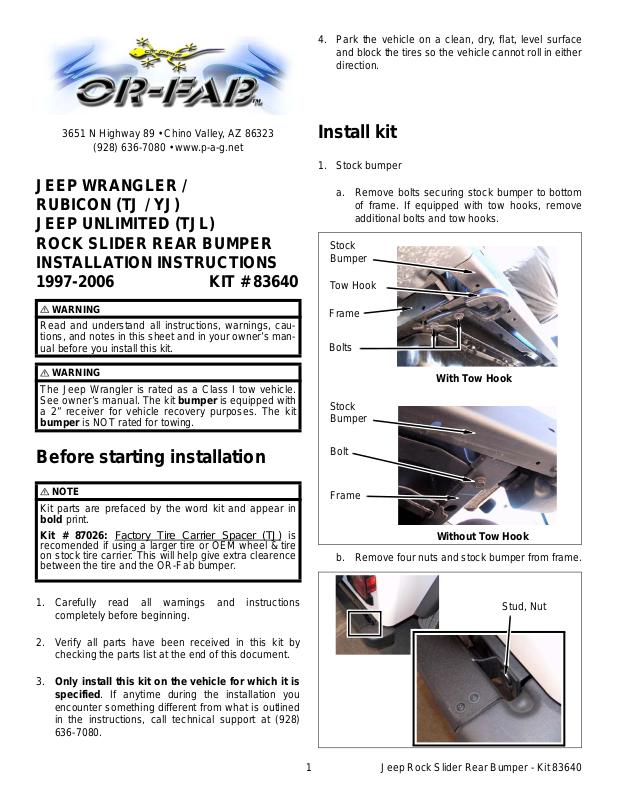

3651 N Highway 89 • Chino Valley, AZ 86323
(928) 636-7080 • www.p-a-g.net
JEEP WRANGLER /
RUBICON (TJ / YJ)
JEEP UNLIMITED (TJL)
ROCK SLIDER REAR BUMPER
INSTALLATION INSTRUCTIONS
1997-2006 KIT # 83640
WARNING
Read and understand all instructions, warnings, cautions, and notes in this sheet and in your owner’s manual before you install this kit.
WARNING
The Jeep Wrangler is rated as a Class I tow vehicle.
See owner’s manual. The kit bumper is equipped with
a 2” receiver for vehicle recovery purposes. The kit
bumper is NOT rated for towing.
Install kit

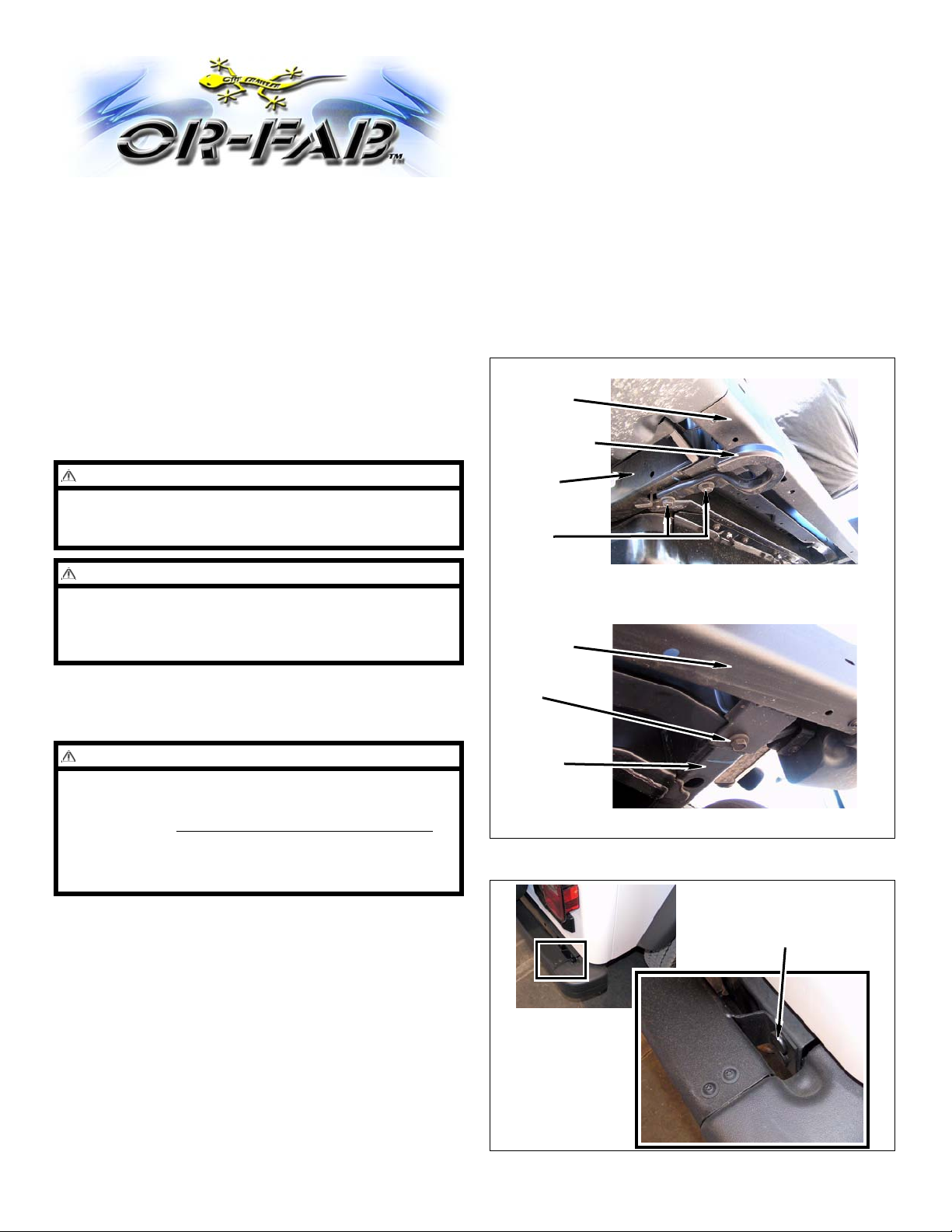

1. Stock bumper
a. Remove bolts securing stock bumper to bottom
of frame. If equipped with tow hooks, remove
additional bolts and tow hooks.
Stock
Bumper
Tow Hook
Frame
Bolts
With Tow Hook
Stock
Bumper
Before starting installation
NOTE
Kit parts are prefaced by the word kit and appear in
bold print.
Kit # 87026: Factory Tire Carrier Spacer (TJ)
recomended if using a larger tire or OEM wheel & tire
on stock tire carrier. This will help give extra clearence
between the tire and the OR-Fab bumper.
1. Carefully read all warnings and instructions
completely before beginning.
2. Verify all parts have been received in this kit by
checking the parts list at the end of this document.
3. Only install this kit on the vehicle for which it is
specified. If anytime during the installation you
encounter something different from what is outlined
in the instructions, call technical support at (928)
636-7080.
is
Bolt
Frame
Without Tow Hook
b. Remove four nuts and stock bumper from frame.
Stud, Nut
1 Jeep Rock Slider Rear Bumper - Kit 83640
Page 2
2. Kit bumper
Accessories

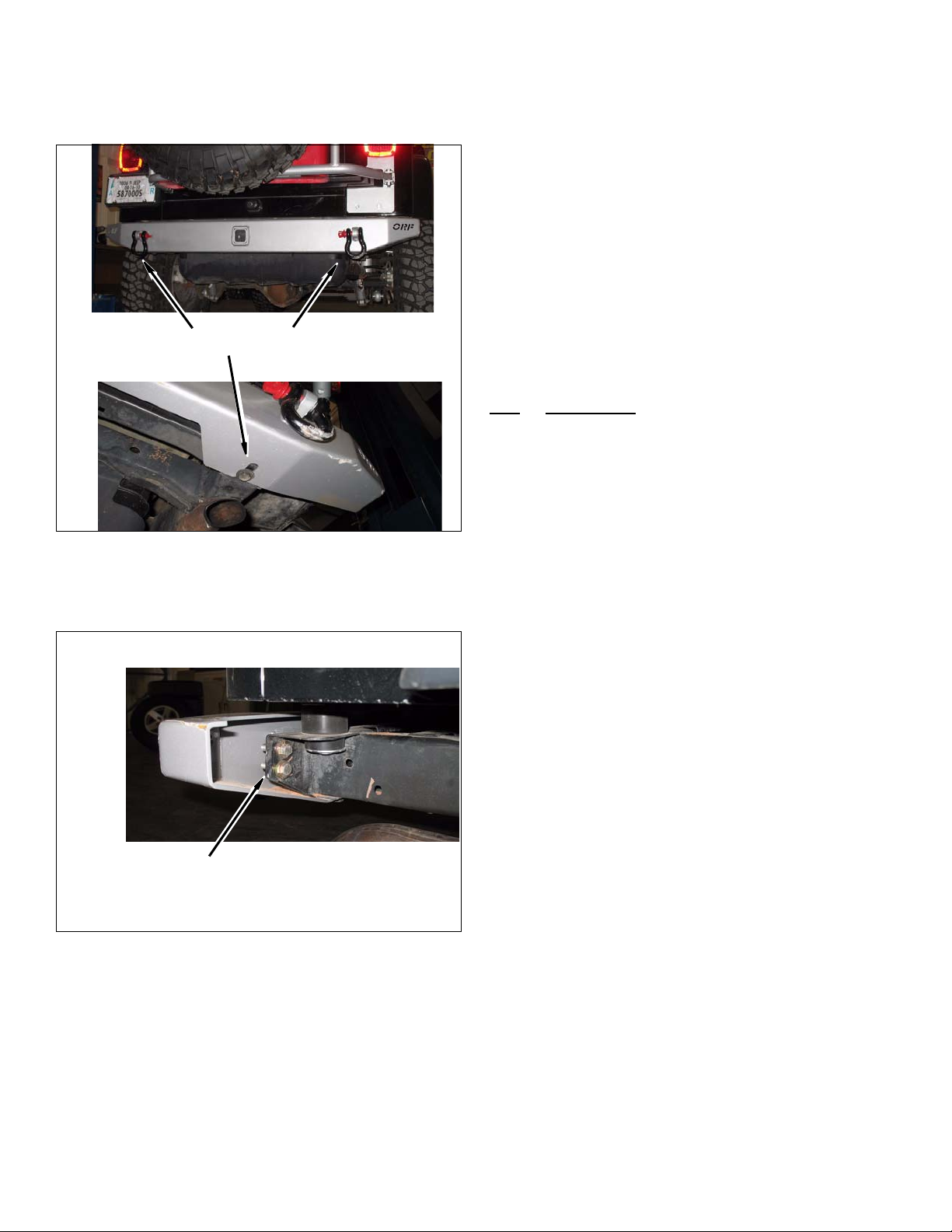

a. Install kit bumper onto frame with 2 OEM bolts
at the bottom outer frame rail holes.
OEM Bolt
b. 1997-06 TJ: In the remaining holes, secure kit
bumper to frame crossplate with six kit bolts (7/
16”” x 1”), kit washers (7/16” USS), and kit nuts
(7/16” serrated flange).
The following accessories are also available:
Kit # 83660: Rock Slider Front Bumper (TJ)
Kit # 83661: Rock Slider Front Bumper
w/ Grille Guard (TJ)
Kit # 84100: Rock Slider Side Bars (TJ)
Kit # 84200: Rock Slider Rocker Panels (TJ)
Kit # 87026: Factory Tire Carrier Spacer (TJ)
Parts list
Qty. Description
1 Bumper, Rear
6 Bolt, 7/16” x 1”
6 Nut, 7/16” serrated flange
6 Washer, 7/16” USS
2 D-Rings, 7/8”
1997-06 Vehicles
Kit Bolt (7/16” x 1”),
Washer (7/16” USS),
Nut (7/16” Serrated Flange)
c. Fasten tow hooks (if equipped) and kit bumper
to bottom of frame using stock bo lts.
Rev. 01, Copyright 04/10
Performance Automotive Group
www.p-a-g.net
2 Jeep Rock Slider Rear Bumper - Kit 83640
