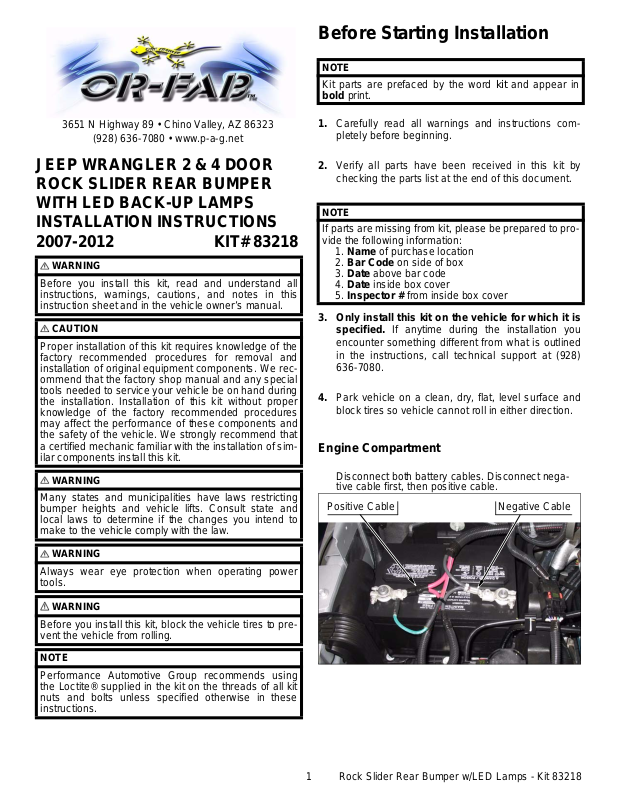

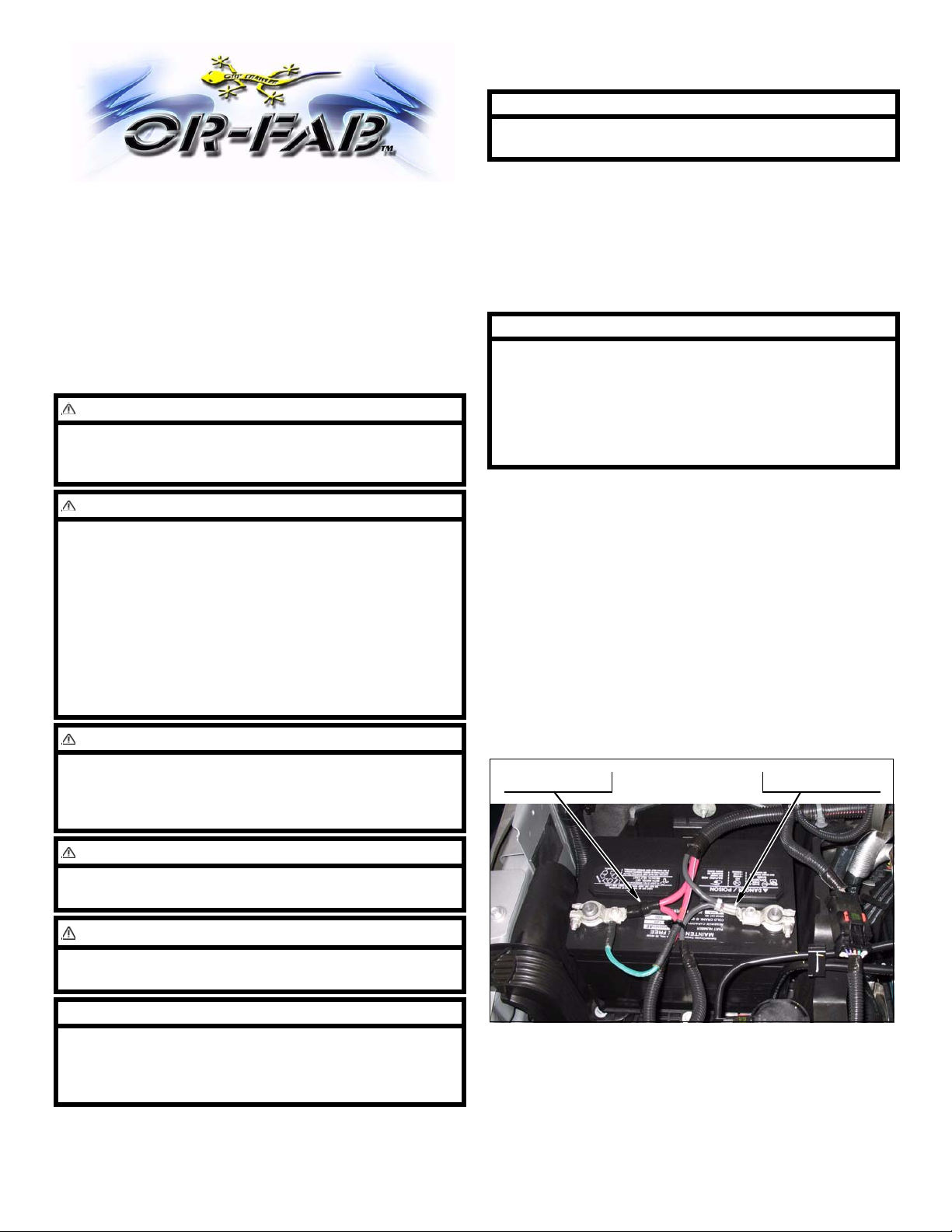

Page 1
Before Starting Installation
NOTE
Kit parts are prefaced by the word kit and appear in
bold print.
3651 N Highway 89 • Chino Valley, AZ 86323
(928) 636-7080 • www.p-a-g.net
JEEP WRANGLER 2 & 4 DOOR
ROCK SLIDER REAR BUMPER
WITH LED BACK-UP LAMPS
INSTALLATION INSTRUCTIONS
2007-2012 KIT# 83218
WARNING
Before you install this kit, read and understand all
instructions, warnings, cautions, and notes in this
instruction sheet and in the vehicle owner’s manual.
CAUTION
Proper installation of this kit requires knowledge of the
factory recommended procedures for removal and
installation of original equipment components. We recommend that the factory shop manual and any special
tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper
knowledge of the factory recommended procedures
may affect the performance of these components and
the safety of the vehicle. We strongly recommend that
a certified mechanic familiar with the installation of similar components install this kit.
1. Carefully read all warnings and instructions completely before beginning.
2. Verify all parts have been received in this kit by
checking the parts list at the end of this document.
NOTE
If parts are missing from kit, please be prepared to provide the following information:
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
5. Inspector # from inside box cover
3. Only install this kit on the vehicle for which it is
specified. If anytime during the installation you
encounter something different from what is outlined
in the instructions, call technical support at (928)
636-7080.
4. Park vehicle on a clean, dry, flat, level surface and
block tires so vehicle cannot roll in either direction.
Engine Compartment
WARNING
Many states and municipalities have laws restricting
bumper heights and vehicle lifts. Consult state and
local laws to determine if the changes you intend to
make to the vehicle comply with the law.
WARNING
Always wear eye protection when operating power
tools.
WARNING
Before you install this kit, block the vehicle tires to prevent the vehicle from rolling.
NOTE
Performance Automotive Group recommends using
the Loctite® supplied in the kit on the threads of all kit
nuts and bolts unless specified otherwise in these
instructions.
Disconnect both battery cables. Disconnect negative cable first, then positive cable.
Positive Cable Negative Cable
1 Rock Slider Rear Bumper w/LED Lamps - Kit 83218

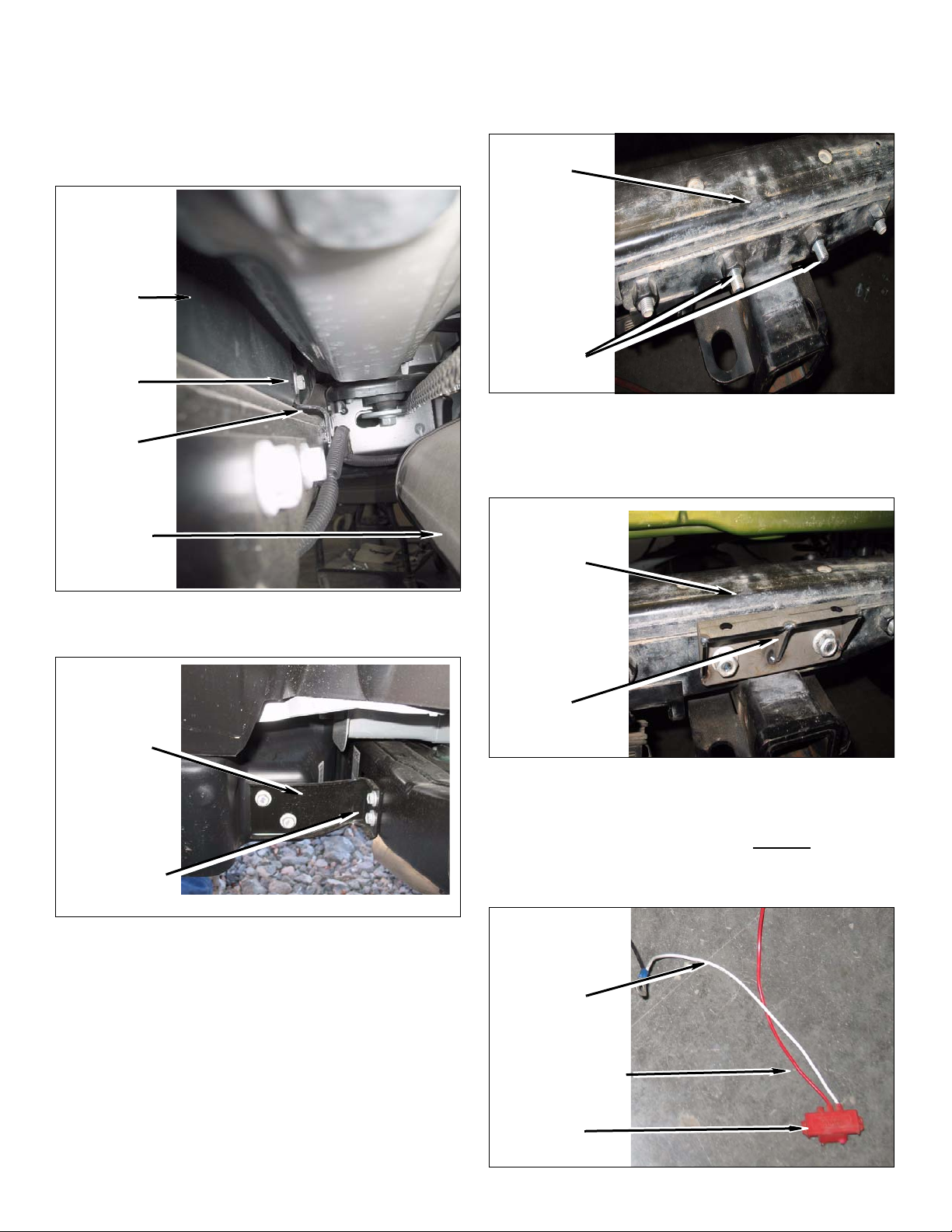

Page 2
Rear Bumper
1. Remove Factory Bumper
a. Remove two center 12mm bolts from factory
hitch mount or tow hook and replace bolts with
two kit bolts (12m-1.5x120mm) and two kit
washers (12m)..
a. Remove two bolts from brackets on back side of
bumper.
Bumper
Bolt
Bracket
Muffler
Frame
Bolts at
Frame
b. Install kit anchor bracket with two kit flange
nuts (12m-1.5). Center kit anchor bracket flush
with the mounting surface and tighten down kit
flange nuts..
Frame
b. Remove two bolts from each bumper bracket at
frame and remove bumper.
Bumper
Bracket
Bolts at
Frame
INSTALL REAR BUMPER
1. Rear Bumper Kit Anchor Plate
Anchor Bracket
2. Wiring & Installing Kit Light Harness
a. Prepare wiring harness with two kit plugs
provided. (Note: Black wire will not
this application; you may remove it from kit plug
by cutting it at the base of the kit plug.) .
White-Ground
be used in
Red-Power Lead
Plug Head
2 Rock Slider Rear Bumper w/LED Lamps - Kit 83218

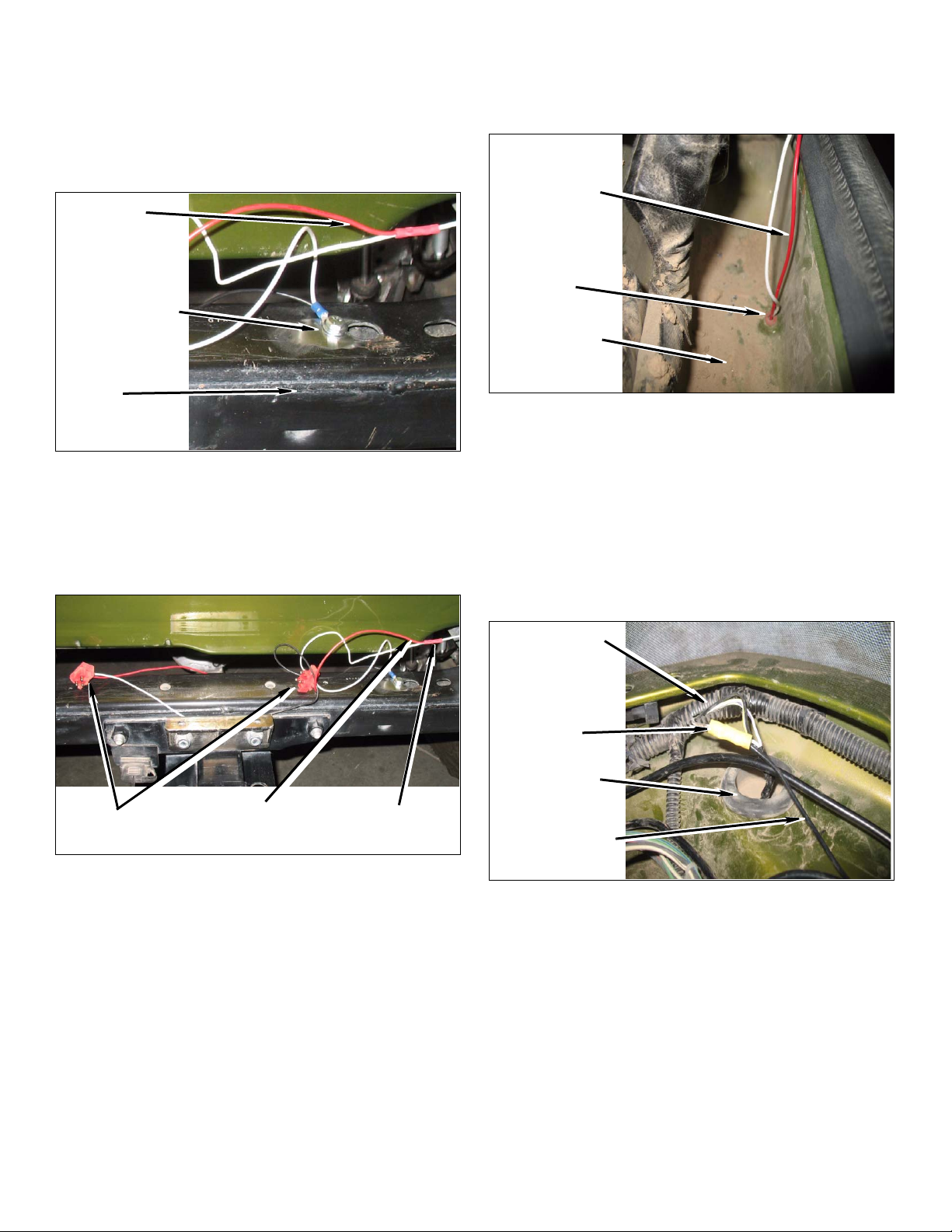

Page 3
b. Prepare frame for ground wires by removing a
small section of paint to provide a good ground
to harness. Use kit self tapping screw to
ground the white wire on plug. (Note: Be sure
that plug harness locations are near the inside
of frame rails to give them enough slack to reach
the light pockets once installed.) .
Red-Power
Lead
White-Ground
with self tapping
screw
Frame
c. Use kit red-crimp connector and supplied
wire to extend and connect both red positive
leads to each other with plenty of slack in the
harness to reach upper passenger side factory
tail light harness underneath carpet near roll bar.
.
d. Drill 5/16” wire access hole through sheet
metal in passenger side lower jack storage area.
Place kit 5/16” rubber grommet into hole and
feed power wire through kit rubber grommet. .
Red- Extended
Power Leads
Rubber
Grommet
Jack Storage
Area
e. Feed kit power wire underneath carpet until you
reach tail light harness near passenger side roll
bar. Remove tape and find positive tail light wire
to splice in kit power wire(s). (Note: In most
JK’s the backup wire is White-Gray Stripe.
*Probing may be required* Be sure that your
battery is reconnected before probing wires.)
f. Use kit crimp connector to splice your power
wires into correct backup wire.
Plug Head
Red- Extended
Power Leads
Red-Crimp
Connector
Passenger Wire
Harness
Kit Crimp
Connector
OEM Rubber
Grommet
Red- Extended
Power Leads
3. Mounting Kit Bumper Assembly
3 Rock Slider Rear Bumper w/LED Lamps - Kit 83218

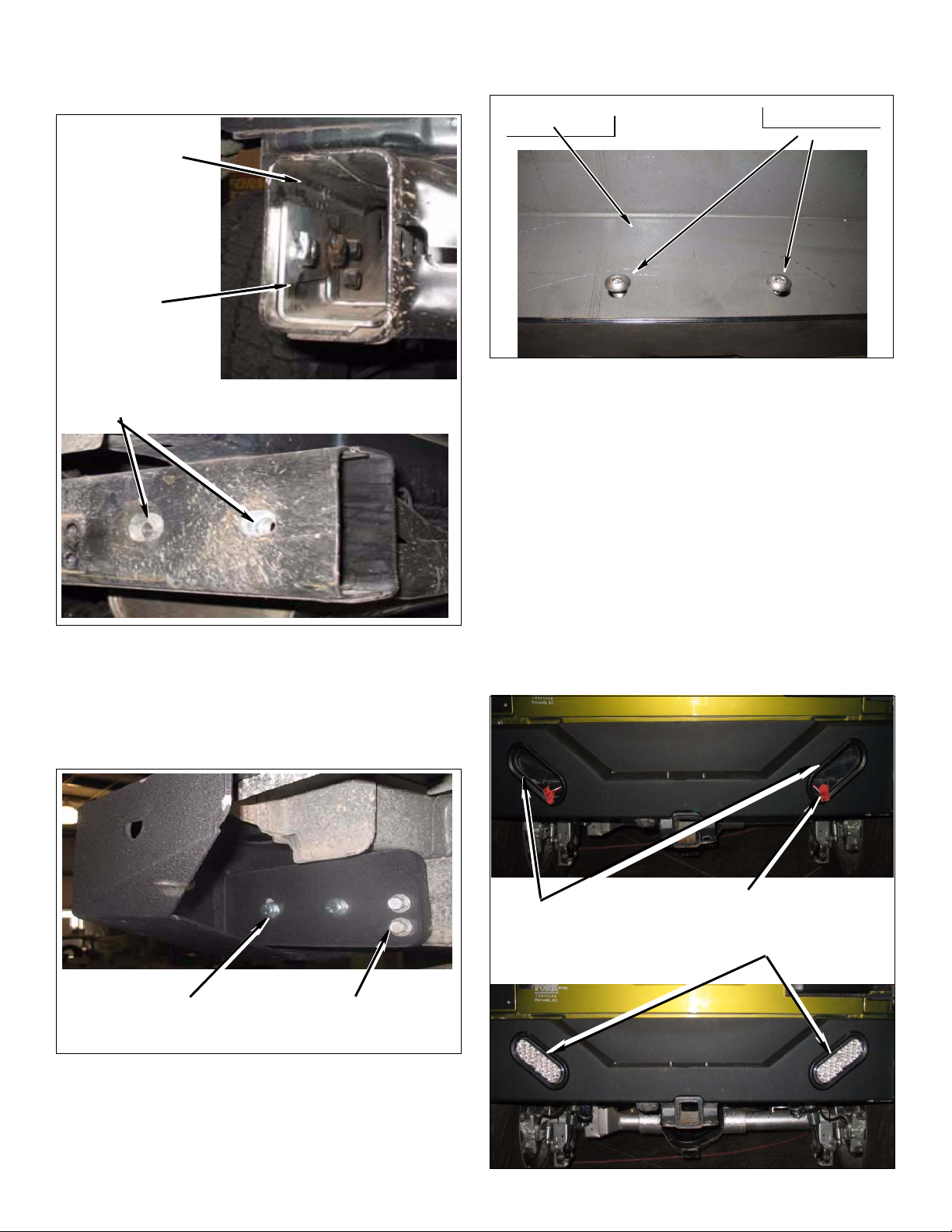

Page 4
a. Position Kit Nut Plate inside both pass and drvr
frame rail so that nuts line up with holes as
shown.
c. Install two kit bolts (3/8-16x1) through bumper
center plate and into kit anchor bracket..
OE Frame Rail
Nut Plate
Align Nut
Plate with
frame holes
Bumper
d. Insure bumper is centered and level. Tighten
down all hardware at this time.
4. Install Kit LED Backup Lights
a. Use kit LED grommet and press grommet into
cutout of bumper. Pull each kit plug through
grommet.
Anchor Bolts
b. Position kit bumper on vehicle. Secure bumper
to frame rail on both sides using kit, 10m-1.5x40
bolts & washers, for forward two holes and kit
1/2” x 1-1/2” bolts & 1/2” washers through nut
plate inside frame rail. Do not tighten at this
time.
1/2” x 1-1/2” bolts &
washers
10m -1.5x40 bolts
& washers
b. Plug wire harness into kit LED backup lig ht and
gently install light into kit LED grommet. (Note:
Soap and water mixture will help light slide into
place properly without damaging backup light.
Allow soap and water to dry before making final
light adjustments).
Rubber LED
Grommet
Plug Light Harness
LED Backup Lights
4 Rock Slider Rear Bumper w/LED Lamps - Kit 83218

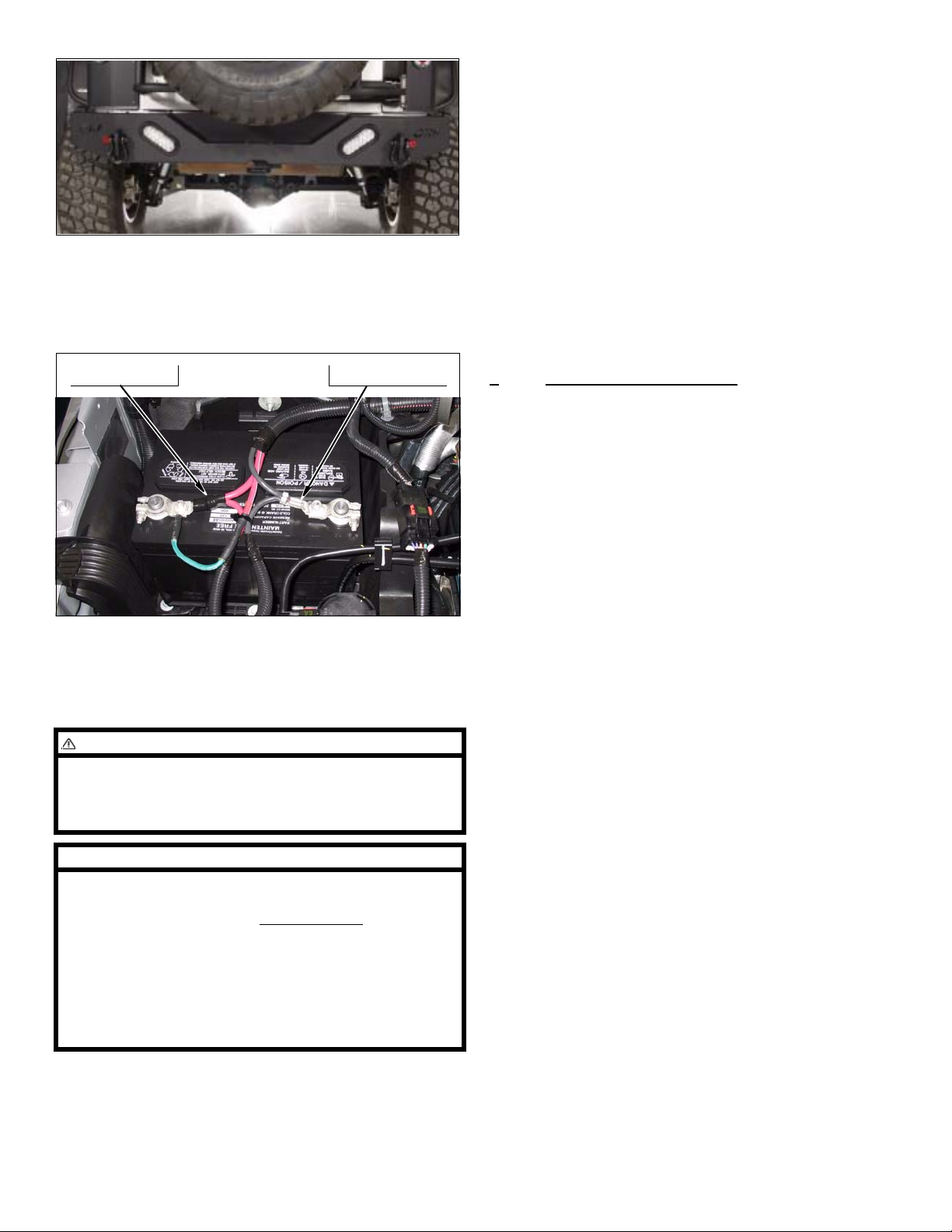

Page 5
Finished Results
Engine Compartment
1. Connect both battery cables. Connect positive cable
first, then negative cable.
Kit Parts List
Qty. Description
1 Bumper, Rear Main
1 Bracket, Center Rear Anchor Plate
2 Lights, LED Backup
2 Grommet, LED Light
2 Plug, LED Harness
Positive Cable Negative Cable
Miscellaneous
1. Check all fasteners to ensure they are tight.
WARNING
Retorque all fasteners after 500 miles and after off road
use. All body lift components should be visually
inspected and fasteners retorqued during routine vehicle servicing.
1
4 Bolt, 1/2” x 1 1/2”
2 Bolt, 3/8” x 1”
2 Bolt, 12m-1.5 x 120
4 Bolt, 10m-1.5 x 40
2 Screw, Self Tapping
2 Nut, 12m-1.5 Flange
2 Bracket, Nut Plate
4 Washer, 1/2” USS
4 Washer, 10mm
1 Grommet, 5/16”
4 Connector, Red Crimp
1 Wire, 6 ft.
2 D-Rings
83208 (Hardware bag kit)
NOTE
All warranty information, instruction sheets, and other
documents regarding the installation of this product
must be retained by the vehicle owner
contained in the instructions and on the warranty card
will be required for any warranty claims. The vehicle
owner needs to understand the modifications made to
the vehicle and how they affect vehicle handling and
performance. Failure to provide the customer with this
information can result in damage to the vehicle and
severe personal injury.
. Information
5 Rock Slider Rear Bumper w/LED Lamps - Kit 83218
