Oregon THGR228NF USER MANUAL

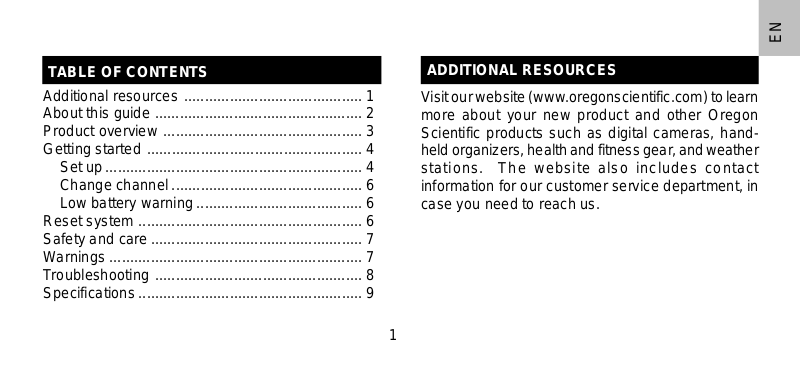

TABLE OF CONTENTS
Additional resources ........................................... 1
About this guide .................................................. 2
Product overview ................................................ 3
Getting started .................................................... 4
Set up..............................................................4
Change channel .............................................. 6
Low battery warning ........................................ 6
Reset system ...................................................... 6
Safety and care...................................................7
Warnings............................................................. 7
Troubleshooting .................................................. 8
EN
ADDITIONAL RESOURCES
Visit our website (www.oregonscientific.com) to learn more about your new product and other Oregon Scientific products such as digital cameras, hand­held organizers, health and fitness gear, and weather stations. The website also includes contact information for our customer service department, in case you need to reach us.
1
EN
ABOUT THIS GUIDE
Congratulations on your selection of the Oregon Scientific Wireless Outdoor Temperature and Humidity Sensor (THGR 228 NF)
This sensor is compatible with a wide variety of weather monitoring tools, and can be used with most of the Oregon Scientific receiver units.
Keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know.
In this box, you will find:
Remote unit
Batteries
2
PRODUCT OVERVIEW
1 2
8
EN
DESCRIPTIONS
1. Temperature display
3 4 5 6
7
2. LED indicator
3. °C / °F switch
4. Reset button
5. Channel switch
6. Battery compartment
7. Battery compartment lid

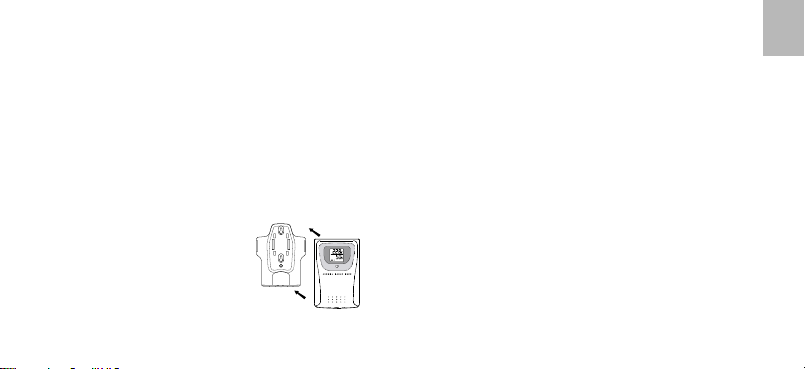

8. Wall mount
3
EN
GETTING STARTED
This product can be used with up to 2 remote units to transmit outdoor temperature and humidity data to a main (indoor) unit. The measurement unit (°C or °F) and channel number (1, 2, or 3) switches are located in the battery compartment, and should be set prior to installation.
Additional remote units sold separately.
NOTE
SET UP
1. Place remote unit as close as possible to the main unit.
2. Remove the battery compartment lid. (You will need a small Phillips screwdriver.)
3. Assign a Channel Number. If you are using more than one remote unit, select a different channel number for each unit.
4. Set the measurement unit.
5. Insert the batteries. Match the polarity, as shown in the battery
4
1 2 3
CHANNEL
1 2 3
CHANNEL
RESET
RESET
