Oregon RM816P User Manual

Oregon Scientific™ Radio-Controlled Projection Clock

(RM816P / RM816PU / RM816PUL)

User Manual

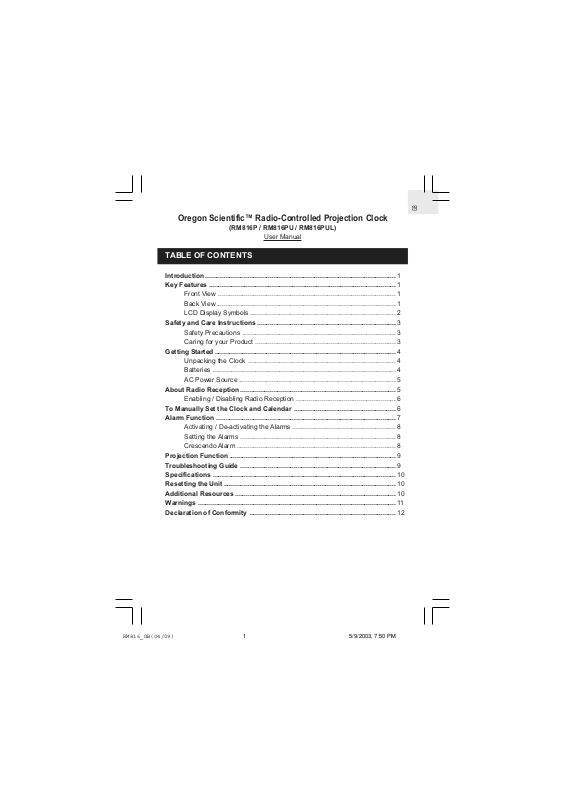

TABLE OF CONTENTS

Introduction ....................................................................................................... 1

Key Features ..................................................................................................... 1

Front View ................................................................................................ 1

Back View ................................................................................................. 1

LCD Display Symbols ............................................................................... 2

Safety and Care Instructions ...........................................................................3

Safety Precautions ................................................................................... 3

Caring for your Product ............................................................................ 3

Getting Started ..................................................................................................4

Unpacking the Clock ................................................................................ 4

Batteries ................................................................................................... 4

AC Power Source .....................................................................................5

About Radio Reception ....................................................................................5

Enabling / Disabling Radio Reception ...................................................... 6

To Manually Set the Clock and Calendar ....................................................... 6

Alarm Function ................................................................................................. 7

Activating / De-activating the Alarms ........................................................ 8

Setting the Alarms .................................................................................... 8

Crescendo Alarm ...................................................................................... 8

Projection Function ..........................................................................................9

Troubleshooting Guide .................................................................................... 9

Specifications ................................................................................................... 10

Resetting the Unit .............................................................................................10

Additional Resources ....................................................................................... 10

Warnings ........................................................................................................... 11

Declaration of Conformity ............................................................................... 12

INTRODUCTION

Thank you for selecting the Oregon Scientific™ Radio Controlled Projection Clock as your product of choice. This device is designed to give you many years of reliable service, including the following conveniences:

• Radio-Controlled Calendar Clock*

• Projection of current time

• Weekday and Single Alarm with 8-minute Snooze Function

• State-of-the-Art Backlight Technology

*Automatically synchronizes the current time and date when it is brought within range of the radio signal MSF60 generated from Rugby, England (model RM816PU) or DCF77 generated from Frankfurt, Germany for Central Europe (model RM816P).

In addition to providing step-by-step instructions for this product, this manual contains important safety and care information. Read the manual thoroughly, and keep it in a safe place in case you need to refer to it.

KEY FEATURES

Main item

Front view Back view

A. [SNOOZE/LIGHT] button

- Enables snooze function when alarm goes off

- Activates the projector and backlight for five seconds

B. [PROJECTION ON] switch

Enables continuous projection of time when power adaptor is connected

C. [UP

D. Swivel Projector

E. [ALARM] button

F. [MODE] button

G. Battery compartment

H. [RESET] button

I. 3V AC adaptor jack

LCD display symbols

] and [Down ] buttons

Increases or decreases the value of a setting

For projecting the current time on walls or ceilings

Sets time for the two alarms

Toggles display modes and confirms entry in clock setting mode

Accommodates two (2) UM-3 or “AA” size batteries

Resets unit by returning all settings to factory default values

Symbol Description Explanation

Two-line display

Radio reception signal

Weekday Alarm icon

Single Alarm icon

Low Battery icon

Displays the current time and calendar / alarm time

Indicates the condition of radio reception

Appears when weekday alarm is activated

Appears when single alarm is activated

Appears when power is low

SAFETY AND CARE INSTRUCTIONS

Safety precautions

Please observe the following safety precautions when setting up and using this product.

• LCD panel – The LCD panel is made of glass and may break if the unit is dropped or impacted.

• Heat sources – Keep the product away from heat sources such as radiators, stoves, heaters, and other heat-generating products.

• Water and moisture – Do not use the product in or near water or in high moisture areas such as a bathroom.

• Power source – The product may be susceptible to power surges. It should be unplugged during severe storms or whenever you will be away for a long time. Only use the type of power source specified on the AC adaptor label. Do not overload power strips and extension cords, as this can cause a fire hazard.

• This device is intended for teenage or adult use only.

Caring for this product

To ensure you receive the maximum benefits from using this product, please observe the following guidelines.

• Cleaning – Unplug the product from the AC outlet before cleaning. Use a damp cloth. Do not clean with liquid cleaning agents, benzene, thinner, or aerosols.

• Ventilation – The vents and other openings are designed for ventilation. They should not be blocked or covered. Blocking the vents can cause the product to overheat, thus damaging the unit.

• Repair – Do not attempt to repair the product or modify the circuitry by yourself. Dangerously high voltages are contained inside the unit. Contact the retailer or a qualified repairman if the product requires servicing. Only use replacement parts that are recommended by the manufacturer.

• Do not scratch hard objects against the LCD display as this may cause damage.
