USER
’S GUIDE
•IMPORTANT•
SAVE THIS BOOKLET!
Includes:
•Warranty
• Safety Warnings
• Parts List
• Operating Instructions
• Accessories List
•Trouble Diagnosis
SIMPLY AMAZING
™
XLS465
XLS465A
Your ORECK vacuum cleaner is a product of precise engineering.
The motor bearings are permanently lubricated and should not be
oiled. If you require additional information or have problems with
your ORECK appliance, you may call ORECK customer service at:
USA 1-800-989-3535
Canada 1-888-676-7325
Please specify the model number and serial/code number which
can be found on the data plate on the back of the vacuum.
Save your sales or purchase slip. Should your ORECK appliance
require warranty service in the U.S.A., present this slip to the
Authorized Service Center as your proof of purchase date or, in
Canada, call customer service.
2
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS VACUUM CLEANER
WARNING
To reduce the risk of fire,
electric shock, or injury:
IMPORTANT
SAFETY INSTRUCTIONS
• Do not leave appliance unattended when plugged in. Unplug
from outlet when not in use and before servicing.
• Use indoors only.
•Do not immerse motorized nozzle, use only on carpet moistened
by cleaning process.
• Do not allow to be used as a toy. Do not allow infants or children
around the machine during operation.
• Use only as described in this manual. Use only manufacturer’s
recommended attachments and accessories.
• Do not use with damaged cord or plug. If appliance is not
working as it should, has been dropped, damaged, or left
outdoors, return it to an Authorized ORECK Service Center.
ORECK will provide all parts and labor without charge, during the
warranty period, to place this appliance in correct operating
condition. or call customer service at
US: 1-800-989-3535
CANADA: 1-888-676-7325
• Do not pull or carry by cord, use cord as a handle, close door on
cord, or pull cord around sharp edges or corners. Keep cord
away from heated surfaces.
• Do not run appliance over cord.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair and anything that may reduce
air flow.
• Keep hair, loose clothing, fingers and all parts of body away from
openings and moving parts.
• Do not use to pick up anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
•Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as
gasoline or lighter fluid, or use in areas where they may be
present.
•Immediately switch off and unplug appliance if water or cleaning
solution is observed leaking from machine during operation.
•To prevent over filling the recovery water tank, empty the recovery
water tank every time the clean water tank is filled.
• Always turn off the appliance before connecting or disconnecting
motorized nozzle.
Polarized Plug Notice
This product is equipped with a polarized alternating
current line plug (a plug having one blade wider than
the other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact an
electrician to replace the obsolete outlet. Do not defeat
the purpose of the polarized plug.
SAVE THESE INSTRUCTIONS
Household Use Only
Table of Contents
BEFORE OPERATING
CLEANER, READ ALL
INSTRUCTIONS IN THIS
MANUAL CAREFULLY.
Maintenance and Customer Service,
Important Safety Instructions . . . . . . . . . . page 2
Warranty,
Troubleshooting Guide . . . . . . . . . . . . . . page 3
Parts Check List, Features . . . . . . . . . . . . page 4

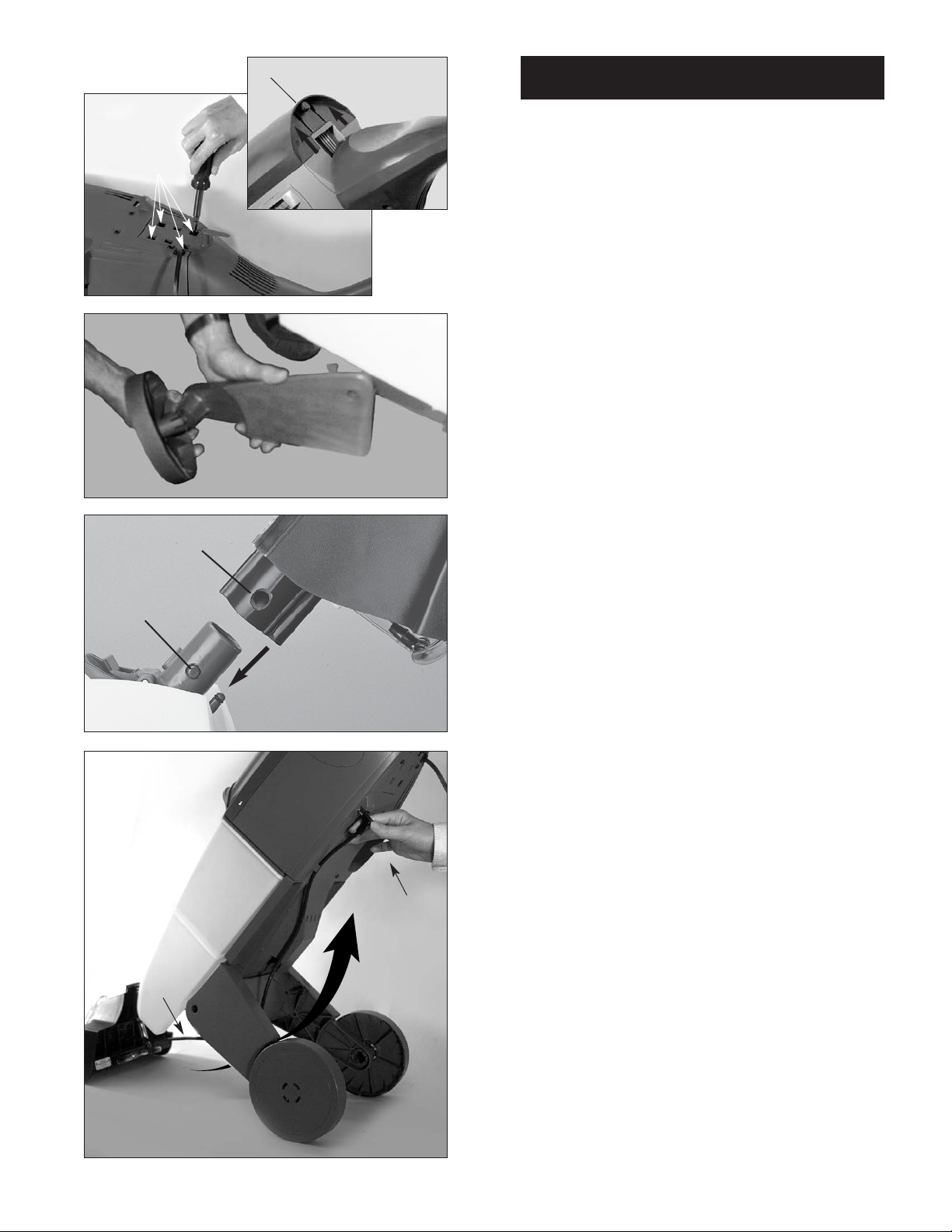

To Assemble Cleaner . . . . . . . . . . . . . . page 5
Servicing of Double-Insulated Appliances,
A.L.C.I., To Set Up Cleaner . . . . . . . . . . . page 6
To Set Up Cleaner, To Prepare Carpet,
Operating Instructions . . . . . . . . . . . . . . page 7
Operating Instructions . . . . . . . . . . . . . . page 8-9
To Clean Carpet Cleaner, To Store
Cleaner, Things To Do . . . . . . . . . . . . . . page 10
To Replace Belt, Accessories . . . . . . . . . . page 11
M
aintenance and
Customer Service
3
Water and cleaning solution
is not dispensing onto carpet
or upholstery.
Not removing certain stains.
Heavy traffic area spots.
Carpet is excessively wet after
cleaning.
Note: Under normal
conditions, a carpet may take
up to four hours or longer to
completely dry. Drying time
depends on a combination of
various factors including:
carpet type, carpet pile
thickness, temperature,
humidity, air circulation and
the number of wet passes.
Excessive foaming at spray tips.
Dark streaks on carpet after
cleaning.
STEEMER brush roll will
not turn.
Cleaner will not run or
suddenly stops.
• Check that the upper supply tank is partially
filled with lukewarm water. Caution: Do not
overfill.
• Check that a cleaner cartridge is installed and
that the white lever is locked in the downward
position. Due to pressurization, the cleaner will
not properly operate without a cleaner
cartridge in place. If the cleaner cartridge is
empty, replace it with a full cartridge.
• Check that the spray tips are not clogged. Use a
towel or damp cloth to clean.
• For above-the-floor cleaning, check that the
hand-held nozzle and hose assembly is properly
connected to the cleaner neck. Also insure that
the button lock has been engaged.
• For best results, use a stain pretreatment, such
as STEEMER Full Release™ Professional Spot &
Stain PreCleaner. These solutions loosen and
break down most common household grease,
oil, and food stains.
• Make several slow passes over the stain from
different angles.
• Make at least one additional pass over the wet
carpet without pressing the cleaner button.
• Check that the handle trigger lock is not
engaged.
•With each pass, slowly pull the unit toward you
to extract any remaining liquid in the carpet. To
speed drying, gently push the nozzle deep into
the carpet pile.
• Check for airpath obstructions in the
stair/upholstery hose, cleaner neck and in the
nozzle. Check to insure that the inlet screen is
free of debris.
• Check that the upper supply tank has water.
• Operate the machine more slowly; you will
achieve better results with one slow pass than
several fast strokes.
• Overlap each pass to provide maximum
cleaning without streaking.
• In high traffic or heavily soiled carpets, it is
occasionally beneficial to allow the carpet to dry
and repeat the process as needed to achieve
optimal cleaning.
• Check that the STEEMER power cord is
completely connected to the main unit.
• If an obstruction stalls the brush roll, the belt is
designed to burn through so as to protect the
motor. Please insure through inspection that the
brush roll is free of obstructions and is free to
turn. Secondly, make sure that the belt is in
good working order. Replace the belt if needed.
• If the belt and the brush roll become
excessively wet, momentary slippage can occur.
By running the unit on a dry section of carpet
for a minute or less, the belt will function
properly.
• Reinsert the plug, if it has slipped out of the outlet.
•The A.L.C.I. may have tripped off due to
fluctuations in household current. Press the reset
button and restart the unit.
PROBLEM SOLUTION
W
arranty
ORECK MANUFACTURING COMPANY: (ORECK gives you the
following limited warranty for this product only if it was originally
purchased for use, not resale, from ORECK or an ORECK
Authorized Retail Dealer.)
ORECK will repair or replace, free of charge, to the original
purchaser, any part which is found to be defective in material or
workmanship within one (3) years of the date of purchase. This
limited warranty applies to normal domestic use. Any commercial
use of this product will void this limited warranty.
Drive belts, revolving brushes, bulbs, disposable bags, and other
parts subject to normal wear are not covered by this limited
warranty.
This limited warranty does not apply to any part subjected to
accident, abuse, commercial use, alteration, misuse, damage
caused by fire or act of God, the use of voltages other than
indicated on the serial number plate of this product or service of
this product by other than ORECK or an ORECK Factory
Authorized Service Center.
ORECK does not authorize any person or representative to assume
or grant any other warranty obligation with the sale of this
product.
ORECK’s limited warranty is valid only if you retain proof of
purchase from ORECK or an ORECK Authorized Retail Dealer for
this product. If you purchase this product from any other source,
your purchase is “AS IS,” which means ORECK grants you no
warranty, and that you, not ORECK, assume the entire risk of the
quality and performance of this product, including the entire cost
of any necessary servicing or repairs of any defects.
ORECK’s liability for damages to you for any costs whatsoever
arising out of this statement of limited warranty shall be limited to
the amount paid for this product at the time of original purchase,
and ORECK shall not be liable for any direct, indirect,
consequential or incidental damages arising out of the use or
inability to use this product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion
may not apply to you.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD, AND NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY
AFTER THIS PERIOD.
Some states do not allow limitations on the duration of implied
warranties, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Troubleshooting Guide
Whenever calling, please be sure to have your model and
serial number from data plate.
CALL CUSTOMER SERVICE HOT LINE
US: 1-800-989-3535
CANADA: 1-888-676-7325
ALL OTHER SERVICING SHOULD BE DONE BY AN
ORECK AUTHORIZED SERVICE CENTER.
WARNING: Unplug cord from
electrical outlet before servicing.
Read all instructions thoroughly before assembly/use.
Please unpack carton, removing all parts and
packages. Check that all parts required for assembly
are present by referencing the list below.
ORECK STEEMER®BASIC PARTS, Quantity ( )
1. ORECK STEEMER Unit (1)
2. Handle (1)
3. ORECK STEEMER Power Nozzle (1)
4. Wheels (2)
5. STEEMER Full Release™ Cartridge (1)
6. Screws (4)
7. Hand-held Nozzle and Hose Assembly (1)
Parts Checklist
4
Features
ORECK STEEMER®MODELS
4. Large nonmarring, easy-to-steer Wheels
5. Easy Lock-in Cleaner Cartridge
7. Hand-held Nozzle and Hose Assembly
8. 25’ Power Cord
9. A.L.C.I. – Safety Plug with Reset and Test Buttons
10. Shampoo/Cleaner Spray Button
11. Translucent Upper Supply Tank
12. Translucent Lower Recovery Tank
13. Tank Latch
14. Transparent Nozzle Cover
15. Motorized Scrubbing Brush
16. Quick-connect fitting for Nozzle and Hose
17. Convenient quick-release Cord Wrap
RED OPERATOR CONTROLS
9. A.L.C.I. Plug Reset Button
13. Tank Latch
18. On/Off Power Switch
19. Nozzle Change Button
20. Hand-held Nozzle Trigger
2
6
5
9
4
8
17
10
18
1
11
12
13
14
3
15
19
16
7
20
5
THE ONLY TOOL YOU WILL NEED IS A PHILLIPSTYPE SCREWDRIVER!
ASSEMBLY STEP ONE (Figure1):
Attach Handle to Cleaner
1. Lay the cleaner on a flat surface with the tank side
down or to its side.
2. Slide handle into cleaner body until interlock
is secured (Figure 1-A).
3. Insert four 5⁄8” screws into the four cavities in
the handle base and tighten (Figure 1-B).
ASSEMBLY STEP TWO (Figure 2):
Attach Wheels
1. Locate two wheels and two support legs.
2. Insert the wheels (A) into the support legs (B) by
pushing the wheels in until they snap into place.
ASSEMBLY STEP THREE (Figures 3 and 4):
Attach Nozzle
1. Turn the unit so that the tank is face up.
2. Align the nozzle so the red nozzle change button
(Figure 3-A) is in line with the corresponding hole
in the nozzle (Figure 3-B).
3. Depress the small red nozzle change button
(Figure 3-A) and slide the nozzle over the unit
shaft until the button locks into place.
4. Plug the small power cord connected to the nozzle
(Figure 4-A) into the receptacle in the back of the
unit (Figure 4-B).
NOTE: Before using, please read the important
safety and operating instructions.
To Assemble Cleaner
Figure 1
B
A
B
Slide Handle forward
A
A
B
A
B
Figure 3
Figure 2
Figure 4
6
A double-insulated appliance is marked with one or
more of the following: The words “Double Insulation”
or “Double Insulated” or the double-insulation symbol
( ). In a double-insulated appliance, two systems of
insulation are provided instead of grounding. No
grounding means is provided on a double-insulated
appliance, nor should a means for grounding be
added to the appliance. Servicing a double-insulated
appliance requires extreme care and knowledge of
the system and should be done only by qualified
service personnel. Replacement parts for a doubleinsulated appliance must be identical to the parts
they replace.
POLARIZATION INSTRUCTIONS
To reduce the risk of electric shock, the ORECK
STEEMER model is equipped with a polarized
alternating current line plug (a plug having one
blade wider than the other). This plug will fit into
a polarized outlet only one way. This is a safety
feature. If you are unable to fit the plug fully into an
outlet, try reversing the plug. If the plug should still
fail to fit, contact a
qualified electrician to
replace the obsolete
outlet. Do not defeat the
purpose of the polarized
plug in any way.
Servicing of
D
ouble-Insulated A
ppliances
A.L.C.I
The ORECK STEEMER is made to double-insulated
specifications and is equipped with an A.L.C.I.
(Appliance Leakage Circuit Interrupter). The A.L.C.I.
shuts off the unit in potentially hazardous
situations. The A.L.C.I. has a Test and Reset button
which should be operated each time the unit is
plugged in. Do not remove the tag which provides
test instructions from around the cord at the A.L.C.I.
(A.L.C.I. may vary from illustration).
DANGER: Improper installation of A.L.C.I.
can result in electric shock.
Do not modify or by-pass the A.L.C.I. Do not replace
any electrical component in this product with
anything other than an authorized ORECK
replacement part. The risk of electric shock can result
if used in the vicinity of improperly grounded
stationary appliances (stove, refrigerator, washer,
etc.).
Polarized Plug
Test Button
Reset Switch
Instructional Tag
DO NOT REMOVE
6
Lift Out and Lower
B
C
To
Set-Up Cleaner
STEP 1: Swing the wheels
away from the nozzle into
the operating position.
Remove the two-tier tank
from the cleaner by
pinching the gray and red
latch together, and then
gently lowering the latch
toward the nozzle.
Do Not Force! (Figure 5)
STEP 2: Push the two-tier
tank downward toward
the nozzle and lift out
(Figure 6).
STEP 3: To fill the supply
tank with clean water,
open the gray tank cap.
Fill the tank with lukewarm
tap water to the fill line,
as noted on the side of the
tank (Figure 7).
The ORECK STEEMER cleaner is designed for fast
and easy set-up:
CAUTION: Do not overfill tank or use water that is
too hot to touch. Do not put any type of
shampoo/cleaner into the supply tank. Other carpet
shampoo will leave residues in the cleaner
that will over a short period of time clog the
dispensing system and void your warranty. Use only
STEEMER Full Release™ Professional Carpet
Cleaner cartridges, which are specifically
formulated to be residue-free.
5
A
Pinch
Latch
7
Fill Line
STEP 4: Close gray cap
and place the tank back
on the cleaner (Figure 8).
Lift the gray latch to slide
the tank upward into
position until you hear a
“click,” signaling that the
tank is securely locked
into place.
8
A
B
C
7
To
Set-Up Cleaner
STEP 5: Unscrew the
cleaner cartridge cap from
a STEEMER Full Release™
Carpet Cleaner cartridge.
Insert the cleaner cartridge
into the docking bay
(Figure 9) on the side of
the cleaner. The directions
on the cleaner cartridge
must be facing you. Rotate
the white locking lever on
the cartridge from left to
right to lock and seal the
cartridge in the cleaner.
STEP 6: Plug in the power
cord. Test and reset the
A.L.C.I. Iocated near the
plug. To test, press the test
button to shut off power.
To reset the A.L.C.I.,
simply push in the red
reset button on the plug
(Figure 10).
9
10
Always vacuum thoroughly before using
the ORECK STEEMER carpet cleaner. It
provides excellent carpet cleaning on
carpeted surfaces that are free of surface
debris.
To achieve best results, high traffic areas and carpet
stains should be pretreated prior to cleaning. We
recommend STEEMER Full Release™ Professional
Spot & Stain PreCleaner.
CAUTION: Before cleaning a carpet for the
first time, test a small area for color fastness.
Pour a small amount of STEEMER Full Release™
Professional Carpet Cleaner on a clean white cloth
and blot carpet. Examine this cloth for color removal;
if color appears on the cloth, the carpeting is not
colorfast and should not be cleaned with the ORECK
STEEMER wet extraction process.
This product is not recommended for use
on carpets made from silk, velvet, wool
and some cotton blends.
T
o Prepare
Carpet
Operating Instructions
TO CLEAN CARPET (Figures 11 and 12)
WARNING:
Do not push forward!
Pull the cleaner
towards you to clean.
This cleaner has been
specifically designed
to place the nozzle
deep into the carpet.
(Figure 11).
Push down gently on
the handle to lift the
nozzle out of the
carpet, to move
forward and reposition
the cleaner (Figure 12).
11
12
IMPORTANT: Adjust the speed of the cleaning
stroke to your carpet conditions. Heavily soiled
or stained carpets will require slower strokes.
Avoid oversaturating the carpet.
Test Button
Reset Switch
STEP 1: Place On/Off
power switch in the “On”
position. (Figure 13).
STEP 2: To clean the
carpet, press the gray
button in the handle
(Figure 14) and slowly
pull the cleaner backwards
(Figure 11). Pressing the
button releases the cleaner
and water mixture onto
the carpet. As you pull the
nozzle over the sprayed
carpet, the nozzle extracts
the solution from the carpet
and stores the dirty water
in the recovery tank. To
move forward, slightly tilt
the nozzle off the floor
and roll the cleaner forward
(Figure 12). Repeat Step 2
working in small overlapping
rows for even cleaning
until the entire room has
been completed.
13
On/Off Switch
14
Cleaner Spray Button
To shorten the drying time, go back over the carpet
pulling slowly backwards without depressing the
gray button (Figure 14). Repeat this procedure until
you do not see water being pulled from the carpet
through the nozzle.
CAUTION: Do not allow the lower recovery
tank to overfill. Damage to the unit can result.
Empty the recovery tank when full and whenever
clean water is added to the upper supply tank.
To empty the recovery tank, simply release the tank
latch by squeezing the red and gray latch together
(Figure 5). Lift the tank out and carry it to a sink or
drain. Turn the tank upside down and pour the dirty
water out. Refill the supply tank with clean lukewarm
water. Replace cleaner cartridge as needed.
CAUTION: Cleaner will not operate without
a cleaner cartridge locked into the docking bay
(Figure 19).
For heavily soiled carpets, it may be necessary to
clean the carpet from several directions to insure that
the nap of the carpet is thoroughly cleaned.
Keep young children and pets away from
the cleaned carpets until dry.
8
Operating Instructions
TO CLEAN CARS/STAIRS (Figures 15 through 17)
For above-the-floor cleaning, please follow these
simple steps:
1. Unplug the cleaner from the electrical outlet.
2. Remove the two-tier tank from the cleaner.
3. You will first need to unplug the separate power
cord that connects the STEEMER nozzle to the
cleaner (Figure 4).
4. Remove the nozzle by
depressing the red
button located on the
side of the neck
(Figure 15-A). Pull the
nozzle (Figure 15-B)
straight back and off
the neck without
twisting.
15
B
A
6. Open gray tank cap. Fill with warm tap water,
close tank cap and replace tank onto cleaner.
7. Locate the hand-held
nozzle and hose
assembly (Figure 16).
Remove and discard
the yellow tape.
8. Attach the hand-held
nozzle and hose
assembly to the cleaner
neck by carefully
aligning guide knob
located on the top of
the unit’s neck
(Figure 17-A) with
guide knob located on
the top center of the
hose quick-connect
fitting (Figure 17-B).
16
Dispensing Trigger
17
B
A
Depress the red button and push the hose collar
onto the unit until the button locks securely into the
hole in the hose quick-connect fitting.
9. To use the hand-held nozzle and wand assembly,
turn the cleaner on by moving the red power
switch on the side of the unit into the ”On“
position (Figure 13).
10. Press the gray button in the handle and push
forward to lock (Figure 14).
11. Press the red cleaner dispensing trigger on the
hand-held nozzle (Figure 16) to release cleaner.
TO PREPARE UPHOLSTERY
IMPORTANT: Prior to cleaning any upholstered
furniture read the following instructions very
carefully.
Most modern upholstery fabrics may be safely
cleaned by wet cleaning methods; yet there are
exceptions to this, as some delicate or unusual
fabrics require “dry cleaning.” If you are in doubt
about the type of fabric, we suggest that you check
with the manufacturer or dealer where the furniture
was purchased. Most fabrics are wear coded by the
manufacturer which details cleaning methods for a
particularfabric. If necessary, bring in a cushion or
arm cover to your dealer.
5. Lower cleaner onto floor stand.
9
• Cleaning upholstery which is covered with fabrics
that are not compatible with wet cleaning may
result in damage to the fabric. Know what the
fabric is and how it may be cleaned before using
the ORECK STEEMER cleaner.
• Check the stuffing material if possible. Look inside
cushions and underneath the furniture. If the filling
is colored, it may bleed through and discolor the
furniture. Most modern stuffing material is light
colored and colorfast.
• To remove loose dirt, vacuum upholstery thoroughly
with a ORECK vacuum cleaner or other vacuum
cleaner.
• If the upholstery is being cleaned for the first time,
CHECK FOR COLORFASTNESS. Test a small, area
several hours before starting to clean upholstery.
Pour a small amount of STEEMER Full Release™
Professional Upholstery Shampoo on a clean white
cloth and blot upholstery. Examine the cloth for
color removal. If color appears on cloth, the
upholstery is not colorfast and should not be
cleaned with wet extraction methods. Let test area
dry completely. Inspect for changes in color,
bleeding, stretching or shrinkage. Test another area
if in doubt. This product is not recommended
for use on silk, velvet, wool and some
cotton blends.
TO CLEAN UPHOLSTERY
1. Plug cord into an electrical outlet.
4. Turn cleaner on by placing the On/Off power
switch in the “On” position (Figure 13).
Operating Instructions
5. Lock the gray cleaner button by pressing and
sliding the button forward on the main handle
(Figure 14).
SMALL SPILL PICK-UPS
Small spills are typical household events. When
liquid is accidentally spilled within the home, the
liquid usually spreads out quickly into a wide area in
a thin sheet.
In such cases, the ORECK STEEMER can be a fast
and easy tool to assist in most types of spill pick-ups.
Several key precautions must be followed to insure
operator safety:
1. Always test and reset the STEEMER A.L.C.I. plug.
2. Do not immerse the power nozzle of the ORECK
STEEMER.
3. Do not allow the lower recovery tank to overfill.
4. Do not pick up corrosive, combustible, or
flammable liquids such as acids, gasoline,
alcohol, or use this product in areas where vapors
from these types of materials are present.
5. Do not use to clean out bathtubs, flooded
basements or any place where the liquid depth
exceeds
1
⁄8”.
20
Dispensing Trigger
19
18
Test Button
Reset Switch
2. Test and reset A.L.C.I.
on the plug (Figure 18).
3. Insert a specially
formulated STEEMER
Full Release™
Professional Upholstery
Cleaner Cartridge
(Figure 19).
6. Depress the red
dispensing trigger on
the hand-held nozzle
(Figure 20) and slowly
drag the nozzle towards
you. Make a second
pass at right angles to
the first. This will
minimize any streaking
or uneven appearance.
10
1. Pull the wheel assembly forward toward nozzle
for compact storage (Figure 24).
2. Do not store the cleaner in freezing conditions.
3. Do not store the cleaner with water in the tank.
4. Do not store the cleaner with cleaner cartridge
attached.
To Store Cleaner
To Clean Carpet Cleaner
WARNING: To reduce the risk of electric
shock or injury from moving parts,
unplug before servicing.
1. Before turning the cleaner off, tilt the cleaner
back, raising the nozzle off the carpet for 15-20
seconds. This prevents extracted water in the
nozzle from dripping back onto the carpet after
you turn the cleaner off.
2. Place the red power switch in the ”Off“ position.
Unplug the power cord from the outlet.
3. Remove the cleaner cartridge by rotating the
locking white lever upwards. Do not store with
a cleaner cartridge attached.
21
4. Remove and empty the
tank. Rinse out the lower
recovery tank with warm
water. Wipe off the inlet
screen to remove
accumulated dirt, lint
and debris (Figure 21).
Replace tank (Figure 8).
5. If you have been
operating the cleaner
at length, it may be
necessary to clean the
nozzle from time to time,
particularly if the carpet
is brand new or very
dirty, or if long-haired
pets frequently use the
carpeted area (Figure 22).
6. Unplug cleaner and
examine several areas
on the power nozzle
(Figures 22-23) to see
if debris has built up:
A: Extractor slots
(Figure 22-A)
B: Brush roll chamber
(Figure 22-B)
C: Spray Tips
(Figure 22-C)
7. To clean the STEEMER extractor slots, place a cloth
or towel over the motor cover to shield and
protect the motor from water damage. Run hot tap
water through the nozzle until clean (Figure 22).
8. To clean the brush chamber and spray tips, take a
towel or damp cloth and wipe clean. (Figure 23).
22
Inlet
Screen
23
A: Extractor Slots
B: Brush
Roll
Chamber
C: Spray
Tips
24
Use only manufacturer
recommended attachments
and accessories.
•Keep free of dust, lint, and hair.
•Turn off all controls before unplugging.
•Test the A.L.C.I. plug with every use.
• Empty the recovery tank when full and whenever
clean water is added to the supply tank.
•Keep young children and pets away from
cleaned carpets until dry.
• Check carpets and upholstery for color fastness.
• Clean nozzle periodically.
T
hings To
Do
11
Accessories
Call your authorized ORECK Home Care Center,
your authorized ORECK dealer, or call the Home
Care Hotline toll free at
1-888-742-6769.
To Replace Belt
WARNING: To reduce the risk of
electric shock or injury from moving
parts, unplug before servicing.
1. Replacement belts (Part No. OR114) for ORECK
STEEMERS are available from ORECK.
Call Toll-Free 1-888-742-6769.
2. Be sure that your cleaner is unplugged from the
electrical outlet!
3. Unplug the power cord leading from the power
head to the rear of the main cleaner (Figure 4).
4. Remove the power nozzle from the main
cleaner (Figure 15).
8. To install a new belt, remove brush roll and
insert the new belt into the rectangular cavity.
Using a long screwdriver, loop belt around
motor shaft. Pull and stretch belt over crowned
end of the brush roll.
9. Replace brush roll into the power nozzle and
rotate brush to properly align belt.
10. Replace belt cover, brush roll clamp and screws.
11. Reconnect power cords and test.
25
C: Belt
5. Remove screw from
belt cover
(Figure 25-A).
6. Remove two (2)
screws holding the
brush roll clamp in
place and remove
clamp (Figure 25-B).
7. Remove and replace
the old belt if broken
or if excessive wear is
noted (Figure 25-C).
STEEMER Full Release™
Professional Spot & Stain
PreCleaner (Item
FRSS131)
STEEMER Full Release™
Professional Carpet Cleaner
(Twin Pack) (Item FRC124)
STEEMER Full Release™
Professional Upholstery
Cleaner (Twin Pack)
(Item FRU125)
STEEMER Valu-6-Pack
(Item FRC132)
5 Carpet Cleaners and
1 Spot & Stain PreCleaner
ORECK STEEMER Belts
(Item OR114)
2 Pack
A: Belt
Cover
B: Brush Roll Clamp
Loading...
