Oreck XL2250RS, XL2300RS, XL2200RS User Manual

ENGLISH

SIMPLY AMAZING™

FRANÇAIS

GUIDE D’UTILISATION PAGE 8

ESPAÑOL

GUIA DEL USUARIO PAGE 14

USER’S GUIDE

XL2250RS XL2200RS XL2300RS

HIGH SPEED UPRIGHT VACUUM

CLEANER WITH

™

CLEANING SYSTEM

•IMPORTANT•

SAVE THIS BOOKLET!

Includes:

• Safety Warnings

• Warranty

• Operating Instructions

• Trouble Diagnosis

• Accessories

ENGLISH

BEFORE OPERATING CLEANER, READ ALL

INSTRUCTIONS IN THIS

MANUAL CAREFULLY.

Table of Contents

Maintenance and Customer Service,

Important Safety Instructions . . . . . . . . page 2

Warranty,

Troubleshooting Guide . . . . . . . . . . . page 3

Assembly,

Operating Instructions . . . . . . . . . . . . page 4

Operating Instr To Replace Paper Filter Dust Bag . . . page 5

How to Replace a Worn Belt,

Stuffing or Blockage . . . . . . . . . . . . . page 6

Using a Fresh Air Tab, Bulb Replacement,

To Adjust or Replace Brush . . . . . . . . page 7

Français Guide D’utilisation . . . . page 8

Españiol Guia Del Usuario . . . . . page 14

Your ORECK vacuum cleaner is a product of precise engineering. The motor bearings are permanently lubricated and should not be oiled. If you require additional information or have problems with your ORECK appliance, you may call ORECK customer service at:

Please specify the model number and serial/code number which can be found on the data plate on the back of the vacuum.

Save your sales or purchase slip. Should your ORECK appliance require warranty service in the U.S.A., present this slip to the Authorized Service Center as your proof of purchase date or, in Canada, call customer service.

USA: 1-800-989-3535 CANADA: 1-888-676-7325

uctions cont.,

Maintenance and

Customer Service

USA 1-800-989-3535 Canada 1-888-676-7325

Accessories

Sold Separately

IMPORTANT

SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE

USING THIS VACUUM CLEANER

WARNING

To reduce the risk of fire,

electric shock, or injury:

• Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.

• Do not use outdoors or on wet surfaces.

• Do not operate the unit while in the upright and locked position.

• Do not let the unit run while in any one stationary position for any period of time. Keep the unit moving while in operation.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center or call customer service at:

• Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.

• Do not run appliance over cord.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.

• Keep hair, loose clothing, fingers and all parts of body away from openings and moving par

• Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without filter bag assembly in place.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or combustible liquids, such as gasoline or lighter fluid, or use in ar present.

• Do not use appliance in an enclosed space where flammable, explosive or toxic vapors are given off by oil base paint, paint thinner, some mothproofing substances, or in an area where flammable dust is present.

• Do not pick up toxic material such as chlorine bleach, drain

, gasoline, etc. with this appliance.

cleaner

US: 1-800-989-3535

CANADA: 1-888-676-7325

ts.

e they may be

eas wher

ITEM PART #

1. Dust Bag, 8 Pack, Saniseal™ ACDS Hypo-Allergenic CCPK8DW

Dust Bag, 8 Pack, Regular

2. Belts, 3 Pack 0300604

3. Fresh Air Tabs AIRTABS Light Bulb

CCPK8

00965-0019

SAVE THESE INSTRUCTIONS

Household Use Only

Polarized Plug Notice

This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact an electrician to r

the purpose of the polarized plug.

. This is a safety featur

eplace the obsolete outlet. Do not defeat

e. If you ar

e unable to

ENGLISH

Warranty

ORECK MANUFACTURING COMPANY: (ORECK gives you the following limited warranty for this product only if it was originally purchased for use, not resale, from ORECK or an ORECK Authorized Retail Dealer.)

ORECK will repair or replace, free of charge, to the original purchaser, any part which is found to be defective in material or workmanship within thr years on housing. This limited warranty applies to normal domestic use. Any commercial use of this product will void this limited warranty.

Drive belts, revolving brushes, bulbs, disposable bags, and other parts subject to normal wear are not covered by this limited warranty.

This limited warranty does not apply to any part subjected to accident, abuse, commercial use, alteration, misuse, damage caused by fire or act of God, the use of voltages other than indicated on the serial number plate of this product or service of this product by other than ORECK or an ORECK Factory Authorized Service Center.

ORECK does not authorize any person or representative to assume or grant any other warranty obligation with the sale of this product.

ORECK’s limited warranty is valid only if you retain proof of purchase from ORECK or an ORECK Authorized Retail Dealer for this product. If you purchase this product from any other source, your purchase is “AS IS,” which means ORECK grants you no warranty, and that you, not ORECK, assume the entire risk of the quality and performance of this product, including the entire cost of any necessary servicing or repairs of any defects.

ORECK’s liability for damages to you for any costs whatsoever arising out of this statement of limited warranty shall be limited to the amount paid for this product at the time of original purchase, and ORECK shall not be liable for any direct, indirect, consequential or incidental damages arising out of the use or inability to use this product.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A P DURATION TO THE WARRANTY PERIOD, AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD.

Some states do not allow limitations on the duration of implied warranties, so the above limitation may not apply to you.

This war have other rights which vary from state to state.

ranty gives you specific legal rights, and you may also

ee (3) years of the date of purchase; 10

ARTICULAR PURPOSE, ARE LIMITED IN

Troubleshooting Guide

WARNING: Unplug cord from electrical outlet before servicing.

SAVE SERVICE CALLS...CHECK THESE FIRST:

Is the disposable filter dust bag full?

•

• Are pores of filter dust bag clogged with powder or fine dust?

• Is anything clogging the revolving brush, lower tube, intake opening, fan housing or connector assembly opening?

• Is the belt in place and turning the brush?

• Are the brush ends in the proper location? Does the brush turn freely? Are hair, string or rug fibers wound

• around the brush?

PROBLEM POSSIBLE SOURCE AREAS TO CHECK

CLEANER

WILL NOT RUN

CLEANER

DOES NOT PICK UP

Not plugged in properly.

No electricity in wall outlet.

Plug not firmly in handle assembly.

Filter bag is full.

Nozzle or intake pivot clogged.

Belt is broken or stretched.

Brush is worn.

Bag tube clogged.

Bag por clogged with fine dust.

Impeller fan is broken.

Revolving brush is not even at both ends.

es ar

ALL OTHER SERVICING SHOULD BE DONE BY AN ORECK AUTHORIZED SER

VICE CENTER.

Be sure cleaner is firmly plugged into wall outlet.

Check electrical source–fuse or circuit breaker.

Plug firmly in handle assembly.

Replace filter bag. See “To Install Paper Filter Dust Bag.”

Clear obstruction.

Replace belt.

Replace brush if bristles do not extend beyond base plate.

Clear obstruction.

Change bag.

Return to Service Center for repair.

Check bearing seal. Make sure wor “new” match at each end.

ds “old” or

CALL CUSTOMER SERVICE HOT LINE

US: 1-800-989-3535

CANADA: 1-888-676-7325

Whenever calling, please be sure to have your model and serial number from data plate.

ENGLISH

➞

Assembly

To assist you in identifying components of your vacuum, the parts have been numbered as follows

Handle section, upper 2 Tube, lower 3 Power head 4 Outer bag 5 Paper filter dust bag 6 Power cord 7 Retaining spring 8 Bag tension bar 9 Zip fastener

10 On/off switch 11 Cord hook 12 Connector assembly 13 Fan housing

Upper Handle

Connector Assembly

Before assembling appliance. Remove two (2) screws from connector assembly (12). Slide upper handle section (1) over matching section of the connector assembly (12), aligning screw holes. Finally, insert screws in holes and tighten firmly until handle is no longer loose.

Operating Instructions

To Operate

Make sure disposable paper filter dust bag is in place. DO

NOT operate the cleaner without a paper filter dust bag. Plug the power cord into an electrical outlet and press the On (l) - OFF (O) switch on top of base when ready to operate.

General Information

The performance of your new cleaner greatly depends upon care and maintenance. The instructions in this manual will guide you in performing basic care and maintenance. To obtain the most satisfying years of service read the instructions and keep them handy for future reference.

Operating Recommendations

This new ORECK XL High-Speed Upright is one of the finest, fastest, and strongest units in its class. You’ll love the way it cleans, gets under things, and it’s SO lightweight and easy to use.

The following are a few simple suggestions regarding its operation:

1. When inserting a new disposable paper filter dust bag— FIRST PUFF OUT and OPEN THE BAG.

2. When the disposable filter dust bag is full, REPLACE IT.

3. If at any time the machine does not pick up properly or makes an unusual noise, STOP OPERATION and service.

4. Although your upright will pick up pins, paper clips, and other small objects, it is recommended that these be removed from the floor before you vacuum. Failure to do so may result in permanent damage to the motor suction fan and its housing. WARNING: Do not use your vacuum cleaner on damp

5. or wet surfaces. This will cause damage to the vacuum cleaner and is dangerous to the user. Damage caused by use on wet or damp surfaces is not covered under warranty.

6. REPLACE THE BELT EVERY 6 MONTHS.

7. Change the disposable filter dust bag at least once a month—even if it is not full! The collected dust in the dust bag can cause odor

ea and can af

DO NOT run the vacuum cleaner over cord. The

ving brush could damage the cord.

Disposable Paper Filter Dust Bags

Disposable paper filter dust bags play a very important role in the efficiency of your ORECK vacuum cleaner. The purpose of the paper bag is to trap dirt, but at the same time it must be porous enough to allow air to pass through. If the paper bag becomes clogged, no air can pass thr and cleaning cannot take place, regardless of the cleaner’s

. Increase the CLEANING POWER of your cleaner by

power changing the bag often.

o keep your cleaner operating at maximum ef

T change the dust bag frequently. DO NOT FILL ABOVE THE LINE INDICATED ON THE DUST BAG.

Be sure the disposable paper filter dust bag is installed properly.

, attract moisture, act as a breeding

fect the efficiency of the cleaner.

ough the cleaner

ficiency

ENGLISH

All paper dust bags are not the same. Your ORECK disposable dust bags have been designed to be used with the ORECK cleaner and using bags other than genuine ORECK disposable bags will affect the cleaning ability of your cleaner and could cause damage to it.

The Belt

The belt on your vacuum cleaner controls the speed of the revolving brush and is very important for the effective operation of the cleaner. If the belt becomes stretched or cut, it will cause the revolving brush to stop completely or slow down. See instr

An extra belt is stored in the base plate of your cleaner. When buying replacement belts, use ONLY ORECK genuine belts. Belts other than ORECK belts will not operate the revolving brush correctly and may create undue stress which will cause damage to the motor and brush bearings. Using belts other than ORECK belts will void the warranty.

Lubrication

The vacuum cleaner motor bearings are factory lubricated and seated. Further lubrication is not required.

General Cleaner Care

At least once a month, check for and remove excessive lint, string or hair from revolving brush.

Wipe the outside of the cleaner with a damp cloth. Also clean the connector deflector assembly area, base of cleaner and fan housing area. If there is dust in the outer bag, vacuum it or shake it out.

A little preventative maintenance will keep your cleaner looking new and will ensure continued cleaning effectiveness.

CAUTION—Wood Floors, Soft (Vinyl, Asphalt Tile, etc.) Floor Surfaces and Polished Floor Finishes

Use floor and floor finish manufacturer’s recommended methods of cleaning. The metal strip on the base of the cleaner could be damaged if used on concrete or abrasive surfaces, and, therefore, cause damage to wood floors, soft (vinyl, asphalt tile, etc.) floor surfaces and polished floor finishes. The roller brush may also scuff very soft finishes. Do not operate the unit while in the upright and locked position. Do not let the unit run while in any one stationary position for any period of time. Keep the unit moving while in operation.

uctions in the manual for replacing belt.

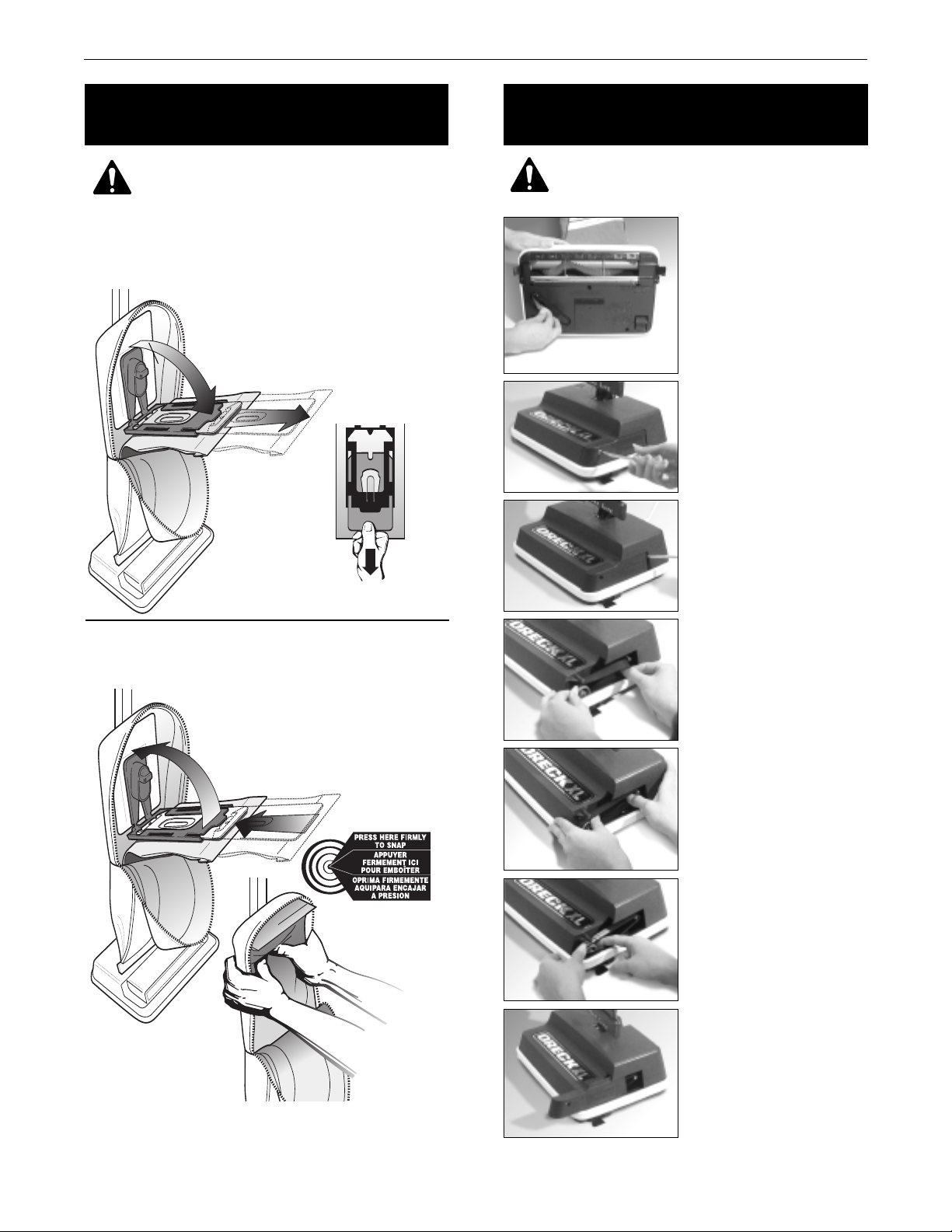

To Replace Filter

Dust Bag

WARNING: Unplug cord from electrical outlet before servicing.

BAG REMOVAL :

1. Unsnap bag door from base.

2. Gently pull bag from cardboard collar upwards.

BAG INSTALLATION :

1. Slide the cardboard collar completely onto bag dock door.

mly push bag dock door

Fir

2. with both thumbs on indication point until it snaps.

ENGLISH

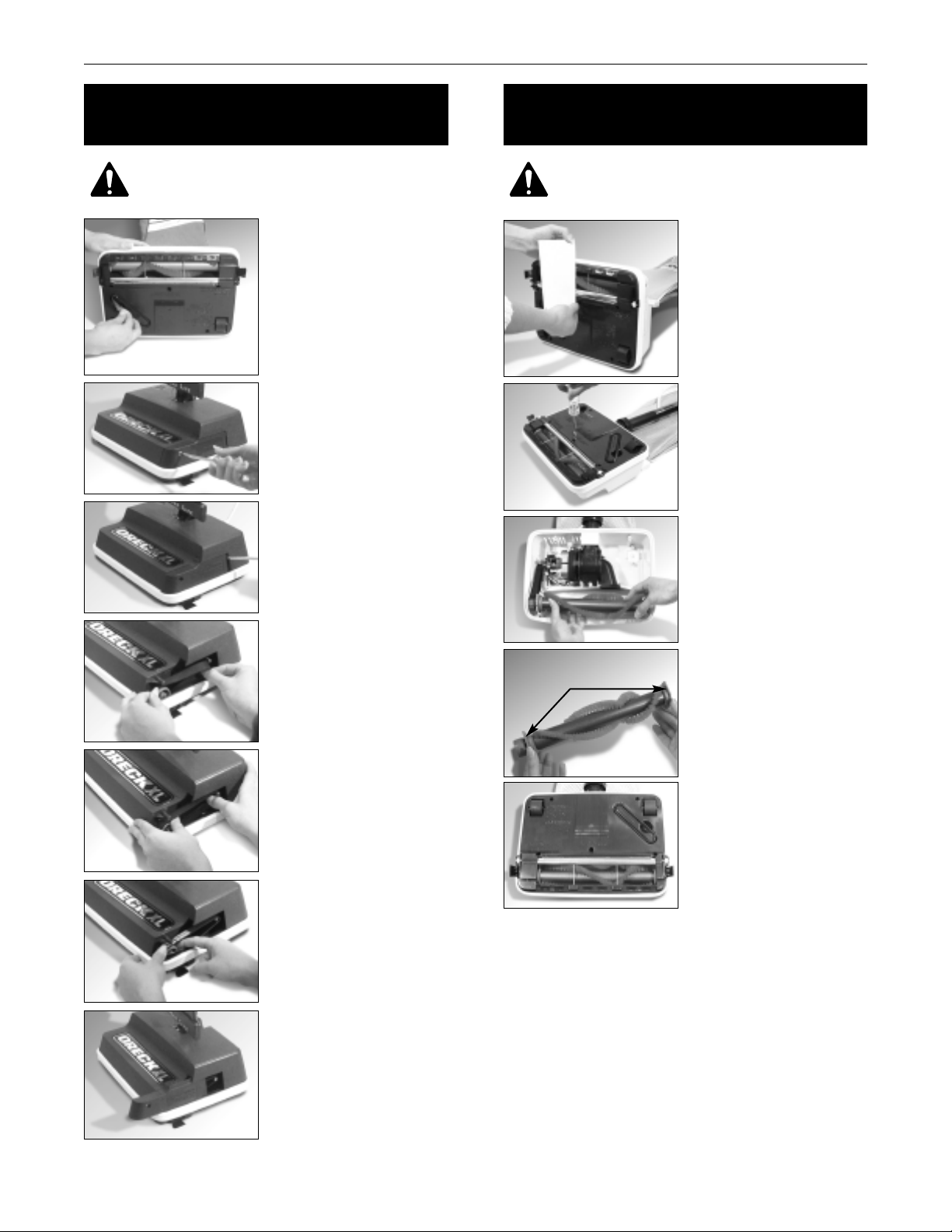

How to Replace a Worn Belt

WARNING: Unplug cord from electrical outlet before servicing.

Remove the replacement belt from the storage channel.

Remove the door by removing the hold down screw located on side of power head.

Slide the door forward by prying open with a screwdriver or coin.

Remove the belt from the brush roll pulley and the motor drive shaft.

Loop the new belt over the motor drive shaft. Place the opposite end of the belt on the top of the brush pulley and roll the

ound the pulley

belt ar

Using your thumb and finger, rotate the belt on the pulley the belt encir

, ensuring that

cles the entire circumference of the pulley

Stuffing or Blockage

Under cer tube and the lower tube assembly. If your vacuum cleaner does not pick up properly, or makes unusual noise and the outer bag does not fluf

tain conditions it is possible to stuff or block the intake

f up or balloon open, follow the following steps:

WARNING: Unplug cord from electrical outlet before servicing.

Check for blockage at the

1. mouth of the intake opening. See illustration A.

e is blockage, remove

If ther it with long-nose pliers, a screwdriver or coat hanger. If you can not reach the blockage, remove base plate. See illustration B.

2. If the blockage is not at the base, remove lower tube. See illustration C. Unhook retainer spring, releasing bottom of bag. Twist lower collar counter clockwise to slide up. Pull tube out of base. Check for blockage. If blockage is in the tube, remove with a coat hanger.

3. If tube is not blocked, look into fan housing. See illustration D. Remove debris with long-nose pliers, a screwdriver or coat hanger.

4. To reassemble, check O-ring on tube, and replace if damaged. Vacuum will not operate properly without the tube O-ring. Slide O-ring to approximately 2" from base of tube. Replace tube by first lining up slot at base of tube with inner tab inside fan housing. Then reinsert tube and push down until the tube is seated. Make sure O-ring is in place against fan housing opening. Replace and tighten collar until collar locking tabs are locked in place. See illustration E. Make sure collar is not cross threaded on housing.

Intake Opening

Retainer

Spring

O-ring

➧

Fan

Housing

Replace the door by sliding it into the gr at the bottom of the housing. Replace the hold down scr

ew.

oove
