USER’S GUIDE
U2200RD
HIGH SPEED UPRIGHT VACUUM
CLEANER WITH
®
CLEANING SYSTEM
•IMPORTANT•
SAVE THIS BOOKLET!
Includes:
• Safety Warnings
• Warranty
• Operating Instructions
• Trouble Diagnosis
• Accessories
BEFORE OPERATING
CLEANER, READ ALL
INSTRUCTIONS IN THIS
MANUAL CAREFULLY.
IMPORTANT
SAFETY INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS VACUUM CLEANER
Table of Contents
Maintenance and Customer Service, Important
Safety Instructions, Accessories . . . . . . . page 2
Warranty,
Troubleshooting Guide . . . . . . . . . . . page 3
Assembly,
Operating Instructions . . . . . . . . . . . . page 4
Operating Instr
uctions cont.,
To Replace Filter Dust Bag . . . . . . . . page 5
How to Replace a Worn Belt,
Stuffing or Blockage . . . . . . . . . . . . . page 6
Using an Oreck Fr
esh Air
To Adjust or Replace Br
®
Tab,
ush . . . . . . . . page
Maintenance and
Customer Service
Your ORECK vacuum cleaner is a product of precise engineering.
The motor bearings are permanently lubricated and should not be
oiled. If you require additional information or have problems with
your ORECK appliance, you may call ORECK customer service at:
USA 1-800-989-3535
Canada 1-888-676-7325
Please specify the model number and serial/code number which
can be found on the data plate on the back of the vacuum.
Save your sales or purchase slip. Should your ORECK appliance
require warranty service in the U.S.A., present this slip to the
Authorized Service Center as your proof of purchase date or, in
Canada, call customer service.
Accessories
Sold Separately
USA: 1-800-989-3535 CANADA: 1-888-676-7325
ITEM PART #
1. Dust Bag, 8 Pack, Saniseal
ACDS Hypo-Aller
Dust Bag, 8 Pack, Regular CCPK8
2. Belts, 3 Pack 0300604
esh Air
eck Fr
Or
3.
genic
®
T
abs
®
CCPK8DW
ABS
T
AIR
WARNING
To reduce the risk of fire,
electric shock, or injury:
• Do not leave appliance unattended when plugged in. Unplug
from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not operate the unit while in the upright and locked position.
• Do not let the unit run while in any one stationary position for any
period of time. Keep the unit moving while in operation.
• Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
Use only as described in this manual. Use only manufacturer’s
•
recommended attachments.
• Do not use with damaged cord or plug. If appliance is not
working as it should, has been dropped, damaged, left outdoors,
or dropped into water, return it to a service center or call
7
customer service at:
• Do not pull or carry by cord, use cord as a handle, close door on
cord, or pull cord around sharp edges or corners. Keep cord
away from heated surfaces.
• Do not run appliance over cord.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair and anything that may reduce
air flow.
• Keep hair, loose clothing, fingers and all parts of body away from
openings and moving parts.
• Do not use to pick up anything that is burning or smoking, such as
ettes, matches, or hot ashes.
cigar
Do not use without filter bag assembly in place.
•
n off all controls before unplugging.
ur
T
•
Use extra car
•
• Do not use to pick up flammable or combustible liquids, such as
gasoline or lighter fluid, or use in areas where they may be
present.
Do not use appliance in an enclosed space where flammable,
•
explosive or toxic vapors are given off by oil base paint, paint
thinner, some mothproofing substances, or in an area where
flammable dust is present.
Do not pick up toxic material such as chlorine bleach, drain
•
cleaner, gasoline, etc. with this appliance.
Use caution when vacuuming over ar
•
US: 1-800-989-3535
CANADA: 1-888-676-7325
e when cleaning on stairs.
ea rug edges and fringe.
SAVE THESE INSTRUCTIONS
Household Use Only
Polarized Plug Notice
This product is equipped with a polarized alternating
current line plug (a plug having one blade wider than
the other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable to
t the plug fully into the outlet, tr
inser
plug. If the plug should still fail to fit, contact an
electrician to replace the obsolete outlet. Do not defeat
the purpose of the polarized plug.
2
y reversing the
Warranty
Troubleshooting Guide
ORECK MANUFACTURING COMPANY: (Oreck Manufacturing
Company gives you the following limited warranty for this product
only if it was originally purchased for residential use, not resale,
from Oreck or an Oreck Authorized Retail Dealer.)
Oreck will repair or replace, free of charge, to the original
purchaser, any part which is found to be defective in material or
orkmanship within three (3) years of the date of purchase. This
w
limited warranty applies to normal domestic use. Any commercial
use of this product will void this limited warranty. This limited
warranty covers the revolving roller brush for one (1) year for
esidential use only.
r
This limited warranty does not cover the replacement of
expendable or consumable parts such as carbon motor brushes,
edge brushes, drive belts, bulbs, disposable bags and other parts
subject to normal wear unless they are defective in material or
workmanship.
This limited warranty does not apply to any part subjected to
accident, abuse, commercial use, alteration, misuse, damage
caused by act of God, the use of voltages other than indicated on
the serial number displayed on this product or service of this
product by other than Oreck or a participating Factory Authorized
Service Center.
Oreck does not authorize any person or representative to assume
or grant any other warranty obligation with the sale of this
product.
Oreck’s limited warranty is valid only if you retain proof of
purchase from Oreck or an Oreck Authorized Retail Dealer for this
product. If you purchase this product from any other source, your
purchase is “AS IS,” which means Oreck grants you no warranty,
and that you, not Oreck, assume the entire risk of the quality and
performance of this product, including the entire cost of any
necessary servicing or repairs of any defects.
Oreck’s liability for damages to you for any costs whatsoever
arising out of this statement of limited warranty shall be limited to
the amount paid for this pr
and Oreck shall not be liable for any direct, indirect, consequential
or incidental damages arising out of the use or inability to use this
oduct.
pr
Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion
may not apply to you.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD, AND NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY
AFTER THIS PERIOD.
Some states do not allow limitations on the duration of implied
warranties, so the above limitation may not apply to you.
This war
have other rights which var
ranty gives you specific legal rights, and you may also
oduct at the time of original pur
om state to state.
y fr
chase,
ARNING: Unplug cord from
W
electrical outlet before servicing.
SAVE SERVICE CALLS...CHECK THESE FIRST:
Is the disposable filter dust bag full?
•
• Are pores of filter dust bag clogged with powder or fine dust?
• Is anything clogging the revolving brush, lower tube, intake
pening, fan housing or connector assembly opening?
o
• Is the belt in place and turning the brush?
• Are the brush ends in the proper location?
Does the brush turn freely? Are hair, string or rug fibers wound
•
around the brush?
PROBLEM POSSIBLE SOURCE AREAS TO CHECK
CL
EANER
WILL NOT RUN
CL
EANER
DOES NOT PICK UP
ALL OTHER SER
Not plugged in
properly.
No electricity in
wall outlet.
Filter bag is full.
Nozzle or intake
pivot clogged.
Belt is broken or
stretched.
Brush is worn.
Bag tube clogged.
Bag pores are
clogged with fine
dust.
Impeller fan is
broken.
Revolving brush is
not even at both
ends.
Be sure cleaner is
firmly plugged
into wall outlet.
Check electrical
source–fuse or
circuit breaker.
Replace filter bag.
See “To Replace
Filter Dust Bag.”
Clear obstruction.
Replace belt.
See “To Adjust or
Replace Brush.”
Clear obstruction.
Change bag.
Return to Service
Center for repair.
Check brush roll
end cards. Make
sure words “OLD”
or “NEW” match
at each end.
VICING SHOULD BE DONE BY AN
ORECK AUTHORIZED SERVICE CENTER.
CALL CUSTOMER SERVICE HOT LINE
US: 1-800-989-3535
CANADA: 1-888-676-7325
Whenever calling, please be sure to have your model and
serial number fr
om data plate.
3

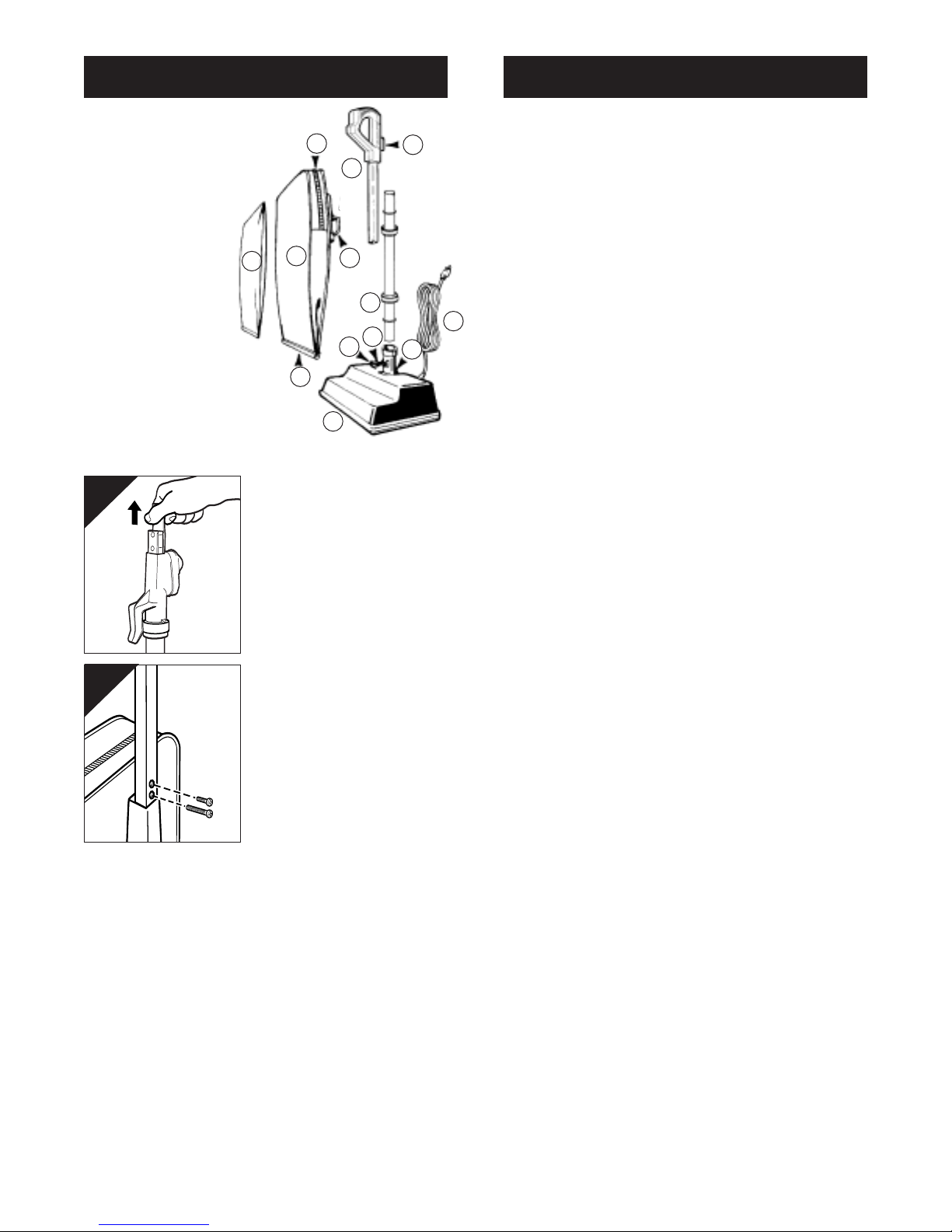

Assembly
Operating Instructions
To assist you in identifying
omponents of your vacuum,
c
he parts have been numbered
t
as follows
:
1 Handle section, upper
2 Tube, lower
3 Power head
4 Outer bag
5 Paper filter dust bag
5
6 Power cord
7 Retaining spring
8 Bag tension bar
9 Zip fastener
10 On/off switch
11 Cord hook
12 Connector assembly
13 Fan housing
1
2
Upper
Handle
Connector
Assembly
Before assembling appliance,
remove two screws from the
connector assembly. Remove
cardboard insert by pulling
upward.
Slide upper handle section
over matching section of the
connector assembly. Insert
short screw into top hole and
long screw into the bottom
hole then tighten firmly until
handle is no longer loose.
To Operate
ake sure disposable paper filter dust bag is in place. DO
9
1
11
M
OT operate the cleaner without a paper filter dust bag.
N
Plug the power cord into an electrical outlet and press the
On (l) - OFF (O) switch on top of base when ready to
operate.
General Information
4
12
2
6
7
10
8
3
13
The performance of your new cleaner greatly depends upon
care and maintenance. The instructions in this manual will
guide you in performing basic care and maintenance. To
obtain the most satisfying years of service read the instructions
and keep them handy for future reference.
Operating Recommendations
This new ORECK XL High-Speed Upright is one of the finest,
fastest, and strongest units in its class. You’ll love the way it
cleans, gets under things, and it’s SO lightweight and easy to
use.
The following are a few simple suggestions regarding its
operation:
1. When inserting a new disposable paper filter dust bag—
FIRST PUFF OUT and OPEN THE BAG.
2. When the disposable filter dust bag is full, REPLACE IT.
3. If at any time the machine does not pick up properly or
makes an unusual noise, STOP OPERATION and service.
Although your upright will pick up pins, paper clips, and
4.
other small objects, it is recommended that these be
removed from the floor before you vacuum. Failure to do
so may result in permanent damage to the motor suction
fan and its housing.
WARNING: Do not use your vacuum cleaner on damp
5.
or wet surfaces. This will cause damage to the vacuum
cleaner and is dangerous to the user. Damage caused by
use on wet or damp surfaces is not covered under
warranty.
6. REPLACE THE BELT EVERY 6 MONTHS.
7. Change the disposable filter dust bag at least once a
month—even if it is not full! The collected dust in the dust
bag can cause odor
area and can affect the efficiency of the cleaner.
8.
DO NOT run the vacuum cleaner over cord. The revolving
brush could damage the cord.
9. Use caution when vacuuming over area rug edges and
fringe.
Disposable Paper Filter Dust Bags
Disposable paper filter dust bags play a very important role
in the ef
of the paper bag is to trap dirt, but at the same time it must
be por
bag becomes clogged, no air can pass through the cleaner
and cleaning cannot take place, regardless of the cleaner’s
power.
To keep your cleaner operating at maximum efficiency,
change the dust bag frequently. DO NOT FILL ABOVE THE
LINE INDICA
Be sur
properly.
ficiency of your ORECK vacuum cleaner
ous enough to allow air to pass thr
TED ON THE DUST BAG.
e the disposable paper filter dust bag is installed
, attract moistur
e, act as a br
ough. If the paper
eeding
. The purpose
4
All paper dust bags are not the same. Your ORECK
ENFONCEZ JUSQUENFONCEZ JUSQU’À’À
ENTENDRE UN BRUITENTENDRE UN BRUIT
PRESIONE HASTPRESIONE HASTAA
ESCUCHAR UN ESCUCHAR UN
CHASQUIDO DE SUJECICHASQUIDO DE SUJECIÓÓNN
ENFONCEZ JUSQU’À
ENTENDRE UN BRUIT
PRESIONE HASTA
ESCUCHAR UN
CHASQUIDO DE SUJECIÓN
disposable dust bags have been designed to be used with the
ORECK cleaner. Using bags other than genuine ORECK TYPE
CC disposable bags will affect the cleaning ability of your
cleaner and could cause damage to it.
The Belt
The belt on your vacuum cleaner controls the speed of the
revolving brush and is very important for the effective
operation of the cleaner. If the belt becomes stretched or cut,
it will cause the revolving brush to stop completely or slow
down. See instructions in the manual for replacing belt.
An extra belt is stored in the baseplate of your cleaner. When
buying replacement belts, use ONLY ORECK genuine belts.
Belts other than ORECK belts will not operate the revolving
brush correctly and may create undue stress which will cause
damage to the motor and brush bearings. Using belts other
than ORECK belts will void the warranty.
Lubrication
The vacuum cleaner motor bearings are factory lubricated
and seated. Further lubrication is not required.
General Cleaner Care
At least once a month, check for
emove excessive lint, string
and r
or hair from revolving brush.
Wipe the outside of the cleaner
with a damp cloth. Also clean
the connector deflector assembly
ea, base of cleaner and fan
ar
housing area. If there is dust in
the outer bag, vacuum it or
shake it out.
A little preventative maintenance will keep your cleaner
looking new and will ensure continued cleaning effectiveness.
To Replace Filter
Dust Bag
WARNING: Unplug cord from
electrical outlet before servicing.
BAG REMOVAL:
1. Pull bag cardboard collar to
release bag dock door from
connector.
2. Gently pull bag cardboard
collar upward out of the bag
dock.
BAG INSTALLATION:
1. Slide the cardboard collar
completely onto bag dock
door.
CAUTION—Wood Floors, Soft (Vinyl, Asphalt Tile,
etc.) Floor Surfaces and Polished Floor Finishes
Use floor and floor finish manufacturer’s recommended
methods of cleaning. The metal strip on the base of the
cleaner could be damaged if used on concrete or abrasive
faces, and, ther
sur
efore, cause damage to wood floors, soft
(vinyl, asphalt tile, etc.) floor surfaces and polished floor
finishes. The r
oller brush may also scuff very soft finishes. Do
not operate the unit while in the upright and locked position.
Do not let the unit r
un while in any one stationar
any period of time. Keep the unit moving while in operation.
y position for
2. Firmly push bag dock door
with both thumbs on
indication point until
it snaps.
5

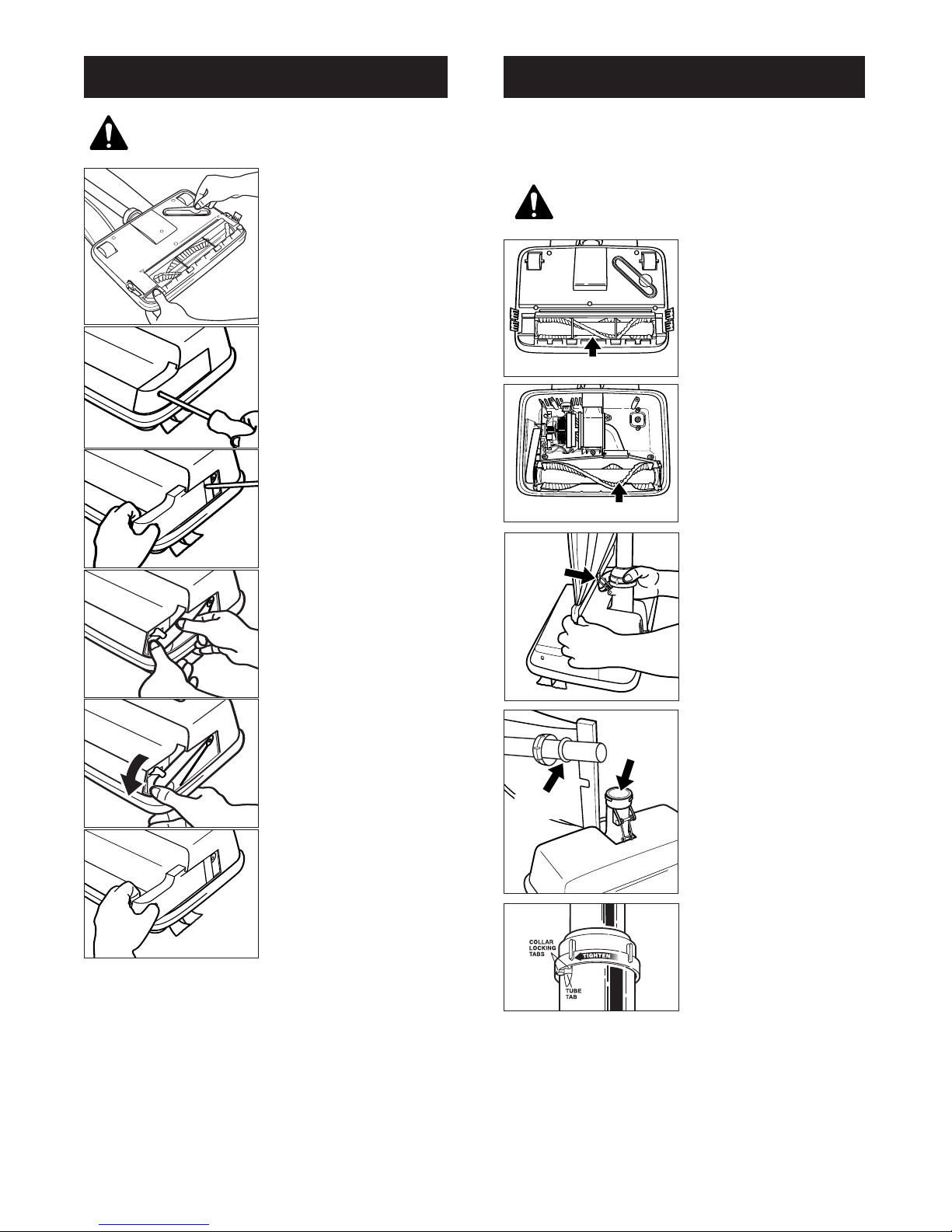

How to Replace a Worn Belt
WARNING: Unplug cord from
electrical outlet before servicing.
Remove the replacement
belt from the storage
channel.
Remove the door by
removing the hold down
screw located on side of
power head.
Slide the door forward
by prying open with a
screwdriver or coin.
Remove the belt from the
brush roll pulley and the
motor drive shaft.
Loop the new belt over
the motor drive shaft.
Place the opposite end of
oll
the belt on the br
pulley. Rotate the brush
roll three (3) complete
revolutions to ensure that
no part of the belt is
overhanging the end of
the motor drive shaft.
Replace the door by
sliding it into the groove
at the bottom of the
housing. Replace the
hold down screw.
ush r
Stuffing or Blockage
nder certain conditions it is possible to stuff or block the intake
U
tube and the lower tube assembly. If your vacuum cleaner does
not pick up properly, or makes unusual noise and the outer bag
oes not fluff up or balloon open, follow the following steps:
d
ARNING: Unplug cord from electrical
W
outlet before servicing.
. Check for blockage at the
1
mouth of the intake
opening. See illustration A.
f there is blockage, remove
I
it with long-nose pliers, a
screwdriver or coat hanger.
If you can not reach the
A
B
Retainer
Spring
C
O-ring
D
E
Intake Opening
Intake Opening
Fan
Housing
blockage, remove
baseplate. See illustration B.
2. If the blockage is not at the
base, remove lower tube.
See illustration C. Unhook
retainer spring, releasing
bottom of bag. Twist lower
collar counterclockwise to
slide up. Pull tube out of
base. Check for blockage. If
blockage is in the tube,
remove with a coat hanger.
3. If tube is not blocked, look
into fan housing. See illustration D. Remove debris
with long-nose pliers, a
screwdriver or coat hanger.
4. To reassemble, check O-ring
on tube, and replace if
damaged. See illustration D.
Vacuum will not operate
properly without the tube
Oring. Slide O-ring to
approximately 2" from base
of tube. Replace tube by
first lining up slot at base of
tube with inner tab inside
fan housing. Then reinsert
tube and push down until
the tube is seated. Make
sure O-ring is in place
against fan housing
opening. Replace and
tighten collar until collar
locking tabs are locked in
place. See illustration E.
Make sure collar is not cross
threaded on housing.
6
5. Many times blockage occurs
ue to a full dust bag
d
causing dirt to back down
the air flow system. When
hat happens, the blockage
t
will be at the top of the
system, starting in the area
here the dust bag connects
w
to the connector assembly.
See illustration F.
NOTE: If the above actions do not correct the problem, contact
an ORECK authorized service center or call the customer service
center.
IMPORTANT: On plush and new carpets, stuffing may occur
due to excessive fuzz and loose cuttings in the carpet.
Stuffing could occur for the first few cleanings until all the
loose material is removed. Due to the high efficiency of the
cleaner, many older carpets will cause stuffing when the
cleaner is first used on them.
US: 1-800-989-3535
CANADA: 1-888-676-7325
F
Connector
Deflector
pening
O

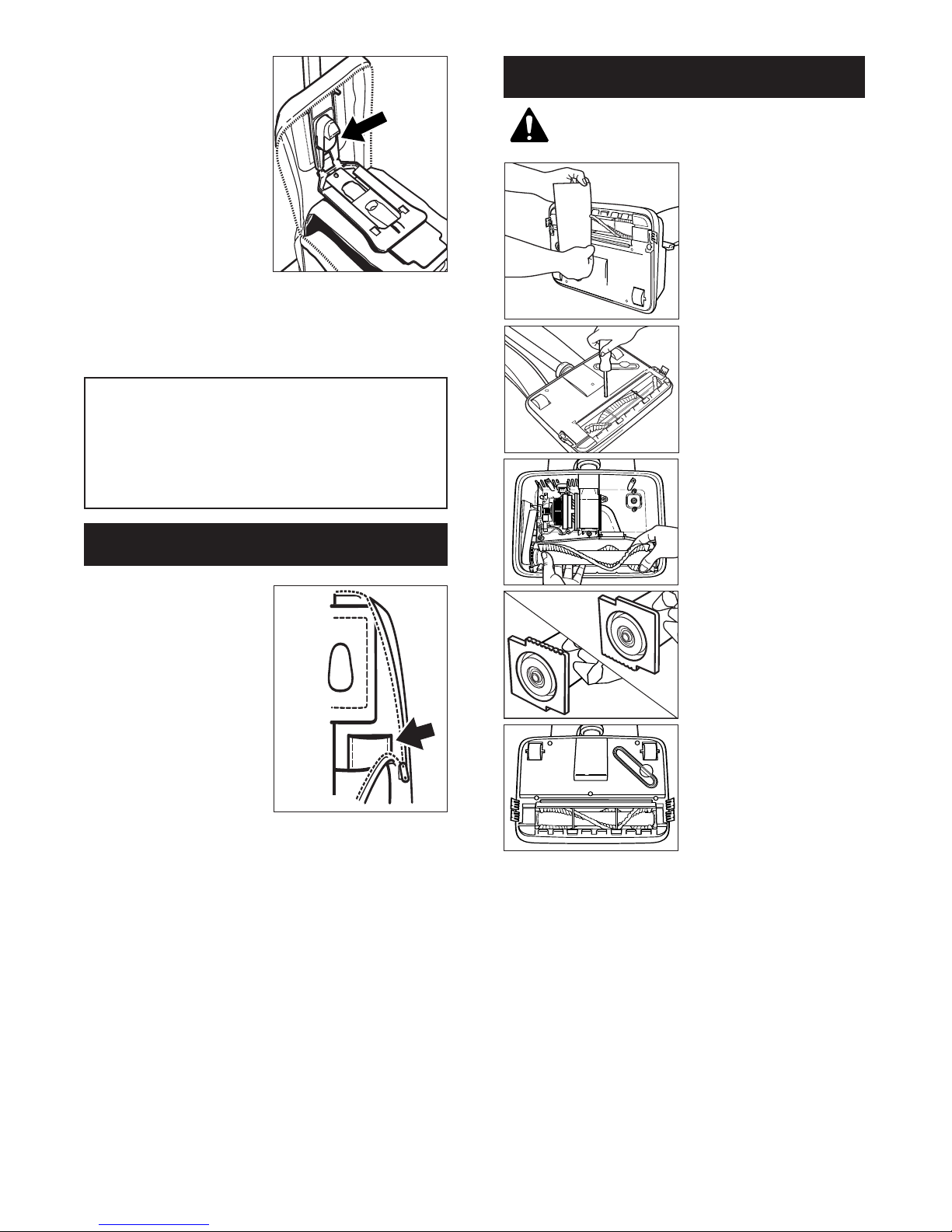

Using An Oreck Fresh Air®Ta b
To Adjust or Replace Brush
WARNING: Unplug cord from
lectrical outlet before servicing.
e
o determine if the brush is
T
worn, place a firm straight
edge across the nozzle
opening. If brush bristles
do not extend beyond
baseplate, brush should be
adjusted.
Remove the baseplate by
removing 5 screws. Then,
remove the belt and brush
roll from the housing.
Rotate both bearing
assemblies at ends of
brush roll to show “old”
and replace in the holding
channels in the housing.
Your ORECK XL vacuum
cleaner has a special
Oreck Fresh Air®tab
pocket. This light-colored
pocket is located inside
the vinyl bag in the area
where the paper
disposable bag attaches
to the intake tube. Insert
tablet in pocket.
OLD
NEW
ANT: Unless
IMPOR
T
the brush is worn as
indicated above, both
bearings must be in
the new position.
When rotating, both
bearings must be in
the old position.
Unmatched settings
will cause damage to
your machine.
NOTE: The bearing
assembly setting marked
"OLD" has no ribs on the
top of the assembly. The
one marked "NEW" has
several ribs. When rotating
bearings, make sure both
bearing assembly settings
are the same and face up
when replacing the brush
roll.
Reassemble the belt and
the baseplate and check
bristle height above
baseplate at each end of
brush.
If a previous adjustment
has already been made
and bristle height does not
extend above baseplate, a
new brush assembly
should be ordered.
7
75702-02 REV B ©2005 Oreck Holdings, LLC. All rights reserved. All word marks, logos, product configurations, and registered trademarks are owned
05/05 ECN# R-8018 and used under the authority of Oreck Holdings, LLC. Printed in
America
Loading...
