75227-05 REV A
B
SIMPLY AMAZING
®
USER’S GUIDE
COMMERCIAL
U2007RH
HIGH SPEED UPRIGHT VACUUM
CLEANER WITH
®
CLEANING SYSTEM
•IMPORTANT•
SAVE THIS BOOKLET!
Includes:
• Safety Warnings
• Warranty
• Operating Instructions
• Trouble Diagnosis
• Accessories
1
2 3
Upper
andle
H
Connector
Assembly
4
5
A
B
6 10
7 8 9
11 12 13 14 15
NEW
1916 17 2018
Retainer
Spring
O-ring
OLD
Tube
Intake Opening
Fan Housing
22 2321
Intake Opening
2
Connector
Deflector
Opening
ENGLISH
BEFORE OPERATING
CLEANER, READ ALL
INSTRUCTIONS IN THIS
MANUAL CAREFULLY.
Table of Contents
Maintenance and Customer Service, Accessories,
Important Safety Instructions . . . . . . . . . . . . . . page 3
Warranty,
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . page 4
Parts List, Assembly,
Operating Instructions . . . . . . . . . . . . . . . . . . . page 5
To Replace Filter Dust Bag,
Using an Oreck Fresh Air

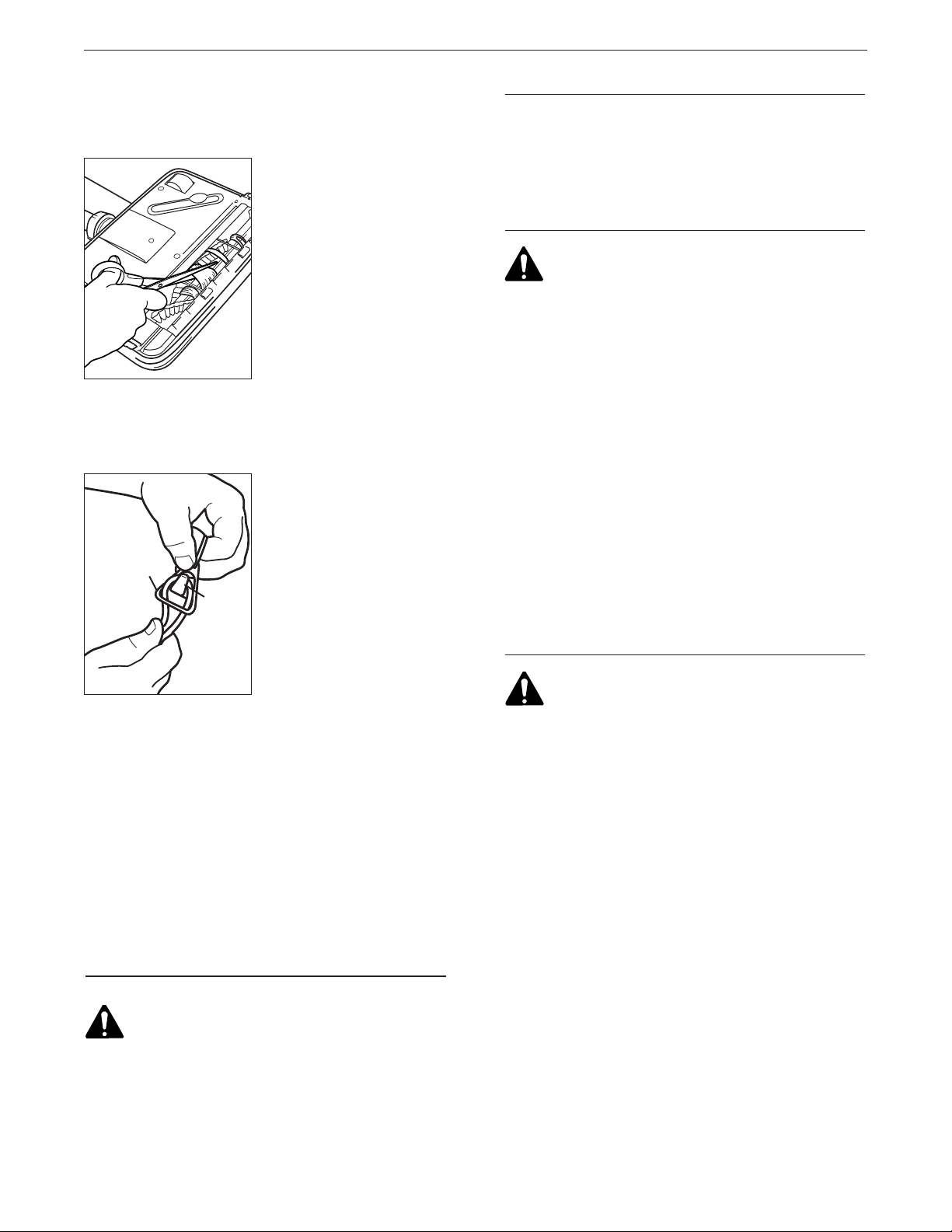

How to Replace a Worn Belt,
To Adjust or Replace Brush . . . . . . . . . . . . . . . page 6
Stuffing or Blockage . . . . . . . . . . . . . . . . . . . . . page 8
Maintenance and Customer Service
Your Oreck vacuum cleaner is a product of precise engineering.
The motor bearings are permanently lubricated and should not
be oiled. If you require additional information or have problems
with your Oreck appliance, or to order new bags or spare parts,
you may call ORECK customer service at: (
or write to:
Oreck Commercial
21 Greenway Business Centre
Harlow Business Park, Greenway
HARLOW
Essex
U.K.
CM19 5QE
Please specify the model number and serial/code number which
can be found on the data plate on the back of the vacuum.
Save your sales or purchase slip. Should your Oreck appliance
require warranty service, present this slip to the
Service Center as your proof of purchase date.
Accessories
ITEM PART #
1. Dust Bag, 25 Pack, Saniseal
ACDS Hypo-Allergenic PK800025DW
2. Dust Bag, 25 Pack Regular PK800025
Belts, 3 Pack
3.
®
Oreck Fresh
4.
Air
T
abs
®
Tab,
0) 01279 406995
Authorized
®
0300604
AIRTABS
IMPORTANT
SAFETY INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS VACUUM CLEANER
WARNING
To reduce the risk of fire,
electric shock, or injury:
• Do not leave appliance unattended when plugged in. Unplug
from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not operate the unit while in the upright and locked position.
• Do not let the unit run while in any one stationary position for any
period of time. Keep the unit moving while in operation.
• Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
• Use only as described in this manual. Use only manufacturer’s
recommended attachments.
• Do not use with damaged cord or plug. If appliance is not
working as it should, has been dropped, damaged, left outdoors,
or dropped into water, return it to a service center or call
customer service at: (0) 01279 406995.
• Do not pull or carry by cord, use cord as a handle, close door on
cord, or pull cord around sharp edges or corners. Keep cord
away from heated surfaces.
• Do not run appliance over cord.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any
opening blocked; keep free of dust, lint, hair and anything that
may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of body away from
openings and moving parts.
• Do not use to pick up anything that is burning or smoking, such
as cigarettes, matches, or hot ashes.
• Do not use without filter bag assembly in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as
gasoline or lighter fluid, or use in areas where they may be
present.
Do not use appliance in an enclosed space where flammable,
•
explosive or toxic vapors are given of
thinner, some mothproofing substances, or in an area where
flammable dust is present.
• Do not pick up toxic material such as chlorine bleach, drain
•
, gasoline, etc. with this appliance.
cleaner
Use caution when vacuuming over area rug edges and fringe.
f by oil base paint, paint
SAVE THESE INSTRUCTIONS
For Commercial Use
3
ENGLISH
Warranty
ORECK MANUFACTURING COMPANY: (Oreck 21180 Johnson
Road; Long Beach, MS, USA 39560 gives you the following
warranty for this product only if it was originally purchased at
etail and not for resale from Oreck or an Oreck Authorized Retail
r
Dealer.)
Oreck will repair or replace, free of charge, to the original
purchaser, any part that is found to be defective in material or
workmanship within one (1) year of the date of purchase. This
limited warranty covers the revolving roller brush for thirty (30)
days from the date of purchase.
This warranty does not cover the replacement of expendable or
consumable parts such as carbon motor brushes, edge brushes,
belts, bulbs, disposable bags and other parts subject to normal
wear unless they are defective in material or workmanship.
This warranty does not apply to any part subjected to accident,
abuse, alteration, misuse, damage caused by act of God, the use
of voltages other than indicated on the serial number displayed
on this product or service of this product by other than Oreck or
a participating Factory Authorized Service Center.
Oreck does not authorize any person or representative to
assume or grant any other warranty obligation with the sale of this
product.
Oreck’s warranty is valid only if you retain proof of purchase from
Oreck or an Oreck Authorized Retail Dealer for this product. If you
purchase this product from any other source, your purchase is
“AS IS,” which means Oreck grants you no warranty, and that
you, not Oreck, assume the entire risk of the quality and
performance of this product, including the entire cost of any
necessary servicing or repairs of any defects.
This warranty is in addition to your statutory and other legal
rights.
Troubleshooting Guide
WARNING: Unplug cord from electrical
utlet before servicing.
o
SAVE SERVICE CALLS...CHECK THESE FIRST:
Is the disposable filter dust bag full?
•
• Are pores of filter dust bag clogged with powder or fine dust?
Is anything clogging the revolving brush, lower tube, intake
•
opening, fan housing or connector assembly opening?
• Is the belt in place and turning the brush?
Are the brush ends in the proper location?
•
• Does the brush turn freely? Are hair, string or rug fibers wound
around the brush?
PR
OBLEM
CLEANER
W
ILL NOT RUN
CLEANER
DOES NOT PICK UP
PO
SSIBLESOURCE
Not plugged in
properly.
No electricity in
wall outlet.
Filter bag is full.
Nozzle or intake
pivot clogged.
Belt is broken or
stretched.
Brush is worn.
AR
EAS TOCHECK
Be sure cleaner is
firmly plugged into
wall outlet.
Check electrical
source–fuse or
circuit breaker.
Replace filter bag.
See “To Replace
Paper Filter Dust
Bag.”
Clear obstruction.
Replace belt.
Replace brush if
bristles do not
extend beyond
baseplate.
Bag tube clogged.
Bag pores are
clogged with fine
dust.
Impeller fan is
broken.
Revolving brush is
not even at both
ends.
Clear obstruction.
Change bag.
Return to Service
Center for repair.
Check brush roll
end cards. Make
sure words “OLD”
or “new” match at
each end.
ALL OTHER SERVICING SHOULD BE DONE BY AN
ORECK AUTHORIZED SERVICE CENTER.
CALL CUSTOMER SERVICE HOT LINE
(0) 01279 406995
Whenever calling, please be sure to have your model and serial
number from data plate.
4
ENGLISH

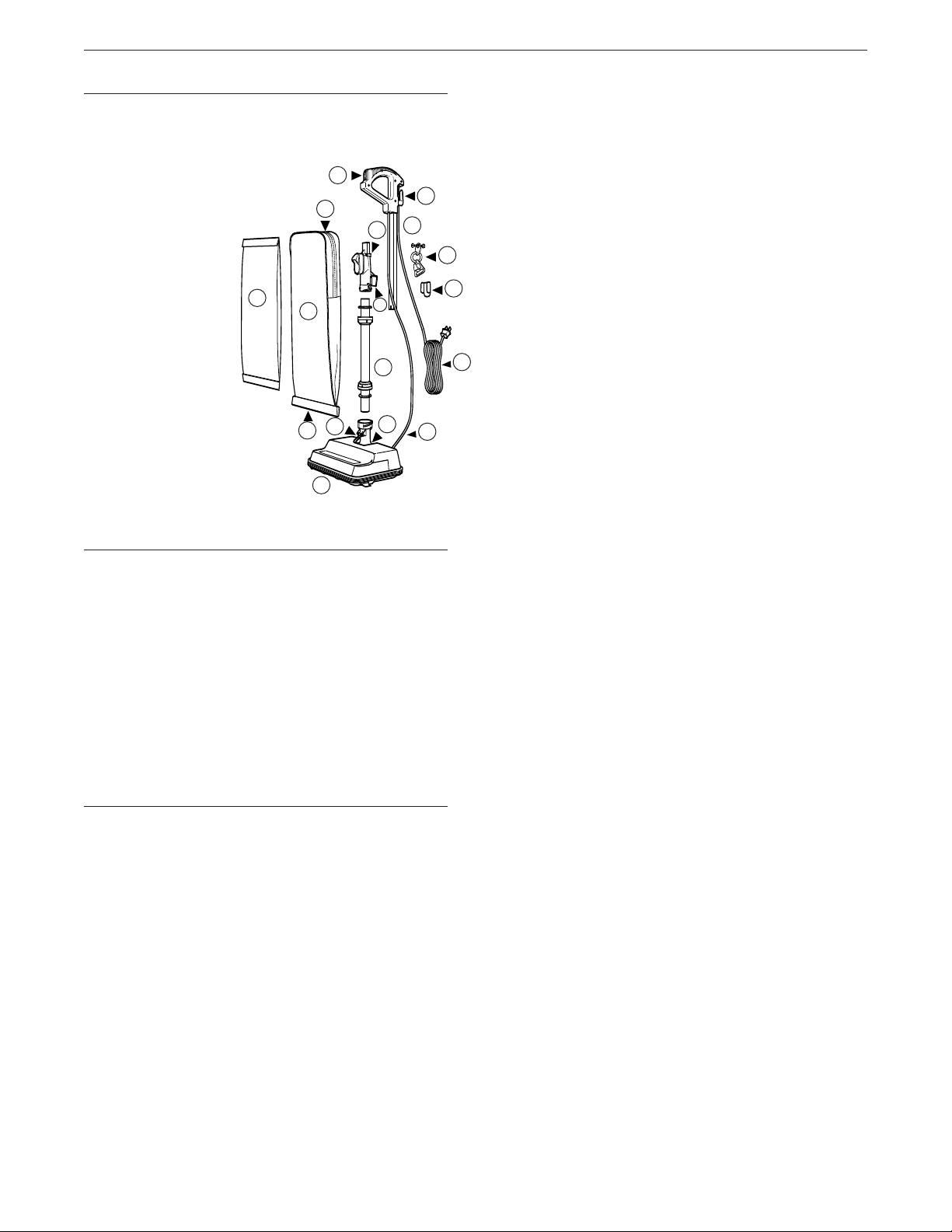

Parts List
To assist you in identifying components of your vacuum, the
parts have been numbered as follows:
1 Handle section, upper
Tube, lower
2
3 Power head
4 Outer bag
5 Paper filter dust bag
6 Power cord
7 Retaining spring
8 Bag tension bar
9 Zip fastener
10 On/off switch
11 Cord hook
12 Plastic loop/cable clamp
Connector assembly
13
14 Fan housing
15 Cord assembly
16 Handle Brace
17 Cord Strain Relief
5
10
9
12
4
7
8
3
11
1
17
6
1
13
2
14
6
15
Assembly
fig. 1 Before assembling appliance, remove two screws from
the connector assembly. Remove cardboard insert by
pulling upward.
fig. 2 Slide upper handle section over matching section of the
connector assembly. Place brace against handle and
connector assembly aligning screw holes. Insert short
screw into top hole and long screw into the bottom hole
then tighten firmly until handle is no longer loose.
fig. 3 Attach cord to cord clip by pressing above and below clip
ensuring the cord is fully rested in clip.
Operating Instructions
Make sure the disposable paper filter dust bag is in place. DO
NOT operate the cleaner without a paper filter dust bag. Plug the
power cord into an electrical outlet. Press the On(l) - OFF(O)
switch on handle assembly when ready to operate. Choose
from the low and high speed settings by pressing the ON/LOW
(l) ON/HIGH (ll) - OFF (O) switch on handle assembly when
ready to operate.
General Information
The performance of your new cleaner greatly depends upon
care and maintenance. The instructions in this manual will guide
you in performing basic care and maintenance. To obtain the
most satisfying years of service read the instructions and keep
them handy for future reference.
Operating Recommendations
High-Speed Upright is one of the finest,
This new ORECK
fastest, and strongest units in its class. You’ll love the way it
cleans, gets under things, and it’
use.
XL
s SO lightweight and easy to
The following are a few simple suggestions regarding its
operation:
1. When inserting a new disposable paper filter dust bag—
FIRST PUFF OUT and OPEN THE BAG.
2. When the disposable filter dust bag is full, REPLACE IT.
3. If at any time the machine does not pick up properly or
makes an unusual noise, STOP OPERATION and service.
4. Although your upright will pick up pins, paper clips, and
other small objects, it is recommended that these be
removed from the floor before you vacuum. Failure to do so
may result in permanent damage to the motor suction fan
nd its housing.
a
ARNING: Do not use your vacuum cleaner on damp or
W
.
5
wet surfaces. This will cause damage to the vacuum
cleaner and is dangerous to the user. Damage caused by
use on wet or damp surfaces is not covered under
warranty.
6.
REPLACE THE BELT EVERY 6 MONTHS.
7. Change the disposable filter dust bag at least once a
month—even if it is not full! The collected dust in the dust
bag can cause odor, attract moisture, act as a breeding
area and can affect the efficiency of the cleaner.
DO NOT run the vacuum cleaner over cord. The revolving
8.
brush could damage the cord.
9. Use caution when vacuuming over area rug edges and
fringe.
Disposable Paper Filter Dust Bags
Disposable paper filter dust bags play a very important role in
the efficiency of your ORECK vacuum cleaner. The purpose of
the paper bag is to trap dirt, but at the same time it must be
porous enough to allow air to pass through. If the paper bag
becomes clogged, no air can pass through the cleaner and
cleaning cannot take place, regardless of the cleaner’s power.
Increase the CLEANING POWER of your cleaner by changing
the bag often.
o keep your cleaner operating at maximum efficiency, change
T
the dust bag frequently. DO NOT FILL ABOVE THE LINE
TED ON THE DUST
INDICA
Be sure the disposable paper filter dust bag is installed properly.
All paper dust bags are not the same. Your ORECK
disposable dust bags have been designed to be used with
the ORECK cleaner. Using bags other than genuine ORECK
disposable bags will affect the cleaning ability of your
cleaner and could cause damage to it.
The Belt
The belt on your vacuum cleaner controls the speed of the
revolving brush and is very important for the effective operation
of the cleaner. If the belt becomes stretched or cut, it will cause
the revolving brush to stop completely or slow down. See
instructions in the manual for replacing belt.
An extra belt is stored in the baseplate of your cleaner.
When buying replacement belts, use ONLY ORECK genuine
belts. Belts other than Oreck belts will not operate the
revolving brush correctly and may create undue stress
which will cause damage to the motor and brush bearings.
Using belts other than ORECK belts will void the warranty.
BAG.
5
ENGLISH
Lubrication
The vacuum cleaner motor bearings are factory lubricated and
sealed. Further lubrication is not required.
General Cleaner Care
t least once a month, check
A
for and remove excessive lint,
tring or hair from revolving
s
brush.
Wipe the outside of the cleaner
ith a damp cloth. Also clean
w
the connector deflector
assembly area, base of cleaner
and fan housing area. If there is
ust in the outer bag, vacuum it
d
or shake it out.
A little preventative maintenance will keep your cleaner
looking new and will ensure continued cleaning effectiveness.
Cord Strain Relief
The cord strain relief located on the upper section of the handle is
designed to reduce stress on the cord at the base of the handle.
Should the power cord come
loose from the cord strain relief,
it can be easily reattached.
To attach the power cord to the
Cord Strain
Relief
Clamp
until the power cord is tightly rested under clamp.
CAUTION—Wood Floors, Soft (Vinyl, Asphalt Tile, etc.) Floor
Surfaces and Polished Floor Finishes
Use floor and floor finish manufacturer
methods of cleaning.
could be damaged if used on concrete or abrasive surfaces,
and, therefore, cause damage to wood floors, soft (vinyl,
asphalt tile, etc.) floor surfaces and polished floor surfaces. The
roller brush may also scuff very soft finishes. Do not operate
the unit while in the upright and locked position. Do not let the
unit run while in any one stationary position for any period of
time. Keep the unit moving while in operation.
The metal strip on the base of the cleaner
cord strain relief, grasp the
power cord approximately 12
inches from the base of the
handle. Pinch power cord
together and slide approximately 1-2 inches through the
bottom hole in flat side of cord
strain relief. Carefully slide
power cord loop over clamp on
cord strain relief and pull excess
s recommended
’
To Replace Filter Dust Bag
ARNING: Unplug cord from electrical
W
outlet before servicing.
BAG REMOVAL:
fig. 4
Hook bottom of bag collar opening under lip “B” of connector
assembly. Pull up on bag collar and snap over lip “A” of
connector.
fig. 5 Press on edges of bag collar to ensure bag is completely
installed.
IMPORTANT: Check to make sure bag collar is behind lips “A” and “B”.
If it is not, dust will leak into outer bag. When filter bag is in place,
close outer bag with zipper fastener.
6
Using An Oreck Fresh Air®Tab
ig. 6Your ORECK XL vacuum cleaner has a special ORECK
f
FRESH AIR tab pocket. This pocket is located inside the
area where the disposable paper bag attaches to the
intake tube. Insert tablet in pocket if desired.
How to Replace a Worn Belt
WARNING: Unplug cord from electrical
outlet before servicing.
fig. 7 Remove the replacement belt from the storage channel.
fig. 8 Remove the door by removing the hold down screw
located on side of power head.
fig. 9
Slide the door forward by prying open with
screwdriver or coin.
fig. 10 Remove the belt from the brush roll pulley and the motor
drive shaft.
fig. 11 Loop the new belt over the motor drive shaft. Place the
opposite end of the belt on the brush roll pulley. Rotate
the brush roll three (3) complete revolutions to ensure
that no part of the belt is overhanging the end of the
motor drive shaft.
fig. 9 Replace the door by sliding it into the groove at the
bottom of the housing.
fig. 8 Replace the hold down screw and tighten.
To Adjust or Replace Brush
WARNING: Unplug cord from electrical
outlet before servicing.
fig. 12 To determine if the brush is worn, place a firm straight
edge across the nozzle opening. If brush bristles do not
extend beyond baseplate, brush should be adjusted.
fig. 13 Remove the baseplate by removing 5 screws.
fig. 14 Remove the belt and brush roll from the housing.
fig. 15 Rotate both bearing assemblies at ends of brush roll to
show “OLD” and replace in the holding channels in the
housing.
NOTE: The bearing assembly setting marked “OLD” has no ribs
on the top of the assembly. The one marked “NEW” has
several ribs. When rotating, make sure both bearing
assembly settings are the same and face up when
replacing the brush roll.
fig. 12 Reassemble the belt and the baseplate and check
bristle height above baseplate at each end of brush.
If a previous adjustment has already been made and bristle
height does not extend above baseplate, a new brush assembly
should be ordered.
: Unless the brush is worn as indicated above,
IMPORT
both bearings must be in the “NEW” position. When
rotating, both bearings must be in the “OLD” position.
Unmatched settings will cause damage to your machine.
ANT
ENGLISH
Stuffing or Blockage
IMPORTANT: On plush and new carpets, stuffing may occur
nside the intake tube and the lower assembly. This is due to
i
excessive fuzz and loose cuttings in the carpet. Stuffing could
occurs for the first few cleanings until all the loose material is
removed. Due to the high efficiency of the cleaner, many older
arpets will cause stuffing when the cleaner is first used on
c
them. If your vacuum cleaner does not pick up properly, or
akes unusual noise and the outer bag does not fluff up of
m
balloon open, follow these steps:
WARNING: Unplug cord from electrical
outlet before servicing.
fig. 16 Check for blockage at the mouth of the intake opening.
If there is blockage, remove it with long-nose pliers, a
screwdriver or coat hanger. If you can not reach the
blockage, remove baseplate (fig. 17).
fig. 18 If the blockage is not at the base, remove lower tube.
Unhook retainer spring, releasing bottom of bag.
fig. 19 Twist lower collar counterclockwise to slide up. Pull tube
out of fan housing.
fig. 20 Check for blockage. If blockage is in the tube, remove
with a coat hanger.
fig. 21 If tube is not blocked, look into fan housing. Remove
with a coat hanger.
fig. 19 To reassemble, check O-ring on tube, and replace if
damaged. Vacuum will not operate properly without the
tube O-ring. Slide O-ring to approximately 2" from base
of tube. Replace tube by first lining up slot at base of
tube with inner tab inside fan housing. Then reinsert
tube and push down until the tube is seated. Make sure
O-ring is in place against fan housing opening. Replace
and tighten collar until collar locking tabs are locked in
place.
fig. 22 Make sure collar is not cross threaded on housing.
Reattach bag spring (fig. 18).
fig. 23 Many times blockage occurs due to a full dust bag
causing dirt to back down the air flow system. When that
happens, the blockage will be at the top of the system,
starting in the area where the dust bag connects to the
connector assembly.
NOTE: If the above actions do not correct the problem, contact
an Oreck authorized service center or call the customer service
center at: (0) 01279 406995
.
7
75227-05 REV A ©2005 Oreck Holdings, LLC. All rights reserved. All word marks, logos, product configurations, and registered trademarks are owned
11/05 ECN# R-8199 & 8058 and used under the authority of Oreck Holdings, LLC. Printed in America.
Loading...
