Page 1
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL

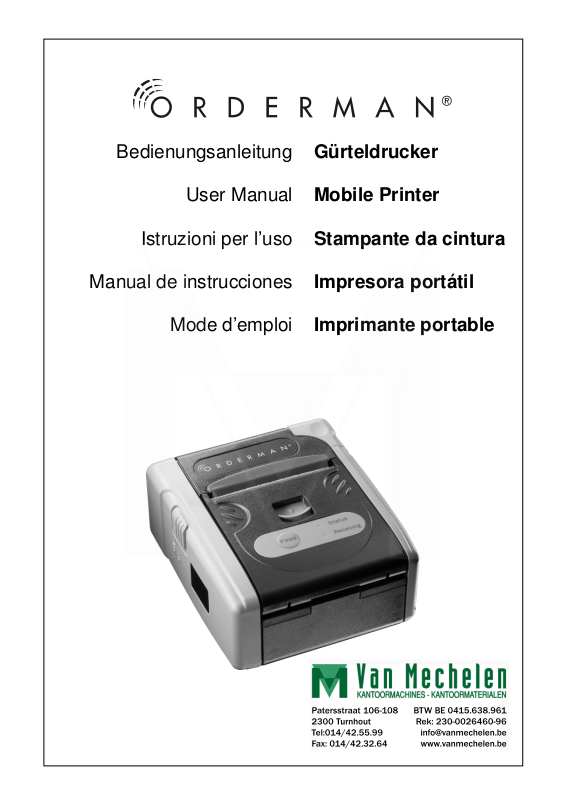

Bedienungsanleitung Gürteldrucker
User Manual Mobile Printer
Istruzioni per l’uso Stampante da cintura
Manual de instrucciones Impresora portátil
Mode d’emploi Imprimante portable
Page 2
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
User Manual Mobile Printer
English
Bachstraße 59,
5023 Salzburg – Austria
www.orderman.com
© 2008 by
Mistakes and typing errors excepted.
Copying, including copying of extracts, is not permitted unless written
permission has been given by Orderman GmbH.
P3.60-226.V3.1
• Orderman takes no responsibility for damages or losses that result from use of these instructions for use.
• Orderman takes no responsibility for third party losses or claims that result from the use of the Orderman mobile printer.
• Changes to the content of these instructions for use are excepted and may be changed without advance notice.
• These instructions for use may not be part of a contract.
• Trade marks: All brands and product names are trademarks or regis-
tered trademarks of their respective companies.
- 16 -
Page 3
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
Mobile Printer User Manual
1 General....................................................................... 18
1.1 Welcome to the world of the Orderman mobile
printer.......................................................................... 18
1.2 Orderman mobile printer scope of delivery.................. 18
2 Safety advice ............................................................. 19
3 Introducing the Orderman mobile printer ............... 20
4 Correct start-up ......................................................... 21
4.1 Charging the battery.................................................... 21
4.2 Inserting the battery .................................................... 22
4.3 Inserting the thermal paper roll.................................... 23
4.4 Cleaning the thermal head and the rubber roller ......... 24
4.5 Producing a test print .................................................. 24
5 Quality thermal paper KANZAN KPR 540................ 25
Contents:
English
6 Technical data ........................................................... 26
7 Connection of the Mobile Printer to the
Handheld Device ....................................................... 26
7.1 Orderman Max2plus Synchronization with the
Orderman Mobile Printer............................................. 27
7.2 Orderman Leo2plus Synchronization with the
Orderman Mobile Printer ............................................. 28
8 D
eclarations of conformity....................................... 29
- 17 -
Page 4
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
User Manual Mobile Printer
1 General
1.1 Welcome to the world of the Orderman mobile printer
Congratulations on purchasing an Orderman mobile printer. This docu­ment will help you to get to know your Orderman mobile printer and famil­iarize yourself with its functions.
1.2 Orderman mobile printer scope of delivery
Your Orderman mobile printer comes with the following accessories: re­chargeable battery pack, a battery-charger, a belt bag, a thermal paper roll and these operating instructions.
English
- 18 -
Page 5
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
Mobile Printer User Manual
2 Safety advice
General safety advice
• The appliances do not contain any parts that are suitable for ser- vicing by the user and may therefore not be taken apart. The war­ranty claim shall become void if the appliance is opened.
• Please ensure that the appliance is used in a dry environment.
• This printer is fitted with Bluetooth for wireless communication.
Never use the printer in areas in which Bluetooth can cause dis­ruption (aircraft, hospitals etc.).
Printer safety advice
• Do not touch the paper cutter or the thermal head as there is a risk of injury.
Rechargeable battery safety advice
• Only use the rechargeable battery model supplied for the printer.
• Do not expose the rechargeable battery to extreme heat. Never
short-circuit the contacts – this could cause an explosion.
English
Charger safety advice
• Never short-circuit the contacts.
• Only charge the battery designed for the printer.
Thermal paper safety advice
• Use only the Orderman KANZAN KPR540 thermal paper. It is spe- cifically qualified for this printer. It is identifiable by the Orderman imprint on the reverse side. By using other types of thermal paper, the thermal head will become damaged or dirty.
- 19 -
Page 6
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
User Manual Mobile Printer
Status
-
LED

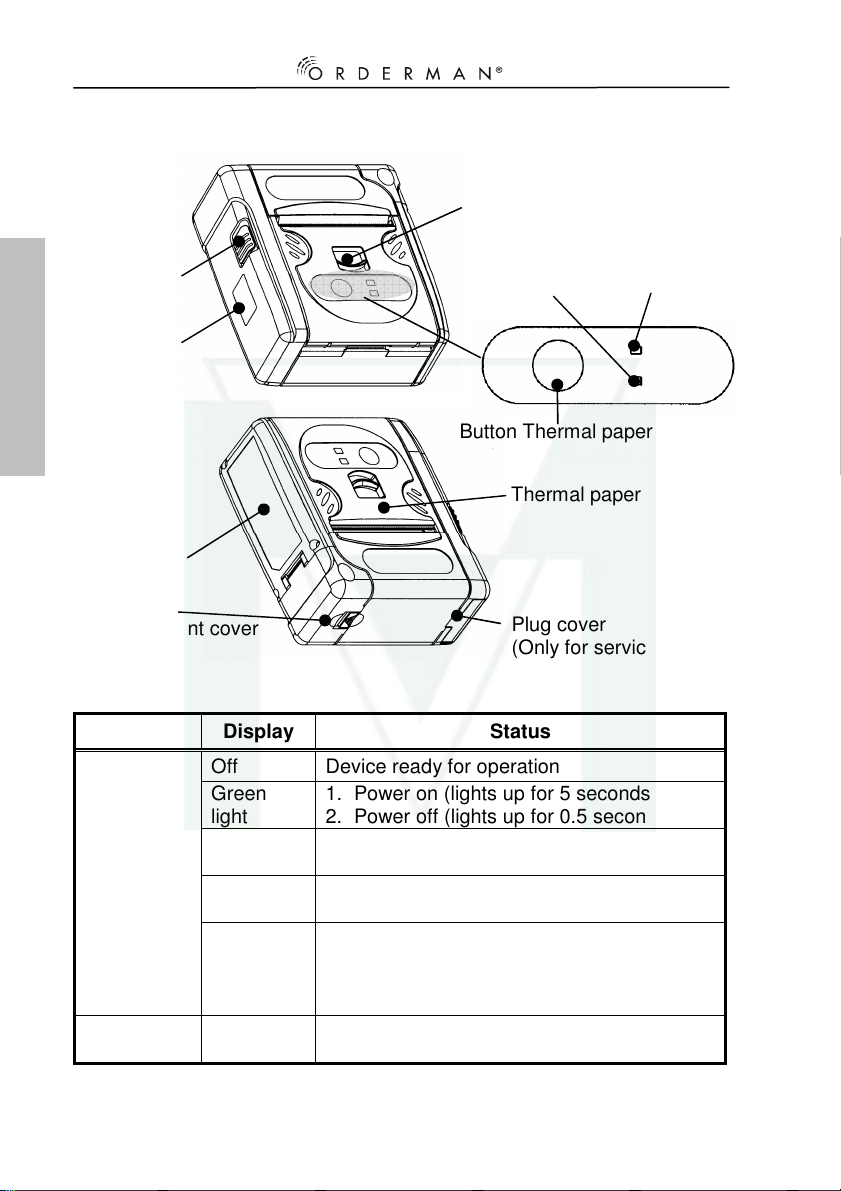

3 Introducing the Orderman mobile printer
On / Off switch
Infrared interface
English
Type plate
Battery compartment cover
Element D
isplay Status
Thermal paper cover lock
Feed
Button Thermal paper feed
Thermal paper cover
Plug cover (Only for service purposes)
Status Receiving
Off Device ready for operation Green
light Orange light
Status LED
Red light
1. Power on (lights up for 5 seconds)
2. Power off (lights up for 0.5 seconds) Battery voltage is low - printing still possible Battery voltage is low - printing no longer
possible
Possible error: Flashing red light
1. The paper cover is open
2. No thermal paper in the printer
3. Other errors, e.g. the printer is damaged
Reception LED
Flashing green light
Communication working
- 20 -
Page 7
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
Mobile Printer User Manual
4 Correct start-up
4.1 Charging the battery
Insert the rechargeable battery (direction is shown in the photo). The
reen flashing LED indicates that charging is in progress. The constant
g green light indicates that the battery is fully charged. You can put batter­ies in both charging slots. Charging takes around 2 hours per battery.
Before first use, charge the battery for at least 100 min­utes. In order to increase the product life, the battery
Note
should be removed from the charger when charging is complete.
LED (charging slot 2)
Operating LED (red)
(charging slot 1)
LED
English
- 21 -
Page 8
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
User Manual Mobile Printer

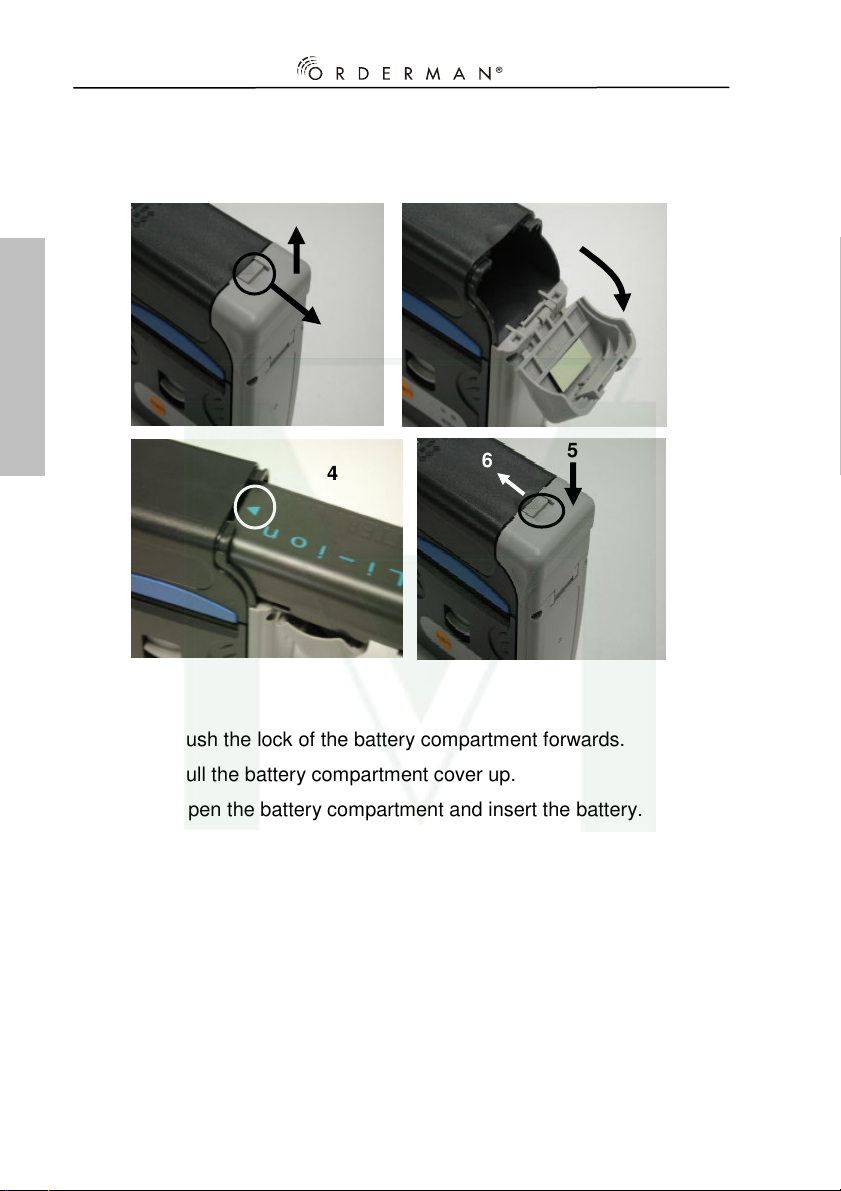

4.2 Inserting the battery
English
2
1
4
6
3
5
1 Push the lock of the battery compartment forwards.
Pull the battery compartment cover up.
2 3,4 Open the battery compartment and insert the battery. 5 Snap the battery compartment shut and push down. 6 Push the lock of the battery compartment cover forwards.
- 22 -
Page 9
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
Mobile Printer User Manual

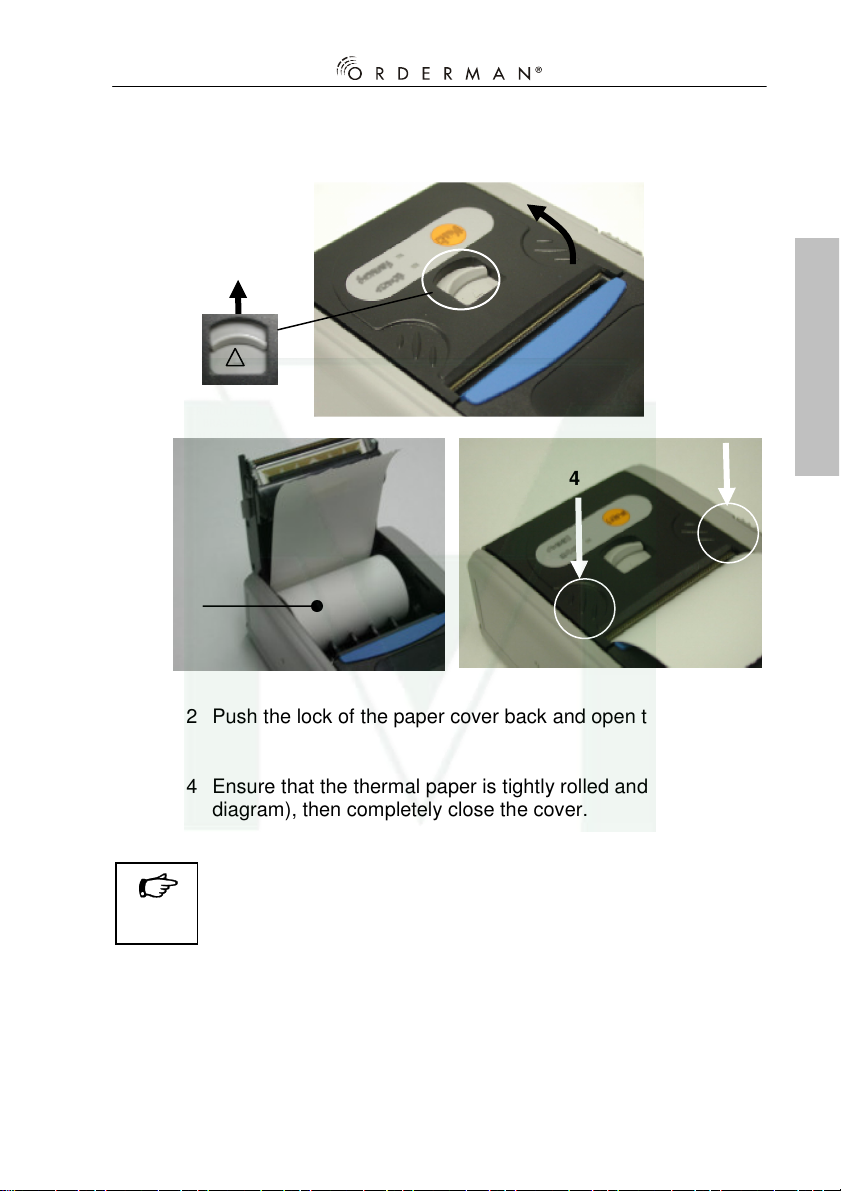

4.3 Inserting the thermal paper roll
1
2
4
4
3
1,2 Push the lock of the paper cover back and open the cover.
English
,4 Ensure that the thermal paper is tightly rolled and insert it (see
3
diagram), then completely close the cover.
If the thermal paper has been inserted incorrectly, no
Note
imprint will be visible. If this is the case, turn the thermal paper over.
- 23 -
Page 10
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
User Manual Mobile Printer
4.4 Cleaning the thermal head and the rubber roller
English
Switch the printer off and open the paper cover. Remove the dust or dirt from the thermal head or the rubber roller areas with a soft cloth or cotton
Thermal head
Rubber roller
bud slightly soaked in ethanol.
Do not use abrasive fluids for cleaning.
Note
4.5 Producing a test print
In order to check that the print image function
s working properly, hold the “feed” button
i down and switch the printer on. The test printout contains the graphic print image and the appliance data, enabling you to check the print quality.
The Bluetooth
interface is deactivated after the test
printout. The interface is reactivated by switching the
Note
printer off and on again.
- 24 -
Page 11
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
Mobile Printer User Manual
5 Quality thermal paper KANZAN KPR 540
Orderman guarantees a service life of 25km for the print head of your Orderman mobile printer – but only when you use Orderman KANZAN KPR 540 thermal paper.
Having carried out extensive testing on the effects of paper on the print head and the mechanism, we now recommend using only KANZAN KPR 540, with the Orderman logo on the reverse.
Your benefits
• Printouts (i.e. receipts) are legible for longer on KANZAN KPR 540 thermal paper, and can therefore be archived for longer than print­outs on standard paper. Where this type of paper is used, Orderman guarantees an archive period of at least 10 years (assuming proper storage).
• The very high dynamic sensitivity of the thermal coating ensures outstanding thermoprinting image quality, even under low (battery­saving) energy settings. This increases the service life of the ther­mal printer.
• Guaranteed service life of 25km for the print head of the Orderman mobile printer.
English
• The paper has a low gsm value, and therefore minimal thickness. This maximises the metre output of the compact Orderman mobile printer.
We cannot guarantee the stated service life of the printer where other
aper types are used; this can cause damage or soiling to the print head.
p That’s why using KANZAN KPR 540 every time means a long and pro­ductive partnership with your Orderman mobile printer.
- 25 -
Page 12
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
User Manual Mobile Printer
6 Technical data
Mobile Printer Technical data
Print process High speed thermal printer Print speed Max. 80mm / sec Thermal head product life 25Km when using the original Orderman
Communication Thermal paper width Roll width: 57mm
Print width 48mm (384 dots / line), graphic enabled
English
Printer dimensions 88mm x 102mm x 43mm Weight 280g (without thermal paper, plus battery) Operating temperature 0° to 40°
Battery
thermal paper KANZAN KPR540 Bluetooth V1.1 (class 2) 2.4GHz
Roll direction – thermal coating outwards
Technology Lithium ion 7.2V Capacity 1,150mAH Dimensions 70mm x 38mm x 20mm Weight 90g
Charger Dimensions 94mm x 122mm x 35mm Weight 270g Mains voltage 100V-240v / 50Hz-60Hz
7 Connection of the Mobile Printer to the
Handheld Device
Using the Bluetooth interface built into the Orderman Max2plus or Leo2plus, you can print out all receipts right next to the customer on an Orderman mobile printer.
- 26 -
Page 13
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
Mobile Printer User Manual

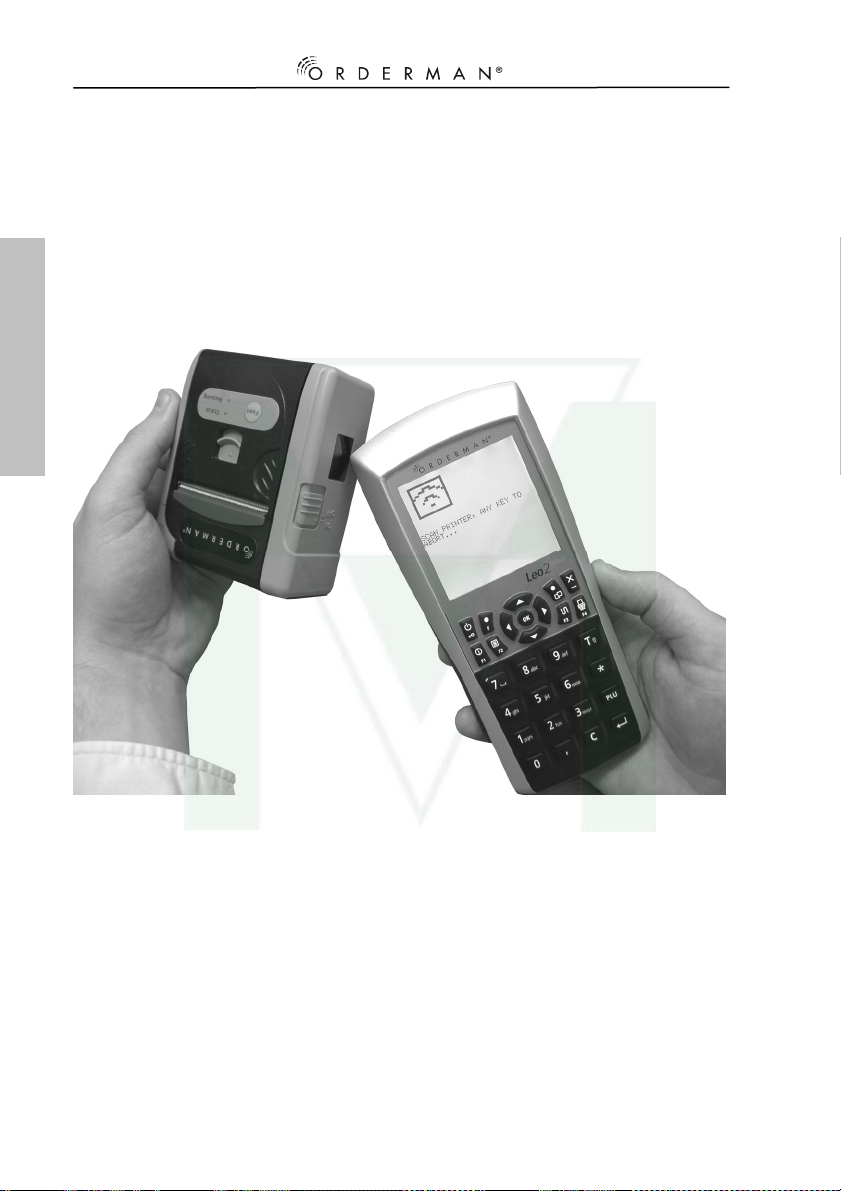

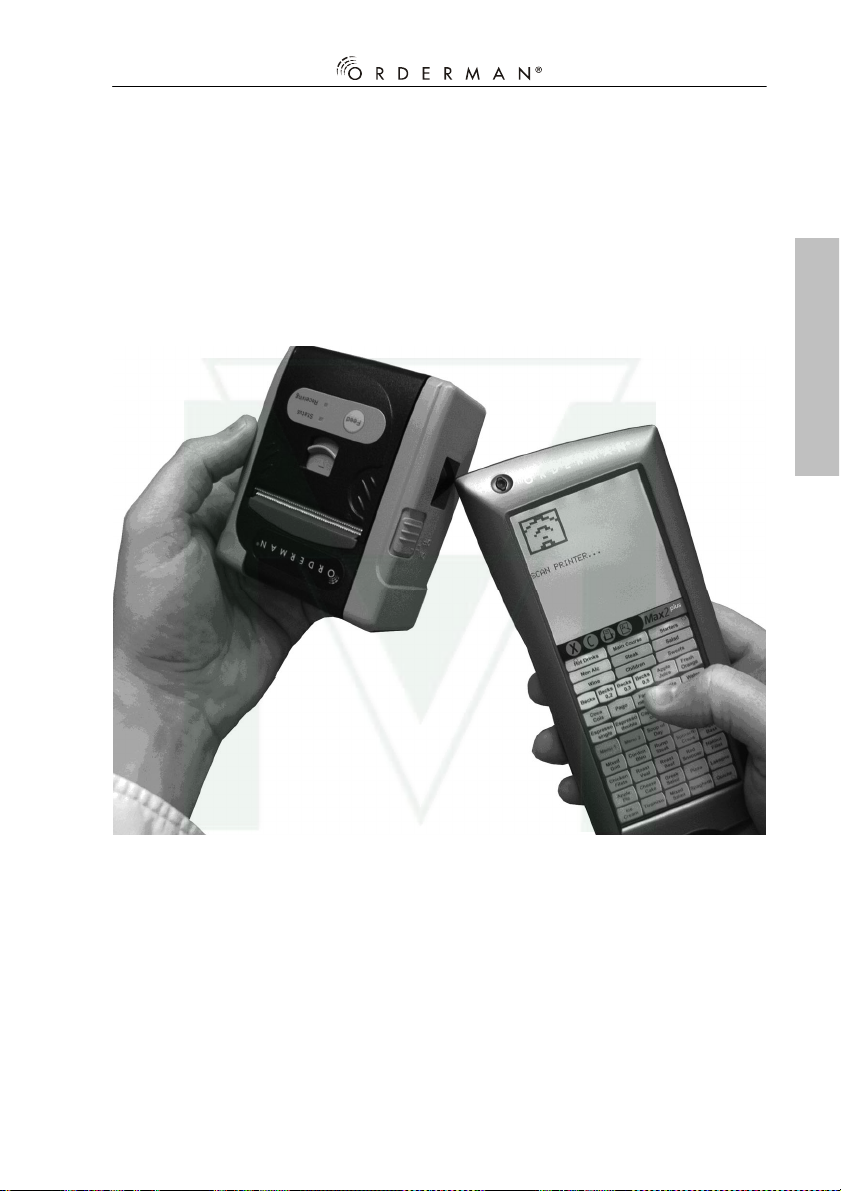

7.1 Orderman Max2plus Synchronization with the
In order to synchronize an Orderman Max2plus with the Orderman mo­bile printer, press a finger anywhere on the touch surface while switching on the Orderman Max2plus at the on / off button. Keep pressing your finger on the touch surface and use the top left cor­ner of the Orderman Max2plus casing to briefly touch the infrared window of the printer, which has to be switched on.
Orderman Mobile Printer
English
The screen will show that the printer has been recognized and synchro­nized. Now remove your finger from the touch surface. The synchronization of the Orderman mobile printer with the Orderman Max2plus will begin. When it is finished, an automatic test print will be produced on the printer. You can repeat the synchronization at any time or change to a different Orderman mobile printer.
- 27 -
Page 14
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
User Manual Mobile Printer
7.2 Orderman Leo2plus Synchronization with the Or­derman Mobile Printer
In order to easily synchronize an Orderman Leo2plus with the Orderman mobile printer, press the "F4" key and keep it pressed while switching on the Orderman Leo2plus at the on / off button. Using the top left corner of the Orderman Leo2plus casing, briefly touch the infrared window of the printer, which has to be switched on.
English
The screen will show that the printer has been recognized and synchro­nized. The synchronization of the Orderman mobile printer with the Orderman Leo2plus will begin. When it is finished, an automatic test print will be produced on the printer. You can repeat the synchronization at any time, or change to a different Orderman mobile printer.
- 28 -
Page 15
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
Mobile Printer User Manual
8 Declarations of conformity
We hereby declare that this printer corresponds to basic requirements and other relevant specifications in accordance with the guideline 1999/5/EC.
Declaration of conformity – CE marks
This appliance corresponds to the requirements of the following Euro­pean Community guidelines: R&TTE-guideline 1999/5/EC
This declaration is based on the conformity of products with the following standards:
-EN 60950: 2000
-EN 300,328: 2003
-EN 301 489-1: 2002; EN 301 489-17: 2002
English
- 29 -
Page 16
Patersstraat 106-108 2300 turnhout Gasthuisstraat 21 2440 geel Kempen antwerpen noorderkempe n lim burg 014/41.12.08 014/42.55.99 014/59.2 6.95 www.vanmechelen.be be0415638961 145.638.961 dexia 068-2221350-77 hrt41.156 kantoormachines – kantoormateria len kassa weegschaal horeca systemen
VLIMMEREN(BEERSE) WECHELDERZANDE ZOERSEL BRECHT MERKSEM LOENHOUT WUSTWEZEL EKEREN(ANTWERPEN) HERENTALS MORKHOVEN NOORDERWIJK PULDERBOS PULLE OLEN OEVEL TONGERLO(ANTW) WESTERLO ZOERLE-PARWIJS HERENTHOUT GIERLE LILLE POEDERLEE WECHELDERZANDE GROBBENDONK VORSELAAR TURNHOUT RIJKEVORSEL HOOGSTRATEN MEER MINDERHOUT WORTEL MEERLE MERKSPLAS BAARLE-HERTOC BEERSE VLIMMEREN VOSSELAAR OUD—TURNHOUT ARENDONK RAVELS WEELDE POPPEL BAARLE-HERTOG MALLE OOSTMALLE WESTMALLE POPPEL(RAVELS) MOL HERENTALS LILLE POEDERLEE(LILLE) HERENTALS(NOORDERWIJK) EINDHOUT LAAKDAL VORST(KEMPEN) VARENDONK VEERLE GEEL MEERHOUT GIERLE(LILLE) KASTERLEE ICHTAART TIELEN RETIE DESSEL BALEN OLMEN KALMTHOUT BRASSCHAAT HOEVENEN STABROEK BRECHT SINT-JOB-IN-’T-GOOR SINT-LENAERTS HALLE(KEMPEN) HALLE(KEMPEN) ZOERSEL LOENHOUT WUUSTWEZEL OVERPELT NEERPELT SINT-HUIBRECHT-LOMMEL ACHEL HAMONT HAMONT-ACHEL HECHTEL EKSEL HAM KWAADMECHELEN OOSTHout BOCHOLT KAULILLE REPPEL BEEK BREE GERDINGEN OPITTER TONGERLO(LIMB) LEOPOLDSBURC HEPPEN TESSENDERLO CROTE-KLEINE- BROGEL PEER WIJCHMAAL LAAKDAL LAAKDAL
Imprimante portable Mode d’emploi
8 Déclarations de conformité
Par la présente, nous déclarons que cette imprimante est conforme aux exigences essentielles et autres normes en vigueur prévues dans la di­rective 1999/5/CE.
Déclaration de conformité – Marquage CE
Cet appareil est conforme aux exigences fixées par la directive 1999/5/CE du Parlement européen et du Conseil concernant les équipe­ments hertziens et les équipements terminaux de télécommunications.
Cette déclaration est basée sur la conformité du produit avec les normes suivantes:
-EN 60950 : 2000
-EN 300 328 : 2003
-EN 301 489-1 : 2002; EN 301 489-17: 2002
- 71 -
Français
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
