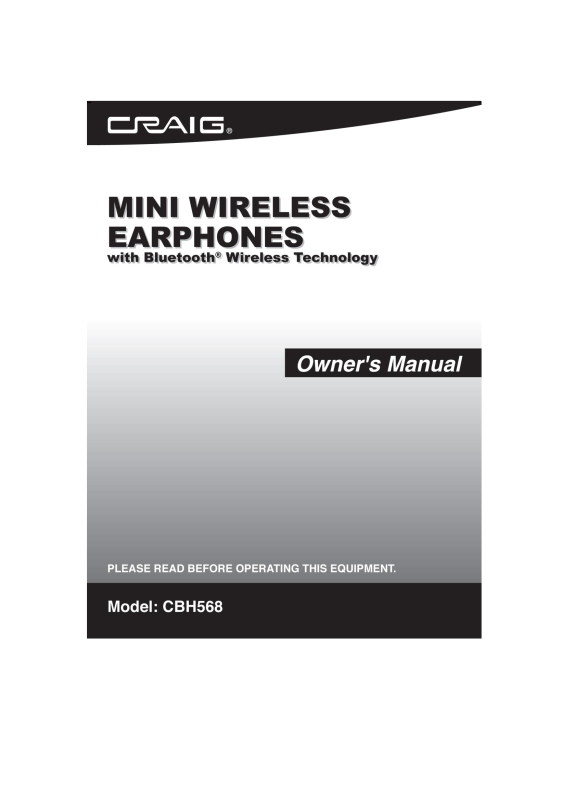

Orderly Electronics BCBH5680 User Manual

FCC Statement

Warning: Changes or modifications to this unit not expressly approved by the party

responsible

for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help

The device must not be co-located or operating in conjunction with any other

antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions : (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

1

LOCATION OF CONTROLS:

7

2

2

1

6 5 4

4

3 2 1

FRONT:

REAR:

EARBUDS:
3

3

4

4

1. Top Cover

2. Charging for Left Earbud

3. Charging for Right Earbud

4. LED Indicators

5. Button

6. Micro USB Port (for charging only)

7. Charging Station

1. Control Button

2. Microphone

3. Contacts for Charging

4. LED Indicators

2

POWER SOURCE:

To Micro USB Port

To Computer or USB Charger

The Charging Station and Earbuds equipped built-in Li-ion rechargeable battery;

recharge it before use or when it is drained as below.

Charging Station:

1. Connect the Micro USB Plug from the supplied USB Connection Cable to the

Micro USB Port on the rear of Charging Station.

2. Connect the full sized USB Plug from the supplied USB Connection Cable to the

USB Port on the Computer or USB Charger. (Computer and USB Charger NOT

Supplied).

3. When charging, the Red Charging Indicator on the front of Charging Station will

blink. When charging is complete, it will stop blinking.

Earbuds:

1. Open the Top Cover on the top of the Charging Station.

2. Place the Left Earbud into the Left Charging Port.

3. Place the Right Earbud into the Right Charging Port as illustrated below:

3
