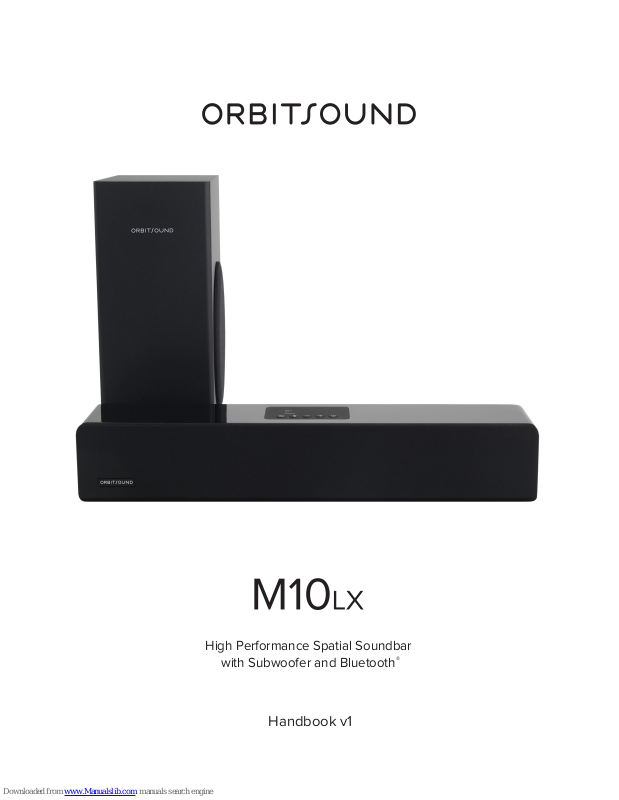

Orbitsound M10LX Handbook

1

Handbook v1

High Performance Spatial Soundbar

with Subwoofer and Bluetooth

®

2

1

Contents

Welcome 2

Orbitsound contact information 2

Package contents 2

The soundbar 3
Remote control 3
Subwoofer 3

Control panel overview 4

Getting Started 5

Connect, power on 5
Bluetooth 8
AUX input 8
Remote control 9

Advanced Setup & Use 10

Positioning - getting the most from spatial sound 10
Subwoofer placement 10

Other features 11

Power saving 11
Setting memory 11
Reset soundbar levels 11
Auto-mute 12
Bluetooth resume / grab 12

Important safety information 12

Maintenance 13

Cleaning and care 13

Troubleshooting 14

No sound is heard 14
The sound is out of sync with the TV 14
Remote does not work 14
Sound is distorted 14
Sound is noisy / ‘hissy’ 14
Digital optical issues: ‘Clicking’ or no sound 15
No sound from subwoofer (soundbar working) 15
Battery replacement (remote) 15

Orbitsound Warranty 16

Warranty Terms 16
Making a Warranty Claim 16
Orbitsound Ltd Warranty Terms and Conditions 17

Specifications 18

2

Welcome

Thank you for purchasing the orbitsound M10LX spatial soundbar with compact
subwoofer and Bluetooth. With proper use the orbitsound M10LX delivers
superb sound fidelity, engaging spatial sound, and will provide you with a
fantastic listening experience.

This instruction booklet covers important safety and setup information as well as
advice on how to get the most out of your orbitsound M10LX.

Orbitsound contact information

ORBITSOUND LTD.
UK Support Tel: [phone]

International Support: www.orbitsound.com
Email: [e-mail]

Package contents

Inside the packaging you will find:

• Soundbar

• Subwoofer

• Remote control

• Inline power supply + power cord

• Subwoofer cable

• This handbook

• Quick start guide

• Audio connection cable

• Digital optical (TOSLINK) connection cable

3

The soundbar

IR receiver

Spatial sound generators

Status LEDs

Status LED State

RED: Standby

BLUE: On

OFF: Power off

The orbitsound M10LX soundbar produces most of the sound that you hear. It
produces the main signal and spatial information.

Remote control

The remote control provides volume control, tone control and sound source
selection, and additionally playback controls when using a connected Bluetooth
device.

Subwoofer

FrontBack

The subwoofer is a wired passive loudspeaker that produces powerful Hi-Fi
bass. It has been designed specially to complement the soundbar.

4

Control panel overview

The soundbar can be controlled from the control panel:

Optical

Bluetooth

Aux

1

2 3 4

5

6

7

1. Source: Press to cycle through the inputs. This controls what device is
playing through the soundbar.

2. Bluetooth: Short press to renew a Bluetooth connection / start playback.
Long press (Press and hold) to enter pairing mode.

3. Vol - : Reduce volume.

4. Volume +: Increase volume.

5. Standby: Enter standby mode or power on.

6. Source LED: Shows which source is currently playing

7. Status: Blue shows the soundbar is on. Red shows standby. The light
will flash when a button is pressed on the remote or on the
control panel.

Hint: Long press the power button to reset the soundbar. This will reset the
source, volume, treble and bass memory to factory default settings. Press and
hold for 3 seconds. The soundbar will confirm by flashing the power/status light
3 times. The unit will reset and optical source will be selected.
