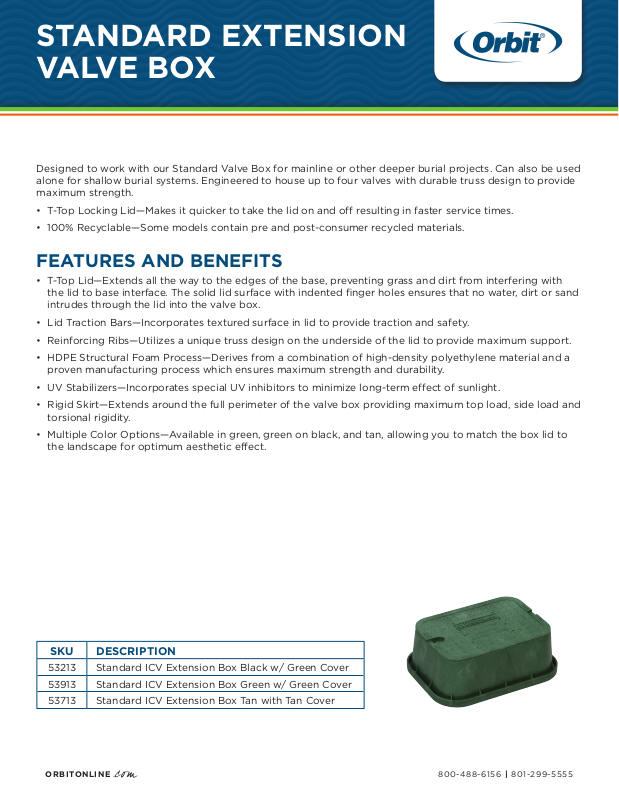

STANDARD EXTENSION
VALVE BOX
Designed to work with our Standard Valve Box for mainline or other deeper burial projects. Can also be used
alone for shallow burial systems. Engineered to house up to four valves with durable truss design to provide
maximum strength.
• T-Top Locking Lid—Makes it quicker to take the lid on and off resulting in faster service times.
• 100% Recyclable—Some models contain pre and post-consumer recycled materials.
FEATURES AND BENEFITS
• T-Top Lid—Extends all the way to the edges of the base, preventing grass and dirt from interfering with
the lid to base interface. The solid lid surface with indented finger holes ensures that no water, dirt or sand
intrudes through the lid into the valve box.
• Lid Traction Bars—Incorporates textured surface in lid to provide traction and safety.
• Reinforcing Ribs—Utilizes a unique truss design on the underside of the lid to provide maximum support.
• HDPE Structural Foam Process—Derives from a combination of high-density polyethylene material and a
proven manufacturing process which ensures maximum strength and durability.
• UV Stabilizers—Incorporates special UV inhibitors to minimize long-term effect of sunlight.
• Rigid Skirt—Extends around the full perimeter of the valve box providing maximum top load, side load and
torsional rigidity.
• Multiple Color Options—Available in green, green on black, and tan, allowing you to match the box lid to
the landscape for optimum aesthetic effect.
SKU DESCRIPTION
53213 Standard ICV Extension Box Black w/ Green Cover
53913 Standard ICV Extension Box Green w/ Green Cover
53713 Standard ICV Extension Box Tan with Tan Cover
ORBITONLINE.com
800-488-6156 | 801-299-5555
Page 2
STANDARD EXTENSION
VALVE BOX
MATERIAL SPECIFICATIONS
*PROPERTIES
OF BASE
MATERIAL
Tensile Strength D-638 2,700-4,400 psi (Typical
Flexural Modulus D-790 Min 140,000 not to exceed
Notched Izod
Impact Strength
Density D-792 Min 0.95 not to exceed 0.965
Deflection Temp @
66psi
Electrical Dielectric
Strength
MOLDED
PRODUCT
Chemical
Resistance
Water Absorption D-570 < 1% weight change
Static Vertical Load
Rating
*Material specifications subject to change based on availability
ASTM TEST
METHOD
D-256 0.5-3.0 (Typical Range)
D-648 150° to 200° F
D-149 400-600 V/mil
ASTM TEST
METHOD
D-543 Very Resistant
C-857 A-0.3, 300 lb. ft/ft2
HDPE
Range)
240,000 psi
(Typical Range)
HDPE

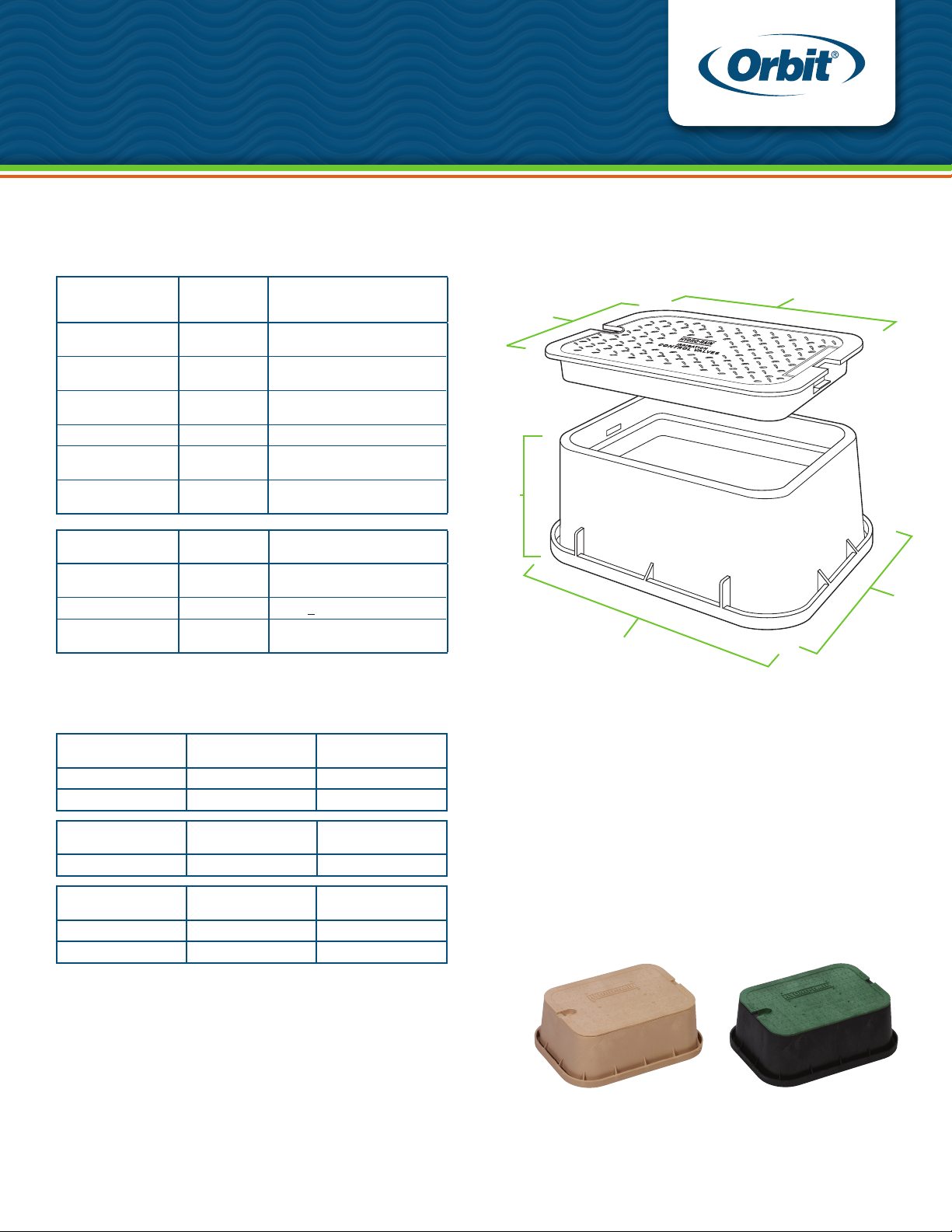

STANDARD EXTENSION BOX
17"
11 3/4"
8 1/4"
14"
19 1/2"
BOX STRENGTH - CRUSH TEST
VALVE BOX BODY
LOAD
1419-12 Standard 28,688 0.390
1419-6X Standard 20,875 0.420
VALVE BOX
LID LOAD
1419-12 Standard 8,450 3.700
VALVE BOX BODY
LOAD
1419-12 Standard 400 2.800
1419-6X Standard 1,250 3.200
Note: Enclosure is for use in non-vehicular traffic applications only.
Installation in concrete or asphalt is not recommended. Weights and
dimensions may vary slightly.
MAXIMUM LOAD
LBS.
MAXIMUM LOAD
LBS.
MAXIMUM LOAD
LBS.
DEFLECTION
INCHES
DEFLECTION
INCHES
DEFLECTION
INCHES
53213-00 rA
