ORBIT FR Z-Roll Units User Manual
ZR-10
ZR-50
ZR-100
ZR-200
Construction Grade
Aluminum
Aluminum
Aluminum
Aluminum
Motion
Manual
Motorized
Z-Travel
mm
102
250
500
1000
in
4
10
20
40
Roll Travel Default
deg
±110°
Roll Travel with Rotary Joint
deg
Continuous
Payload
kg
4.5
23
lb
10
50
Bending Moment
m-kg
1.4
14
Ft-lb
10
100
Z Speed
mm/sec
N/A
3
in/sec
N/A
0.01
Roll Speed
rpm
N/A
1.5

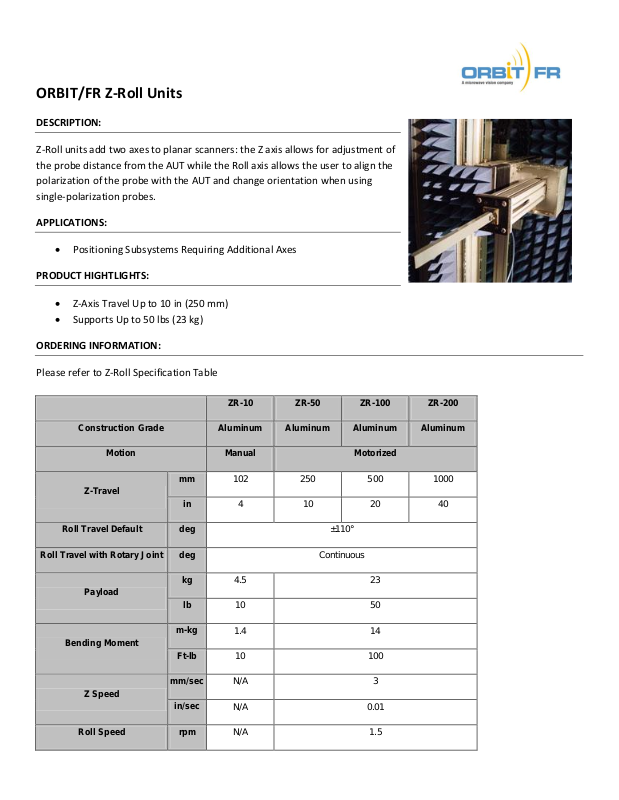

ORBIT/FR Z-Roll Units
DESCRIPTION:
Z-Roll units add two axes to planar scanners: the Z axis allows for adjustment of
the probe distance from the AUT while the Roll axis allows the user to align the
polarization of the probe with the AUT and change orientation when using
single-polarization probes.
APPLICATIONS:
Positioning Subsystems Requiring Additional Axes
PRODUCT HIGHTLIGHTS:
Z-Axis Travel Up to 10 in (250 mm)
Supports Up to 50 lbs (23 kg)
ORDERING INFORMATION:
Please refer to Z-Roll Specification Table
ZR-10
ZR-50
ZR-100
ZR-200
Construction Grade
Aluminum
Aluminum
Aluminum
Aluminum
Motion
Manual
Motorized
Motor Drive
V
N/A
90
hp
N/A
1/20
Z Accuracy (RMS)
mm
N/A
0.05
0.07
0.09
in
N/A
0.002
0.003
0.004
Roll Accuracy (RMS)
deg
N/A
0.033
Readout Resolution Z Axis
mm
N/A
0.003
in
N/A
0.00012
Readout Resolution Roll Axis
deg
N/A
0.001
Repeatability (RMS) Z Axis
mm
N/A
0.025
in
N/A
0.001
Repeatability (RMS) Roll Axis
deg
N/A
0.05
Weight
kg
8
23
33
43
lb
18
50
73
95
Polarization Positioner
AL-060-1P
AL-160-1P
Z Travel Stage
-
AL-610-1
AL-610-2
AL-610-3
