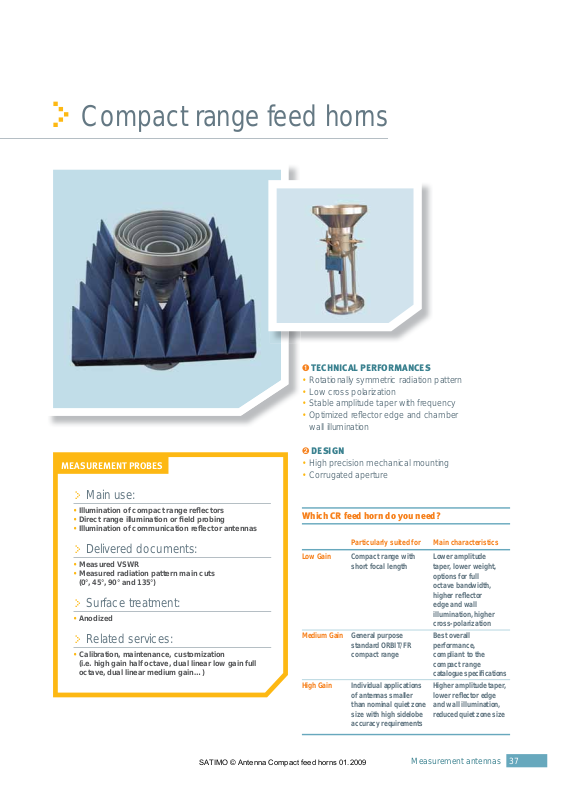

SATIMO © Antenna Compact feed horns 01.2009
Compact range feed horns
➊ TECHNICAL PERFORMANCES
• Rotationally symmetric radiation pattern
• Low cross polarization
• Stable amplitude taper with frequency
• Optimized refl ector edge and chamber
wall illumination
MEASUREMENT PROBES
> Main use:
• Illumination of compact range refl ectors
• Direct range illumination or fi eld probing
• Illumination of communication refl ector antennas
> Delivered documents:
• Measured VSWR
• Measured radiation pattern main cuts
(0°, 45°, 90° and 135°)
> Surface treatment:
• Anodized
> Related services:
• Calibration, maintenance, customization
(i.e. high gain half octave, dual linear low gain full
octave, dual linear medium gain…)
➋ DESIGN
• High precision mechanical mounting
• Corrugated aperture
Which CR feed horn do you need?
Particularly suited for Main characteristics
Low Gain Compact range with Lower amplitude
short focal length taper, lower weight,
options for full
octave bandwidth,
higher refl ector
edge and wall
illumination, higher
cross-polarization
Medium Gain General purpose Best overall
standard ORBIT/FR performance,
compact range compliant to the
compact range
catalogue specifi cations
High Gain Individual applications Higher amplitude taper,
of antennas smaller lower r efl ector edge
than nominal quiet zone and wall illumination,
size with high sidelobe reduced quiet zone size
accuracy requirements
Measurement antennas
37
Mechanical drawing
SATIMO © Antenna Compact feed horns 01.2009
• Sensoring ring polarization pin
and accurate mounting interface
for repeatable mounting.
• Spirit level for reproductible polarization
reference.
Medium gain
Medium gain feed horns with
dual polarization for more
effi cient range utilization
are available upon request.
Half octave single linear feed horns
The medium gain corrugated horn is the fi rst choice
for general purpose compact ranges. It offers the
best overall performance in regard to amplitude taper,
cross polarization performance, refl ector edge illumination, chamber wall illumination, and feed leakage
into the quiet zone.
The low gain corrugated feed horns offer lower
amplitude taper (typically 0.3 dB over the full quiet zone
versus 0.8 dB for the medium gain horns) at the
cost of slightly degraded other parameter. It is also
frequently used on compact range systems with
shorter focal length, which require an illumination cone
angle of ± 16 deg. Other advantages of the low gain
feeds are lower weight and the availability of a full
octave frequency bandwidth up to 8 GHz.
Part number Frequency Gain Directivity VSWR Taper Cross Nominal 3 dB
range (GHz) (dBi) (Typ) (dBi) (Typ) (dB)
AL 2309-0.75 SL 0.75 - 1.12 13 14 1.6:1 0.8 35° 34 - 40°
AL 2309-1.12 SL 1.12 - 1.70 13 14 1.6:1 0.8 35° 34 - 40°
AL 2309-1.70 SL 1.70 - 2.60 13 14 1.6:1 0.8 37° 34 - 40°
AL 2309-2.00 SL 2.00 - 3.00 13 14 1.6:1 0.8 37° 34 - 40°
AL 2309-2.60 SL 2.60 - 3.95 13 14 1.6:1 0.8 37° 34 - 40°
AL 2309-3.00 SL 3.00 - 4.50 13 14 1.6:1 0.8 37° 34 - 40°
AL 2309-3.95 SL 3.95 - 5.85 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-4.50 SL 4.50 - 6.70 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-5.85 SL 5.85 - 8.20 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-6.70 SL 6.70 - 10.0 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-8.20 SL 8.20 - 12.4 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-10.0 SL 10.0 - 15.0 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-12.4 SL 12.4 - 18.0 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-15.0 SL 15.0 - 22.0 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-18.0 SL 18.0 - 26.5 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-22.0 SL 22.0 - 33.0 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-26.5 SL 26.5 - 40.0 13 14 1.4:1 0.8 40° 34 - 40°
AL 2309-33.0 SL 33.0 - 50.0 13 14 1.4:1 0.8 37° 34 - 40°
AL 2309-40.0 SL 40.0 - 60.0 13 14 1.4:1 0.8 35° 34 - 40°
AL 2309-50.0 SL 50.0 - 75.0 13 14 1.4:1 0.8 35° 34 - 40°
AL 2309-60.0 SL 60.0 - 90.0 13 14 1.4:1 0.8 35° 34 - 40°
AL 2309-75.0 SL 75.0 - 110.0 13 14 1.4:1 0.8 35° 34 - 40°
(1) Cross-polarization applies to the conical angle of +- 8 deg, which illuminates the quiet zone of ORBIT/FR compact ranges.
(1)
polarization
(1)
(Typ) Bandwidth
38
Measurement antennas
Medium gain corrugated feed horns aperture performance
SATIMO © Antenna Compact feed horns 01.2009
Low gain
Part number Frequency Gain Directivity VSWR Taper Taper Nominal 3 dB
range (GHz) (dBi) (Typ) (dBi) (Typ) (dB)
(1)
(dB)
(2)
Bandwidth
level
AL 2310-0.75 SL 0.75 - 1.12 9 10 1.6:1 0.3 0.9 58 - 66
AL 2310-1.12 SL 1.12 - 1.70 9 10 1.6:1 0.3 0.9 58 - 66
AL 2310-1.70 SL 1.70 - 2.60 9 10 1.6:1 0.3 0.9 58 - 66
AL 2310-2.00 SL 2.00 - 3.00 9 10 1.6:1 0.3 0.9 AL 2310-2.60 SL 2.60 - 3.95 9 10 1.6:1 0.3 0.9 58 - 66
AL 2310-3.00 SL 3.00 - 4.50 9 10 1.6:1 0.3 0.9 AL 2310-3.95 SL 3.95 - 5.85 9 10 1.4:1 0.3 0.9 58 - 66
AL 2310-4.50 SL 4.50 - 6.70 9 10 1.4:1 0.3 0.9 AL 2310-5.85 SL 5.85 - 8.20 9 10 1.4:1 0.3 0.9 58 - 66
AL 2310-6.70 SL 6.70 - 10.0 9 10 1.4:1 0.3 0.9 AL 2310-8.20 SL 8.20 - 12.4 9 10 1.4:1 0.3 0.9 58 - 66
AL 2310-10.0 SL 10.0 - 15.0 9 10 1.4:1 0.3 0.9 AL 2310-12.4 SL 12.4 - 18.0 9 10 1.4:1 0.3 0.9 58 - 66
AL 2310-15.0 SL 15.0 - 22.0 9 10 1.4:1 0.3 0.9 AL 2310-18.0 SL 18.0 - 26.5 9 10 1.4:1 0.3 0.9 58 - 66
AL 2310-22.0 SL 22.0 - 33.0 9 10 1.4:1 0.3 0.9 AL 2310-26.5 SL 26.5 - 40.0 9 10 1.4:1 0.3 0.9 58 - 66
AL 2310-33.0 SL 33.0 - 50.0 9 10 1.4:1 0.3 0.9 AL 2310-40.0 SL 40.0 - 60.0 9 10 1.4:1 0.3 0.9 58 - 66
AL 2310-50.0 SL 50.0 - 75.0 9 10 1.4:1 0.3 0.9 58 - 66
AL 2310-60.0 SL 60.0 - 90.0 9 10 1.4:1 0.3 0.9 58 - 66
AL 2310-75.0 SL 75.0 - 110.0 9 10 1.4:1 0.3 0.9 58 - 66
(1) Cross-polarization applies to the conical angle of +- 8 deg, which illuminates the quiet zone of ORBIT/FR compact ranges.
(2) Cross-polarization applies to the conical angle of +- 16 deg.
Measurement antennas
39
Low gain feed horns aperture performance
SATIMO © Antenna Compact feed horns 01.2009
Mechanical characteristics*
Part number Aperture diameter Connector
AL 2309-0.75 SL 877 mm N
AL 2309-1.12 SL 586 mm SMA
AL 2309-1.70 SL 373 mm SMA
AL 2309-2.00 SL 328 mm SMA
AL 2309-2.60 SL 246 mm SMA
AL 2309-3.00 SL 219 mm SMA
AL 2309-3.95 SL 168 mm N
AL 2309-4.50 SL 147 mm N
AL 2309-5.85 SL 117 mm N
AL 2309-6.70 SL 99 mm SMA
AL 2309-8.20 SL 80 mm SMA
AL 2309-10.0 SL 66 mm SMA
AL 2309-12.4 SL 54 mm SMA
AL 2309-15.0 SL 45 mm SMA
AL 2309-18.0 SL 37 mm K
AL 2309-22.0 SL 30 mm K
AL 2309-26.5 SL 25 mm K
AL 2309-33.0 SL 20 mm 2.4
AL 2309-40.0 SL 15 mm WR19
AL 2309-50.0 SL 13 mm WR 15
AL 2309-60.0 SL 10 mm WR 12
AL 2309-75.0 SL 9 mm WR 10
Mechanical characteristics
Part number Aperture diameter Connector
AL-2310-1.70-SL 359 mm SMA
AL-2310-2.60-SL 236 mm SMA
AL-2310-3.95-SL 157 mm N
AL-2310-5.85-SL 110 mm N
AL-2310-8.20-SL 75 mm SMA
AL-2310-12.4-SL 51 mm SMA
AL-2310-18.0-SL 35 mm K
AL-2310-26.5-SL 23 mm K
AL-2310-33.0-SL 19 mm 2.4
AL-2310-50.0-SL 12 mm WR 15
AL-2310-75.0-SL 8 mm WR 10
* Typical characteristics for medium gain feed horns
40
Measurement antennas
Full octave feed horns
SATIMO © Antenna Compact feed horns 01.2009
Electrical characteristics
Part number AL 2310-1 SL WB AL 2310-2 SL WB AL 2310-4 SL WB
Available frequencies 1 – 2 GHz 2 – 4 GHz 4 – 8 GHz
Average gain 9 dBi 9 dBi 9 dBi
Nominal 3dB Beamwidth 48-70° 48-70° 48-70°
Low gain full octave aperture performance
Mechanical characteristics
Part number AL 2310-1 SL WB AL 2310-2 SL WB AL 2310-4 SL WB
Connector SMA SMA SMA
Measurement antennas
41
