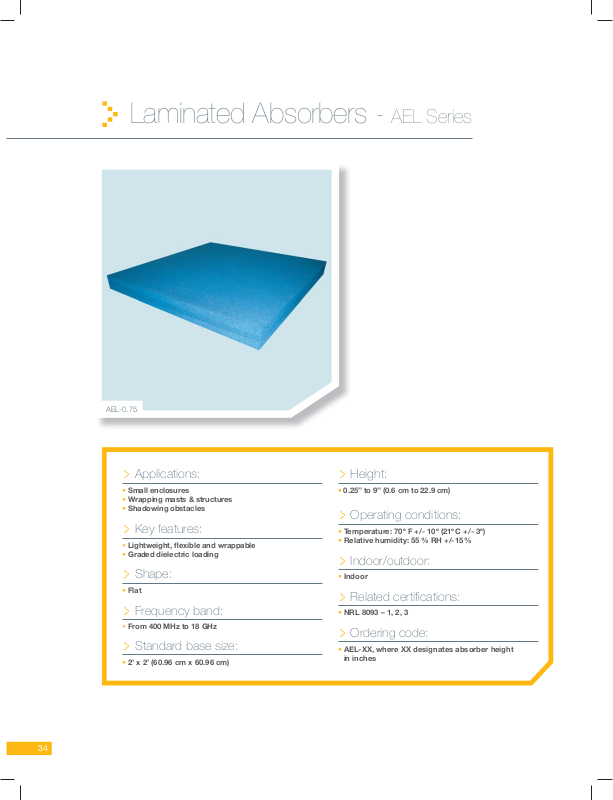

Laminated Absorbers - AEL Series

AEL-0.75

> Applications:

• Small enclosures

• Wrapping masts & structures

• Shadowing obstacles

> Key features:

• Lightweight, fl exible and wrappable

• Graded dielectric loading

> Shape:

• Flat

> Frequency band:

• From 400 MHz to 18 GHz

> Standard base size:

• 2’ x 2’ (60.96 cm x 60.96 cm)

> Height:

• 0.25’’ to 9’’ (0.6 cm to 22.9 cm)

> Operating conditions:

• Temperature: 70º F +/- 10º (21º C +/- 3º)

Relative humidity: 55 % RH +/-15 %

•

> Indoor/outdoor:

• Indoor

> Related certifi cations:

• NRL 8093 – 1, 2, 3

> Ordering code:

• AEL-XX, where XX designates absorber height

in inches

34

1/ Description

AEL series absorbers are high performance multi-layer, lightweight, fl at, laminated radar absorbers. These products
are made from open cell polyurethane foam layers which are specially impregnated and laminated with fl exible
adhesives and latex. Consequently, they are fl exible and wrappable and may be pre-fi tted, cut with a sharp blade
or scissors, and bonded with contact adhesive for a strong, permanent bond. The absorber should be backed by a
refl ective surface. For optimum performance, AEMI can provide an optional conductive backing, if requested.

2/ Specifi cations

AEL-0.25 AEL-0.375 AEL-0.75 AEL-1.125 AEL-2.25 AEL-4.5 AEL-9.0

Height in 0.25 0.375 0.75 1.125 2.25 4.5 9.0

cm 0.64 0.95 1.9 2.86 5.72 11.43 22.86

Absorption @ dB > -20 > -20 > -20 > -20 > -20 > -20 > -20
Normal Incidence

Weight lbs/pc. 0.5 0.75 1.25 1.9 3.65 5.1 11.65
kg/pc. 0.23 0.34 0.57 0.86 1.66 2.31 5.28

AEL-2.25 mechanical drawing AEL-4.50 mechanical drawing

2.25’’

24.0’’

24.0’’

0.75’’

4.5’’

24.0’’

24.0’’

1.5’’

Adapted Absorbers

Increase durability & lifespan
by adding our rubberized coating!

For more information, see page 32
