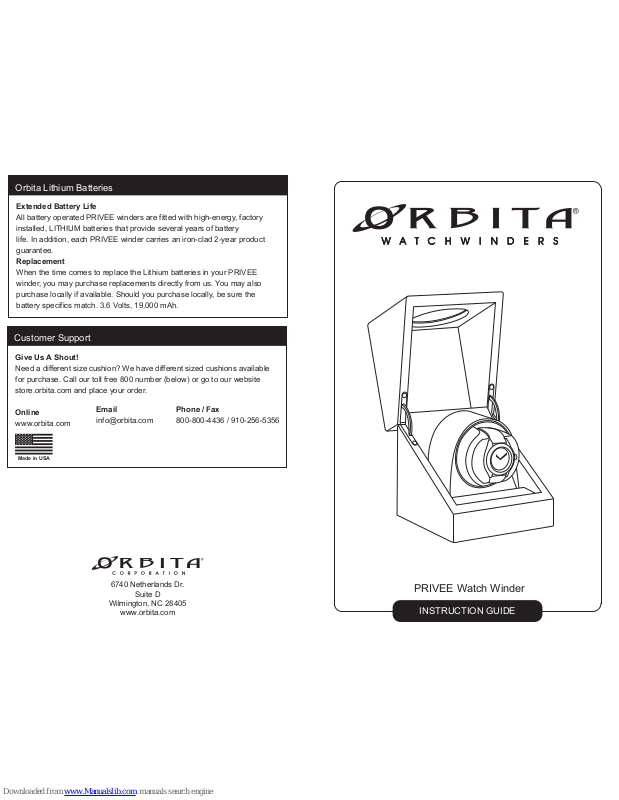

INSTRUCTION GUIDE

PRIVEE Watch Winder

6740 Netherlands Dr.

Suite D

Wilmington, NC 28405

www.orbita.com

Give Us A Shout!

Need a different size cushion? We have different sized cushions available
for purchase. Call our toll free 800 number (below) or go to our website
store.orbita.com and place your order.

Online

www.orbita.com

Customer Support

Made in USA

Email

[e-mail]

Phone / Fax

800-800-4436 / 910-256-5356

Extended Battery Life

All battery operated PRIVEE winders are fitted with high-energy, factory
installed, LITHIUM batteries that provide several years of battery
life. In addition, each PRIVEE winder carries an iron-clad 2-year product
guarantee.

Replacement

When the time comes to replace the Lithium batteries in your PRIVEE
winder, you may purchase replacements directly from us. You may also
purchase locally if available. Should you purchase locally, be sure the
battery specifics match. 3.6 Volts, 19,000 mAh.

Orbita Lithium Batteries

Battery Replacement

Mounting Watch on Cushion

Privee Watch winder

1. With the bracelet or strap of the watch closed, squeeze and slide the
cushion through the watch. The back of the watch should rest against the
Orbita logo and the strap should lie on the flat portion of the cushion .

The PRIVEE operates using 2 Lithium batteries. The battery compartment is
located on the under side of the winder base. Use the finger tab to open the
battery compartment and access the batteries. The Lithium batteries should last
approximately 5 years before needing replacement. When replacing, you must
use Lithium batteries. If you choose not to purchase Orbita batteries, please
carefully check the battery specs written on each cell.

1. Watch Winder Case

2. Standard Cushion

3. Mini Screwdriver

4. Lithium Battery (2)

5. Warranty Registration

6. Instruction Book

Included In This Box

Congratulations!

The PRIVEE user guide will help take you through the initial set up and
programming of your new watch winder. Your Privee watch winder has been
designed to provide years of dependable service without the need for mainte­nance and is covered from the factory with a 2-year warranty

Turning Power On

1. Open the battery compartment on the underside of the winder base.

2. Select setting 0-9 based on the winding requirements of your watch.

3. Close the battery compartment.

4. Mount the watch on cushion and slide cushion into the cup.

5. Close display lid

6. Turn the power on using ON/OFF switch.

Programmed Operation

Getting Started

Once the watch is mounted on the cushion you can carefully load it into the
winding cup and close the lid. The PRIVEE can be programmed for turns per
day (TPD) and winding direction by using the supplied Mini Screwdriver inside
the battery compartment. Using the guide on the battery cover door, select a
setting 0-9 that is required for your watch. Close the battery door and turn the
power on using the ON/OFF switch. Not sure which setting you need? Check
out our watch database at, www.orbita.com. There you can search by brand
to find the correct TPD and winding direction for all of your watches!

OFF ON

LITHIUM BATTERY

LITHIUM BATTERY

0

1

2

5

3

4

7

8

9

6

Closed battery compartment with
programming selections.

Open battery compartment with
programming switch.
