Battery Operated
SPRINKLER
TIMER
with Inline Valve
MODEL 96840
PN 96840-24 rA
No external power source needed
Ideal for remote locations
and drip irrigation
Full waterproof construction
Easy-Set Logic™ Programming
1
TABLE OF CONTENTS
Buttons, Dial and Display ................................................................................................2

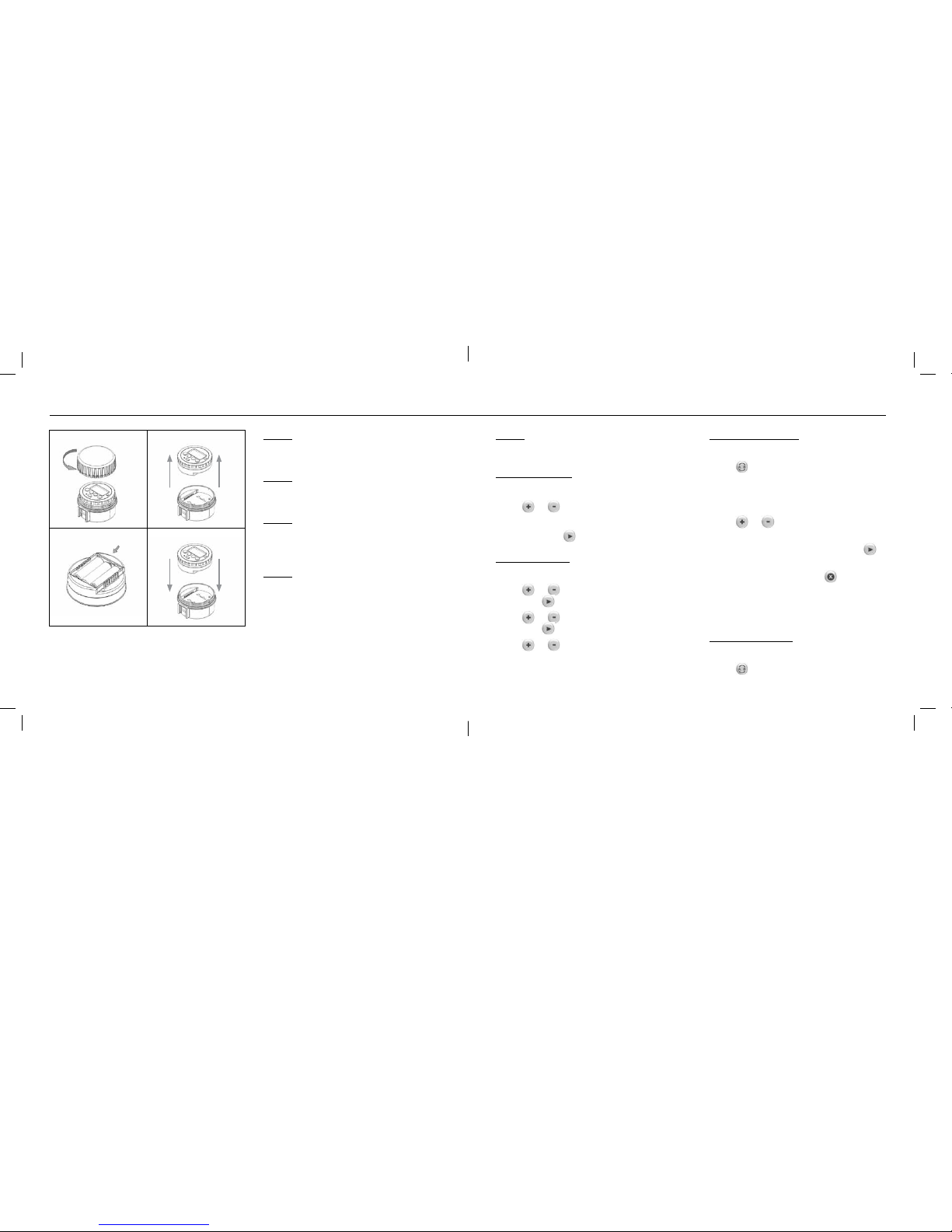

Install Batteries ...............................................................................................................4
Programming your Timer ................................................................................................5
Additional Features ..........................................................................................................6

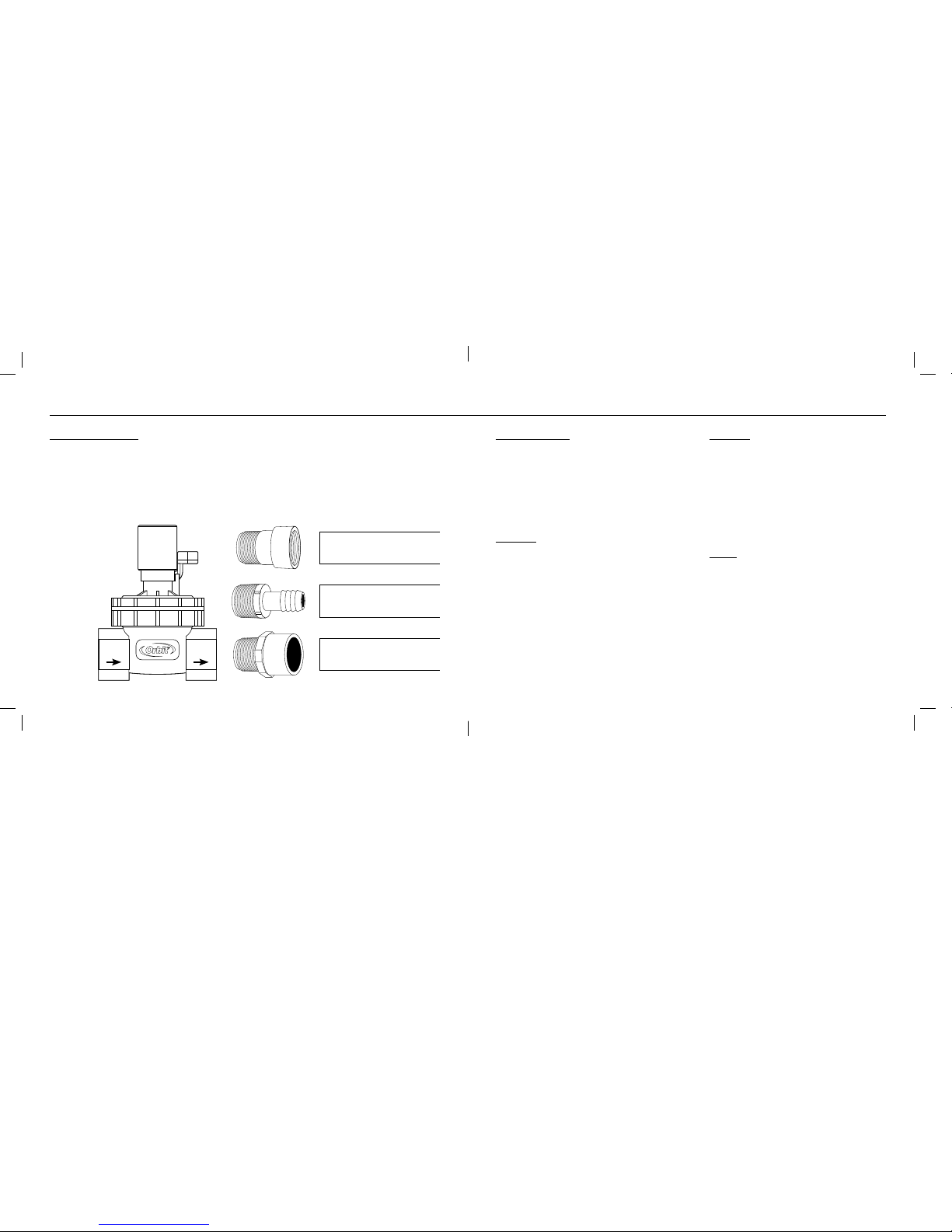

Installing the Valve ...........................................................................................................8

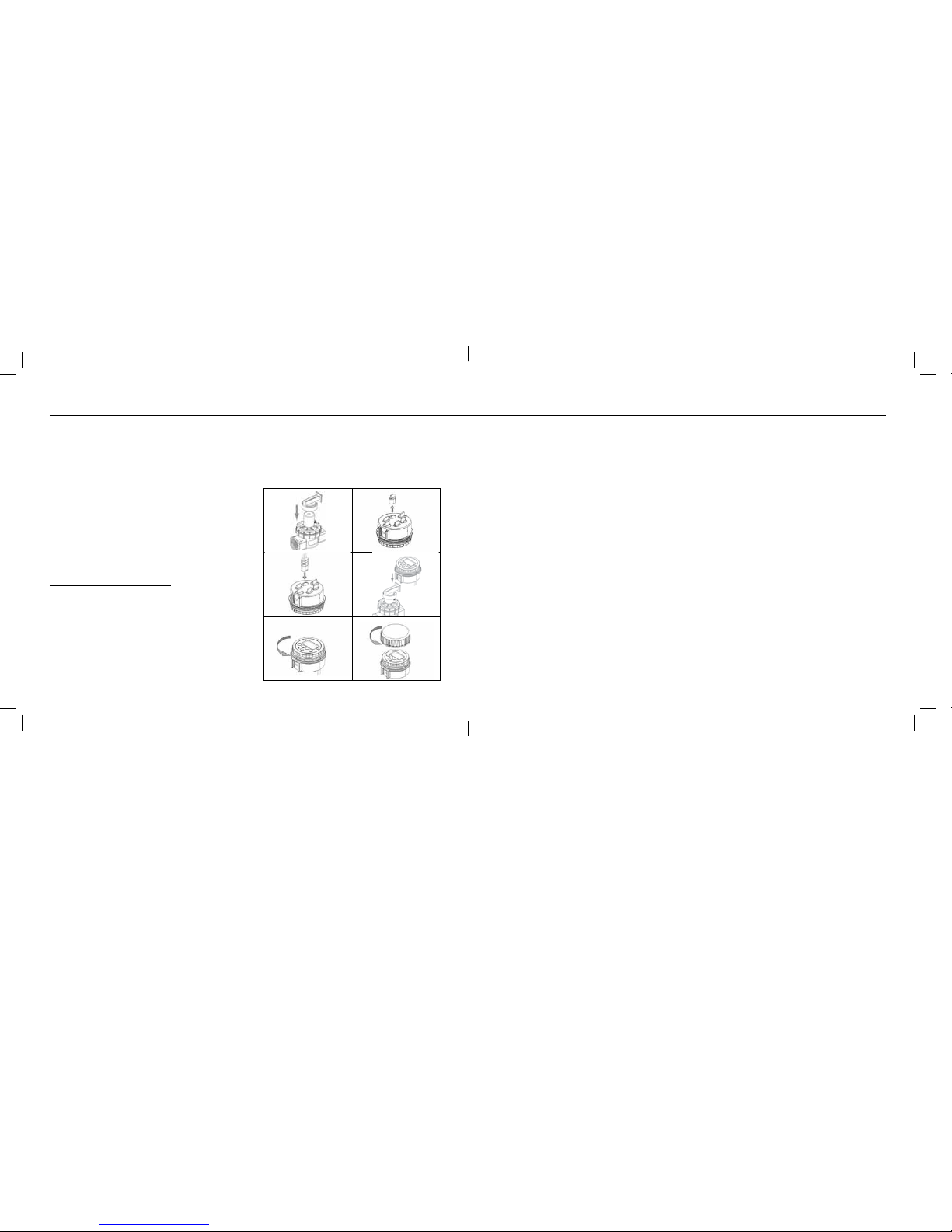

Installing the Timer .......................................................................................................10
Glossary of Terms ..........................................................................................................11
Troubleshooting .............................................................................................................12
Instructions en français .................................................................................................13
Instrucciones en españo ................................................................................................29
Help: Before returning this sprinkler timer to the store, contact Orbit
®
Technical
Service at: 1-800-488-6156 or 1-801-299-5555.
Listings: The sprinkler timer complies with UL-1951. Appropriate international
models are CE® approved.
Notice: The information in this manual is primarily intended for the user who will
establish a watering schedule and enter that schedule into the sprinkler timer. This
product is intended to be used as an automatic sprinkler timer to be used near the
valves, typically underground in a valve box, as described in this manual.
p 801 295 9820
f 801 951 5815
www.fluid-studio.net
1065 South 500 West
Bountiful, Utah 84010
proof no: 1
date: 03.04.11
des: MZ
client: Orbit
sku: 96840
upc: NA
file name: 96840-24 rA.indd
software: InDesign CS5
colors
additional instructions:
· Translation proofing code: LB527613
·
·
color
non printing
PMS
????
PMS
????
color
non printing
PMS
????
Registration
K
Printers are responsible for
meeting print production
requirements. Any changes
must be approved by the
client and Fluid Studio.
printed piece must meet
designated specifications
on this form.
dimensions:
flat: w: 12" h: 4.5"
finished: w 6" d: " h 4.5"
© 2011 Fluid Studio. This
work is the property of Fluid
Studio, and cannot be used,
reproduced or distributed
in any way without their
express permission.
Orbit® Irrigation Products, Inc.
North Salt Lake, UT 84054
www.orbitonline.com
1-800-488-6156
1-801-299-5555
32
BUTTONS, DIAL AND DISPLAY
Buttons
A Toggle between Programs A and B
B Clear settings or cancel events
C Decrease value
D Increase value, select HOW OFTEN
setting or access RAIN DELAY mode
E Move cursor or toggle AM/PM
F Access MANUAL WATERING mode
G Reset all timer settings
Dial
OFF
All timer functions are OFF
AUTO
Timer is set for automatic operation and
will only water in this dial position
SET TIME
Set the time of day
SET DATE
Set the year, month and day
START TIMES
Set start times for Programs A and B
HOW OFTEN
Set the days or interval you want to water
HOW LONG
Set station run times (0 to 240 minutes)
WATER BUDGET
Seasonal Adjustment - change station
run times all at once – 10% to 200%
Display
1 Shows current station while
programming or watering
2 Shows current start time while
programming
3 Displays active program(s) while
programming or watering
4 Y=Year, M=Month, D=Day for setting date
5 Indicates low batteries (replace
batteries if showing)
6 Indicates day of week and
watering days selection
7 Indicates that more options are
available for that dial position by
pressing the
button
A
B C D E
F
G
1
4
5
32
6
7
