Orbit 67303 User Manual

Free

Installation Guide

The best way to water plants, trees,

shrubs, hanging baskets, and gardens

UP TO 70%

WATER SAVINGS

Dr i p M a s t e r

Orbit® DripMaster® | Installation Guide

2

Orbit® DripMaster® | Installation Guide

3

DripMaster

®

A Drip-Irrigation system is a watering system designed to

apply water to designated areas, such as gardens, flower

beds, container plants, trees, and ground cover.

Why Install A
Drip-Irrigation System?

n

Saves Water—Water is delivered directly to the roots

n

Saves Money—Up to a 70% reduction in water waste,

resulting in lower water bills

n

Saves Time—Replaces hand watering

n

Healthier Plants—Plants flourish when receiving the precise

amount of water

n

Less Yard Maintenance—Delivers water to the plants,

not to weeds

TABLE OF CONTENTS

What is Drip-Irrigation?

Section 1

Before You Begin ......................................................Page 4

Section 2

Water Sources ................................................................Page 5

Section 3

Connecting to a Hose Faucet ..................................Page 6

Section 4

Common Hose Faucet Projects

Potted/Hanging Plants .............................................Page 8

Ground Cover & Flower Beds .................................Page 10

Small Trees & Shrubs ...............................................Page 12

Section 5

Retrofit—Connecting to an Underground

Sprinkler System........................................................Page 14

Section 6

Common Retrofit Projects

Container Plants and Shrubs ...................................Page 16

Flower Beds, Ground Cover, Shrubs,

and Large Plants ........................................................Page 19

Section 7

Direct Connection to an Irrigation Valve ..............Page 22

Section 8

Common Projects

Gardens ......................................................................Page 23

Desert Landscaping ...................................................Page 25

Section 9

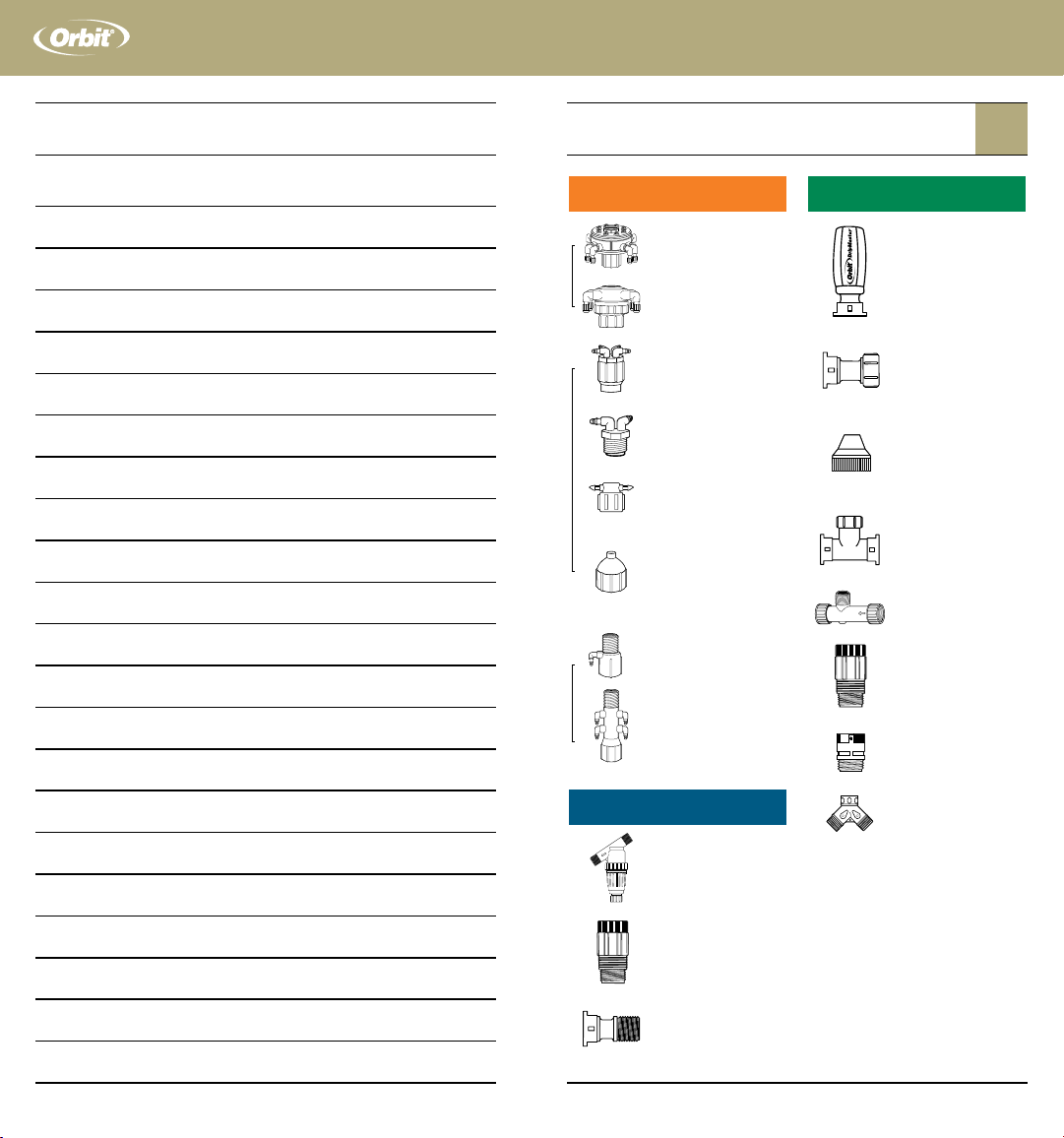

Orbit® DripMaster® Parts List ...................................Page 29

WATER SOURCE AND PRESSURE

Water Source—Drip-Irrigation Systems can be connected to any of the

following water sources. Select the best option for you.

1

Outside Hose Faucet

2

Existing Underground Sprinkler System

3

Direct Connection to an Irrigation Valve

Water Pressure—Obtain a

water pressure gauge (available at

most home improvement stores)

and attach it to your source of

water. Drip-Irrigation systems are

designed to operate between 15–35

PSI (high water pressure may cause

system failure).

PROCEED TO THE APPROPRIATE SECTION

1. For Hose Faucet Connection—proceed to the next page.

2. For Connection to Existing Underground Sprinkler
System (Retrofit)—proceed to page 14.

3. For Connection to a Designated Irrigation Valve—
proceed to page 22.

IDENTIFY PLANTS WITH SIMILAR
WATERING REQUIREMENTS

Dr i p M a s t e r

4 5

DripMaster

®

.

.

.

.

.

.

.

.

.

.

..

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

..

.

.

.

.
.

.

.

.

.

1

2

3

SECTION

2

Water Sources

SECTION

1

Before You Begin

1–TREES & SHRUBS 2–GARDEN

3–GROUND COVER 4–POTTED PLANTS

Orbit® DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

1

2

3

4

3

Distribution/Supply Tube

The main supply line that feeds
water to the Drip-Irrigation system.
Distribution Tube may be installed
either above or below ground.
(part # 61080D, 67345 or 67346)

TIP— To make installation easier,
allow the ½" Distribution/Supply
Tube to sit in the sun and soften prior
to installation.

4

Tube End Cap

Plugs the end of the ½"
Distribution/Supply Tube and
serves as a drain for the Drip­Watering system. (part # 67462,
66444, or 67444)

COMMON USES FOR DRIPIRRIGATION

1. Potted/Hanging plants—page 8

2. Ground Cover and Flower Beds—page 10

3. Large Plants, Small Trees & Shrubs—page 12

Select the application that best matches your needs.

Dr i p M a s t e r

6 7

DripMaster

®

3

4

SECTION

3

Connecting To A Hose Faucet

CONNECTING TO AN OUTSIDE
HOSE FAUCET

An outside hose faucet is one of the simplest ways to
connect your Drip-Irrigation system.

TIP—For complete hands-free watering,
install an Orbit Electronic Hose Timer
to the hose faucet prior to connecting
your Drip-Irrigation system.

The following items are recommended for your hose
faucet Drip-Irrigation system:

1

Anti-Siphon

Prevents contaminants from entering
your drinking water supply. (Required
in most areas).
(part # 61256D or 67750)

2

3-in-1 Drip Faucet Connection

A Pressure Regulator (25 PSI), Filter,
and 1/2” Drip Tubing Adapter in one.
(part # 66739 or 67739)

Orbit

®

2

3

1

Important: Check local code
requirements prior to installing any
watering system.

Orbit

®

DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

2

1

Dr i p M a s t e r

8 9

DripMaster

®

FOR POTTED PLANTS

4

Attach Multi-Stream Drippers
to each ¼" Distribution/Supply Line
and insert stake next to each plant.

5

Remove the ½" End Cap and turn
on water to flush system; replace cap.

6

Adjust water flow by twisting the
top of the Multi-Stream Dripper.

FOR HANGING PLANTS

4

Attach Adjustable Flow Mist
Sprayers to each ¼"
Distribution/Supply Line and aim
sprayer into the hanging basket.

5

Continue running lines to each
hanging basket until the system is
completed.

6

Remove the ½" End Cap and turn
on water to flush system; replace cap.

7

Rotate the flow control knob on
the Mist Sprayer to adjust flow rate.

IMPORTANT: The maximum
recommended number of Multi-Stream

Drippers and Mist Sprayers per ½"
supply line is 15.

Supplies needed

- ½" Tube Straps (part # 65716 or 66716)

- ¼" Tube Straps (part # 65715 or 66715)

- ¼" Distribution/Supply Tube (part # 67300, 67301, or 67303)

- ¼" Barbed Couplers (part # 66402 or 67402) or the ¼" Barbed Assortment
Pack (part # 66431 or 67431)

- Stake with Multi-Stream Dripper (part # 66105, 67105 or 68105)

- Adjustable Flow Mist Sprayer (part # 66190 or 67191)

- Punch Tool (part # 61285 or 67756 )

SECTION

4

POTTED / HANGING PLANTS

Note: Steps 1–3 apply to both potted & hanging plants

1

Distribution/Supply Line—Place the ½" Distribution/Supply Line close

to your Potted or Hanging Plants. Use ½" Tube Straps to secure the Tube and
install a ½" End Cap.

2

Hole Punch—Punch holes in

the ½" Distribution/Supply Line for
each container or hanging basket.
Next, insert ¼" Barbed Couplers
into each hole.

3

Connect ¼" Distribution/Supply
Line to each exposed Barbed Coupler
and run the Distribution/Supply Line
to each container/basket. Use ¼" Tube
Straps to hold in place.

IMPORTANT: A single ¼"
Distribution/Supply Line should not
exceed 30'.

Common Hose Faucet Projects

2

3

4

6

4

7

To Hose Faucet

To Hose Faucet

1/2" Tube Straps

To Hose Faucet

Orbit® DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

Dr i p M a s t e r

10 11

DripMaster

®

4

Connect the ¼" Distribution/
Supply Line to each of the exposed
Barbed Couplers and run the
Distribution/Supply Line to each
sprinkler location. Cut tubing to
desired length.

IMPORTANT: Keep Drip-Tubing
lengths to less than 30’.

5

Attach the On-Stake Low­Volume Sprinkler to each ¼"
Distribution/Supply Line.

6

Remove the ½" End Cap and turn
on water to flush system; replace cap.

7

Rotate the flow control knob to
adjust flow rate.

IMPORTANT: The maximum
recommended number of Low-Volume Sprinklers per ½" supply line is 16 at
medium flow setting (8 at the maximum setting)

Supplies needed

- ¼" Distribution/Supply Tube (part # 67300, 67301 or 67303)

- ¼" Barbed Couplers (part # 66402 or 67402) or the ¼" Barbed Assortment
Pack (part # 66431 or 67431)

- Low-Volume Sprinkler on Stake (part # 67135, 67136, 67137 or 67138)

- ½" Loop Stake (part # 61442P, 65731 or 66731)

- Punch Tool (part # 61285 or 67756)

SECTION

4

GROUND COVER & FLOWER BEDS

1

Distribution/Supply Line—Lay the ½" Distribution/Supply Line

down the center of the Flower Bed or Ground Cover and install a ½" End
Cap. Use Loop Stakes to hold in place.

2

Low-Volume Sprinkler—

Following the illustrated example,
place Quarter-Spray-Pattern
Sprinkler Heads in the corners, Half­Spray-Pattern Sprinkler Heads along
the sides, and Full-Spray-Pattern
Sprinkler Heads in the center of your
ground cover.

IMPORTANT: Spacing should
be no more than 10’ from one
sprinkler to the next.

3

Hole Punch—Punch a hole on

top of the ½" Distribution/Supply
line for each Low-Volume Sprinkler.
Next insert a ¼" Barbed
Coupler into each hole.

Common Hose Faucet Projects

2

3

4

5

6

7

1

No more
than 10'

Loop Stake

Orbit® DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

Dr i p M a s t e r

12 13

DripMaster

®

5

Remove the ½" End Cap and turn
on water to flush system; replace cap.

Note: If your Drip-irrigation
system is being installed on non­level ground, replace all 4 GPH Flag
Drippers with 1 or 2 GPH Pressure
Compensating Drippers to ensure consis­tent water flow across the entire system.

IMPORTANT: The total number of 4 GPH (Gallons per Hour) Flag
Drippers attached to a single ½" Supply Line should not exceed 45.

Supplies needed:

- Flag Drippers (part # 65201, 66201 or 68201)

- ½" Loop Stake (part # 61442P, 65731or 66731)

- ¼" Insect Plug (part # 66405 or 67405)

- Punch Tool (part # 61285 or 67756)

SECTION

4

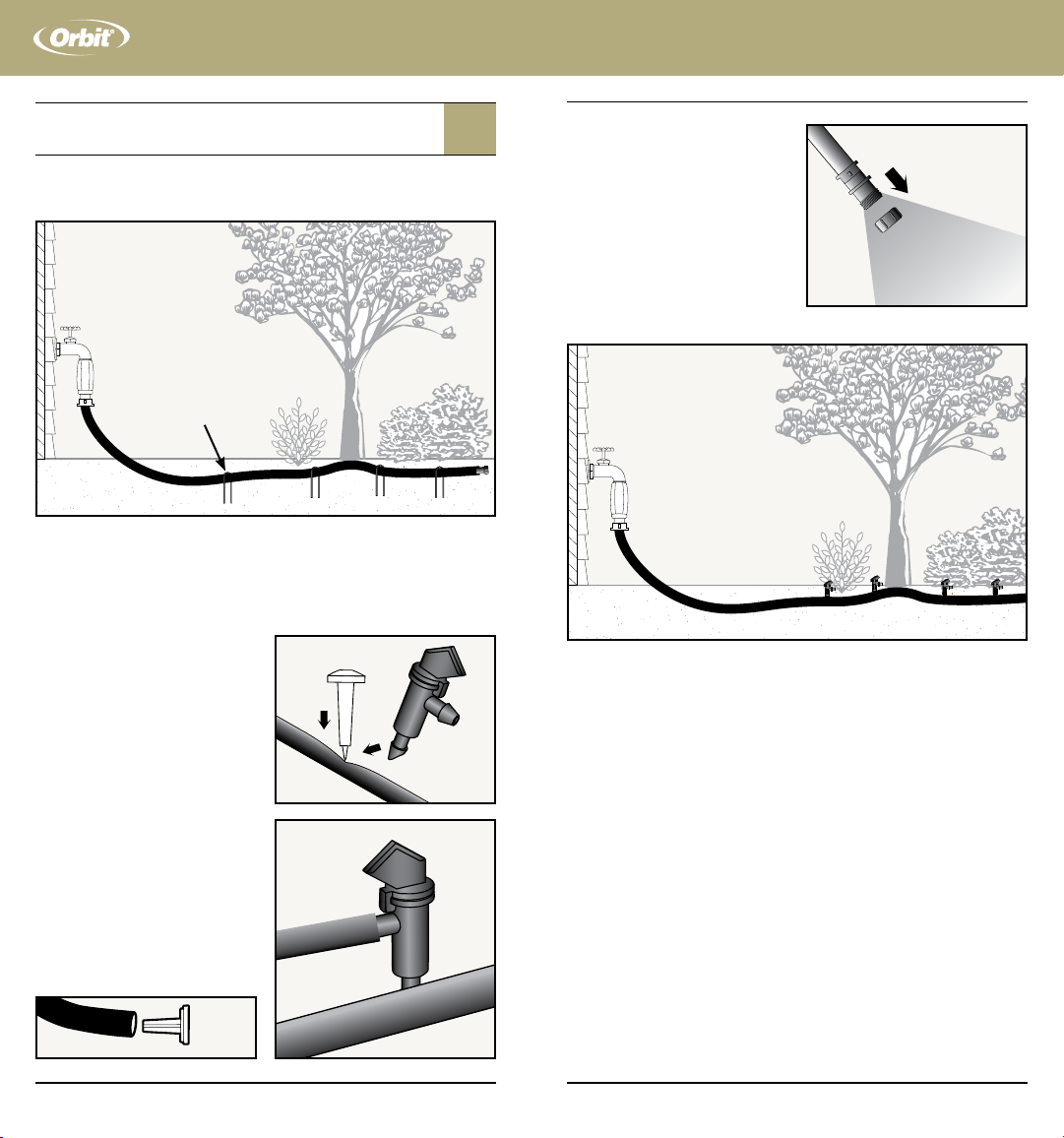

SMALL TREES & SHRUBS

1

Distribution/Supply Line—Lay the ½" Distribution/Supply Line

next to the base of your plants, shrubs, and trees. Install a ½" End Cap at the
end of the tubing. Use Loop Stakes to hold in place.

2

Hole Punch—Punch holes on

top of the ½" Distribution/Supply
Line next to the base of each plant,
shrub or tree. Insert the barbed end
of a 4 GPH Flag Dripper into the
hole.

3

If needed, attach ¼" Distribution/
Supply Line to the end of the Flag
Dripper and run the ¼" Distribution/
Supply Line to the plant location.

4

Install an insect plug into the end
of the ¼" Distribution/Supply Line.

Common Hose Faucet Projects

2

3

5

4

Loop Stake

Orbit® DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

6

3

4

Dr i p M a s t e r

14 15

DripMaster

®

SECTION

5

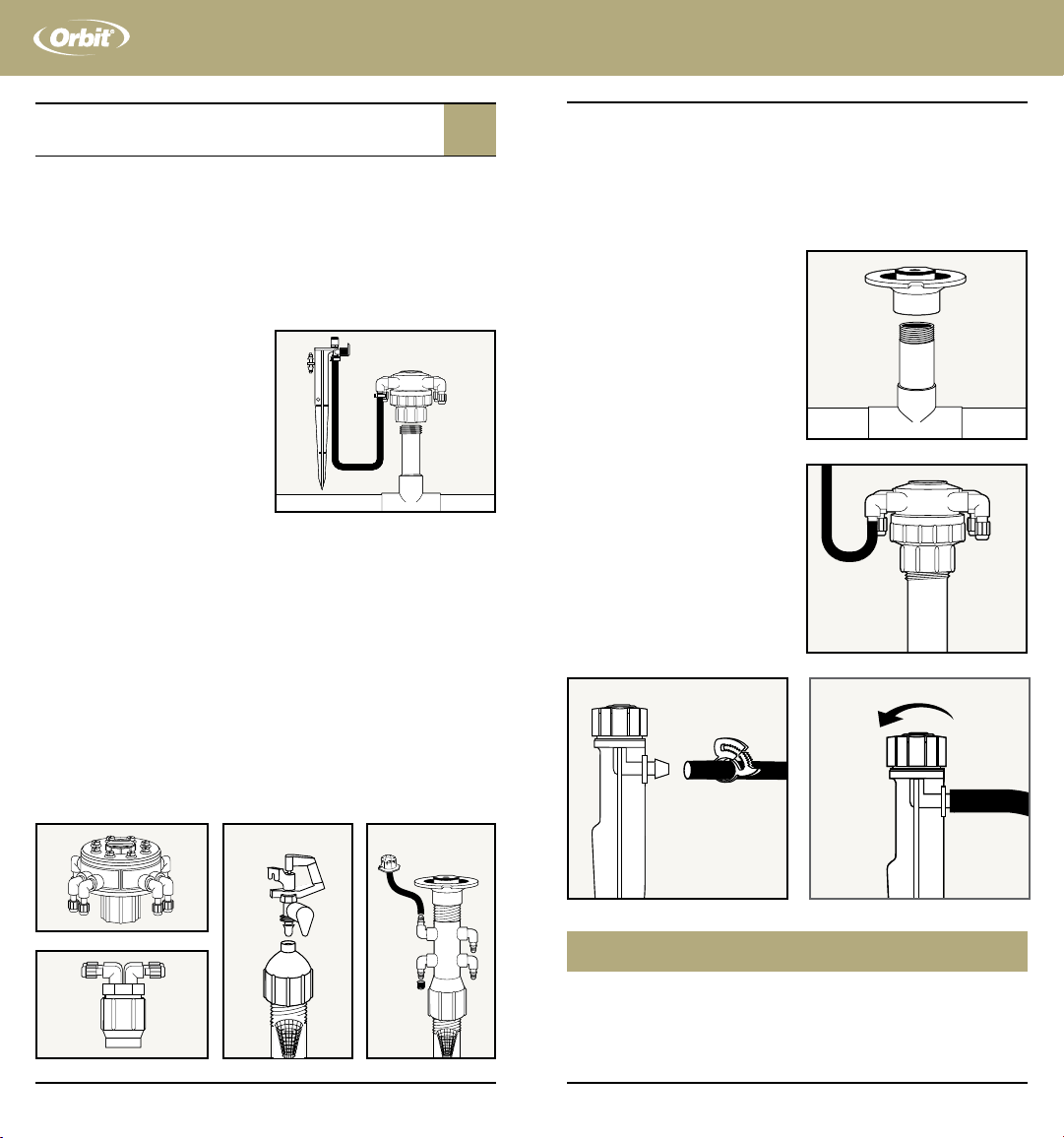

CONNECTING TO AN EXISTING
UNDERGROUND SPRINKLER SYSTEM

Connecting to an existing underground sprinkler system (or Retrofit) is a sim­ple way to supply water to your Drip-Irrigation system. Retrofits are commonly
used to conserve water by replacing inefficient shrub sprinklers and bubblers.

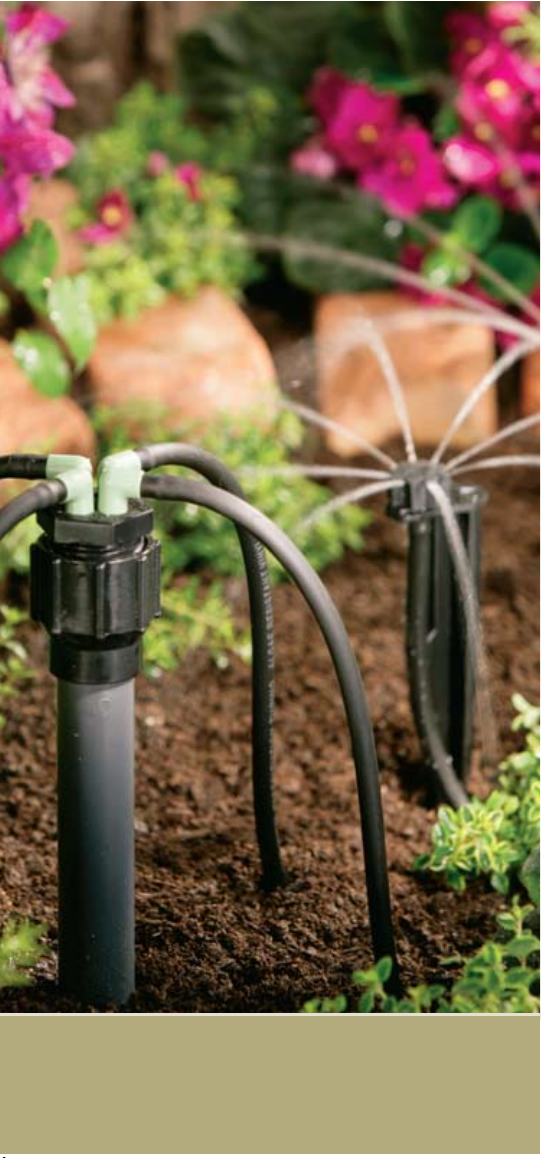

Retrofit Drip-Irrigation
systems consist mainly of

1

Manifold—Attaches to a ½" riser

and consists of 1 to 8 outlets.

2

¼" Distribution/Supply Line

3

Low-Volume Sprinkler, Dripper,

or Soaker Tube

MANIFOLDS

The main function of a Manifold is to distribute water through ¼" outlets.

There are 4 types of Manifolds

1

Adjustable Flow Manifolds—Ideal when water system pressures

exceeds 40 PSI and where flow control is desired.

2

Full Flow Manifolds—Ideal for replacing inefficient shrub heads and

bubblers.

3

Shrub Adapter—Ideal for micro-sprinklers.

4

Riser Adapter Manifolds—Permits Drip-Irrigation without

eliminating a sprinkler head.

Retrofit

3

2

1

1 3

2

4

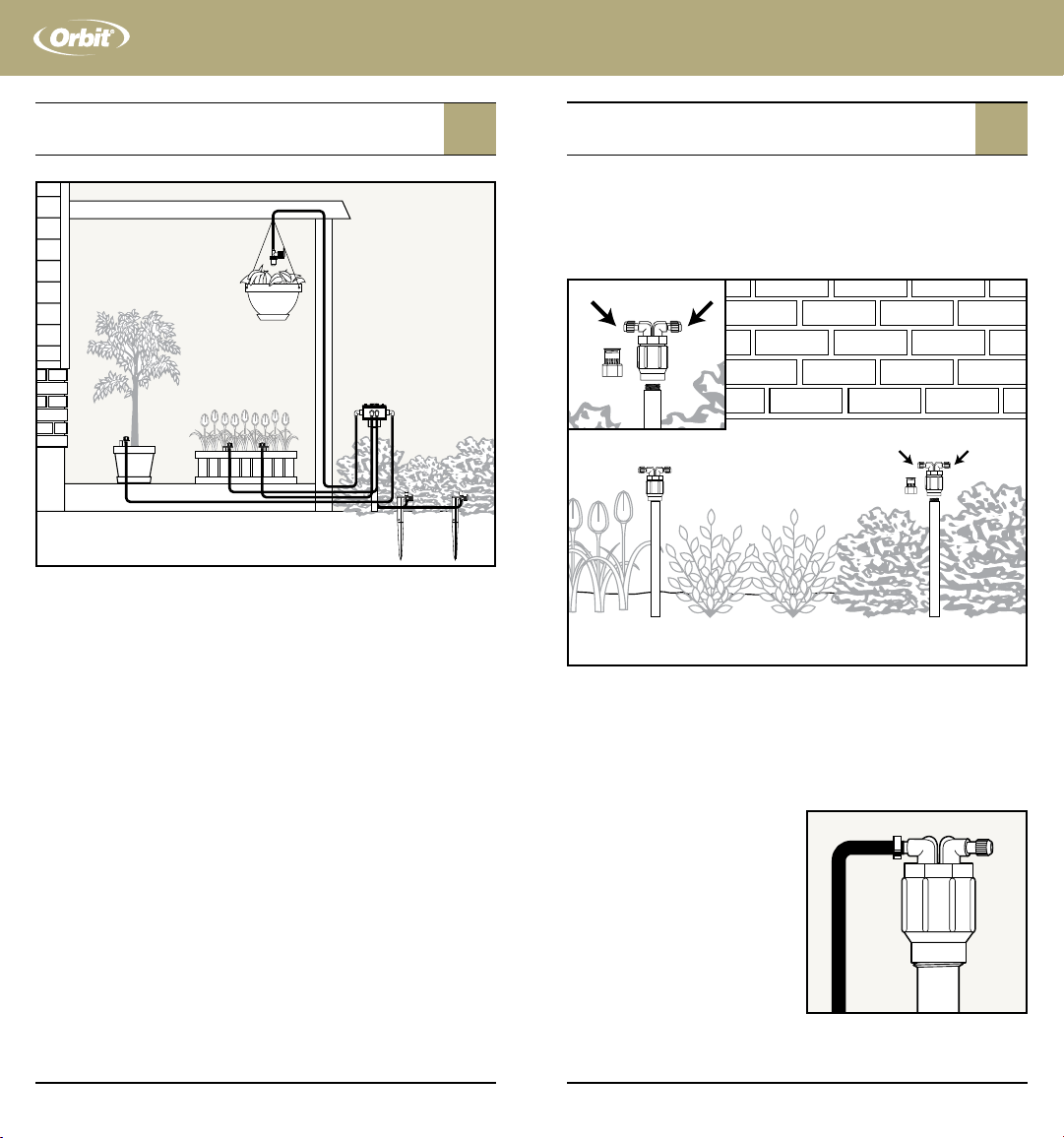

INSTALLATION FOR ADJUSTABLE
FLOW, FULLFLOW, AND RISER
ADAPTER MANIFOLDS

1

Remove sprinkler head from a ½"
Riser and attach the manifold. (For
Riser Adapter Manifold, reattach
sprinkler head).

2

Remove Cap(s) from the ¼" Barb(s)
and insert ¼" Distribution/Supply Line.

3

Attach a Low-Volume Sprinkler or
Drip-Irrigation Dripper to the end of
the Distribution/Supply Line.

4

To avoid high water pressure
failure, install a ¼" High Pressure
Clamp on all tube connections.

5

Position Drip-Irrigation Dripper
next to plant.

6

If applicable, adjust flow-control
knob for desired flow rate.

1

2

COMMON RETROFIT PROJECTS

1. Container Plants and Shrubs—page 16

2. Shrubs and Large Plants—page 19

Orbit® DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

Dr i p M a s t e r

16 17

DripMaster

®

SECTION

6

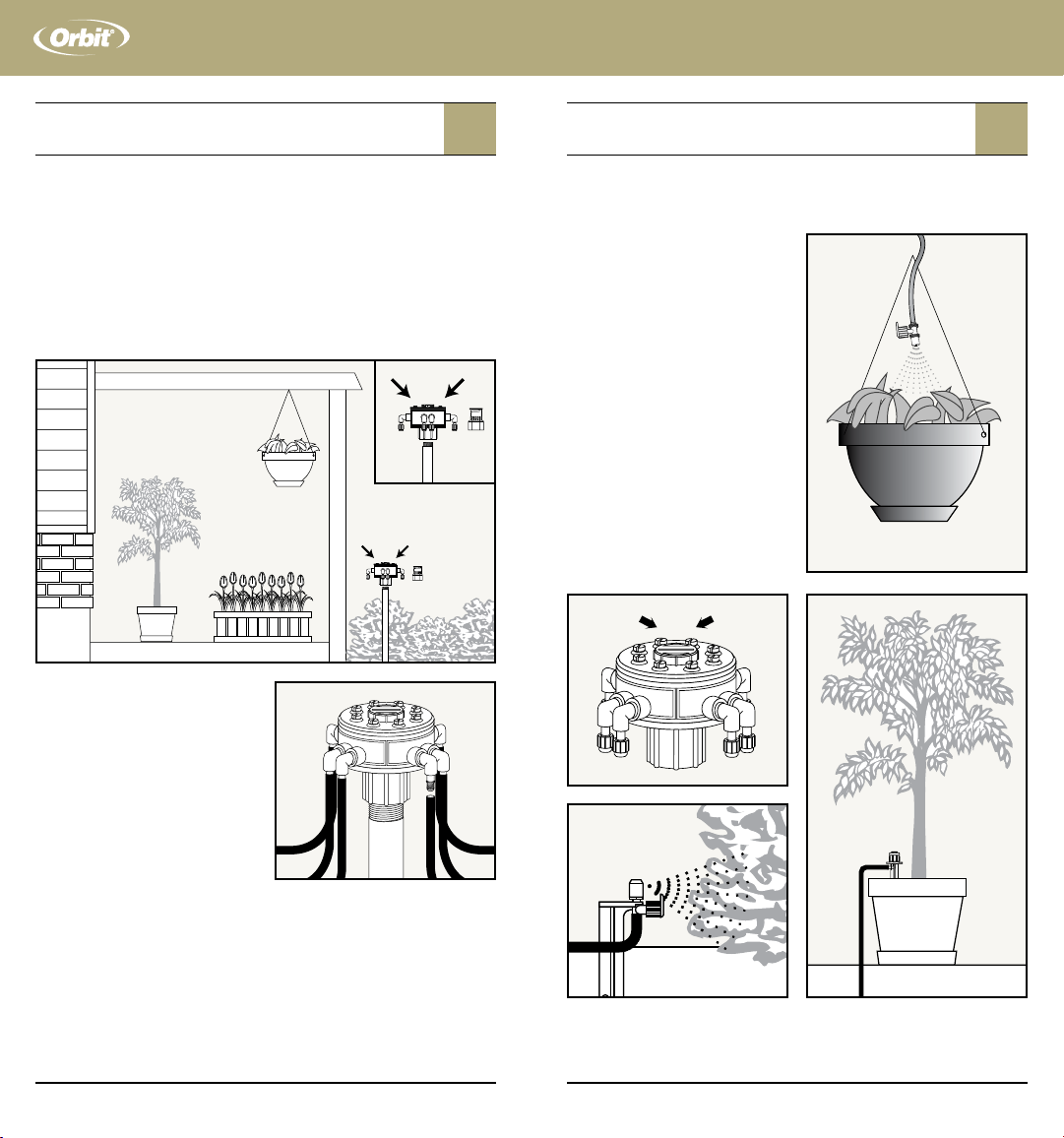

CONTAINER PLANTS AND SHRUBS

Replacing hand watering with Drip-Irrigation

1

Connect an 8-Port or a 4-Port Adjustable Manifold to an exposed shrub
riser. If a vacant riser is not available, use a Saddle Adapter to connect to the
sprinkler line.

2

Remove Caps and attach ¼" Distribution/Supply Line to each ¼" Barb.

3

Run each ¼" Distribution/
Supply Line to each container. Use
¼" Tube Straps to hold tube in place.
(Window boxes and large containers
may require more than one line.)

IMPORTANT: A single ¼"
Distribution/Supply Line should
not exceed 30'.

4

Flush lines to clear any debris.

5

Select the appropriate Drip-
Irrigation Dripper for each container
and plant.

Common Retrofit Projects

1

2

SECTION

6

HANGING BASKETS AND WINDOW BOXES

Use Orbit’s® FlexMist™
(part # 66190) or Adjustable Mist
Sprayer (part # 66191 or 67191).

POTTED PLANTS

Use Orbit’s® Multi-Stream on a Stake
(part # 66105, 67105 or 68105) or
a Micro-Bubbler on a Stake (part #

67110).

SHRUBS

Use Orbit’s® Low-Volume Sprinkler
Head on 12" Stake. (See Parts List
at end of manual for spray pattern
options)

6

Adjust the flow rate by

turning the flow control screw.

Continued on next page

Common Retrofit Projects

Flow
Control

6

Orbit

®

DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

Dr i p M a s t e r

18 19

DripMaster

®

SECTION

6

Supplies Needed

- 8-Port Adjustable Manifold (part # 61008P or 67000)

Or

- 4-Port Adjustable Manifold (part # 66005 or 67005)

- The appropriate Drip-Irrigation Sprinkler listed above

- ¼" Tube Straps (part # 65715 or 66715)

- ¼" Distribution/Supply Tube (part # 67300, 67301 or 67303)

Common Retrofit Projects

SECTION

6

FLOWER BEDS, GROUND COVER,
SHRUBS AND LARGE PLANTS

Replacing inefficient shrub heads with Drip-Irrigation

1

Remove shrub heads from risers and replace with “Full-Flow 4-Port

Manifolds.”

2

Remove Barb Caps from the manifolds and attach ¼" Distribution/
Supply Lines to each exposed ¼" Barb. Run individual ¼" Distribution/
Supply Line to each Low-Volume Sprinkler Head. Flush lines to clear any
debris.

IMPORTANT: Full-Flow Manifolds
do not have an internal pressure
regulator. To avoid high pressure
failures install ¼" High Pressure
Clamps on all ¼" connections.

IMPORTANT: A single ¼"
Distribution/Supply Line should not
exceed 30’.

Continued on next page

Common Retrofit Projects

1

2

Orbit

®

DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

Dr i p M a s t e r

20 21

DripMaster

®

SECTION

6

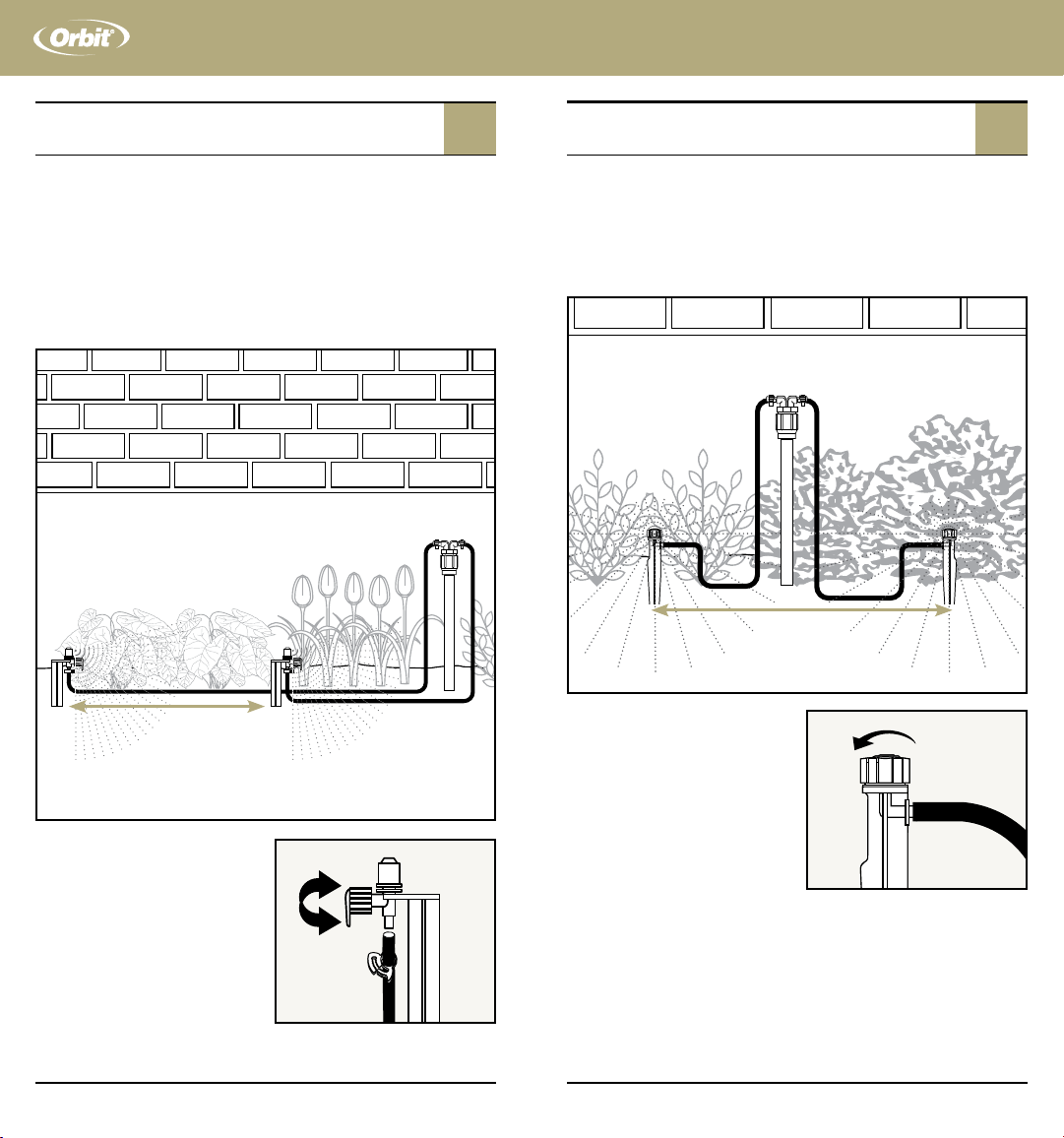

FLOWER BEDS AND GROUND COVER

Attach a Low-Volume Sprinkler Head on 12" Stake, spaced no more than
10' apart. (See Parts List for spray pattern options)

or

Multi-Stream Dripper on a stake, spaced no more than 3' apart.
(part # 66105, 67105 or 68105)

Note: Adjust the flow rate by turning
the flow control on each Drip­Irrigation sprinkler head.

Common Retrofit Projects

SECTION

6

SHRUBS AND LARGE PLANTS

Use Orbit’s® Multi-Stream Dripper on a Stake next to each shrub or large
plant. (part # 66105, 67105 or 68105)

Note: Adjust the flow rate by turning
the flow control on each Drip-Irrigation
Sprinkler Head.

Supplies needed:

- Full-Flow 4-Port Manifold (part # 61004, 66025 or 67025)

- The appropriate Drip-Irrigation sprinkler head listed above

- ¼" Distribution/Supply Tube (part # 67300, 67301 or 67303)

- ¼" High Pressure Clamps (part # 66710 or 67710)

Common Retrofit Projects

No more than 10' apart

No more than 3' apart

Orbit® DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

Dr i p M a s t e r

22 23

DripMaster

®

SECTION

7

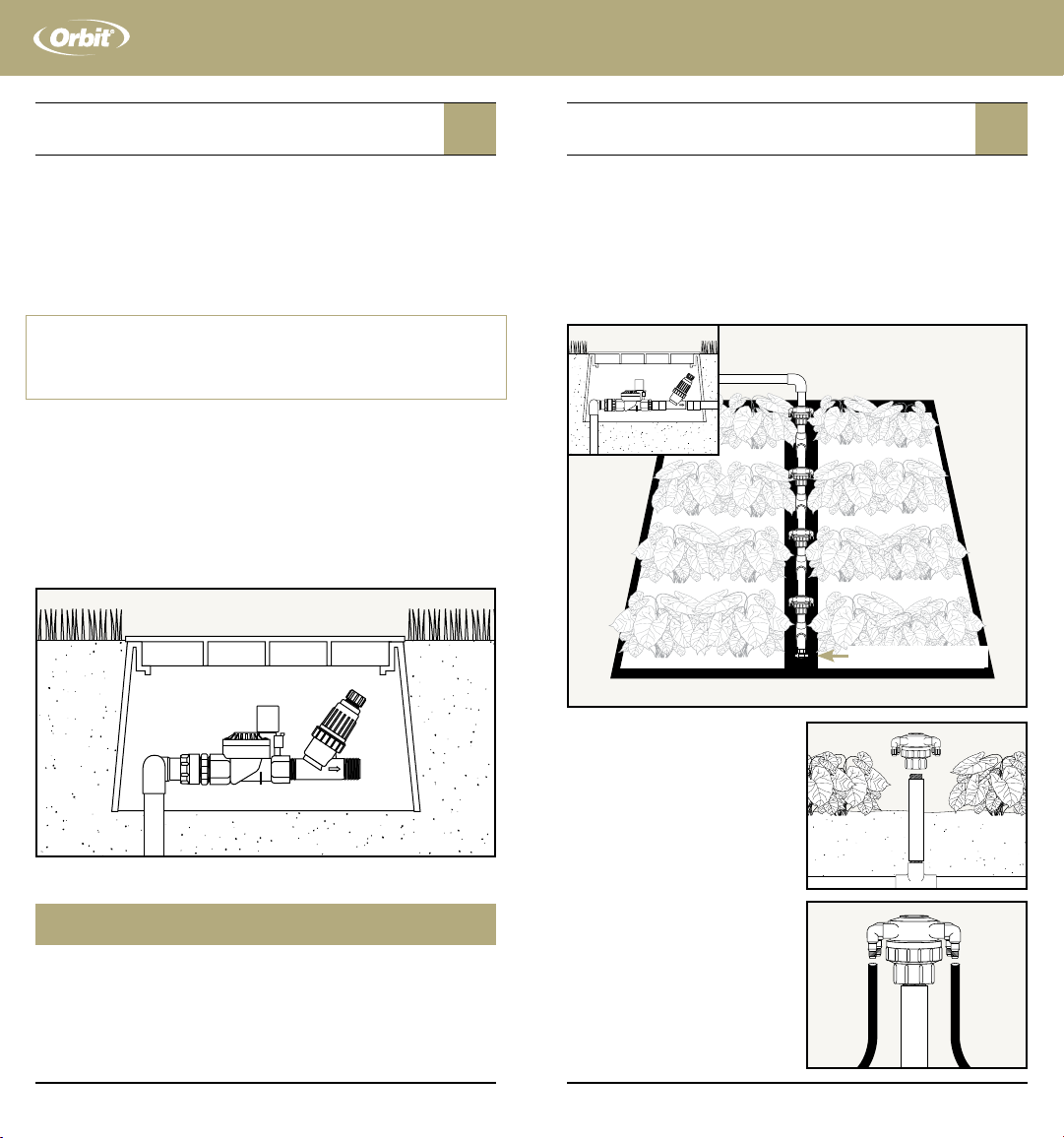

CONNECTION TO A DESIGNATED
IRRIGATION VALVE

Direct connection to an underground irrigation valve is ideal for medium to
large Drip-Irrigation projects. This application is most commonly used for
gardens, large flower beds, shrubs, trees, and desert landscaping.

IMPORTANT:

• Contact the local water district for code requirements.

• Before digging, contact utility companies to mark utility lines.

Connection to a designated valve consists of

1

¾" Irrigation Valve (manual or automatic)

2

Y-Filter (model 67736)

Note: Using a filter not designed for Drip-irrigation, may cause damage.

3

½" Distribution/Supply Tubing (part 67345 or 67346) or ¾" PVC Pipe

Direct Connection To An
Irrigation Valve

.

.

.

.

.

.

.

.

.

..

.

.

.

.
.

.

.

.

.

.

.

COMMON APPLICATIONS

1. Gardens—page 23

2. Desert Landscaping—page 25

SECTION

8

GARDENS

1

Water Supply—Connect ¾" PVC to the end of the Y-Filter and run the
PVC pipe down the center of the garden. Attach a ¾" Slip x ½" Threaded
Tee for each row. Use an Automatic Drain Valve on the end of the pipe and
on any low sections of the PVC pipe.

2

Screw in ½" Risers on each Tee
(extending 6" to 8" above ground).
Attach an Orbit® 4-Port Adjustable
Manifold on each riser.

3

Remove manifold caps and attach
¼" Soaker Tube to each ¼" Barb. Run
Soaker Tube along the base of each
plant.

Tip—Use Metal Loop Stakes
to hold the ¼" Soaker Tube
in place.

Common Projects

To Automatic Irrigation Valve

.

.

.

.

.

.

.

.

.

.

..

.

.

.

.
.

.

.

.

.

.

.

2

3

1

1

2

Automatic Drain

Orbit® DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

Dr i p M a s t e r

24 25

DripMaster

®

SECTION

8

DESERT LANDSCAPING

A

Irrigation Valve

B

Pressure Compensating Dripper with a Tube Stake

C

Loop Stake

D

End Cap

1

Water Supply—Connect a Pressure Regulator (part # 67740) to the
Y-Filter and attach a Universal Male Adapter (part # 67454 or 67470). Next
attach ½" Distribution/Supply line to the exposed end.
(See the top of page 26)

IMPORTANT: Use a Pressure Regulator to avoid damage to the Drip­Irrigation system.

Common Projects

4

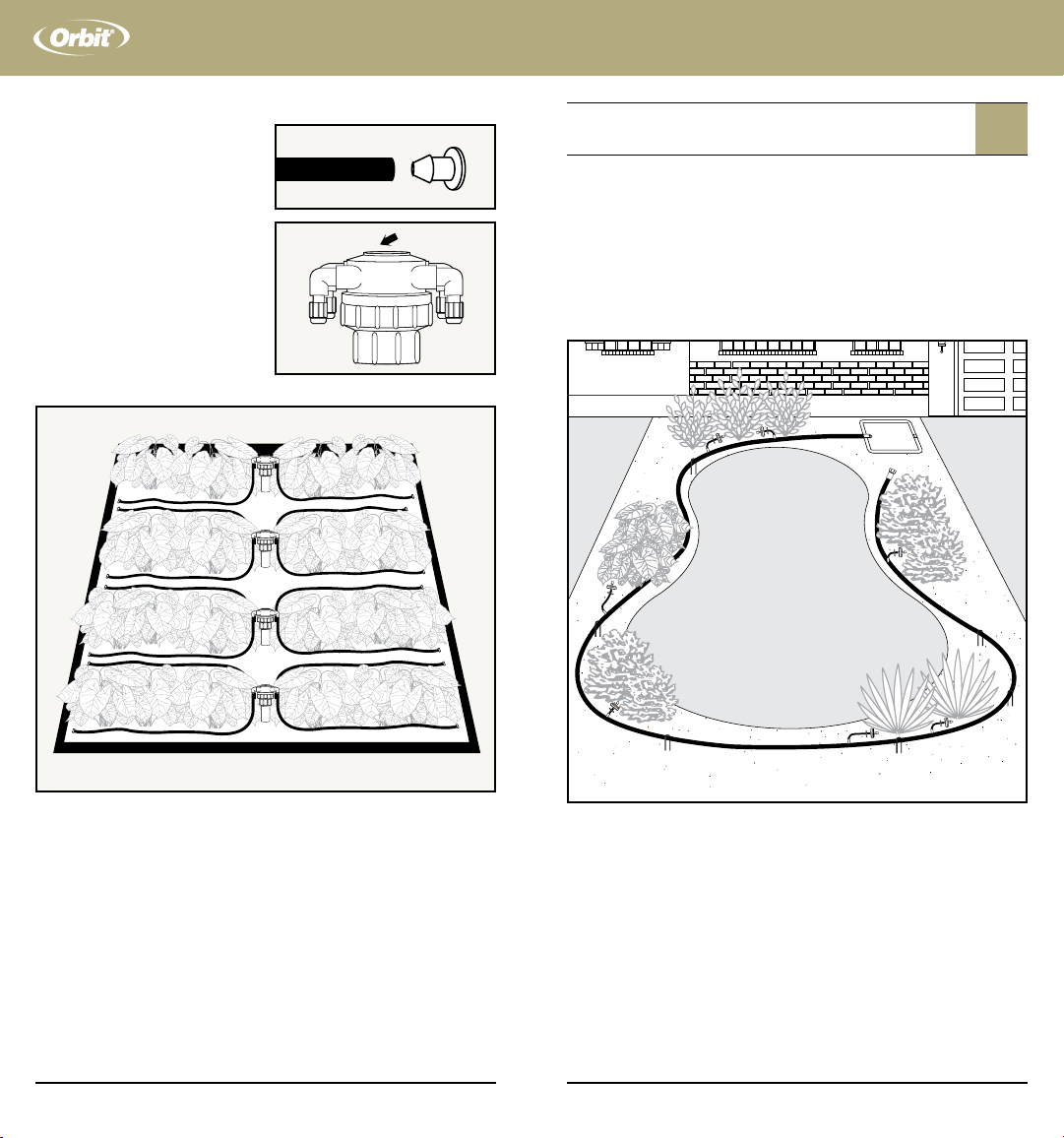

Cut Soaker Tube to desired length

and insert a ¼" End Plug.

Note: Keep each ¼" Soaker Tube
length to less than 15'.

5

Remove the Automatic Drain
Valve, attached to the end of the
PVC pipe and flush the line to
remove any debris.

6

Adjust the flow rate by turning
the Flow Control Screw.

IMPORTANT: Do not attach more
than 14 4-Port Manifolds

Supplies Needed

- ¾" Automatic Drain Valve (part # 51041)

- 4-Port Adjustable Manifold (part # 66005 or 67005)

- ¼" Loop Stakes (part # 65730 or 66730)

- ¼" Soaker Tubing (part # 61073, 67321, 67330 or 67331)

- ¼" End Plugs (part # 66403, or 67403 or the ¼" Barbed Assortment Pack
(part # 66431 or 67431)

- ¾" Slip x ½" Threaded Tees

- ½" Risers

Flow Control

4

6

A

B

D

C

Orbit

®

DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

Dr i p M a s t e r

26 27

DripMaster

®

SECTION

8

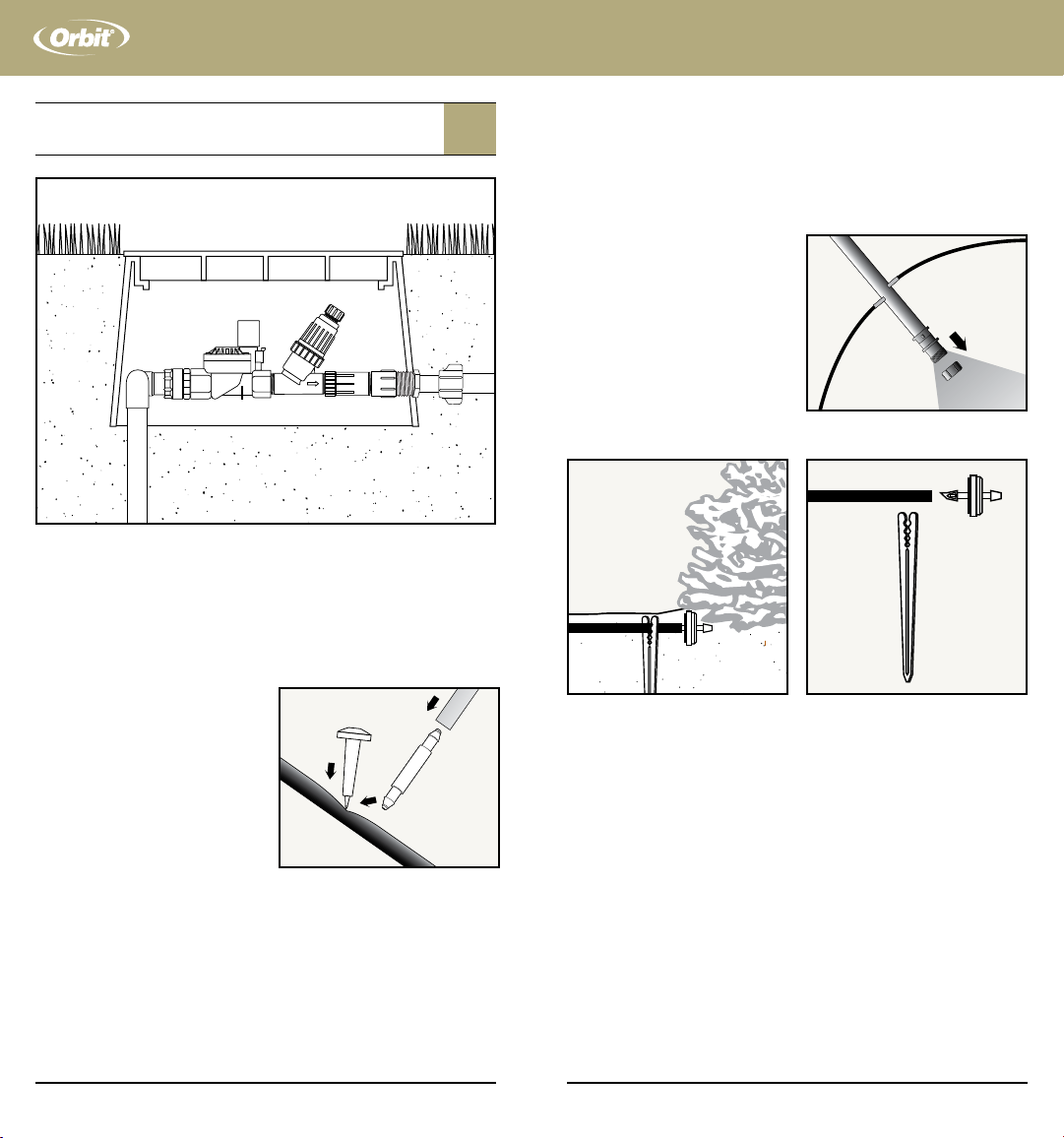

A

Pressure Regulator

B

Y-Filter

C

Universal Male Adapter

D

½" Distribution/Supply Line

E

Threaded Coupler (sold separately)

2

Run Distribution/Supply Line
next to plants, shrubs and trees you
intend to water. Next install a ½" End
Cap. Use ½" Loop Stakes to hold the
line in place.

3

Hole Punch—Punch a hole in the
½" Distribution/Supply Line for each
shrub or tree. Next insert a ¼" Barbed
Coupler into each hole.

4

Connect the ¼" Distribution/Supply Line to each of the exposed Barbed
Couplers and run it to the base of each shrub or tree. Cut tubing to desired
length.

IMPORTANT: A single ¼" Distribution/Supply Line should not
exceed 30'.

Common Projects

.

.

.

.

.

.
.

.

.

.

.

A

B

C

D

E

3

4

5

Remove the ½" End Cap and turn on water to flush ½" Distribution/

Supply Line, then replace cap to flush ¼" Distribution/Supply Lines.

6

Attach a Pressure Compensating Dripper to each ¼" Distribution/
Supply Line. To hold dripper in place, next to the base of the shrub or tree,
use a Tube Stake.

Note: More than one ¼"Distribution/
Supply Line (with Pressure
Compensating Dripper) may be
required for large trees or shrubs.

IMPORTANT: Do not attach
more than 57 2-GPH Pressure
Compensating Drippers to a single ½"
Distribution/Supply Line

A

Tube Stake

B

Pressure Compensating Dripper

C

¼" Distribution/Supply Line

Supplies needed:

- ½" Universal Male Adapter (part # 67454 or 67470)

- ½" Distribution/Supply Tubing (part #67345 or 67346)

- ½" End Cap (part # 67462, 67444 or 67468)

- ½" Loop Stake (part # 61442P, 65731 or 66731)

- Punch Tool (part # 61285 or 67756)

- ¼" Barbed Couplers (part # 66402 or 67402) or the ¼" Barbed Assortment
Pack (part # 66431 or 67431)

- ¼" Distribution/Supply Tube (part # 67300, 67301 or 67303)

- Tube Stakes (part # 65721or 66721)

- Pressure Compensating Dripper (part # 66205, 67205, 66206, 67206 or

68206)

5

6

6

A

B

C

Orbit

®

DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

FAUCET

3-in-1 Faucet
–Adapter Filter
–Pressure Reducer
–1/2" Tubing

Adapter

67339

Faucet Adapter
1/2" Distribution
Tube

67455, 67480

Faucet Adapter
1/4" Distribution
Tubing

61249D, 67432

Hose Thread
Swivel x 1/2"
Tubing Tee

67481, 67456

Hose/Tap Filter

66735, 67735

Pressure Regulators
25 PSI—Hose
Threaded

67741

Hose Bib Anti­Siphon Valve

61256D, 67750

Plastic Hose-Y

67745

Dr i p M a s t e r

28 29

DripMaster

®

SECTION

9

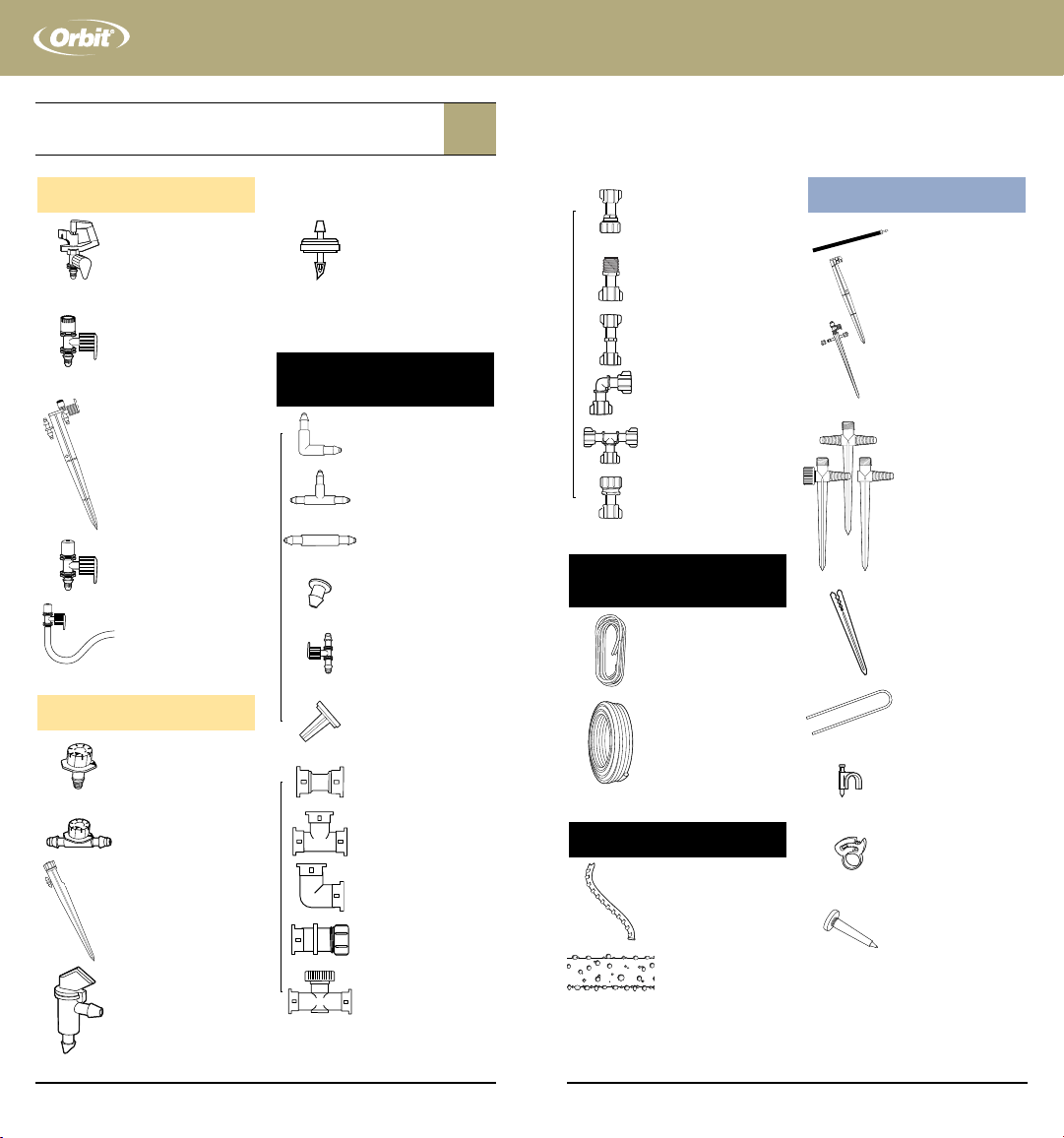

Orbit Dripmaster Parts List

Orbit® DripMaster® | Installation Guide

NOTES

Orbit® DripMaster® | Installation Guide

MANIFOLDS

8-Port Manifold

61008P, 66000,
67000

4-Port Manifold

66005, 67005

4-Port Manifold

61004D, 66025,
67025

1/2" MPT
2-Port Manifold

67035

2-Port Manifold

66030, 67030

1/2" Female Pipe
Threaded Shrub
Adapter with
Threaded Outlet

67056

1/2" Riser Adapter
with 1/4" Barb

66035, 67035

4-Port Adapter
Manifold

66060, 67060

PIPE THREAD

Y-Filter
3/4" Male Pipe
Thread

67736

Pressure Regulators
25 PSI—3/4" Pipe
Threaded

67740

1/2" Pipe Thread
Adapter

67470, 67454

Adjustable FlowRiser Adapter Manifold Full Flow

DRIPPERS AND BUBBLERS

Multi-Stream
Dripper

66100, 67100

Inline Dripper/
Emitter

66101, 67101

Multi-Stream on
a Stake

66105, 67105,
68105

Flag Dripper
2 GPH

65200, 66200

4 GPH

65201, 66201,
67201

Pressure
Compensating
Dripper
1 GPH

66205, 67205

2 GPH

66206, 67206,
68206

DISTRIBUTION TUBE

FITTINGS

Barb Elbow

66400, 67400

Barb Tee

66401, 67401

Barb Coupling

66402, 67402

Barb End Plug

66403, 67403

Barb Shut-Off
Valve

66404, 67404

Insect/Water
Distribution Plug

66405, 67405

Coupler

67451

Tee

67452

Elbow

67450

End Cap

67462

Shut-Off Valve

67463

Hose/Faucet
Adapter

67469

Male Pipe
Threaded Adapter

67470

Coupler

67467

Elbow

67465

Tee

67466

End Cap

67468

DISTRIBUTION/SUPPLY

TUBE

1/4" Distribution
Tube
50' 67300, 67303
100' 67301

1/2" Distribution
Tube
50' 67345
100' 67346
500' 67347

1/4” SOAKER TUBE

Drilled Soaker
Tubing 60'

61073, 67321

1/4" Porous
Soaker Tube
50' 67330
100' 67331

1/4” SOAKER TUBE

Extension Riser 6"

66760

12" Tubing Stake

67722 (with 12”
Extension Riser)

1/4" Inline Stake

66720, 67720

3/4" Female Hose
Thread x 1/2"
Barbed-Stake

67727

1/2" Barbed
Inline x Male Pipe
Thread-Stake

67725

1/2" Barb x Male
Pipe Thread-Stake

67726

Tubing Holder
Stake

65721, 66721

Loop Stake
1/2" 61442P,

65731, 66731

1/4" 65730, 66730

Tubing Strap

¼” 65715, 66715
½” 65716, 66716

1/4" High Pressure
Clamp

66710, 67710

Tube
Punch Tool

61285D, 66756,
67756

Dr i p M a s t e r

30 31

DripMaster

®

SECTION

9

Orbit Dripmaster Parts List

Orbit® DripMaster® | Installation Guide Orbit® DripMaster® | Installation Guide

LOW VOLUME SPRINKLER

Mini Rotating
Sprinkler

66113, 67113

Low-Volume
Sprinkler
Full 66116, 67116
1/2 66117, 67117
1/4 66118, 67118
Strip 66115, 67115

Low-Volume
Sprinkler Head
on 12' Stake
Full 67136
1/2 67137
1/4 67138
Strip 67135

Adjustable Mist
Sprayer

66191, 67191

Adjustable
FlexMist™

66190

1/4” Distribution Tube Connectors

1/2” Distribution Line Connectors

fits .690 to .710 drip tubing

Universal 1/2" Distribution/Supply Line Connectors

Orbit® Irrigation Products, Inc.

North Salt Lake, UT 84054 USA

www.orbitonline.com 1-800-488-6156

PN 61100-01 rG
