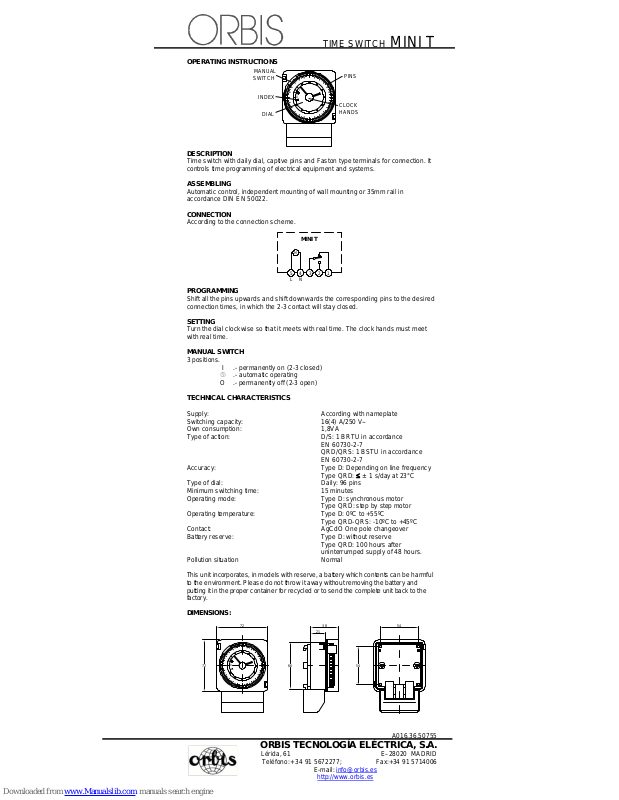

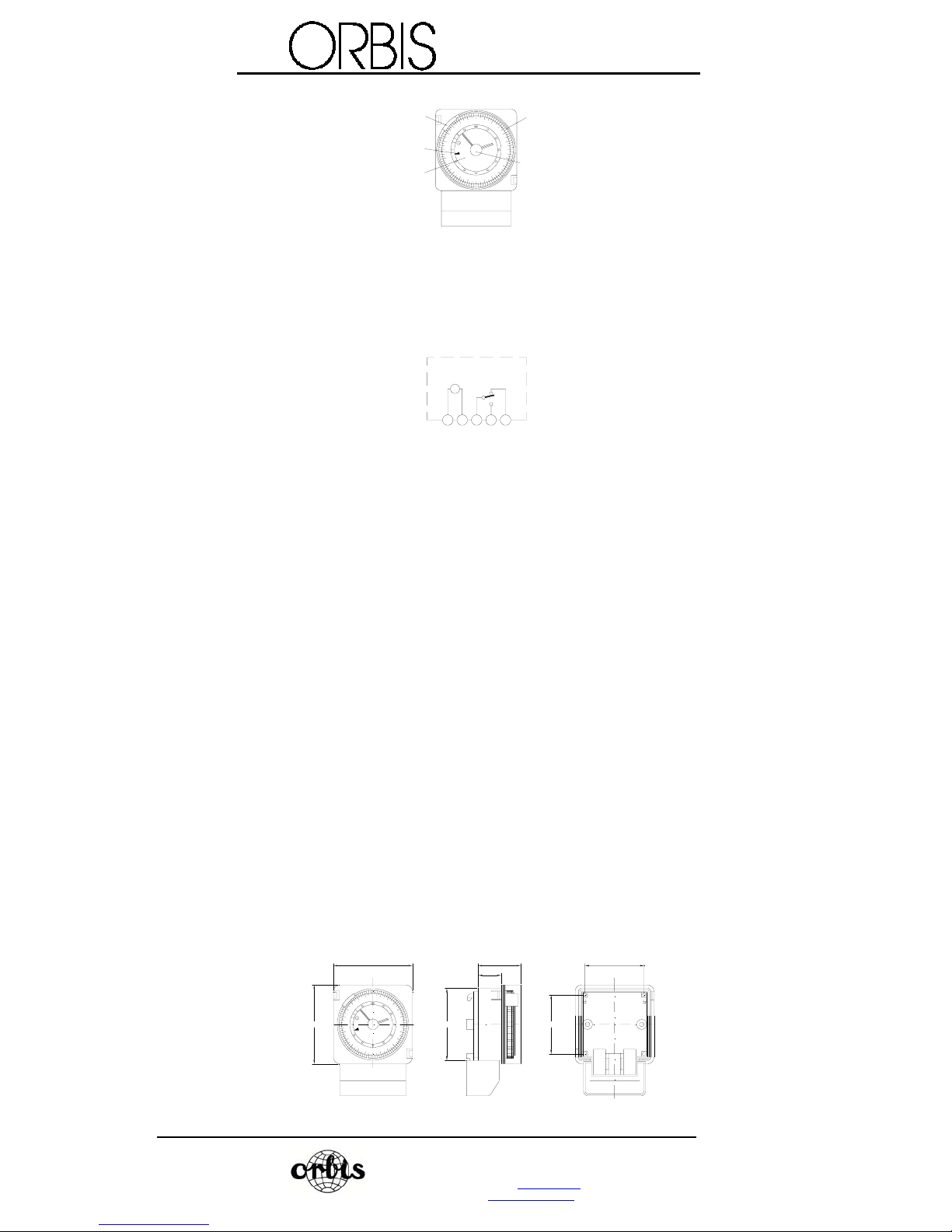

Page 1
CLOCK
HANDS
DIAL
INDEX
0
I
MANUAL
SWITCH
PINS
TIME SWITCH MINI T
OPERATING INSTRUCTIONS
DESCRIPTION
Time switch with daily dial, captive pins and Faston type terminals for connection. It
controls time programming of electrical equipment and systems.
ASSEMBLING
Automatic control, independent mounting of wall mounting or 35mm rail in
accordance DIN EN 50022.
CONNECTION
According to the connection scheme.
PROGRAMMING
Shift all the pins upwards and shift downwards the corresponding pins to the desired
connection times, in which the 2-3 contact will stay closed.
SETTING
Turn the dial clockwise so that it meets with real time. The clock hands must meet
with real time.
MANUAL SWITCH
3 positions.
I .- permanently on (2-3 closed)
¡ .- automatic operating
O .- permanently off (2-3 open)
TECHNICAL CHARACTERISTICS
Supply: According with nameplate
Switching capacity: 16(4) A/250 V∼
Own consumption: 1,8VA
Type of action: D/S: 1 BRTU in accordance
EN 60730-2-7
QRD/QRS: 1 BSTU in accordance
EN 60730-2-7
Accuracy: Type D: Depending on line frequency
Type QRD: ≤ ± 1 s/day at 23°C
Type of dial: Daily: 96 pins
Minimum switching time: 15 minutes
Operating mode: Type D: synchronous motor
Type QRD: step by step motor
Operating temperature: Type D: 0ºC to +55ºC
Type QRD-QRS: -10ºC to +45ºC
Contact: AgCdO One pole changeover
Battery reserve: Type D: without reserve
Type QRD: 100 hours after
uninterrumped supply of 48 hours.
Pollution situation Normal
This unit incorporates, in models with reserve, a battery which contents can be harmful
to the environment. Please do not throw it away without removing the battery and
putting it in the proper container for recycled or to send the complete unit back to the
factory.
DIMENSIONS:
A016.36.50755
ORBIS TECNOLOGÍA ELÉCTRICA, S.A.
Lérida, 61 E–28020 MADRID
Teléfono:+ 34 91 5672277; Fax:+34 91 5714006
E-mail: [email protected]
http://www.orbis.es
12
435
M
NL
MINI T
54
21
38
66
72
72 54
0
I
