Orbicle ORB R15F User Manual

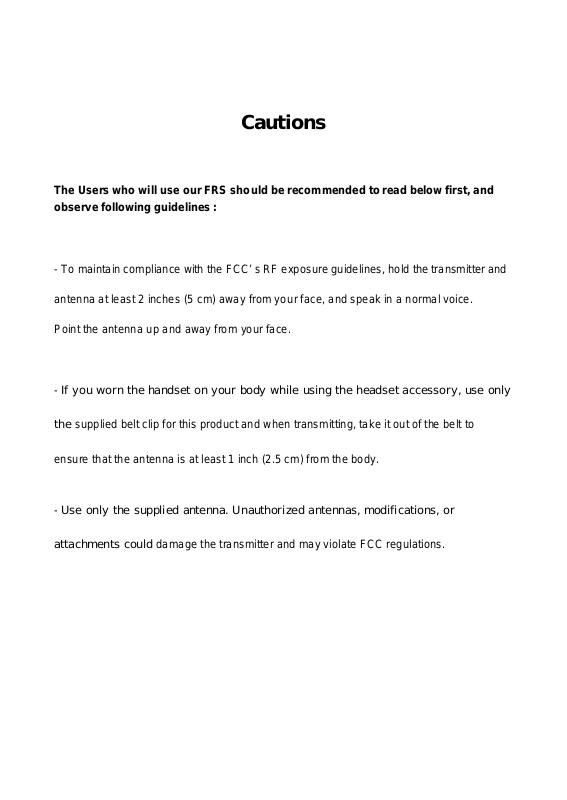

Cautions

The Users who will use our FRS should be recommended to read below first, and
observe following guidelines :

- To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and

antenna at least 2 inches (5 cm) away from your face, and speak in a normal voice.

Point the antenna up and away from your face.

- If you worn the handset on your body while using the headset accessory, use only

the supplied belt clip for this product and when transmitting, take it out of th e belt to

ensure that the antenna is at least 1 inch (2.5 cm) from the body.

- Use only the supplied antenna. Unauthorized antennas, modifications, or

attachments could damage the transmitter and may violate FCC regulations.

Your New RADIO(ORB-R15F)

ORBICLE's ORB-R15F operate on Family Radio Service(FRS) designated
frequencies. This license-free, short range, two-way radio service was
established specifically for family and group recreational use.
Use of this radio outside the country where it was intended to be distributed
is subject to government regulations and may be prohibited.

Batteries

ORB- R15F radios operate with 4 AAA alkaline batteries providing

approximately 35hours of use. That is almost 5 hours of talk and over 30
hours of standby time.

To Install

1. Above all, Power off with radio.

2. Remove belt clip on back cover and cover pull down.

3. Insert 4 AAA batteries as well-fitting polarity.

4. Shut a cover and Power on.

To Communicate

ORB-R15F two-way radios have 14 channels. To communicate with others, all
radios in your group must be set to the same channel.

Turn The Radio On :

1. A Long press the POWER Button. Radio will beep and LED Indicator Light will flash to
confirm. The display will show current channel and code.

2. To turn radio off, long press the POWER Button, Again. You can hear a beep and
display disappears.

Monitor Button

The Monitor[mon] button lets you hear the radio's volume level when you are not
receiving so you can adjust the volume. It is also used to check activity on current before
transmitting.
