SC450
Single Parameter Colorimeter
Phosphate
For use with SC450-50
SC450-51
Declaration of CE-Conformity
Déclaration de conformité CE / CE -Declaración de conformidad
———————————————————————————————————————
Orbeco-Hellige, Inc. / 6456 Parkland Drive / Sarasota, FL 34243-4036 / U.S.A.
———————————————————————————————————————
———————————————————————————————————————
Declaration of EC-Conformity according to DIRECTIVE 2004/108/EG OF THE
EUROPEAN PARLIAMENT AND OF THE COUNCIL of 2004, December the 15th.
The manufacturer declares that this product meets the requirements of the
following product family standard:
Déclaration de conformité CE conformément à la DIRECTIVE 2004/108/CE DU
PARLEMENT EUROPÉEN ET DU CONSEIL du 15 décembre 2004. La fabricant
déclare que le produit est conforme aux exigences de la norme de famille de
produits suivante :
CE - Declaración de conformidad conforme a la NORMA 2004/108/ CE
DEL PARLAMENTO Y DEL CONSEJO EUROPEO del 15 de diciembre de 2004.
El fabricante declara, que este producto cumple con las exigencias de la
siguiente norma correspondiente a la familia de productos:
———————————————————————————————————————
———————————————————————————————————————
Basic immunity test requirements (Table1) / Emission according to the
requirements for class B equipment
Conformément aux exigences fondamentales relatives aux essais d'immunité
(tableau 1) / Émissions parasites conformément aux exigences applicables aux
appareils de la classe B
De acuerdo a los requisitos básicos de verificación para la resistencia a
interferencias (tabla 1) / Emisión de interferencias conforme a las exigencias para
aparatos de clase B
Manufacturer / Fabricant / Fabricante:
Product name / Nom du fabricant / Nombre del productor:
SC450, Single Prarameter Colorimeter
EN 61326-1:2006
Sarasota, FL. 01. November 2010
Bradley K. Martell, President
Contents
General notes• ......................................................4
Guidelines for photometric measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Method notes .......................................................4
Replacement of batteries ...............................................5
Functional description• ...............................................6
Operation ..........................................................6
Display backlight .....................................................7
Recall of stored data ..................................................7
Countdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Methods• . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Phosphate, ortho with tablet ............................................8
Phosphate, ortho with powder pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Menu options• .....................................................10
Menu selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Recall of stored data .................................................10

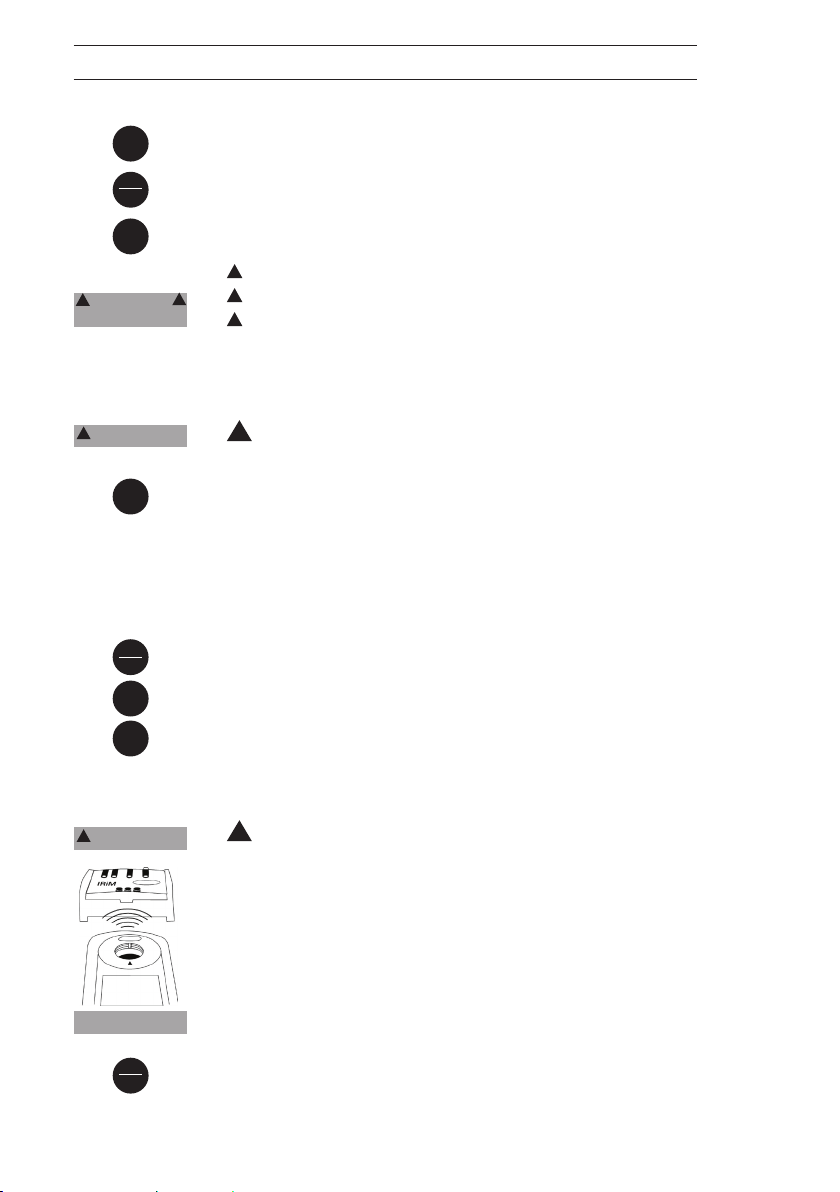

Transmitting stored data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Calibration Mode• ..................................................11
User calibration .....................................................11
Factory calibration reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Technical data• .....................................................14
Operating messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CAUTION
The accuracy of the instrument is only valid if the instrument is used in an
environment with controlled electromagnetic disturbances according to DIN 61326.
Wireless devices, e.g. wireless phones, must not be used near the instrument.
SC450_V1_10/2011
3
4
SC450_V1_10/2011
General notes
Guidelines for photometric measurements
Vials, caps and stirring rods should be cleaned thoroughly 1. after each analysis to prevent
interference. Even minor reagent residues can cause errors in the test result.
The outside of the vial must be clean and dry before starting the analysis. Clean the outside 2.
of the vials with a towel to remove fingerprints or other marks.
Zero calibration and test must be carried out with the same vial as there may be slight 3.
differences in optical performance between vials.
The vials must be positioned in the sample chamber for zeroing and test with the 4.
on the vial aligned with the mark on the instrument.
Always perform zeroing and test with the vial cap tightly closed. Only use the cap with 5.
a sealing ring.
Bubbles on the inside wall of the vial lead to incorrect measurements. To prevent this, 6.
remove the bubbles by swirling the vial before performing the test.
Avoid spillage of water into the sample chamber because this can lead to incorrect test 7.
results.
Contamination of the transparent cell chamber can result in incorrect readings. Check 8.
at regular intervals and – if necessary – clean the transparent cell chamber using a moist
cloth or cotton swab.
Large temperature differences between the instrument and the environment can lead to 9.
errors – e.g. due to the formation of condensation in the cell chamber or on the vial.
To avoid errors caused by stray light do not use the instrument in bright sunlight.10.
Always add the reagent tablets to the water sample straight from the foil without touch-11.
ing them with fingers.
The reagents must be added in the correct sequence.12.
mark
Method notes
Prior to measurement ensure that the sample is suitable for analysis (no major interferences) •
and does not require any preparation i.e. pH adjustment, filtration etc.
Reagents are designed for use in chemical analysis only and should be kept well out of •
the reach of children.
Ensure proper disposal of reagent solutions.•
Material Safety Data Sheets are available on request •
(Internet: www.orbeco.com)
5
SC450_V1_10/2011
General notes
AAA/LR03
AAA/LR03
AAA/LR03
AAA/LR0 3
Correct position of the vial (Ø 24 mm):
Correct filling of the vial:
Replacement of batteries:
(B) battery compart-
ment cover
(E) seal ring
(F) instrument back
(A) screws
(C) notch
(D) batteries
CAUTION:
To ensure that the instrument is water proof:
seal ring (E) must be in position•
battery compartment cover (B) must be fixed with the four screws•
If the batteries are removed for more than one minute the date and time menu starts automatically when the photometer is switched on the next time.
6
SC450_V1_10/2011
Functional description
Operation
On
Off
METHOD
Mode
METHOD
Zero
Test
METHOD
0.0.0
Zero
Test
METHOD
RESULT
Turn the unit on using the [ON/OFF] key.
The display shows the following:
Select the required test using the [MODE] key.
Scroll Memory (SM)
To avoid unnecessary scrolling for the required test method, the instrument memorizes the last method used before being turned off.
When the instrument is turned on again, the scroll list comes up with
the last used test method first.
The display shows the following:
Fill a clean vial with the water sample up to the 10 ml mark, screw the
cap on and place the vial in the sample chamber making sure that the
marks are aligned.
Press the [ZERO/TEST] key.
The "Method" symbol flashes for approx. 8 seconds.
The display shows the following:
After zero calibration is completed, remove the vial from the sample
chamber. The characteristic coloration appears after the addition of
the reagents.
Replace the cap on the vial and place in the sample chamber making
sure that the
Press the [ZERO/TEST] key.
(For Countdown/reaction period see page 7)
The "Method" symbol flashes for approx. 3 seconds.
The result appears in the display.
The result is saved automatically.
marks are aligned.
Zero
Test
Zero
Test
Press the [ZERO/TEST] key again.
Repeating the zero:
Press the [ZERO/TEST] key for 2 seconds.
Repeating the test:
7
SC450_V1_10/2011
Functional description
Display backlight
!
!
!
Zero
Test
Press the [! ] key to turn the display backlight on or off. The backlight
is automatically turned off during the measurement.
Recall of stored data
If the instrument is turned on, press the [ ! ] key for more than
4 seconds to access the recall menu.
Countdown / reaction period
If a reaction period is included in a method a countdown function
can be used:
Press the [!] key and hold.
Press the [ZERO/TEST] key.
Release the [!] key; the countdown starts.
After the countdown is finished the measurement starts automati-
cally.
It is possible to interrupt the countdown by pressing the [ZERO/TEST]
key. Measurement starts immediately.
Caution:
An incomplete reaction period can lead to incorrect test
results.
8
SC450_V1_10/2011
Methods
PO4
Tablet Powder
0.0.0
Tablet Powder
Zero
!
Test
PO4
Tablet Powder
RESULT
Tablet Powder
Phosphate, ortho with Tablet
0.05 – 4.0 mg/l PO
Fill a clean vial (24 mm Ø) with 10 ml of the water sample and
perform zero calibration (see “Operation").
Add one PHOSPHATE No. 1 LR tablet straight from the foil to the
10 ml water sample and crush the tablet using a clean stirring rod.
Add one PHOSPHATE No. 2 LR tablet straight from the foil to the
same water sample and crush the tablet using a clean stirring rod.
Close the vial tightly with the cap and swirl gently several times until
the tablets are dissolved.
Place the vial in the sample chamber making sure that the
are aligned.
Wait for a reaction period of 10 minutes.
(Countdown can be activated, see page 21)
The method symbol flashes for approx. 3 seconds.
The result is shown in the display as mg/l PO
Tolerance:
0 – 2 mg/l: ± 0.05 mg/l
> 2 – 4 mg/l: ± 0.10 mg/l
3-
4
marks
3-
.
4
Notes:
Only ortho-Phosphate ions react.1.
The test sample should have a pH-Value between 6 and 7.2.
Interferences: 3.
Higher concentrations of Cu, Ni, Cr (III), V (V) and W (VI) interfere due to their color.
Silicates do not interfere (masked by Citric acid in the tablets).
Conversions:
mg/l P
mg/l P = mg/l PO
= mg/l PO
2O5
3-
· 0.75
4
3-
· 0.33
4
9
SC450_V1_10/2011
Methods
PO4
Tablet Powder
0.0.0
Tablet Powder
Phosphate, ortho with Powder Pack
0.06 – 2.5 mg/l PO
Fill a clean vial (24 mm Ø) with 10 ml of the water sample and
perform zero calibration (see “Operation").
3-
4
Add the contents of one Phosphate Rgt. F10 Powder Pack straight
from the foil into the water sample.
Close the vial tightly with the cap and invert several times to mix the
contents (30 sec., Note 2).
Place the vial in the sample chamber making sure that the
are aligned.
Zero
!
Test
PO4
Tablet Powder
RESULT
Tablet Powder
Wait for a reaction period of 2 minutes.
(Countdown can be activated, see page 21)
The method symbol flashes for approx. 3 seconds.
The result is shown in the display as mg/l PO
3-
4
Tolerance:
0 – 1.5 mg/l: ± 0.05 mg/l
> 1.5 – 2.5 mg/l: ± 0.10 mg/l
Notes:
Application: for water, wastewater and seawater. Only ortho-Phosphate ions react.1.
The reagent does not completely dissolve.2.
Highly buffered samples or samples with extreme pH values should be adjusted 3.
between pH 6 and pH 7 before analysis (with 1 mol/l Hydrochloric acid or
1 mol/l Sodium hydroxide).
Interferences: Large amounts of turbidity may cause inconsistent results.4.
Interfering substance Interference level:
Aluminium greater than 200 mg/l
Arsenate at any level
Chromium greater than 100 mg/l
Copper greater than 10 mg/l
Iron greater than 100 mg/l
Nickel greater than 300 mg/l
Silica (Silicium dioxide) greater than 50 mg/l
Silicate greater than 10 mg/l
Sulfide at any level
Zinc greater than 80 mg/l
marks
.
Conversions:
mg/l P
mg/l P = mg/l PO
= mg/l PO
2O5
3-
· 0.75
4
3-
· 0.33
4
10
SC450_V1_10/2011
Menu options
Mode
On
Off
!
Store Date
Print Time
1
Cal
Store Date
Print Time
1
Mode
Mode
2
diS
Zero
Test
Menu selections
Press the [MODE] key and hold.
Turn the unit on using the [ON/OFF] key.
Allow the 3 decimal points to be displayed before releasing the
[MODE] key.
The [!] key allows for selection of the following menu points:
1
diS recall stored data
1
Prt printing stored data
3
2
setting the date and time
Cal user calibration
1
diS – Recall of stored data
After confirming the selection with the [MODE] key the photometer
shows the last 16 data sets in the following format (automatically
proceeds every 3 seconds until result is displayed):
Number n xx (xx: 16...1)
Year YYYY (e.g. 2010)
Date mm.dd (monthmonth:dayday)
Time hh:mm (hourhour:minuteminute)
Test Method
Result x.xx
The [ZERO/TEST] key repeats the current data set.
The [MODE] key scrolls through all stored data sets.
!
Store Date
Print Time
1
Prt
PrtG
On
Off
Quit the menu by pressing [!] key.
1
Prt – Transmitting stored data (to Printer or PC)
Note: To print data, or to transmit to a PC, the optional IRiM (Infrared
Interface Module) is required.
The IRiM Module and the connected printer/PC must be ready. Press
the [MODE] key to start the transmitting, the instrument displays
“PrtG” (Printing) for approx. 1 second followed by the number of the
first data set and its transmission. All data sets will be transmitted
one after the other. After finishing the instrument switches to test
mode.
The print job can be cancelled by pressing the [On/Off] key. The
instrument will turn off.
11
SC450_V1_10/2011
Menu options – Calibration Mode
E 132
Store Date
Print Time
Mode
SET
DATE
YYYY
(2 sec.)
Mode
Zero
Test
!
Store Date
Print Time
Cal
cAL
CAL
CAL
METHOD
Zero
Test
METHOD
0.0.0
CAL
Zero
Test
METHOD
If the instrument is not able to communicate with the IRiM, a timeout
occurs after approx. 2 minutes. The error E 132 is displayed for approx.
4 seconds. Subsequently, the instrument returns to test mode (see
also IRiM manual).
2
Setting date and time (24-hour-format)
2
After confirming the selection with the [MODE] key the value to be
edited will be shown for 2 sec.
The setting starts with the year (YY YY) followed by the actual value to
be edited. The same applies for month (mm), day (dd), hour (hh) and
minutes (mm). Set the minutes first in steps of 10, press the [!] key to
continue setting the minutes in steps of 1.
Increase the value by pressing the [MODE] key.
Decrease the value by pressing [ZERO/TEST] key.
Proceed to the next value to be edited by pressing [!] key.
After setting the minutes and pressing the [!] key the display will show
“IS SET” and the instrument returns to the measurement mode.
Cal
User calibration
Note
:
user calibration (Display in calibration mode)
factory calibration (Display in calibration mode)
After confirming the selection with the [MODE] key the instrument will
show CAL/"Method".
Scroll through methods using the [MODE] key.
Fill a clean vial with the standard up to the 10 ml mark, screw the
cap on and place the vial in the sample chamber making sure that
the
marks are aligned.
Press the [ZERO/TEST] key.
The method symbol flashes for approx. 8 seconds.
The display shows the following in alternating mode:
Perform calibration with a standard of known concentration (see
"Operation").
Press the [ZERO/TEST] key.
The method symbol flashes for approx. 3 seconds.
12
SC450_V1_10/2011
Calibration Mode
RESULT
CAL
Mode
Zero
Test
CAL
RESULT
On
Off
: :
+ x
The result is shown in the display, alternating with CAL.
If the reading corresponds with the value of the calibration standard
(within the specified tolerance), exit calibration mode by pressing the
[ON/OFF] key.
Changing the displayed value:
Pressing the [MODE] key once increases the displayed value by 1 digit.
Pressing the [ZERO/TEST] key once decreases the displayed value by
1 digit.
Press the corresponding key until the reading equals the value of the
calibration standard.
By pressing the [ON/OFF] key, the new correction factor is calculated
and stored in the user calibration software.
Confirmation of calibration (3 seconds).
13
SC450_V1_10/2011
Calibration Mode
Factory calibration reset
Resetting the user calibration to the original factory calibration will
reset all methods and ranges.
Store Date
Print Time
Cal
RESULT
Zero
Mode
Test
On
Off
A user calibrated method is indicated by a "Cal" symbol while the test
result is displayed.
To reset the calibration press both the [MODE] and [ZERO/TEST] key
and hold.
Turn the unit on using the [ON/OFF] key.
Release the [MODE] and [ZERO/TEST] keys after approx. 1 second.
The following messages will appear in turn on the display:
SEL
CAL
SEL
cAL
Mode
SEL
CAL
On
Off
The factory setting is active.
(SEL stands for Select)
or:
Calibration has been set by the user.
(If the user calibration is to be retained, switch the unit off using the
[ON/OFF] key).
Calibration is reset to the factory setting by pressing the [MODE] key.
The following messages will appear in turn on the display:
Turn the unit off using the [ON/OFF] key.
14
SC450_V1_10/2011
Technical Data
Technical Data
Instrument single wavelength, direct reading colorimeter
Light source: LEDs, interference filters (IF) and photosensor in transparent
cell chamber. Wavelength specifications of the IF:
660 nm
Wavelength accuracy ± 1 nm
Photometric accuracy* 3% FS (T = 20° C – 25° C)
Photometric resolution 0.01 A
Power supply 4 batteries (AAA / LR 03)
lifetime: approx. 17 hours or 5000 tests
Auto-OFF instrument will automatically turn off
15 minutes after last keypress
Display backlit LCD (on keypress)
Storage internal ring memory for 16 data sets
Interface IR interface for data transfer
Time real time clock und date
Calibration user and factory calibration
resetting to factory calibration possible
Dimensions 155 x 75 x 35 mm (LxWxH)
Weight approx. 260 g (incl. batteries)
Ambient conditions temperature: 5– 40°C
rel. humidity: 30– 90 % (non-condensing)
Waterproof floating; IP 68 (1 hour at 0.1 meter)
CE Certificate for Declaration of CE-Conformity
at www.orbeco.com
= 5 nm
*measured with standard solutions
To ensure maximum accuracy of test results, always use the reagent systems supplied by
the instrument manufacturer.
15
SC450_V1_10/2011
Operating messages – Error codes
Operating messages
Hı
Lo
btLo
Store Date
Print Time
Cal
RESULT
E27 / E28 / E29
E 10 /E 11
E 20 /E 21
E23 / E24 / E25
E 22
E 70
E 71
E 72
E 73
Measuring range exceeded or excessive turbidity.
Result below the lowest limit of the measuring range.
Replace batteries, no further tests possible.
Battery capacity is too low for the display backlight;
measurement is still possible.
A user calibrated method is indicated by a "Cal" symbol while the test
result is displayed. (see "Factory calibration reset").
Error codes
Light absorption too great. Reasons: e.g. dirty optics.
Calibration factor "out of range"
Too much light reaching the detector.
Too much light reaching the detector.
Battery capacity was too low during measurement. Change battery.
PO
(Tablet): Factory calibration incorrect / erased
4
PO
(Tablet): User calibration incorrect / erased
4
PO
(Powder Pack): Factory calibration incorrect / erased
4
PO
(Powder Pack): User calibration incorrect / erased
4
Reagent re-order information
Phosphate LR Reagent Set RS3040
Contains the following:
Phosphate No. 1 LR Tablet, 100 ct. RT304-0
Phosphate No. 2 LR Tablet, 100 ct. RT305-0
Phosphate 3 Powder Pack Reagent, 100 ct. RP155-0
Instrument accessory information
IRiM MC500-60
24 mm Sample Cells, 12 pack L197620
Light shielding rings L197626
Cleaning cloth for sample cells L197635
Sample cell rack 9999
16
SC450_V1_10/2011
17
SC450_V1_10/2011
18
SC450_V1_10/2011
19
SC450_V1_10/2011
Technical changes without notice
Orbeco-Hellige, Inc.
6456 Parkland Drive
Sarasota, FL 34243
Phone: 941.756.6410 / 800.922.5242
Fax: 941.727.9654
www.orbeco.com / service@orbeco.com
P/N: L
00386278
Loading...
