Page 1
BLUE
PAPERS
WILD HT SHIMANO
TECHNICAL MANUAL
Page 2
WILD HT TECHNICAL SPECIFICATIONS
1
GEOMETRY 3
GENERAL INFO 4
SPECIFICATIONS 5
OPTIONS 6
PARTS & HARDWARE 8
CABLE ROUTING 23
FRAME AND MATERIAL 27
CONTENT
Page 3
WILD HT SHIMANO
Page 4

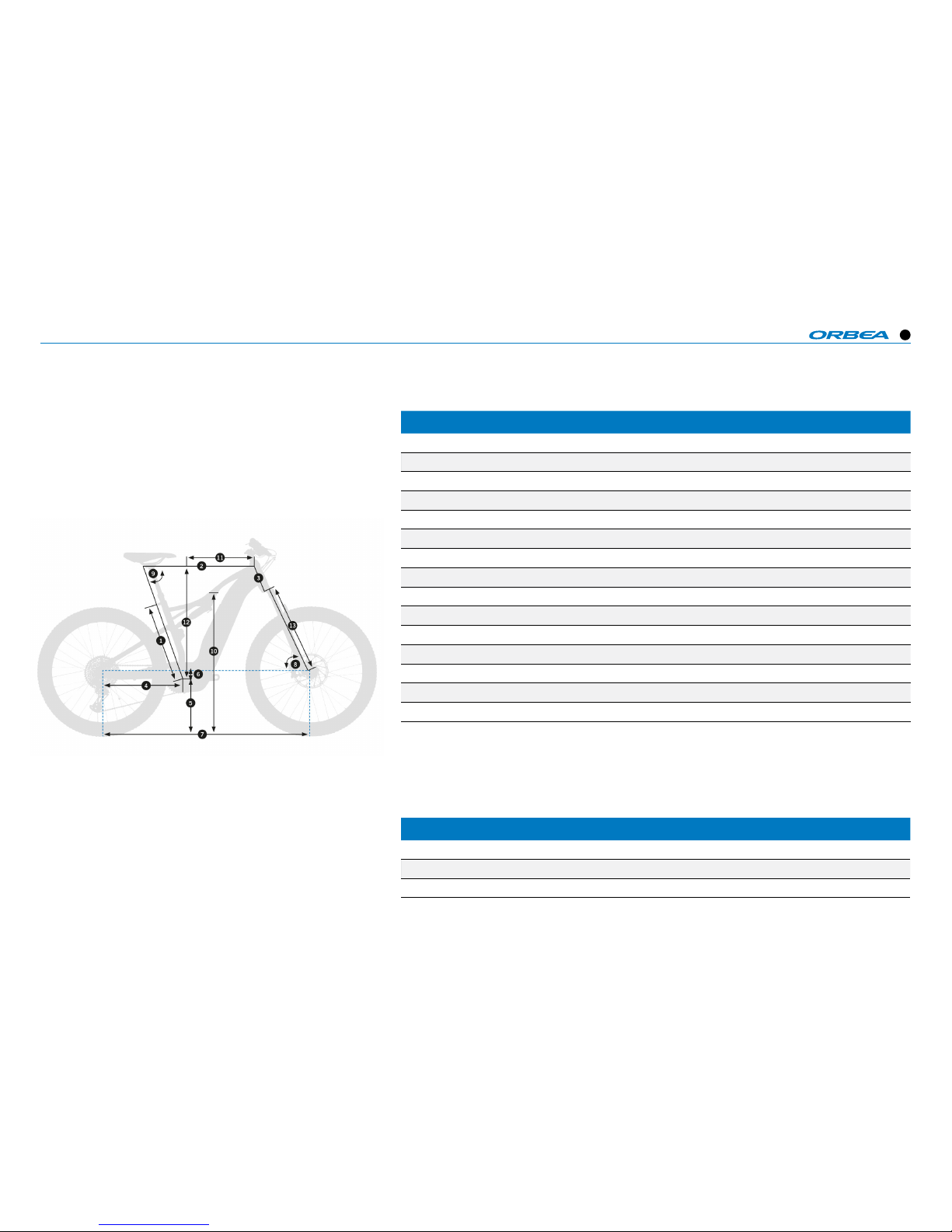

WILD HT TECHNICAL SPECIFICATIONS
3
SIZES S M L XL
1 - Seat tube ( C-T) 390 390 415 440
2 - Top tube (EFF ) 575 595 624 653
3 - Head tube 115 130 145 160
4 - Chain st ay 445 445 445 445
5 - BB drop 63 63 63 63
6 - BB height 305 [FOR 29X 2,6”] / 296 [FOR 27,5X3,0”]
7 - Wheel bas e 1113 1134 1165 1195
8 - Head angle 67º 67º 67º 67º
9 - Seat angl e 72,5º 72,5º 72,5º 72,5º
10 - Fork offs et – Rake 51 51 51 51
11 - Standover h eight 29 x2.6” 690 690 690 690
11 - Standover h eight 27x3,0 ” 678 678 678 678
12 - Reach 375 390 415 440
13 - Stack 634 647 661 675
14 - Fork lengt h 527 [FORK 120M M] 527 [FORK 120M M] 527 [FORK 120M M] 527 [FORK 120M M]
* Estimated measurements.
HEIGHT (cm) HEIGHT (in) SIZE
155 -170 61-6 7 S
165 -185 65 -73 M
>18 0 >71 L
GEOMETRY
Maximum tyre dimension: 28” [Maximum external dimension 687mm]
ERGONOMY
Page 5
WILD HT TECHNICAL SPECIFICATIONS
4
GENERAL INFO
RIM
27,5 AND 29
BB
MOTOR SHIM ANO DU_ E800 0
ISCG
NO
FORK
120 MM
SHOCK SIZE
------
SUSPENSION TRAVEL
------
SHOCK MOUNTING HARDWARE
------
SEATPOST
31,6 MM
SEAT C LAMP
35 MM
FRONT DERAILLEUR
NO,FD. SINGLE FRONT WHEEL
HEAD TUBE
[1-1/8”,45º/45º UPPER_ 1,5”,36º/45º LOWER ] SPECS: F SA ORBIT C -40 (N O.42)
REAR AXLE STANDARD
BOO ST 148
MAX TIRE SIZE 2 7”
3,0” (T IRE SIZE VARI ES BY BRA ND, SOME MAY NOT FI T)
MAX TIRE SIZE 29”
2,6” (TIR E SIZE VARIE S BY BRAN D, SOME MAY NOT FI T)
CRANKSET
177 MM Q FACTOR COMPATIB LE [CEN TRO A INT ERIOR BIE LA R/ L; 72,6MM/ 72,6MM]
CHAINRINGS
1X: 34T MA X
CHAIN LINE
53MM
Page 6
WILD HT TECHNICAL SPECIFICATIONS
5

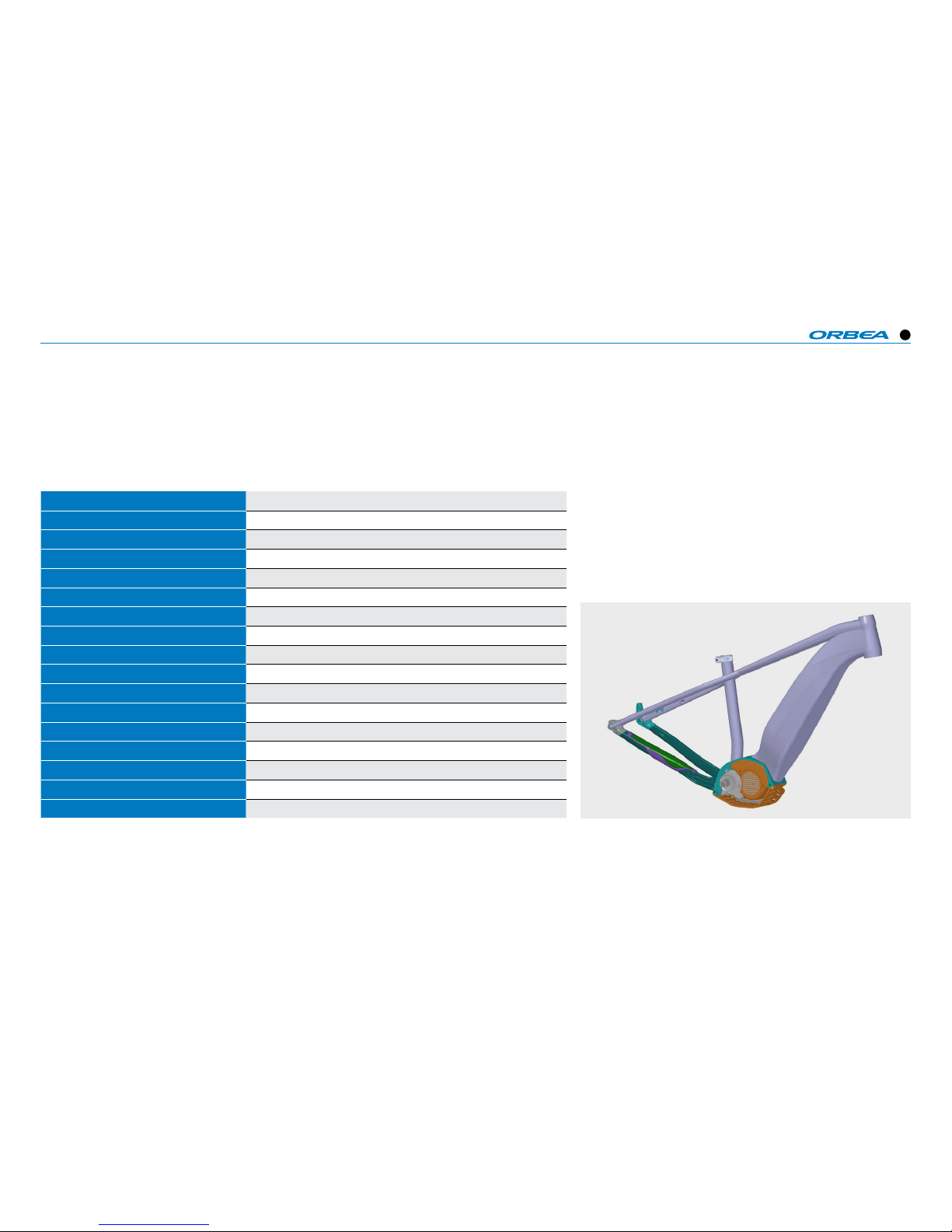

SPECIFICATIONS
DIRECTION
1" 1/8 - 1" 1/5 – FSA [0 87_NO_42-C F-ACB]
MOTOR
SHIMANO E 8000 – [ 15,8º]
BB
SHIMANO _ DRIVE UNI T 8000
FRONT DERAILLEUR
NO
FRONT DERAILLEUR TP/DP
NO
FD ANGLE
NO
SEAT POST DIAMETER
31,6 MM
SEAT CLAMP
35 MM
DROPOUT
12X148 ONLY
CHAINSTAY PROTECTOR
11000410-PROT B ASE WILD H T BOSCH 18
OTHER PROTECTORS
11000375-PR OT GOMA TU BO DIAG WILD F S 18
CABLE TYPE
FULL HOUSING
REAR HUB LENGHT
148
Page 7
WILD HT TECHNICAL SPECIFICATIONS
6
BRAKE
V-BRAK E NO
DISC BRAKE ONLY
REAR BRAKE IS/PM+DIAMETER DISC 160 PM, 180 COMPATI BLE
CALIPER BRAKE NO
GEARS
11 SPEED SRAM & SHI MANO
DOUBLE CRANK NO
COMPACT CR ANK (34X50T) ( ROAD) -
TRIPLE C RANK NO
OXYME TRIC NO
OPTIONS
Page 8
WILD HT TECHNICAL SPECIFICATIONS
7
OPTIONS
Groupsets
BTT
SHIMANO
XTR (10) YES
XTR/XT (11) YES
SAINT (9) NO
DEORE XT ( 9/10) YES
SL X (9/ 10) YES
ZEE (10) NO
HONE (9) NO
DEORE LX ( 8/9) NO
DEOR E (9/10) YES
ALIVIO (8/9) YES
ACERA (8 ) NO
ALTUS (8) NO
TOURNEY (8) NO
SRAM
XX1 (11) YES
XX (10) YES
X0 (10) YES
X9 (10) YES
X7 (10) YES
X5 (9 /10) YES
X4 (8/9) NO
X3 (7) NO
Page 9
WILD HT TECHNICAL SPECIFICATIONS
8
7
1
2
22
8
13
24
17

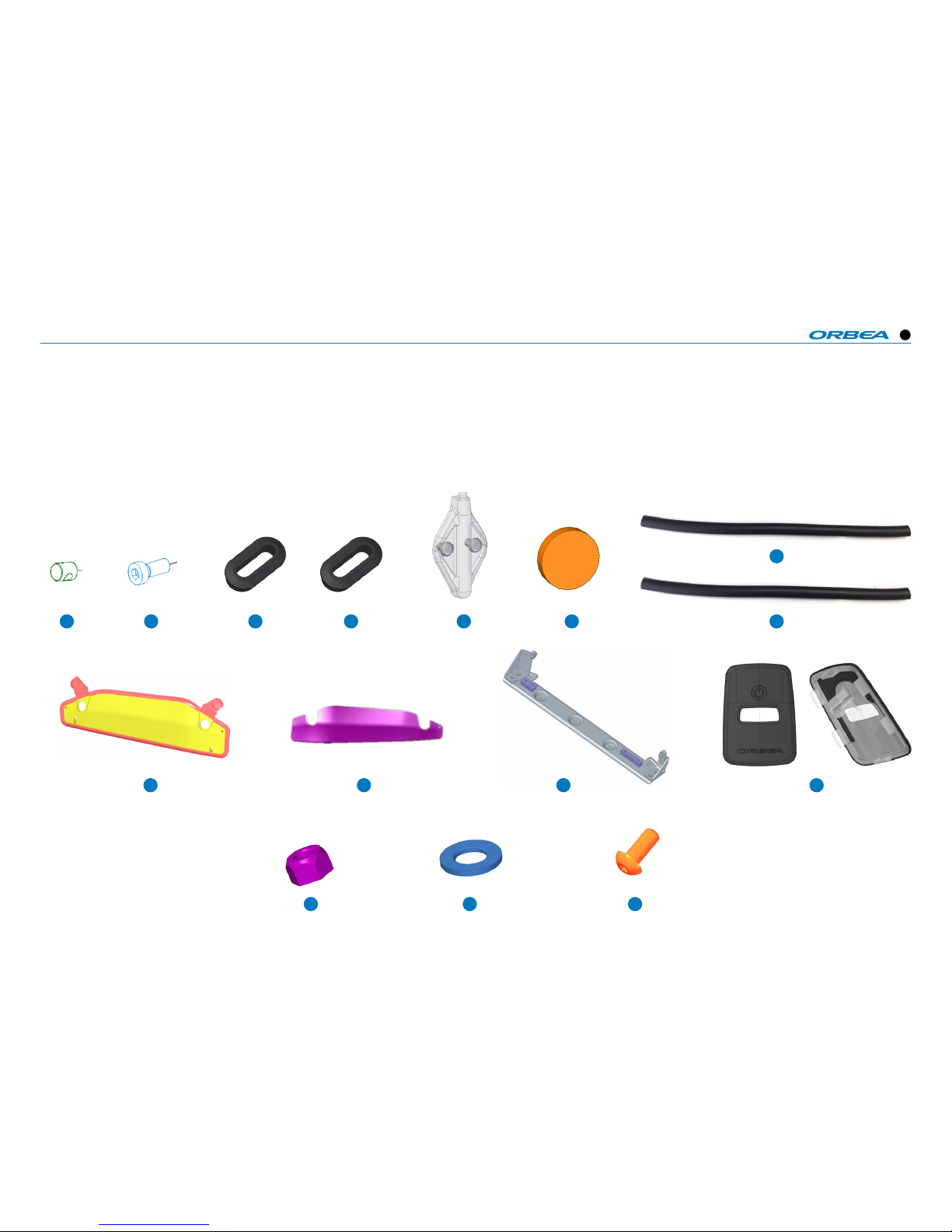

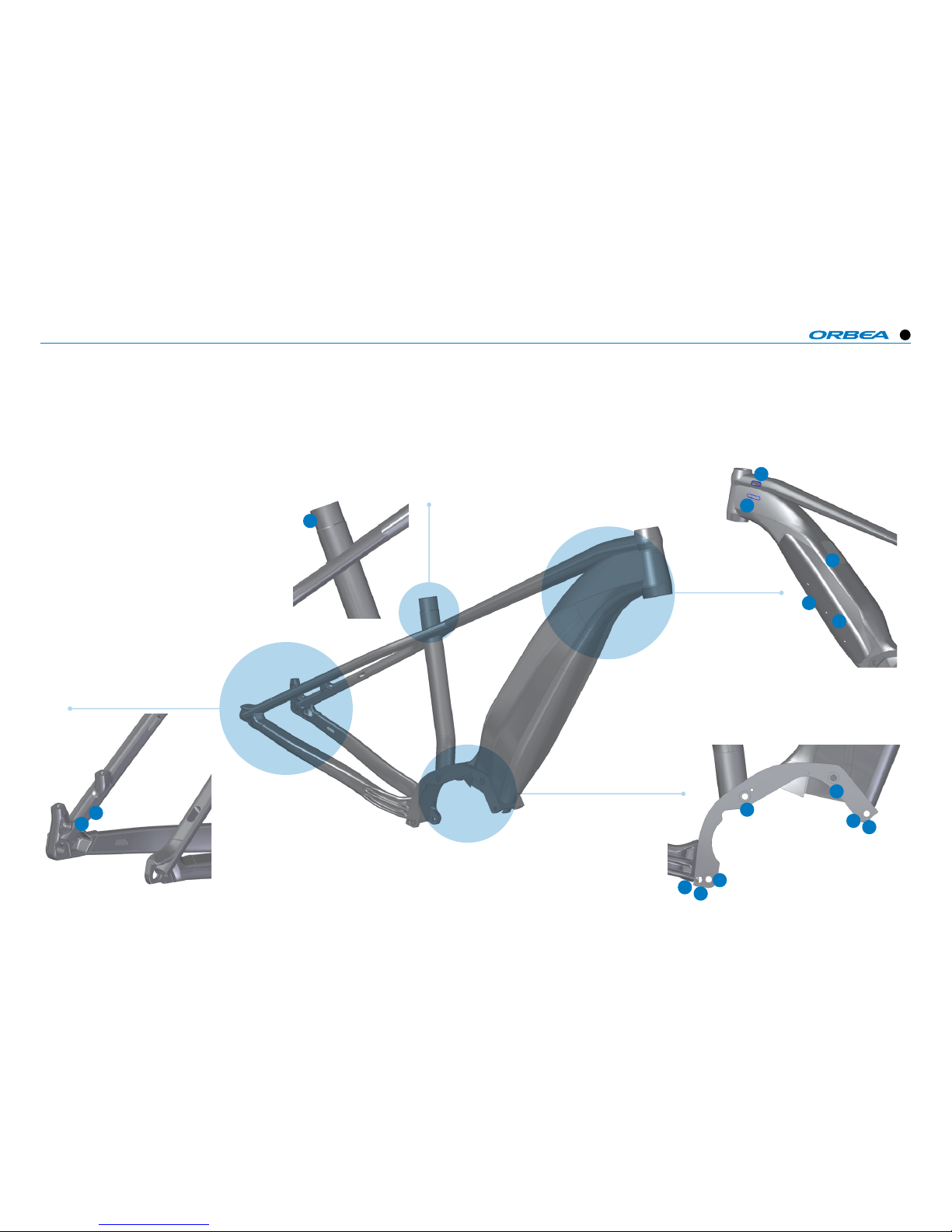

PARTS & HARDWARE
Mechanic groupe AND Seatpost Digit or Standard
3
3
3
4
4
5
5
Page 10
WILD HT TECHNICAL SPECIFICATIONS
9
PARTS & HARDWARE
Mechanic groupe AND Seatpost Digit or Standard
12 15
9
84 3 2 1
725 26
1918 5
17
Page 11
WILD HT TECHNICAL SPECIFICATIONS
10
PARTS & HARDWARE
Mechanic groupe AND Seatpost Digit or Standard
NÚMERO REFERENCIA NOMBRE/DESCRIPCIÓN
1 11001161 TAPON GOMA R ANURA 30X10MM 18- PARA E SPESOR 3MM
2 11001163 TAPON GOMA 3M M RANUR A 22X8
3 12300017 TORN ILLO INOX M8 X20 DIN 6912
4 12310 017 T UERCA BA RRILE TE M5X10 NEG
5 1230107 7 TORNIL INOX M 5X12 ISO7380
6 11000403 PROTECTOR MOTOR
7 11000400 BOTON BATER IA WILD FS
8 112028 27 SENSOR V EL DUE11 18 760MM
9 FOAM DIAME TRO INTERNO 8M M-300M M
10 12300059 TORN ILLO INOX M4X 8-DIN 79 91
11 TORNILLO I NOX M3X8 DIN 79 91
12 11200003 IMAN DI AM 15X3MM
25 11000415 TAPA BATERIA WIL D FS S/ TAP ALU
26 11000416 TAPA ALUMINI O WILD FS BR UTO
15 FOAM DIAME TRO INTERNO 8M M-500 MM
13 11200001 IMAN M5 SEN SOR VELO CIDAD DUE11
16 11001172 G UIA ROSC ADA D4 PARA M 5X9
17 11000402 KIT SOPO RTE DE BAT ERIA WILD F S
18 12 311020 TUERCA INOX AL LEN M5- DIN 985
19 123 21020 ARANDEL A INOX M5 / DIN 125-M5- INOX
20 11000366 PROT BASE P LAS T OCCAM H YDRO 16
21 11000375 PROT GOMA T UBO DIAG WIL D FS 18
22 111608 50 ABR SIL C/ R 34.9 DIGIT N EG
22 11160 827 ABR SIL C/T 34.9 AL U NEG
23 1100 0118 BRIDA 2,5X100 NE GRA
24 11000219 GOMA EX TRACCION BATER IA ORBE A
25 11000415 TAPA BATERIA WIL D FS S/ TAP ALU
26 11000416 TAPA ALUMINI O WILD FS BR UTO
Page 12
WILD HT TECHNICAL SPECIFICATIONS
11
PARTS & HARDWARE

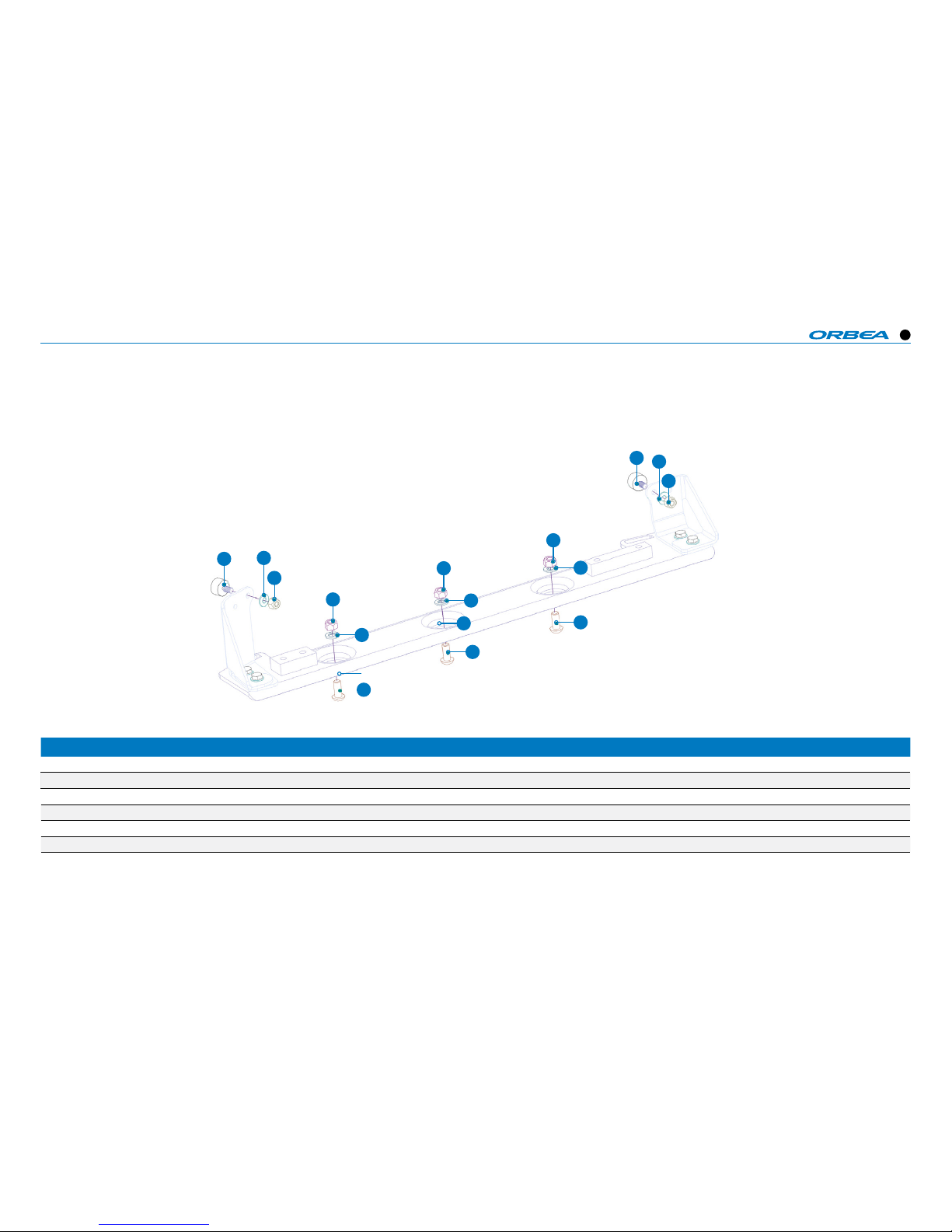

1. Batery support I
PART NUMBER REFERENCE ORBEA DESCRIPTION
1 11200004 IMAN DI AM 12 C/ES PARRAGO M4
2 DIN 125-M4-INOX
3 DIN 934-M4-INOX
4 1231102 0 DIN 985-M5-INOX
5 12320 510 DIN 125-M5-INOX
6 1230107 7 DIN 7380 -M5X12MM- INOX
3
3
4
4
4
2
2
2
5
6
6
6
5
5
1
1
Page 13
WILD HT TECHNICAL SPECIFICATIONS
12
PARTS & HARDWARE

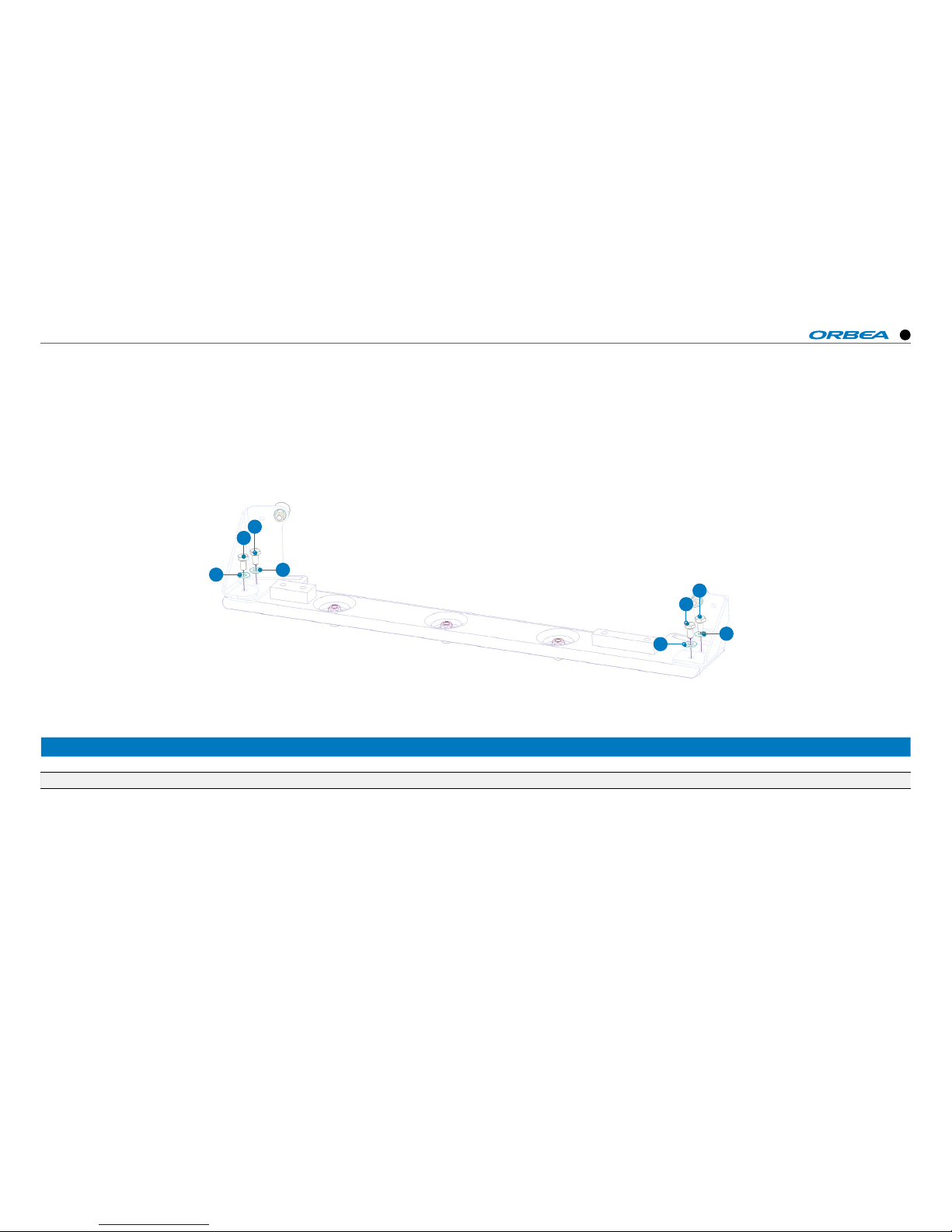

2. Batery support II
PART NUMBER REFERENCE ORBEA DESCRIPTION
1 DIN 933-M4X8MM-INOX
2 DIN 125-M4-INOX
2
2
2
2
1
1
1
1
Page 14
WILD HT TECHNICAL SPECIFICATIONS
13
PARTS & HARDWARE

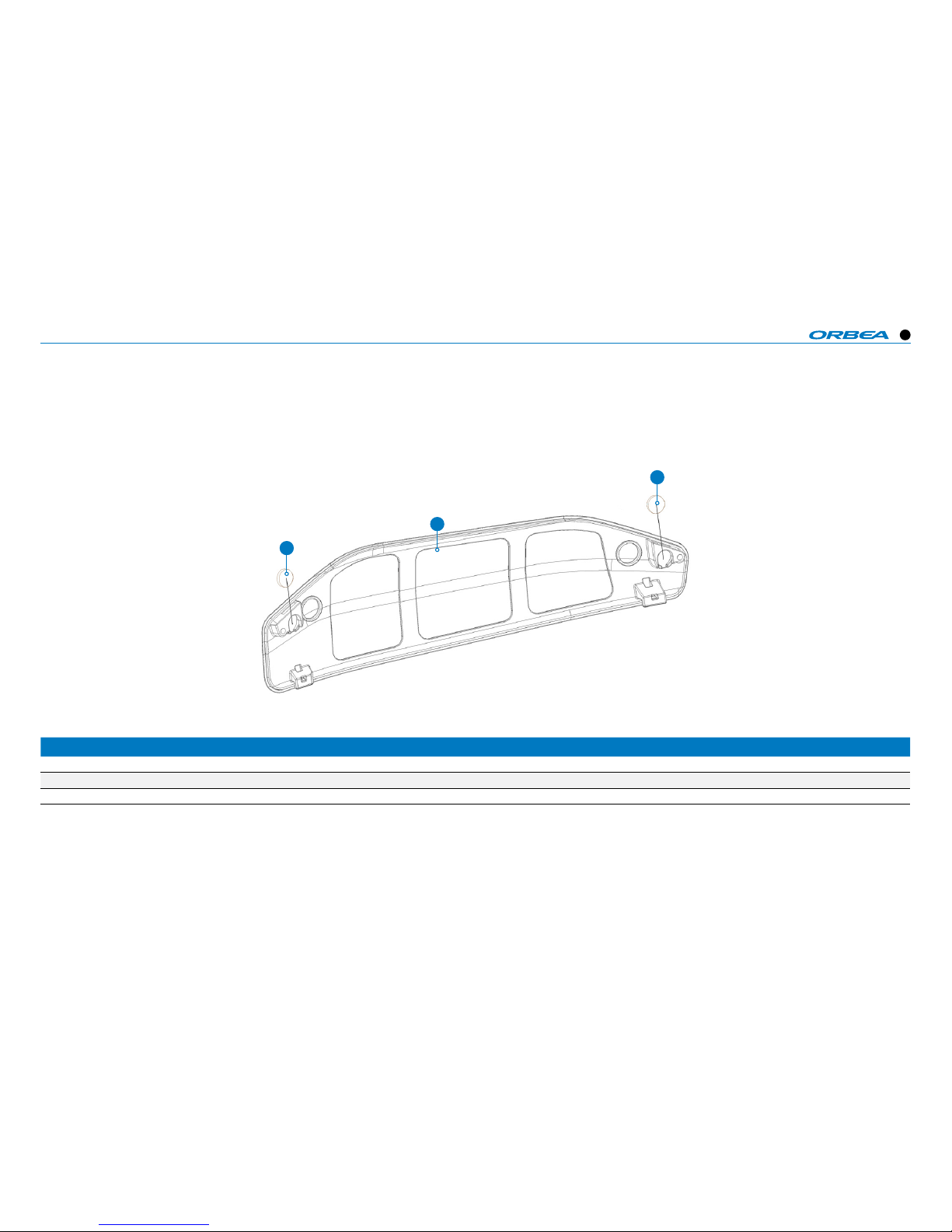

3. Batery cover
PART NUMBER REFERENCE ORBEA DESCRIPTION
1 11000415 TAPA BATERIA WILD FS S/ TAP ALU
2 11000416 TAPA ALUM INIO WILD F S BRUTO
3 11200003 IMAN DI AM 15X3MM
2
2
1
Page 15
WILD HT TECHNICAL SPECIFICATIONS
14
PARTS & HARDWARE

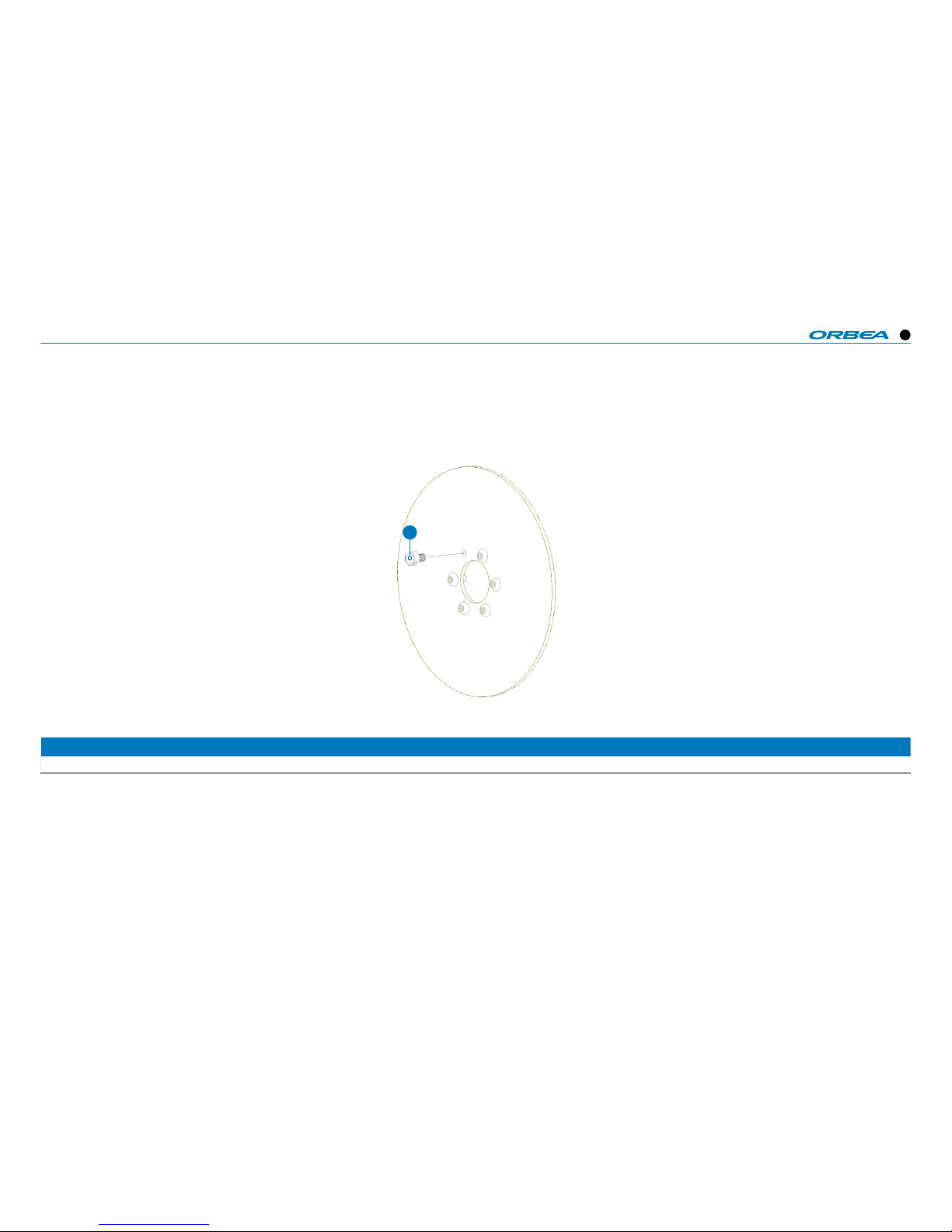

4. Speed magnet
PART NUMBER REFERENCE ORBEA DESCRIPTION
4 11200001 IMA N M5 SENSOR V ELOCIDAD D UE11
4
Page 16
WILD HT TECHNICAL SPECIFICATIONS
15
PARTS & HARDWARE
5. Motor screws
PART NUMBER REFERENCE ORBEA DESCRIPTION
1 12300017 TORN ILLO INOX M8 X20 DIN 6912
Page 17
WILD HT TECHNICAL SPECIFICATIONS
16
PARTS & HARDWARE

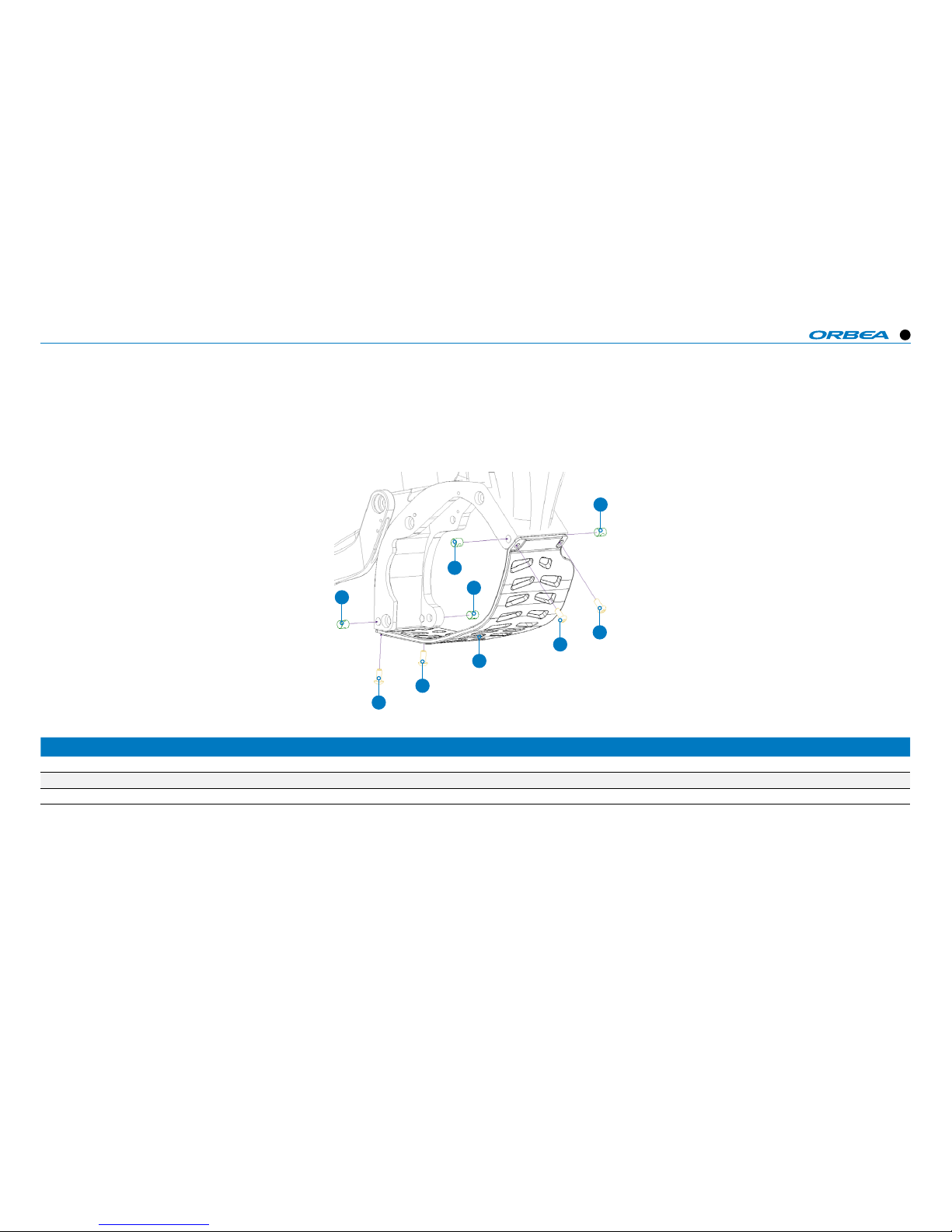

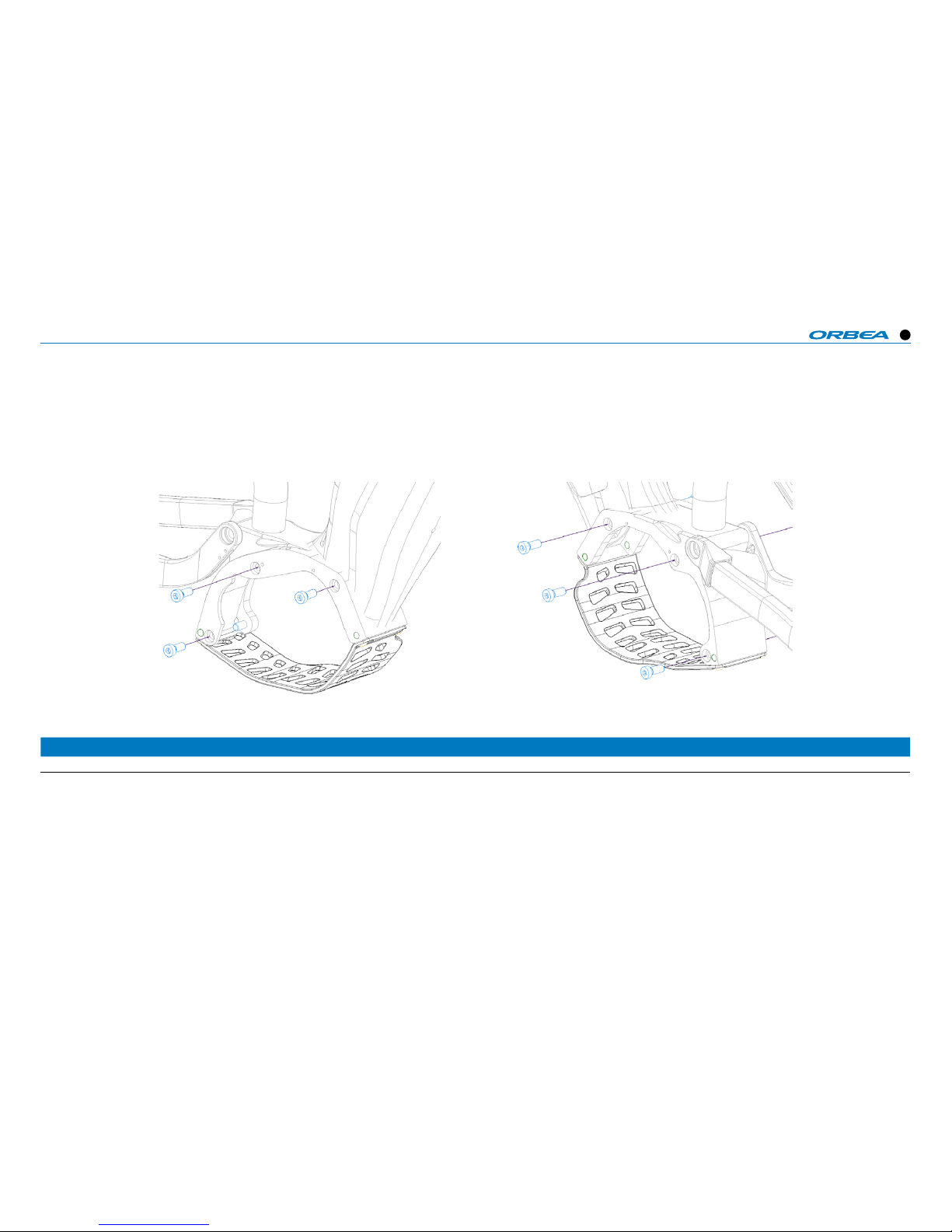

6. Motor protector
PART NUMBER REFERENCE ORBEA DESCRIPTION
1 12310 017 T UERCA BA RRILE TE M5X10 NEG
2 1230107 7 TORNIL INOX M 5X12 ISO7380
3 11000414 PR OTECTOR M OTOR WILD H T BOSCH
2
2
3
2
2
1
1
1
1
Page 18
WILD HT TECHNICAL SPECIFICATIONS
17
PARTS & HARDWARE
7. Bolts for Motor cover
PART NUMBER REFERENCE ORBEA DESCRIPTION
1 12310 017 T UERCA BA RRILE TE M5X10 NEG
2 1230107 7 TORNIL INOX M 5X12 ISO7380
PROTECTOR MOTOR
Page 19
WILD HT TECHNICAL SPECIFICATIONS
18

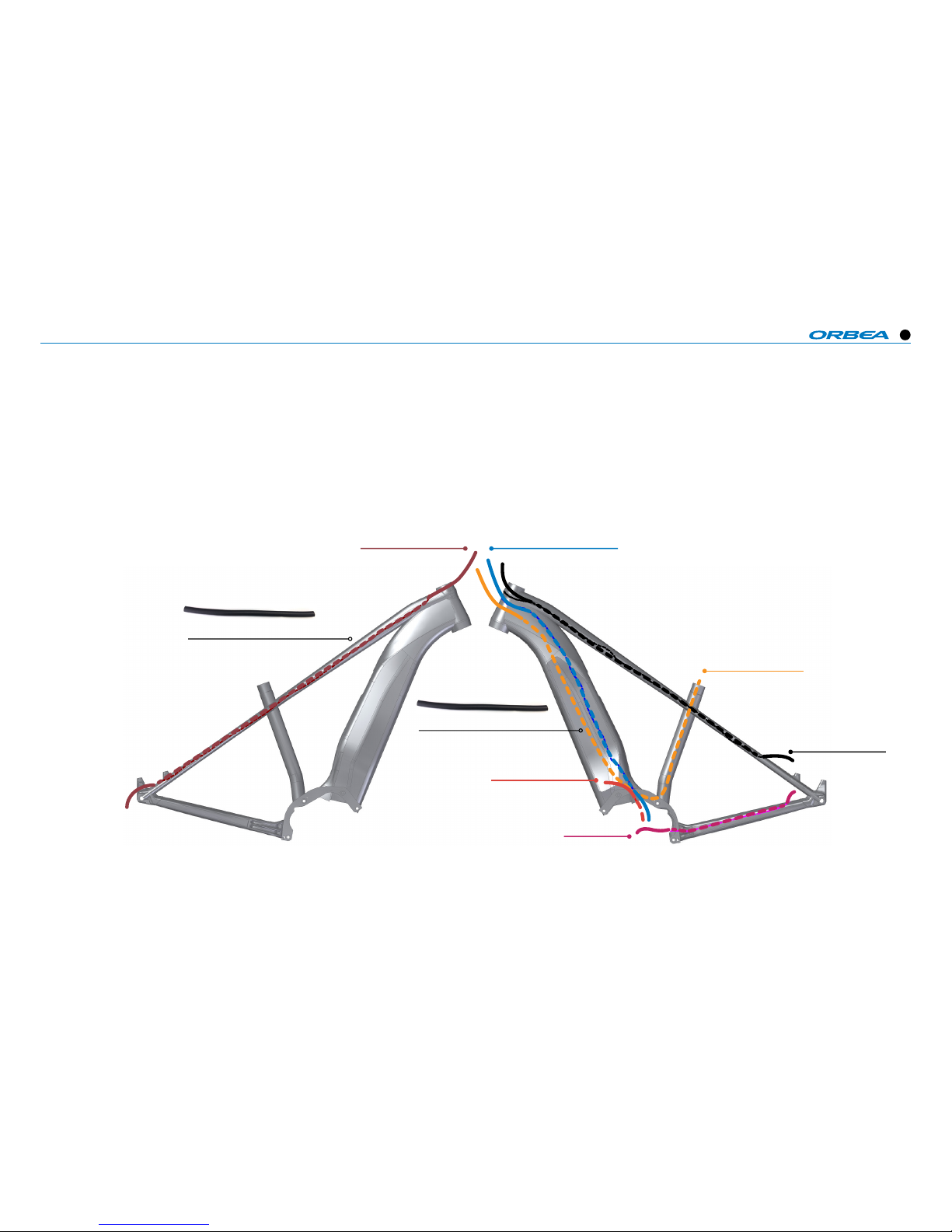

CABLE ROUTING
Mechanic groupe + Hydraulic seatpost
DISPLAY-DRIVE UNITREAD DERAILLEUR
BATTERY-DRIVE UNIT
REAR BRAKE
MAGNET
TELESCOPI SEATPOST
TT; FOAM DIAM INTERNO 8MM-300MM
DT; FOAM DIAM INTERNO 8MM-500MM
Page 20
WILD HT TECHNICAL SPECIFICATIONS
19
FRAME AND MATERIAL
Orbea frames are carefully designed to be durable,
efcient, and easy to maintain. Wild tubes are stiff and
light, giving excellent steering precision and pedaling
efciency. Wild carbon frame is extremely resistant to
corrosion, making it perfect for road. With only a minimum amount of maintenance, it’s easy to keep your
Wild in top condition.
1) Keep your Wild clean
Washing your bike with mild soap and water will keep
you looking stylish and allow you to check the condition of the frame and components. Don’t use high
water pressure and avoid spraying water into bearings
or frame tubes. Citrus degreasers are biodegradeable and do a great job of removing dirty grease from
gears and chain.
2) Keep your Wild lubed
Once your bike is clean, it’s a good time to put fresh
lube on the chain. Use only enough to get inside the
links and wipe off any excess because it will attract
dirt. Headset and pivot bearings should be inspected
every few months for smoothness and to ensure that
the seals are intact and lube is clean.
3) Inspect your Wild before you ride
Do a quick check before every ride to make sure your
bike is in excellent condition. It is very common to discover small issues at home that can become big problems on the trail. CHAIN Is the chain dirty, noisy or
dry? Clean and lube your chain before riding. BRAKES
Check your brakes to make sure they are working
correctly. Check for missing/loose caliper and rotor
bolts. TIRES Look for damage to the sidewalls of your
tires. Check and adjust tire pressure. WHEELS Spin
the wheels and look for wobbles, check for loose or
broken spokes. Check quick release levers to make
sure they are functioning properly. FRONT END Stand
over the saddle, pull on the brakes and rock the bike
back and forth. Feel for any play or knocking that
might indicate a loose headset, loose brake rotors or
calipers, or worn fork bushings.
TEST RIDE Take a quick ride up and down the street to
make sure your bike is shifting and braking properly.
Listen for unusual noises.
AFTER A CRASH OR IMPACT
Falling is part of riding and it’s impossible to avoid
minor accidents. If you crash your Wild, please make
sure you are okay and seek medical attention if necessary. If you are not injured, you should check your
bike before continuing:
1) Inspect your frame and components for damage. Do not ride your bike if any problems are de-
tected.
WHAT TO LOOK FOR
Inspect Frame and fork for evidence of cracking or
bending. If cracks are discovered, discontinue use
immediately.
Check the drivetrain and spin the wheels to make sure
components are operating correctly. If you discover
damage to your components, discontinue use immediately.
Even if you don’t nd any damage, pay careful attention to the sound of your bike when you continue riding. Unusual noises can be caused by cracks or other
problems. A well-maintained bike will be quiet and
free of creaks or squeaks. Investigate and locate the
source of any new noises.
2) Bring your bike to your Orbea dealer for professional inspection. Some damage can only be de-
tected by disassembling the bike to check for cracks
or other signs of stress.
A crash or impact can put extraordinary stress
on your bike and components, causing them
to fail or to fatigue prematurely. Failure can
happen suddenly with no warning, causing loss
of control, serious injury or death.
Page 21
WILD HT TECHNICAL SPECIFICATIONS
20
ORBEA WARRANTY
HOW DO I ACTIVATE MY
LIFETIME WARRANTY?
Orbea provides a lifetime warranty on all its frames.
Only a brand that knows the materials, masters the
technologies and has the skills can guarantee that
your frame is totally invincible. Only Orbea takes you
a step beyond.
Orbea’s lifetime warranty is activated using the regis-
tration number you will nd on all frames from the
2009 range onwards. When you have activated it at
your dealer or at www.orbea.com, your bike will automatically receive its lifetime warranty. The registration
number is a unique, non-transferable code that you
will nd on the underside of your bike’s downtube.
Activate your frame’s warranty using this number at
your dealer’s or at www.orbea.com.
WHAT ARE THE ADVANTAGES?
· Lifetime guarantee of your frame against breakage.
· Two-year guarantee on all components.
· Identication of your bicycle and all its characteristics to our Technical Assistance Service so that wecan
provide our best response to any problems. Access to
special offers, events and prize drawings.
ORBEA WARRANTY
The ongoing efforts we make at Orbea to design highend bicycles enable us to provide customerswith the
following warranty:
1) We back each frame and rigid fork in our bicycles
with a lifetime warranty against materials and manufacturing defects. Frames with travel longer than 170
mm are covered by a 2-year warranty. We warrant
each frame and fork in our bikes against paint or varnish defects and corrosion for 3 years. This warranty
covers the original purchaser only and is non-transferable. For the lifetime warranty to be valid,customers
must ll in t he online warranty form within one month of purchase, and proof of purchase in the form of
cash register receipt or sales ticket is required.
2) Warranty claims are subject to the decision made
by our technical staff about the nature of the defect
after thorough inspection of the faulty part.
3) All the parts assembled in our bicycles are protected against assembly or manufacturing defects for 2
years, and repairs qualifying under this warranty will
be performed by authorized dealers in each country.
4) This warranty does not cover parts that naturally
wear over time, such as tires, brake pads, handlebar
grips, cranksets, bearings, etc.
5) This warranty does not cover damages or defects
caused by negligence, improper use, assembly ofparts
or accessories that are not original, or defective repair
or maintenance work. of the bicycle, nonoriginal ac-
cessories being tted to it, or unsuitable maintenance
operations or handling.
6) This warranty includes only replacement or repair
coverage of the parts under it and in no case shall it
cover personal damages directly or indirectly caused
by the failure of said parts during use.
7) All claims must be reported to an authorized dealer.
In case there is no such a dealer near the buyer’s location, please contact Orbea so that we can decide
how to solve the problem.
8) In case of crashes, the Orbea warranty shall be considered null and void.
Page 22
WILD HT TECHNICAL SPECIFICATIONS
21
ADDITIONAL INFORMATION
ORBEA participates actively on facebook and Twitter
with our fantastic global community of riders.
Looking to nd spots to ride or plan a vacation?
Someone will have the answers:
YOUR ORBEA DEALER
Our dealers are experts and should be able to assist
you with setting up and maintaining your Orbea bicycle. A complete listing of Orbea dealers and distributors
can be located on our website:
www.orbea.com/us-en/dealers/?country=INT
AFTER SALES SERVICE
Our service technicians are trained to handle any
questions you might have about your Orbea bicycle:
ORBEA CONTENT
View and download photos, videos and
documents.
content.orbea.com/us-en/
ORBEA UNIVERSITY
www.orbea.com/es-es/university/
BLOG ORBEA
www.orbea.com/es-es/blog/
FACEBOOK
INSTAGRAM
YOUTUBE
TWITTER
www.facebook.com/OrbeaBicycles
www.twitter.com/Orbea/
www.instagram.com/orbeabicycles
Visit our Orbea Channel on You Tube for a
variety of helpful setup and tech videos:
www.youtube.com/user/OrbeaBicycles
Page 23
Loading...
