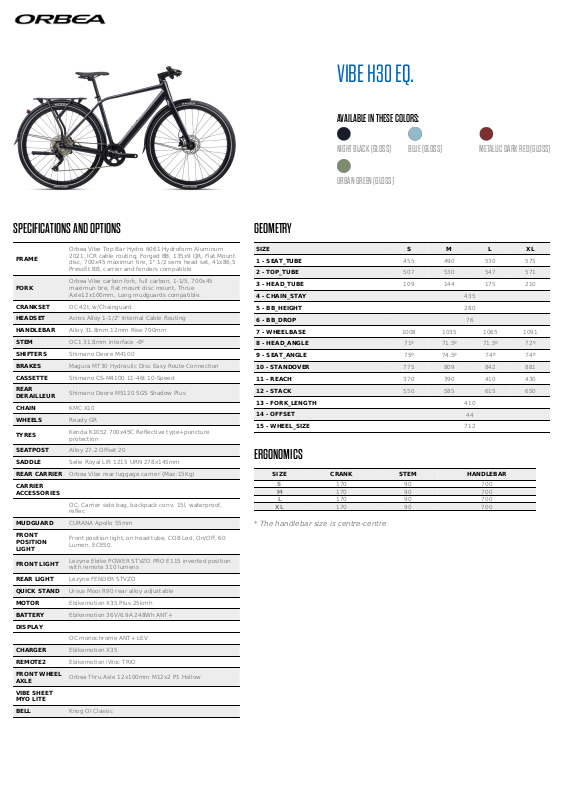

VIBE H30 EQ.
AVAILABLE IN THESE COLORS:
NIGHT BLACK (GLOSS) BLUE (GLOSS) METALLIC DARK RED (GLOSS)
URBAN GREEN (GLOSS)
SPECIFICATIONS AND OPTIONS
Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum
FRAME
FORK
CRANKSET OC 42t, w/Chainguard
HEADSET Acros Alloy 1-1/2" Internal Cable Routing
HANDLEBAR Alloy 31.8mm 12mm Rise 700mm
STEM OC1 31.8mm interface -6º
SHIFTERS Shimano Deore M4100
BRAKES Magura MT30 Hydraulic Disc Easy Route Connection
CASSETTE Shimano CS-M4100 11-46t 10-Speed
REAR
DERAILLEUR
CHAIN KMC X10
WHEELS Ready GR
TYRES
SEATPOST Alloy 27.2 Offset 20
SADDLE Selle Royal Lift 1215 URN 278x145mm
REAR CARRIER Orbea Vibe rear luggage carrier (Max:15Kg)
CARRIER
ACCESSORIES
MUDGUARD CURANA Apollo 55mm
FRONT
POSITION
LIGHT
FRONT LIGHT
REAR LIGHT Lezyne FENDER STVZO
QUICK STAND Ursus Mooi R90 rear alloy adjustable
MOTOR Ebikemotion X35 Plus 25kmh
BATTERY Ebikemotion 36V/6.9A 248Wh ANT+
DISPLAY
OC monochrome ANT+ LEV
CHARGER Ebikemotion X35
REMOTE2 Ebikemotion iWoc TRIO
FRONT WHEEL
AXLE
VIBE SHEET
MYO LITE
BELL Knog OI Classic
2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount
disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5
Pressfit BB, carrier and fenders compatible
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45
maximun tire, flat mount disc mount, Thrue
Axle12x100mm, Long mudguards compatible.
Shimano Deore M5120 SGS Shadow Plus
Kenda K1052 700x45C Reflective type+puncture
protection
OC, Carrier side bag, backpack conv. 15l, waterproof,
reflec
Front position light, on head tube, COB Led, On/Off, 60
Lumen, ECE50.
Lezyne Ebike POWER STVZO PRO E115 inverted position
with remote 310 lumens
Orbea Thru Axle 12x100mm M12x2 P1 Hollow
GEOMETRY
SIZE S M L XL
1 - SEAT_TUBE 455 490 530 575
2 - TOP_TUBE 507 530 547 571
3 - HEAD_TUBE 109
4 - CHAIN_STAY
5 - BB_HEIGHT
6 - BB_DROP
7 - WHEELBASE 1008 1035 1065 1091
8 - HEAD_ANGLE 71º 71.5º 71.5º 72º
9 - SEAT_ANGLE 75º 74.5º 74º 74º
10 - STANDOVER 775 809 842 881
11 - REACH 370 390 410 430
12 - STACK 550
13 - FORK_LENGTH
14 - OFFSET
15 - WHEEL_SIZE 712
144 175 210
435
280
76
585 615 650
410
44
ERGONOMICS
SIZE CRANK STEM HANDLEBAR
S 170 90 700
M 170 90 700
L 170 90 700
XL 170 90 700
* The handlebar size is centre-centre
