ORANGEBOX Eva User Instructions

user instructions

Seat Height

When sat in the chair, pull the right hand control
lever up and either press your weight down or
slightly lift up from the seat to adjust the height.
Release the control to lock the seat at the
desired height.

To help keep your pelvis upright and your spine
aligned in a natural ‘S’ shape, thigh to torso angle
should be 90° or slightly more.

When sat in the chair, pull the left hand control
lever up and slide the seat forwards or backwards
into the desired position. Release the control to
lock the seat at the required depth.

To ensure adequate thigh support without
obstructing leg movement, up to three fingers gap
should be left between the front of the seat and the
back of your knees.

Seat Depth

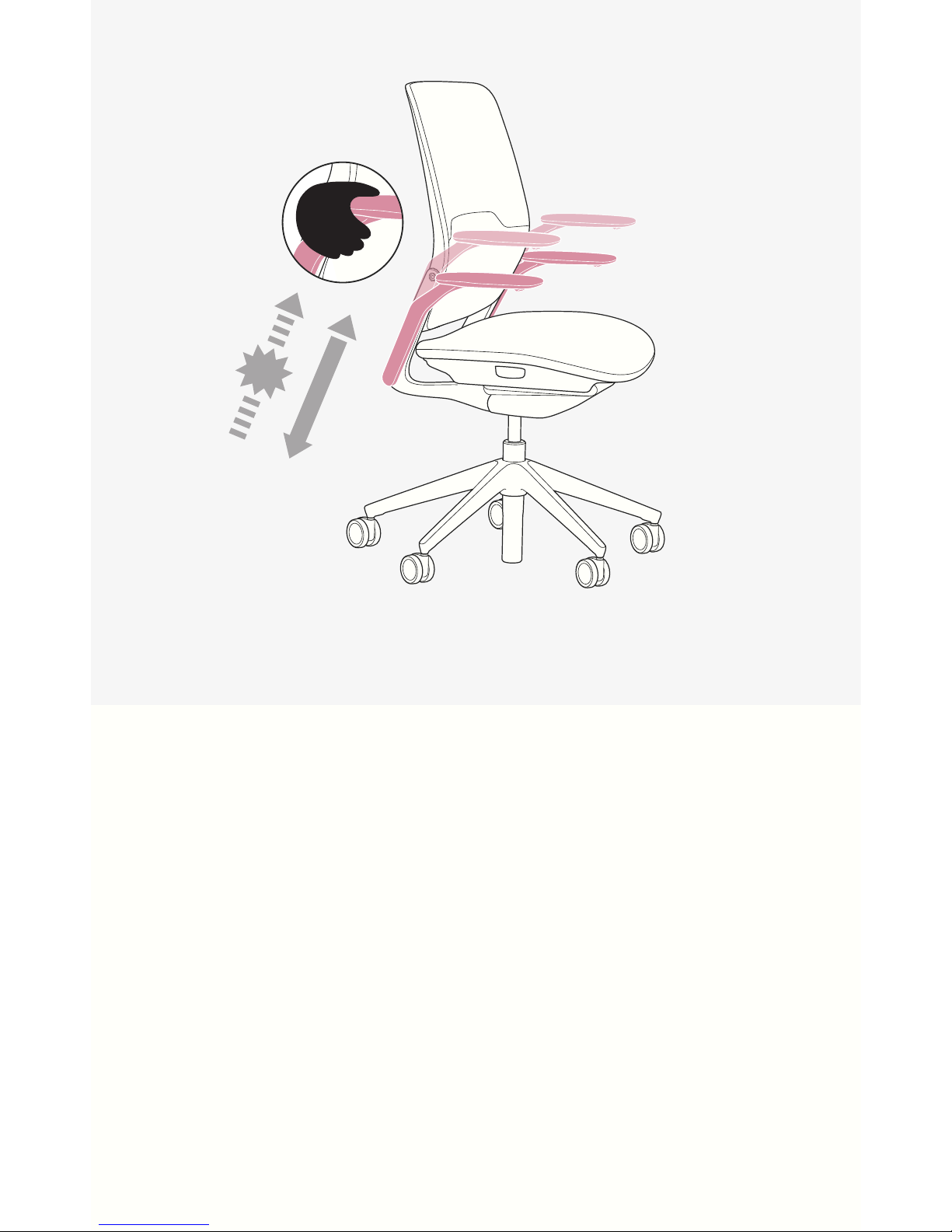

To adjust the armrests, take hold of the aluminium
arm stem and lift upwards: the armrest will
incrementally ‘click’ through eight positions until
it reaches the top. Lifting further will allow it to
travel freely to the base position once again.

To avoid strain in the back of the neck and upper
limbs, the armrests should touch your forearms
when your shoulders and elbows are relaxed at
your side.

Armrest Height

click

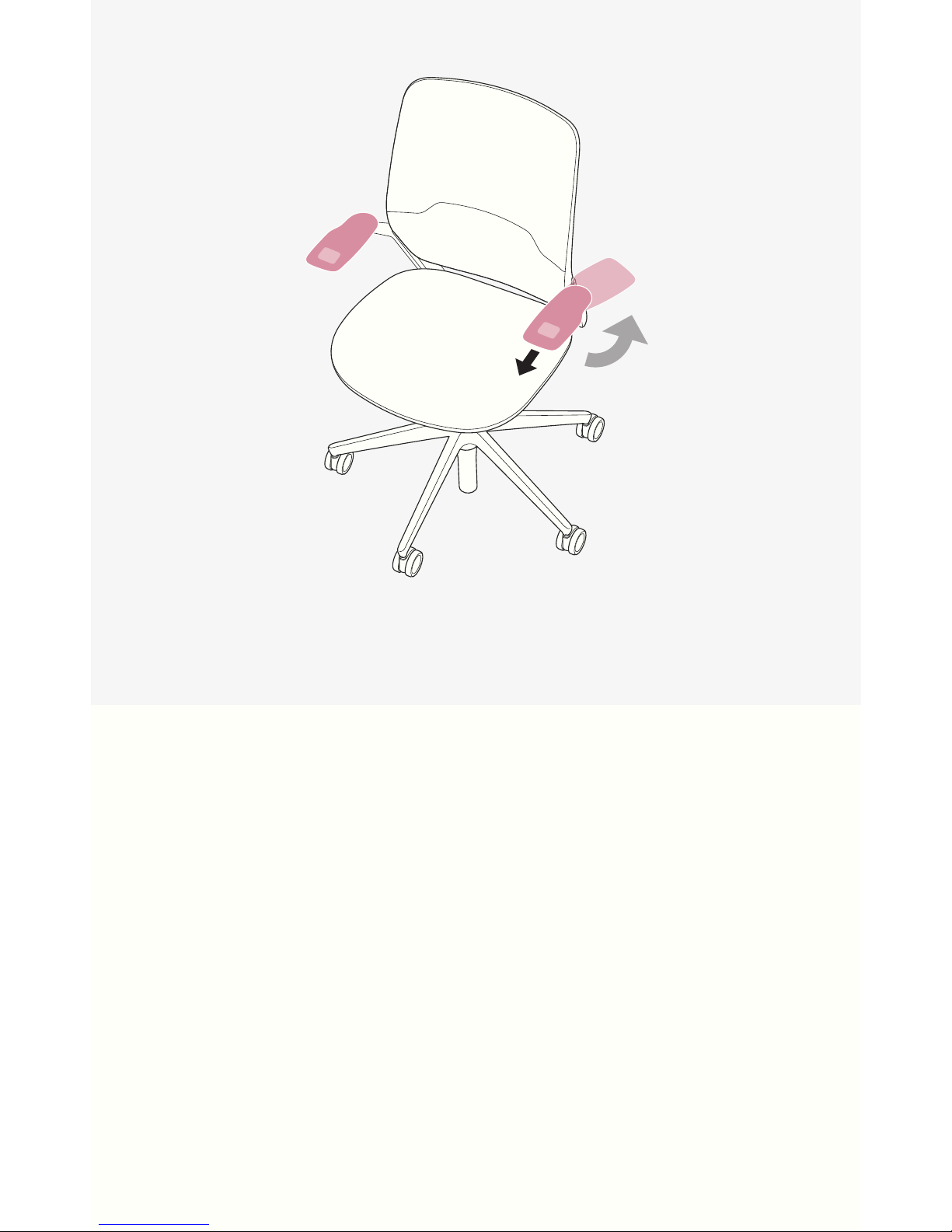

The armpads can be rotated inwards 20° or fully
outwards until they are out of the way: simply
locate the control under the front of the armpad
and pull it forward, while at the same time rotating
the armpad to the desired position. For safety, the
armpads will automatically lock when returned to
the forward position.

This feature allows you to draw the armrests in to
reflect the natural inward angle of your forearms
when typing, or alternatively to park the armrests out
of the way if space at the workstation is restrictive.

Armpad Rotation

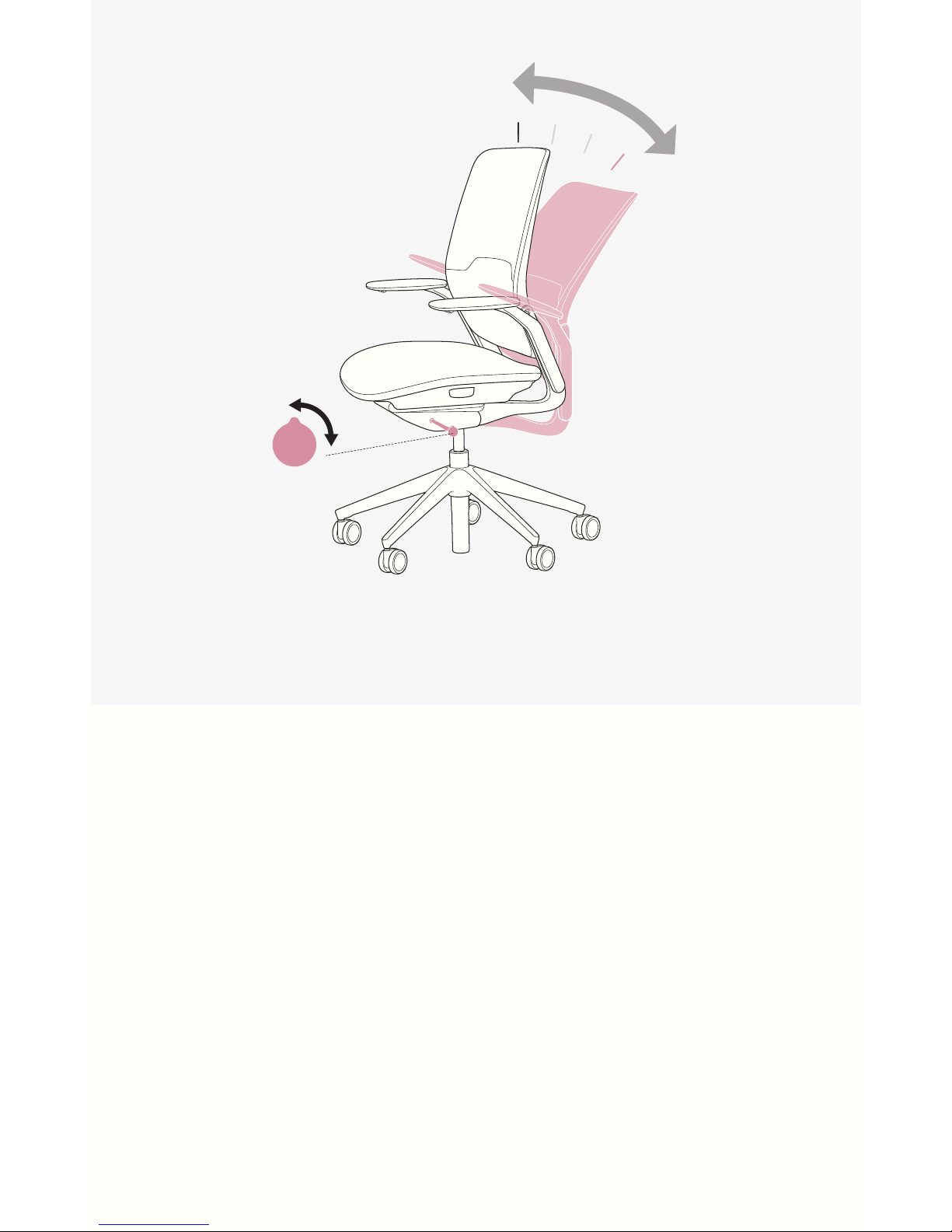

When sat in the chair, rotate the polished control
stalk on the left-hand side fully upright to lock the
chair in the upright position. Rotate the control
stalk backwards through three ‘click’ positions to
adjust the chair’s recline movement to one of three
limited angles.

Keeping the chair unlocked most of the time will
allow you to make full use of the chair movement,
improving blood circulation.

Travel Limiter (Optional)

locked

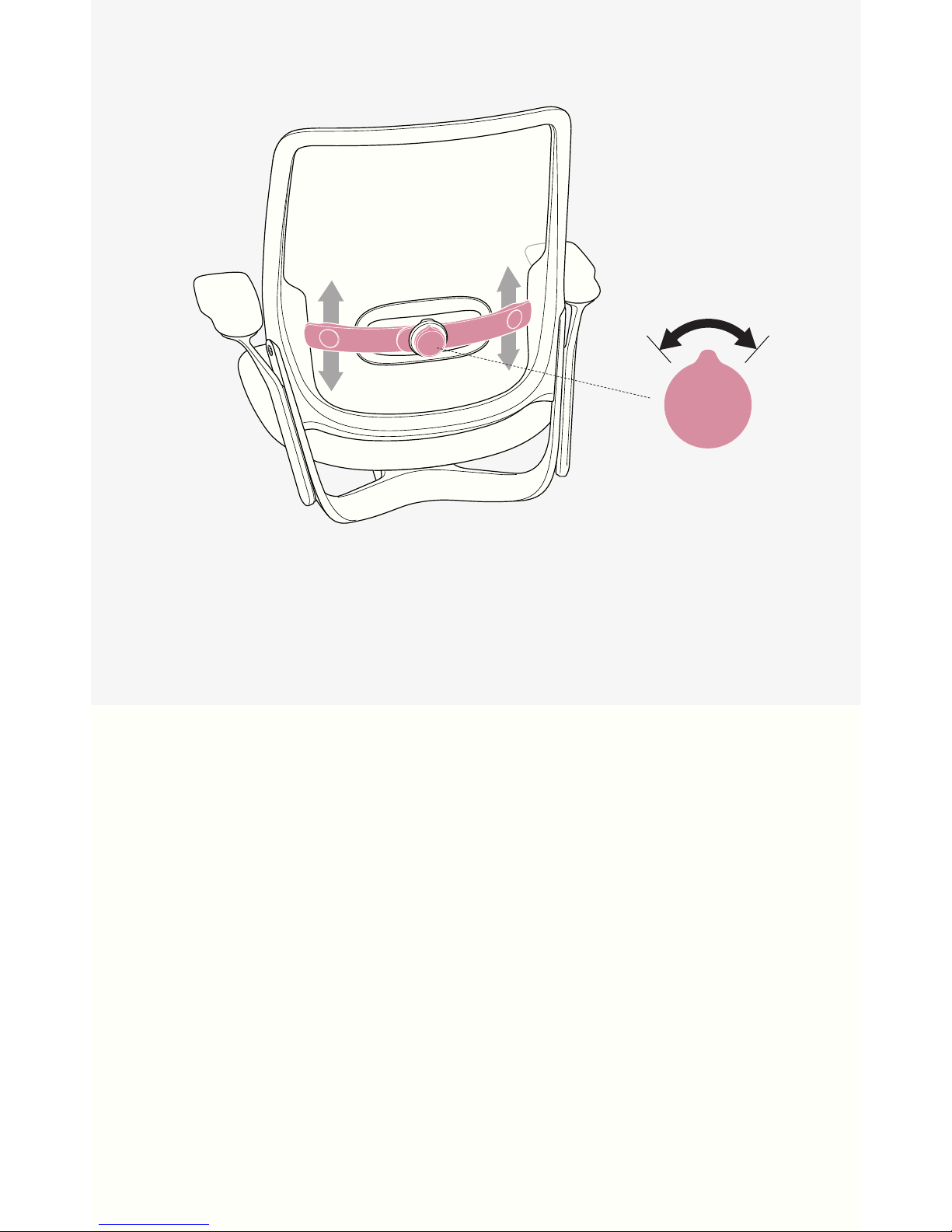

Reach around the back of the chair and grip the
lumbar strap: slide up or down to adjust the height.

Rotate the central dial to fine-tune the depth.

To help maintain the natural ‘S’ shape of the
spine, the lumbar pad should support the small
of your back.

Adjustable Lumbar (Optional)
