Oracle Transparent Gateway User Guide

Oracle® Transparent Gateway for DRDA
Installation and User’s Guide
10g Release 2 (10.2) for Microsoft Windows
B16218-02
December 2005
Oracle Transparent Gateway for DRDA Installation and User's Guide, 10g Release 2 (10.2) for Microsoft Windows
B16218-02
Primary Author: Maitreyee Chaliha
Contributing Author: Peter A Castro
The Programs (which include both the software and documentation) contain proprietary information; they are provided under a license agreement containing restrictions on use and disclosure and are also protected by copyright, patent, and other intellectual and industrial property laws. Reverse engineering, disassembly, or decompilation of the Programs, except to the extent required to obtain interoperability with other independently created software or as specified by law, is prohibited.
The information contained in this document is subject to change without notice. If you find any problems in the documentation, please report them to us in writing. This document is not warranted to be error-free. Except as may be expressly permitted in your license agreement for these Programs, no part of these Programs may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose.
If the Programs are delivered to the United States Government or anyone licensing or using the Programs on behalf of the United States Government, the following notice is applicable:
U.S. GOVERNMENT RIGHTS Programs, software, databases, and related documentation and technical data delivered to U.S. Government customers are "commercial computer software" or "commercial technical data" pursuant to the applicable Federal Acquisition Regulation and agency-specific supplemental regulations. As such, use, duplication, disclosure, modification, and adaptation of the Programs, including documentation and technical data, shall be subject to the licensing restrictions set forth in the applicable Oracle license agreement, and, to the extent applicable, the additional rights set forth in FAR 52.227-19, Commercial Computer Software--Restricted Rights (June 1987). Oracle Corporation, 500 Oracle Parkway, Redwood City, CA 94065
The Programs are not intended for use in any nuclear, aviation, mass transit, medical, or other inherently dangerous applications. It shall be the licensee's responsibility to take all appropriate fail-safe, backup, redundancy and other measures to ensure the safe use of such applications if the Programs are used for such purposes, and we disclaim liability for any damages caused by such use of the Programs.
Oracle, JD Edwards, PeopleSoft, and Retek are registered trademarks of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners.
The Programs may provide links to Web sites and access to content, products, and services from third parties. Oracle is not responsible for the availability of, or any content provided on, third-party Web sites. You bear all risks associated with the use of such content. If you choose to purchase any products or services from a third party, the relationship is directly between you and the third party. Oracle is not responsible for: (a) the quality of third-party products or services; or (b) fulfilling any of the terms of the agreement with the third party, including delivery of products or services and warranty obligations related to purchased products or services. Oracle is not responsible for any loss or damage of any sort that you may incur from dealing with any third party.

Contents

Preface ............................................................................................................................................................... xv
Audience..................................................................................................................................................... xv
Documentation Accessibility................................................................................................................... xv
Related Documents ................................................................................................................................... xvi
Conventions ............................................................................................................................................... xvi
SQL*Plus Prompts.................................................................................................................................... xvii
DOS Prompts ............................................................................................................................................ xvii
Storage Measurements ............................................................................................................................ xvii
Directory Names....................................................................................................................................... xvii
1 Introduction
1.1 Introduction to the Oracle Transparent Gateway.................................................................. 1-1
1.1.1 Protection of Current Investment...................................................................................... 1-2
1.2 Release 10g Gateways................................................................................................................. 1-2
1.2.1 Advantages of the Gateway............................................................................................... 1-2
1.3 Gateway Capabilities.................................................................................................................. 1-2
1.3.1 Transparency at All Levels................................................................................................. 1-3
1.3.2 Extended Database Services............................................................................................... 1-3
1.3.3 Extended Advanced Networking, Internet and Intranet Support ............................... 1-4
1.3.4 Dynamic Dictionary Mapping ...................................................................................... 1-4
1.3.5 SQL......................................................................................................................................... 1-5
1.3.6 Data Definition Language ................................................................................................ 1-5
1.3.7 Data Control Language ..................................................................................................... 1-5
1.3.8 Passthrough and Native DB2 SQL ................................................................................... 1-5
1.3.9 Stored Procedures ............................................................................................................... 1-5
1.3.9.1 Oracle Stored Procedures............................................................................................ 1-5
1.3.9.2 Native DB2 Stored Procedures .................................................................................. 1-5
1.3.10 Languages ............................................................................................................................ 1-5
1.3.11 Oracle Database Server Technology and Tools .............................................................. 1-6
1.3.12 SQL*Plus ............................................................................................................................. 1-6
1.3.13 Two-Phase Commit and Multisite Transactions............................................................. 1-6
1.3.14 Site Autonomy .................................................................................................................. 1-6
iii
1.3.15 Migration and Coexistence................................................................................................. 1-6
1.3.16 Security.................................................................................................................................. 1-6
1.4 Terms ............................................................................................................................................ 1-7
1.5 Architecture .............................................................................................................................. 1-7
1.6 Implementation........................................................................................................................... 1-8
1.7 How the Gateway Works........................................................................................................... 1-9
1.7.1 SQL Differences.................................................................................................................... 1-9
1.8 Oracle Tools and the Gateway.................................................................................................. 1-9
1.8.1 SQL*Plus ............................................................................................................................ 1-10
1.9 Features ................................................................................................................................. 1-10
1.9.1 Heterogeneous Services Architecture ........................................................................ 1-10
1.9.2 Performance Enhancements ........................................................................................ 1-10
1.9.3 Fetch Reblocking ........................................................................................................... 1-10
1.9.4 Oracle Database 10g Passthrough Supported............................................................... 1-10
1.9.5 Retrieving Result Sets Through Passthrough ......................................................... 1-10
1.9.6 Support for TCP/IP ........................................................................................................ 1-11
1.9.7 Native Semantics .......................................................................................................... 1-11
1.9.8 Columns Supported in a Result Set ............................................................................... 1-11
1.9.9 EXPLAIN_PLAN Improvement ............................................................................... 1-11
1.9.10 Heterogeneous Database Integration ........................................................................ 1-11
1.9.11 Minimum Impact on Existing Systems.......................................................................... 1-11
1.9.12 Large Base of Data Access ............................................................................................. 1-11
1.9.13 Application Portability .................................................................................................. 1-11
1.9.14 Remote Data Access ................................................................................................... 1-11
1.9.15 Support for Distributed Applications ........................................................................ 1-12
1.9.16 Application Development and End User Tools ........................................................... 1-12
1.9.17 Password Encryption Utility........................................................................................... 1-13
1.9.18 Support for DB2/OS390 V6, V7, and V8 Stored Procedures...................................... 1-13
1.9.19 Codepage Map Facility.................................................................................................... 1-13
1.9.20 IBM DB2 Universal Database Support .......................................................................... 1-13
1.9.21 IBM DB2 Version 5.1 ASCII Tables ............................................................................... 1-13
1.9.22 Read-Only Support .......................................................................................................... 1-13
1.9.23 Support for Graphic and Multibyte Data...................................................................... 1-13
1.9.24 Support for DB2/UDB on Intel Hardware ................................................................... 1-13
1.9.25 Data Dictionary Support for DB2/UDB........................................................................ 1-13
2 Release Information
2.1 Product Set................................................................................................................................... 2-1
2.2 Changes and Enhancements ..................................................................................................... 2-1
2.3 Bugs Fixed in 10g Release 2 (10.2) ............................................................................................ 2-1
2.4 Known Problems......................................................................................................................... 2-3
2.5 Known Restrictions..................................................................................................................... 2-3
2.5.1 DB2 Considerations............................................................................................................. 2-3
2.5.2 SQL Limitations ................................................................................................................... 2-5
3 System Requirements
3.1 Hardware Requirements............................................................................................................ 3-1
iv
3.1.1 Processor ............................................................................................................................... 3-1
3.1.2 Memory................................................................................................................................. 3-1
3.1.3 Network Attachment .......................................................................................................... 3-2
3.1.4 Disk Space............................................................................................................................. 3-2
3.2 Software Requirements ............................................................................................................. 3-2
3.2.1 Operating System ................................................................................................................ 3-2
3.2.2 DRDA Databases ................................................................................................................. 3-2
3.2.3 Communications.................................................................................................................. 3-3
3.2.4 Oracle Database server........................................................................................................ 3-3
3.2.5 Oracle Networking Products ............................................................................................. 3-3
3.3 Documentation Requirements .................................................................................................. 3-3
4 Installing the Gateway
4.1 Introduction................................................................................................................................. 4-1
4.2 Before You Begin......................................................................................................................... 4-1
4.3 Checklist for Gateway Installation ....................................................................................... 4-2
4.4 Installation Overview................................................................................................................. 4-2
4.5 Preinstallation.............................................................................................................................. 4-2
4.6 Installing the Gateway from the Installation Media.............................................................. 4-2
4.6.1 Step 1: Log on to the host .................................................................................................. 4-2
4.6.2 Step 2: Load the CD-ROM into the CD-ROM Drive...................................................... 4-2
4.6.3 Step 3: Start the Oracle Universal Installer on Microsoft Windows............................ 4-3
4.6.4 Step 4: Step through the Oracle Universal Installer....................................................... 4-3
4.6.5 Step 5: Verify Installation Success.................................................................................... 4-3
4.7 Installation Complete ................................................................................................................. 4-3
4.7.1 Removing the Gateway....................................................................................................... 4-4
5 Configuring the DRDA Server
5.1 Checklists for Configuring the DRDA Server......................................................................... 5-1
5.1.1 DB2/OS390........................................................................................................................... 5-1
5.1.2 DB2/400 ................................................................................................................................ 5-1
5.1.3 DB2/UDB (Universal Database)........................................................................................ 5-2
5.1.4 DB2/VM................................................................................................................................ 5-2
5.2 DB2/OS390 ........................................................................................................................... 5-2
5.2.1 Step 1: Configure the Communications Server .............................................................. 5-2
5.2.2 Step 2: Define the user ID that owns the package.......................................................... 5-2
5.2.3 Step 3: Define the recovery user ID.................................................................................. 5-3
5.2.4 Step 4: Determine DRDA location name for DB2 instance........................................... 5-3
5.2.5 Step 5: Configure DB2 Distributed Data Facility for Gateway .................................... 5-3
5.3 DB2/400 ...................................................................................................................................... 5-3
5.3.1 Step 1: Configure the Communications Server .............................................................. 5-3
5.3.2 Step 2: Define the user ID that owns the package.......................................................... 5-4
5.3.3 Step 3: Define the recovery user ID.................................................................................. 5-4
5.3.4 Step 4: Determine DRDA location name for DB2/400 instance .................................. 5-4
5.4 DB2/UDB (Universal Database) ............................................................................................. 5-4
5.4.1 Step 1: Configure the SNA Communications Server..................................................... 5-4
v
5.4.2 Step 2: Define the user ID that owns the package.......................................................... 5-5
5.4.3 Step 3: Define the recovery user ID.................................................................................. 5-5
5.4.4 Step 4: Determine DRDA location name for DB2/UDB instance................................ 5-5
5.5 DB2/VM ................................................................................................................................... 5-5
5.5.1 Step 1: Configure the Communications Server .............................................................. 5-6
5.5.2 Step 2: Define the user ID that owns the package.......................................................... 5-6
5.5.3 Step 3: Define the recovery user ID.................................................................................. 5-6
5.5.4 Step 4: Determine DRDA location name for DB2/VM instance.................................. 5-6
6 Configuring Microsoft SNA Server or Host Integration Server
6.1 Before You Begin......................................................................................................................... 6-1
6.2 Steps for Configuring the Communications Interfaces......................................................... 6-1
6.3 Creating SNA Server Profiles for the Gateway .................................................................. 6-2
6.3.1 Independent Versus Dependent LUs .............................................................................. 6-2
6.4 Creating SNA Definitions for the Gateway ......................................................................... 6-2

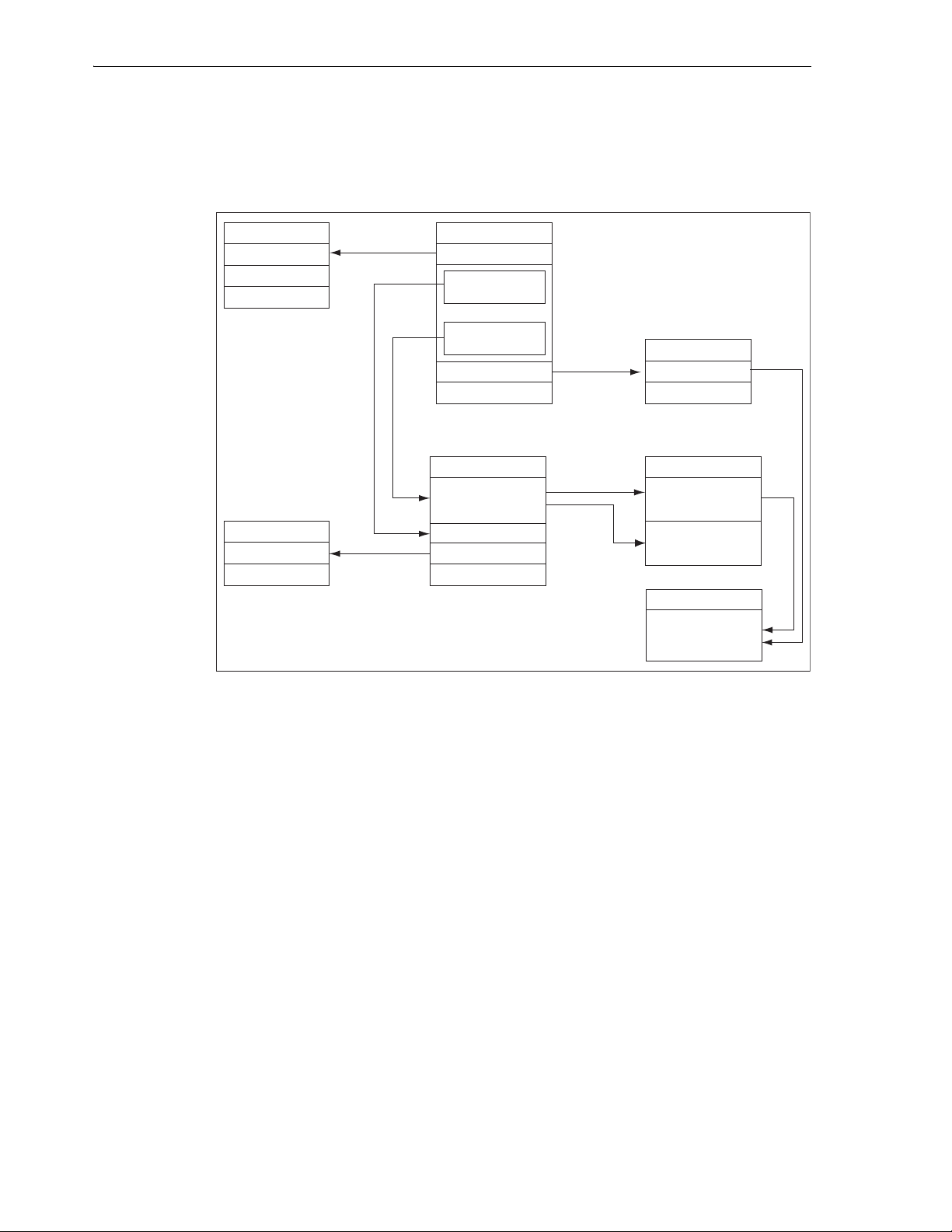

6.4.1 Sample SNA Server Definitions ........................................................................................ 6-2
6.4.2 Definition Types................................................................................................................... 6-3
6.4.3 SNA Server Definitions....................................................................................................... 6-3

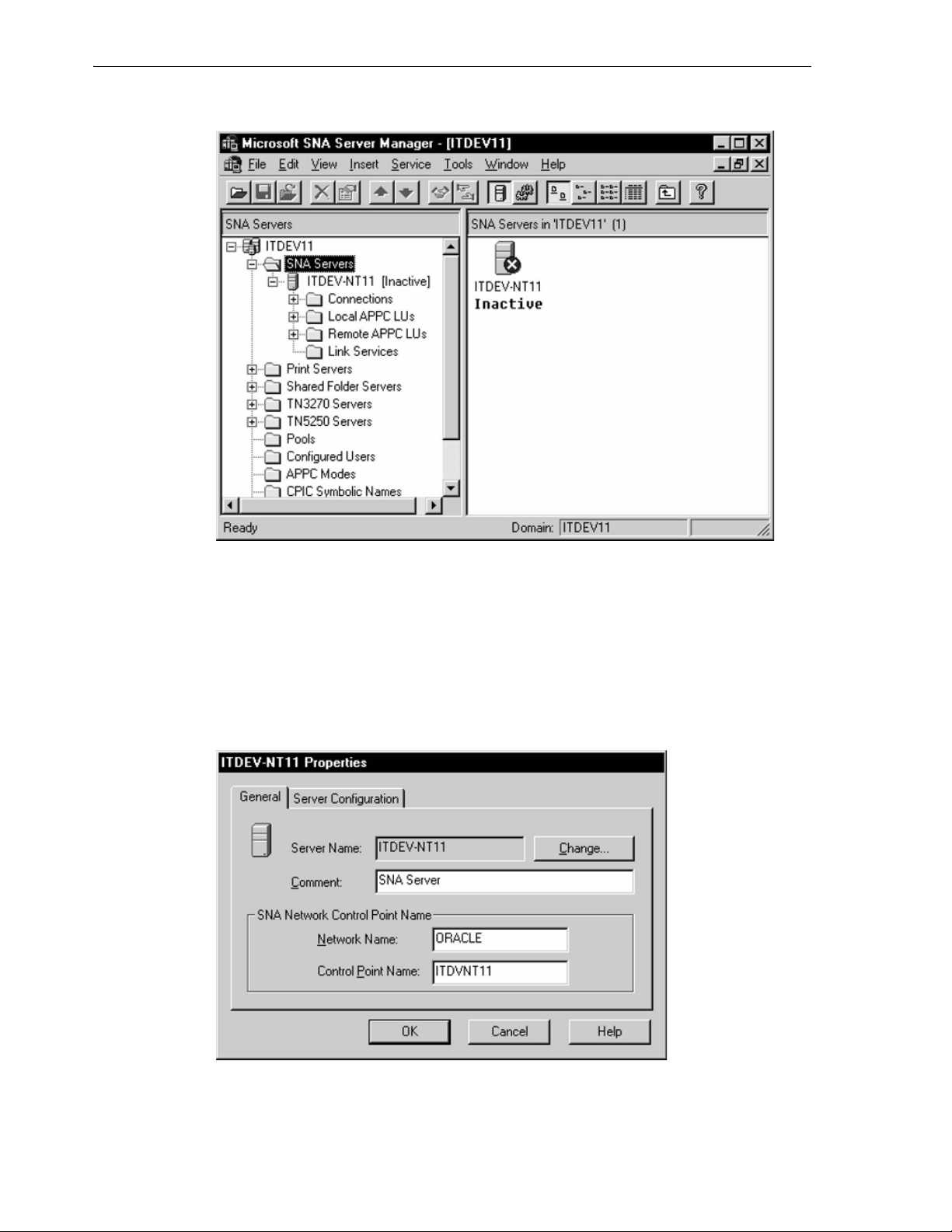

6.4.3.1 Server Selection ........................................................................................................... 6-4
6.4.3.2 Service Properties ......................................................................................................... 6-5
6.4.3.3 Link Service Definition .............................................................................................. 6-5

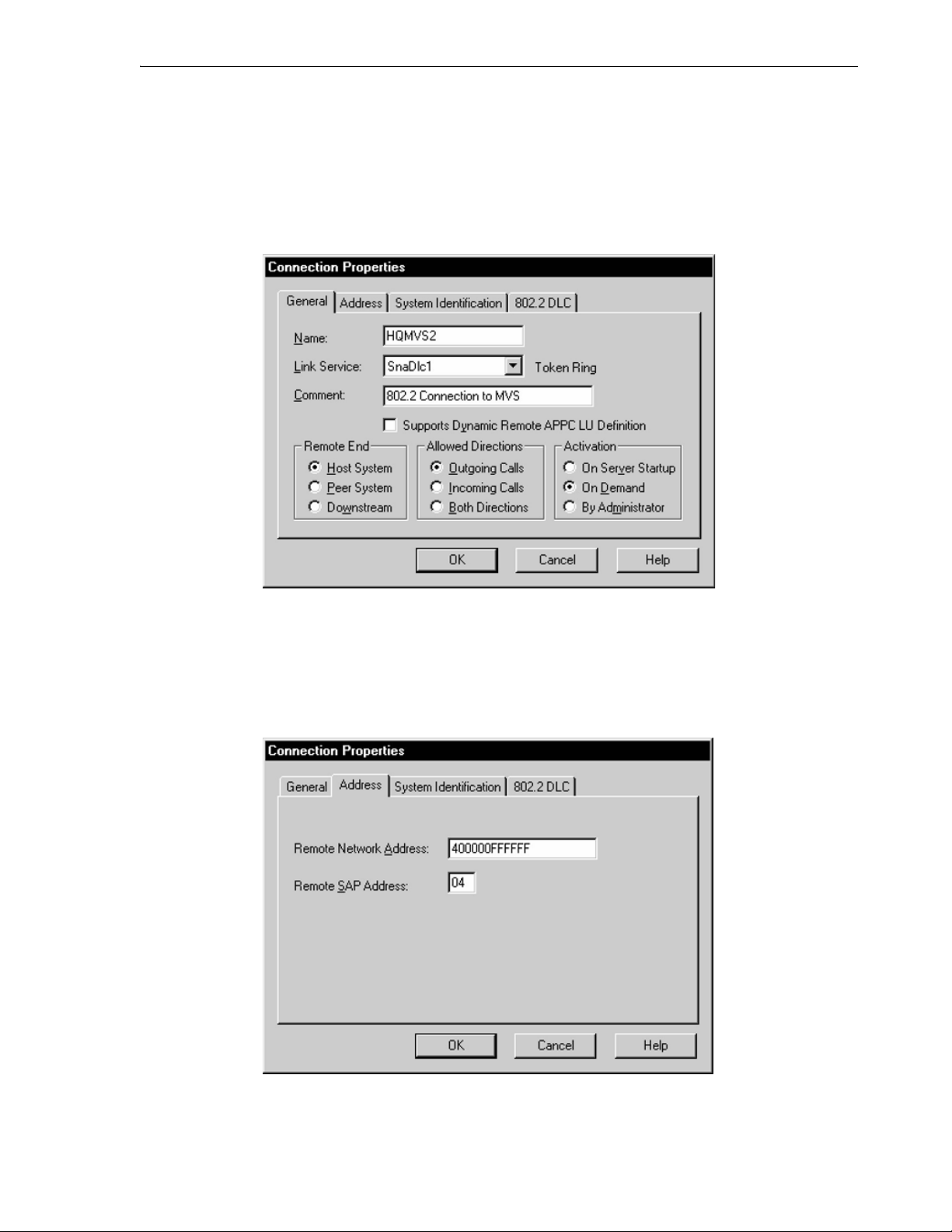

6.4.3.4 Connection Definition ................................................................................................ 6-7

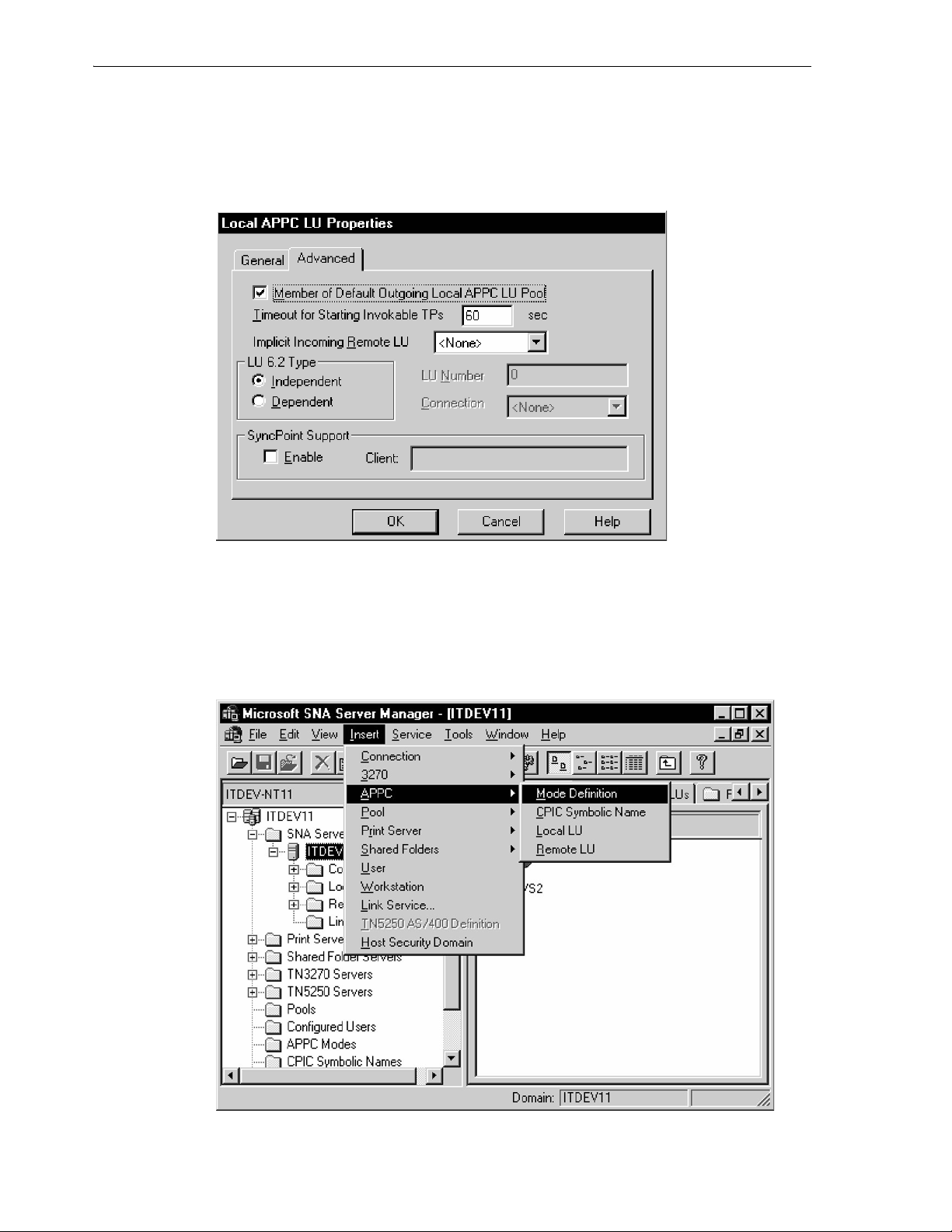

6.4.3.5 Local LU Definition ................................................................................................ 6-9

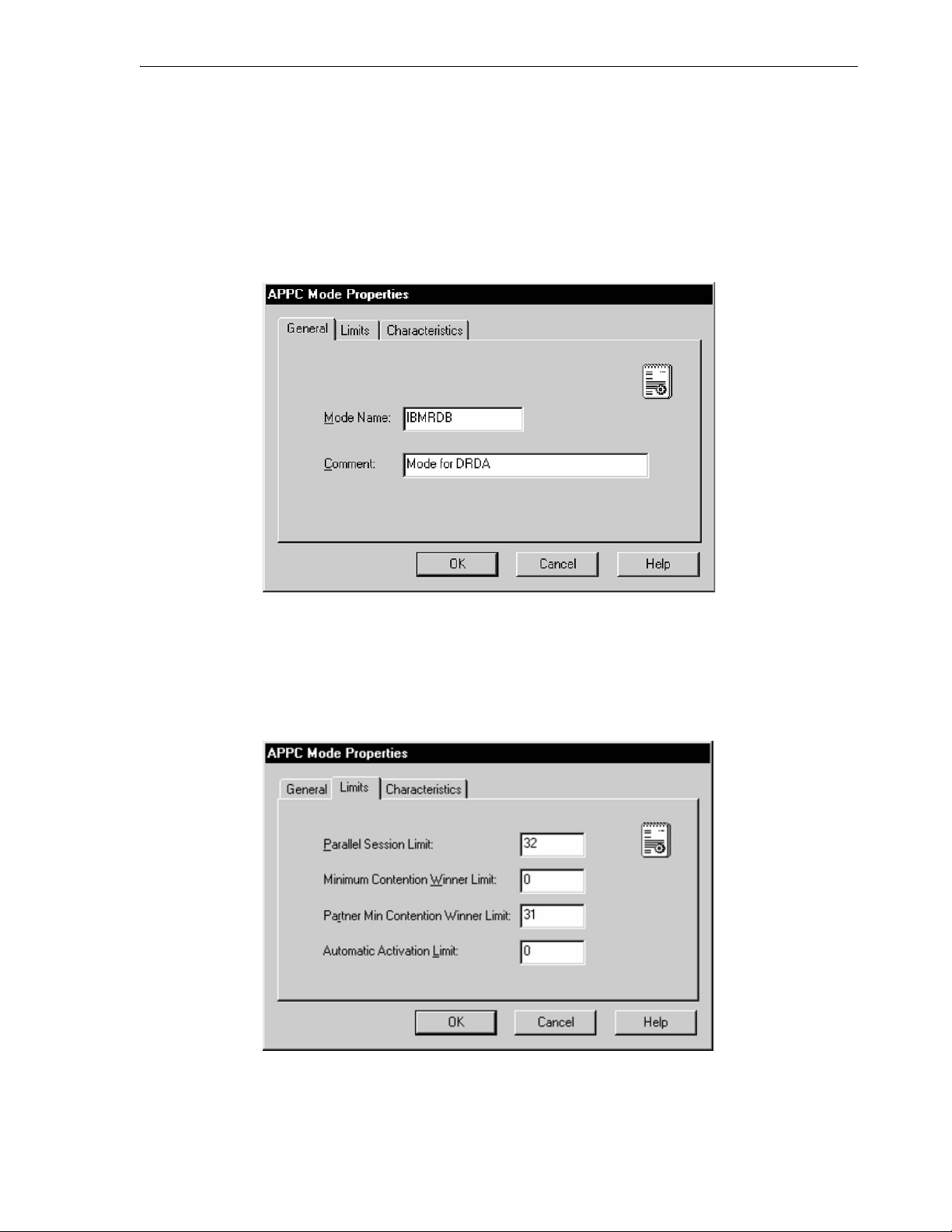

6.4.3.6 Mode Definition ................................................................................................... 6-11

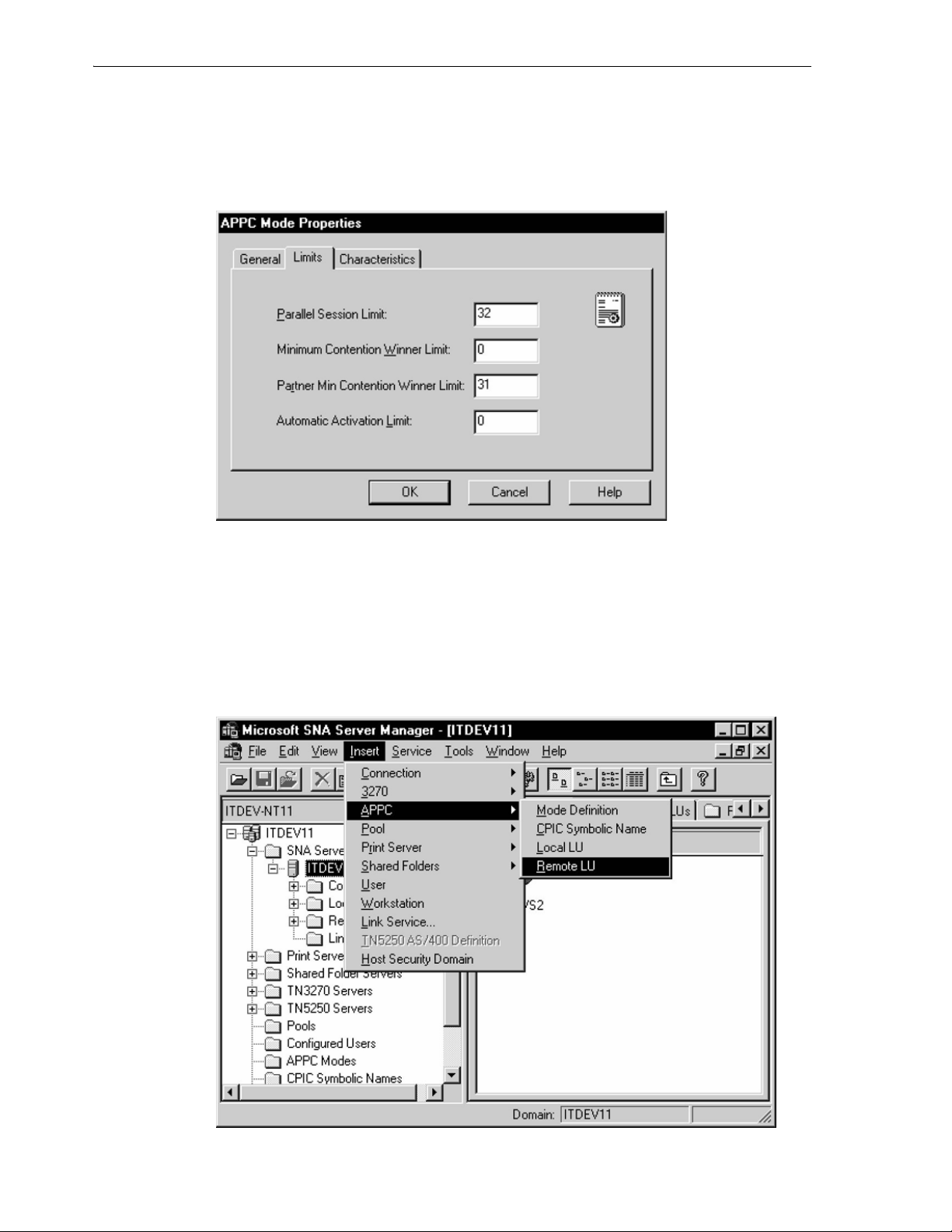

6.4.3.7 Remote LU Definition ......................................................................................... 6-13

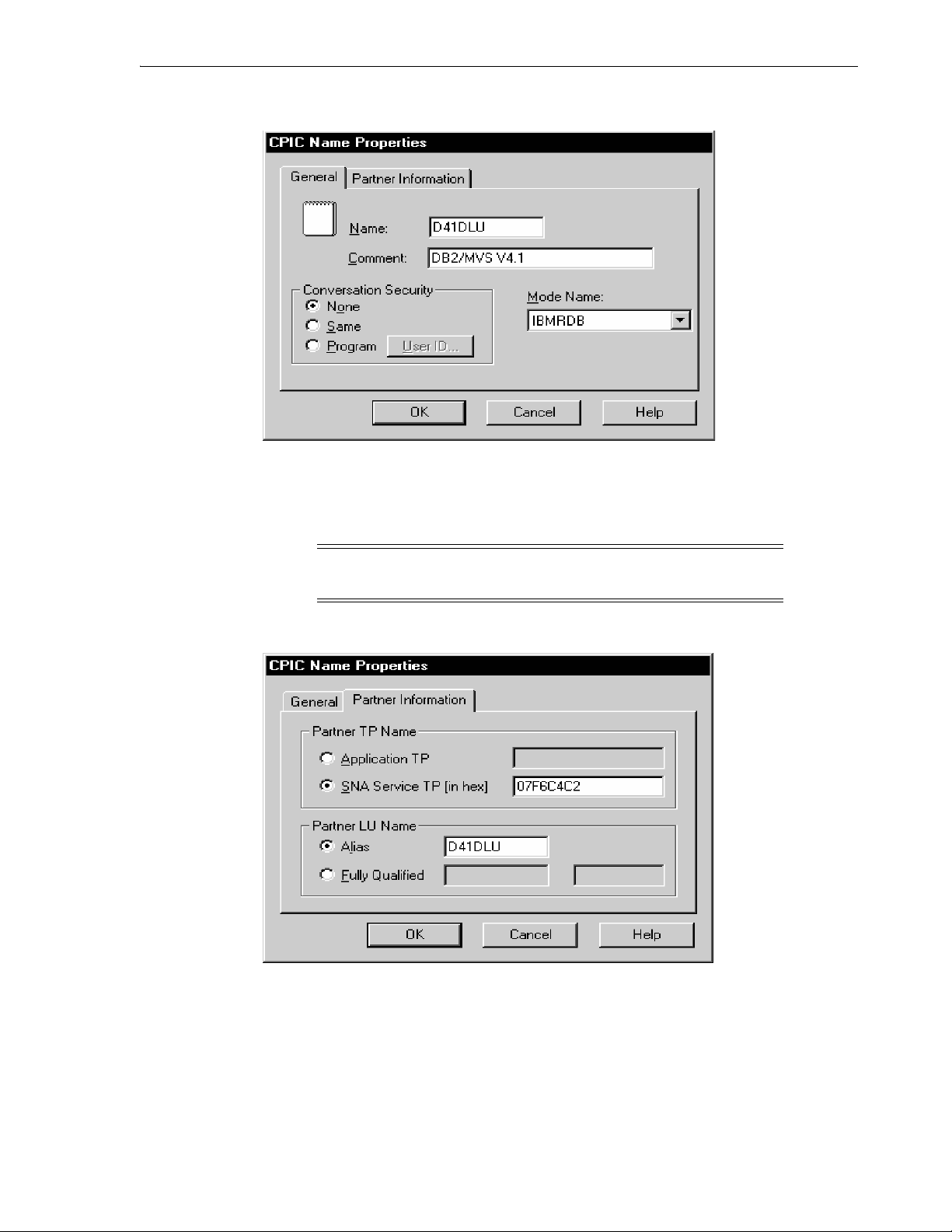

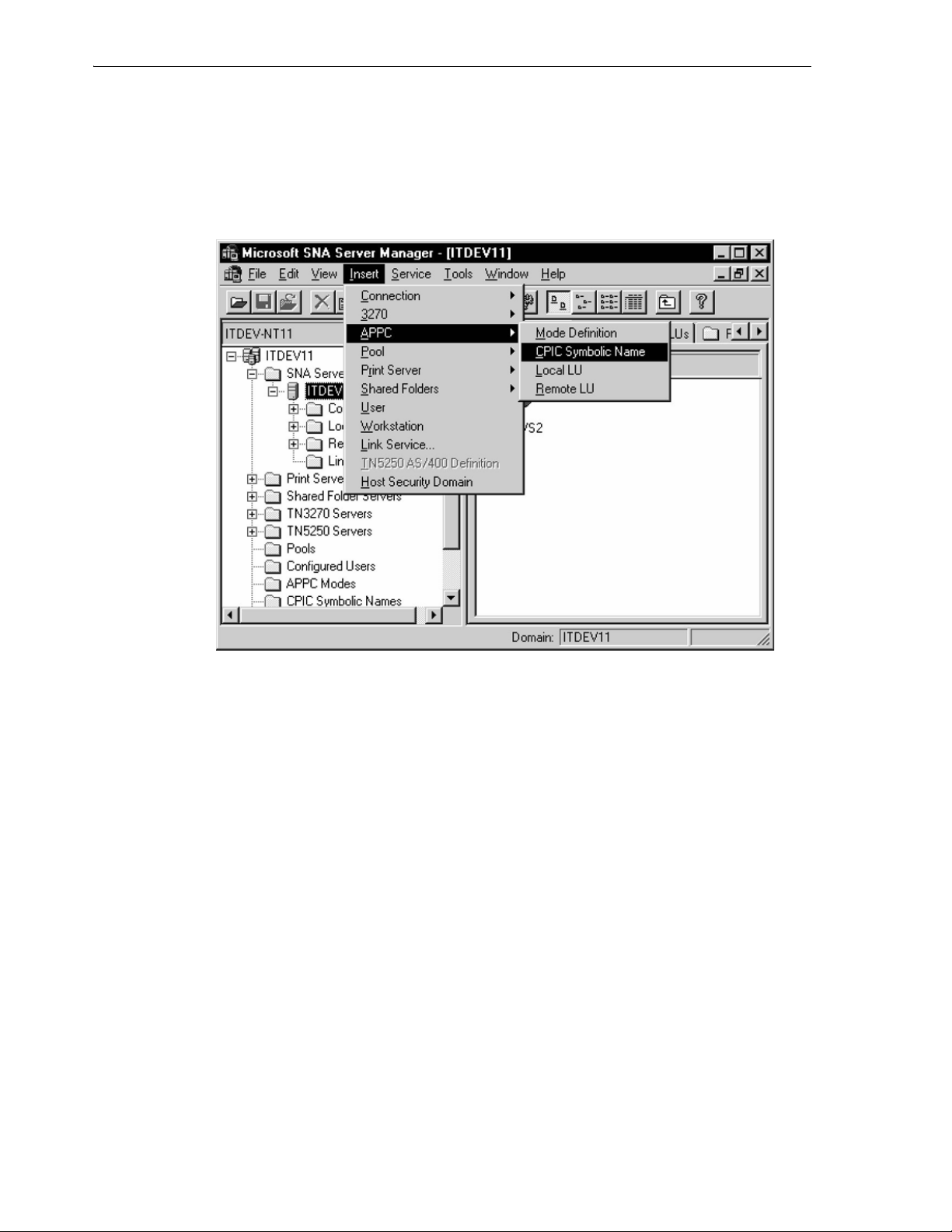

6.4.3.8 CPI-C Symbolic Destination Names ..................................................................... 6-14
6.5 Testing the Connection ......................................................................................................... 6-15
6.6 Using SNA Session Security Validation ........................................................................... 6-16
6.7 SNA Conversation Security.................................................................................................... 6-16
6.7.1 SNA Security Option SECURITY=PROGRAM............................................................ 6-17
6.7.2 SNA Security Option SECURITY=SAME ..................................................................... 6-17
7 Configuring IBM Communication Server
7.1 Before You Begin......................................................................................................................... 7-1
7.2 Checklist for Configuring the Communications Interfaces.................................................. 7-1
7.3 Creating IBM Communication Server Profiles for the Gateway ....................................... 7-1
7.3.1 Independent Versus Dependent LUs ......................................................................... 7-2
7.3.2 Creating SNA Definitions for the Gateway .................................................................. 7-2
7.3.2.1 Sample IBM Communication Server Definitions .................................................... 7-2
7.4 Definition Types.......................................................................................................................... 7-3
7.4.1 IBM Communication Server Definitions.......................................................................... 7-3
7.4.1.1 Creating the Configuration ...................................................................................... 7-3
7.4.1.2 Defining the Node........................................................................................................ 7-4
7.5 Testing the Connection ......................................................................................................... 7-17
7.6 Using SNA Session Security Validation ........................................................................... 7-18
7.7 SNA Conversation Security.................................................................................................... 7-18
7.7.1 SNA Security Option SECURITY=PROGRAM............................................................ 7-19
vi
7.7.2 SNA Security Option SECURITY=SAME ..................................................................... 7-19
8 Configuring TCP/IP
8.1 Before You Begin......................................................................................................................... 8-1
8.1.1 Port Number......................................................................................................................... 8-1
8.2 Configuring TCP/IP .................................................................................................................. 8-1
9 Oracle Net
9.1 Checklists for Oracle Net ........................................................................................................ 9-1
9.1.1 Configuring Oracle Net ...................................................................................................... 9-1
9.1.2 Advanced Security Encryption ......................................................................................... 9-1
9.1.2.1 Setting Up Advanced Security Encryption for Test ................................................ 9-1
9.1.2.2 Testing Advanced Security Encryptions................................................................... 9-1
9.2 Oracle Net and SQL*Net Introduction ................................................................................... 9-2
9.3 Oracle Net Overview ............................................................................................................... 9-2
9.3.1 Distributed Processing........................................................................................................ 9-2
9.3.2 Distributed Database........................................................................................................... 9-2
9.3.3 Terminology for Oracle Net............................................................................................... 9-2
9.4 Configuring Oracle Net ............................................................................................................. 9-3
9.4.1 Step 1: Modify the listener.ora file ................................................................................... 9-3
9.4.2 Step 2: Modify the tnsnames.ora file................................................................................ 9-3
9.5 Advanced Security Encryption................................................................................................. 9-4
9.6 Setting Up Advanced Security Encryption for Test............................................................... 9-4
9.6.1 Step 1: Set Advanced Security Encryption Parameters for the Gateway ................... 9-4
9.6.2 Step 2: Set Advanced Security Encryption Parameters................................................. 9-5
9.7 Testing Advanced Security Encryptions................................................................................. 9-5
9.7.1 Step 1: Connect the Gateway and Oracle the Integrating Server................................. 9-5
9.7.2 Step 2: Reset Configuration Parameters on the Gateway ............................................. 9-5
10 Configuring the Gateway
10.1 Configuration Checklist .................................................................................................... 10-1
10.2 Choosing a Gateway System Identifier (SID) ...................................................................... 10-2
10.2.1 Enter the SID on the Worksheet ..................................................................................... 10-3
10.3 Gateway Configuration........................................................................................................... 10-3
10.4 Configuring the Host............................................................................................................... 10-3
10.4.1 Step 1: Copy the gateway initialization ....................................................................... 10-3
10.4.2 Step 2: Determine settings for gateway initialization parameters............................ 10-3
10.4.2.1 Required Parameters................................................................................................. 10-4
10.4.2.2 Optional Parameters ................................................................................................. 10-4
10.4.3 Step 3: Tailor the initsid.ora File..................................................................................... 10-4
10.4.4 Binding the DRDA Gateway Package ........................................................................... 10-5
10.4.5 Binding Packages on DB2/Universal Database (DB2/UDB) ................................. 10-5
10.5 DRDA Gateway Package Considerations ............................................................................ 10-6
10.5.1 Before Binding the DRDA Gateway Package............................................................... 10-6
10.5.1.1 Step 1: Check all DRDA parameter settings......................................................... 10-6
10.5.1.2 Step 2: If using DB2/UDB, then create ORACLE2PC table ............................... 10-7
vii
10.5.2 Sample SQL scripts .......................................................................................................... 10-7
10.5.2.1 Step 1: Run Data Dictionary scripts ...................................................................... 10-7
10.5.2.2 Step 1a: Upgrading from a previous gateway version ...................................... 10-7
10.5.2.3 Step 1b: Creating the Data Dictionary tables and views .................................... 10-7
10.5.2.4 Step 2: DB2/UDB or other server........................................................................... 10-7
10.5.2.5 Step 2a: If server is DB2/UDB, then grant authority to package ..................... 10-8
10.5.2.6 Step 2b: If server is not DB2/UDB, then create the ORACLE2PC table .......... 10-8
10.6 Backup and Recovery of Gateway Configuration............................................................... 10-8
10.7 Configuring the Oracle Integrating Server ....................................................................... 10-8
10.7.1 Step 1: Create a database link......................................................................................... 10-8
10.7.2 Step 2: Create synonyms and views.............................................................................. 10-8
10.8 Accessing the Gateway from Other Oracle Servers .......................................................... 10-8
10.9 Accessing Other DRDA Servers ..................................................................................... 10-9
10.10 Gateway Installation and Configuration Complete............................................................ 10-9
11 Using the Gateway
11.1 Processing a Database Link.................................................................................................... 11-1
11.1.1 Creating Database Links ................................................................................................. 11-1
11.1.2 Guidelines for Database Links........................................................................................ 11-2
11.1.3 Dropping Database Links................................................................................................ 11-2
11.1.4 Examining Available Database Links............................................................................ 11-2
11.1.5 Limiting the Number of Active Database Links .......................................................... 11-2
11.2 Accessing the Gateway ........................................................................................................... 11-3
11.2.1 Step 1: Log in to the Oracle integrating server............................................................ 11-3
11.2.2 Step 2: Create a database link to the DRDA database................................................ 11-3
11.2.3 Step 3: Retrieve data from the DRDA database .......................................................... 11-3
11.3 Accessing AS/400 File Members........................................................................................... 11-3
11.4 Using the Synonym Feature................................................................................................... 11-3
11.5 Performing Distributed Queries............................................................................................ 11-4
11.5.1 Example of a Distributed Query..................................................................................... 11-4
11.5.2 Two-Phase Commit Processing .................................................................................... 11-5
11.5.3 Distributed DRDA Transactions .................................................................................... 11-5
11.6 Read-Only Gateway ................................................................................................................ 11-5
11.7 Replicating in a Heterogeneous Environment ................................................................. 11-6
11.7.1 Oracle Database 10g Server Triggers ............................................................................. 11-6
11.7.2 Oracle Snapshots ........................................................................................................... 11-6
11.8 Copying Data from the Oracle Server to the DRDA Server.............................................. 11-6
11.9 Copying Data from the DRDA Server to the Oracle Server .............................................. 11-6
11.10 Tracing SQL Statements ......................................................................................................... 11-7
12 Developing Applications
12.1 Gateway Appearance to Application Programs.................................................................. 12-1
12.1.1 Fetch Reblocking............................................................................................................... 12-2
12.2 Using Oracle Stored Procedures with the Gateway .......................................................... 12-2
12.3 Using DRDA Server Stored Procedures with the Gateway ........................................... 12-3
12.3.1 Oracle Application and DRDA Server Stored Procedure Completion .................... 12-4
12.3.2 Procedural Feature Considerations with DB2 ............................................................. 12-5
viii
12.4 Database Link Behavior .......................................................................................................... 12-5
12.5 Oracle Server SQL Construct Processing ............................................................................. 12-6
12.5.1 Compatible SQL Functions ............................................................................................. 12-6
12.5.2 Translated SQL Functions ............................................................................................... 12-6
12.5.3 Compensated SQL Functions.......................................................................................... 12-6
12.5.4 Native Semantic SQL Functions..................................................................................... 12-7
12.5.5 DB2/OS390 SQL Compatibility...................................................................................... 12-7
12.5.6 DB2/Universal Database SQL Compatibility............................................................... 12-9
12.5.7 DB2/400 SQL Compatibility......................................................................................... 12-12
12.5.8 DB2/VM SQL Compatibility ........................................................................................ 12-15
12.6 Native Semantics.................................................................................................................... 12-18
12.6.1 SQL Functions That Can Be Enabled........................................................................... 12-18
12.6.2 SQL Functions That Can Be Disabled.......................................................................... 12-19
12.6.3 SQL Set Operators and Clauses.................................................................................... 12-19
12.7 DRDA Data Type to Oracle Data Type Conversion......................................................... 12-20
12.7.1 Performing Character String Operations ................................................................ 12-21
12.7.2 Converting Character String data types ................................................................ 12-21
12.7.3 Performing Graphic String Operations ...................................................................... 12-21
12.7.4 Performing Date and Time Operations ................................................................... 12-22
12.7.4.1 Processing TIME and TIMESTAMP Data............................................................ 12-22
12.7.4.2 Processing DATE Data............................................................................................ 12-22
12.7.4.3 Performing Date Arithmetic .................................................................................. 12-23
12.7.5 Dates ............................................................................................................................... 12-23
12.7.6 HS_NLS_DATE_FORMAT Support ........................................................................ 12-24
12.7.7 Oracle TO_DATE Function ........................................................................................ 12-24
12.7.8 Performing Numeric Data Type Operations.............................................................. 12-25
12.7.9 Mapping the COUNT Function.................................................................................... 12-25
12.7.10 Performing Zoned Decimal Operations...................................................................... 12-25
12.8 Passing Native SQL Statements through the Gateway ................................................ 12-25
12.8.1 Processing DDL Statements through Passthrough.................................................... 12-26
12.8.2 Using the DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE Function .... 12-26
12.8.2.1 Examples................................................................................................................... 12-27
12.8.3 Retrieving Result Sets Through Passthrough............................................................. 12-27
12.8.3.1 Example .............................................................................................................. 12-27
12.9 Oracle Data Dictionary Emulation on a DRDA Server .................................................... 12-28
12.9.1 Using the Gateway Data Dictionary............................................................................ 12-28
12.9.2 Using the DRDA Catalog............................................................................................... 12-28
12.10 Defining the Number of DRDA Cursors............................................................................ 12-28
13 Security Considerations
13.1 Security Overview ................................................................................................................... 13-1
13.2 Authenticating Application Logons...................................................................................... 13-1
13.3 Defining and Controlling Database Links............................................................................ 13-2
13.3.1 Link Accessibility.............................................................................................................. 13-2
13.3.2 Links and CONNECT Clauses........................................................................................ 13-2
13.4 TCP/IP Security .................................................................................................................. 13-3
13.5 Processing Inbound Connections .......................................................................................... 13-3
ix
13.5.1 User ID Mapping .............................................................................................................. 13-3
13.5.1.1 DB2/OS390 ............................................................................................................ 13-3
13.5.1.2 DB2/VM ................................................................................................................ 13-4
13.5.1.3 DB2/400 .................................................................................................................. 13-4
13.5.1.4 DB2/Universal Database.......................................................................................... 13-4
13.6 Passwords in the Gateway Initialization File ...................................................................... 13-5
14 Migration and Coexistence with Existing Gateways
14.1 Migrating Existing V4, V8, or V9 Gateway Instances to New Release ............................ 14-1
14.1.1 Step 1: Install the new Release ...................................................................................... 14-1
14.1.2 Step 2: Transferring initsid.gtwboot Gateway Boot Initialization parameters. ..... 14-1
14.1.3 Step 3: Transferring initsid.ora gateway initialization file parameters. .................. 14-2
14.2 Backout Considerations When Migrating to New Releases.............................................. 14-2
14.3 New and Changed Parameters When Migrating to Release 10........................................ 14-2
14.3.1 New Parameters................................................................................................................ 14-2
14.3.1.1 New Gateway Initialization File Parameters......................................................... 14-2
14.3.2 Parameters That Have Been Changed in Usage........................................................... 14-3
14.3.3 Parameters That Have Been Renamed .......................................................................... 14-3
14.3.4 Obsolete Parameters......................................................................................................... 14-3
14.4 DRDA Server Considerations ................................................................................................ 14-4
14.5 Oracle Net Considerations...................................................................................................... 14-4
15 Error Messages, Diagnosis, and Reporting
15.1 Interpreting Gateway Error Messages.................................................................................. 15-1
15.1.1 Errors Detected by the Oracle Integrating Server........................................................ 15-1
15.1.2 Errors Detected by the Gateway..................................................................................... 15-2
15.1.3 Errors Detected in the DRDA Software......................................................................... 15-2
15.1.4 Communication Errors .................................................................................................... 15-2
15.1.5 Errors Detected by the Server Database........................................................................ 15-3
15.2 Mapped Errors ......................................................................................................................... 15-3
15.3 Gateway Error Codes ............................................................................................................. 15-4
15.4 SQL Tracing and the Gateway .............................................................................................. 15-5
15.4.1 SQL Tracing in the Oracle Database .............................................................................. 15-5
15.4.2 SQL Tracing in the Gateway ........................................................................................... 15-5
A Oracle DB2 Data Dictionary Views
A.1 Supported Views........................................................................................................................ A-1
A.2 Data Dictionary View Tables.................................................................................................... A-2
A.2.1 ALL_CATALOG ................................................................................................................ A-2
A.2.2 ALL_COL_COMMENTS .................................................................................................. A-2
A.2.3 ALL_CONS_COLUMNS .................................................................................................. A-2
A.2.4 ALL_CONSTRAINTS ....................................................................................................... A-3
A.2.5 ALL_INDEXES ................................................................................................................... A-3
A.2.6 ALL_IND_COLUMNS....................................................................................................... A-5
A.2.7 ALL_OBJECTS .................................................................................................................... A-5
A.2.8 ALL_SYNONYMS ............................................................................................................. A-6
x
A.2.9 ALL_TABLES ..................................................................................................................... A-6
A.2.10 ALL_TAB_COLUMNS ...................................................................................................... A-7
A.2.11 ALL_TAB_COMMENTS .................................................................................................. A-8
A.2.12 ALL_USERS ........................................................................................................................ A-9
A.2.13 ALL_VIEWS ....................................................................................................................... A-9
A.2.14 COLUMN_PRIVILEGES ................................................................................................... A-9
A.2.15 DICTIONARY ................................................................................................................... A-10
A.2.16 DUAL ................................................................................................................................. A-10
A.2.17 TABLE_PRIVILEGES ...................................................................................................... A-10
A.2.18 USER_CATALOG ............................................................................................................ A-10
A.2.19 USER_COL_COMMENTS .............................................................................................. A-10
A.2.20 USER_CONSTRAINTS ................................................................................................... A-11
A.2.21 USER_CONS_COLUMNS .............................................................................................. A-11
A.2.22 USER_INDEXES ............................................................................................................... A-11
A.2.23 USER_OBJECTS ............................................................................................................... A-13
A.2.24 USER_SYNONYMS ......................................................................................................... A-13
A.2.25 USER_TABLES ................................................................................................................. A-14
A.2.26 USER_TAB_COLUMNS ................................................................................................. A-15
A.2.27 USER_TAB_COMMENTS .............................................................................................. A-16
A.2.28 USER_USERS..................................................................................................................... A-16
A.2.29 USER_VIEWS .................................................................................................................... A-17
B Sample Files
B.1 Sample gateway initialization file ........................................................................................... B-1
B.2 Sample Oracle Net tnsnames.ora File ..................................................................................... B-2
B.3 Sample Oracle Net listener.ora File......................................................................................... B-2
C DRDA-Specific Parameters
C.1 Modifying the Gateway Initialization File............................................................................. C-1
C.2 Setting Parameters in the Gateway Initialization File .......................................................... C-1
C.3 Syntax and Usage....................................................................................................................... C-1
C.4 Gateway Initialization File Parameters................................................................................... C-2
C.4.1 DRDA_CACHE_TABLE_DESC ....................................................................................... C-2
C.4.2 DRDA_CAPABILITY......................................................................................................... C-2
C.4.3 DRDA_CODEPAGE_MAP ............................................................................................... C-2
C.4.4 DRDA_COMM_BUFLEN.................................................................................................. C-2
C.4.5 DRDA_CONNECT_PARM (SNA format) ................................................................. C-3
C.4.6 DRDA_CONNECT_PARM (TCP/IP format) .......................................................... C-3
C.4.7 DRDA_CMSRC_CM_IMMEDIATE ............................................................................. C-3
C.4.8 DRDA_DEFAULT_CCSID ........................................................................................... C-3
C.4.9 DRDA_DESCRIBE_TABLE ......................................................................................... C-4
C.4.10 DRDA_DISABLE_CALL ............................................................................................. C-4
C.4.11 DRDA_FLUSH_CACHE .............................................................................................. C-4
C.4.12 DRDA_GRAPHIC_PAD_SIZE ..................................................................................... C-4
C.4.13 DRDA_GRAPHIC_LIT_CHECK ................................................................................ C-5
C.4.14 DRDA_GRAPHIC_TO_MBCS .................................................................................... C-5
xi
C.4.15 DRDA_GRAPHIC_CHAR_SIZE...................................................................................... C-5
C.4.16 DRDA_ISOLATION_LEVEL ...................................................................................... C-5
C.4.17 DRDA_LOCAL_NODE_NAME ................................................................................. C-6
C.4.18 DRDA_MBCS_TO_GRAPHIC .................................................................................... C-6
C.4.19 DRDA_OPTIMIZE_QUERY ........................................................................................ C-6
C.4.20 DRDA_PACKAGE_COLLID ...................................................................................... C-7
C.4.21 DRDA_PACKAGE_CONSTOKEN ............................................................................ C-7
C.4.22 DRDA_PACKAGE_NAME ......................................................................................... C-7
C.4.23 DRDA_PACKAGE_OWNER ...................................................................................... C-7
C.4.24 DRDA_PACKAGE_SECTIONS .................................................................................. C-8
C.4.25 DRDA_READ_ONLY .................................................................................................. C-8
C.4.26 DRDA_RECOVERY_PASSWORD ............................................................................. C-8
C.4.27 DRDA_RECOVERY_USERID ..................................................................................... C-8
C.4.28 DRDA_REMOTE_DB_NAME .................................................................................... C-9
C.4.29 DRDA_SECURITY_TYPE ............................................................................................ C-9
C.4.30 FDS_CLASS ................................................................................................................... C-9
C.4.31 FDS_CLASS_VERSION ............................................................................................... C-9
C.4.32 FDS_INSTANCE ......................................................................................................... C-10
C.4.33 HS_FDS_FETCH_ROWS ............................................................................................ C-10
C.4.34 HS_LANGUAGE ......................................................................................................... C-10
C.4.35 HS_NLS_NCHAR ......................................................................................................... C-10
C.4.36 LOG_DESTINATION .................................................................................................. C-11
C.4.37 ORA_MAX_DATE ........................................................................................................ C-11
C.4.38 ORA_NLS10 .................................................................................................................. C-11
C.4.39 ORACLE_DRDA_TCTL ............................................................................................ C-11
C.4.40 ORACLE_DRDA_TRACE ........................................................................................... C-11
C.4.41 TRACE_LEVEL ........................................................................................................... C-12
D National Language Support
D.1 Overview of NLS Interactions.................................................................................................. D-1
D.2 Client and Oracle Integrating Server Configuration ............................................................ D-3
D.3 Gateway Language Interaction with DRDA Server ............................................................ D-4
D.3.1 Gateway Configuration ..................................................................................................... D-4
D.3.2 NLS Parameters in the Gateway Initialization File........................................................ D-4
D.3.2.1 HS_LANGUAGE.............................................................................................................. D-5
D.3.2.2 HS_NLS_NCHAR ....................................................................................................... D-5
D.3.2.3 HS_NLS_DATE_FORMAT............................................................................................. D-5
D.3.2.4 HS_NLS_DATE_LANGUAGE ........................................................................................ D-5
D.4 Gateway Codepage Map Facility ...................................................................................... D-5
D.5 Multibyte and Double-Byte Support in the Gateway........................................................... D-8
D.6 Message Availability ............................................................................................................... D-10
D.7 Example of NLS Configuration.............................................................................................. D-10
xii
E Configuration Worksheet
F Quick Reference to Oracle SQL Functions
G Sample Applications
G.1 DB2INS .................................................................................................................................. G-1
G.2 ORAIND .............................................................................................................................. G-2
Index
xiii
xiv

Audience

Preface

The Oracle Transparent Gateway for DRDA for Microsoft Windows provides users with transparent access to DRDA databases as if they were Oracle databases.
This guide is intended for anyone responsible for installing, configuring, and administering the gateway, and also for application developers.
Read this guide if you are responsible for tasks such as:
Installing and configuring the Oracle Transparent Gateway for DRDA
Setting up gateway security
Diagnosing gateway errors
Using the gateway to access tables in DRDA databases
Writing applications that access DRDA databases through the gateway
Configuring the SNA server product
You must understand the fundamentals of transparent gateways and the Microsoft Windows operating system before using this guide to install or administer the gateway.

Documentation Accessibility

Our goal is to make Oracle products, services, and supporting documentation accessible, with good usability, to the disabled community. To that end, our documentation includes features that make information available to users of assistive technology. This documentation is available in HTML format, and contains markup to facilitate access by the disabled community. Accessibility standards will continue to evolve over time, and Oracle is actively engaged with other market-leading technology vendors to address technical obstacles so that our documentation can be accessible to all of our customers. For more information, visit the Oracle Accessibility Program Web site at
http://www.oracle.com/accessibility/
Accessibility of Code Examples in Documentation
Screen readers may not always correctly read the code examples in this document. The conventions for writing code require that closing braces should appear on an otherwise empty line; however, some screen readers may not always read a line of text that consists solely of a bracket or brace.
xv
Accessibility of Links to External Web Sites in Documentation
This documentation may contain links to Web sites of other companies or organizations that Oracle does not own or control. Oracle neither evaluates nor makes any representations regarding the accessibility of these Web sites.
TTY Access to Oracle Support Services
Oracle provides dedicated Text Telephone (TTY) access to Oracle Support Services within the United States of America 24 hours a day, seven days a week. For TTY support, call 800.446.2398.

Related Documents

The Oracle Transparent Gateway for DRDA Installation and User's Guide for Microsoft Windows is included as part of your product. Also included is:
Oracle Database Heterogeneous Connectivity Administrator's Guide
This guide contains information common to all heterogeneous gateways, including important information on functions, parameters, and error messages.
Oracle Database Administrator's Guide
Oracle Database Concepts
Oracle Database Error Messages
Oracle Database Performance Tuning Guide

Conventions

Oracle Database Security Guide
Oracle Database Heterogeneous Connectivity Administrator's Guide
In this manual, "Windows" refers to any Microsoft Windows operating system. In examples, an implied carriage return occurs at the end of each line, unless otherwise
noted. You must press the Return key at the end of a line of input. Examples of input and output for the gateway and the Oracle environment are shown
in a special font:
> mkdir D:\ORACLE\your_name
All output is shown as it actually appears. For input, refer to the following list. The first part of each line represents the conventions used in this manual, and the second part describes their meanings:
... Horizontal ellipsis points in statements or commands mean that parts of the statement or command (that are not directly related to the example) have been omitted. Vertical ellipsis points in an example also mean that information that is not directly related to the example has been omitted.
italic font indicates that a word or phrase of your choice must be substituted for the term in italic font, such as your actual member name or directory name.
xvi
boldface text Boldface type in text indicates a term that is defined in the text. < > Angle brackets enclose user-supplied names. { } Curly braces indicate that one of the enclosed arguments is required. Do not enter
the braces themselves.
[ ] Square brackets indicate that the enclosed arguments are optional. You can choose one or none. Do not enter the brackets themselves.
| Vertical lines separate choices. Other punctuation, such as commas, quotes, or the pipe symbol (|), must be entered as
shown unless otherwise specified. Directory names, file IDs, and so on, appear in examples. When these names appear in text, they may be highlighted in bold. The use of italics indicates that those portions of a file ID that appear in italics can vary.

SQL*Plus Prompts

The SQL*Plus prompt, SQL>, appears in SQL statements and SQL*Plus command examples. Enter your response at the prompt. Do not enter the text of the prompt, "SQL>", in your response.

DOS Prompts

The DOS prompt, >, appears in DOS command examples. Enter your response at the prompt. Do not enter the text of the prompt, ">", in your response. A dollar sign ($) is part of some DOS directory names and should not be confused as a prompt character.

Storage Measurements

Storage measurements use the following abbreviations:
KB, for kilobyte, which equals 1,024 bytes
MB, for megabyte, which equals 1,048,576 bytes
GB, for gigabyte, which equals 1,073,741,824 bytes

Directory Names

Throughout this document, there are references to the directories in which product-related files reside. ORACLE_HOME is used to represent the Oracle home directory. This is the default location for Oracle products. If you have installed into a location other than ORACLE_HOME, replace all references to ORACLE_HOME with the drive and path specification you have used.
xvii
xviii
1

Introduction

The Oracle Transparent Gateway for DRDA enables you to:
Integrate heterogeneous database management systems so that they appear as a
single homogeneous database system
Read and write data from Oracle applications to data in DB2/OS390, DB2/400,
DB2 Universal Database, DB2/VM, and IBM SQL/DS on VM databases in addition to any Oracle database server data.
Read this chapter for information about the architecture, uses, and features of the Oracle Transparent Gateway for DRDA. It contains the following sections:
Introduction to the Oracle Transparent Gateway
Release 10g Gateways
Gateway Capabilities
Term s
Architecture
Implementation
How the Gateway Works
Oracle Tools and the Gateway
Features

1.1 Introduction to the Oracle Transparent Gateway

In today’s global economy, information is a company’s most valuable resource. Whether you need to analyze new markets, tailor your products to meet local demands, increase your ability to handle complex customer information, or streamline operations, your company requires instant access to current and complete information
Company growth and diversification often mean functioning with a collage of applications and geographically scattered data that may be using incompatible networks, platforms, and storage formats. Diverse application standards and storage formats can make integration of information difficult. Oracle offers integration technologies to overcome these technical barriers. Oracle Enterprise Integration Gateways simplify complex systems and remove obstacles to information, thereby providing your company the opportunity to focus on business.
Introduction 1-1
Release 10g Gateways

1.1.1 Protection of Current Investment

Oracle Transparent Gateway for DRDA gives your company the ability to develop its information systems without forfeiting its investments in current data and applications. The gateway gives you access to the Oracle and DB2 data with a single set of applications while you continue to use existing IBM applications to access your DB2 data. You can also use more productive database tools and move to a distributed database technology without giving up access to the current data.
If you choose to migrate to Oracle Database technology and productivity, then the gateway enables you to control the pace of your migration. As you transfer applications from your previous technology to the Oracle Database, you can use the gateway to move the DB2 data into Oracle databases.

1.2 Release 10g Gateways

Oracle Database 10g provides the foundation for the next generation of the Oracle Enterprise Integration Gateways Release 10g, which will deliver enhanced integration capabilities by exploiting Oracle Database 10g Heterogeneous Services. Heterogeneous Services is a component of the Oracle Database 10g server. The Oracle Database 10g server provides the common architecture for future generations of the gateways. For detailed information on Oracle Heterogeneous Services, refer to Oracle Database
Heterogeneous Connectivity Administrator's Guide.
The version 10 gateways are even more tightly integrated with the Oracle Database 10g server than previous versions, enabling improved performance and enhanced functionality while still providing transparent integration of Oracle and non-Oracle data. For example, connection initialization information is available in the local Oracle Database 10g server, reducing the number of round trips and the amount of data sent over the network. SQL processing is also faster, because statements that are run by an application are parsed and translated once and can then be reused by multiple applications.
Release 10g gateways leverage any enhancements in the Oracle Database 10g server, and you can quickly extend those benefits to the non-Oracle data.

1.2.1 Advantages of the Gateway

Oracle Transparent Gateway for DRDA enables Oracle applications to access the DRDA Application Servers, such as DB2 for OS/390 (MVS), through Structured Query Language (SQL). The gateway and the Oracle Database 10g server together create the appearance that all data resides on a local Oracle Database 10g server, though data might be widely distributed. If data is moved from a DRDA Application Server database to an Oracle Database server, then no changes in application design or function are needed. The gateway handles all differences in both data types and SQL functions between the application and the database.

1.3 Gateway Capabilities

Oracle Transparent Gateway for DRDA gives you the power to integrate your heterogeneous systems into a single, seamless environment. This integration enables you to make full use of existing hardware and applications throughout your corporatewide environment. You can eliminate the need to rewrite applications for each configuration, and you can avoid the tedious, error-prone process of manual data transfer. Together with the Oracle tools, networking, and data server technology, the Oracle Transparent Gateway for DRDA sets a high standard for seamless, enterprise wide information access.
1-2 Oracle Transparent Gateway for DRDA Installation and User's Guide
Oracle Transparent Gateway for DRDA enables applications to read and update DB2 data and Oracle data as if all of the data were stored in a single database. As a result, users and application programmers are not required to know either the physical location or the storage characteristics of the data. This transparency not only permits you to integrate heterogeneous data seamlessly, but also simplifies your gateway implementation, application development, and maintenance.

1.3.1 Transparency at All Levels

The Oracle Transparent Gateway for DRDA gives you transparency at every level within your enterprise.
Location transparency
Users can access tables by name without needing to understand the physical location of the tables.
Network transparency
The gateways exploit Oracle Net technology to enable users to access data across multiple networks without concern for the network architecture or protocols. TCP/IP protocol is supported.
Operating system transparency
Gateway Capabilities
You can access data that is stored under multiple operating systems without being aware of the operating systems that hold the data.
Data storage transparency
Data can be accessed regardless of the database or file format.
Access method transparency
You can use a single dialect of SQL for any data store, eliminating the need to code for database-specific access methods or SQL implementations.

1.3.2 Extended Database Services

Following are some of the more sophisticated Oracle Database 10g server services that are available through the gateway.
SQL functions
Your application can access all of your data using Oracle SQL, which is rich in features. Advanced Oracle Database 10g server functions, such as outer joins, are available even if the target data stores do not support them in a native environment. The method by which the gateways are integrated with the Oracle Database 10g server ensures that the newest features of each database release are always available immediately to the gateway.
Distributed capabilities
Heterogeneous data can be integrated seamlessly because Oracle Database distributed capabilities, such as JOIN and UNION, can be applied to non-Oracle data without any special programming or mapping.
Distributed query optimization
The Oracle Database 10g server can use its advanced query optimization techniques to ensure that SQL statements are run efficiently against any of your data. The data distribution and storage characteristics of local and remote data are equally considered.
Introduction 1-3
Gateway Capabilities
Two-phase commit protection
The Oracle server two-phase commit mechanism provides consistency across data stores by ensuring that a transaction that spans data stores is still treated as a single unit of work. Changes are not committed (or permanently stored) in any data store unless the changes can be committed in all data stores that will be affected.
Stored procedures and database triggers
The same Oracle stored procedures and database triggers can be used to access all of the data, thereby ensuring uniform enforcement of business rules across the enterprise.

1.3.3 Extended Advanced Networking, Internet and Intranet Support

The gateway integration with the Oracle Database 10g server extends (to non-Oracle data) the benefits of the Oracle Internet software, and Oracle Net software and extends the benefits of the Oracle client/server and server/server connectivity software. These powerful features include:
Application server support
Any Internet or intranet application that can access data in Oracle database can also incorporate information from data stores that are accessible through the gateways. Web browsers can connect to Oracle database using any application server product that supports Oracle software.
Implicit protocol conversion
Oracle Database and Oracle Net can work together as a protocol converter, enabling applications to transparently access other data stores on platforms that do not support the network protocol of the client. An Oracle Database 10g server can use TCP/IP to communicate with the gateway and another data store.
Advanced Security
Non-Oracle data can be protected from unauthorized access or tampering during transmission to the client. This is done by using the hardware-independent and protocol-independent encryption and CHECKSUM services of Advanced Security.
Wireless communication
Oracle Mobile Agents, an industry-leading Oracle mobile technology, enables wireless communication to Oracle Database 10g servers or to any databases that are accessible through the gateways. This gives your field personnel direct access to enterprise data from mobile laptop computers.

1.3.4 Dynamic Dictionary Mapping

The simple setup of the gateway does not require any additional mapping. Before an application can access any information, the application must be told the structure of the data, such as the columns of a table and their lengths. Many products require administrators to manually define that information in a separate data dictionary stored in a hub. Applications then access the information using the hub dictionary instead of the native dictionaries of each database. This approach requires a great deal of manual configuration and maintenance on your part. As administrators, you must update the data dictionary in the hub whenever the structure of a remote table is changed.
1-4 Oracle Transparent Gateway for DRDA Installation and User's Guide
Inefficient duplication is not necessary with Oracle Transparent Gateway for DRDA. The gateway uses the existing native dictionaries of each database. The applications access data using the dictionaries that are designed specifically for each database, which means that no redundant dictionary ever needs to be created or maintained.

1.3.5 SQL

Oracle Transparent Gateways ease application development and maintenance by enabling you to access any data using a uniform set of SQL queries. Changes to the location, storage characteristics, or table structure do not require any changes to the applications. ANSI and ISO standard SQL are supported, along with powerful Oracle extensions.

1.3.6 Data Definition Language

Oracle applications can create tables in target data stores by using native data definition language (DDL) statements.

1.3.7 Data Control Language

You can run native data control language (DCL) statements from an Oracle environment, enabling central administration of user privileges and access levels for heterogeneous data stores.
Gateway Capabilities

1.3.8 Passthrough and Native DB2 SQL

Running of native DB2 SQL can be passed through the gateway for processing directly against DB2. This enables applications to send statements, such as a DB2 CREATE TABLE, to the gateway for running on a target DB2 system.

1.3.9 Stored Procedures

The gateway enables you to exploit both Oracle and non-Oracle stored procedures, leveraging your investments in a distributed, multi database environment. Oracle stored procedures can access multiple data stores easily, without any special coding for heterogeneous data access.
1.3.9.1 Oracle Stored Procedures
Oracle stored procedures enable you to access and update DB2 data by using centralized business rules that are stored in the Oracle Database 10g server. Using Oracle stored procedures can increase database performance by minimizing network traffic. Instead of sending individual SQL statements across the network, an application can send a single EXECUTE command to begin an entire PL/SQL routine.
1.3.9.2 Native DB2 Stored Procedures
The gateway can run DB2 stored procedures using standard Oracle PL/SQL. The Oracle application run the DB2 stored procedure as if it were an Oracle remote procedure.

1.3.10 Languages

Any application or tool that supports the Oracle Database 10g server can access over thirty different data sources through the Oracle gateways. A wide variety of open system tools from Oracle and third-party vendors can be used, even if the data is
Introduction 1-5
Gateway Capabilities
stored in legacy, proprietary formats. Hundreds of tools are supported, including ad hoc query tools, Web browsers, turnkey applications, and application development tools.

1.3.11 Oracle Database Server Technology and Tools

The gateway is integrated into the Oracle Database server technology, which provides global query optimization, transaction coordination for multisite transactions, support for all Oracle Net configurations, and so on. Tools and applications that support the Oracle Database server can be used to access heterogeneous data through the gateway.

1.3.12 SQL*Plus

You can use SQL*Plus for moving data between databases. This product gives you the ability to copy data from your department databases to corporate Oracle databases.

1.3.13 Two-Phase Commit and Multisite Transactions

The gateway can participate as a partner in multisite transactions and two-phase commit. How this occurs depends on the capabilities of the underlying data source, meaning that the gateway can be implemented as any one of the following:
A full two-phase commit partner
A commit point site
A single-site update partner
A read-only partner
The deciding factors for the implementation of the gateway are the locking and transaction-handling capabilities of the target database.
Oracle Transparent Gateway for DRDA, by default, is configured as a commit point site (that is, commit confirm protocol). Optionally, you can configure the gateway as read-only if you choose to enforce read-only capability through the gateway. Other protocols are not supported. Refer to "Read-Only Gateway" on page 11-5 in
Chapter 11, "Using the Gateway".

1.3.14 Site Autonomy

All Oracle Database server products, including gateways, supply site autonomy. For example, administration of a data source remains the responsibility of the original system administrator. Site autonomy also functions so that gateway products do not override the security measures that are established by the data source or the operating environment.

1.3.15 Migration and Coexistence

The integration of a data source through the gateway does not require any changes to be made to applications at the data source. The result is that the Oracle Database server technology is nonintrusive, providing coexistence and an easy migration path.

1.3.16 Security

The gateway does not bypass existing security mechanisms. Gateway security coexists with the security mechanisms that are already used in the operating environment of the data source.
1-6 Oracle Transparent Gateway for DRDA Installation and User's Guide

1.4 Terms

Architecture
Functionally, gateway security is identical to that of an Oracle Database server, as described in the Oracle Database Administrator's Guide. Oracle Database security is mapped to the data dictionary of the data source.
The terms that are used in this guide do not necessarily conform to IBM terminology. The following table presents several terms and their meanings as used within this guide:
Terms Meaning
DRDA data Any database data that is accessed through DRDA
DRDA database The collection of data that belongs to a DRDA Server
DRDA Server A database server that can be accessed through DRDA. IBM
terminology for a DRDA Server is a DRDA Application Server, or AS.
DRDA server type A specific database product or program that can act as a DRDA
Oracle integrating server Any Oracle Database 10g server instance that communicates
DB2 Universal Database A generic name for the UNIX-based implementations of DB2.

1.5 Architecture

The Oracle Transparent Gateway for DRDA works with the Oracle Database 10g server to shield most of the differences of the non-Oracle database from Oracle applications. This means that the Oracle applications can access the Oracle Database 10g server data and also can access the DRDA database data as if it were Oracle data located at the Oracle integrating server.
The architecture consists of the following main components:
Client
The client is an Oracle application or tool.
Oracle integrating server
server
with the Oracle Transparent Gateway for DRDA to distribute database access operations to a DRDA Server. The Oracle integrating server can also be used for non-gateway applications.
DB2/UDB is frequently used as an abbreviation for DB2 Universal Database.
The Oracle integrating server is an Oracle Database instance that is accessed by an Oracle Database 10g server with procedural and distributed options. Usually, the Oracle integrating server is installed on the same host as the gateway, but this is not a requirement. The Oracle integrating server and the gateway communicate in the normal Oracle server-to-server manner.
If the Oracle integrating server is not on the host where the gateway resides, then you must install the correct Oracle networking software on the platform where the server resides. For Oracle Database 10g, you must install Oracle Net on the Oracle Database 10g server system.
Oracle Transparent Gateway for DRDA
Introduction 1-7
Implementation
The gateway must be installed on hosts that are running the appropriate operating system.
If the Oracle integrating server is not on the same host, then you must also install Oracle Net so that the gateway and Oracle Database 10g server can communicate.
DRDA Server
The DRDA Server must be a DB2/OS390, DB2/400, DB2 Universal Database, or DB2 server for VM database on a system that is accessible to the host using either the SNA or TCP/IP protocol.
Multiple Oracle Database 10g servers can access the same gateway. A single host gateway installation can be configured to access more than one DRDA Server.
Figure 1–1 illustrates the gateway architecture that was just described.
Figure 1–1 The Gateway Architecture
Client

1.6 Implementation

When the gateway is installed on your host, it has some of the same components as an Oracle Database instance on Microsoft Windows. The gateway has the following components:
A base file directory, similar to the one that is associated with the
ORACLE_HOME environment variable of an Oracle Database instance
A gateway system identifier (SID), comparable to the ORACLE_SID of an Oracle
Database instance
Oracle Net to support communication between the Oracle integrating server and
the Oracle Transparent Gateway for DRDA
Oracle Net
or
Local
Connection
Oracle
Integrating
Server
Oracle Transparent Gateway for
DRDA
Oracle Transparent Gateway for
DRDA
SNA
TCP/IP
DARD Server
DARD Server
The gateway does not have:
Control, redo log, or database files
The full set of subdirectories and ancillary files that are associated with an
installed Oracle Database 10g server
Because the gateway does not have background processes and does not need a management utility such as Oracle Enterprise Manager, you do not need to start the gateway product. Each Oracle Database 10g server user session that accesses a particular gateway creates an independent process on the host. This process runs the gateway session and runs SNA or TCP/IP functions to communicate with a DRDA Server.
1-8 Oracle Transparent Gateway for DRDA Installation and User's Guide

1.7 How the Gateway Works

The gateway has no database functions of its own. Instead, it provides an interface by which an Oracle Database 10g server can direct part or all of a SQL operation to a DRDA database.
The gateway that is supporting the DRDA Server is identified to the Oracle integrating server by using a database link. The database link is the same construct that is used to identify other Oracle Database 10g server databases. Tables on the DRDA Server are referenced in SQL as:
table_name@dblink_name
or
owner.table_name@dblink_name
If you create synonyms or views in the Oracle integrating server database, then you can refer to tables on the DRDA Server by using simple names as though the table were local to the Oracle integrating server.
When the Oracle integrating server encounters a reference to a table that is on the DRDA Server, the applicable portion of the SQL statement is sent to the gateway for processing. Any host variables that are associated with the SQL statement are bound to the gateway and, therefore, to the DRDA Server.
Oracle Tools and the Gateway
The gateway is responsible for sending these SQL statements to the DRDA Server for processing and for fielding and is also responsible for returning responses. The responses are either data or messages. Any conversions between Oracle data types and DRDA data types are performed by the gateway. The Oracle integrating server and the application read and process only Oracle data types.

1.7.1 SQL Differences

Not all SQL implementations are the same. The Oracle Database 10g server supports a larger set of built-in functions than the databases that are currently accessed through the gateway. The Oracle integrating server and the gateway work together to convert SQL to a form that is compatible with the specific DRDA Server.
During this conversion, an Oracle Database 10g server function can be converted to a function that is recognizable to the specific DRDA Server. For example, the Oracle Database 10g server NVL function is converted to the DB2 VALUE function.
Alternatively, the Oracle integrating server withholds functions that are not executable by the DRDA Server, and it performs them after rows are fetched from the DRDA database. This processing generally applies to SELECT statements. The Oracle integrating server and the gateway cannot perform this kind of manipulation on UPDATE, INSERT, or DELETE statements because doing so changes transaction semantics.

1.8 Oracle Tools and the Gateway

Use the gateway to run applications, such as Oracle tools, that read and write data that is stored in DRDA databases.
Although the Oracle Transparent Gateway for DRDA provides no new application or development facilities, it extends the reach of existing Oracle tools to include data in non-Oracle databases that support DRDA.
Introduction 1-9
Features
Using the Oracle Transparent Gateway for DRDA with other Oracle products can greatly extend the capabilities of the standalone gateway. The following examples demonstrate how powerful the gateway is with other Oracle tools.

1.8.1 SQL*Plus

Use SQL*Plus and the Oracle Transparent Gateway for DRDA to create a distributed database system, providing an easy-to-use transfer facility for moving data between the distributed databases. One possible use is to distribute the data in your corporate Oracle Database to departmental DRDA databases. You can also distribute data in your corporate DRDA database to departmental Oracle Databases.

1.9 Features

Following is a list of important features that characterize this release of the gateway.

1.9.1 Heterogeneous Services Architecture

This release of the Oracle Transparent Gateway for DRDA uses the Oracle Heterogeneous Services component within the Oracle Database 10g server. Heterogeneous Services is the building block for the next generation of Oracle Enterprise Integration Gateways.
For detailed information about Heterogeneous Services, refer to the Oracle Database Heterogeneous Connectivity Administrator's Guide.

1.9.2 Performance Enhancements

Oracle Transparent Gateway for DRDA contains several internal performance enhancements. This product has shown major improvements in response time and CPU utilization for all relevant address spaces for a variety of workloads compared to version 9 gateways. The actual performance improvement at your site might vary, depending on your installation type and workload.

1.9.3 Fetch Reblocking

The array size of the application for SELECT is effective between the application and the Oracle integrating server. However, the array block size and the block fetch between the Oracle integrating server and the gateway are controlled by two Heterogeneous Services initialization parameters, HS_RPC_FETCH_SIZE and HS_RPC_FETCH_REBLOCKING. These parameters are specified in the gateway initialization file. Refer to the Oracle Database Heterogeneous Connectivity Administrator's Guide for more information.

1.9.4 Oracle Database 10g Passthrough Supported

You can use the Oracle Database 10g DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE feature to pass commands or statements (that are available in the DRDA database) through the gateway.

1.9.5 Retrieving Result Sets Through Passthrough

Oracle Transparent Gateway for DRDA provides a facility to retrieve result sets from a select SQL statement that is run with passthrough. Refer to "Retrieving Result Sets
Through Passthrough" on page 12-27 for additional information.
1-10 Oracle Transparent Gateway for DRDA Installation and User's Guide

1.9.6 Support for TCP/IP

This release of the gateway supports the TCP/IP communication protocol between the gateway and the DRDA Server. Refer to Chapter 8, "Configuring TCP/IP" for further information.

1.9.7 Native Semantics

This release of the gateway supports the ability to selectively enable or disable post-processing of various SQL functions by the DRDA Server. Refer to "Native
Semantics" on page 12-18 for further information.

1.9.8 Columns Supported in a Result Set

Oracle Transparent Gateway for DRDA supports up to 1000 columns in a result set.

1.9.9 EXPLAIN_PLAN Improvement

The EXPLAIN_PLAN table contains the actual SQL statements passed to the DRDA Server from the Oracle Database 10g server through the gateway.

1.9.10 Heterogeneous Database Integration

The gateway support for ANSI-standard SQL enables read/write access to DRDA databases. Even if your data exists on different platforms in different applications, new applications can use all data, regardless of location.
Features

1.9.11 Minimum Impact on Existing Systems

The gateway does not require installation of additional Oracle software on your OS/390 (MVS), AS/400, VM, UNIX or Microsoft Windows target system. The database interface that it uses is provided by IBM and is built into the DRDA database products and SNA or TCP/IP facilities that already exist on these platforms.
Configuring an IBM system for DRDA access typically consists of defining the SNA or TCP/IP resources involved and establishing access security definitions specific to the target database.

1.9.12 Large Base of Data Access

DRDA Application Server Function is supported by most IBM DB2 database products.

1.9.13 Application Portability

The ability of the gateway to interface with heterogeneous databases makes it possible to develop a single set of portable applications that can be used against both Oracle and IBM databases, and any other databases for which Oracle Corporation provides gateways.

1.9.14 Remote Data Access

Location flexibility is maximized because the gateway architecture permits network connections between each of the components. The application can use the Oracle client-server capability to connect to a remote Oracle integrating server through Oracle Net. The Oracle integrating server can connect to a remote gateway using a database
Introduction 1-11
Features
link. The gateway connects to DRDA Servers through SNA or TCP/IP network facilities.
The benefits of remote access are that it:
Provides a means to allocate the suitable resource to a given task
You can, for example, move application development off expensive processors and onto cost-efficient workstations or microcomputers.
Expands the number of available data sources
Without remote access, you are limited to the data that is available in the local environment. With remote access, your data sources are limited only by your networks.
Provides a means to tailor an application environment to a given user
For example, some users prefer a block-mode terminal environment, while others prefer a bit-mapped, graphics-driven terminal environment. Remote access can satisfy both because you are not constrained by the interface environment that is imposed by the location of your data.

1.9.15 Support for Distributed Applications

Because the gateway gives your application direct access to DRDA data, you eliminate the need to upload and download large quantities of database data to other processors. Instead, you can access data where it is, when you want it, without having to move the data between systems and thus risk unsynchronized and inconsistent data. Avoiding massive data replication can also reduce aggregate disk storage requirements over all of your systems.
However, if your system design requires moving data among the systems in a network, SQL*Plus and the gateway can simplify the data transfer. With a single SQL*Plus command, you can move entire sets of data from one node of the network to another and from one database to another.
You can pass commands and statements that are specific to your DRDA database through the gateway to be run by the DRDA database. For example, you can pass DB2/OS390 commands through the gateway for DB2 to run. You can also run stored procedures defined in non-Oracle databases.

1.9.16 Application Development and End User Tools

Through the gateway, Oracle extends the range of application development and user tools that you can use to access the IBM databases. These tools increase application development and user productivity by reducing prototype, development, and maintenance time. Current Oracle users do not have to learn a new set of tools to access data that is stored in DRDA databases. Instead, they can access Oracle and DRDA data with a single set of tools.
With the gateway and the application development tools that are available from Oracle, you can develop a single set of applications to access Oracle data and DRDA data. Users can use the decision support tools that are available from Oracle to access Oracle data and DRDA data. These tools can run on remote systems that are connected through Oracle Net to the Oracle integrating server.
When designing applications, keep in mind that the gateway is designed for retrieval and relatively light transaction loads. The gateway is not currently designed to be a heavy transaction processing system.
1-12 Oracle Transparent Gateway for DRDA Installation and User's Guide

1.9.17 Password Encryption Utility

This release of the gateway includes a utility to support encryption of plain-text passwords in the gateway initialization file. Refer to Chapter 13, "Security
Considerations" for details.

1.9.18 Support for DB2/OS390 V6, V7, and V8 Stored Procedures

This release of the gateway supports the native stored procedure catalogs in DB2 V6, V7, and V8 (SYSIBM.SYSROUTINES and SYSIBM.SYSPARMS).

1.9.19 Codepage Map Facility

This release of the gateway supports external mapping of IBM CCSIDs to Oracle character sets. Refer to "Gateway Codepage Map Facility" on page D-5 in Appendix D,
"National Language Support".

1.9.20 IBM DB2 Universal Database Support

This release supports IBM DB2 Universal Database.

1.9.21 IBM DB2 Version 5.1 ASCII Tables

IBM DB2 version 5.1 supports ASCII and EBCDIC character sets. The character set selection is defined during table creation. The Oracle Transparent Gateway for DRDA supports access to EBCDIC tables and ASCII tables. Refer to Appendix D, "National
Language Support".
Features

1.9.22 Read-Only Support

This release enables the gateway to be configured as a read-only gateway. In this mode, no modifying of user data is permitted. For more information, refer to
"DRDA_READ_ONLY" on page C-8.

1.9.23 Support for Graphic and Multibyte Data

This release of the gateway adds support for DB2 GRAPHIC and VARGRAPHIC data types. Refer to Chapter 12, "Developing Applications".

1.9.24 Support for DB2/UDB on Intel Hardware

This release of the gateway adds support for DRDA Servers running on Microsoft Windows and Linux on Intel hardware.

1.9.25 Data Dictionary Support for DB2/UDB

This release of the gateway adds Oracle data dictionary support for DB2 UDB V7. Refer to "Sample SQL scripts" for more information.
Introduction 1-13
Features
1-14 Oracle Transparent Gateway for DRDA Installation and User's Guide
This chapter provides information specific to this release of the Oracle Transparent Gateway for DRDA. It includes the following sections:
Product Set
Changes and Enhancements
Bugs Fixed in 10g Release 2 (10.2)
Known Problems
Known Restrictions

2.1 Product Set

The following is a list of the production components that are included in the product CD-ROM:
2

Release Information

Oracle Transparent Gateway for DRDA, Release 10.1.0.2.0
Oracle Net, release 10.2.1.0

2.2 Changes and Enhancements

Following is a list of changes and enhancements that are unique to this release of the gateway.
Gateway Password Encryption Tool
The Gateway Password Encryption tool (g4drpwd) has been replaced by a generic feature which is now part of Heterogenous Services. Refer to Chapter 13, "Security
Considerations" for more information.
Product Migration
Refer Chapter 14, "Migration and Coexistence with Existing Gateways" for information about migrating product configurations from previous releases for additional changes or requirements.

2.3 Bugs Fixed in 10g Release 2 (10.2)

4013463
GARBAGES CONTAINED IN ERROR MESSAGE FROM TG4DRDA
Release Information 2-1
Bugs Fixed in 10g Release 2 (10.2)
3882675
TG4DRDA SELECT FOR UPDATE ERROR WITH G4DRSRVD
3650803
MEMORY LEAK IN G4DRSRV DOING SELECT STATEMENT
3640384
ORA-28500 ON SELECT FOR UPDATE FROM TG4DRDA
3610131
INDEX STATS MAY NOT BE QUERIED CORRECTLY
3514233
SETTING DRDA_OPTIMIZE_QUERY=TRUE DOES NOT GENERATE TABLE STATS
3429017
LINKING ERROR FOR G4DRSRV WHEN USING REDHAT AS V3
3421215
IU GUIDE DIDN'T SAY HOW TO CONFIG DRDA_CONNECT_PARM IN LINUX
3287626
ENGLISH NAME OF "TAIWAN" DOESN'T SEEM TO BE APPROPRIATE
3143686
QA - 10G - CAN NOT SELECT FROM DATA DICTIONARY TABLES
4218317
COUNT(COLNAME) NOT TRANSLATED TO COUNT(*)
4260112
ORA-1001 WITHOUT THE DETAIL RETURNS FROM TG4DRDA
4065600
GARBAGES CONTAINED IN ORA-1 ERROR MESSAGE FROM TG4DRDA
3965425
ORA-07445 [_MEMCPY()+772] REPEATABLE READ ISOLATION LEVEL IS NOT WORKING
3709345
PSR 9.2.0.5.0 BREAKS CALL DB2 STORED PROCEDURE WITH DECIMAL PARM. SQLCODE -310
3130329
TG4DRDA LOOPS IF QRWTSRVR JOB KILLED WHILE GATEWAY IS IN GDJCRCV
2-2 Oracle Transparent Gateway for DRDA Installation and User's Guide

2.4 Known Problems

The problems that are documented in the following section are specific to the Oracle Transparent Gateway for DRDA and are known to exist in this release of the product. These problems will be fixed in a future gateway release. If you have any questions or concerns about these problems, then contact Oracle Support Services.
A current list of problems is available online. Contact your local Oracle office for information about accessing this online information.

2.5 Known Restrictions

The following restrictions are known to exist for the products in this release. Restrictions are not scheduled to change in future releases. Also refer to Chapter 12,
"Developing Applications", for information about limitations when developing your
applications.
Accessing DB2 Alias Objects
If you need to access DB2 alias objects on a remote DB2 system, then you must specify DRDA_DESCRIBE_TABLE=FALSE initialization parameter in the gateway initialization file.
Known Restrictions
Oracle SQL Command INSERT
When copying data from an Oracle server to a DRDA Server, the Oracle SQL command INSERT is not supported. The SQL*Plus COPY command must be used. Refer to Chapter 11, "Using the Gateway", for more information.

2.5.1 DB2 Considerations

DD Basic Tables and Views
The owner of DD basic tables and views is OTGDB2. This cannot be changed.
SUBSTR Function Post-Processed
The SUBSTR function can be used with the Oracle Server in ways that are not compatible with a DRDA Server database such as DB2/OS390. Therefore, the SUBSTR function is post-processed. However, it is possible to enable the server to process it natively using the "Native Semantics" feature. Refer to Chapter 12, "Developing
Applications", for details.
AVS Mapping User IDs (DB2/VM)
APPC VTAM Support (AVS) has problems mapping user IDs that are sent using lowercase letters or special characters. Contact your IBM representative for additional information about this problem.
Support for DRDA Server Character Sets
Support (for character sets that are used by a DRDA Server) is configurable through the gateway Codepage Map Facility. Refer to Appendix D, "National Language
Support" for more information.
data type Limitations
Refer to "DRDA Data Type to Oracle Data Type Conversion" on page 12-20 for detailed information about data types.
Release Information 2-3
Known Restrictions
SAVEPOINT Command Is Not Supported
Oracle Transparent Gateway for DRDA does not support the Oracle command SAVEPOINT.
Null Values and Stored Procedures
Null values are not passed into, or returned from, calls to stored procedures through the gateway.
String Concatenation of Numbers
String concatenation of numbers is not permitted in DB2/400, DB2/UDB, and DB2/OS390. For example, 2||2 is not permitted.
GLOBAL_NAMES Initialization Parameter
If GLOBAL_NAMES is set to TRUE in the Oracle server INIT.ORA file, then to be able to connect to the gateway, you must specify the Heterogeneous Services (HS) initialization parameters, HS_DB_DOMAIN and HS_DB_NAME, in the Gateway Initialization Parameter file to match the value of the Oracle server DB_DOMAIN parameter. Refer to Chapter 10, "Configuring the Gateway", for more information.
Binding the DRDA Package on DB2/UDB
The DRDA gateway package must be bound on the DRDA Server before the gateway can perform any SQL operations. Because of a DB2/UDB restriction, the ORACLE2PC table must be created in the DB2/UDB database before the package can be bound. For details, refer to Chapter 10, "Configuring the Gateway".
Date Arithmetic
In general, the following types of SQL expression forms do not work correctly with the gateway because of DRDA Server limitations:
date + number number + date date - number date1 - date2
DRDA Servers do not permit number addition or subtraction with date data types. The date and number addition and subtraction (date + number, number + date, date - number) forms are sent through to the DRDA Server where they are rejected.
Also, DRDA Servers do not perform date subtraction consistently. When you subtract two dates (date1 - date2), differing interpretations of date subtraction in the DRDA Servers cause the results to vary by server.
Note: Avoid date arithmetic expressions in all gateway SQL until
date arithmetic problems are resolved.
Row Length Limitation
Because of a restriction of the DRDA architecture, rows with aggregate length exceeding 32 K bytes in DRDA representation cannot be stored or retrieved.
LONG data type in SQL*Plus
SQL*Plus cannot fetch LONG columns from the Oracle Transparent Gateway for DRDA.
2-4 Oracle Transparent Gateway for DRDA Installation and User's Guide
Known Restrictions
Dictionary Views Are Not Provided for DB2/VM
Currently, the Oracle Transparent Gateway for DRDA provides SQL for defining DB2/OS390, DB2/400, and DB2/UDB views that emulate parts of the Oracle Database dictionary. These are required for certain applications and tools that query dictionary tables. View definitions for DB2/VM are not provided in this release.
Single Gateway Instance per DRDA Network Interface
When installing the gateway, a proper DRDA network interface must be chosen. Only one DRDA network interface may be chosen and installed per gateway instance. If the gateway product is reinstalled, and if a network interface different from the previous installation is chosen, then the new choice will overlay the current installation. Reconfiguration of the gateway's initialization parameters must occur at this point to ensure proper gateway operation. If you want to have both SNA and TCP/IP DRDA Network Interfaces installed, then you must install two separate gateway homes.
Stored Procedures and transaction integrity
IBM DB2 has introduced a feature called Commit on Return for stored procedures. This feature enables DB2 to perform an automatic commit after a stored procedure runs successfully. This feature is enabled when the procedure is created. To ensure data integrity, this feature is not supported by the Oracle Transparent Gateway for DRDA in a heterogeneous environment. When attempting to call a stored procedure which has this feature enabled, through the gateway, the gateway will return an error message ORA-28526 or PLS-00201 (identifier must be declared).
Stored Procedure and User Defined Function Support
The gateway supports processing of stored procedures and user defined functions through the following DRDA Servers:
DB2/OS390 V4.1 or later DB2/400 V3.1 or later DB2/UDB V7.1 or later

2.5.2 SQL Limitations

Oracle ROWID Column
The DB2 ROWID column is not compatible with the Oracle ROWID column. Because the ROWID column is not supported, the following restrictions apply:
UPDATE and DELETE are not supported with the WHERE CURRENT OF CURSOR
clause. To update or delete a specific row through the gateway, a condition style WHERE clause must be used. (Bug No. 205538)
When UPDATE and DELETE statements are used, in precompiler and PL/SQL programs, they rely internally on the Oracle ROWID function.
Note: This restriction applies to DB2 for MVS or z/OS as of v5.1
and DB2/UDB as of v8.1.
Snapshots between Oracle servers and DB2 are not supported.
Snapshots rely internally on the Oracle ROWID column.
Release Information 2-5
Known Restrictions
Oracle Bind Variables
Oracle bind variables become SQL parameter markers when used with the gateway. Therefore, the bind variables are subject to the same restrictions as SQL parameter markers.
For example, the following statements are not permitted:
WHERE :x IS NULL WHERE :x = :y
CONNECT BY Is Not Supported
Oracle Transparent Gateway for DRDA does not support CONNECT BY in SELECT statements.
COUNT Function Compatibility
The following DRDA server releases do not support all forms of the COUNT function, specifically COUNT(colname) and COUNT(ALL colnames):
DB2 OS/390 V6, DB2/VM V6 and V7 The default for all DRDA server platforms (except DB2/VM) is for all forms of COUNT
to be passed to the DRDA server as it is. For DB2/VM, the forms COUNT(colname) and COUNT(ALL colname) have been disabled by default and will be post-processed.
If the gateway is to be used with one of the above releases of DRDA servers, then it may be necessary to disable the default usage of this form of COUNT.
Refer to Section 12.7.9, "Mapping the COUNT Function" and Section 12.6, "Native
Semantics" for details on how to disable or enable compatibility for these forms of
COUNT function.
2-6 Oracle Transparent Gateway for DRDA Installation and User's Guide
This chapter provides information about hardware and software requirements that is specific to this release of the Oracle Transparent Gateway for DRDA. This chapter includes the following sections:
Hardware Requirements
Software Requirements
Documentation Requirements

3.1 Hardware Requirements

The following are the minimum hardware requirements for the Oracle Transparent Gateway for DRDA on Microsoft Windows.

3.1.1 Processor

This gateway requires a host with an Intel or 100% compatible PC with a Pentium-based processor that can run the required version of Microsoft Windows. Refer to the Oracle Database Installation Guide for Microsoft Windows (32-Bit) and to the certification matrix on Oracle MetaLink for the most up-to-date list of certified hardware platforms and operating system version requirements to operate the gateway for the system. The Oracle MetaLink web site can be found at the following URL:
3

System Requirements

3.1.2 Memory

http://metalink.oracle.com/
For this release, 64 MB of real memory is the recommended minimum for running one instance of the gateway. Running additional instances of the Oracle Transparent Gateway for DRDA might require additional real memory or increased swap space to achieve reasonable performance.
The total real memory requirement for each concurrent use of the gateway depends on the following factors:
Number of concurrent APPC connections opened by each user
Number of concurrent TCP/IP connections opened by each user
Number of data items being transferred between the gateway and the remote
transaction program
System Requirements 3-1
Software Requirements
Additional factors such as configured network buffer size

3.1.3 Network Attachment

The hardware requires any network attachment supported by either Microsoft SNA Server for SNA communication or Microsoft Windows Sockets for TCP/IP communication. The network attachment for SNA is typically a Token Ring or SDLC Coaxial attachment. The hardware must support independent LUs if you want concurrent SNA access. The network attachment for TCP/IP is typically an Ethernet attachment.

3.1.4 Disk Space

260 MB of disk space is required for installation.

3.2 Software Requirements

The system software configuration described in these requirements is supported by Oracle as long as the underlying system software products are supported by their respective vendors. Verify the latest support status with your system software vendors.

3.2.1 Operating System

The Oracle Transparent Gateway for DRDA will run on the following operating systems:
Microsoft Windows NT Server, version 4.0 (with Service Pack 6 or later)
Microsoft Windows NT Workstation, version 4.0 (with Service Pack 6 or later)
Microsoft Windows 2000 Server (with Service Pack 2 or later)
Microsoft Windows 2000 Professional (with Service Pack 2 or later)
Microsoft Windows 2003 Server
Microsoft Windows XP Professional
Refer to the certification matrix on Oracle MetaLink for the most up-to-date list of certified hardware platforms and operating system version requirements to operate the gateway for your system. The Oracle MetaLink Web site can be found at the following URL:
http://metalink.oracle.com/

3.2.2 DRDA Databases

You must have at least one of the following DRDA servers at a supported release level:
DB2/OS390
DB2/VM
DB2/400
DB2/Universal Database
3-2 Oracle Transparent Gateway for DRDA Installation and User's Guide

3.2.3 Communications

Supported SNA network software are:
Microsoft SNA Server or Client, version 3.0 or version 4.0, or Host Integration
Server, Version 5.0
IBM Communications Server, Version 5.0 or 6.0
Note: Version 5.0 requires the following patches:
JR12583 (Super fix)
JR12539 (individual Local LUs fix)

3.2.4 Oracle Database server

The Oracle Database server which is to act as the Oracle integrating server requires the latest released patch set for Oracle Database 10g server release 10.2, 10.1, or Oracle9i server release 9.2.

3.2.5 Oracle Networking Products

If the Oracle integrating server is not on the same host as the gateway, then Oracle Net is required to support communication between the Pentium-based host and the Oracle integrating server.
Documentation Requirements
The following Oracle networking products are required on the same system as the Oracle Database 10g server:
Oracle Net Client 10.2.0.1.0
an Oracle Adapter, version 10.2.0.1.0
Oracle Net software is included in this Oracle Transparent Gateway for DRDA release. Your gateway license includes a license for Oracle Net and an adapter of your choice. This license restricts the use of Oracle Net for gateway access.

3.3 Documentation Requirements

In addition to the documentation provided with the Oracle Transparent Gateway for DRDA distribution kit, the following Oracle documentation is recommended:
Oracle Database Administrator's Guide
Oracle Database Installation Guide for Microsoft Windows (32-Bit)
Oracle Database Application Developer's Guide - Fundamentals
Oracle Database Heterogeneous Connectivity Administrator's Guide
Oracle Database Error Messages
Oracle Database Advanced Security Administrator's Guide
Oracle C++ Call Interface Programmer's Guide
Oracle Call Interface Programmer's Guide
SQL*Plus User's Guide and Reference
Oracle Database PL/SQL User's Guide and Reference
Oracle Database SQL Reference
System Requirements 3-3
Documentation Requirements
Oracle Database Net Services Administrator's Guide
Oracle Database Net Services Reference
In addition to the Oracle documentation, ensure that you have the required documentation for the platform, for the operating system, and for theDRDA Server (DB2/OS390, DB2/400, DB2 Universal Database, or DB2 server for VM).
IBM publications that describe distributed relational databases might also be useful.
3-4 Oracle Transparent Gateway for DRDA Installation and User's Guide
4

Installing the Gateway

This chapter provides general information about gateway installation that is specific to this release of the Oracle Transparent Gateway for DRDA for Microsoft Windows. This chapter includes the following sections:
Introduction
Before You Begin
Checklist for Gateway Installation
Installation Overview
Preinstallation
Installing the Gateway from the Installation Media
Installation Complete

4.1 Introduction

The complete Oracle Transparent Gateway for DRDA for Microsoft Windows installation process is divided into installation and configuration tasks. This process is described in Chapters 4 through 8. If this is the first time the gateway has been installed on your Pentium-based host, then you must perform all the steps documented in these chapters.
The installation tasks include:
Ensuring that your hardware and software requirements are met
Loading and installing the gateway software from the distribution medium into
your system
Determining your gateway system identifier
Reconfiguring your network
An installation checklist follows, which you can use to check off each completed step in the process.

4.2 Before You Begin

This chapter requires you to enter parameters that are unique to your system in order to properly configure the gateway. Refer to Appendix E, "Configuration Worksheet" for a worksheet listing all the installation parameters that you will need to know in
Installing the Gateway 4-1
Checklist for Gateway Installation
order to complete the configuration process. Ask your network administrator to provide these parameters before you begin.
You will also need to confirm that all hardware and software requirements have been met. Refer to Chapter 3, "System Requirements" to verify these requirements.

4.3 Checklist for Gateway Installation

Use the following checklist for installing the gateway:
Step 1: Log on to the host
Step 2: Load the CD-ROM into the CD-ROM Drive
Step 3: Start the Oracle Universal Installer on Microsoft Windows
Step 4: Step through the Oracle Universal Installer
Step 5: Verify Installation Success

4.4 Installation Overview

The primary installation tasks are presented with the assumption that you will configure the gateway with a single Oracle integrating server and a single DRDA database. The steps for expanding the configuration to multiple integrating servers and multiple DRDA databases are described in Chapter 10, "Configuring the
Gateway".
For general information about installing Oracle products and how to use the Oracle Universal Installer, refer to the Oracle Database Installation Guide for Microsoft Windows (32-Bit).

4.5 Preinstallation

ORACLE_HOME is the root directory in which Oracle software is installed. Throughout this book, ORACLE_HOME is used to refer to the home directory of the
Oracle Transparent Gateway for DRDA for Microsoft Windows, unless specifically stated otherwise.

4.6 Installing the Gateway from the Installation Media

The Oracle Universal Installer for Microsoft Windows is provided on the installation media with the gateway.

4.6.1 Step 1: Log on to the host

Log on to your host computer as a member of the Administrators group.

4.6.2 Step 2: Load the CD-ROM into the CD-ROM Drive

Use any CD-ROM drive that is attached to the Pentium-based host (either locally or as a shared resource) as a logical drive to install the gateway. If the CD-ROM drive cannot copy files to your hard disk, then refer to your CD-ROM documentation. The installation steps are presented with the assumption that the CD-ROM drive is mapped to the G: drive.
To load the gateway distribution CD-ROM:
4-2 Oracle Transparent Gateway for DRDA Installation and User's Guide
Insert the gateway distribution CD-ROM into the CD-ROM drive.
1.
2. Verify that the drive is assigned to the logical drive that you selected and that you
can access files on the CD-ROM.

4.6.3 Step 3: Start the Oracle Universal Installer on Microsoft Windows

If you previously installed another Oracle Microsoft Windows product, such as an earlier version of the Oracle server or the gateway, then Oracle Universal Installer has already been set up in the Microsoft Windows program menu.
Start the Oracle Universal Installer from the Start menu rather than by using Microsoft Windows Explorer.
1. From the Start menu, click Run.
2. Enter the path and executable file name:
G:\SETUP.EXE
3. Click OK.

4.6.4 Step 4: Step through the Oracle Universal Installer

The Oracle Universal Installer is a menu-driven utility that guides you through installation of the gateway by prompting you with action items. The action items and the sequence in which they appear depend on your platform. Use the following table as a guide to the installation, following the instructions in the Response column.
Installation Complete
Table 4–1 Steps to Install the Gateway Using the Oracle Universal Installer
Prompt Response
We lc om e C li ck Next.
Specify Home Details Check that the destination path points to your ORACLE_HOME.
Click Next.
Available Product Components
DRDA Network Interface Product Software
Summary Verify the products to be installed. Click Next.
Open the Oracle Transparent Gateways product group and select Oracle Transparent Gateway for DRDA. Open the Oracle Transparent Gateway for DRDA product group, if not already open, and select one protocol from the list of supported protocols. Remove selection from everything else for a standalone gateway installation. Click Next.
If the SNA protocol was selected, choose the network interface software suitable for this installation of the gateway. Click Next. If the SNA protocol was not selected, this panel does not appear.

4.6.5 Step 5: Verify Installation Success

After the Oracle Universal Installer confirms that the installation has ended, verify that the installation was successful. To do this, check the contents of the installation log file, which is located in the C:\Program Files\Oracle\Inventory\logs directory. The default file name is InstallActionsdate.LOG.

4.7 Installation Complete

Your gateway installation is now complete. Proceed with the configuration tasks that are described in Chapters 5 through 10.
Installing the Gateway 4-3
Installation Complete

4.7.1 Removing the Gateway

Removing the Oracle Transparent Gateway for DRDA requires the use of the Oracle Universal Installer. Follow the procedures below to remove the gateway:
1. To restart the Oracle Universal Installer, refer to the installation process found
earlier in this chapter in "Installing the Gateway from the Installation Media" on page 4-2, and repeat the following three steps (Steps 1, 2, and 3):
a. Step 1: Log on to the host b. Step 2: Load the CD-ROM into the CD-ROM Drive c. Step 3: Start the Oracle Universal Installer on Microsoft Windows
2. When the Welcome panel appears, select Advanced Installation and Click Next.
Then, in the File Locations panel, click Installed Products.
3. In the list of installed products, select the Gateway product and any other
products that you wish to remove, and click Remove.
4-4 Oracle Transparent Gateway for DRDA Installation and User's Guide
5

Configuring the DRDA Server

The steps for configuring your remote DRDA Server apply to the following DRDA Servers:
Checklists for Configuring the DRDA Server
DB2/OS390
DB2/400
DB2/UDB (Universal Database)
DB2/VM
Configuring a DRDA database to enable access by the gateway requires actions on the DRDA database and on certain components of the host operating system. Although no Oracle software is installed on the host system, access to, and some knowledge of, the host system and DRDA database are required during the configuration. Refer to the vendor documentation for complete information about your host system and DRDA database.

5.1 Checklists for Configuring the DRDA Server

Use the following checklists for configuring the DRDA Server.

5.1.1 DB2/OS390

Step 1: Configure the Communications Server
Step 2: Define the user ID that owns the package
Step 3: Define the recovery user ID
Step 4: Determine DRDA location name for DB2 instance
Step 5: Configure DB2 Distributed Data Facility for Gateway

5.1.2 DB2/400

Step 1: Configure the Communications Server
Step 2: Define the user ID that owns the package
Step 3: Define the recovery user ID
Step 4: Determine DRDA location name for DB2/400 instance
Configuring the DRDA Server 5-1
DB2/OS390

5.1.3 DB2/UDB (Universal Database)

Step 1: Configure the SNA Communications Server
Step 2: Define the user ID that owns the package
Step 3: Define the recovery user ID
Step 4: Determine DRDA location name for DB2/UDB instance

5.1.4 DB2/VM

Step 1: Configure the Communications Server
Step 2: Define the user ID that owns the package
Step 3: Define the recovery user ID
Step 4: Determine DRDA location name for DB2/VM instance

5.2 DB2/OS390

Experience with OS/390 (MVS), OS/390, TSO, VTAM, and DB2 is required to perform the following steps:

5.2.1 Step 1: Configure the Communications Server

If you are using SNA, then configure OS/390 (MVS) VTAM for the SNA connection from the host. Configure DB2 Distributed Data Facility (DDF) for SNA using the Logical Unit (LU) defined. If you are using TCP/IP, then configure the TCP/IP subsystem. Configure DB2's DDF subsystem to use TCP/IP, and assign a primary and recovery port number for the DB2 server.

5.2.2 Step 2: Define the user ID that owns the package

During gateway configuration, you will need to run the Bind Package Stored Procedure to bind the gateway package on the DRDA Server. To properly bind the package, the user ID and password that are used when the procedure is run (either implied as the current Oracle user or explicitly defined in the CREATE DATABASE LINK command) must have proper authority on the DRDA Server to create the package. This same user ID should be used to create and to own the ORACLE2PC (two-phase commit) table. The user ID that is used to bind or rebind the DRDA package must have one or more of the following privileges on the DRDA Server:
Package privileges of BIND, COPY, and EXECUTE, for example:
GRANT BIND ON PACKAGE drda1.* TO userid GRANT COPY ON PACKAGE drda1.* TO userid GRANT EXECUTE ON PACKAGE drda1.* TO PUBLIC
Collection privilege of CREATE IN, for example:
GRANT CREATE IN ON PACKAGE drda1 TO USER userid
System privileges of BINDADD and BINDAGENT, for example:
GRANT BINDADD TO USER userid GRANT BINDAGENT TO USER userid
Database privilege of CREATETAB, for example:
5-2 Oracle Transparent Gateway for DRDA Installation and User's Guide
GRANT CREATETAB ON DATABASE database TO USER userid
Choose a user ID now that will own the package and the ORACLE2PC table. Ensure that this user ID is defined to both DB2 and OS/390 (MVS).

5.2.3 Step 3: Define the recovery user ID

During gateway configuration, the recovery user ID and password are specified in the gateway initialization file using the DRDA_RECOVERY_USERID and DRDA_RECOVERY_PASSWORD parameters. If a distributed transaction fails, then the recovery process connects to the remote database using the user ID and password that are defined in these parameters. This user ID must have execute privileges on the package and must be defined to the DRDA database. If the user ID is not specified in
DRDA_RECOVER_USERID, then the gateway attempts to connect to a user ID of ORARECOV when a distributed transaction is in doubt.
Determine the user ID and password that you will use for recovery.

5.2.4 Step 4: Determine DRDA location name for DB2 instance

The DRDA location name is required as a gateway parameter. To determine the location name, run the SQL query from a DB2 SPUFI session:
DB2/400
SELECT CURRENT SERVER FROM any_table
where any_table is a valid table with one or more rows. If the value returned by this query is blank or null, then the DRDA location name has
not been established. Contact the system administrator to arrange to set a location name for the instance.

5.2.5 Step 5: Configure DB2 Distributed Data Facility for Gateway

DB2 DDF is the component of DB2 that manages all distributed database operations, both DRDA and non-DRDA.
If your site uses DB2 distributed operations, then DDF is probably operational on the DB2 instance that you plan to access through the gateway. If DDF is not operational, then you must configure it and start it as described in the appropriate DB2 documentation.
Even if DDF is operational on the DB2 instance, it might be necessary to make changes to the DDF Communication Database (CDB) tables to specify the authorization conduct of DRDA sessions from the gateway. This can be done by properly authorized users with a utility such as the DB2 SPUFI utility. If you make changes to CDB tables, then you must stop and restart DDF for the changes to take effect. Refer to Chapter 13,
"Security Considerations", for additional CDB tables and security information.

5.3 DB2/400

Experience with DB2/400 and AS/400 is required to perform the following steps:

5.3.1 Step 1: Configure the Communications Server

If you are using SNA, then configure AS/400 communications for the SNA connection from the host. Configure DB2/400 for SNA using the LU defined. If you are using TCP/IP, then configure the TCP/IP subsystem, configure DB2/400 to use TCP/IP, and assign a Primary and Recovery port number for the DB2 server.
Configuring the DRDA Server 5-3
DB2/UDB (Universal Database)

5.3.2 Step 2: Define the user ID that owns the package

During gateway configuration, you will need to run the Bind Package Stored Procedure to bind the gateway package on the DRDA Server. To properly bind the package, the user ID and password that are used when the procedure is run (either implied as the current Oracle user or explicitly defined in the CREATE DATABASE LINK command) must have proper authority on the DRDA Server to create the package. This same user ID should be used to create and to own the ORACLE2PC (two-phase commit) table. The user ID that is used to bind or rebind the DRDA package must have the following privileges on the DRDA Server:
Use authority on the CRTSQLPKG command
Change authority on the library in which the package will be created
Choose a user ID now that will own the package and the ORACLE2PC table. Ensure that this user ID is defined to DB2/400 and AS/400.

5.3.3 Step 3: Define the recovery user ID

During gateway configuration, the recovery user ID and password are specified in the gateway initialization file using the DRDA_RECOVERY_USERID and DRDA_RECOVERY_PASSWORD parameters. If a distributed transaction fails, then the recovery process connects to the remote database using the user ID and password that are defined in these parameters. This user ID must have execute privileges on the package and must be defined to the DRDA database. If the user ID is not specified in DRDA_RECOVER_USERID, then the gateway attempts to connect to a user ID of ORARECOV when a distributed transaction is in doubt.
Determine the user ID and password that you will use for recovery.

5.3.4 Step 4: Determine DRDA location name for DB2/400 instance

The DRDA location name is required as a gateway parameter. To determine the location name, run the following SQL query from a STRSQL session. If SQL is unavailable on the system, then use the AS/400 command DSPRDBDIRE to identify your "LOCAL" DRDA Server.
SELECT CURRENT SERVER FROM any_table
where any_table is a valid table with one or more rows. If the value returned by this query is blank or null, then the DRDA location name has
not been established. Contact the system administrator to arrange to set a location name for the instance.

5.4 DB2/UDB (Universal Database)

Experience with DB2/UDB, configuring the communication subsystem of DB2/UDB, and the host System Administration tools is required to perform the following steps.

5.4.1 Step 1: Configure the SNA Communications Server

If you are using SNA, then configure the communications server for the connection from the host. Configure DB2/UBD for SNA using the LU defined. If you are using TCP/IP, then configure the TCP/IP subsystem. Configure DB2/UDB to use TCP/IP, and assign a primary and recovery port number for the DB2 server.
5-4 Oracle Transparent Gateway for DRDA Installation and User's Guide

5.4.2 Step 2: Define the user ID that owns the package

During gateway configuration, you will need to run the Bind Package Stored Procedure to bind the gateway package on the DRDA Server. To properly bind the package, the user ID and password that are used when the procedure is run (either implied as the current Oracle user or explicitly defined in the CREATE DATABASE LINK command) must have proper authority on the DRDA Server to create the package. This same user ID should be used to create and to own the ORACLE2PC (two-phase commit) table. The user ID that is used to bind or rebind the DRDA package must have one or more of the following privileges on the DRDA Server:
Package privileges of BIND and EXECUTE, for example:
GRANT BIND ON PACKAGE drda1.g2drsql TO USER userid GRANT EXECUTE ON PACKAGE drda1.g2drsql TO PUBLIC
Schema privileges of CREATEIN, for example:
GRANT CREATEIN ON SCHEMA otgdb2 TO USER userid GRANT CREATEIN ON SCHEMA drda1 TO USER userid
Database authorities of CONNECT, BINDADD, and CREATETAB, for example:
GRANT CONNECT ON DATABASE TO USER userid GRANT BINDADD ON DATABASE TO USER userid GRANT CREATETAB ON DATABASE TO USER userid
DB2/VM
Now choose a user ID that will own the package and ORACLE2PC table. Ensure that this user ID is defined to both the DB2 instance ID and the operating system.

5.4.3 Step 3: Define the recovery user ID

During gateway configuration, the recovery user ID and password are specified in the gateway initialization file using the DRDA_RECOVERY_USERID and DRDA_RECOVERY_PASSWORD parameters. If a distributed transaction fails, then the recovery process connects to the remote database using the user ID and password that are defined in these parameters. This user ID must have execute privileges on the package and must be defined to the DRDA database. If the user ID is not specified in
DRDA_RECOVER_USERID, then the gateway attempts to connect to a user ID of ORARECOV when a distributed transaction is in doubt.
Determine the user ID and password that you will use for recovery.

5.4.4 Step 4: Determine DRDA location name for DB2/UDB instance

The DRDA location name is required as a gateway parameter. To determine the location name, run the SQL query from a DB2 CLI session:
SELECT CURRENT SERVER FROM any_table
where any_table is a valid table with one or more rows. If the value returned by this query is blank or null, then the DRDA location name has
not been established. Contact your system administrator to arrange to set a location name for the instance.

5.5 DB2/VM

Experience with VM, AVS, and DB2/VM is required to perform the following steps:
Configuring the DRDA Server 5-5
DB2/VM

5.5.1 Step 1: Configure the Communications Server

If you are using SNA, then configure VM VTAM and AVS for the SNA connection from the host. If you are using TCP/IP, then configure the TCP/IP service.

5.5.2 Step 2: Define the user ID that owns the package

During gateway configuration, you will need to run the Bind Package Stored Procedure to bind the gateway package on the DRDA Server. To properly bind the package, the user ID and password that are used when the procedure is run (either implied as the current Oracle user or explicitly defined in the CREATE DATABASE LINK command) must have proper authority on the DRDA Server to create the package. This same user ID should be used to create and to own the ORACLE2PC (two-phase commit) table. The user ID that is used to bind or rebind the DRDA package must have the following privileges on the DRDA Server:
Package privileges of BIND, COPY, and EXECUTE
Collection privilege of CREATE IN
System privileges of BINDADD and BINDAGENT
Choose a user ID now that will own the package and ORACLE2PC table. Ensure that this user ID is defined to DB2/VM and VM.

5.5.3 Step 3: Define the recovery user ID

During gateway configuration, the recovery user ID and password are specified in the gateway initialization file using the DRDA_RECOVERY_USERID and DRDA_RECOVERY_PASSWORD parameters. If a distributed transaction fails, then the recovery process connects to the remote database using the user ID and password that are defined in these parameters. This user ID must have execute privileges on the package and must be defined to the DRDA database. If the user ID is not specified in
DRDA_RECOVER_USERID, then the gateway attempts to connect to a user ID of ORARECOV when a distributed transaction is in doubt.
Determine the user ID and password that you will use for recovery.

5.5.4 Step 4: Determine DRDA location name for DB2/VM instance

The DRDA location name is required as a gateway parameter. To determine the location name, run the SQL query from an iSQL session:
SELECT CURRENT SERVER FROM any_table
where any_table is a valid table with one or more rows. If the value returned by this query is blank or null, then the DRDA location name has
not been established. Contact the system administrator to arrange to set a location name for the instance.
5-6 Oracle Transparent Gateway for DRDA Installation and User's Guide
6
Configuring Microsoft SNA Server or Host
Integration Server
This chapter describes configuration of the Microsoft SNA Server product on Microsoft Windows for use with the Oracle Transparent Gateway for DRDA. The SNA Server provides the SNA connectivity through the APPC/LU6.2 protocol between the Pentium-based host and the remote DRDA Server. Microsoft Host Integration Server is the successor product to Microsoft SNA Server, but it retains the same configuration information as SNA Server and the steps for configuring SNA Server, therefore, also apply to Host Integration Server. Read this chapter to learn more about creating server profiles.
This chapter contains the following sections:
Before You Begin
Steps for Configuring the Communications Interfaces
Creating SNA Server Profiles for the Gateway
Creating SNA Definitions for the Gateway
Testing the Connection
Using SNA Session Security Validation
SNA Conversation Security

6.1 Before You Begin

This chapter requires you to enter parameters unique to your system in order to properly configure the SNA Server. Refer to Appendix E for a worksheet listing all the installation parameters that you will need to know before you can complete the configuration process. Ask your network administrator to provide you with these parameters before you begin.

6.2 Steps for Configuring the Communications Interfaces

Step 1: Creating SNA Server Profiles for the Gateway
Step 2: Creating SNA Definitions for the Gateway
Step 3: Testing the Connection

Configuring Microsoft SNA Server or Host Integration Server 6-1

Creating SNA Server Profiles for the Gateway

6.3 Creating SNA Server Profiles for the Gateway

The Oracle Transparent Gateway for DRDA requires a stored set of definitions, called Side Information Profiles, to support connections between the gateway and DRDA Servers. Each profile consists of a profile name and a profile type, a set of fields describing the profile. The fields in a given profile type are generally a mixture of operating parameter values and names of other SNA profiles relevant to the profile. Each functional part of APPC, such as the Mode, Remote Transaction Program name, and Logical Unit (LU), is described by a distinct profile type.

6.3.1 Independent Versus Dependent LUs

Oracle recommends independent LUs for the Oracle Transparent Gateway for DRDA, because they support multiple parallel sessions or conversations. This means the multiple Oracle client applications can be active simultaneously with the same DRDA Server through the independent LU.
Dependent LUs support only a single active session. The CP (SNA Server for Microsoft Windows, in this case) queues additional conversation requests from the gateway server behind an already active conversation. In other words, conversations are single-threaded for dependent LUs.
If a dependent LU is correctly defined, then no alterations to the Oracle Transparent Gateway for DRDA configuration are needed, nor should any changes be needed to the DRDA Server.
The operational impact of dependent LUs is that the first client application can start a conversation through the gateway with the DRDA Server. While that session is active (which could be seconds, minutes, or hours, depending on how the client application and transaction are designed), any other client application starting a session with the same DRDA Server appears to stop responding as it waits behind the previous session.
If a production application really uses only one conversation at any one time, then there should be no impact. However, additional concurrent conversations might be required for testing or other application development. Each requires that additional dependent LUs be defined on the remote host, plus additional SNA Server configuration entries which define the additional dependent LUs on the host.
Additional Side Information Profiles should be defined to use the new dependent LUs. New Oracle Transparent Gateway for DRDA instances should be created and configured to use these new Side Information Profiles.

6.4 Creating SNA Definitions for the Gateway

SNA Server definitions can be created and modified in two ways:
Directly with the SNACFG command
Using menus in SNA Server Manager
Maintenance of SNA definitions is normally done by a user with Administrator authority. This information is intended for the person creating SNA definitions for the gateway. You should have some knowledge of SNA before reading this section.

6.4.1 Sample SNA Server Definitions

The tg4drda\sna\mssna subdirectory contains a sample set of gateway SNA Server definitions created with the SNACFG command. The snacfg.ctl file contains sample definitions for SNA Server.
6-2 Oracle Transparent Gateway for DRDA Installation and User's Guide
Before building the SNA Server definitions, examine the snacfg.ctl file to determine the definitions needed, their contents, and their interrelationships. The file format is text-oriented and each field of each definition is clearly labeled. You can print a copy of the file to use while working with your definitions in an SNA Server Admin or SNA Server Manager session.
You can create and modify these definitions in two ways:
Install the definitions directly on the system using the SNACFG command.
For information on using the SNACFG command, refer to the SNA Server Administration Guide in the Microsoft SNA Server online documentation.
If you use this method, then you must use SNA Server Manager to review and modify the installed definitions. Because of configuration and naming differences, it is unlikely that they will work without modification.
Create the definitions.
SNA Server Manager is the recommended method for creating the definitions. You should be able to accept most of the defaults. The default values assigned to many of the fields in a new set of definitions are acceptable for the gateway.

6.4.2 Definition Types

There are several types of SNA Server definitions relevant to gateway APPC/LU6.2 operation. Each definition can be created and edited using a corresponding SNA Server Manager menu.
Creating SNA Definitions for the Gateway
The definitions relevant to the gateway are presented here in hierarchical order. Those definition types that are lowest in the hierarchy are discussed first. This matches the logical sequence in which to create the profiles.
Refer to the Microsoft SNA Server online documentation for a complete discussion of SNA Server definitions. This section is an overview of SNA Server definitions in relation to the Oracle Transparent Gateway for DRDA for Microsoft Windows.
Note: Before beginning to create and edit profiles using SNA
Server Admin, you must install the DLC protocol and create the link service. Prior to running SNA Server Admin, use the Microsoft Windows Control Panels Network Manager to install the DLC protocol.

6.4.3 SNA Server Definitions

This section describes the process of creating your SNA definitions for SNA Server version 3, using SNA Server Manager. All the tasks described in this section are performed from within SNA Server Manager. The other primary administration tool is the SNA Server Management Console. Both tools provide access to the same SNA definitions for the Node, but in slightly different views. The SNA Server Manager gives a localized view of the Node, while the SNA Server Management Console presents a more global view, where the local node may be one of many SNA Nodes in a network that is managed by this syatem. Later versions of SNA Server and Host Integration Server tools may reorganize the profiles placement within the definition tree, but the concepts remain the same. Some extrapolation by the user may be necessary.
Configuring Microsoft SNA Server or Host Integration Server 6-3
Creating SNA Definitions for the Gateway
Figure 6–1 SNA Server Manager Main Screen: Select a Server
6.4.3.1 Server Selection
The correct SNA Server must be selected to ensure that definitions created are for that server. Start the SNA Server Manager.
Click the SNA subdomain under your local system (in this example, ITDEV11) and then click to open the SNA Servers folder. From a list of services for that server, select the SNA Service of your choice (in this illustration, ITDEV-NT11). Click to open it.
Figure 6–2 Server Properties Dialog Box
6-4 Oracle Transparent Gateway for DRDA Installation and User's Guide
Creating SNA Definitions for the Gateway
6.4.3.2 Service Properties
Each SNA Server must have a primary service definition. From the Service menu in the SNA Server Manager window, select Properties. In the Server Properties dialog box, under the General tab, change the Network Name and Control Point Name as needed. Click OK.
Figure 6–3 Insert Link Service
6.4.3.3 Link Service Definition
A link service must be installed and configured in order for SNA Server to use the network adapter installed in your workstation. From the Insert menu, select Link Service. In the Insert Link Service dialog box, select the desired Link Service from the selection list and click Add. In this example, DLC 802.2 Link Service is selected.
Configuring Microsoft SNA Server or Host Integration Server 6-5
Creating SNA Definitions for the Gateway
Figure 6–4 Select Link Service Properties
Now, the Link Service Properties dialog box is displayed. Note that the contents of this dialog box will vary, depending on which Link Service was selected. In this example, the DLC 802.2 Link Service Properties box dialog is used:
Select the suitable network adapter from the Adapter drop-down list and click OK. In the Insert Link Service dialog box, click OK. The system now updates the network bindings.
Figure 6–5 Connection Properties Menu
6-6 Oracle Transparent Gateway for DRDA Installation and User's Guide
Creating SNA Definitions for the Gateway
6.4.3.4 Connection Definition
You must create a connection definition to define the devices which SNA Server uses to perform SNA communication. From the Insert menu, select Connection and choose the connection type (802.2 is used in this example). The Connection Properties dialog box appears.
Figure 6–6 General Connection Properties
Select the General tab. Enter a Connection Name. This is the name used by SNA Server to name the connection. This example names the connection HQMVS2. From the Link Service drop-down list, select a link service for the connection. All other settings can be left set to their default values.
Figure 6–7 Enter Remote Addresses
Select the Address tab. Enter values for Remote Network Address and the Remote SAP address.
Configuring Microsoft SNA Server or Host Integration Server 6-7
Creating SNA Definitions for the Gateway
Figure 6–8 Enter System Identification
Now, select the System Identification tab. Under Local Node Name, enter the Network Name, Control Point Name, and Local Node ID. Under Remote Node Name, enter the Network Name, Control Point Name, and optionally, the Remote Node ID. The XID Type should be set to Format 3.
Figure 6–9 Enter DLC Values
Next, select the DLC tab. In this example, the 802.2 DLC (Token Ring) is being used. For the 802.2 DLC, all of the defaults are usually acceptable. If you need to change any values, then do so now. Now, all the connection properties are set. Click OK.
6-8 Oracle Transparent Gateway for DRDA Installation and User's Guide
Figure 6–10 Local LU Properties Menu
Creating SNA Definitions for the Gateway
6.4.3.5 Local LU Definition
You must create a local LU definition. The local LU definition describes the SNA LU through which the gateway communicates with DRDA Server systems.
From the Insert menu, select APPC Local LU. The Local APPC LU Properties dialog box appears.
Figure 6–11 Enter Local APPC LU Properties
Configuring Microsoft SNA Server or Host Integration Server 6-9
Creating SNA Definitions for the Gateway
Select the General tab. Enter LU Alias, Network Name, and LU Name. You should contact the person responsible for your SNA network to determine the correct LU and network names.
Figure 6–12 Set Up Parallel Session
Select the Advanced tab. Check the Member of Default Outgoing Local APPC LU Pool box. Set the LU 6.2 Type to Independent to enable parallel sessions. Ensure that the APPC Syncpoint Support box is not checked.
Now, the Local LU properties are all set. Click OK button to continue.
Figure 6–13 Select APPC Mode Definition
6-10 Oracle Transparent Gateway for DRDA Installation and User's Guide
Creating SNA Definitions for the Gateway
6.4.3.6 Mode Definition
This definition describes an SNA mode entry to be used when establishing sessions between LUs. The mode defined here must match a mode defined on the target system.
From the Insert menu, select APPC Mode Definition. The APPC Mode Properties dialog box appears.
Figure 6–14 APPC Mode General Properties Dialog Box
Select the General tab. Enter the Mode Name. The mode name that you specify must be defined to the DRDA Server communications software. Choose the mode name and other mode parameters after consulting the person responsible for configuring the DRDA Server communications software.
Figure 6–15 Enter the APPC Mode Limits
Next, select the Limits tab. Enter values for Parallel Session Limit, Minimum Contention Winner Limit, Partner Min Contention Winner Limit, and Automatic Activation Limit. The Parallel Session limit determines the maximum number of
Configuring Microsoft SNA Server or Host Integration Server 6-11
Creating SNA Definitions for the Gateway
concurrent conversations permitted between the gateway instance and the DRDA Server. This equates to the maximum number of concurrently active remote sessions through the gateway instance.
Figure 6–16 Set APPC Mode Characteristics
Now, select the Characteristics tab. Enter the Pacing Send Count, Pacing Receive Count, Max Send RU Size, and Max Receive RU size. For optimal performance, check the High Priority Mode box. The pacing and RU size parameters are performance-related and should be tuned to suit your application. For most installations, the values set in the example will be sufficient.
Now, all the APPC mode properties are set. Click OK to continue.
Figure 6–17 APPC Remote LU Menu
6-12 Oracle Transparent Gateway for DRDA Installation and User's Guide
Creating SNA Definitions for the Gateway
6.4.3.7 Remote LU Definition
This definition describes the SNA LU of the DRDA Server system with which the gateway communicates. You must create a remote LU definition for the remote DRDA Server system. From the Insert menu, select APPC Remote LU. The Remote APPC LU Properties dialog box appears.
Figure 6–18 Enter General Remote APPC LU Properties
Select the General tab. Determine the link with which to associate the LU (in the example, HQMVS2). Use the Connection drop-down list to select the connection used to access this LU. Enter the LU Alias, Network Name, LU Name, and Uninterpreted LU Name. You should contact the person responsible for your SNA network to determine the correct LU and network names. Note that you can use the LU Alias to define a name known only to SNA Server, and that name can remain the same even if the remote LU name changes. This helps to reduce the amount of maintenance required when network changes occur.
Figure 6–19 Remote APPC LU Properties Options
Configuring Microsoft SNA Server or Host Integration Server 6-13
Creating SNA Definitions for the Gateway
Now, select the Options tab. Check the Supports Parallel Sessions check box. Use the Implicit Incoming Mode drop-down listto select the mode. Set any security options you need.
The remote APPC LU properties are now set. Click OK to continue.
Figure 6–20 CPI-C Symbolic Destination Name Window
6.4.3.8 CPI-C Symbolic Destination Names
Once the Local and Remote Partner definitions and Mode definitions have been created, you can create CPI-C Symbolic Destination Names, also called Side Information Profiles. The Side Information Profiles are used to identify target DRDA Server systems to be accessed through the gateway. From the Insert menu, select APPC CPI-C Symbolic Name. The CPI-C Name Properties dialog box appears.
6-14 Oracle Transparent Gateway for DRDA Installation and User's Guide
Testing the Connection
Figure 6–21 Enter General CPI-C Name Properties
Select the General tab. Enter a Name for Side Information. From the Mode Name drop-down list, select the correct mode.
Note: The DRDA_CONNECT_PARM should be assigned the name of
the CPI-C Side Information Name entered earlier.
Figure 6–22 Enter CPI-C Name Properties Partner Information
Now, select the Partner Information tab. Select Application TP and enter the TP name. Enter the Partner LU Name alias. Click OK to save the Side Information.

6.5 Testing the Connection

Before proceeding with the gateway configuration tasks in Chapter 10, "Configuring
the Gateway", ensure that your connection is working. This can be done using SNA
Server Manager.
Configuring Microsoft SNA Server or Host Integration Server 6-15
Using SNA Session Security Validation
Figure 6–23, "Relationship Between SNA Server Definitions and Host VTAM Definitions" shows the relationship between SNA Server definitions and the VTAM
definitions on the host.
Figure 6–23 Relationship Between SNA Server Definitions and Host VTAM Definitions
Local LU Defination
Local LU Alias
Local LU Name
...
Connection Definition
Connection Name
...
Side Information
Local LU Alias
Partner LU Alias
or
Fully-qualified
Partner LU Name
Mode Name
Remote TP Name
Partner LU Definition
Fully-qualified
Partner LU Name
netname.pluname
Partner LU Alias
Connection
...
Mode Definition
Mode Name
...
VTAMLST
APPL Definition pluname APPL... MODETAB=mtname
ATCSTR00 NETWORK=netname SSCPNAME=cpname
VTAM Mode Table
mtname MODETAB MODEENT LOGMODE=mode name

6.6 Using SNA Session Security Validation

When the database link request for the gateway begins, the gateway attempts to start an APPC conversation with the DRDA Server. Before the conversation can begin, a session must start between the host Logical Unit (LU) and the DRDA Server LU.
SNA and its various access method implementations (including Microsoft SNA Server) provide security validation at session initiation time, enabling each LU to authenticate its partner. This is carried out entirely by network software before the gateway and server application programs begin their conversation and process conversation-level security data. If session-level security is used, then correct password information must be established in the Pentium-based host Connection Profile and in similar parameter structures in the DRDA Server system that is to be accessed. Refer to Microsoft SNA Server and IBM Communication Server product documentation for detailed information.

6.7 SNA Conversation Security

SNA conversation security is determined by the setting of the gateway initialization parameter, DRDA_SECURITY_TYPE. This parameter determines whether SNA security option SECURITY is set to PROGRAM or to SAME. Generally, the gateway operates under SNA option SECURITY=PROGRAM, but it can also be set to operate under SNA option SECURITY=SAME.
6-16 Oracle Transparent Gateway for DRDA Installation and User's Guide

6.7.1 SNA Security Option SECURITY=PROGRAM

If DRDA_SECURITY_TYPE=PROGRAM is specified, then the gateway allocates the conversation with SNA option SECURITY=PROGRAM and sends this information to the DRDA Server:
If the database link has explicit CONNECT information, then the specified user ID
and password are sent.
If the database link has no CONNECT clause and if the application has logged in to
the Oracle integrating server with an explicit user ID and password, then the Oracle user ID and password are sent.
If the application logs in to the Oracle integrating server with operating system
authentication, and if the database link lacks explicit CONNECT information, then no user ID and password are sent. If no user ID and password are sent, and if the DRDA Server is not configured to assign a default user ID, then the connection fails.
In general, SECURITY=PROGRAM tells the DRDA Server to authenticate the user ID/password combination using whatever authentication mechanisms are available. For example, if DB2/OS390 is the DRDA Server, then RACF can be used. This is not always the case, however, because each of the IBM DRDA Servers can be configured to process inbound user IDs in other ways.
SNA Conversation Security

6.7.2 SNA Security Option SECURITY=SAME

The SECURITY=SAME option is not directly supported by Microsoft SNA Server. SECURITY=SAME implicitly validates security using the user account under which the
TNS Listener was started. Microsoft SNA Server, however, does not support this type of validation.
Configuring Microsoft SNA Server or Host Integration Server 6-17
SNA Conversation Security
6-18 Oracle Transparent Gateway for DRDA Installation and User's Guide
7

Configuring IBM Communication Server

This chapter describes configuration of the IBM Communication Server product on MS Windows for use with the Oracle Transparent Gateway for DRDA. IBM Communication Server provides SNA connectivity through the APPC/LU6.2 protocol between the host and the remote DRDA Server. Read this chapter to learn more about creating Communication Server profiles.
This chapter contains the following sections:
Before You Begin
Checklist for Configuring the Communications Interfaces
Creating IBM Communication Server Profiles for the Gateway
Definition Types
Testing the Connection
Using SNA Session Security Validation
SNA Conversation Security

7.1 Before You Begin

This chapter requires you to enterparameters unique to your system in order to properly configure the IBM Communication Server. Refer to Appendix E for a worksheet listing all the installation parameters that you will need to know before you can complete the configuration process. Ask your network administrator to provide you with these parameters before you begin.

7.2 Checklist for Configuring the Communications Interfaces

Step 1: Creating IBM Communication Server Profiles for the Gateway
Step 2: Definition Types
Step 3: Testing the Connection

7.3 Creating IBM Communication Server Profiles for the Gateway

The Oracle Transparent Gateway for DRDA requires a stored set of definitions, called Side Information Profiles, to support connections between the gateway and DRDA Servers. Each profile consists of a profile name and a profile type, a set of fields describing the profile. The fields in a given profile type are generally a mixture of
Configuring IBM Communication Server 7-1
Creating IBM Communication Server Profiles for the Gateway
operating parameter values and names of other SNA profiles relevant to the profile. Each functional part of APPC, such as the Mode, Remote Transaction Program (RTP) name, and Logical Unit (LU), is described by a distinct profile type.

7.3.1 Independent Versus Dependent LUs

Oracle recommends independent LUs for the Oracle Transparent Gateway for DRDA, because they support multiple parallel sessions or conversations. This means multiple Oracle client applications can be active simultaneously with the same DRDA Server through the independent LU.
Dependent LUs support only one active session. The CP (IBM Communication Server, in this case) queues additional conversation requests from the gateway server behind an already active conversation. In other words, conversations are single-threaded for dependent LUs.
If a dependent LU is correctly defined, then no alterations to the Oracle Transparent Gateway for DRDA configuration are needed, nor should any changes be needed to the DRDA Server.
The operational impact of dependent LUs is that the first client application can start a conversation through the gateway with the DRDA Server. While that session is active (which could be seconds, minutes, or hours, depending on how the client application and transaction are designed), any other client application starting a session with the same DRDA Server appears to stop responding as it waits behind the previous session.
If a production application really uses only one conversation at any one time, then there should be no impact. However, additional concurrent conversations might be required for testing or other application development. Each requires that additional dependent LUs be defined on the remote host, plus additional IBM Communication Server configuration entries which define the additional dependent LUs on the host.
Additional Side Information Profiles should be defined to use the new dependent LUs. New Transparent Gateway for DRDA instances should be created and configured to use these new Side Information Profiles.

7.3.2 Creating SNA Definitions for the Gateway

IBM Communication Server definitions are created using the SNA Node Configuration tool, while the actual operation of the server is done using the SNA Node Operations tool, both of which are provided with IBM Communication Server. Maintenance of SNA definitions is normally done by a user with Administrator authority.
7.3.2.1 Sample IBM Communication Server Definitions
The tg4drda\sna\commsvr subdirectory contains a sample set of IBM Communication Server definitions created with the SNA Node Configuration tool. The oracle.acg file contains sample definitions for IBM Communication Server.
Before building the IBM Communication Server definitions, examine the oracle.acg file to determine the definitions needed, their contents, and their interrelationships. The file format is text-oriented and each field of each definition is clearly labeled. You can print a copy of the file to use while working with your definitions in an SNA Node Configuration session.
7-2 Oracle Transparent Gateway for DRDA Installation and User's Guide

7.4 Definition Types

There are several types of IBM Communication Server definitions relevant to gateway APPC/LU6.2 operation. Each definition can be created and edited using a corresponding SNA Node Configuration menu.
The definitions relevant to the gateway are presented here in hierarchical order. Those definition types that are lowest in the hierarchy are discussed first. This matches the logical sequence in which to create the profiles.
Refer to the IBM Communication Server online documentation for a complete discussion of IBM Communication Server definitions. This section is an overview of IBM Communication Server definitions in relation to the Oracle Transparent Gateway for DRDA.

7.4.1 IBM Communication Server Definitions

This section describes the process of creating SNA definitions for IBM Communication Server using the SNA Node Configuration tool. All the tasks described in this section are performed within SNA Node Configuration.
Figure 7–1 Choosing a Configuration Scenario
Definition Types
7.4.1.1 Creating the Configuration
SNA Node Configuration will first ask if you are creating a new configuration or loading an existing configuration. The following example is presented with the assumption that a new configuration is being created.
SNA Node Configuration will next prompt you for a configuration scenario. Our example is made assuming that a CPI-C or APPC scenario is being chosen.
Configuring IBM Communication Server 7-3
Definition Types
Figure 7–2 Creating the Node Configuration
7.4.1.2 Defining the Node
Each SNA Server must have a Control Point defined. This is typically called the Node definition. Click Node and click Create.
7-4 Oracle Transparent Gateway for DRDA Installation and User's Guide

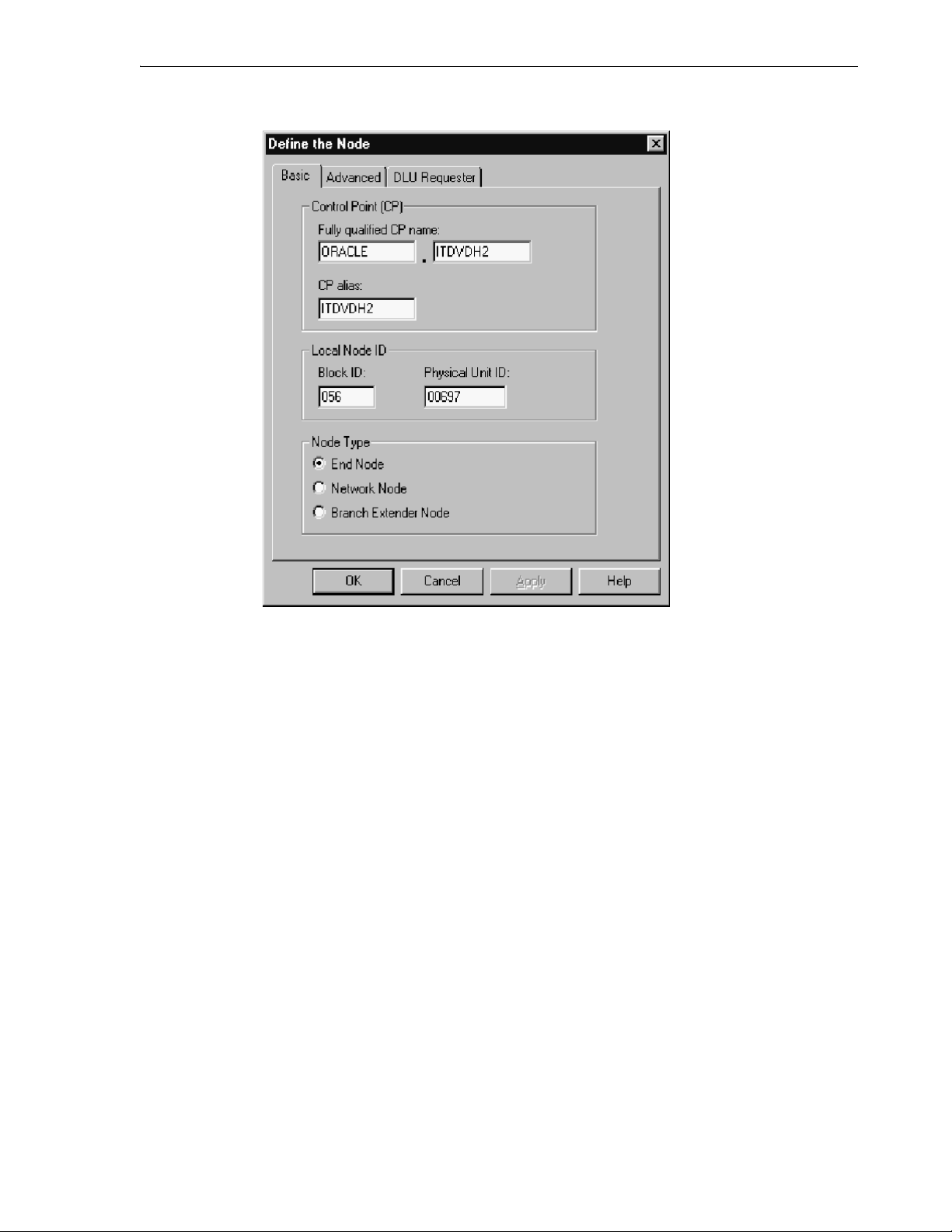

Figure 7–3 Node Definition
Definition Types
In the Define the Node dialog box, in the Basic tab, enter the Control Point, Local Node ID, and Node Type information. You can also select option in the Advanced tab depending on your SNA network configuration. Click OK.
Configuring IBM Communication Server 7-5
Definition Types
Figure 7–4 Creating Devices
Communication devices should be configured next. Select Devices, and click Create.
Figure 7–5 Choosing the Device Type
Select the type of device to use for communication. The LAN type is typical for either Ethernet or Token-ring attached network devices.
7-6 Oracle Transparent Gateway for DRDA Installation and User's Guide

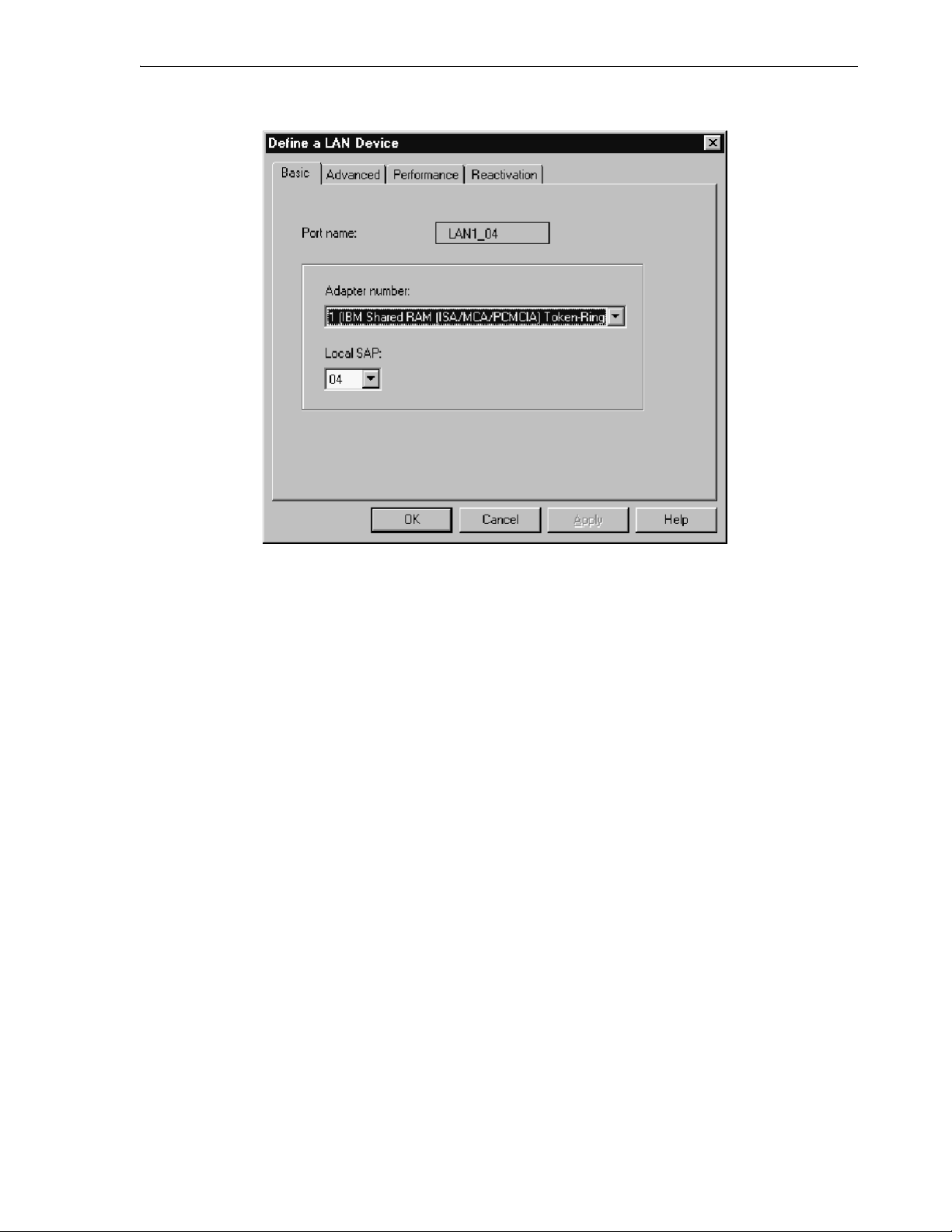

Figure 7–6 Configuring a LAN Device
Definition Types
In the Basic tab, select the adapter to use and the local SAP. The other tabs may be explored for network tuning parameters. Click OK.
Configuring IBM Communication Server 7-7
Definition Types

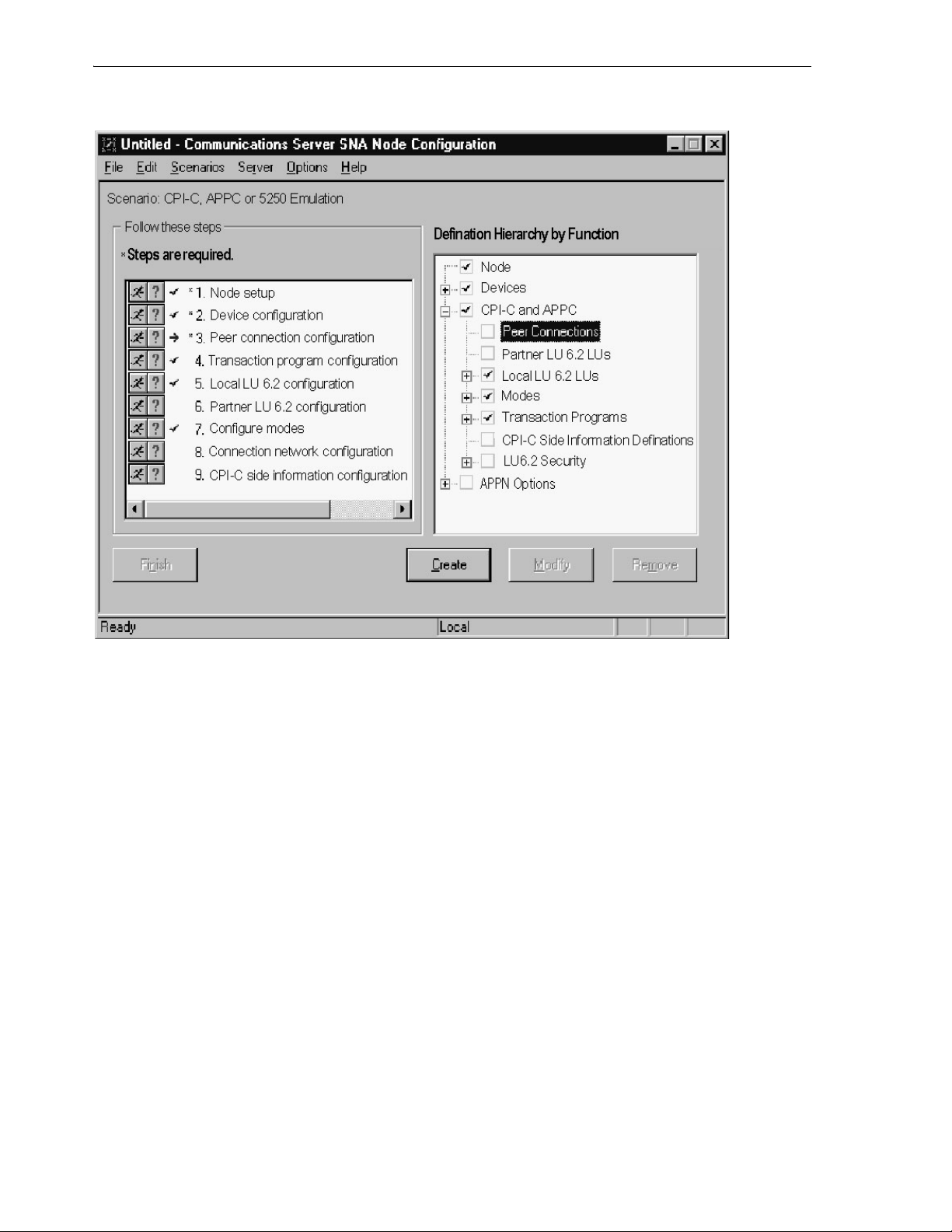

Figure 7–7 Creating Peer Connections
Peer connections should be configured next. Select Peer Connections, and click Create.
7-8 Oracle Transparent Gateway for DRDA Installation and User's Guide

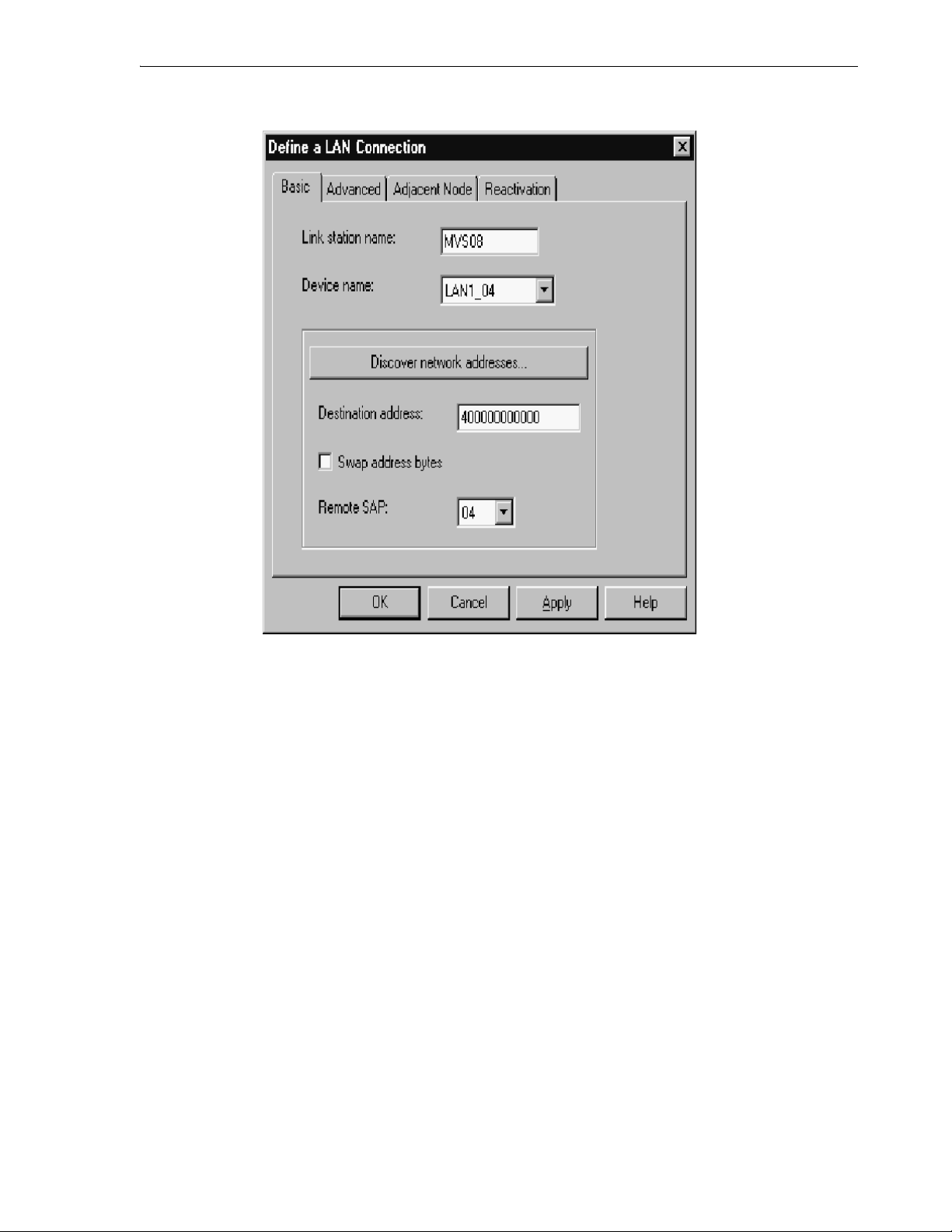

Figure 7–8 Defining the Link station
Definition Types
In the Basic tab, enter a link station name for this connection. Choose the Device for the connection, and enter the destination address and remote SAP.
Configuring IBM Communication Server 7-9
Definition Types
Figure 7–9 Defining the Adjacent Node
Select the Adjacent Node tab. Enter the Adjacent CP name of the remote system and pick its CP Type. You may have to choose a different Transmission Group (TG) as the default. Consult your SNA Network Administrator for details. The other tabs may be explored for tuning and link reactivation options. Click OK.
7-10 Oracle Transparent Gateway for DRDA Installation and User's Guide

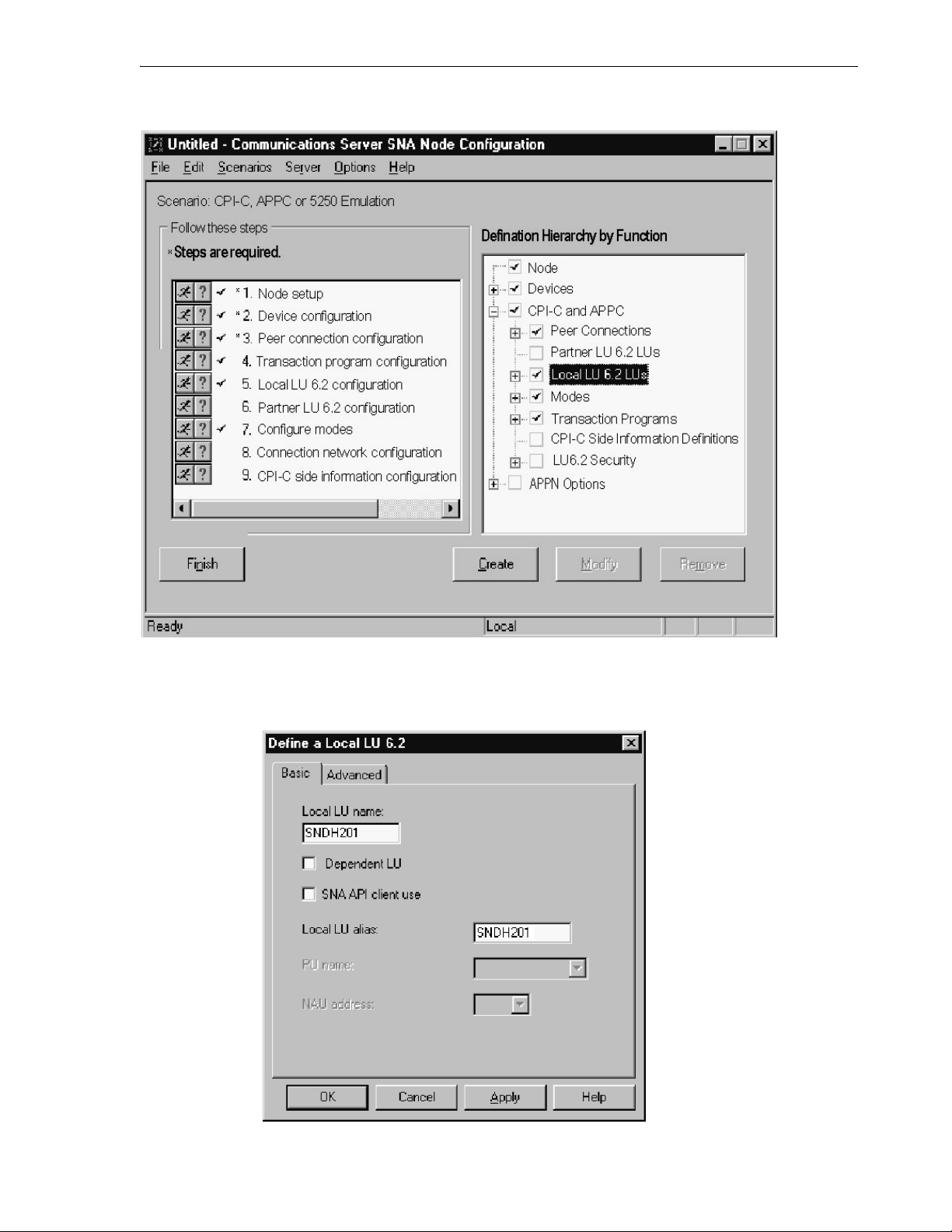

Figure 7–10 Create Local LUs
Definition Types
Next, define the local LUs for this Node. Select Local LU 6.2 LUs, and click Create.
Figure 7–11 Defining Local LUs
Configuring IBM Communication Server 7-11
Definition Types
In the Basic tab, enter the name of the local LU and an alias, if desired. The name must match the Local LU definition of the remote host for this node. The Advancedtab may be explored for Synchronization support and for LU session limits. Click OK.
Figure 7–12 Create Partner LUs
Next, define remote Partner LUs for this Node to connect to. Select Partner LU 6.2 LUs and click Create.
7-12 Oracle Transparent Gateway for DRDA Installation and User's Guide

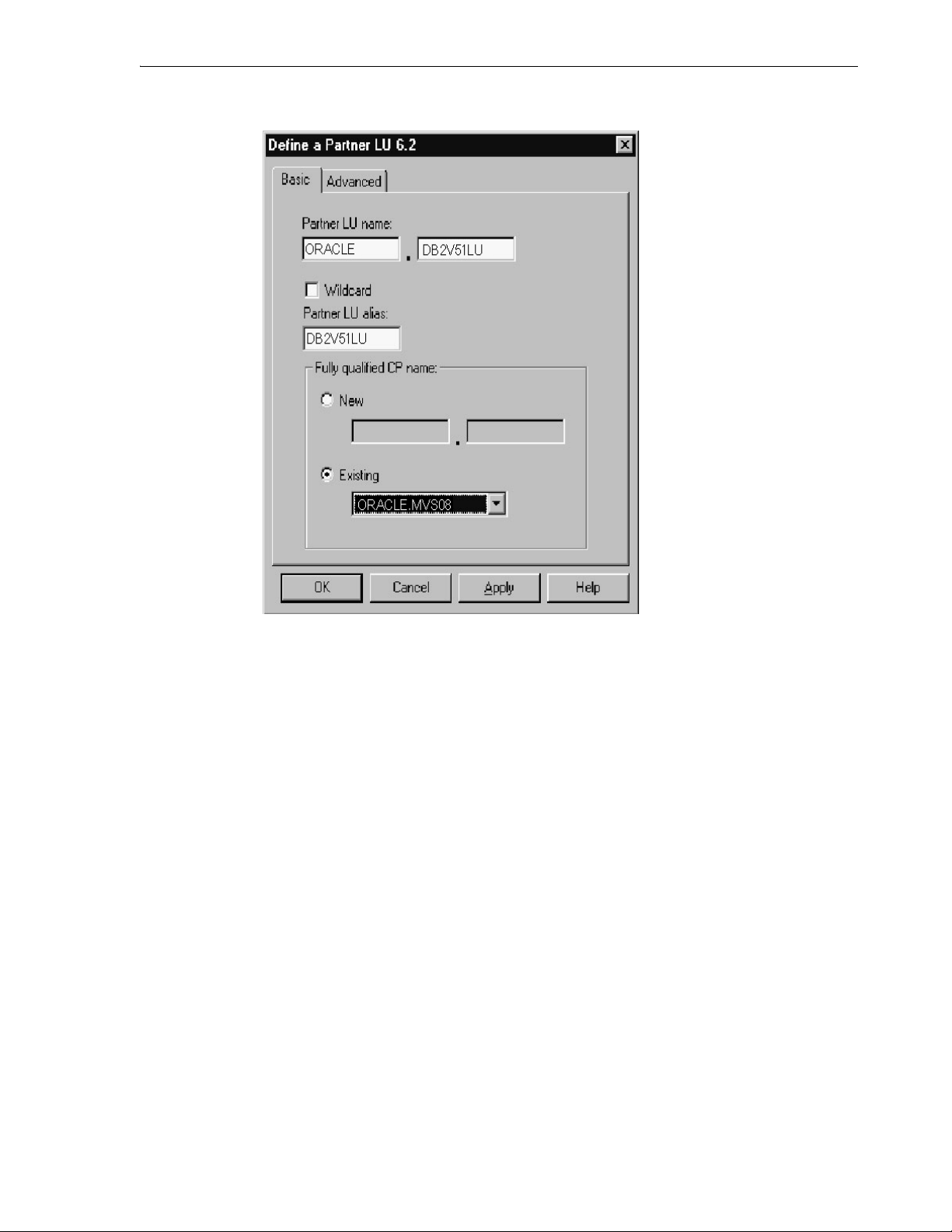

Figure 7–13 Defining Partner LUs
Definition Types
In the Basic tab, enter the name of the remote or partner LU and an alias, if desired. Seclect Fully Qualified CP from the existing list. The Advanced tab may be explored for logical record limits and security support. Click OK.
Configuring IBM Communication Server 7-13
Definition Types
Figure 7–14 Creating the IBMRDB Mode
Next, define the IBMRDB mode, which will be used for DRDA connections. Select Modes and click Create.
7-14 Oracle Transparent Gateway for DRDA Installation and User's Guide
Figure 7–15 Define the IBMRDB Mode
Definition Types
In the Basic tab, enter the name IBMRDB and the mode session limits. Consult your SNA Network Administrator for details. The Advanced tab may be explored for pacing and autoactivation session options. Click OK.
Configuring IBM Communication Server 7-15
Definition Types

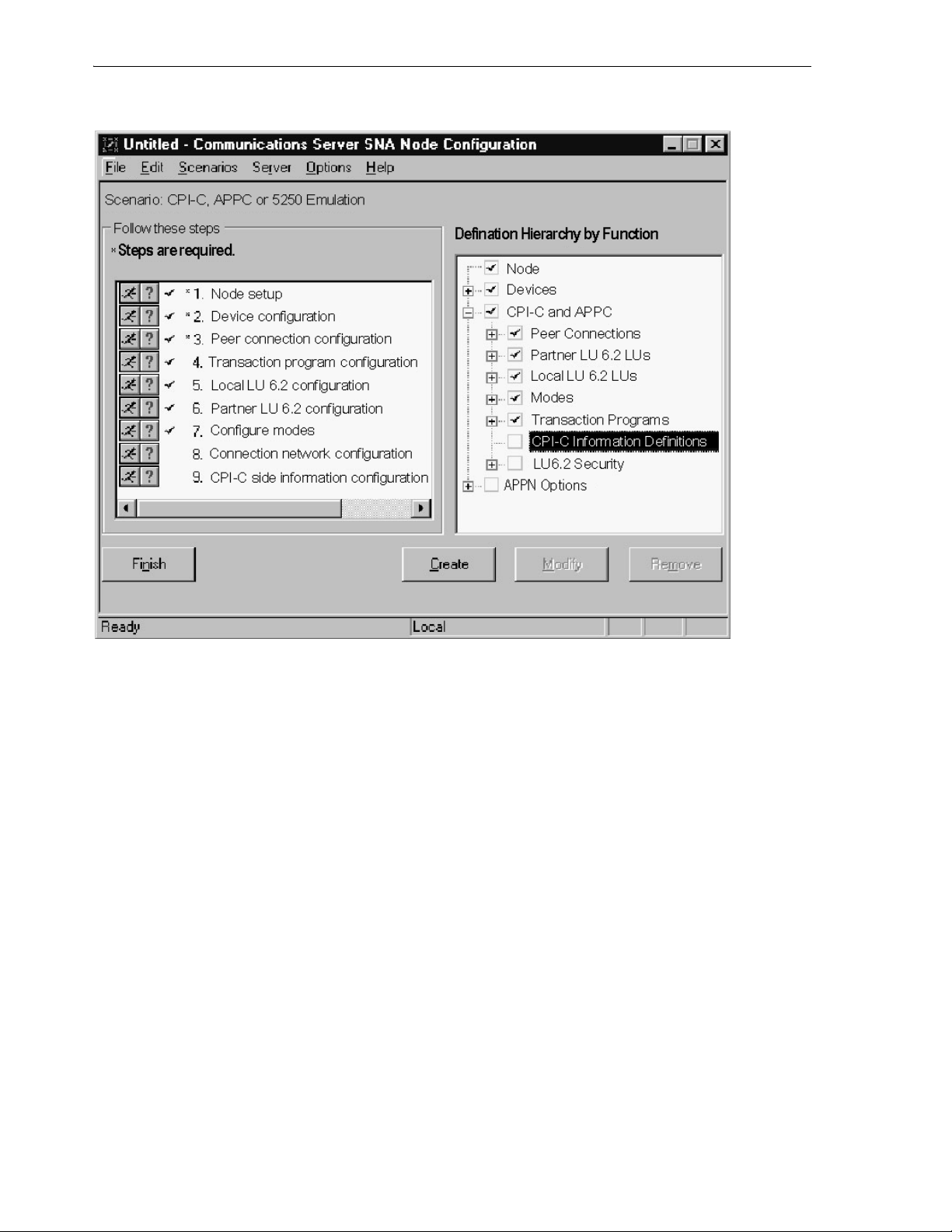

Figure 7–16 Create the CPI-C Side Information Profile
Next, define the CPI-C profile that will be use dby the gateway. Select CPI-C side information definitions and click Create.
7-16 Oracle Transparent Gateway for DRDA Installation and User's Guide
Figure 7–17 Define the CPI-C Side Information Profile
Testing the Connection
In the Basic tab, enter the Symbolic Destination name. Select IBMRDB for the Mode name drop-down list, and select the Partner LU either by name or by alias. Enter the TP name for the remote DRDA Server. Mode DRDA Servers use the default Service TP name X'07F6C4C2' or '076DB'. Consult your DRDA Server Administrator for the correct TP name. The Advancedtab may be explored for security options.
Note: The DRDA_CONNECT_PARM should be assigned the name of
the Symbolic Destination name as entered in Figure 7–16, "Create
the CPI-C Side Information Profile".

7.5 Testing the Connection

Before proceeding with the gateway configuration tasks in Chapter 10, "Configuring
the Gateway", ensure that your connection is working. This can be done by using the
SNA Node Operations tool.
Figure 7–18, "Relationship Between IBM Communication Server Definitions and Host VTAM Definitions" shows the relationship between IBM Communication Server
definitions and the VTAM definitions on the host.
Configuring IBM Communication Server 7-17
Using SNA Session Security Validation
Figure 7–18 Relationship Between IBM Communication Server Definitions and Host VTAM Definitions
Local LU Defination
Local LU Alias
Local LU Name
...
Connection Definition
Connection Name
...
Side Information
Local LU Alias
Partner LU Alias
or
Fully-qualified
Partner LU Name
Mode Name
Remote TP Name
Partner LU Definition
Fully-qualified
Partner LU Name
netname.pluname
Partner LU Alias
Connection
...
Mode Definition
Mode Name
...
VTAMLST
APPL Definition pluname APPL... MODETAB=mtname
ATCSTR00 NETWORK=netname SSCPNAME=cpname
VTAM Mode Table
mtname MODETAB MODEENT LOGMODE=mode name

7.6 Using SNA Session Security Validation

When the database link request for the gateway begins, the gateway attempts to start an APPC conversation with the DRDA Server. Before the conversation can begin, a session must start between the host LU and the DRDA Server LU.
SNA and its various access method implementations (including IBM Communication Server) provide security validation at session initiation time, enabling each LU to authenticate its partner. This is carried out entirely by network software before the gateway and server application programs begin their conversation and process conversation-level security data. If session-level security is used, then correct password information must be established in the Pentium-based host Connection Profile and in similar parameter structures in the DRDA Server system that is to be accessed. Refer to Microsoft SNA Server and IBM Communication Server product documentation for detailed information.

7.7 SNA Conversation Security

SNA conversation security is determined by the setting of the gateway initialization parameter, DRDA_SECURITY_TYPE. This parameter determines whether SNA security option SECURITY is set to PROGRAM or to SAME. Generally, the gateway operates under SNA option SECURITY=PROGRAM, but it can also be set to operate under SNA option SECURITY=SAME.
7-18 Oracle Transparent Gateway for DRDA Installation and User's Guide

7.7.1 SNA Security Option SECURITY=PROGRAM

If DRDA_SECURITY_TYPE=PROGRAM is specified, then the gateway allocates the conversation with SNA option SECURITY=PROGRAM and sends this information to the DRDA Server:
If the database link has explicit CONNECT information, then the specified user ID
and password are sent.
If the database link has no CONNECT clause and if the application has logged in to
the Oracle integrating server with an explicit user ID and password, then the Oracle user ID and password are sent.
If the application logs in to the Oracle integrating server with operating system
authentication and if the database link lacks explicit CONNECT information, then no user ID and password are sent. If no user ID and password are sent and if the DRDA Server is not configured to assign a default user ID, then the connection fails.
In general, SECURITY=PROGRAM tells the DRDA Server to authenticate the user ID/password combination using whatever authentication mechanisms are available. For example, if DB2/OS390 is the DRDA Server, then RACF can be used. This is not always the case, however, because each of the IBM DRDA Servers can be configured to process inbound user IDs in other ways.
SNA Conversation Security

7.7.2 SNA Security Option SECURITY=SAME

The SECURITY=SAME option is not directly supported by IBM Communication Server. SECURITY=SAME implicitly validates security by using the user account under which
the TNS listener was started. IBM Communication Server, however, does not support this type of validation.
Configuring IBM Communication Server 7-19
SNA Conversation Security
7-20 Oracle Transparent Gateway for DRDA Installation and User's Guide
This chapter describes configuring TCP/IP for the Microsoft Windows platforms that are supported by the Oracle Transparent Gateway for DRDA. TCP/IP is a communications facility that is already part of the operating system. No third-party protocol software is required. Read this chapter to learn more about configuring TCP/IP.
This chapter contains the following sections:
Before You Begin
Configuring TCP/IP

8.1 Before You Begin

This chapter requires you to enter parameters that are unique to your system in order to properly configure TCP/IP. Refer to Appendix E for a worksheet listing all of the installation parameters that you will need to know about before you complete the configuration process. Ask your network administrator to provide you with these parameters before you begin.
8

Configuring TCP/IP

8.1.1 Port Number

The DRDA standard specifies that port 446 be used for DRDA services. However, if several DRDA Servers are operating on the same system, then they will need to provide service on different ports. Therefore, the port number that is used by each DRDA Server will need to be extracted from the configuration of each individual DRDA Server. DB2 for OS/390 and DB2/400 typically use the DRDA standard port number, 446, whereas DB2/UDB typically uses 50000 as the port number. Refer to IBM DB2 Administrator and Installation guides for locating and changing these port numbers for the DRDA Server. For additional information, consult your DB2 DBA or system administrator.

8.2 Configuring TCP/IP

The following configuration example is for Microsoft Windows NT 4.0. Other Microsoft Windows operating systems may have these panels in a different location or may present them differently, but the required contents will be essentially the same.
You configure TCP/IP from the network configuration tool in the Microsoft Windows Control Panel.
Configuring TCP/IP 8-1
Configuring TCP/IP
Select the Protocol tab and select TCP/IP Protocol. Then, click Properties to display the Properties panel.
Figure 8–1 Network Configuration Tool
If the TCP/IP Protocol is not already installed, then click Add and then select the TCP/IP Protocol.
Configuration consists of assigning a host name, an IP address, and a network mask to a given network interface.
In the IP Address tab, use the drop-down list to select the adapter you will use. Your network administrator can tell you whether you will be using DHCP or a static IP address. If using a static IP, then you must enter the correct values for IP address, subnet mask, and default gateway.
8-2 Oracle Transparent Gateway for DRDA Installation and User's Guide

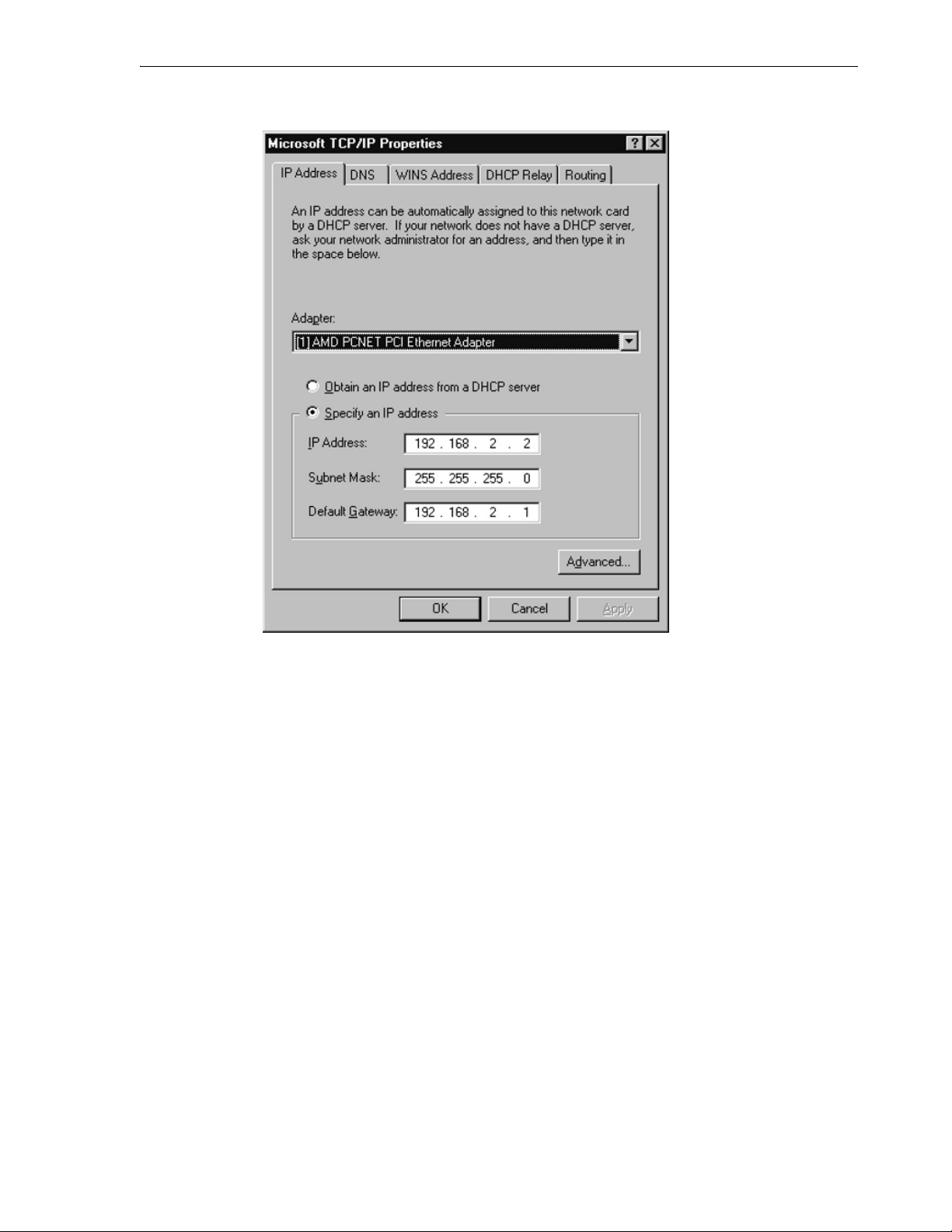

Figure 8–2 TCP/IP Properties Panel
Configuring TCP/IP
Additional configuration consists of defining a name server IP address or creating entries in the hosts file on the local system. Name server translate host names into IP Addresses when queried on a particular host name. The hosts file provides this same functionality, but in a non-network participating manner.
The Hosts file may be edited with a text editor of your choice. For example, in Microsoft Windows NT, the file is located in:
C:\winnt\system32\drivers\etc\hosts
where C:\winnt is the Windows NT system root. To use a name server, you must configure the TCP/IP to use DNS. Select the DNS tab
and enter a host name and domain name. Your network administrator will provide these values. Click Add below the Domain Suffix Search Order box and enter the IP Address of the name server. You may enter up to three name servers. Click OK.
Configuring TCP/IP 8-3
Configuring TCP/IP

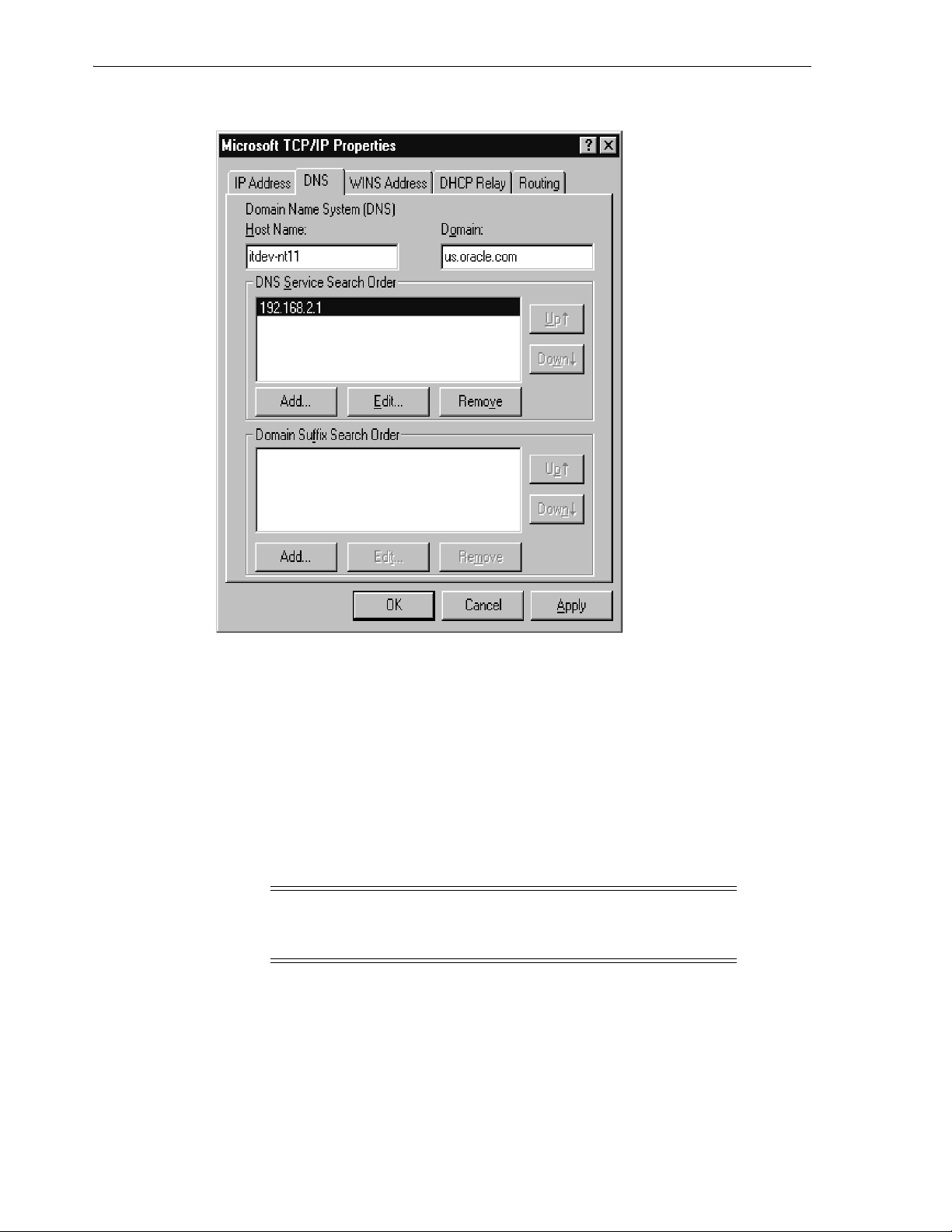

Figure 8–3 Define a Name Server
For local configuration (in other words, the gateway and the DRDA Server are on the same system), it may be desirable to use the loop-back address. The IP address is 127.0.0.1 and is typically given the local name ("localhost" or "loopback") in the Hosts file. Using the loop-back address reduces the amount of network overhead by handling the traffic internally without actually talking to the network.
The gateway is configured for TCP/IP using the DRDA_CONNECT_PARM initialization file parameter. In an SNA configuration, this parameter would be set to the Side Information Profile name (name set in Figure 6–21 or Figure 7–17). In a TCP/IP configuration, this parameter should be set to the IP address or Host name of the DRDA Server, which should be followed by the Service Port number of that server. For more information about the port number, refer to "Port Number" on page 8-1.
Note: When installing the gateway, you must choose either SNA
or TCP/IP for the networking interface. The DRDA_CONNECT_PARM must be configured correctly for the chosen networking interface.
The rest of the DRDA-specific parameters are unrelated to the communications protocol and may be set the same for either SNA or TCP/IP installations.
Example #1: Configuration for a DRDA Server on a host named 'mvs01.domain.com' (or IP address of 192.168.1.2) with a Service Port number of 446.
DRDA_CONNECT_PARM=mvs01.domain.com:446
or
8-4 Oracle Transparent Gateway for DRDA Installation and User's Guide
Configuring TCP/IP
DRDA_CONNECT_PARM=192.168.1.2:446
Example #2: Configuration for a DRDA Server on the same host as the gateway with a Service Port number of 446.
DRDA_CONNECT_PARM=localhost:446
or
DRDA_CONNECT_PARM=127.0.0.1:446
For additional information on configuring TCP/IP, refer to the Microsoft Windows installation and configuration guides.
Configuring TCP/IP 8-5
Configuring TCP/IP
8-6 Oracle Transparent Gateway for DRDA Installation and User's Guide
9

Oracle Net

Oracle Net is an Oracle product providing network communication between Oracle applications, Oracle Servers, and Oracle Gateways across different systems.
This chapter contains the following sections:
Checklists for Oracle Net
Oracle Net and SQL*Net Introduction
Oracle Net Overview
Configuring Oracle Net
Advanced Security Encryption
Setting Up Advanced Security Encryption for Test
Testing Advanced Security Encryptions

9.1 Checklists for Oracle Net

Use the following checklists when you are installing and configuring Oracle Net.

9.1.1 Configuring Oracle Net

Step 1: Modify the listener.ora file
Step 2: Modify the tnsnames.ora file

9.1.2 Advanced Security Encryption

Use the following checklists for encryption.
9.1.2.1 Setting Up Advanced Security Encryption for Test
Step 1: Set Advanced Security Encryption Parameters for the Gateway
Step 2: Set Advanced Security Encryption Parameters
9.1.2.2 Testing Advanced Security Encryptions
Step 1: Connect the Gateway and Oracle the Integrating Server
Step 2: Reset Configuration Parameters on the Gateway
Oracle Net 9-1
Oracle Net and SQL*Net Introduction

9.2 Oracle Net and SQL*Net Introduction

Oracle Net provides connectivity to the Gateway through the use of Protocol Adapters, SQL*Net, and the TNS Listener. Configuration of Oracle Net is backward compatible with past versions of SQL*Net. A new facility called Heterogeneous Services (HS) has been added to both Oracle Net and the Gateway to improve the throughput of SQL*Net data. For additional information, refer to Oracle Database Net
Services Administrator's Guide and Oracle Database Heterogeneous Connectivity Administrator's Guide.

9.3 Oracle Net Overview

Oracle Net is a required Oracle product supporting network communications between Oracle applications, Oracle servers, and Oracle gateways across different CPUs or operating systems. It also supports communication across different Oracle databases and CPUs providing distributed database and distributed processing capabilities.
Oracle Net also enables applications to connect to multiple Oracle servers or gateways across a network, selecting from a variety of communications protocols and application program interfaces (APIs) to establish a distributed processing and distributed database environment.
A communications protocol is a set of implemented standards or rules governing data transmission across a network. An API is a set of subroutines providing an interface for application processes to the network environment.

9.3.1 Distributed Processing

Dividing processing between a front-end computer running an application and a back-end computer used by the application is known as distributed processing. Oracle Net enables an Oracle tool or application to connect to a remote computer containing an Oracle server or Oracle gateway.

9.3.2 Distributed Database

Several databases linked through a network, appearing as a single logical database, are known as a distributed database. An Oracle tool running on a client computer or on an Oracle server running on a host computer can share and obtain information retrieved from other remote Oracle servers. Regardless of the number of database information sources, you might be aware of only one logical database.

9.3.3 Terminology for Oracle Net

The following terms are used to explain the architecture of Oracle Net for Microsoft Windows:
host is the computer the database resides on and that runs the Oracle server or gateway.
client (task) is the application using an Oracle Net driver to communicate with the Oracle server or gateway.
protocol is a set of standards or rules governing the operation of a communication link.
driver is the part of Oracle Net supporting a given network protocol or communication method.
9-2 Oracle Transparent Gateway for DRDA Installation and User's Guide
network is a configuration of devices and software connected for information interchange.

9.4 Configuring Oracle Net

The gateway must be defined to the TNS listener, and a service name must be defined for accessing the gateway.

9.4.1 Step 1: Modify the listener.ora file

Add an entry for the gateway to the listener.ora file. For example:
(SID_DESC= (SID_NAME=sidname) (ORACLE_HOME=C:\oracle\GTWHome) (PROGRAM=g4drsrv))
Refer to Appendix B, "Sample Files", for a sample listener.ora file.
Note: The PROGRAM=g4drsrv parameter is required. It specifies
to the listener the name of the gateway executable.
Configuring Oracle Net

9.4.2 Step 2: Modify the tnsnames.ora file

Add a gateway service name to the tnsnames.ora file on the system where your Oracle integrating server resides. Specify the service name in the USING parameter of the database link defined for accessing the gateway from the Oracle Database 10g server.
You can use the IPC protocol only if the Oracle integrating server and the gateway reside on the same system. If you use the IPC protocol adapter, then add an entry like this to tnsnames.ora:
linkname1 = (DESCRIPTION= (ADDRESS= (PROTOCOL=IPC) (KEY=ORAIPC)) (CONNECT_DATA=(SID=sidname)) (HS=) )
where:
linkname1 is the name used to define the database link referencing the gateway. ORAIPC is the IPC key defined in the listener.ora file for the IPC protocol sidname is the gateway SID, the same SID that you used for the entry in the
listener.ora file. If you are using the TCP/IP protocol adapter, then add this entry to tnsnames.ora:
linkname2 = (DESCRIPTION= (ADDRESS= (PROTOCOL=TCP) (PORT=port) (HOST=hostname)) (CONNECT_DATA=(SID=sidname)) (HS=) )
Oracle Net 9-3
Advanced Security Encryption
where:
linkname2 is the name used to define the database link referencing the gateway port is the default Oracle TCP/IP port number (1541) hostname is the name of your host system sidname is the gateway SID
Refer to "Sample Oracle Net tnsnames.ora File" on page B-2 for a sample tnsnames.ora file. For more information about configuring Oracle Net, refer to the Oracle Database Net Services Reference and Oracle Database Net Services Administrator's Guide.

9.5 Advanced Security Encryption

Oracle Net supports the CHECKSUM command and the Export encryption algorithms. The following sections describe a basic method of verifying this feature if it is used at your site. The easiest way to determine if Advanced Security encryption is attempting to work is to deliberately set wrong configuration parameters and attempt a connection between the server and client. Incorrect parameters cause the connection to fail.
After receiving the expected failure message, set the configuration parameters to the correct settings and try the connection again. Encryption is working properly if you receive no further error messages.

9.6 Setting Up Advanced Security Encryption for Test

The following procedures test Advance Security encryption by the method explained earlier. The incorrect parameter settings produce error 12660
1. Set Advanced Security encryption parameters for the gateway
2. Set Advanced Security encryption parameters for the Oracle integrating server
Note: The international or export version of Advanced Security
encryption supports the following encryption types:
des40
rc4_40

9.6.1 Step 1: Set Advanced Security Encryption Parameters for the Gateway

Edit the Oracle Net configuration file on the Microsoft Windows system (gateway system) to add the following parameters and values:
SQLNET.CRYPTO_CHECKSUM_SERVER = REJECTED SQLNET.ENCRYPTION_SERVER = REJECTED SQLNET.CRYPTO_CHECKSUM_TYPES_SERVER = (SHA1) SQLNET.ENCRYPTION_TYPES_SERVER = (DES40,RC4_40) SQLNET.CRYPTO_SEED = "abcdefg123456789"
The value shown for SQLNET.CRYPTO_SEED is only an example. Set it to the value you want. Refer to the Oracle Database Advanced Security Administrator's Guide for more information.
9-4 Oracle Transparent Gateway for DRDA Installation and User's Guide
