Oracle PRIMECLUSTERTM Wizard User Manual

Configuration and Administration Guide

PRIMECLUSTER™ Wizard for Oracle

Configuration and Administration Guide 4.1

Edition April 2003

for Solaris™ Operating Environment

Preface

Purpose

The purpose of the document is to outline functions of PRIMECLUSTER Wizard for Oracle. Further, it describes the procedures from installation to operation management.

Readers

The document is intended for system engineers and system administrators to design, configure, and manage a PRIMECLUSTER system. The reader should have expertise in the PRIMECLUSTER and Oracle system.

Outline

The document consists of the following 6 chapters and 1 appendix:

● Chapter 1 Feature

● Chapter 2 Environment setup

● Chapter 3 Operation

● Chapter 4 Command

● Chapter 5 Notice

● Chapter 6 Message

● Appendix A

Notational convention

The document conforms to the following notational conventions:

● Describes points to be taken notice of.

●

● Describes by using an example.

Describes information a user can refer to.

Trademarks

Solaris, NFS, Sun Microsystems are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. Sun's logo mark and Solaris are registered trademarks of Sun Microsystems, Inc. ORACLE and Oracle Applications are trademarks or registered trademarks of Oracle Corporation.

Requests

No part of this document may be reproduced or copied without permission of FUJITSU LIMITED. The contents of this document may be revised without prior notice.

Configuration and Administration Guide .................................................................................................................. 1

Chapter 1 Feature............................................................................................................................................... 4

1.1 Feature outline .......................................................................................................................................... 5

1.2 Operating Environment ............................................................................................................................. 6

Chapter 2 Environment setup ............................................................................................................................. 7

2.1 Set up environment ................................................................................................................................... 8

2.2 Install and set up PRIMECLUSTER software............................................................................................ 9

2.3 Install and set up Oracle software ........................................................................................................... 10

2.4 Create userApplication ............................................................................................................................ 12

2.4.1 Application-Create............................................................................................................................ 12

2.4.2 Check userApplication ..................................................................................................................... 13

2.5 Create and set up Oracle database ........................................................................................................ 14

2.6 Create and set up Oracle resource ......................................................................................................... 17

2.6.1 Create Oracle resource.................................................................................................................... 17

2.6.2 Set up userApplication ..................................................................................................................... 21

2.6.3 Check userApplication ..................................................................................................................... 22

Chapter 3 Operation ......................................................................................................................................... 23

3.1 Set up Oracle-related script..................................................................................................................... 24

3.2 Oracle stop during cluster operation........................................................................................................ 25

3.3 Action definition file ................................................................................................................................. 26

3.4 Solution at the time of switchover............................................................................................................ 27

3.5 Collect information for troubleshooting.................................................................................................... 28

Chapter 4 Command ........................................................................................................................................ 29

4.1 hvoradisable - Discontinue monitoring resource ..................................................................................... 30

4.2 hvoraenable - Restart monitoring resource ............................................................................................. 31

4.3 clorapass - Set up password for monitoring ............................................................................................ 32

4.4 cloracpy - Oracle environment setup tool for standby node .................................................................... 33

4.5 clgetoralog - Collect Oracle information for troubleshooting....................................................................34

Chapter 5

Chapter 6 Message .......................................................................................................................................... 36

Appendix A Setup method using CUI.................................................................................................................. 39

A.1 Create userApplication ............................................................................................................................ 39

A.1.1 A.1.2 A.1.3 A.1.4 A.1.5

A.2 Create and set up Oracle resource ......................................................................................................... 45

A.2.1 A.2.2 A.2.3

Notice............................................................................................................................................... 35

Application-Create ........................................................................................................................ 39

Set up scalable operation (Oracle 9i RAC)................................................................................... 40

Set up standby operation.............................................................................................................. 42

Configuration-Generate and Configuration-Activate ..................................................................... 44

Check userApplication.................................................................................................................. 45

Application-Edit............................................................................................................................. 45

Configuration-Generate and Configuration-Activate ..................................................................... 46

Check userApplication operation .................................................................................................. 48

Chapter 1 Feature

1.1 Feature outline

PRIMECLUSTER Wizard for Oracle is a software product that facilitates cluster operation management for Oracle operating on a PRIMECLUSTER system. This is required for scalable operation and standby operation for a cold standby Oracle instance. The scalable operation requires Oracle9i Real Application Clusters (Oracle9i RAC). The standby operation does not require Oracle9i RAC, but requires Oracle cold standby instead.

Module structure

For Oracle operation on PRIMECLUSTER, the module consists of the followings:

Environment setup Wizard Environment setup tool to enable Oracle operation on

Detector Module to monitor Oracle Scripts Control Oracle startup and stop Setup/operation command Commands used to set up and operate

PRIMECLUSTER

Environment setup

The environment setup tool provides “ORACLE” Wizard that creates userApplication in the environment configuration of PRIMECLUSTER RMS.

Monitoring

A detector monitors Oracle instances and Oracle listeners. The detector is connected to Oracle using system user to monitor the Oracle instance. Then, it periodically creates, updates, and deletes dummy table, which is created in the system user’s default tablespace by executing the SQL command. This enables the detector to detect a logical failure as well as the process state of the Oracle instance. When the Oracle instance hangs, and if the SQL command is not returned within a specified time, the detector times out to notify a user of the failure. The two types of monitoring of the Oracle listener are process detection and the “tnsping” command.

Startup and stop control

Along with the state transition of a cluster system, scripts automatically start or stop Oracle instances or Oracle listeners. These scripts first check and then start up the Oracle instance. If damage has occurred, the scripts automatically recover the Oracle instance. For example, if the Oracle instance fails during online backup, the scripts automatically execute “end backup” to start up the Oracle instance (When the AutoRecover is set to “Yes”.) When stopping the Oracle instance, the scripts stop it in the immediate mode (default). If this does not occur properly, the scripts stop the instance in the abort mode. This means operational node switchover can be performed at high-speed.

1.2 Operating Environment

Scalable operation

In scalable operation with Oracle9i RAC, Oracle is operated on all nodes. Regardless of which node a client is connected to, the client is able to use the database.

Standby operation

In standby operation, a cluster system consists of an operational node and standby nodes. On the operational node, Oracle applications, a logical IP address and shared disks are active. On the standby nodes, these resources are inactive. In the event of a failure, business operation is switched to one of the standby nodes, and the resources in this standby node are activated. Then, the client can be connected to the running node using the logical IP address without modifying any settings.

Chapter 2 Environment setup

2.1 Set up environment

This section explains a general setup procedure of Oracle operating on a PRIMECLUSTER system.

Scalable operation (Oracle9i RAC)

Outline

One arbitrary node Other nodes

1 Install and set up PRIMECLUSTER Install and set up PRIMECLUSTER

Install PRIMECLUSTER Wizard for

Oracle

3 Install and set up Oracle software Install and set up Oracle software

4 Create userApplication

5 Create and set up an Oracle database

7 Create and set up Oracle resources

Install PRIMECLUSTER Wizard for Oracle

Set up an Oracle database

Standby operation

Outline

Operational node Standby nodes

1 Install and set up PRIMECLUSTER Install and set up PRIMECLUSTER

Install PRIMECLUSTER Wizard for

Oracle

3 Install and set up Oracle software Install and set up Oracle software

4 Create userApplication

5 Create and set up an Oracle database

7 Create and set up Oracle resources

Further details of each step are described below.

Install PRIMECLUSTER Wizard for Oracle

Set up an Oracle database

2.2 Install and set up PRIMECLUSTER software

This section explains how to install and set up PRIMECLUSTER.

Set up hardware

Set up hardware required for PRIMECLUSTER. The shared disk is also required to create the Oracle database.

Install software

Install PRIMECLUSTER first, referring to “PRIMECLUSTER Installation Guide”. Then, install Oracle Wizard following the instructions of “PRIMECLUSTER Wizard for Oracle Installation Guide”.

Scalable operation requires PRIMECLUSTER Enterprise Edition. Standby operation requires PRIMECLUSTER Enterprise Edition or PRIMECLUSTER HA Server.

Set up cluster system

Set up a cluster system including network systems and shared disk units according to the PRIMECLUSTER manual.

2.3 Install and set up Oracle software

This section explains how to install and set up Oracle.

Initial setup

● /etc/system

Set up values in the “/etc/system” file for Oracle in addition to the values for PRIMECLUSTER. The kernel parameter values vary depending on the implemented Oracle versions. Refer to the Oracle installation guide. The parameter values should be identical on all nodes.

Before installing Oracle, you need to change the “/etc/system” file and reboot the node.

The setup examples are shown below:

set shmsys:shminfo_shmmax=4294967295 set shmsys:shminfo_shmmin=1 set shmsys:shminfo_shmmni=100 set shmsys:shminfo_shmseg=10 set semsys:seminfo_semmni=100 set semsys:seminfo_semmsl=200 set semsys:seminfo_semmns=400 set semsys:seminfo_semopm=100 set semsys:seminfo_semvmx=32767

● /etc/services

Set up a port number for the Oracle listener.

listener 1521/tcp oracle

● Oracle User

Create DBA (database administrator) user to allow a user to install Oracle and operate. The user ID and the group ID should be identical on all nodes.

# groupadd –g <group ID> dba # useradd –u <user ID> –g dba –d /export/home/oracle –s /bin/sh –m oracle

# passwd oracle Normally, the group name should be “dba”. Set up environment variables of Oracle user.

（.profile ）

ORACLE_BASE=/opt/oracle; export ORACLE_BASE

ORACLE_HOME=/opt/oracle/product/8.1.7; export ORACLE_HOME

ORACLE_TERM=sun-cmd; export ORACLE_TERM

ORA_NLS33=$ORACLE_HOME/ocommon/nls/admin/data; export ORA_NLS33

LD_LIBRARY_PATH=$ORACLE_HOME/lib; export LD_LIBRARY_PATH

PATH=$ORACLE_HOME/bin:/usr/bin:/usr/ccs/bin:/usr/ucb; export PATH When “/usr/ucb” is contained in PATH, it needs to be set up after ”/usr/ccs/bin”.

For further details, refer to the Oracle manual.

Installation

● Oracle

Install Oracle using Oracle user. Install a program on each node’s local disk. The database needs to be created on the shared disk when a cluster system is configured, not when Oracle is installed. The details will be described later in this document.

● Oracle9i RAC

Install Oracle9i RAC using root user. Refer to the Oracle9i RAC manual.

For further details, refer to the Oracle manual.

2.4 Create userApplication

This section explains how to set up userApplication creation and Non-Oracle resource setup. Set up the Oracle resource after configuring the database. Then, set up userApplication using “userApplication Configuration Wizard”. This “userApplication Configuration Wizard” follows the Wizard format in which you can select the item from the menu and click a “Next” button.

See “Chapter 6 Cluster application configuration” of “PRIMECLUSTER Installation/Administration Guide” for the userApplication Configuration Wizard setup.

2.4.1 Application-Create

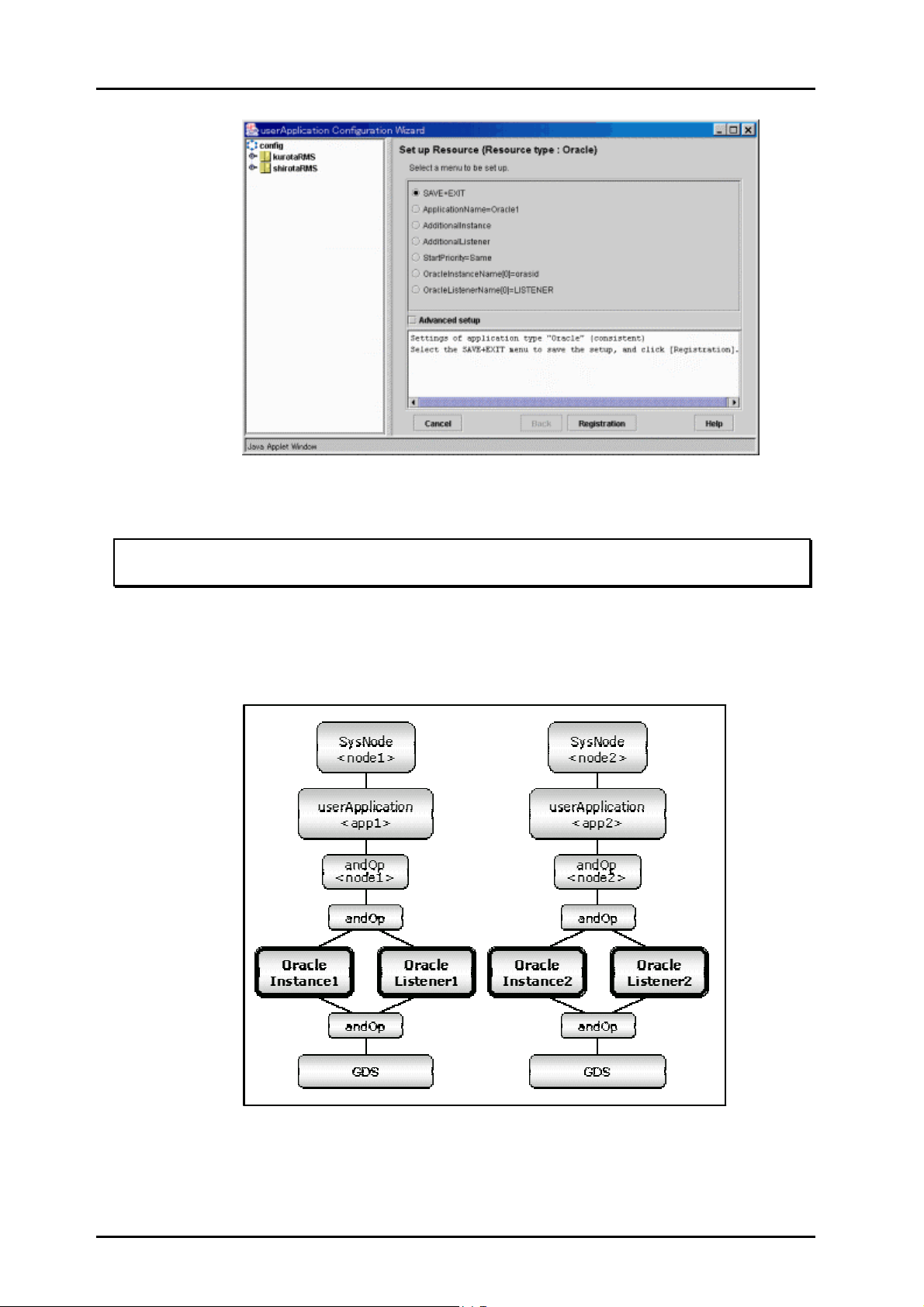

The Oracle environment setup is described with the following illustrations:

● Scalable operation (Oracle9i RAC)

userApplication is configured as shown in the illustration.

● Standby operation

userApplication is configured as shown in the illustration.

GDS setup

GDS should be set up as “shared disk for concurrent access” for scalable operation and “switching disk” for standby operation. We recommend that you prepare the disk class for Oracle system table space and other Oracle resources respectively. The MONITORONLY attribute should be set up to “NO” for the Oracle system table space and “YES” for the other Oracle resources.

userApplication setup

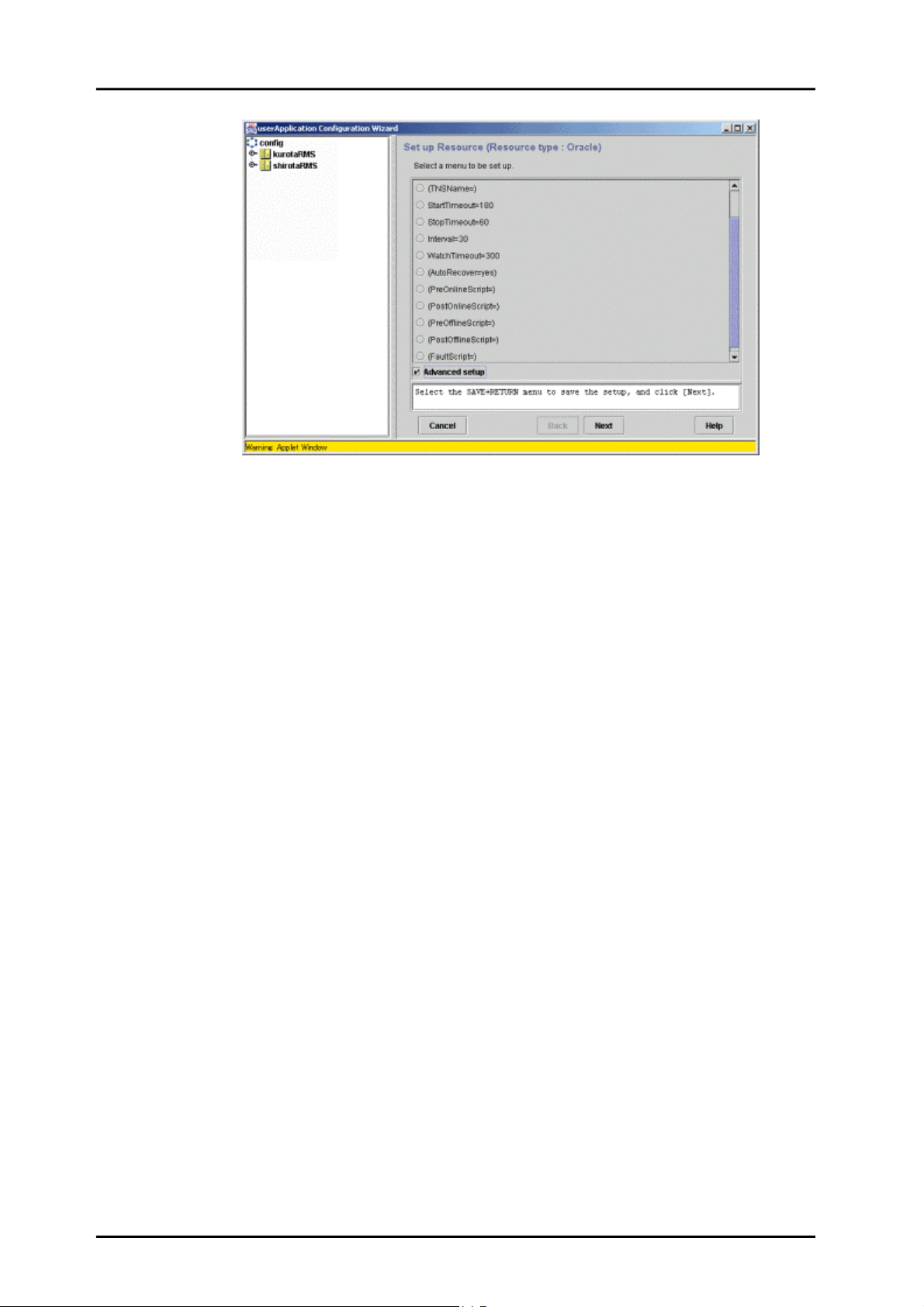

Create userApplication using userApplication Configuration Wizard. See “Chapter 6 Cluster application configuration” of “PRIMECLUSTER Installation/Administration Guide”. In scalable operation, userApplication should be created for each node. In standby operation, one userApplication should be created for all operational nodes. The recommended values are as follows:

● Scalable operation (Oracle9i RAC)

Operation=Standby AutoSwitchOver = no PersistentFault = 1 HaltFlag=Yes Additional resources =Gds resource

● Standby operation

Operation =Standby AutoSwitchOver = HostFailure|ResourceFailure|ShutDown PersistentFault = 1 HaltFlag=Yes Additional resources = Gds resource, Fsystem resource, Network resource

2.4.2

Check userApplication

Execute the “hvcm” command of RMS to start up userApplication and check if it is normally running on all nodes.

● Shared disk – Check access to the shared disk on an operational node.

● Logical IP address – Check access to an operational node.

2.5 Create and set up Oracle database

● Allocate database

Create a database on the shared disk. The shared disk should be active. Each file is allocated as follows:

File Location Note

Init.ora file Local Allocate on a local disk of each node

Server parameter file Share

Control files Share

Data files Share

Redo log files Share

Archive log files Arbitrary Allocate either on a local disk or a shared disk

● Create database (Scalable operation with Oracle9i RAC)

Create a database on an arbitrary node. This database should be accessible from other nodes.

Refer to the Oracle9i RAC manual.

● Create database (Standby operation)

Operational node

Create a database on an operational node. Standby nodes have to access this database.

Refer to the Oracle manual.

Standby node

Set up directory generation, file copy, and link. The configuration should be the same as that of the operational node where the database is generated. Under $ORACLE_HOME/dbs Under $ORACLE_BASE/admin/$ORACLE_SID

The access privilege to the generated directory and file should be the same as that of the operational node.

Set up an output location on the standby nodes if you use archive log operation.

The required files in the operational node can be backed up in a tar format by executing the “cloracpy” command. Refer to “Chapter 4.4”.

Mutual standby / N:1 Standby operation

Create a database on an operational node.

On the standby nodes, the database on the shared disk created from the operational node should be enabled. This is the same as other operation methods.

Mutual standby

2:1 Standby

● Oracle9i

Allocate a server parameter file on the shared disk when using the Oracle9i server parameter file. If this process is omitted or failed, the operational and standby nodes do not work properly.

You can set the initialized parameter file as follows: ($ORACLE_HOME/dbs/init<ORACLE_SID>.ora

spfile = /mnt2/o9idb/parameter/spfile.ora

● Network setup

Set up the Oracle network.

$ORACLE_HOME/network/admin/listener.ora, tnsnames.ora

― listener.ora

Set up a logical IP address for a listener IP address to switch listeners.
