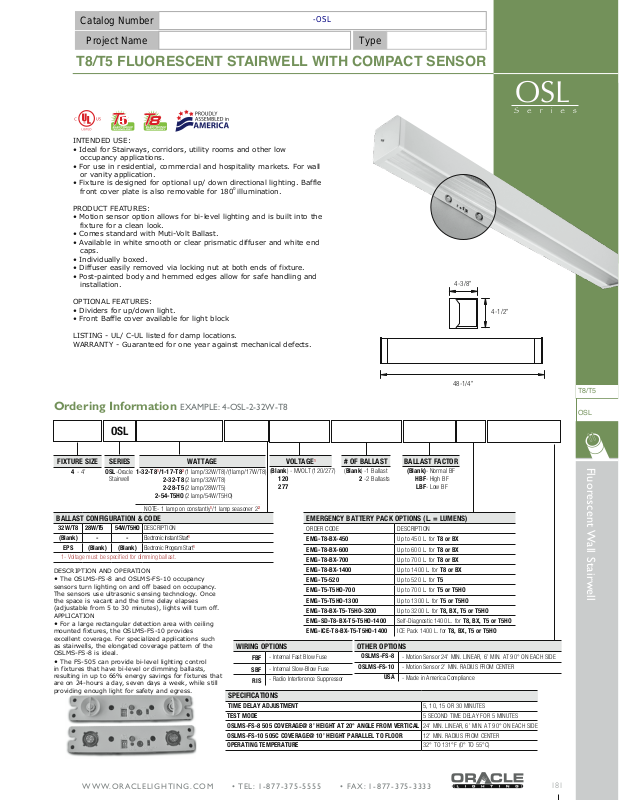

Oracle OSL-4 User Manual
T8/T5 FLUORESCENT STAIRWELL WITH COMPACT SENSOR
Catalog Number
-OSL
Project Name
Type
INTENDED USE:
• Ideal for Stairways, corridors, utility rooms and other low
occupancy applications.
• For use in residential, commercial and hospitality markets. For wall
or vanity application.
• Fixture is designed for optional up/ down directional lighting. Baffle
front cover plate is also removable for 180
PRODUCT FEATURES:
• Motion sensor option allows for bi-level lighting and is built into the
fixture for a clean look.
• Comes standard with Muti-Volt Ballast.
• Available in white smooth or clear prismatic diffuser and white end
caps.
• Individually boxed.
• Diffuser easily removed via locking nut at both ends of fixture.
• Post-painted body and hemmed edges allow for safe handling and
installation.
OPTIONAL FEATURES:
• Dividers for up/down light.
• Front Baffle cover available for light block
LISTING - UL/ C-UL listed for damp locations.
WARRANTY - Guaranteed for one year against mechanical defects.
0
illumination.
4-3/8”
OSL
4-1/2”
Ordering Information EXAMPLE: 4-OSL-2-32W-T8
OSL
FIxTURE SIzE
4 - 4’
BALLAST CONFIGURATION & CODE
32W/T8 28W/T5 54W/T5HO DESCRIPTION
(Blank) - - Electronic Instant Start
EPS (Blank) (Blank) Electronic Program Start
1- Voltage must be specified for dimming ballast.
DESCRIPTION AND OPERATION
• The OSLMS-FS-8 and OSLMS-FS-10 occupancy
sensors turn lighting on and off based on occupancy.
The sensors use ultrasonic sensing technology. Once
the space is vacant and the time delay elapses
(adjustable from 5 to 30 minutes), lights will turn off.
APPLICATION
• For a large rectangular detection area with ceiling
mounted fixtures, the OSLMS-FS-10 provides
excellent coverage. For specialized applications such
as stairwells, the elongated coverage pattern of the
OSLMS-FS-8 is ideal.
• The FS-505 can provide bi-level lighting control
in fixtures that have bi-level or dimming ballasts,
resulting in up to 66% energy savings for fixtures that
are on 24-hours a day, seven days a week, while still
providing enough light for safety and egress.
SERIES
OSL-Oracle
Stairwell
1
1-32-T8
NOTE- 1 lamp on constantly
2
(1 lamp/32W/T8)/(1lamp/17W/T8)
/1-17-T8
(2 lamp/32W/T8)
2-32-T8
(2 lamp/28W/T5)
2-28-T5
(2 lamp/54W/T5HO)
2-54-T5HO
WATTAGE
1
1
(Blank)
120
277
1
/1 lamp seasoner 2
2
WIRING OPTIONS
- Internal Fast Blow Fuse
FBF
- Internal Slow-Blow Fuse
SBF
- Radio Interference Suppressor
RIS
SPECIFICATIONS
TIME DELAY ADjUSTMENT
TEST MODE
OSLMS-FS-8 505 COVERAGE@ 8’ HEIGHT AT 20° ANGLE FROM VERTICAL
OSLMS-FS-10 505C COVERAGE@ 10’ HEIGHT PARALLEL TO FLOOR
OPERATING TEMPERATURE
48-1/4”
1
- MVOLT (120/277)
# OF BALLAST
-1 Ballast
(Blank)
-2 Ballasts
2
BALLAST FACTORVOLTAGE
(Blank)
HBF
LBF
- Normal BF
- High BF
- Low BF
EMERGENCY BATTERY PACK OPTIONS (L. = LUMENS)
ORDER CODE DESCRIPTION
EMG-T8-Bx-450 Up to 450 L. for T8 or Bx
EMG-T8-Bx-600 Up to 600 L. for T8 or Bx
EMG-T8-Bx-700 Up to 700 L. for T8 or Bx
EMG-T8-Bx-1400 Up to 1400 L. for T8 or Bx
EMG-T5-520 Up to 520 L. for T5
EMG-T5-T5HO-700 Up to 700 L. for T5 or T5HO
EMG-T5-T5HO-1300 Up to 1300 L. for T5 or T5HO
EMG-T8-Bx-T5-T5HO-3200 Up to 3200 L. for T8, Bx, T5 or T5HO
EMG-SD-T8-Bx-T5-T5HO-1400 Self-Diagnostic 1400 L. for T8, Bx, T5 or T5HO
EMG-ICE-T8-Bx-T5-T5HO-1400 ICE Pack 1400 L. for T8, Bx, T5 or T5HO
OTHER OPTIONS
OSLMS-FS-8
OSLMS-FS-10
- Motion Sensor 24’ MIN. LINEAR, 6’ MIN. AT 90° ON EACH SIDE
- Motion Sensor 2’ MIN. RADIUS FROM CENTER
USA
- Made in America Compliance
5, 10, 15 OR 30 MINUTES
5 SECOND TIME DELAY FOR 5 MINUTES
24’ MIN. LINEAR, 6’ MIN. AT 90° ON EACH SIDE
12’ MIN. RADIUS FROM CENTER
32° TO 131°F (0° TO 55°C)
T8/T5
OSL
Fluorescent Wall Stairwell
WWW.ORACLELIGHTING.COM • TEL: 1-877-375-5555 • FAX: 1-877-375-3333
181
