Oracle A55979-02 User Manual

Oracle Video Server

Getting Star t ed wit h Oracl e Vi deo Server Manager

Release 3.0
February, 1998 Part No. A55979-02
Getting Started with Oracle Video Server Manager Part No. A55979-02 Release 3.0 Copyright © 1996, 1998, Oracle Co rporation. All rights reserved. Printed in the U.S.A Primary Author: John Dowden Contributors: Brian Adams, Robert Baller, Kim Bartlett, Jean Giarrusso, Stefan Jones, Lesley Kew , Mason
Ng, Mine Ogura, Charles Prael, Matt Prather, Bob Sigmon, Pari Tajiki, Michael Short, Manish Upendran, Shiu Wong, John Zussman
The programs are not intended for use in any nuclear, aviation, mass transit, medical, or other inherently dangerous applications. It shall be licensee's responsibility to take all appropriate fail-safe, back up, redundancy and other measures to ensure the safe use of such applications if the Programs are used for such purposes, and Oracle disclaims liab ilit y for any damages caused by such use of the Programs.
This Program contains proprietary information of Oracle Corporation; it is provided under a license agreement containing restric t ion s on use an d dis cl osure and is also protected by copyright patent and other intellectual property law. Reverse engineering of the software is prohibited.
The information contained in this document is subject to change without notice. If you find any problems in the documentation, please report them to us in writing. Oracle Corporation does not warrant that this document is error free.
If this Program is delivered to a U.S. G overnment Agency of the Depart me n t of De fe n se , th e n it is delivered with Restricted Rights and the following legend is applicable:
Restricted Rights Legend Programs delivered subject to the DOD FAR Supplement are 'commercial computer software' and use, dupl ication and disclosure of the Programs shall be subject to the lice ns in g restrictions set f orth in the applicable Oracle lic e ns e agreement. Otherwise, Pr o gr ams delivered subject t o the Federal Acquisition Regulations are 'restricted computer software' and use, duplication and disclosure of the Programs shall be subj e ct t o the restric tions in FAR 52..227-14, Rights in Data -- Gener al, including Alternate II I (June 1987). Oracle Corporation, 500 Oracle Parkway, Redwood City, CA 94065.
Oracle Video Server Ma nager, Oracle Video Server, Oracle Video Client, and Network Computing Architecture are trademarks of Oracle Corpo rat ion. Oracle is a registered trademark of Oracle Corporation.
All other products or company names are used for identification purposes only, and may be trademarks of their respective owners.
Contents
Send Us Your Comments
Preface
...........................................................................................................................................................
....................................................................................................................
1Overview
What is Oracle Video Server Manager?..........................................................................................
Why Use Oracle Video Server Manager?.......................................................................................
The Oracle Video Server System Architecture..............................................................................
Tier 1: Client..................................................................................................................................
Tier 2: Application Server............................................................................................................
Tier 3: Data Server........................................................................................................................
Video Server Manager Communication Paths..............................................................................
Oracle Video Server Content Model...............................................................................................
Content Layers..............................................................................................................................
Running OVS without a Database.............................................................................................
Registering Content......................................................................................................................
2 Installation and Startup
System Requirements........................................................................................................................
Installing Oracle Video Server Manager........................................................................................
Starting Video Server Manager........................................................................................................
Creating a Video Server Manager Shortcut on the Windows Desktop....................................
v
vii
1-2 1-2 1-3 1-4 1-4 1-4 1-5 1-6 1-6 1-8 1-8
2-2 2-2 2-4 2-5
iii
3 Using Oracle Video Server Manager
Video Server Manager Console........................................................................................................
Menu bar........................................................................................................................................
Toolbar............................................................................................................................................
Navigator Tree ..............................................................................................................................

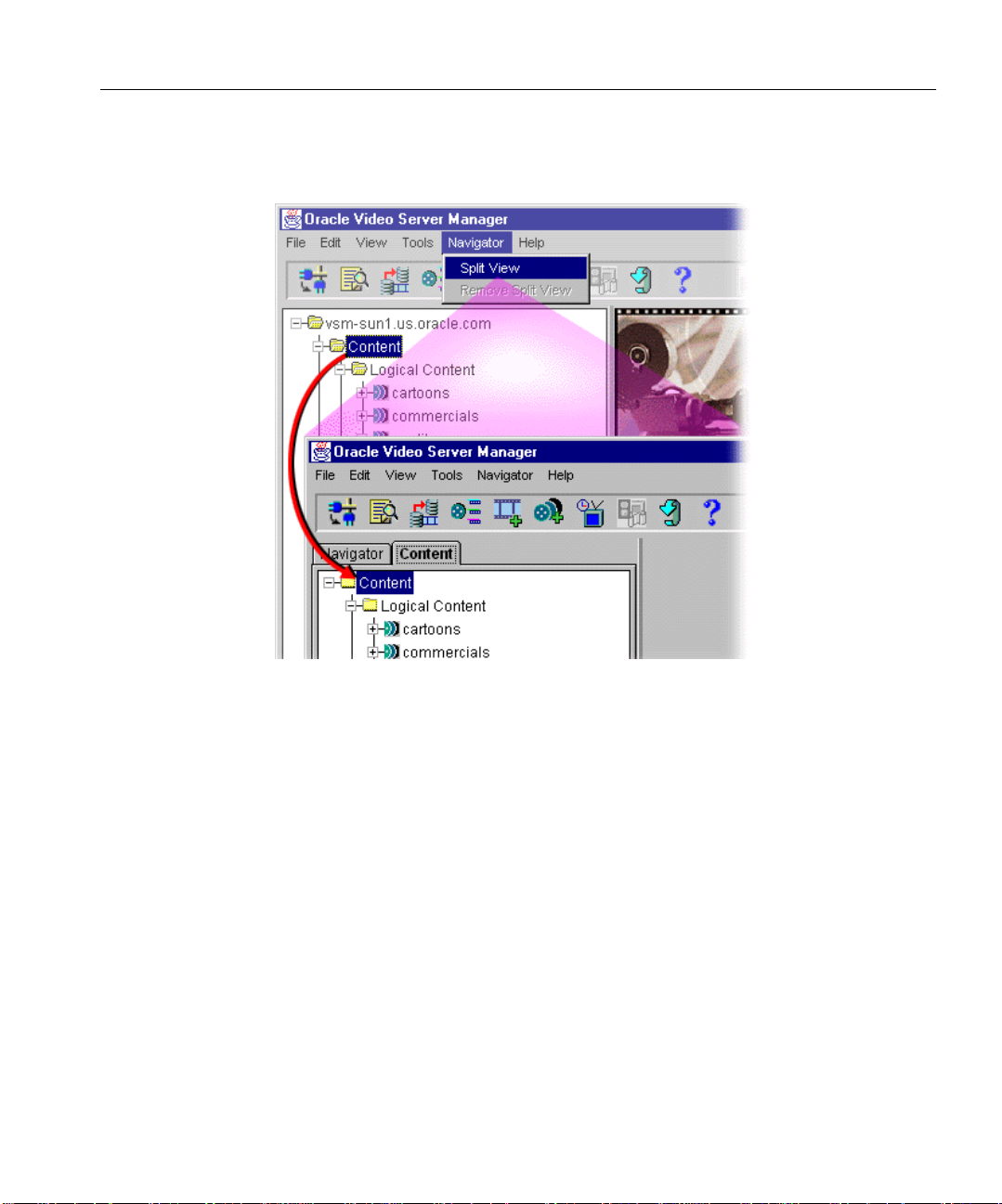

Creating a Split View in the Navigator Tree.....................................................................
Detail Pane.....................................................................................................................................
Summary Tables.................................. ...... ..... .................................. ...... ..... ..........................
Property Sheets......................................................................................................................
Status bar........................................................................................................................................
Video Server Manager Online Help..............................................................................................
4 Monitoring and Managing an Oracle Video Server System
Video Server Manager Task Reference...........................................................................................
Index
3-2 3-3 3-4 3-5 3-6 3-7 3-8 3-9 3-9
3-10
4-2
iv
Send Us Your Comments
Getting Started with Oracle Video Server Manager, Release 3.0
Part No. A55979-02
Oracle Corporation welcomes your comments and suggestions on the quality and usefulness of this publication. Your input is an important part of the information used for revision.
Did you find any errors?
Is the information clearly presented?
Do you need more information? If so, where?
Are the examples correct? Do you need more examples?
What features did you like most about this manual?
If you find any errors or have any other suggestions for improvement, please indicate the chapter, section, and page number (if available). You can send comments to us in the following ways:
electronic mail - omsdoc@us.oracle.com
FAX - 650.506.7615 Attn: Oracle Media Server Documentation Manager
postal service: Oracle Corporation
Oracle Media Server Documentation 500 Oracle Parkway, Mailstop 6OP5 Redwood Shores, CA 94065 U.S.A.
If you would like a reply, please give your name, address, and telephone number below.
vi
Preface
Oracle Video Server Manager™ (VSM) is a graphical, Java-based application that enables you to monitor and manage multiple instances of the Orac le Video Server™ and its clients. Compliant with Oracle’s Network Computing Architecture™ (NCA), the Oracle Video Server Manager is your best tool for monitoring and managing the Oracle Video Server system.
This guide discusses:
general concepts underlying Oracle Video Server Manager and Oracle’s Network Computing Architecture
system requirements and how to start the VSM console
how to navigate and use the VSM console
the types of administrative tasks that you can perform with VSM
This Preface provides the following topics:
Audience
Structure
Conventions Used in this Guide
Online Documentation
Related Documents
vii
Audience
Structure
This guide is intended for anyone who is planning to use the Oracle Video Server Manager to monitor and manage the Oracle Video Server.
This guide assumes that you are familiar with the Microsoft Windows and UNIX operating systems.
Please read this guide in its entirety before using this product. This guide contains these chapters:
Chapter 1 Overview: provides a brief explanation of Oracle Video
Server Manager and the Oracle Video Server system architecture.
Chapter 2 Installation and Startup: describes how to install and start
the Oracle Video Server Manager console.
Chapter 3 Using Oracle Video Server Manager: tells you how to
navigate and use the Video Server Manager graphical user interface.
Chapter 4 Monitoring and Managing an Oracle Video Server System:
describes the types of administrative tasks that you can perform with Oracle Video Server Manager.
Conventions Used in this Guide
This section describes the command and platform conventions used in this guide.
Command Conventions
This guide documents parts of the Oracle Video Server Manager graphical user interface:
Buttons, icons, and dialog box names appear in boldface.
Menu commands appear in boldface with the name of the menu and the name of the command separated by a vertical bar, menu | command.
This guide also uses commands from UNIX C-shell. UNIX keywords appear in boldface and UNIX parameters appear in italics.
viii
Platform Conventions
The Oracle Video Server Manager client can operate on several different platforms. This guide specifies Windows 95 path names. For example, the default Oracle home directory for Windows 95 is C:\orawin95. If you are using a different platform, interpret the directory and file path names that reflect your installation.
Likewise, the screen representations in this guide reflect the Windows 95 environment. On different platforms, dialog boxes and windows appear slightly different, but contain the same information as those presented in this guide.
Online Documentation
The Oracle Video Server Manager documentation is available online. Online documentation is provided in Adobe with Adobe Acrobat Reader versions of the documentation.
The online documentation is automatically installed on the Oracle Video Server Manager machine in the following directory:
Windows 95/NT
and when printed appear exactly like the bound
Acrobat (PDF) files, which are readable
c:\ORAWIN95\vsm 30\doc
(where
C:\orawin95
is the default product location)
UNIX
$ORACLE_HOME/vs 30/doc/pdf
Installing Adobe Acrobat Reader
For Windows 95/NT clients, the Acrobat Reader is automatically installed during the Oracle Video Server Manager installation.
To install the Acrobat Reader on a Solaris machine:
Mount the Oracle Video Server distribution CD-ROM as root.
1.
Change directory to /cdrom/ovs/ovsdoc/acroread.
2.
Use the install script to install Acrobat Reader.
3.
ix
Viewing the Online Documentation
To view the VSM online documentation from a Windows 95/NT machine, select Programs|Oracle Video Server|OVS Road Map from the Windows Start menu.
To view the VSM online documentation from a Solaris machine, type:
% $ORACLE_HOME/vs30/doc/pdf/roadmap.pdf &
Related Documents
Refer to the Oracle Video Server Road Map to find documents related to this release of the Oracle Video Server Manager.
Your Comments Are Welcome
We value and appreciate your comments as an Oracle user and reader of the manuals. As we write, revise, and evaluate our documentation, your opinions are the most important input we receive. Our Send Us Your Comments form is at the front of the manual, at the end of the table of contents. We encourage you to use this form to tell us what you like and dislike about this ma nual or other Oracle manuals. If the form is not available, please use the following address or FA X number.
Oracle Video Server Documentation Manager Oracle Corporation 500 Oracle Parkw ay Box 6OP5 Redwood Shores, CA 94065 U.S.A. FAX: 650-506-7615 Email: omsdoc@us.oracle.com
x
This chapter covers these topics:
What is Oracle Video Server Manager?
Why Use Oracle Video Server Manager?
The Oracle Video Server System Architecture
Oracle Video Server Content Model
1
Overview
Overview 1-1

What is Oracle Video Server Manager?

What is Oracle Video Server Manager?
The Oracle Video Server Manager (VSM) is a graphical, Java-based software solution that simplifies the management of distributed multimedia servers and clients in heterogeneous environments. VSM offers the following features and benefits:
Centralized management of distributed systems: VSM can monitor multiple instances of the Oracle Video Server and its clients from one location, reducing product and overhead costs.
User-friendly graphical user interface: The VSM Java console provides an easy-to-use graphical user interface that is designed to enable you to effectively manage the system quickly, with a minimum of training.
Integration with Oracle’s Network Computing Architecture: Oracle’s NCA is a comprehensive, open, network-based architecture that provides extensibility for distributed environments. For more information about Oracle’s NCA, visit the Oracle web site at http://www.oracle.com/nca.

Why Use Orac le Video Server Manager?

As you write and deploy multimedia business applications in client/server environments, system administration becomes increasingly cha llenging. With the new generation of multimedia servers, you are responsible for managing a highly divergent and ever-growing combination of servers, clients, and data. You must have an easy-to-use, effective, integrated set of tools that can manage local and remote multimedia systems from a single location.
The Oracle Video Server Manager (VSM) is the fastest and most efficient way to manage multimedia content and services throughout your Oracle Video Server (OVS) system. VSM simplifies routine OVS administrative tasks, enabling you to be more productive. From the VSM console, you can:
start and stop individual OVS instances
view the status of critical OVS services
monitor and/or manage several OVS functions and components:
Logical content, clips, and programs OVS clients Oracle Media Data Store (MDS) volumes, disks, and files Hierarchical Storage Management (HSM) tapes and files
1-2 Getting Started with Oracle Video Server Manager
Real-time feeds
load and register content
play videos
For a complete list of the administrative tasks tha t you can perform from VSM, refer to Chapter 4, Monitoring and Managing an Oracle Video Server System, or the VSM online help.

The Oracle Video Server System Ar chitecture

The Oracle Video Server system is fully compliant with Oracle’s Network Computing Architecture, offering a scalable, object-oriented architecture, which consists of three tiers:
Tier 1: Client
Tier 2: Application Server
Tier 3: Data Server
Figure 1-1 illustrates where each of the OVS system components resides in this three-tier architecture. For a more detailed description of the components of the Oracle Video Server system, refer to Introducing Oracle Video Server.
The Oracle Video Server System Architecture
Figure 1–1 Oracle Video Server System Architecture
Overview 1-3
The Oracle Video Server System Architecture

Tier 1: Client

The client tier resides completely on the client machine(s) and consists of the following compone nts:
Oracle Video Server Manager: The Oracle Video Server Manager console is a Java application that gives you point-and-click control over OVS services, clients, and content.
Oracle Video Client: The Oracle Video Client software enables you to develop interactive, video-based multimedia applications for such uses as computer­based training, interactive kiosks, corporate repositories, and Web sites. The Oracle Video Client software provides several tools to help you build and view client video applications. For more information about the Oracle Video Client, refer to the Oracle V ideo Client Developer’s Guide.

Tier 2: Application Server

The Application Server tier consists of the following components:
Oracle Video Server: The Oracle Video Server is an end-to-end software solution for networked client-server computers which store, manage, deliver, and display digital video on demand. The Oracle Video Server is supported on a variety of server platforms and scales to many users.
Oracle Video Server Cartridges: A cartridge is a manageable object that “plugs into” and extends the functionality of another piece of software. Cartridges use an IDL (Interface Definition Language), a language-neutral interface, that allows the cartridge to identify itself to other objects in a distributed system.
Any customer or vendor can write a cartridge or service that plugs into the Ora­cle Video Server system. For example, a real-time encoding vendor might write an encoder cartridge that integrates with the Oracle Video Server, as shown in
Figure 1–1.

Tier 3: Data Server

The Data Server machine contains the target service(s) which the client needs to access to get application-specific data. In the Oracle Video Server system environment, the Server tier consists of the Oracle database (optional). A database is a set of dictionary tables and user tables that are treated as a unit. The OVS system can use the Oracle database to write and query database tables associated with OVS processes, including logical content, clips, and broadcast programs.
1-4 Getting Started with Oracle Video Server Manager
For Oracle Video Server Manager, the target service is the Oracle Video Server (which resides on the Application Server) and its connected clients, as well as the Oracle database.

Video Server Manager Communication Paths

This section describes how Video Server Manager (VSM) communicates with the Oracle Video Server (OVS). The numbered steps in this section refer to the communication path segments illustrated in Figure 1–2.
1.
The user makes an HTTP request from VSM to OVS.
2.
OVS collects the requested data or executes the requested command, communicating with the Oracle Media Data Store (MDS) or database as necessary.
3.
OVS communicates with the Oracle database to resolve logical content references.
4.
OVS returns the data to VSM, displaying the requested information, or indicates that the requested operation was performed.
Figure 1–2 VSM Communication Paths
Video Ser ver Ma nage r Co mmun icat ion Paths
Overview 1-5

Oracle Video Server Content Model

Oracle Video Server Content Model
Oracle Video Server (OVS) offers both physical and logical control of all content that is stored in the Oracle Video Server system. To harness the flexibility and control that this content model offers, you must understand the different layers of content that are available in the OVS environment.

Content Layers

The OVS content model consists of the following layers:
Content Files: files that OVS stores and delivers to clients. Content files can contain video and/or audio and are created through a process called encoding.
For more information on the types of content files that OVS supports, refer to
“Codecs, Containers, and Frameworks” in Chapter 3.
Tag Files: a physical file that stores metadata and header information about a given piece of content, such as the file’s name, format, bit rate, and size. Tag files also store information about individual video frames, which is not stored in the database. Tag files must have an .mpi extension.
Physical Content: a database object that contains the same header and metadata information found in a tag file.
Clips: a logical excerpt from a content file. Each clip corresponds to only one content file. Clips map to a specific start and sto p position (in seconds) within a content file.
Logical content: a collection of video clips that are played in a pre-defined sequence.
Logical content, clips, and physical content are all objects that are stored persistently in the Oracle database. Video Server Manager enables you to create, edit, and remove these objects, thereby protecting the physical data that is stored in the Oracle Media Data Store (MDS).
In contrast, tag files and content files are physical data files which are stored in the MDS. For each content file that you load into the MDS, you must create a tag file and store it in the MDS with the content file.
Figure 1–3 illustrates the relationship between the different OVS content layers.
1-6 Getting Started with Oracle Video Server Manager
Figure 1–3 Oracle Video Server Content Layers
Oracle Video Server Content Model
Overview 1-7
Oracle Video Server Content Model

Running OVS without a Database

If you are running OVS without an Oracle database, the content model changes slightly. When OVS is invoked without a database, the content service obtains content data directly from the tag file headers stored in the MDS. Thus, there are no clips or logical content in a system that does not have a database.
When OVS is running without a database, Video Server Manager still enables you to monitor the physical content (metadata and header information). However, logical content and clips are not available in this scenario.

Registering Content

In the OVS environment, the process of creating tag files and creating the logical content, clip, and physical content objects in the database is called registering.
For more information on how to register content from Video Server Manager, refer to the VSM online Help.
1-8 Getting Started with Oracle Video Server Manager
2
Installation and Startup
The server and client components of the Oracle Video Server Manager (VSM) are separately-installed options of your Oracle Video Server system.
The server-side components of the Oracle Video Server Manager are installed with the Oracle Video Server software. For system requirements and instructions for the server-side VSM installation, refer to the Oracle Video Server Installation Guide for your server platform.
This chapter provides instructions for installing and starting the VSM console and other client-side components of the Oracle Video Server Manager.
Note:
your video server machine, the Oracle Video Server Manager console was installed automatically. For instructions on how to start VSM, refer to “Starting Video Server Manager” later in this chapter.
This chapter contains the following sections:
System Requirements
Installing Oracle Video Server Manager
Starting Video Server Manager
Creating a Video Server Manager Shortcut on the Windows Desktop
If you chose to install Oracle Video Server Manager on
Installation and Startup 2-1

System Requirements

System Requirements
To install and use the Oracle Video Server Manager console on a Windows machine, you need the following resources.
VGA video (SVGA strongly recommended), minimum screen resolution of 800x600
32 megabytes RAM
Microsoft Windows 95 with Service Pack 1 or Windows NT 4.0 with Service Pack 3
TCP/IP services
Java Runtime Environment (JRE) 1.1.5
Oracle Video Client 3.0.3 (if you want the ability to play video)
CD-ROM drive
Hard disk space:
Oracle Video Server Manager: 2.3 MB Oracle Video Server online documentation: 4 MB Oracle Video Client 3.0.3: 3.5 MB JRE 1.1.5: 4 MB Adobe Acrobat Reader 3.0: 4MB

Installing Oracle Video Server Manager

Follow these instructions to install the Oracle Video Server Manager console:
1.
Start Windows 95/Windows NT 4.0. Close all other applications.
2.
Insert the Oracle Video Server Manager CD into your CD-ROM drive.
3.
Select the Run command from the Windows Start menu.
4.
Type the following command in the Open box:
D:\SETUP.EXE
This assumes that your CD-ROM is your D: drive. If your CD-ROM drive uses another name, substitute that in place of D: in this command.
5.
InstallShield launches and presents you with the W elcome dialog box. Click Next.
2-2 Getting Started with Oracle Video Server Manager
Installing Oracle Video Server Manager
6.
Read the software license agreement and click Next.
7.
The Choose Destination Location dialog box appears, prompting you to select the directory in which you want to install Oracle Video Server Manager.
To accept th e default ORACLE_HOME selection, click Next. To se lect a different installation destination, click Browse and select the
directory that you want. Then click Next.
8.
If you do not have the Oracle Video Client 3.0.3, Adobe Acrobat Reader 3.0, and/or JRE 1.1.5 installed on your machine, InstallShield lists these dependencies in the Dependencies dialog box. Click Next to launch the appropriate product installation programs and follow the prompts.
Note:
The Oracle Video Server Manager installation installs the compact version of the Oracle Video Client (OVC). If you want to install the full version of the OVC, which includes additional online documentation and sample applications, you must install the video client from the OVC distribution CD.
9.
The Oracle Video Server Manager Logon Information dialog box appears, prompting you to enter the host name and domain name for the Oracle Video Server that you want Video Server Manager to manage by default. Enter the information and click Next. If you do not know the host name or domain name for your Oracle Video Server, contact your network administrator.
10.
InstallShield copies all the following VSM files to your hard disk:
C:\ORAWIN95\jbin (or the directory that you chose to install VSM) vsm.jar C:\ORAWIN95\VSM30 – vsm30.ico vsmgr30.bat several PDF files in the \doc directory
11.
Oracle Video Server Manager has been successfully installed on your machine. Click OK.
12.
Depending on which dependent programs were installed in Step 7, you might be prompted to restart your computer.
Installation and Startup 2-3

Starting Video Server Manager

Starting Video Server Manager
This section describes how to start the Oracle Video Server Manager console from a Windows or UNIX machine.
From the Windows desktop
1.
Choose Programs|Oracle Video Server Manager|Oracle Video Server Manager from the Windows Start menu, or
Double-click the Oracle Video Server Manager shortcut that was created on your Windows desktop.
For instructions on how to create other VSM shortcuts, refer to the next section.
2.
At the Logon screen, enter:
your user name
your password
Note:
The host name and domain name fields appear dim. These values were entered during installation. If these values are not valid, you will not be able to logon to VSM.
Note:
The Oracle Video Server uses the native security features in your network. For more information about restricting access to specific VSM consoles or users, refer to Chapter 3 in the Oracle Video Server Administrator’s Guide and Command Refere nce.
From a UNIX machine
To start the Oracle Video Server Manager console from a UNIX machine, type:
cd $ORACLE_HOME /vsmc30/admin ./vsmstart <hos tname.domainname >
2-4 Getting Started with Oracle Video Server Manager
Creating a Video Server Manager Shortcut on the Windows Desktop
Creating a Video Server Manager Shortcut on the Windows Desktop
By default, the Video Server Manager program icon created during installation connects to the video server that you defined during installation. However, you create other Video Server Manager shortcuts that connect to different video servers at startup.
To create a custom VSM shortcut, follow these steps:
1.
Right-click the Oracle Video Server Manager shortcut on your Windows desktop and select Create Shortcut.
2.
Right-click the new VSM shortcut and select Properties.
3.
Click the Shortcut tab.
4.
In the Target field, edit the <host name>.<domain name> entry to refer to the video server machine that you want to manage (i.e, ovs1.oracle.com). The <host name>.<domain name> entry is the last variable in this field.
5.
Click OK.
Alternatively, you can create a custom VSM shortcut by following these steps:
1.
Click the Start button from the Windows desktop and select Settings|Taskbar.
2.
Double-click Programs|Oracle Video Server Manager.
3.
Click the Start Menu Programs tab.
4.
Click the Advanced button.
5.
For Windows 95 — Expand the Programs folder. For Windows NT — Expand the Profiles|All Users|Start Menu|Programs
folder.
6.
Click Oracle Video Server Manager.
7.
Right-click the Oracle Video Server Manager program icon and select Create Shortcut.
8.
Click and drag the new shortcut to the Windows desktop.
Installation and Startup 2-5
Creating a Video Server Manager Shortcut on the Windows Desktop
2-6 Getting Started with Oracle Video Server Manager
3
Using Oracle Video Server Manager
This chapter tells you how to use the Oracle Video Server Manager console. It provides the following sections:
Video Server Manager Console
Video Server Manager Online Help
Using Oracle Video Server Manager 3-1

Video Server Manager Console

Video Server Manager Console
The Oracle Video Server Manager console is a Java application that provides and easy-to-use graphical user interface that consists of these parts:
Menu bar
Toolbar
Navigator tree
Detail pane
Status bar
Figure 3–1 shows the major parts of the Video Server Manager console and how to
use each part to monitor and manage objects of the Oracle Video Server. For information on the meaning of any desktop object, use the online help by
selecting Help | Contents.
3-2 Getting Started with Oracle Video Server Manager
Figure 3–1 Video Server Manager desktop
Video Server Manager Console

Menu bar

The menu bar contains pull-down menus with commands for executing specific VSM tasks. Some menu commands require that you select an object or folder from the navigator tree. Not all commands apply to all objects. Unavailable commands appear dim in the menu bar.
Using Oracle Video Server Manager 3-3
Video Server Manager Console

Toolbar

The toolbar contains buttons that provide quick access to frequently used VSM commands and features. Buttons that are not applicable to the currently selected Oracle Video Server object appear dim.
To see the name of a button, move the mouse pointer over the button. To execute a toolbar command, simply click the button with the mouse. Figure 3–2
shows the toolbar and the tasks it performs.
Figure 3–2 Video Server Manager toolbar
Note:
The Create Clips and Create Logical Content buttons are only available when the video server is connected to a database and if the Content Service (vscontsrv) is started with database options. For more information about implementing the Content Service, refer to Chapter 9 of the Oracle Video Server Administrat o r’s Guide and Command Reference.
Note:
The Program button is only available when the video server is connected to a database and if the Scheduling Services and the Content Service are started. For more information about implementing these services, refer to Chapter 9 of the Oracle Video Server Administrator’s Guide and Command Reference.
3-4 Getting Started with Oracle Video Server Manager

Navigator Tree

Video Server Manager Console
The navigator tree, on the left side of the screen, is your “starting point” for monitoring and managing the Oracle Video Server system. The navigator tree, shown in Figure 3–3, provides a consistent and hierarchically organized way to view and access parts of the OVS system. Specifically, you can monitor the different parts of the OVS system, including:
Content
Clients
Oracle Media Data Store (MDS)
Real-time Feeds
Each object type in the navigator tree is identified by an icon and name. Each branch of the Navigator tree is either:
an object (i.e., a volume, disk, file, device, or other OVS object)
a folder containing objects or other folders
Figure 3–3 Navigator Tr ee
Using Oracle Video Server Manager 3-5
Video Server Manager Console
Table 3–1 lists the types of operations th at you can perform from the navigator tree:
Table 3–1 Navigator tree operations
Operation Action Description
Select Click folder or object with the
mouse
Displays information about the folder or object in the detail pane
Open Click the plus sign (+), or dou-
ble-click on the folder with the mouse
Close Click the minus sign (-), or
double-click on the folder with the mouse
Displays the objects and folders within a folder. After you open a folder, a minus sign (-) appears next to it.
Displays the folder but not the objects and folders within it. After you close a folder, a plus sign (+) appears next to it again.
Creating a Split View in the Navigator Tree
By default, the navigator tree is presented as a single tree. However, you can choose to create a split view from any folder in the navigator tree. Each split view that you create is identified with a tab. The tab for the root navigator tree view is labeled Navigator. Regardless of how many split views you create, you can always access the contents of the entire tree from the navigator tree.
Split views enable you to organize the naviga tor tree in a way that complements how you manage your system. Split views are also useful when individual folders contain several nested subfolders and files. Figure 3–4 shows the navigator tree with one split view.
To create a split view for a navigator tree folder:
1.
Expand the video server folder.
2.
Click the folder (Content, Clients, MDS, Feeds) that you want to split.
3.
Choose Navigator |Split View.
To remove a split view:
1.
Select the tab for the view that you want to remove.
2.
Choose Navigator | Remove Split View.
3-6 Getting Started with Oracle Video Server Manager
Figure 3–4 Creating a Split View in the Navigator Tree
Video Server Manager Console

Detail Pane

The detail pane, on the right side of the screen, displays information about the object selected in the navigator tree and, as needed, contains controls for managing that object. Depending on the object selected, the detail pane can show information in different forms:
Summary tables
Property sheets
Using Oracle Video Server Manager 3-7
Video Server Manager Console
Summary Tables
For some navigator tree folders, such as Volumes, the detail pane displays a summary table. Each row in the summary table describes an object in the folder.
Figure 3–5 shows the Volumes summary table.
By default, rows in a summary table are sorted in ascending order of the left-most column values. To sort a summary table by a different category, click the heading of the column by which you want to sort.
Figure 3–5 Summary Table in the Detail Pane
3-8 Getting Started with Oracle Video Server Manager
Video Server Manager Console
Property Sheets
For some navigator tree objects, the detail pane contains one or more tabbed property sheets. Each property sheet displays different information about the selected object. Yo u can view a property sheet by selecting its tab. Figure 3–6 illustrates the General property sheet for the clip “Cartoon1” in the logical content title “Binky’s Best”.
Figure 3–6 Property Sheet in the Detail Pane

Status bar

The status bar displays a one-line description of the selected desktop object or menu bar command. The status bar is located at the bottom of the Video Server Manager window.
Using Oracle Video Server Manager 3-9

Video Server Manager Online Help

Video Server Manager Online Help
The Video Server Manager console provides a full-featured online Help system which contains HTML-based Help and a Quick Tour
You ca n access online Help in several ways:
To view the online Help contents, choose Help|Contents.
To search online Help for information on a particular topic, choose Help |Search fo r Help.
For help on a specific navigator tree or detail pane object, select the object and click Help button.
To view the online Help index, choose Help|Index.
To view the online Quick Tour, choose Help|Quick Tour. Alternatively, you can view the Oracle Video Server Manager Quick Tour by
pointing your browser at:
http://<hostname>.<domain name>/vsm/help/vsm.htm
where
<hostname> is the name of the video server on which you have installed the Video Server Manager server components (for example, ovs1-sun).
<domain name> is the domain name of the video server on which you have installed the Video Server Manager server components (for example, oracle.com)
Once you have started the online Help for Video Server Manager, there are two ways to exit Help:
Choose File |Exit.
Close the Video Server Manager Help window by double-clicking its top-left corner.
Figure 3–7 illustrates the VSM online help interface.
3-10 Getting Started with Oracle Video Server Manager
Figure 3–7 Video Server Manager Online Help Interface
Video Server Manager Online Help
Using Oracle Video Server Manager 3-11
Video Server Manager Online Help
3-12 Getting Started with Oracle Video Server Manager
4
Monitoring and Managing an Oracle Video
Server System
This chapter lists the types of administrative ta sks that you can perform with Oracle Video Server Manager. For a detailed description and step-by-step instructions for any of these tasks, refer to online Help.
Monitoring and Managing an Oracle Video Server System 4-1

Video Server Manager Task Reference

Video Server Manager Task Reference
Use tables 4-1 through 4-4 as a quick reference for how to execute common administrative tasks from the VSM console. When appropriate, these tables also refer you to relevant or additional information in other documents in the Oracle Video Server documentation library.
For complete instructions and explanations for any of these tasks, refer to the online Help.
Ta ble 4–1 General Video Server Manager Tasks
Task VSM Action
Manage a different video server
View the status of VSM job requests
Play video
Refresh display
Get help
Click
Switch Video Server
Click
Job Status
Click
Play
Click
Refresh
Click
Help
4-2 Getting Started with Oracle Video Server Manager
Video Server Manager Task Reference
Table 4–2 General OVS System Tasks
Task VSM Action For More Information
Start an Oracle Vi deo Server instance Select the video server folder
and click the Startup button in the detail pane.
Stop an Oracle Video Server instance Select the video server folder
and click the Shutdown button in the detail pane.
Change the Oracle Video Server startup and shutdown scripts
View the status of critical Oracle Video Server services
View acti ve client s Select the Clients folder in the
View the status of a specific client Expand the Clients folder in the
Select the video server folder and click the Preferences but to n in the detail pane.
Select the video server folder and click the Show Status button in the detail pa ne.
navigator tree
navigator tree and select a client
Refer to “ Starting the Oracle Video Server” in Chapter 4 of the OVS Administrator’s Guide
and Command Reference
Refer to “ Shutting Do wn the Oracle Video Serv er” in Chapter 4 of the OVS
Administrator’s Guide and Command Reference
Refer to “ Starting the Oracle Video Server” in Chapter 4 of the OVS Administrator’s Guide
and Command Reference
Refer to “mnorbls” in the
Oracle Media Net Administrator’s Guide
Refer to “Displaying Information about Sessions and Circuits” in Chapter 6 of the OVS Administrator ’s Guide
and Command Reference
Refer to “Viewing Session and Circuit Information” in Chapter 6 of the OVS
Administrator’s Guide and Command Reference
View the event log file Select View|Server Event Log
from the menu bar.
Monitoring and Managing an Oracle Video Server System 4-3
Refer to “mnlogreaderOracle Media Net Administrator’s Guide
Video Server Manager Task Reference
Table 4–3 Managing Oracle Video Server Services
Task VSM Action For More Information
Media Data Store (MDS) Volumes, Disks, and Files
Load (and automatically register) content into the MDS from a tape, CD, or file system
Click
Load Content
Refer to Chapter 4 of the OVS Content Administrator’s Guide
View the status and contents of MDS volumes
View the status and contents of MDS disks Select the MDS Disks folder in
View the status and contents of MDS files Select the MDS Files folder in
Defragment an MDS volume Select Tools|
Copy MDS files from one volume to another
Register content with the Oracle Media Data Store (MDS) and database
Select the MDS Volumes folder in the navigator tree
the navigator tree
the navigator tree
Defragment Volume
Click
Load Content
Click
Register Content
Refer to “mdsdir” and “mdsvolstat” in the OVS
Administrator’s Guide and Command Reference
Refer to “mdsdir” and “mdsdiskmode” in the OVS
Administrator’s Guide and Command Reference
Refer to “mdsdir” in the OVS Administrator’s Guide and Command Reference
Refer to “Defragmenting the MDS” in Chapter 7 of the OVS
Administrator’s Guide and Command Reference
Refer to Chapter 4 of the OVS Content Administrator’s Guide
Refer to “Registering Content” in Chapter 4 of the OVS
Content Administrator’s Guide
4-4 Getting Started with Oracle Video Server Manager
Video Server Manager Task Reference
Table 4–3 Managing Oracle Video Server Services (Cont.)
Task VSM Action For More Information
Hierarchical Storage Management (HSM) Tapes and Files
View HSM tape contents Select the HSM Tapes folder in
the navigator tree
View HSM file contents Select the HSM Files folder in
the navigator tree
Real-time Feeds
Monitor the status of active real-time feed server
View the status and properties of a specific real-time feed server
Select the Real-time Feeds folder in the navigator tree
Expand the Real-timeFeeds folder in the navigator tree and select a feed server
Refer to “Using HSM with the Ampex DST” in Chapter 7 of the OVS Administrator’s Guide
and Command Reference
Refer to “Using HSM with the Media Data Store” in Chapter 7 of the OVS Administrator’s
Guide and Command Reference
Refer to Chapter 8, “Configuring the Real-Time Feed Service” inthe OVS
Administrator’s Guide and Command Reference
Refer to Chapter 8, “Configuring the Real-Time Feed Service” in the OVS
Administrator’s Guide and Command Reference
Monitoring and Managing an Oracle Video Server System 4-5
Video Server Manager Task Reference
Ta ble 4–4 Managing OVS Content
Task VSM Action
Register content with the Oracle Media Data Store (MDS) and database
Create clips
View or modify a clip Select the clip title in the
Rename a clip title Select the clip title in th e
Remove a clip Select the clip title in the
Click
Register Content
Click
Create Clip
navigator tree and c lick
Modify
navigator tree and c lick
Modify
navigator tree and c lick
Delete
Create logical content
View or modify logical content Select the logical content title
Rename a logical content title Select the logical content title
Remove logical content Select the logical content title
Note: The Clips and Logical Content options are only available when the video server is connected to a database and if the Content Service (vscontsrv) is started with database options. Refer to the VSM online help or Chapter 9 of the Oracle V ideo Server Administrator's Guide and Command Reference for information on how to s tart an d st op t his ser vice .
4-6 Getting Started with Oracle Video Server Manager
Click
Create Logical Content
in the navigator tree and click
Modify
in the navigator tree and click
Modify
in the navigator tree and click
Delete
Video Server Manager Task Reference
Ta ble 4–4 Managing OVS Content (Cont.)
Task VSM Action
Program schedules and channels
Click
Program
Note: The Schedules and Channels options are only available when the video server is connected to a database and if the Scheduling Services (vsbcastsrv, vsschdsrv, and vsnvodsrv) are started. Refer to the VSM online help or Chapter 9 of the Oracle Video
Server Administrato r's Gu ide an d Comman d Ref er ence for information on how to start and stop these services.
Monitoring and Managing an Oracle Video Server System 4-7
Video Server Manager Task Reference
4-8 Getting Started with Oracle Video Server Manager

Index

A
active feeds. See real-time feeds administrative tasks. See task reference Adobe Acrobat Reader
installing, ix
starting, x application server tier, 1-4 architecture
Oracle Video Server system, 1-3 audience, viii
B
broadcast programs
creating, 4-7
modifying, 4-7
removing, 4-7
C
channels
defining, 4-7 client tier, 1-4 clips
creating, 4-6
defined, 1-6
modifying, 4-6
removing, 4-6
renaming, 4-6 command conventions, viii comments, x communication paths, 1-5 contact information, x
content
defined, 1-6 loading, 4-4 registering, 4-4
conventions
command, viii
platform, viii copying MDS files, 4-4 creating shortcuts, 2-5
D
defragmenting an MDS volume, 4-4 deleting MDS files, 4-4 desktop. See Video Server Manager console detail pane
described, 3-7
property sheets, 3-9
summary tables, 3-7
G
graphical user interface. See Video Server Manager
console
H
help. See online help Hierarchical Storage Management (HSM)
viewing file contents, 4-5
viewing tape contents, 4-5 HSM. See Hierarchical Storage Management (HSM)
Index-1
I
installing Video Server Manager, 2-2
J
Java Runtime Environment, 2-4
L
loading content, 4-4 logical content
creating, 4-6 defined, 1-6 modifying, 4-6 removing, 4 - 6
M
manual
audience, viii conventions, viii organization, viii structure, viii
MDS disks
viewing status of, 4-4
MDS files
copying, 4-4 deleting, 4-4 viewing status of, 4-4
MDS volumes
defragmenting, 4-4 viewing status of, 4-4
menu bar, 3-3
N
navigator tr ee
creating split views, 3-6 described, 3-5 to 3-7 how to navigate, 3-6 removing split views, 3-6
Near Video-On-Demand (NVOD) programs
defining channels, 4-6
Near Video-On-Demand (NVOD). See broadcast
programs, 4-7
Network Computing Architecture (NCA)
application server tier, 1-4 client tier, 1-4 defined, 1-2 server tier, 1-4
O
online documentation
Adobe Acrobat Reader, ix installing Acrobat Reader, ix viewing, x
online Help
described, 3-10 exiting, 3-10 starting, 3-10, 4-2
Oracle Video Client (OVC)
defined, 1-4
Oracle Video Server
content model, 1-6 defined, 1-4 running without a database, 1-8 system architecture, 1-3
P
physical content
defined, 1-6 platform conventions, viii playing video, 4-2 property sheets, 3-9
R
real-time feeds
viewing active feed servers, 4-5 refreshing the display, 4-2 registering content, 1-8, 4-4 related documents, x removing split views, 3-6
S
schedules
creating, 4-7
Index-2
send us your comments, v server tier, 1-4 shortcuts
creating, 2-5 split views, 3-6 to 3-7 starting a video server, 4-3 starting Video Server Manager, 2-4 startup and shutdown scripts
changing, 4-3 stopping a video server, 4-3 summary table s, 3-7 switching managed video server, 4-2 system requirements, 2-2
T
tag files
defined, 1-6
registering content, 4-4 task reference, 4-2 to 4-7 toolbar, 3-4
U
user interface. See Video Server Manager console
V
Video Server Manager
communications paths, 1 - 5
console, 3-2 to 3-9
creating shortcuts, 2-5
defined, 1-2
installing, 2-2
starting, 2-4
task reference, 4-2 to 4-7
uses, 1-2 Video Server Manager console
defined, 1-4
installing, 2-2 viewing job requests, 4-2 viewing status
active clients, 4-3
event log file, 4-3
MDS disks, 4-4
MDS files, 4-4 MDS volumes, 4-4 OVS services, 4-3 specific client, 4-3
volumes. See MDS volumes
Index-3
Index-4
Loading...
