Opus OSS165 Installation Manual

OSS165

Stereo Ceiling Speaker
Installation Guide

2

Packaging contents .........................................................................2

Introduction......................................................................................3

Installation notes..............................................................................4

Painting the OSS165........................................................................5

Care and maintenance.....................................................................5

Connecting the OSS165..................................................................8

Mounting the OSS165......................................................................9

Technical specifications.................................................................14

Limited warranty.............................................................................15

CONTENTS

This package should contain the following:

1 x OSS165 speaker
1 x Installation Guide
1 x Cutting template
1 x Painting mask
1 x Self adhesive grille badge
1 x Non curing grille glue

If any of the above items are missing or appear damaged, contact
your Opus dealer immediately. Do not throw the away the
packaging in case you need to return your OSS165.

PACKAGING CONTENTS

The Opus OSS165 ceiling speaker has been designed specifically
to enhance the performance of your home entertainment system. It
is the result of an extensive Research and Development programme
undertaken to provide you with accurate, uncompromised
reproduction of movie soundtracks and music. With attention to
detail second to none, this loudspeaker is designed to deliver
maximum enjoyment. They mount flush with the ceiling, and you
can paint their frames and grilles to match the room's decor.

Please take the time to read this guide fully as it contains important
information and should be retained for future reference.

3

INTRODUCTION

OSS165

Your speaker is an example of superior design and craftsmanship.
These suggestions will help you care for them so you can enjoy
them for years.

Keep the speaker dry. If it gets wet, dry immediately. Liquids can
contain minerals that can corrode electronic components.

Keep the speaker away from dust or dirt, which can cause
premature wear of parts.

Wipe the speaker frame occasionally with a damp cloth to keep it
looking new. Do not use harsh chemicals, cleaning solvents or
strong detergents.

CARE AND MAINTENANCE

4

It is advisable to plan all aspects of installation in advance of work
beginning, preferably with the house/flat building schematics if
available. Great care should be taken to ensure that all building
regulations are followed. When deciding upon a ceiling placement,
care should be taken to avoid joists, load bearing beams etc.

When placing the OSS165 speaker, thought should be given to
positions which give the best desired sound coverage throughout
the room, while not interfering with existing or planned light fittings
or joists. Also, locate loudspeaker taking into account location of
furnishings for optimal stereo reproduction.

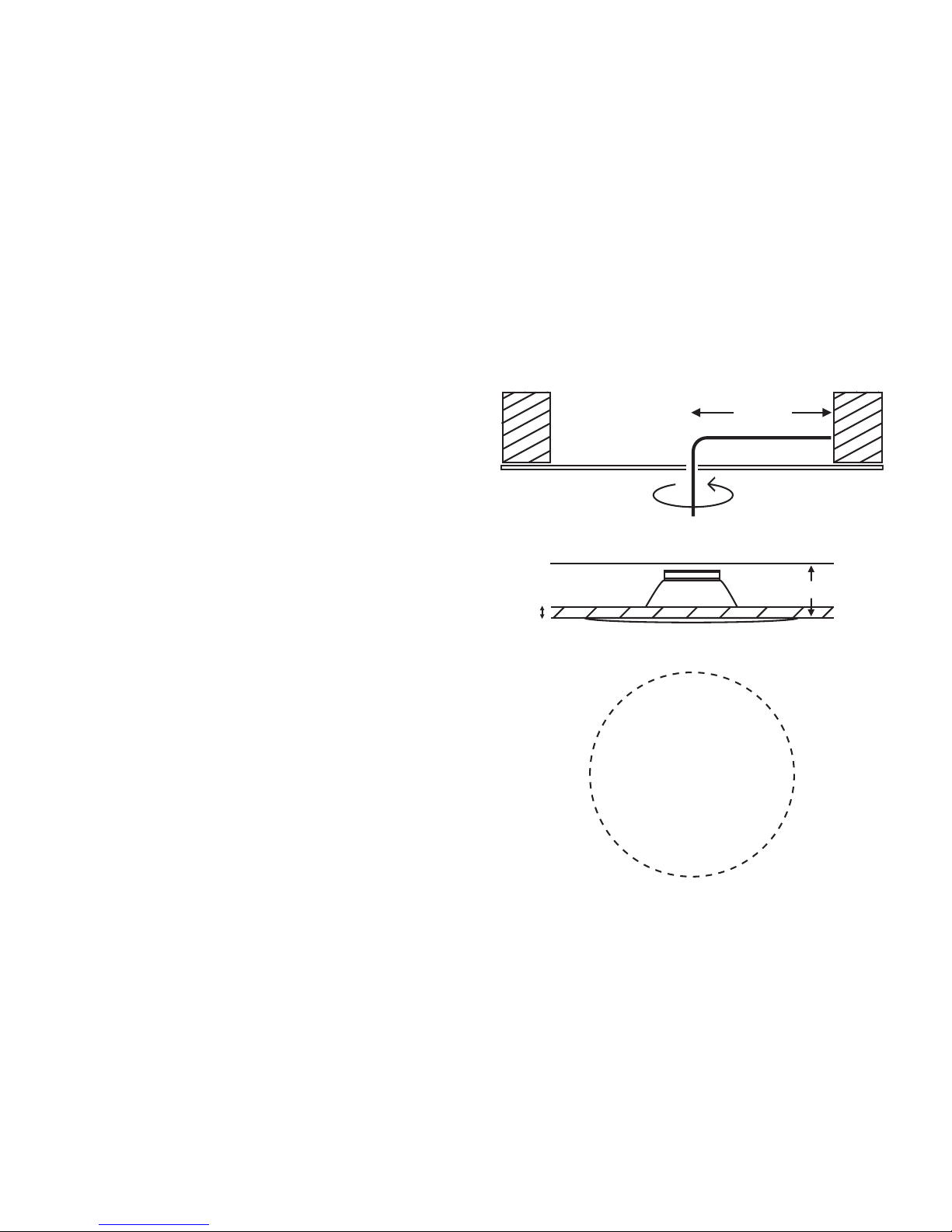

Before cutting ceiling loudspeaker holes it is suggested that the
area is tested for clearance by making an L-shaped probe from
strong wire (eg a coat hanger), drilling a small hole in the target
area, inserting the probe and slowly turning. Any obstructions will
be immediately obvious, and the target area can be moved to a
more suitable position.

When mounting speaker flush to a ceiling or wall, ensure that
enough depth/clearance is available in the respective cavity. A
clearance of at least 80mm is necessary when mounting an
OSSI65.

Remove the round cardboard pad from inside the supplied
template (see below). Use the template to mark the position for the
mounting hole at the selected location. Cut the mounting hole with
a drywall or keyhole saw.

110mm

Min 80mm

Min 10-30mm

INSTALLATION NOTES

OSS165

207mm diameter

mounting hole

Use an L-shaped probe
to check available void
space before cutting
loudspeaker holes

5

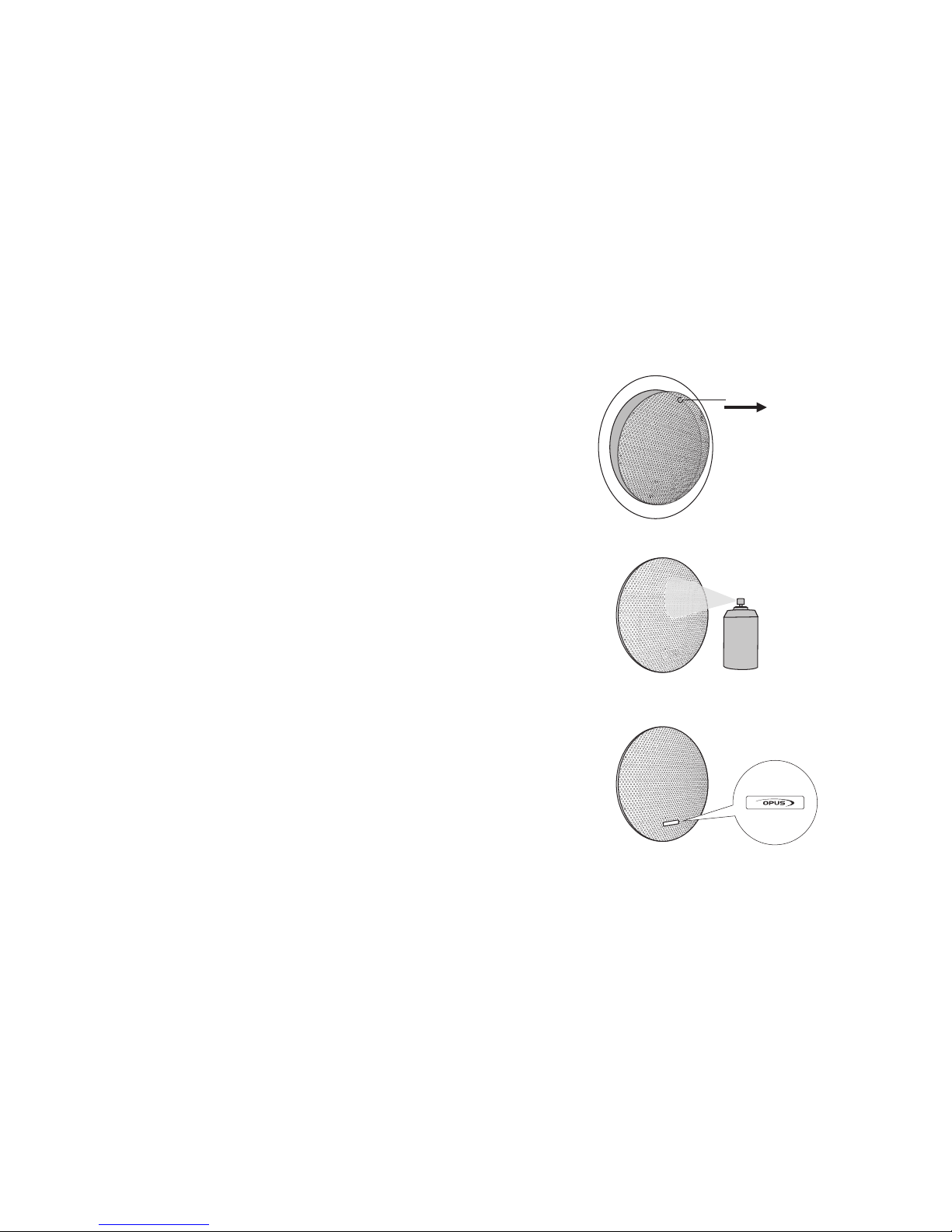

1. Remove the grille by inserting a small hook or similar small
implement into one of the grille openings, then pulling on the
grille.

2. Fit the clear plastic painting mask provided when painting the
speaker surround to avoid paint getting on the speaker cone.

3. Spray-painting the grille will prevent blocking the grille holes with
paint.

4. After the paint dries, remove the paint mask, replace the grille
and apply grille badge as required.

PAINTING THE OSS165

6

Do not compromise the performance of your system by using
inferior quality speaker cables. We recommend that high quality
cables of 16 gauge or higher be used. Your professional dealer will
give you good advice. Always unplug all A.C. powered components
before making any loudspeaker or component connections. This
will avoid the risk of electric shock or damage to your equipment.

Follow these steps to connect the speaker to your amplification
system:

1. Route the speaker cable from your amplification system to the
speaker. Avoid routing the speaker cable near electrical wires
and do not nail or staple the cable.

2. Separate about 100mm of speaker cable at each end.

3. Using a wire stripper, remove about 10mm of insulation from
both ends of each conductor, and then twist the strands of each
conductor (Fig. 1).

CONNECTING THE OSS165

10mm

100mm

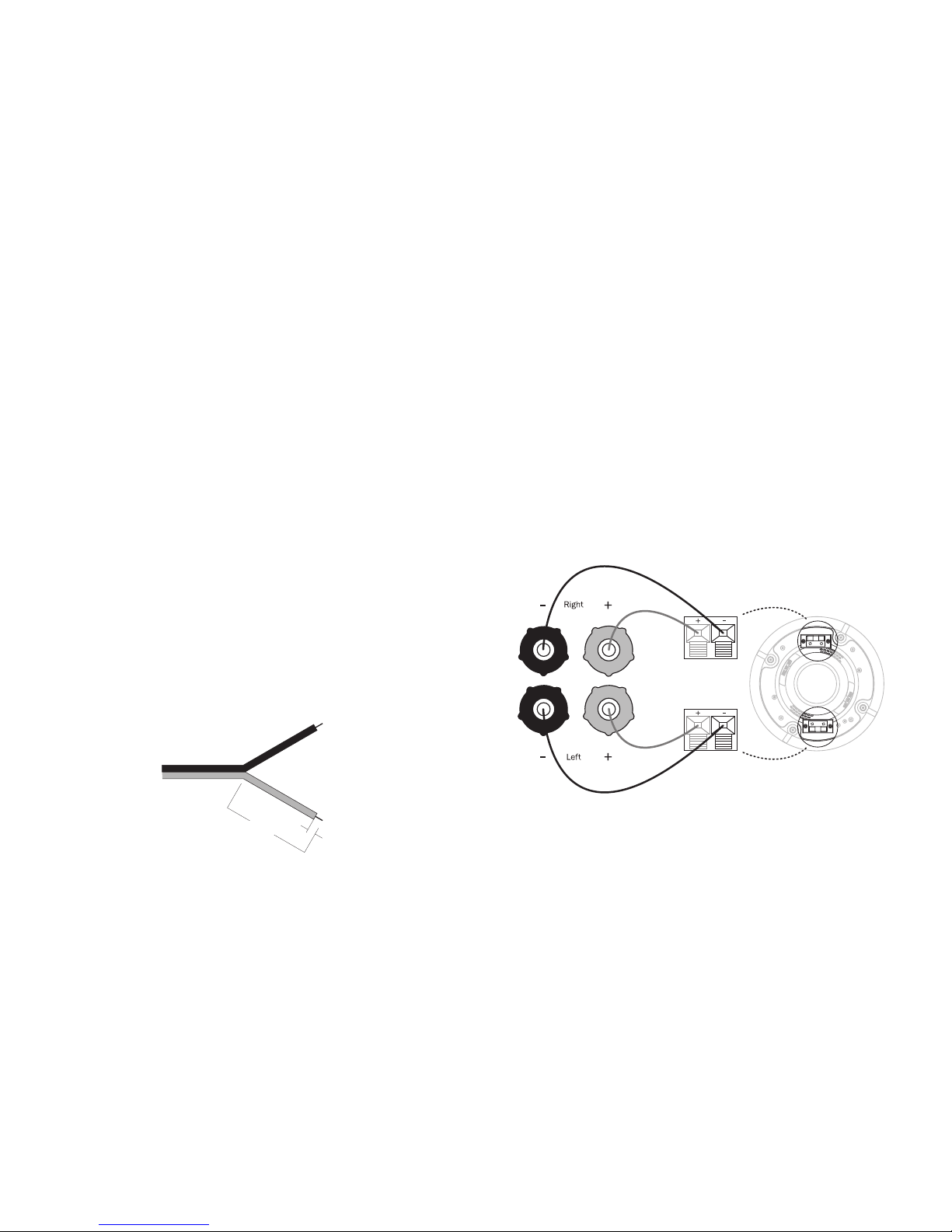

4. Observing polarity is of the utmost importance while connecting
your speaker. Ensure that the red (+) terminal on your
amplification system is connected to the red (+) terminal on the
speaker, and black (-) terminal on your amplification system to
black (-) terminal on your speaker (Fig. 2). Press the spring­loaded red or black tab back to reveal the connecting hole. Insert
the stripped end of the speaker wire, then release the tab.
Repeat procedure for the second set of terminals.

5. If your speaker is wired incorrectly they will be out of phase and
sound hollow and indistinct, with a weak bass. Re-check your
connections for correct polarity and reverse the connections if
necessary.

Fig. 1

Fig. 2

AMP OSS165

7

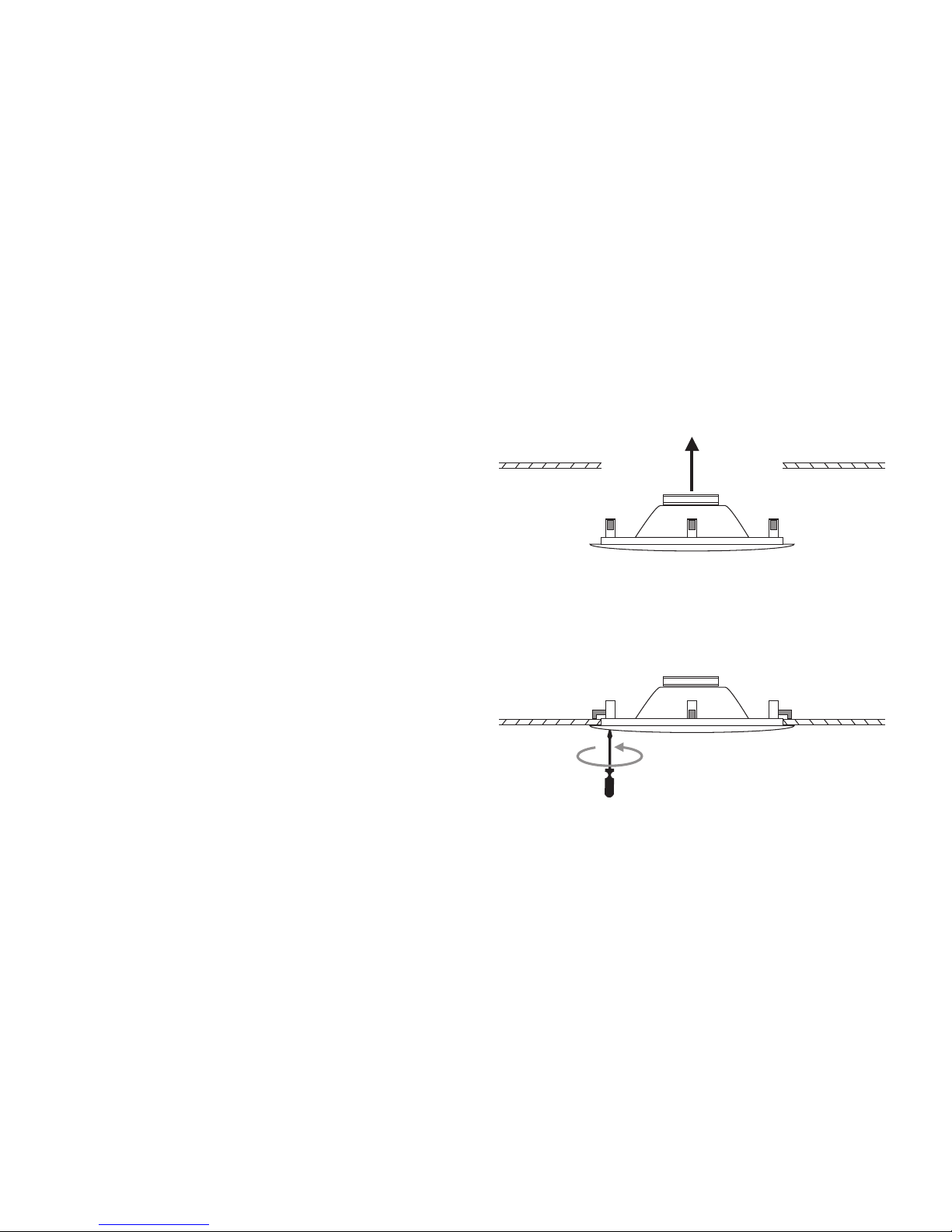

1. Before mounting, ensure that the four fixing screws are
slackened off so that the red mounting dog-legs can move freely.

2. Move each red dog-leg foot to the LEFT into it’s holding slot, and
then insert the speaker into the mounting hole.

3. Using a cross-head screwdriver, slowly turn each fixing screw
clockwise. This will move the mounting dog-legs out of their
slots.

4. Tighten each fixing screw until the mounting dog-legs grip the
ceiling.

MOUNTING THE OSS165

8

Frequency response 60Hz–20kHz (+/- 2dB)

Impedance 6 Ohms

Operational efficiency 87dB (per channel)

Weight 1.2kg / 2.6lbs

Dimensions 240mm x 75 mm (9.4” x 3”)

TECHNICAL SPECIFICATIONS

This guide is designed to make using the OSS165 as easy as
possible. Information in this document has been carefully checked
for accuracy; however, no guarantee is given to the correctness of
the contents. The information in this document is subject to change
without notice. If you notice any errors please feel free to email us
at: [e-mail]

All trademarks and registered trademarks are the property of their
respective owners.

© Copyright Opus Technologies Ltd 2009

This document contains proprietary information protected by
copyright. All rights are reserved. No part of this manual may be
reproduced by any mechanical, electronic or other means, in any
form, without prior written permission of the manufacturer.

The crossed-out wheeled bin is the European Union
symbol for indicating separate collection for electrical
and electronic equipment. This product contains
electrical and electronic equipment which should be
reused, recycled or recovered and should not be
disposed of with unsorted regular waste. Please return
the unit or contact the authorised dealer from whom
you purchased this product for more information.

Opus Technologies warrants this product to be free from defects in
materials and workmanship (subject to the terms set forth below).
Opus Technologies will repair or replace (at Opus Technologies’
option) this product or any defective parts in this product. Warranty
periods may vary from country to country. If in doubt consult your
dealer and ensure that you retain proof of purchase.

To obtain warranty service, please contact the Opus Technologies
authorised dealer from which you purchased this product. If your
dealer is not equipped to perform the repair of your Opus
Technologies product, it can be returned by your dealer to Opus
Technologies or an authorised Opus Technologies service agent.
You will need to ship this product in either its original packaging or
packaging affording an equal degree of protection.

Proof of purchase in the form of a bill of sale or receipted invoice,
which is evidence that this product is within the warranty period,
must be presented to obtain warranty service.

This Warranty is invalid if (a) the factory-applied serial number has
been altered or removed from this product or (b) this product was
not purchased from an Opus Technologies authorised dealer. You
may call Opus Technologies or your local country Opus
Technologies distributor to confirm that you have an unaltered
serial number and/or you purchased from a Opus Technologies
authorised dealer.

This Warranty does not cover cosmetic damage or damage due to
acts of God, accident, misuse, abuse, negligence, commercial use,
or modification of, or to any part of, the product. This Warranty
does not cover damage due to improper operation, maintenance or
installation, or attempted repair by anyone other than Opus
Technologies or an Opus Technologies dealer, or authorised service
agent which is authorised to do Opus Technologies warranty work.
Any unauthorised repairs will void this Warranty. This Warranty does
not cover products sold AS IS or WITH ALL FAULTS.

REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS
WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER.
OCTOPUS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY IN THIS PRODUCT. EXCEPT TO THE
EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE
AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED
WARRANTIES WHATSOEVER INCLUDING, BUT NOT LIMITED TO,
THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PRACTICAL PURPOSE.

Some countries and US states do not allow the exclusion or
limitation of incidental or consequential damages or implied
warranties so the above exclusions may not apply to you. This
Warranty gives you specific legal rights, and you may have other
statutory rights, which vary from state to state or country to
country.

9

LIMITED WARRANTY

Opus is committed to providing the highest levels of service and support.
For full details of this product visit the Opus website:

Opus Technologies Ltd
Gallery Court, Pilgrimage Street,
London SE1 4LL, England

www.opus-technologies.co.uk

Part No. AP26710/1
