GB6198

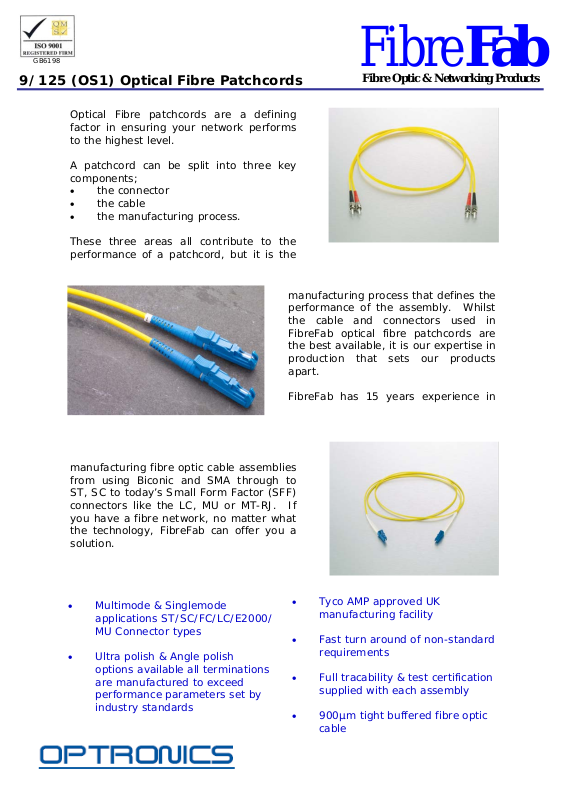

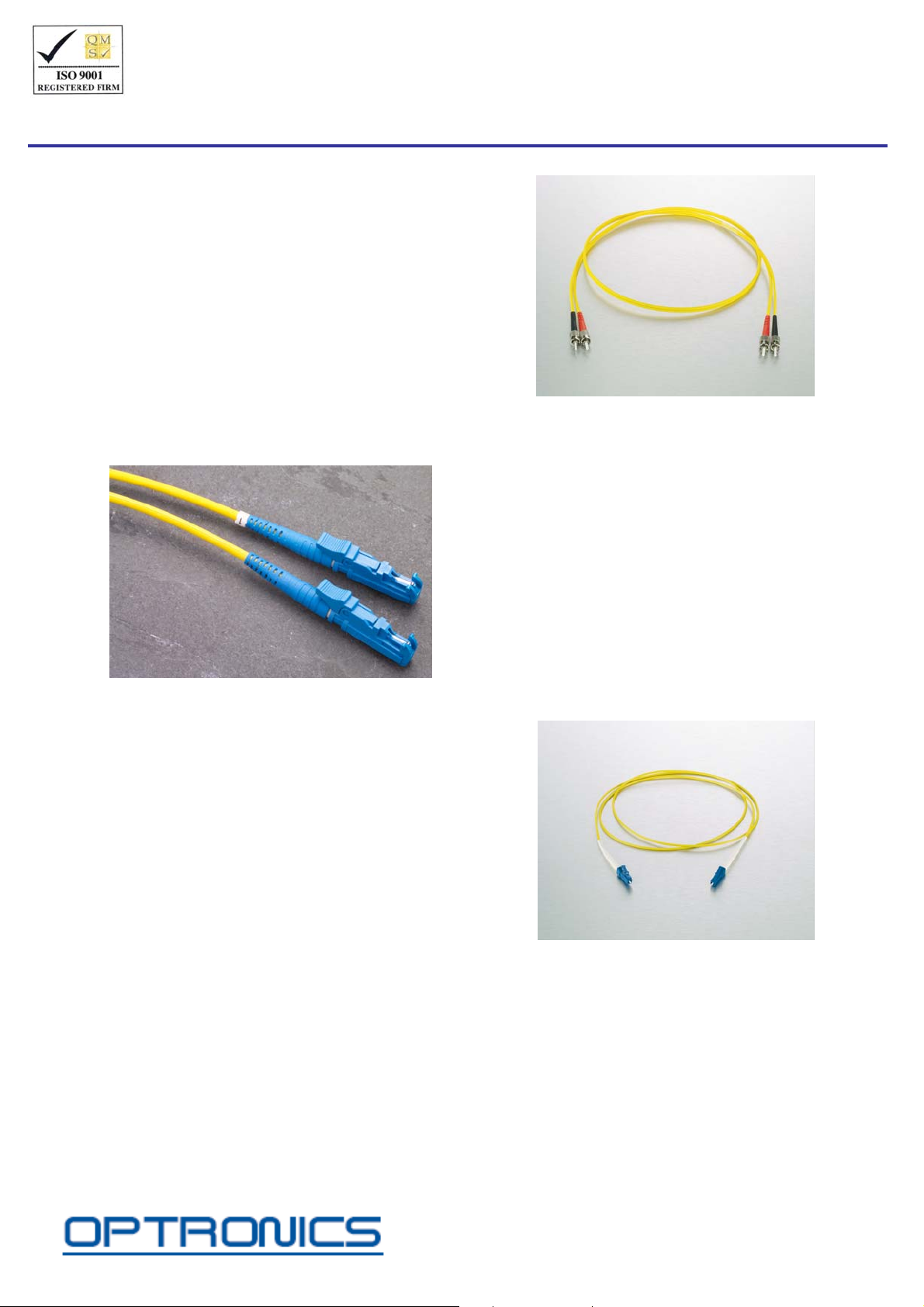

9/125 (OS1) Optical Fibre Patchcords
Optical Fibre patchcords are a defining
factor in ensuring your network performs
to the highest level.
A patchcord can be split into three key
components;
• the connector
• the cable
• the manufacturing process.
These three areas all contribute to the
performance of a patchcord, but it is the
manufacturing process that defines the
performance of the assembly. Whilst
the cable and connectors used in
FibreFab optical fibre patchcords are
the best available, it is our expertise in
production that sets our products
apart.
FibreFab has 15 years experience in
FibreFab
Fibre Optic & Networking Products
manufacturing fibre optic cable assemblies
from using Biconic and SMA through to
ST, SC to today’s Small Form Factor (SFF)
connectors like the LC, MU or MT-RJ. If
you have a fibre network, no matter what
the technology, FibreFab can offer you a
solution.
• Multimode & Singlemode
applications ST/SC/FC/LC/E2000/
MU Connector types
• Ultra polish & Angle polish
options available all terminations
are manufactured to exceed
performance parameters set by
industry standards
• Tyco AMP approved UK
• Fast turn around of non-standard
• Full tracability & test certification
• 900µm tight buffered fibre optic
manufacturing facility
requirements
supplied with each assembly
cable
Page 2
Specifications
Patchcord Specification
Mechanical
Length: 1m to 10m ± 10mm
Other lengths available to order
Split Length (Duplex): 150mm ± 5mm
Product Packaging
Each patch cord is packaged individually
and individually identified for traceability,
test certification is supplied for each
assembly.
Optical fibre and cable performance
Attenuation
(1310/1550) 0.38/0.24
Sheath colour
Yellow
Strength Members
Aramid strength members
Fire Performance
LSZH for Internal/External Applications
(dB/km)
Flame Resistance IEC 60332-1
Connector Specification
Optical Performance (Singlemode)
Return Loss: UPC > 50dB, APC >60dB
Optical Performance (MT-RJ)
Operating Temperature
-40°C to +85°C
Intermateability
Optically and mechanically compatible with all equivalent
connectors.
Compliant with IEC 874-14.
For full information on the Optronics connectors used on the FibreFab patch cords,
please contact the address below for a connector data sheet.
Insertion loss: Max. 0.3 dB Typical 0.2 dB
Insertion loss: Max. 0.5 dB
Ordering Information
Connectors
1
End 1
FC/APC
SC/APC
MT-RJ
E2000
Connectors
End 2
FC
SC
ST
LC
MU
1
Davy Avenue
Knowlhill
Milton Keynes
MK5 8ND
FibreFab Ltd is registered in England no. 2734823.
Fibre
Size
Configuration
09
S = Simplex
D = Duplex
1
Other Connectors Available on Request
2
Singlemode cable only available in Yellow
3
MT-RJ is only available in MiniZip
FibreFab Limited
Tel: +44 (0) 870 127 3330
Fax: +44 (0) 870 127 3331
Email: [email protected]
Internet: www.fibrefab.com
Cable
3
Cable
Colour
YE
2
Length (m)
1m
2m
3m
5m
10m
Copyright © FibreFab 2005. All Rights Reserved.
