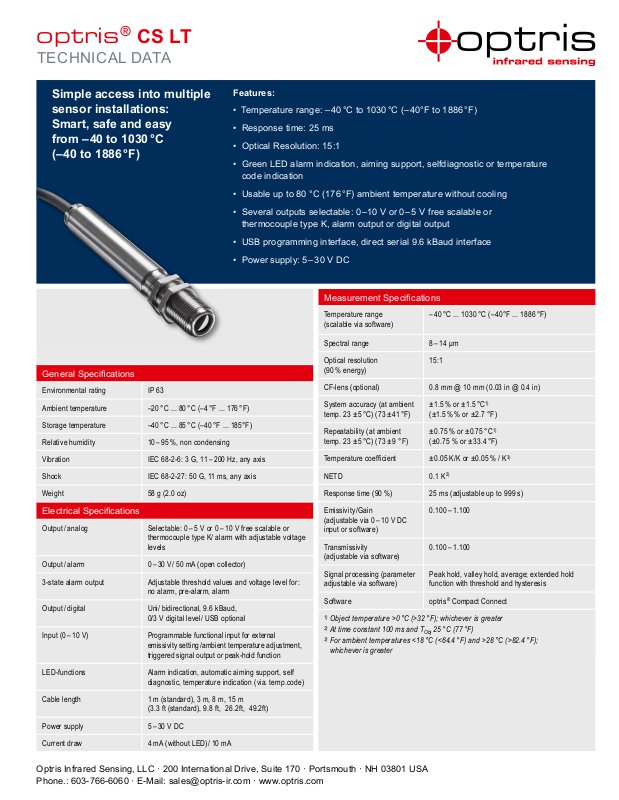

Optris CS LT Specifications

optris

®

CS LT

TECHNICAL DATA

Simple access into multiple
sensor installations:
Smart, safe and easy
from – 40 to 1030 °C

Features:

• Temperature range: – 40 °C to 1030 °C (– 40°F to 1886 °F)

• Response time: 25 ms

• Optical Resolution: 15:1

(– 40 to 1886 °F)

• Green LED alarm indication, aiming support, selfdiagnostic or temperature
code indication

• Usable up to 80 °C (176 °F) ambient temperature without cooling

• Several outputs selectable: 0 –10 V or 0 – 5 V free scalable or

thermocouple type K, alarm output or digital output

• USB programming interface, direct serial 9.6 kBaud interface

• Power supply: 5 – 30 V DC

General Specications

Environmental rating IP 63

Ambient temperature –20 °C ... 80 °C (–4 °F ... 176 °F)

Storage temperature –40 °C ... 85 °C (–40 °F ... 185°F)

Relative humidity 10 – 95 %, non condensing

Vibration IEC 68-2-6: 3 G, 11 – 200 Hz, any axis

Shock IEC 68-2-27: 50 G, 11 ms, any axis

Weight 58 g (2.0 oz)

Electrical Specications

Output / analog Selectable: 0 – 5 V or 0 – 10 V free scalable or

Output / alarm 0 – 30 V/ 50 mA (open collector)

3-state alarm output Adjustable threshold values and voltage level for:

Output / digital Uni/ bidirectional, 9.6 kBaud,

Input (0 – 10 V) Programmable functional input for external

thermocouple type K/ alarm with adjustable voltage
levels

no alarm, pre-alarm, alarm

0/3 V digital level/ USB optional

emissivity setting / ambient temperature adjustment,
triggered signal output or peak-hold function

Measurement Specications

Temperature range
(scalable via software)

Spectral range 8 – 14 μm

Optical resolution
(90 % energy)

CF-lens (optional) 0.8 mm @ 10 mm (0.03 in @ 0.4 in)

System accuracy (at ambient
temp. 23 ±5 °C) (73 ±41 °F)

Repeatability (at ambient
temp. 23 ±5 °C) (73 ±9 °F)

Temperature coefficient ±0.05 K/K or ±0.05 % / K

NETD 0.1 K

Response time (90 %) 25 ms (adjustable up to 999 s)

Emissivity / Gain
(adjustable via 0 – 10 V DC
input or software)

Transmissivity
(adjustable via software)

Signal processing (parameter
adjustable via software)

Software optris

1)

Object temperature >0 °C (>32 °F); whichever is greater

2)

At time constant 100 ms and T

3)

For ambient temperatures <18 °C (<64.4 °F) and >28 °C (>82.4 °F);

whichever is greater

– 40 °C ... 1030 °C (– 40°F ... 1886 °F)

15:1

±1.5 % or ±1.5 °C
(±1.5 % % or ±2.7 °F)

±0.75 % or ±0.75 °C
(±0.75 % or ±33.4 °F)

2)

0.100 – 1.100

0.100 – 1.100

Peak hold, valley hold, average; extended hold
function with threshold and hysteresis

®

Compact Connect

25 °C (77 °F)

Obj

1)

1)

3)

LED-functions Alarm indication, automatic aiming support, self

Cable length 1 m (standard), 3 m, 8 m, 15 m

Power supply 5 – 30 V DC

Current draw 4 mA (without LED)/ 10 mA

diagnostic, temperature indication (via. temp.code)

(3.3 ft (standard), 9.8 ft, 26.2ft, 49.2ft)

Optris Infrared Sensing, LLC · 200 International Drive, Suite 170 · Portsmouth · NH 03801 USA
Phone.: [phone] · E-Mail: [e-mail] · www.optris.com

optris

V

®

CS LT

Optical Specications

Optics, D:S = 15:1 Optics with CF-lens, D:S = 15:1

6.5

11.6

16.6

21.7

26.7

35

43.3

51.6

59.9

S

(0.24)

D 0

(0.46)

(0.65)

(0.85)

(1.05)

(1.37)

(1.70)

(2.03)

100

200

300

400

500

600

(0)

(3.94)

(7.87)

(11.8)

(15.6)

(19.7)

(23.6)

700

(27.6)

(2.36)

800

(31.5)

mm
(in)

mm
(in)

Connections

S7 (0.28)

D 0

(0)5 (0.20)

3.9

(0.15)

0.8

(0.03)

10

(0.39)

4.7

(0.19)

15

(0.59)

8.6

(0.34)

20

(0.79)

12.5

(0.49)

25

(0.98)

16.6

(0.65)

30

(1.18)

20.3

(0.80)

35

(1.38)

24.2

(0.96)

40

(1.57)

mm
(in)

mm
(in)

Connection analog
with open collector

alarm output (e.g. to
actuate a relay)

Connection digital with
USB adapter cable

Dimensions / Accessories (examples)

®

Dimensions optris

CS

Power (+) [white]

OUT [yellow]

IN/OUT [green]

GND (–) [brown]

OUT t/c K + [green]

OUT t/c K – [white]

Shield [black]

Power (+) [white] 5 V DC

OUT [yellow]

IN / OUT [green]

GND (–) [brown]

Shield [black]

0 – 30 V DC / 50 mA

5 – 30 V DC

+
–

PC

Mounting bracket,

xed (ACCTFB)

Air purge collar, optional with

integrated CF-lens (ACCTAPLCF)

CF-lens (ACCTCF)

Specications are subject to change without notice · CS LT-US2018-08-A
