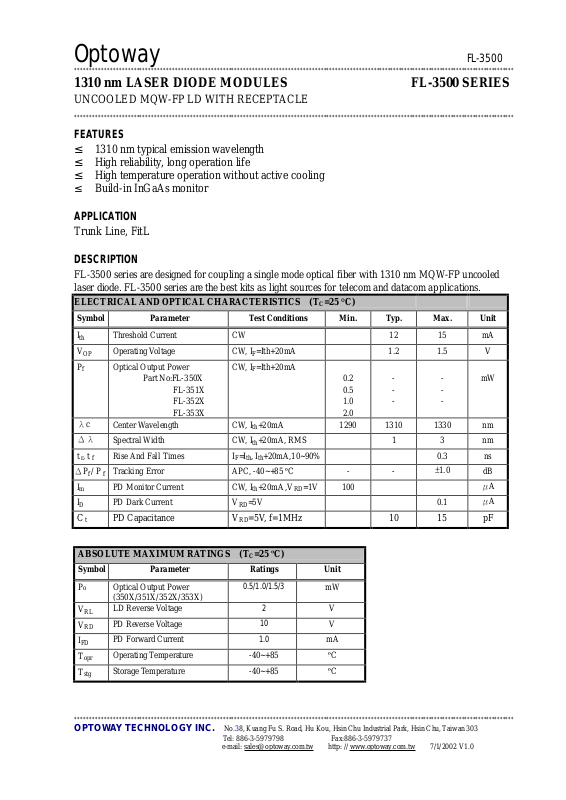

Page 1
Optoway FL-3500
3500 SERIES
********************************************************************************************************************************************************
1310 nm LASER DIODE MODULES FL-
UNCOOLED MQW-FP LD WITH RECEPTACLE
*******************************************************************************************************************************************************
FEATURES
² 1310 nm typical emission wavelength
² High reliability, long operation life
² High temperature operation without active cooling
² Build-in InGaAs monitor
APPLICATION
Trunk Line, FitL
DESCRIPTION
FL-3500 series are designed for coupling a single mode optical fiber with 1310 nm MQW-FP uncooled
laser diode. FL-3500 series are the best kits as light sources for telecom and datacom applications.
ELECTRICAL AND OPTICAL CHARACTERISTICS (TC=25 °C)
Symbol
Parameter Test Conditions Min. Typ. Max. Unit
Ith Threshold Current CW 12 15 mA
VOP Operating Voltage CW, IF=Ith+20mA 1.2 1.5 V
Pf Optical Output Power
Part No:FL-350X
FL-351X
FL-352X
FL-353X
λc
Δλ
t r, t f Rise And Fall Times IF=Ith, Ith+20mA,10~90%
ΔP
Im PD Monitor Current CW, Ith+20mA ,VRD=1V
ID PD Dark Current VRD=5V 0.1
C t
Center Wavelength CW, Ith+20mA 1290 1310 1330 nm
Spectral Width CW, Ith+20mA, RMS 1 3 nm
/ P
Tracking Error APC, -40~+85 ºC - -
f
f
PD Capacitance
CW, IF=Ith+20mA
VRD=5V, f=1MHz
0.2
0.5
1.0
2.0
0.3 ns
100
-
-
-
-
-
-
±1.0
10 15 pF
mW
dB
μA
μA
ABSOLUTE MAXIMUM RATINGS (TC=25 ºC)
Symbol
Po Optical Output Power
(350X/351X/352X/353X)
V
V
I
FD
T
opr
T
stg
LD Reverse Voltage
RL
PD Reverse Voltage
RD
PD Forward Current
Operating Temperature -40~+85 ºC
Storage Temperature -40~+85 ºC
Parameter Ratings Unit
0.5/1.0/1.5/3
2
10
1.0
mW
V
V
mA
*******************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC. No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798 Fax:886-3-5979737
e-mail: [email protected] http: // www.optoway.com.tw 7/1/2002 V1.0
Page 2
Optoway FL-3500
FL-351X FL
-
353X
********************************************************************************************************************************************************
MECHANICAL DIMENSION (mm) and PIN ASSIGNMENT
FL-350X FL-352X
Note: Specifications subject to change without notice.
ORDER INFORMATION
Part No.: F L − 3 5 □ □ □ − □ □
Code Pout (mw)
0 0.2 Blank
1 0.5 S 2.5 Gbps
2 1
3 2
0 Type A
5 Type B S SC/PC
8 Type C
Code
Code Pin Assignment
Flange
1.25 Gbps
Code
Blank
S Single-Stage
Code Connector Type
SB SC/PC (Board Mount)
F FC/PC
FB FC/PC (Board Mount)
T ST/PC
Isolator
No
*******************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC. No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798 Fax:886-3-5979737
e-mail: [email protected] http: // www.optoway.com.tw 7/1/2002 V1.0
