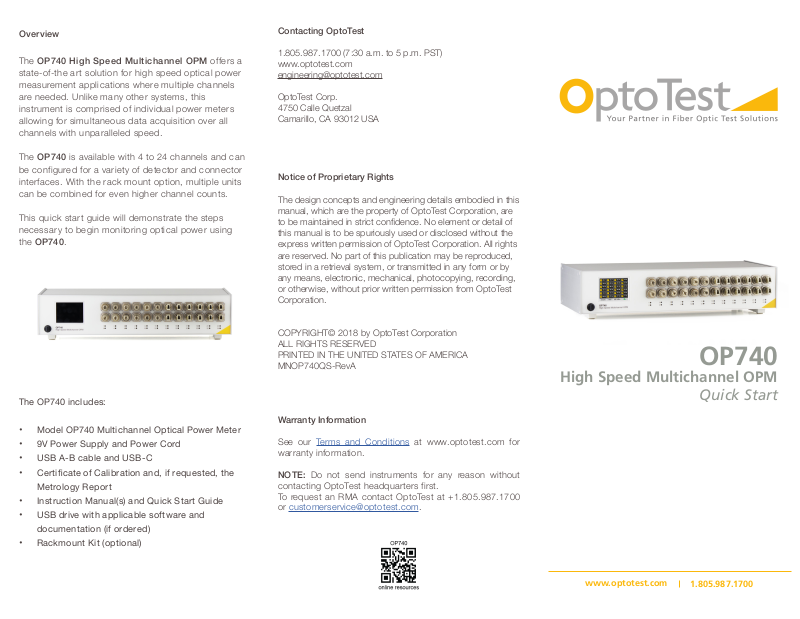

OptoTest OP740 Quick Start Manual
Overview
Contacting OptoTest
The OP740 High Speed Multichannel OPM offers a
state-of-the art solution for high speed optical power
measurement applications where multiple channels
are needed. Unlike many other systems, this
instrument is comprised of individual power meters
allowing for simultaneous data acquisition over all
channels with unparalleled speed.
The O P740 is available with 4 to 24 channels and can
be configured for a variety of detector and connector
interfaces. With the rack mount option, multiple units
can be combined for even higher channel counts.
This quick start guide will demonstrate the steps
necessary to begin monitoring optical power using
the O P74 0.
1.805.987.1700 (7:30 a.m. to 5 p.m. PST)
www.optotest.com
engineering@optotest.com
OptoTest Corp.
4750 Calle Quetzal
Camarillo, CA 93012 USA
Notice of Proprietary Rights
The design concepts and engineering details embodied in this
manual, which are the property of OptoTest Corporation, are
to be maintained in strict condence. No element or detail of
this manual is to be spuriously used or disclosed without the
express written permission of OptoTest Corporation. All rights
are reserved. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by
any means, electronic, mechanical, photocopying, recording,
or otherwise, without prior written permission from OptoTest
Corporation.
COPYRIGHT© 2018 by OptoTest Corporation
ALL RIGHTS RESERVED
PRINTED IN THE UNITED STATES OF AMERICA
MNOP740QS-RevA
OP740
High Speed Multichannel OPM
The OP740 includes:
• Model OP740 Multichannel Optical Power Meter
• 9V Power Supply and Power Cord
• USB A-B cable and USB-C
• CerticateofCalibrationand,ifrequested,the
Metrology Report
• Instruction Manual(s) and Quick Start Guide
• USBdrivewithapplicablesoftwareand
documentation(ifordered)
• Rackmount Kit (optional)
Warranty Information
See our Terms and Conditions at www.optotest.com for
warranty information.
NOTE: Do not send instruments for any reason without
contacting OptoTest headquarters first.
To request an RMA contact OptoTest at +1.805.987.1700
or customerservice@optotest.com.
www.optotest.com
Quick Start
1.805.987.1700
To begin, the 9V power supply and power cord should
be connected to each other, a wall outlet, and the
OP740 . Either the USB A-B cable or the USB-C
cable should be used to connect the OP740 to
1
2
the operating PC for communication and control
through software.
Note: The USB-C is required for high-speed
acquisition, while the USB-B port allows the OP740 to
be used as an OP710 in OPL-Suite Software such as
OPL-MAX and OPL-LOG.
To power on, turn the key clockwise 90 degrees from
horizontal to vertical position.
3
This will bring up the Home Screen, from which the
user can navigate to the Single Channel, Multichannel,
and Settings screens.
4
USB-C
(USB 3.0 Communications)
USB-B
(USB 2.0 Communications)
22
Quick StartOP740
9V Power
Supply
1
From the single channel screen , the user can take a
5
reference and view real-time optical power measurement
and adjust parameters for a single channel.
From the multichannel screen , the user can take a
6
reference and view both relative and absolute real-time
optical power measurements for up to 24 channels.
3
Single Channel Screen
5
2
3
4
Multichannel Screen
6
1
3
4
5
5
4
Toggle through available wavelengths. Typically, for power meters with InGaAs
1
this is 850nm, 980nm, 1300nm, 1310nm, 1480nm, 1550nm, and 1625nm;
1
6
2
6
for Silicon Power Meters the wavelengths are 650nm, 850nm, and 980nm
Select Auto Range or Range Hold
2
Set displayed channel; Value Entry Screen
3
Toggle bet ween relati ve and absolute power view
4
Take referen ce: store the cur rent absolu te power readi ng as the refere nce
5
and swi tch to relative po wer view if not a lready ther e
6
Return to p revious screen
Single Channel Screen for selected channel
1
Toggle between both 12 channel views
2
Toggle between 8,18,12, and 24 channel views
3
Take referen ce: store the cur rent absolu te power readi ng as the refere nce
4
and swi tch to relative po wer view if not a lready ther e
Toggle bet ween relati ve and absolute power view
5
Return to p revious screen
6
