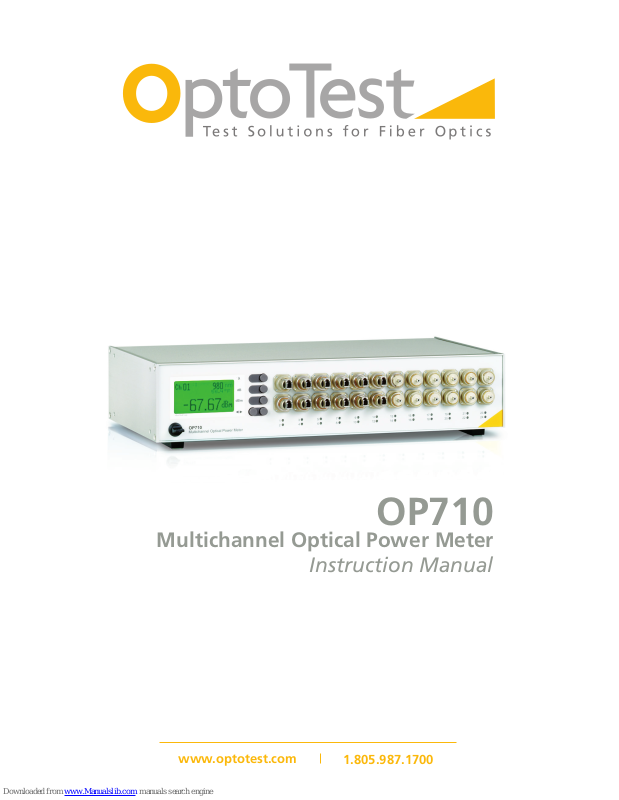

Multichannel Optical Power Meter
Instruction Manual
OP710
www.optotest.com
1.805.987.1700
![](/html/e7/e7d3/e7d3a3c4ea863292b2db2e91661f0952238cf5445116f78be00ce3a9f295d2d6/bg2.png)
1 of 11
Contacting OptoTest Corporation
1.805.987.1700 (7:30 a.m. to 5 p.m. PST)
www.optotest.com
engineering@optotest.com
OptoTest Corp.
4750 Calle Quetzal
Camarillo, CA 93012 USA
Notice of Proprietary Rights
The design concepts and engineering details embodied in this manual, which are
the property of OptoTest Corporation, are to be maintained in strict condence. No
element or detail of this manual is to be spuriously used or disclosed without the
express written permission of OptoTest Corporation. All rights are reserved. No part
of this publication may be reproduced, stored in a retrieval system, or transmitted
in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise, without prior written permission from OptoTest Corporation.
COPYRIGHT © 2016 by OptoTest Corp
ALL RIGHTS RESERVED
PRINTED IN THE UNITED STATES OF AMERICA
MnOP710-RevD
![](/html/e7/e7d3/e7d3a3c4ea863292b2db2e91661f0952238cf5445116f78be00ce3a9f295d2d6/bg3.png)
OP710
2 of 11
Table of Contents
Overview 4
Initial Preparation 5
Denition of Specications 6
Front Panel Operation 9
Display Operation 10
Warranty Information 11
![](/html/e7/e7d3/e7d3a3c4ea863292b2db2e91661f0952238cf5445116f78be00ce3a9f295d2d6/bg4.png)
OP710
3 of 11
Overview
The OP710 oers an economical approach for optical power measurement
applications where multiple channels are needed. Unlike other systems this
instrument is built up with individual power meters allowing for unparalleled
simultaneous data acquisition over all channels with a sampling rate of up to 10
samples per second.
It is available starting at 1 channel up to 24 channels and can be congured for a
variety of detector and connector interfaces. With the rack mount option multiple
instruments can be combined and congured for even higher channel count.
Available detector options:
IN1
1mm InGaAs detector with 5/8” Adapter
IN3
3mm InGaAs detector with 5/8” Adapter
IN5
5mm InGaAs detector with 5/8” Adapter
IN10
10mm InGaAs detector with 5/8” Adapter
HP
2mm High Power InGaAs detector with 5/8” Adapter
SI3
3mm Silicon detector with 5/8” Adapter
R
Electrical port for Remote Head Detector
S
Digital port for Integrating Sphere
![](/html/e7/e7d3/e7d3a3c4ea863292b2db2e91661f0952238cf5445116f78be00ce3a9f295d2d6/bg5.png)
OP710
4 of 11
Initial Preparation
Unpacking and Inspection
The unit was carefully inspected, mechanically, electrically and optically before
shipment. When received, the shipping carton should contain the items listed in
Standard Contents. Account for and inspect each item. In the event of a damaged
instrument, write or call OptoTest Corp, California.
Please retain the shipping container in case re-shipment is required for any reason.
Damaged In Shipment
All instruments are shipped F.O.B. Camarillo when ordered from OptoTest.
If you receive a damaged instrument you should:
1. Report the damage to your shipper immediately.
2. Inform OptoTest Corporation.
3. Save all shipping cartons.
Failure to follow this procedure may aect your claim for compensation.
Standard Contents
1. Model OP710 Multichannel Optical Power Meter
2. Power Cord (U.S. Shipments only)
3. USB A-B cable
4. Certicate of Calibration and if requested the Metrology Report
5. Instruction Manual(s)
6. CD with applicable software and documentation (if ordered)
7. Rackmount Kit (optional)
