DLP® Projector
User manual
English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
Important Safety Instruction....................................................................................................... 4
3D Safety Information ................................................................................................................ 5
Copyright ................................................................................................................................... 6
Disclaimer .................................................................................................................................. 6
Trademark Recognition ............................................................................................................. 6
FCC ........................................................................................................................................... 7
Declaration of Conformity for EU countries ............................................................................... 7
WEEE ........................................................................................................................................ 7
INTRODUCTION .................................................................................. 8
Package Overview..................................................................................................................... 8
Standard accessories ................................................................................................................ 8
Optional accessories ................................................................................................................. 8
Product Overview ...................................................................................................................... 9
Connections.............................................................................................................................. 10
Keypad ..................................................................................................................................... 11
Remote ..................................................................................................................................... 12
SETUP AND INSTALLATION ............................................................. 13
Installing the projector .............................................................................................................. 13
Connecting sources to the projector ......................................................................................... 14
Adjusting the projector image ................................................................................................... 15
Remote setup ........................................................................................................................... 16
USING THE PROJECTOR .................................................................. 18
Powering on / off the projector.................................................................................................. 18
Selecting an input source ......................................................................................................... 20
Menu navigation and features .................................................................................................. 21
OSD Menu tree......................................................................................................................... 22

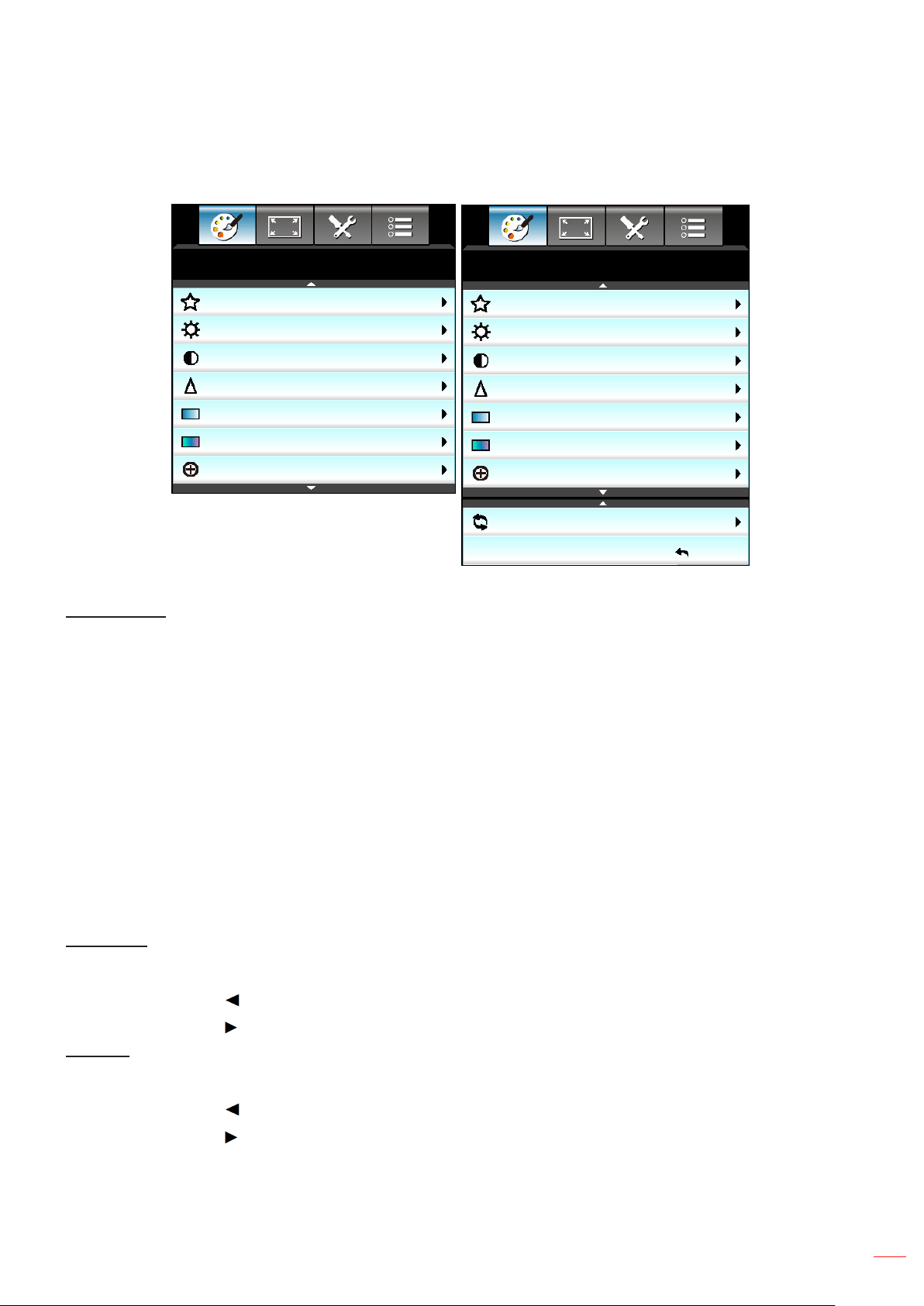

Image menu.............................................................................................................................. 29
Image Advanced menu ............................................................................................................. 31
Image advanced signal (RGB) menu ....................................................................................... 33
Image advanced signal (video) menu....................................................................................... 34

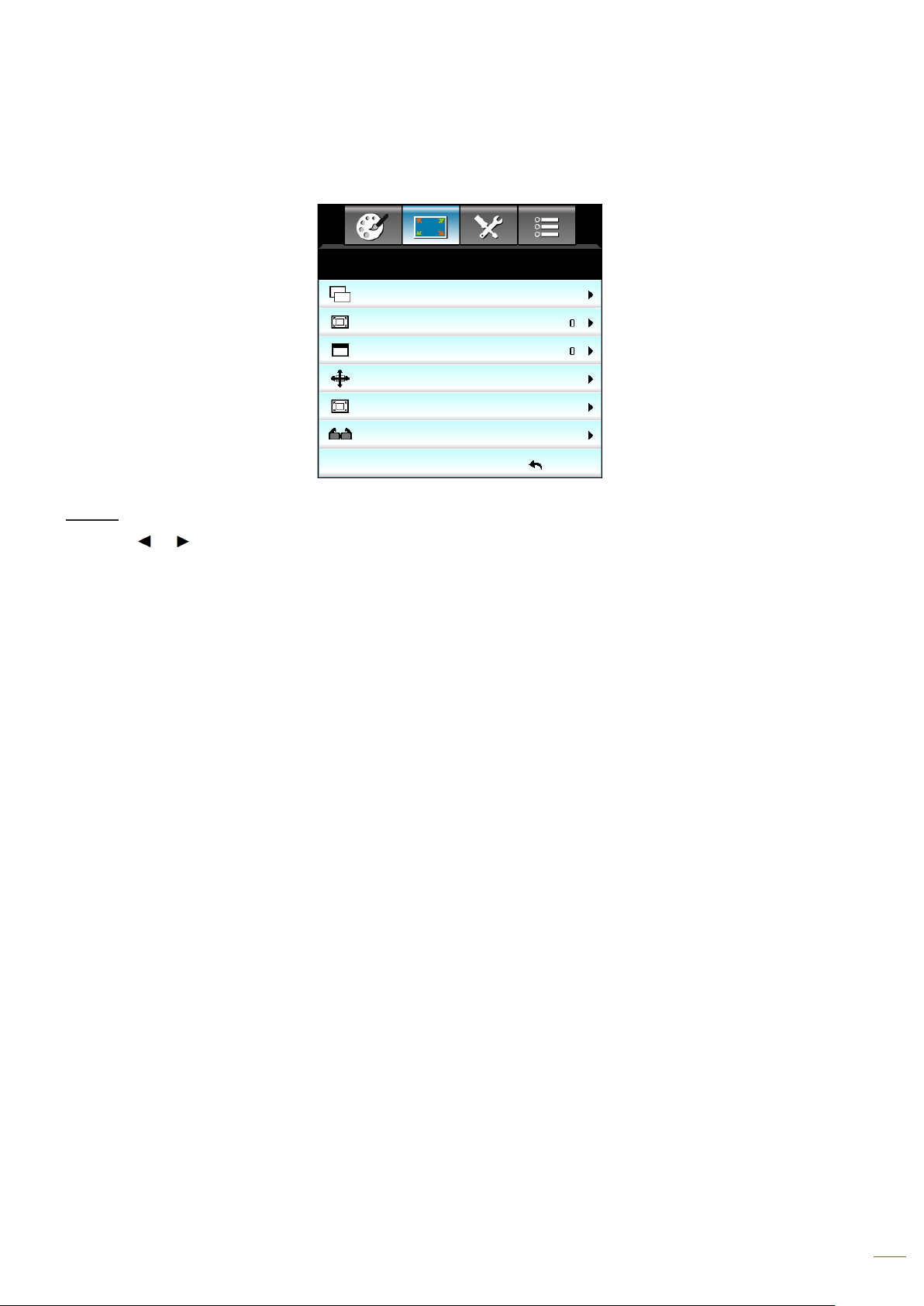

Display menu ............................................................................................................................ 35
Display 3D menu ...................................................................................................................... 39
Setup menu .............................................................................................................................. 40
Setup Audio Settings menu ...................................................................................................... 42
Setup Security menu ................................................................................................................ 43

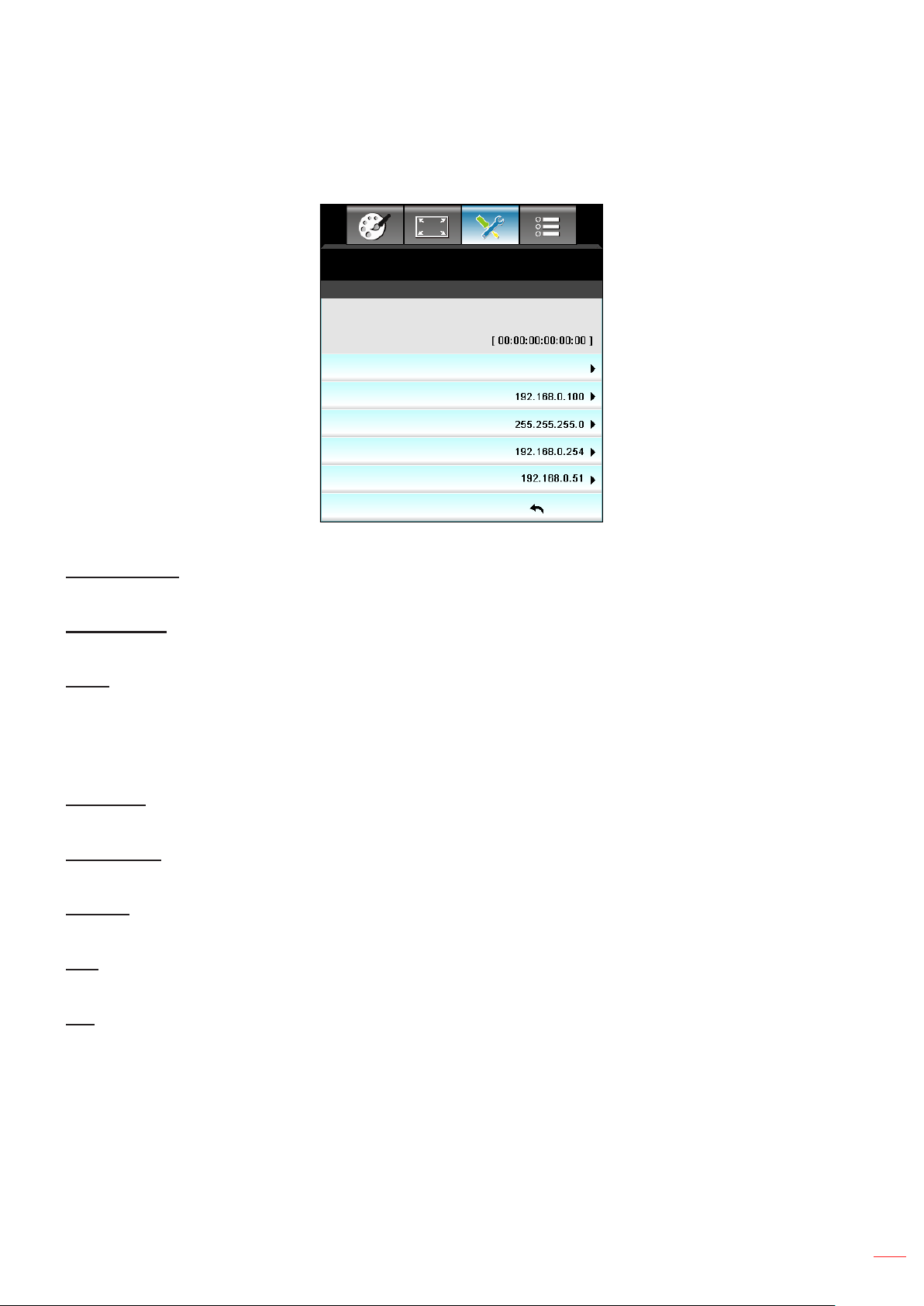

Setup network LAN settings menu ........................................................................................... 45
English
3
Setup network control settings menu ....................................................................................... 47
Setup network control settings menu ....................................................................................... 48
Setup advanced menu.............................................................................................................. 54
Options menu ........................................................................................................................... 55
Options menu ........................................................................................................................... 56
Options menu ........................................................................................................................... 57
Options lamp settings menu ..................................................................................................... 58
Options remote settings menu.................................................................................................. 59
Options advanced menu........................................................................................................... 61
Options optional lter settings menu ........................................................................................ 62
3D Setup................................................................................................................................... 63
MAINTENANCE .................................................................................. 64
Replacing the lamp ................................................................................................................... 64
Replacing the lamp (continued) ................................................................................................ 65
Installing and cleaning the dust lter ........................................................................................ 66
ADDITIONAL INFORMATION ............................................................ 67
Compatible resolutions ............................................................................................................. 67
Image size and projection distance .......................................................................................... 70
Determining the lens shift center position................................................................................. 73
Projector dimensions and ceiling mount installation ................................................................. 76
RS232 protocol function list ...................................................................................................... 77
IR remote codes ....................................................................................................................... 85
Using the Information button .................................................................................................... 87
Troubleshooting ........................................................................................................................ 88
Warning indicators .................................................................................................................... 90
Specications ........................................................................................................................... 92
Optoma global ofces ............................................................................................................... 94
English
4
SAFETY
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user's guide.
Important Safety Instruction
Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation.
As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the
projector in an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
Do not use under the following conditions:
In extremely hot, cold or humid environments. ±
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
In areas susceptible to excessive dust and dirt. ±
Near any appliance generating a strong magnetic eld. ±
In direct sunlight. ±
Do not use the projector in places where ammable gases or explosives gases may be present in the
atmosphere. The lamp inside the projector becomes very hot during operation and the gases my ignite
and result in a re.
Do not use lens cap when projector is in operation.
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
Unit has been dropped. ±
Power supply cord or plug has been damaged. ±
Liquid has been spilled on to the projector. ±
Projector has been exposed to rain or moisture. ±
Something has fallen in the projector or something is loose inside. ±
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and my melt, cause burns or start a re.
Please do not open or disassemble the projector as this may cause electric shock.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings.
English
5
The unit should only be repaired by appropriate service personnel.
Only use attachments/accessories specied by the manufacturer.
Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
When replacing the lamp, please allow the unit to cool down. Follow instructions as described on
pages 64-65.
This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows
warning messages.
Reset the "Lamp Reset" function from the on-screen display "Options|Lamp Settings" menu after
replacing the lamp module (refer to page 58).
When switching the projector off, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
When the lamp is approaching to the end of its life time, the message "Lamp life exceeded." will show
on the screen. Please contact your local reseller or service center to change the lamp as soon as
possible.
Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has beenNote:
replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages
64-65.
Do not setup the projector in places where it might be subjected to vibration or shock.
Do not touch the lens with bare hands
Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely affect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may affect the
projector performance.
3D Safety Information
Please follow all warnings and precautions as recommended before you or your child use the 3D function.
Warning
Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be
closely supervised when viewing these images.
Photosensitive Seizure Warning and Other Health Risks
Some viewers may experience an epileptic seizure or stroke when exposed to certain ashing images
or lights contained in certain Projector pictures or video games. If you suffer from, or have a family
history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.
Even those without a personal or family history of epilepsy or stroke may have an undiagnosed
condition that can cause photosensitive epileptic seizures.
Pregnant women, the elderly, sufferers of serious medical conditions, those who are sleep deprived or
under the inuence of alcohol should avoid utilizing the unit's 3D functionality.
If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a
medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements
such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions;
(9) cramps; and/ or (10) disorientation. Children and teenagers may be more likely than adults
to experience these symptoms. Parents should monitor their children and ask whether they are
English
6
experiencing these symptoms.
Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye
strain and decreased postural stability. It is recommended that users take frequent breaks to lessen
the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the
above symptoms, immediately discontinue use of this device and do not resume using it for at least
thirty minutes after the symptoms have subsided.
Watching 3D projection while sitting too close to the screen for an extended period of time may
damage your eyesight. The ideal viewing distance should be at least three times the screen height. It
is recommended that the viewer's eyes are level with the screen.
Watching 3D projection while wearing 3D glasses for an extended period of time may cause a
headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D
projection and rest.
Do not use the 3D glasses for any other purpose than for watching 3D projection.
Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles,
etc.) may be physically harmful to you and may weaken your eyesight.
Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your
3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run
into, knocked down, broken or fallen over.
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.
© Copyright 2015
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
IBM is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and
Windows are trademarks or registered trademarks of Microsoft Corporation.
Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated.
DLP , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColorTM is a
trademark of Texas Instruments.
All other product names used in this manual are the properties of their respective owners and are
Acknowledged.
English
7
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device off and on is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2004/108/EC (including amendments)
Low Voltage Directive 2006/95/EC
R & TTE Directive 1999/5/EC (if product has RF function)
WEEE
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.
INTRODUCTION
On
Test
Mode
Pattern
Mouse
Switch
Off
F1 F2
AV Mute
ENTER
Source
Volume V Keystone
Info.
VGA11S-Video2HDMI13HDMI2
FormatZoom Remote
ID All
VGA24Video5DVI
6
BNC7YPbPr8DisplayPort93D
0
Re-Sync
Menu Pg
Package Overview
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.
Standard accessories
Projector Remote 2x AAA batteries Power lead
CD User Manual
Warranty Card
EMEA Warranty Card
Basic User Manual
Documentation
Optional accessories
Carry bag Lens cap VGA cable HDMI cable
Optional accessories vary depending on model, specication and region.Note:
English
8
INTRODUCTION
HDBaseT
Product Overview
1 2 3 4 6
16
75
8
9
10
15
14
Do not block projector inlet or outlet air vents.Note:
(*) optional accessory vary depending on model, specication and region.
No Item No Item
1. Lens Cap (
IR Receiver
2.
) 9. Lamp Cover
*
Ventilation (inlet)
10.
3. Lens 11. IR Receiver
4. Focus Ring 12. Speaker
5. Lens Shift (vertical) 13. Input/Output Connections
6. Zoom Lever 14. Keypad
7. Lens Shift (horizontal) 15. Power Socket
8. Tilt-Adjustment Feet 16. Ventilation (outlet)
11
12
13
English
9
English
10
INTRODUCTION
12V
OUT
AC POWER
AUDIO2-IN
AUDIO OUT
WIRED REMOTE
AUDIO1-IN
(VGA1)
(VGA2)
(VIDEO/S-VIDEO)
L
R
AUDIO3-IN
S-VIDEO
VGA-OUT
VGA1-IN / YPbPr
VGA2-IN / YPbPr /
RS-232C
VIDEO
LAN
HDBaseT
USB Power
Out (1.5A)
12V
OUT
3D SYNC
Out (5V)
Full3D
HDMI 1 / MHL HDMI 2 DisplayPort
MOUSE
SERVICE
Connections
21 4 5 6 7 8
3 11
9
10 13
202122 15
Remote mouse requires special remote.Note:
No Item No Item
1. RJ-45 connector 12. 3D Sync out (5V) connector
2. USB-B mini connector (Fireware
13. 12V trigger connector
upgrade)
3. 2x HDMI connector 14. USB Power Out (1.5A) connector
4. Display connector 15. Microphone connector
5. VGA2 In/YPbPr connector 16. Wired remote connector
6.
VGA1 In / YPbPr / connector
17. Audio2-In(VGA2) connector
7. VGA out connector 18. Video connector
8. S-video connector 19. RS232C connector
9. Audio3-In (Video/S-Video)
20. Power socket
connector
10. Audio1-In(VGA1) connector 21. Security Bar
11. Audio-Out connector 22. HDBaseT (optional for W515T/
WU515T/EH515T)
12
1416171819
English
11
INTRODUCTION
Keypad
2 31
8
7
6
4
5
11
No Item No Item
Enter
1.
Keystone Correction
2.
Re-Sync
3.
Power
4.
Information
5.
Menu
6.
10
7.
8.
9.
10.
11.
9
Source
Four Directional Select Keys
Temp LED
Lamp LED
On/Standby LED
INTRODUCTION
On
Test
Mode
Pattern
Mouse
Switch
Off
F1 F2
AV Mute
ENTER
Source
Volume V Keystone
Info.
VGA11S-Video2HDMI13HDMI2
Format Zoom Remote
ID All
VGA24Video5DVI
6
BNC7YPbPr8DisplayPort93D
0
Re-Sync
Menu Pg
Remote
10
11
12
13
14
15
16
1
2
3
4
17
18
19
20
5
21
6
7
22
23
8
9
24
25
26
27
28
29
30
3132
No
Item No Item
1. Power on 17. Power off
Test pattern 18. Mouse on / off
2.
3. Function button (F1) (Assignable) 19. Function button (F2) (Assignable)
4. Mode/Mouse left click 20. Mouse right click/AV mute
5. Four directional select keys 21. Enter
6. Information 22. Laser
7. Source 23. Re-sync
8. Menu 24. V keystone/Page Up/Down
9. Volume - / + 25. Remote ID / Remote all
10. Zoom 26. HDMI2
11. Format (Aspect Ratio) 27. HDMI1
12. VGA1 28. DVI
13. S-Video 29. 3D
14. VGA2 30. Display port
15. BNC 31. Numeric keypad (0-9)
16. YPbPr 32. Video
Some keys may have no function for models that do not support these features.Note:
12
English
SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take in to consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the to the screen.
How to determine projector location for a given screen size, please refer to distance table on pages
70-73.
How to determine screen size for a given distance, please refer to distance table on pages 70-73.
The further away the projector is placed from the screen the projected image size increases and vertical Note:
offset also increases proportionally.
English
13
English
14
SETUP AND INSTALLATION
12V
OUT
AC POWER
AUDIO2-IN
AUDIO OUT
WIRED REMOTE
AUDIO1-IN
(VGA1)
(VGA2)
(VIDEO/S-VIDEO)
L
R
AUDIO3-IN
S-VIDEO
VGA-OUT
VGA1-IN / YPbPr
VGA2-IN / YPbPr /
RS-232C
VIDEO
LAN
HDBaseT
USB Power
Out (1.5A)
12V
OUT
3D SYNC
Out (5V)
Full3D
HDMI 1 / MHL HDMI 2DisplayPortMOUSE
SERVICE
Connecting sources to the projector
5
2
3
4
7
6
8
9
1
13
18
14
15
1617
No Item No Item
1. RJ-45 cable 10. USB dongle / USB Power Charger
2.
RJ-45 cable (Cat5 cable) 11. Microphone cable
3. HDMI / MHL cable 12. Wired Remote Control cable
4. DisplayPort cable 13. Audio In cable
5. VGA cable 14. Video cable
6. Audio In cable 15. S-Video cable
7. Audio Out cable 16. RS232 cable
8. 3D emitter cable 17. VGA Out cable
9. 12V DC Jack 18. Power cord
10
11
12
English
15
SETUP AND INSTALLATION
Adjusting the projector image
Image height
The projector is equipped with elevator feet for adjusting the image height.
Locate the adjustable foot you wish to adjust on the underside of the projector.1.
Rotate the adjustable foot clockwise or anticlockwise to raise or lower the projector.2.
Zoom and focus
To adjust the image size, turn the zoom lever clockwise or anticlockwise to increase or decrease the
projected image size.
To adjust the focus, turn the focus ring clockwise or anticlockwise until the image is sharp and legible.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Focus Ring
Zoom Lever
The projector will focus at a distance of 1.2m to 8.2m. Note:
WXGA: 24.7” to 302.7” (0.6 to 7.9 meters)
1080p: 25.1” to 309.4” (0.6 to 7.9 meters)
WUXGA: 25.8” to 318” (0.7 to 8.1 meters)
English
16
SETUP AND INSTALLATION
Remote setup
Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
Remove the battery cover on the back or the remote.1.
Insert AAA batteries as illustrated.2.
Replace back cover on remote.3.
Replace only with the same or equivalent type batteries.Note:
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
Do not mix batteries of different types. Different types of batteries have different characteristics.
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact
with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
If you will not be using the remote control for an extended period of time, remove the batteries.
When you dispose of the batteries, you must obey the law in the relative area or country.
Effective range
Infra-Red (IR) remote control sensor is located on the rear side of the projector. Ensure to hold the remote control
at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The
distance between the remote control and the sensor should not be longer than 8 meters (~ 26 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
Please keep the remote controller away from uorescent lamps for over 2 m or the remote controller
might become malfunction.
If the remote control is close to Inverter-Type uorescent lamps, it might become ineffective from time
to time.
If the remote control and the projector are within a very short distance, the remote control might
become ineffective.
When you aim at the screen, the effective distance is less than 5 m from the remote control to the
screen and reecting the IR beams back to the projector. However, the effective range might change
according to screens.
English
17
SETUP AND INSTALLATION
On
Test
Mode
Pattern
Mouse
Switch
Off
F1 F2
AV Mute
ENTER
Source
Volume V Keystone
Info.
VGA11S-Video2HDMI13HDMI2
Format Zoom Remote
ID All
VGA24Video5DVI
6
BNC7YPbPr
8
DisplayPort
93D0
Re-Sync
Menu Pg
On
Test
Mode
Pattern
Mouse
Switch
Off
F1 F2
AV Mute
ENTER
Source
Volume V Keystone
Info.
VGA1
1
S-Video
2
HDMI1
3
HDMI2
Format
Zoom
Remote
ID
All
VGA2
4
Video
5
DVI
6
BNC
7
YPbPr
8
DisplayPort
9
3D
0
Re-Sync
Menu Pg
Approx. 15
Approx. 15
USING THE PROJECTOR
On
Test
Pattern
Mouse
Switch
Off
Powering on / off the projector
or
Powering on
The rst time the projector is turned on you will be asked to select the preferred language, projectionNote:
orientation and a few other settings.
Lens cap (*)
Remove the lens cap(*).1.
Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will 2.
turn amber.
Turn on the projector by pressing the 3. " " either on the projector keypad or the remote control
A start up screen will display in approximately 10 seconds and the On/Standby LED will be solid red.4.
18
English
USING THE PROJECTOR
Powering off
Turn off the projector by pressing the 1. " " either on the projector keypad or the remote control.
The following message will be displayed:2.
Press Power again
Press the 3. " " again to conrm otherwise the message will disappear after 15 seconds. When you
press the " " button for the second time the projector will shut down.
The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/4.
Standby LED will ash green. When the On/Standby LED turns solid red the projector has entered
standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has
nished and the projector has entered standby mode. When the projector is in standby mode simply
press the " " button again to turn on the projector.
Disconnect the power lead from the electrical outlet and the projector.5.
Power Off?
(*) optional accessory vary depending on model, specication and region.Note:
It is not recommended that the projector is tuned on immediately following a power off procedure.
English
19
English
20
USING THE PROJECTOR
On
Test
Mode
Pattern
Mouse
Switch
Off
F1 F2
AV Mute
ENTER
Source
Volume V Keystone
Info.
Re-Sync
Menu Pg
Selecting an input source
Turn on the connected source that you want to display on the screen (computer, notebook, video player, etc.). The
projector will automatically detect the source. If multiple sources are connected, push the source button on the
projector keypad or remote to select the desired input.
or
English
21
USING THE PROJECTOR
Menu navigation and features
The projector has multilingual on-screen display menus that allow you to make image adjustments and change a
variety of settings. The projector will automatically detect the source.
To open the OSD menu, press "Menu" on the Remote Control or Keypad.1.
When OSD is displayed, use 2. keys to select any item in the main menu. While making a selection
on a particular page, press or "Enter" key to enter sub menu.
Use 3. keys to select the desired item in the sub menu and then press or "Enter" key to view
further settings. Adjust the settings by key.
Select the next item to be adjusted in the sub menu and adjust as described above.4.
Press "Enter" or "Menu" to conrm, and the screen will return to the main menu.5.
To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the 6.
new settings.
Main Menu
Sub Menu
Display Mode
Brightness
Contrast
Sharpness
Color
Tint
Advanced
Presentation
Settings
English
22
USING THE PROJECTOR
OSD Menu tree
Main menu Sub menu Advanced menu Single-item menu Value
Presentation
Bright
Default [Presentation]
PS. Each mode can adjust and
save in each mode
1~10
Movie
Display Mode
Brightness -50~50
Contrast -50~50
Sharpness 1 ~15
Color -50~50
Tint -50~50
Noise Reduction 0~10
TM
Advanced
BrilliantColor
Dynamic Black
Gamma
Color Temp.
Color Space
RGB Gain/Bias
sRGB
Blackboard
DICOM SIM.
User
3D
On
Off
Film
Graphics
1.8
2.0
2.2
2.6
Blackboard
DICOM SIM.
Warm
Standard
Cool
Cold
Not HDMI Input: Auto
/ RGB / YUV
HDMI Input: Auto/
RGB(0~255) /
RGB(16~235)/ YUV
Red Gain -50~50
Green Gain -50~50
Blue Gain -50~50
Red Bias -50~50
Green Bias -50~50
Blue Bias -50~50
Reset
Exit
English
23
USING THE PROJECTOR
Main menu Sub menu Advanced menu Single-item menu Value
Red Hue/Saturation/Gain [-50~50]
Hue/Saturation/Gain
[-50~50]
Hue/Saturation/Gain
[-50~50]
Hue/Saturation/Gain
[-50~50]
Hue/Saturation/Gain
[-50~50]
Hue/Saturation/Gain
[-50~50]
-100~+100
-100 ~ +100
Default [Off]
Display
Advanced
Reset
Format
Zoom
Edge Mask H
Image Shift V
Geometric
Correction
Green
Blue
Cyan
Color Matching
Magenta
Yellow
White Red/Green/Blue
Reset
Exit
Automatic On / Off
Phase 0~31
Signal (RGB)
Signal (Video)
Exit
H. Keystone -30 ~ +30
V. Keystone -30 ~ +30
Auto V. Keystone
Four Corners
Frequency -5~5
H. Position -5~5
V. Position -5~5
Exit
White Level 0~31
Black Level -5~5
IRE 0/7.5 (NTSC only)
Exit
WXGA/WUXGA:
4:3, 16:9 or 16:10,
LBX , Native, Auto
1080p: 4:3, 16:9, LBX,
Native, Auto
Right/Left(Icon in
center)
Up/Down (Icon in
center)
On
Off
Top-Left
Top-Right
Bottom-Left
English
24
USING THE PROJECTOR
Main menu Sub menu Advanced menu Single-item menu Value
Geometric
Correction
Display
3D
Setup Language
Four Corners Bottom-Right (ICONS)
DLP-Link
3D Mode
3D->2D 3D/ L/ R
3D Format
3D Sync Invert
Exit
VESA 3D
Off
Auto
SBS
Top and Bottom
Frame Sequential
On
Off
English
Deutsch
Français
Italiano
Español
Português
Svenska
Nederland
Norsk
Dansk
Polski
Русский
Suomi
Ελληνικά
Magyar
Čeština
繁體中文
简体中文
日本語
한국어
Türkçe
Farsi
Tiếng Việt
Română
Bahasa Indonesia
English
25
USING THE PROJECTOR
Main menu Sub menu Advanced menu Single-item menu Value
Front-Desktop
Setup
Projection
Screen Type
Menu Location
Security
Security Timer
Change Password
Exit
Projector ID 00~99
Audio Settings
Advanced
Security On
Month
Day
Hour
Internal Speaker
Mute
Volume
Audio Input
Audio Out(Standby)
Exit
Logo
Logo Capture
Closed Captioning
Exit
Rear-Desktop
Front-Ceiling
Rear-Ceiling
16:10
16:9
WXGA
WUXGA
Top Left
Top Right
Center
Bottom Left
Bottom Right
Off
On
Off
On
Off
Audio 0-10
Mic 0-10
Default Audio 3-> L/R
Audio1
Audio2
Audio3
On
Off
Default
Neutral
User
Off
CC1
CC2
Audio 1, 2->mini jack
Default:
VGA1->Audio 1
VGA2->Audio 2
Video, S-video ->Audio 3
Default[Off]
English
26
USING THE PROJECTOR
Main menu Sub menu Advanced menu Single-item menu Value
On
Off
On
Off
Network Status
DHCP On/Off [Default Off]
IP Address Default [192.168.0.100]
Subnet Mask Default [255.255.255.0]
Gateway Default [192.168.0.254]
DNS Default [192.168.0.1]
MAC Address Read-Only
Exit
Crestron On / Off (port:41794)
Extron On / Off (port: 2023)
PJ Link On / Off (port: 4352)
AMX Device Discovery On / Off (port: 9131)
Telnet On / Off (port: 23)
HTTP On / Off (port: 80)
Exit
VGA1
VGA2
Video
S-Video
HDMI1
HDMI2
Displayport
HDBaseT
Exit
On
Off
On
Off
On [Default Off]
Off
On
Off
On
Off
None
Grid
White
Pattern
Default[Off]
Default[Off]
Connect/Disconnect(ReadOnly)
PS. HDBaseT only exists in "T"
SKU.
[Default On]
[Default Off]
PS. Warning message &
Power off not hide
[Default Off]
[Default Off]
"T" SKU only HDBaseT Control
Setup Network
Input Source
Source Lock
Options
High Altitude
Information Hide
Keypad Lock
Display Mode Lock
Test Pattern
Ethernet
RS232
LAN Settings
Control Settings
English
27
USING THE PROJECTOR
Main menu Sub menu Advanced menu Single-item menu Value
Black
Red
Options
Background Color
Wall Color
Remote Settings
12V Trigger
Beep
Blue
Green
White
Off
Light Yellow
Light Green
Light Blue
Pink
Gray
HDMI2
DP
User1
User2
User3
IR Function
Remote Code 00~99 [Default 00]
Exit
VGA2
S-Video
Test Pattern
Zoom/Info.
HDMI2
DP
VGA2
S-Video
Test Pattern
Zoom/Info.
HDMI2
DP
VGA2
S-Video
Test Pattern
Zoom/Info.
On
Front
Top
Off
On
Off
On
Off
[Default Blue]
[Default "Test Pattern"]
For "T" SKU, there will be the
other options "HDBaseT".
[Default "Zoom"]
For "T" SKU, there will be the
other options "HDBaseT".
[Default "Info"]
For "T" SKU, there will be the
other options "HDBaseT".
[Default On]
[Default On]
English
28
USING THE PROJECTOR
Main menu Sub menu Advanced menu Single-item menu Value
On
Off
On
Off
On
Off
Active
Eco
On
Off
Bright
Eco
365W
350W
330W
310W
300W
280W
Yes
No
Yes
No
[Default Off]
[Default Off]
Always On [check box style,
default is unchecked.]
[Default Off]
[Default Off]
Yes
No
Off
300 hr
500 hr
800 hr
1000 hr [default 500hr]
Yes
No
Options
Advanced
Lamp Settings
Lamp Settings
Optional Filter
Settings
Information
Reset
Direct Power On
Signal Power On
Auto Power Off (min.) 0-180 (one step: 5 mins)
Sleep Timer (min.) 0-990 (one step: 10 mins )
Quick Resume
Power Mode
(Standby)
Exit
Lamp Hours
Lamp Reminder
Lamp Mode
Lamp Mode Power
Power
Lamp Reset
Exit
Optional Filter
Installed
Filter Usage Hours Read-Only[Range 0~ 9999]
Filter Reminder
Filter Reset
Exit
English
29
USING THE PROJECTOR
Image menu
Display Mode
Brightness
Contrast
Sharpness
Color
Tint
Advanced
Presentation
Display Mode
Brightness
Contrast
Sharpness
Color
Tint
Advanced
Reset
Display Mode
There are many factory presets optimized for various types of images.
Presentation : This mode is suitable for showing in front of public in connection to the PC.
Bright : Maximum brightness from PC input.
Presentation
Exit
Movie : This mode is suitable for watching video.
sRGB : Standardized accurate color.
Blackboard : This mode should be selected to achieve optimum color settings when projecting onto a
blackboard (green).
DICOM SIM .: This mode can project a monochrome medical image such as an X ray radiography,
MRI, etc.
User : Memorize user's settings.
3D : To experience the 3D effect, you need to have 3D glasses, make sure your PC/portable device
has a 120 Hz signal output quad buffered graphics card and have a 3D Player installed.
Brightness
Adjust the brightness of the image.
Press the to darken image.
Press the to lighten the image.
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture.
Press the to decrease the contrast.
Press the to increase the contrast.
English
30
USING THE PROJECTOR
Sharpness
Adjust the sharpness of the image.
Press the to decrease the sharpness.
Press the to increase the sharpness.
Color
Adjust a video image from black and white to fully saturated color.
Press the to decrease the amount of saturation in the image.
Press the to increase the amount of saturation in the image.
Tint
Adjust the color balance of red and green.
Press the to increase the amount of green in the image.
Press the to increase the amount of red in the image.
Reset
Choose "Yes" to return the factory default settings for "IMAGE".
Exit
Choose "Exit" to exit the menu.
English
31
USING THE PROJECTOR
Image Advanced menu
Advanced
Noise Reduction
BrilliantColor
Dynamic Black
Gamma
Color Temp.
Color Space
RGB Gain/Bias
Color Matching
Signal
Off
Film
Warm
Auto
Exit
Noise Reduction
Selects a lter sensitivity to noise. A higher value may improve noisy sources, but it will soften the image.
Press the to decrease the noise in the image.
Press the to increase the noise in the image.
BrilliantColor
TM
This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while
providing true, more vibrant colors in picture.
Press the to stronger enhance the image.
Press the to less enhance the image.
Dynamic Black
Dynamic Black enables the projector to automatically optimize the brightness of the display during dark/light movie
scenes to be shown in incredible detail.
Gamma
This allows you to set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma
Adjustment steps to optimize your image output.
Film: for home theater.
Graphics: for PC / Photo source.
1.8 / 2.0 / 2.2 / 2.6: for specic PC / Photo source.
Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a
blackboard (green).
DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography,
MRI, etc.
Press the or to select the mode.
Color Temp.
Press the or to select a color temperature from Warm, Standard, Cool and Cold.
English
32
USING THE PROJECTOR
Color Space
Press the or to select an appropriate color matrix type from the following:
Non-HDMI Input: Auto, RGB or YUV
HDMI Input: Auto, RGB(0-255), RGB(16-235) or YUV.
RGB Gain/Bias
This settings allows to congure the brightness (gain) and contrast (bias) of an image.
Press the to decrease a chosen color gain and bias.
Press the to increase a chosen color gain and bias.
RGB Gain/Bias
Red Gain
Green Gain
Blue Gain
Red Bias
Green Bias
Blue Bias
Reset
Exit
Color Matching
Press the into the next menu and then use or or or to select the item.
Color Matching
Red
Green
Blue
White
Cyan
Magenta
Yellow
Reset
Exit
Red/Green/Blue/Cyan/Magenta/Yellow : Use or to select Hue, Saturation and Gain Colors.
Red
Hue
Saturation
Gain
Exit
White : Use or to select Red, Green and Blue Colors.
Reset: Choose " Reset" to return the factory default settings for color adjustments.
Exit
Choose "Exit" to exit the menu.
White
Red
Green
Blue
Exit
English
33
USING THE PROJECTOR
Image advanced signal (RGB) menu
Advanced : Signal
Automatic
Phase
Frequency
H. Position
V. Position
Note:
“Signal” is only supported in Analog VGA (RGB) signal.
On
Exit
If “Signal” is automatic, the phase, frequency items are grayed out. If “Signal” is not automatic, the
phase, frequency items will appear for the user to manually tune and are saved in the settings after
that for the next time projector is turned off and on again.
Automatic
Automatically selects the signal. If you use this function, the Phase, frequency items are grayed out, and if Signal is
not automatic, the phase, frequency items will appear for user to manually tune and saved in settings after that for
next time projector turns off and on again.
Phase
Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or ickers,
use this function to correct it.
Frequency
Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if
the image appears to icker vertically.
H. Position
Press the to move the image left.
Press the to move the image right.
V. Position
Press the to move the image down.
Press the to move the image up.
Exit
Choose "Exit" to exit the menu.
English
34
USING THE PROJECTOR
Image advanced signal (video) menu
Advanced : Signal
White Level
Black Level
IRE
White Level
Allow user adjust White Level when inputting Video signals.
Black Level
Exit
Allow user adjust Black Level when inputting Video signals.
IRE
Allow user adjust IRE value when inputting Video signals.
IRE is only available with NTSC video format.Note:
Press the to decrease the amount of color in the image.
Press the to increase the amount of color in the image.
English
35
USING THE PROJECTOR
Display menu
DISPLAY
Format
Zoom
Edge Mask
Image Shift
Geometric Correction
Format
Auto
Exit
Press the or to choose your desired aspect ratio between 4:3, 16:9/16:10, LBX, Native, Auto (WXGA/
WUXGA) or 4:3, 16:9, LBX, Native, Auto (1080p).
WXGA / WUXGA:
4:3: This format is for 4:3 input sources.
16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
16:10: This format is for 16:10 input sources, like widescreen laptops.
LBX: This format is for non-16x9, letterbox source and for users who use external 16x9 lens to display
2.35:1 aspect ratio using full resolution.
Native: This format displays the original image without any scaling .
AUTO: Automatically selects the appropriate display format.
Detailed informations about LBX mode:Note:
Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not
look right when displayed in 16:9 mode. In this situation, please try to using the 4:3 mode to view the
DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of
content, you can use LBX mode to ll the image on the 16:9 display.
If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content
(include Anamorphic DVD and HDTV lm source) that support anamorphic wide is enhanced for
16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp power and vertical
resolution are fully utilized.
English
36
USING THE PROJECTOR
WXGA scaling table (screen type 16x10):
16 : 10 screen 480i/p 576i/p 1080i/p 720p PC
4x3
16x10
LBX
Native mode
Auto
WXGA scaling table (screen type 16x9):
16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3
16x9
LBX
Native mode
Auto
Scale to 1066x800.
Scale to 1280x800.
Scale to 1280x960, then get the central 1280x800 image to display.
1:1 mapping centered. 1:1 mapping
display 1280 x
800.
Input source will be t into 1280x800 display area and be kept its original aspect ratio.
- If source is 4:3, auto resize to 1066 x 800.
- If source is 16:9 auto resize to 1280 x 720.
- If source is 15:9 auto resize to 1280 x 768.
- If source is 16:10 auto resize to 1280 x 800.
Scale to 960x720.
Scale to 1280x720.
Scale to 1280x960, then get the central 1280x720 image to display.
1:1 mapping centered. 1:1 mapping
display 1280 x
720.
If this format is selected, the screen type will automatically become 16:9 (1280 x 720).
1280x720
centered.
1280x720
centered.
1:1 mapping
centered.
1:1 mapping
centered.
-If source is 4:3, auto resize to 960 x 720.
-If source is 16:9 auto resize to 1280 x 720.
-If source is 15:9 auto resize to 1200 x 720.
-If source is 16:10 auto resize to 1152 x 720.
WUXGA scaling table (screen type 16x10):
16 : 10 screen 480i/p 576i/p 1080i/p 720p PC
4x3
16x9
16x10
LBX
Native mode
Auto
Scale to 1600x1200.
Scale to 1920x1080.
Scale to 1920x1200.
Scale to 1920x1440, then get the central 1920x1200 image to display.
1:1 mapping centered.
No scaling will be made; the resolution is dependent on which input source and is then
displayed.
If this format is selected, the screen type will automatically become 16:10 (1920x1200).
-If source is 4:3, auto resize to 1600 x1200.
-If source is 16:9 auto resize to 1920x1080.
-If source is 16:10 auto resize to 1920x1200.
English
37
USING THE PROJECTOR
WUXGA scaling table (screen type 16x9):
16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3
16x9
LBX
Native mode
Auto
1080P:
4:3: This format is for 4:3 input sources.
16:9: This format is for 16:9 input sources, like widescreen laptops.
Scale to 1440x1080.
Scale to 1920x1080.
Scale to 1920x1440, then get the central 1920x1080 image to display.
1:1 mapping centered.
No scaling will be made; the resolution is dependent on which input source and is then
displayed.
If this format is selected, the screen type will automatically become 16:9 (1920x1080).
-If source is 4:3, auto resize to 1440 x1080.
-If source is 16:9 auto resize to 1920x1080.
-If source is 16:10 auto resize to 1920x1200 and cut 1920x1080 area to display.
LBX: This format is for non-16x9, letterbox source and for users who use external 16x9 lens to display
2.35:1 aspect ratio using full resolution.
Native: This format displays the original image without any scaling .
AUTO: Automatically selects the appropriate display format.
1080P scaling table:
16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3
16x9
LBX
Native mode
Auto
Zoom
Press the to reduce the size of an image.
Scale to 1440x1080.
Scale to 1920x1080.
Scale to 1920x1440, then get the central 1920x1080 image to display.
1:1 mapping centered.
No scaling will be made; the resolution is dependent on which input source and is then
displayed.
If this format is selected, the screen type will automatically become 16:9 (1920x1080).
-If source is 4:3, auto resize to 1440x1080.
-If source is 16:9 auto resize to 1920x1080.
-If source is 16:10 auto resize to 1920x1200 and cut 1920x1080 area to display.
Press the to magnify an image on the projection screen.
Edge Mask
Edge mask the image to remove video encoding noise on the edge of video source.
Note:
Each I/O has different setting of “Edge Mask”.
“Edge Mask” and “Zoom” cannot work at the same time.
English
38
USING THE PROJECTOR
Image Shift
Press into the next menu as below and then use or or or to select item.
Image Shift
H: Press the to shift the projected image position horizontally.
V: Press the to shift the projected image position vertically.
Geometric Correction
H. Keystone (Horizontal Keystone): Press the to correct horizontal keystone distortion.
V. Keystone (Vertical Keystone): Press the to correct vertical keystone distortion.
Auto V. Keystone: Automatically corrects vertical keystone error.
Four corners: Compensate for image distortion by adjusting one corner at a time.
Four Corners
1. Use "Menu" to start.
2. Use "Four Corners" menu to choose
one corner and press "Enter" to conrm.
3. Use
to move the angle and
press "Enter" to conrm.
Four Corners
English
39
USING THE PROJECTOR
Display 3D menu
DISPLAY
3D Mode
3D -> 2D
3D Format
3D Mode
3D Format
3D Sync. Invert
Off: Select "Off" to turn off 3D mode.
DLP-Link: Select "DLP-Link" to use optimized settings for DLP Link 3D Glasses.
VESA 3D: Select "VESA 3D" to use optimized setting for VESA 3D Glasses.
3D: Display 3D signal.
L (Left): Display the left frame of 3D content.
R (Right): Display the right frame of 3D content.
Auto: When a 3D identication signal is detected, the 3D format is selected automatically.
Off
Auto
Off
Exit
SBS: Display 3D signal in "Side-by-Side" format.
Top and Bottom: Display 3D signal in "Top and Bottom" format.
Frame Sequential: Display 3D signal in "Frame Sequential" format.
Note:
“3D Format” is only supported on 3D Timing on page 69.
“3D Format” is only supported on non-HDMI 1.4a 3D timing.
3D Sync. Invert
Press the "On" to invert left and right frame contents.
Press the "Off" for default frame contents.
Exit
Choose "Exit" to exit the menu.
English
40
USING THE PROJECTOR
Setup menu
SETUP
Language
Projection
Screen Type
Menu Location
Security
Projector ID
Audio Settings
Advanced
ADBaseT Control
Network
English
Exit
Language
Choose the multilingual OSD menu. Press into the sub menu and then use the or or or key to select
your preferred language. Press "Enter" to nalize the selection.
Language
Exit
English
41
USING THE PROJECTOR
Projection
Front-Projection
This is the default selection. The image is projected straight on the screen.
Rear-Desktop
When selected, the image will appear reversed.
Front-Ceiling
When selected, the image will turn upside down.
Rear-Ceiling
When selected, the image will appear reversed in upside down position.
Rear-Desktop and Rear-Ceiling are to be used with a translucent screen.Note:
Screen Type
Choose the screen type from 16:10 or 16:9 (WXGA/WUXGA).
“Screen Type” is for WXGA/WUXGA only.Note:
Menu Location
Choose the menu location on the display screen.
Projector ID
ID denition can be set up by menu (range 0-99), and allow user control an individual projector by RS232.
Exit
Choose "Exit" to exit the menu.
English
42
USING THE PROJECTOR
Setup Audio Settings menu
Audio Settings
Internal Speaker
Mute
Volume
Audio Input
SETUP
Off
Audio Out(Standby)
Off
Exit
Internal Speaker
Choose the "On" or "Off" to turn on or off the internal speaker.
Mute
Choose the "On" to turn mute on.
Choose the "Off" to turn mute off.
“Mute” function affects both internal and external speaker volume.Note:
Volume
Press the to decrease the volume.
Press the to increase the volume.
Audio Input
The default audio settings are on the back panel of the projector. Use this option to reassign any of the Audio Inputs
(1, 2, or 3) to the current image source. Each Audio input can be assigned to more than one video source.
Default: VGA 1 -> Audio 1; VGA 2 -> Audio 2
Audio 1 / 2: Mini jack connection.
Audio 3: L/R.
Audio Out (Standby)
Choose the "On" or "Off" to turn on or off the audio out.
Exit
Choose "Exit" to exit the menu.
English
43
USING THE PROJECTOR
Setup Security menu
Security
Security Timer
Change Password
Security
On: Choose "On" to use security verication when the turning on the projector.
Off: Choose "Off" to be able to switch on the projector without password verication.
Security Timer
SETUP
Security
Off
Exit
Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this
time has elapsed you will be requested to enter your password again.
Security Timer
Month
Day
Hour
Exit
Change Password
First time :
Press "Enter" key to set the password.1.
The password has to be 4 digits. 2.
Use number button on the remote or on-screen numeric keypad to enter your new password and then 3.
press "Enter" key to conrm your password.
Change Password :
(If your remote does not have a number keypad, please use the up/down arrows to change each digit
of the password, then press enter to conrm)
Press "Enter" to input old password.1.
Use number button or on-screen numeric keypad to enter current password and then press "Enter" to 2.
conrm.
Enter new password (4 digits in length) using the number buttons on the remote, then press "Enter" to 3.
conrm.
Enter new password again and press "Enter" to conrm.4.
If the incorrect password is entered 3 times, the projector will automatically shut down.
If you have forgotten your password, please contact your local ofce for support.
English
44
USING THE PROJECTOR
The password default value is "1234" (rst time).Note:
Enter Current security Code (4 digitis)
Incorrect security code. Re-enter again. (Last Try)
Exit
Choose "Exit" to exit the menu.
REMOTE
English
45
USING THE PROJECTOR
Setup network LAN settings menu
Network : LAN Settings
Network Status
MAC Address
SETUP
Connected
DHCP
IP Address
Subnet Mask
Gateway
DNS
Network Status
Display the network connection status (read-only).
MAC Address
Display the MAC address (read-only).
DHCP
On: Projector will obtain an IP address automatically from your network.
Off: To assign IP, Subnet Mask, Gateway and DNS conguration manually.
Exiting OSD will automatically apply the entered values.Note:
IP Address
Off
Exit
Display the IP address.
Subnet Mask
Display subnet mask number.
Gateway
Display the default gateway of the network connected to the projector.
DNS
Display DNS number.
Exit
Choose "Exit" to exit the menu.
English
46
USING THE PROJECTOR
How to use web browser to control your projector
Turn "On" the DHCP option on projector to allow a DHCP server to automatically assign an IP 1.
address.
Open the web browser in your PC and type in the projector's IP address ("Network: LAN Settings > IP 2.
Address").
Enter the user name and password, and click "Login".3.
The projector's conguration web interface opens.
Note:
The default user name and password is “admin”.
The steps in this section base on Windows 7 operating system .
Making a direct connection from your computer to the projector*
Turn "Off" the DHCP option on project.1.
Congure the IP address, Subnet Mask, Gateway, and DNS on projector ("Network: LAN Settings").2.
IP Address
Subnet Mask
Gateway
DNS
Open Network and Sharing Center page on your PC, and assign the identical network parameters to 3.
your PC as set on projector. Click "OK" to save the parameters.
Open the web browser on your PC and type in to the URL eld the IP address, assigned in step 3. 4.
Then press "Enter" key.
English
47
USING THE PROJECTOR
Setup network control settings menu
Network : Control Settings
Crestron
SETUP
Off
Extron
PJ Link
AMX Device Discovery
Telnet
HTTP
Off
Off
Off
Off
Off
Exit
Crestron
Use this function to select the network function (port: 41794).
For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.
Extron
Use this function to select the network function (port: 2023).
PJ Link
Use this function to select the network function (port: 4352).
AMX Device Discovery
Use this function to select the network function (port: 1023).
Telnet
Use this function to select the network function (port: 23).
HTTP
Use this function to select the network function (port: 80).
Exit
Choose "Exit" to exit the menu.
English
48
USING THE PROJECTOR
Setup network control settings menu
LAN_RJ45 function
For simplicity and ease of operation, the W320UST projector provides diverse networking and remote management
features. The LAN/RJ45 function of the projector through a network, such as remotely manage: Power On/Off,
Brightness and Contrast settings. Also, projector status information, such as: Video- Source, Sound-Mute, etc.
Projector
(Ethernet)
Wired LAN terminal functionalities
This projector can be controlled by using a PC (laptop) or other external device via LAN/RJ45 port and compatible
ith Crestron / Extron / AMX (Device Discovery) / PJLink.
Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
Extron is a registered trademark of Extron Electronics, Inc. of the United States.
AMX is a registered trademark of AMX LLC of the United States.
PJLink applied for trademark and logo registration in Japan, the United States of America, and other
countries by JBMIA.
The projector is supported by the specied commands of the Crestron Electronics controller and related software,
for example RoomView®.
http://www.crestron.com/
This projector is compliant to support Extron device(s) for reference.
http://www.extron.com/
This projector is supported by AMX ( Device Discovery ).
http://www.amx.com/
This projector supports all commands of PJLink Class1 (Version 1.00).
http://pjlink.jbmia.or.jp/english/
For more detailed information about the various types of external devices which can be connected to the LAN/RJ45
port and remote/control the project, as well as the supported commands for these external devices, please contact
the Support-Service directly.
English
49
USING THE PROJECTOR
12V
OUT
AC POWER
AUDIO2-IN
AUDIO OUT
WIRED REMOTE
AUDIO1-IN
(VGA1)
(VGA2)
(VIDEO/S-VIDEO)
L
R
AUDIO3-IN
S-VIDEO
VGA-OUT
VGA1-IN / YPbPr
VGA2-IN / YPbPr /
RS-232C
VIDEO
LAN
HDBaseT
USB Power
Out (1.5A)
12V
OUT
3D SYNC
Out (5V)
Full3D
HDMI 1 / MHL HDMI 2 DisplayPort
MOUSE
SERVICE
LAN RJ45
Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).1.
On the PC (Laptop), select Start > Control Panel > Network Connections.2.
Right-click on the Local Area Connection, and select Property.3.
In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).4.
English
50
USING THE PROJECTOR
Click "Properties".5.
Type in the IP address and Subnet mask, then press "OK".6.
Press the "Menu" button on the projector.7.
Use 8. keys to select SETUP > Network > LAN Settings.
After getting into LAN Settings, input the following connection parameters:9.
DHCP: Off ±
IP Address: 10.10.10.10 ±
Subnet Mask: 255.255.255.255 ±
Gateway: 0.0.0.0 ±
DNS: 0.0.0.0 ±
Press "Enter" to conrm settings.10.
Open a web browser, for example Microsoft Internet Explorer.with Adobe Flash Player 9.0 or higher 11.
installed.
In the Address bar, input the projector's IP address: 10.10.10.10.12.
English
51
USING THE PROJECTOR
Press "Enter".13.
The projector is setup for remote management. The LAN/RJ45 function displays as follows:
Information page
Main page
Tool page
Contact IT helpdesk
English
52
USING THE PROJECTOR
RS232 by Telnet Function
There is alternative RS232 command control way, in projector so called "RS232 by TELNET" for LAN/RJ45
interface.
Quick Start-Guide for "RS232 by Telnet"
Check and get the IP address on OSD of the projector.
Make sure that the PC/laptop can access the web-page of the projector.
Make sure that "Windows Firewall" setting is set disabled in case of "TELNET" function ltering out by
PC/laptop.
Start > All Programs > Accessories > Command Prompt.1.
Input the command format as follows: 2.
telnet ttt.xxx.yyy.zzz 23 ("Enter" key pressed) ±
(ttt.xxx.yyy.zzz: IP-Address of the projector) ±
If Telnet-Connection ready, and user can have RS232 command input, then "Enter" key pressed, the 3.
RS232 command will be workable.
English
53
USING THE PROJECTOR
Specication for "RS232 by TELNET":
Telnet: TCP.1.
Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).2.
Telnet utility: Windows "TELNET.exe" (console mode).3.
Disconnection for RS232-by-Telnet control normally: Close4.
Windows Telnet utility directly after TELNET connection ready.5.
Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for ±
Telnet-Control application.
Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for ±
Telnet-Control.
Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 ±
(ms).
English
54
USING THE PROJECTOR
Setup advanced menu
Logo
Logo Capture
SETUP
Advanced
Default
Closed Captioning
Wireless
Off
Off
Exit
Logo
Use this function to set the desired startup screen. If changes are made they will take effect the next time the
projector is powered on.
Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.
Logo Capture
Press to capture an image of the picture currently displayed on screen.
Closed Captioning
Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input
signal contains closed captions, you can turn on the feature and watch the channels. Press or to select Off,
CCI, or CC2.
Wireless
Choose the "On" or "Off" to turn on or off the wireless function.
Exit
Choose "Exit" to exit the menu.
For a successful logo capture, ensure that the on-screen image does not exceed the projector nativeNote:
resolution. (1080p: 1920 x 1080).
English
55
USING THE PROJECTOR
Options menu
OPTIONS
Input Source
Source Lock
High Altitude
Information Hide
Keypad Lock
Display Mode Lock
Test Pattern
Off
Off
Off
Off
Off
None
Input Source
Use this option to enable/disable input sources. Press to enter the sub menu and select which sources you
require. Press "Enter" to finalize the selection. The projector will only search for inputs that are enabled.
Source Lock
On: The projector will only search current input connection.
Off: The projector will search for other signals if the current input signal is lost.
High Altitude
When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
Information Hide
On: Choose "On" to hide the info message.
Off: Choose "Off" to show the "searching" message.
Keypad Lock
When the keypad lock function is "On", the Keypad will be locked however, the projector can be operated by the
remote control. By selecting "Off", you will be able to reuse the Keypad.
Display Mode Lock
On: Lock adjusting display mode settings.
Off: Unlock adjusting display mode settings.
Test Pattern
Display a test pattern. There are Grid, White Pattern and None.
English
56
USING THE PROJECTOR
Options menu
OPTIONS
Background Color
Wall Color
Remote Settings
12V Trigger
Off
Beep
Advanced
Lamp Settings
Off
Background Color
Use this feature to display a "Black", "Red", "Blue", "Green" or "White", screen when no signal is available.
Wall Color
Use this function to obtain an optimized screen image according to the wall color. The available options: "Light
Yellow", "Light Green", "Light Blue", "Pink", and "Gray".
Wall Color
Gray
12V Trigger
Reserved
IR_IN & detect
GND
Off: Choose "Off" to disable the trigger.
On: Choose "On" to enable the trigger.
Beep
Off: No beep sound is audible when a key is pressed or in an error event.
On: Beep sound is audible when a key is pressed or in an error event.
English
57
USING THE PROJECTOR
Options menu
OPTIONS
Optional Filter Settings
Information
Reset
Information
Display the projector information.
Information
S/N Number
F/W Version
Current Input Source
Resolution
Refresh Rate
Lamp Hours
Filter Hour
Projector ID
Remote Code
Remote Code (Active)
IP Address
Network Status
Main
MCU
LAN
Bright
Eco
Power
Exit
Connected
Exit
Exit
Choose "Exit" to exit the menu.
Reset
Choose "Yes" to return the factory default settings for "OPTIONAL FILTER".
English
58
USING THE PROJECTOR
Options lamp settings menu
OPTIONS
Lamp Settings
Lamp Hours
Lamp Reminder
Lamp Mode
Power
Lamp Reset
On
Bright
Exit
Lamp Hours
Display the projection time.
Lamp Reminder
Choose this function to show or to hide the warning message when the changing lamp message is displayed.
The message will appear 30 hours before suggested replacement of lamp.
Lamp Mode
Bright: Choose "Bright" to increase the brightness.
Eco.: Choose "Eco." to dim the projector lamp which will lower power consumption and extend the
lamp life.
Power: Choose this option if you want to set the projector power setting manually.
Note:
When ambient temperature is over 40°C in operating, the projector will switch to Eco automatically.
“Lamp Mode” can be independently set for 2D and 3D.
Power
Set the projector power manually. The available options include 365W, 350W, 330W, 310W, 300W, and 280W.
Lamp Reset
Resets the lamp hour counter after replacing the lamp.
Exit
Choose "Exit" to exit the menu.
English
59
USING THE PROJECTOR
Options remote settings menu
OPTIONS
Remote Settings
User 1
Test Pattern
USER 1
The default value is "Test Pattern".
Press into the next menu and then use or to select "HDMI2", "DP", "VGA2", "S-Video", "Test
Pattern", "Zoom", or "Info" item.
USER 2
The default value is "Zoom".
User 2
User 3
IR Function
Remote Code
User 1
User 2
Zoom
Info.
All
Exit
Test Pattern
Zoom
Press into the next menu and then use or to select "HDMI2", "DP", "VGA2", "S-Video", "Test
Pattern", "Zoom", or "Info" item.
USER 3
The default value is "Info.".
Press into the next menu and then use or to select "HDMI2", "DP", "VGA2", "S-Video", "Test
Pattern", "Zoom", or "Info" item.
User 3
Info.
English
60
USING THE PROJECTOR
IR Function
On: Choose "On", the projector can be operated by the remote control from front or top IR receiver.
Front: Choose "Front", the projector can be operated by the remote control from front IR receiver.
Top: Choose "Top", the projector can be operated by the remote control from top IR receiver.
Off: Choose "Off", the projector can't be operated by the remote control from front or top IR receiver.
By selecting "Off", you will be able to use the Keypad keys.
Note:
“Front” and “Top” cannot be selected in standby mode.
IR mode can be switched to “NVIDIA 3D Vision” once implemented and veried by NVIDIA.
Remote Code
Press to set Remote custom code and press "Enter" to change to the setting.
English
61
USING THE PROJECTOR
Options advanced menu
OPTIONS
Advanced
Direct Power On
Signal Power On
Auto Power Off (min)
Sleep Timer (min)
Quick Resume
Off
Off
Power Mode (Standby)
Active
Exit
Direct Power On
Choose "On" to activate Direct Power mode. The projector will automatically power on when AC power is supplied,
without pressing the " " key on the projector Control Panel or on the remote control.
Signal Power On
Choose "On" to activate Signal Power mode. The projector will automatically power on when a signal is detected,
without pressing the " " key on the projector Control Panel or on the remote control.
Auto Power Off (min)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the
projector. The projector will automatically power off when the countdown has nished (in minutes).
Press the to decrease the timer interval.
Press the to increase the timer interval.
Note:
The value of sleep timer will be reset to zero after the projector is powered off.
The projector will automatically power off when the countdown has nished. The default setting is 20 minutes.
Sleep Timer (min)
Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the
projector. The projector will automatically power off when the countdown has nished (in minutes).
Press the to decrease the timer interval.
Press the to increase the timer interval.
Quick Resume
On: If the projector is accidentally turned off, this feature allows the projector to be instantly powered
on again, if selected within a period of 100 seconds.
Off: The fan will start cooling the system after 10 seconds when user turns off the projector.
Power Mode (Standby)
Active: Choose "Active" to return to normal standby.
Eco.: Choose "Eco." to save power dissipation further < 0.5W.
Exit
Choose "Exit" to exit the menu.
English
62
USING THE PROJECTOR
Options optional lter settings menu
OPTIONS
Optional Filter Settings
Filter usage Hours
Optional Filter Installed
Filter Reminer
Filter Reset
Yes
Exit
Filter Usage Hours
Display the lter time.
Optional Filter Installed
Yes: Display warning message after 500 hours of use.
No: Turn off warning message.
“Filter Usage Hours / Filter Reminder / Filter Reset” will only appear when “Optional Filter Installed” is “Yes”.Note:
Filter Reminder
Choose this function to show or hide the warning message when the changing lter message is displayed. (Factory
default setting: 500 hours).
Filter Reset
Reset the dust lter counter after replacing or cleaning the dust ler.
Exit
Choose "Exit" to exit the menu.
English
63
USING THE PROJECTOR
3D Setup
Turn on your projector.1.
Connect your 3D source. For example, 3D Blu ray, Games console, PC, Set top box, etc.2.
Ensure you have inserted 3D content or selected the 3D channel.3.
Turn on your 3D glasses. Please refer to the 3D glasses user manual on how to operate the 3D 4.
glasses.
Your projector will automatically display 3D from a 3D Blu-ray. For 3D via a set top box or PC you will 5.
be required to adjust the settings in the 3D menu.
For 3D via Blu ray
3D will automatically be displayed. Depending on the 3D glasses you have you will either need to select DLP
Link or VESA in the menu. VESA glasses come with an emitter that must be connected to the 3D Sync port of the
projector. Please refer to page 14.
Menu > "Display" > "3D" > "3D Mode" > "DLP Link"
Menu > "Display" > "3D" > "3D Mode" > "VESA"
For 3D via a PC or Set top box
3D will not be displayed automatically. Depending on the 3D content the image will either be displayed side by side
or top and bottom. Please refer to the following table.
Top and bottom
SBS SBS
Top and bottom
For side by side images select "SBS" in the menu. Menu > "Display" > "3D" > "3D Format" > "SBS".
For top and bottom images select "top and bottom" in the menu. Menu > "Display" > "3D" > "3D
Format" > "Top and bottom".
If the 3D image does not look correct you may also be required to adjust the 3D sync invert. Turn this
on if the image looks odd. Menu > "Display" > "3D" > "3D Sync Invert" > "On".
If input video is normal 2D, please press “3D format” and switch to “Auto”. If “SBS” mode is active , 2D videoNote:
content will not be displayed correctly. Please change back to “Auto” when 3D via a PC only works with
certain resolutions. Please check the compatibility on page 69.
MAINTENANCE
Replacing the lamp
The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a
warning message.
Lamp Warning
Lamp life exceeded.
When you see this message, please contact your local reseller or service center to change the lamp as soon as
possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.
Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is
recommended to wear safety glasses if changing the bulb when ceiling mounted. "Caution must be
used to prevent any loose parts from falling out of projector."
Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!
Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The
bulb may shatter and cause injury if it is dropped.
64
English
MAINTENANCE
6
5
3
1
2
4
7
Replacing the lamp (continued)
Procedure:
Note:
Switch off the power to the projector by pressing the "1. " button on the remote control or on the
Keypad of the projector.
Allow the projector to cool down for at least 30 minutes.2.
Disconnect the power cord.3.
Unscrew the one screw on the cover. 4. 1
Open the cover. 5. 2
Lift up the lamp handle. 6. 3
Press on the both sides then lift up and remove the lamp cord. 7. 4
Unscrew the one screw on the lamp module. 8. 5
Lift up the lamp handle 9. 6 and remove the lamp module slowly and carefully. 7
To replace the lamp module, reverse the previous steps.10.
Turn on the projector and reset the lamp timer.11.
Lamp Reset: (i) Press "Menu" 12. (ii) Select "OPTIONS" (iii) Select "Lamp Settings" (iv) Select
"Lamp Reset" (v) Select "Yes".
The screw on the lamp cover and the lamp cannot be removed.
The projector cannot be turned on if the lamp cover has not been placed back on the projector.
Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean
the lamp module if it was accidentally touched.
English
65
MAINTENANCE
1
2
Installing and cleaning the dust lter
Installing the dust lter
Dust lters are only required/supplied in the selected regions with excessive dust.Note:
Cleaning the dust lter
We recommends cleaning the dust lter every three months; clean it more often if the projector is used in a dusty
environment.
Procedure:
Switch off the power to the projector by pressing 1. the " " button on the remote control or on the Keypad of the
projector.
Disconnect the power cord.2.
Remove the dust lter slowly and carefully.3.
Clean or replace the dust lter.4.
To install the dust lter, reverse the previous steps.5.
66
English
ADDITIONAL INFORMATION
Compatible resolutions
HDMI compatibility
B0/Established
Timing
720 x 400 @ 70Hz WXGA: Native timing: 640 x 480p @ 60Hz 1366 x 768 @ 60Hz
640 x 480 @ 60Hz 1440 x 900 @60Hz 1024 x 768 @60Hz 720 x 480p @ 60Hz 1920 x 1080 @ 60Hz
640 x 480 @ 67Hz 1024 x 768 @120Hz WXGA: 1280 x 800 @60Hz 1280 x 720p @ 60Hz 1920 x 1200 @ 60Hz
640 x 480 @ 72Hz 1280 x 800 @60Hz 1080P: 1920 x 1080
640 x 480 @ 75Hz 1280 x 1024 @60Hz WUXGA: 1920 x 1200
800 x 600 @ 56Hz 1680 x 1050 @60Hz 1920 x 1080p @ 60Hz
800 x 600 @ 60Hz 1280 x 720 @60Hz 720 x 576p @ 50Hz
800 x 600 @ 72Hz 1280 x 720 @120Hz 1280 x 720p @ 50Hz
800 x 600 @ 75Hz 1600 x 1200 @60Hz 1920 x 1080i @ 50Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz 1280 x 720 @ 60Hz 1920 x 1080p @ 50Hz
1024 x 768 @ 70Hz 1280 x 800 @ 60Hz 1920 x 1080p @ 24Hz
1024 x 768 @ 75Hz 1280 x1024 @ 60Hz 1920 x 1080p @ 30Hz
1280 x 1024 @ 75Hz 1400 x 1050 @ 60Hz
1152 x 870 @ 75Hz 1600 x 1200 @ 60Hz
B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing
1920 x 1080i @ 60Hz
@60Hz
720(1440) x 480i @
@60Hz(RB)
1080P/WUXGA:
1440 x 900 @60Hz
1280 x 720 @ 120Hz
1024 x 768 @ 120Hz
60Hz
720(1440) x 576i @
50Hz
VGA analog compatibility
B0/Established
Timing
720 x 400 @ 70Hz WXGA: Native timing: 1366 x 768 @ 60Hz
640 x 480 @ 60Hz 1440 x 900 @60Hz 1024 x 768 @60Hz 1920 x 1080 @ 60Hz
640 x 480 @ 67Hz 1024 x 768 @120Hz WXGA: 1280 x 800 @60Hz 1920 x 1200 @ 60Hz
640 x 480 @ 72Hz 1280 x 800 @60Hz 1080P: 1920 x 1080
640 x 480 @ 75Hz 1280 x 1024 @60Hz WUXGA: 1920 x 1200
800 x 600 @ 56Hz 1680 x 1050 @60Hz
800 x 600 @ 60Hz 1280 x 720 @60Hz
800 x 600 @ 72Hz 1280 x 720 @120Hz
800 x 600 @ 75Hz 1600 x 1200 @60Hz
832 x 624 @ 75Hz 1080P/WUXGA:
1024 x 768 @ 60Hz 1280 x 720 @ 60Hz
1024 x 768 @ 70Hz 1280 x 800 @ 60Hz
1024 x 768 @ 75Hz 1280 x1024 @ 60Hz
1280 x 1024 @ 75Hz 1400 x 1050 @ 60Hz
B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing
(RB)
@60Hz
@60Hz(RB)
English
67
English
68
ADDITIONAL INFORMATION
B0/Established
Timing
1152 x 870 @ 75Hz 1600 x 1200 @ 60Hz
B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing
1440 x 900 @60Hz
1280 x 720 @ 120Hz
1024 x 768 @ 120Hz
Display port digital compatibility
B0/Established
Timing
720 x 400 @ 70Hz WXGA: Native timing: 640 x 480p @ 60Hz 1366 x 768 @ 60Hz
640 x 480 @ 60Hz 1440 x 900 @60Hz 1024 x 768 @60Hz 720 x 480p @ 60Hz 1920 x 1080 @ 60Hz
640 x 480 @ 67Hz 1024 x 768 @120Hz WXGA: 1280 x 800 @60Hz 1280 x 720p @ 60Hz 1920 x 1200 @ 60Hz
640 x 480 @ 72Hz 1280 x 800 @60Hz 1080P: 1920 x 1080
640 x 480 @ 75Hz 1280 x 1024 @60Hz WUXGA: 1920 x 1200
800 x 600 @ 56Hz 1680 x 1050 @60Hz 1920 x 1080p @ 60Hz
800 x 600 @ 60Hz 1280 x 720 @60Hz 720 x 576p @ 50Hz
800 x 600 @ 72Hz 1280 x 720 @120Hz 1280 x 720p @ 50Hz
800 x 600 @ 75Hz 1600 x 1200 @60Hz 1920 x 1080i @ 50Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz 1280 x 720 @ 60Hz 1920 x 1080p @ 50Hz
1024 x 768 @ 70Hz 1280 x 800 @ 60Hz 1920 x 1080p @ 24Hz
1024 x 768 @ 75Hz 1400 x 1050 @ 60Hz 1920 x 1080p @ 30Hz
1280 x 1024 @ 75Hz 1600 x 1200 @ 60Hz
1152 x 870 @ 75Hz 1440 x 900 @60Hz
B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing
1920 x 1080i @ 60Hz
@60Hz
720(1440) x 480i @
@60Hz(RB)
1080P/WUXGA:
1280 x 720 @ 120Hz
1024 x 768 @ 120Hz
60Hz
720(1440) x 576i @
50Hz
English
69
ADDITIONAL INFORMATION
True 3D video compatibility
Input timing
1280 X 720P @ 50Hz Top - and - Bottom
1280 X 720P @ 60Hz Top - and - Bottom
HDMI 1.4a 3D
Input
Input
resolution
HDMI 1.3
1280 X 720P @ 50Hz Frame packing
1280 X 720P @ 60Hz Frame packing
1920 X 1080i @50 Hz Side- by-Side (Half)
1920 X 1080i @60 Hz Side- by-Side (Half)
1920 X 1080P @24 Hz Top - and- Bottom
1920 X 1080P @24 Hz Frame packing
1920 x 1080i @ 50Hz
1920 x1080i @ 60Hz
1280 x 720P @50Hz
1280 x 720P @60Hz
1920 x 1080i @ 50Hz
1920 x1080i @ 60Hz
1280 x 720P @50Hz
1280 x 720P @60Hz
480i HQFS 3D format is Frame
Side-by-Side(Half) SBS mode is on
Top-and-Bottom TAB mode is on
sequential
English
70
ADDITIONAL INFORMATION
Image size and projection distance
(WUXGA)
Desired Image Size Projection Distance (C)
Diagonal Width Height Wide Tele
m inch m inch m inch m feet m feet
0.91 36 0.78 30.53 0.48 19.08 0.9 2.95 1.7 5.58
1.02 40 0.86 33.92 0.54 21.2 1.0 3.28 1.8 5.91
1.27 50 1.08 42.4 0.67 26.5 1.3 4.27 2.3 7.55
1.52 60 1.29 50.88 0.81 31.8 1.5 4.92 2.8 9.19
1.78 70 1.51 59.36 0.94 37.1 1.8 5.91 3.2 10.50
2.03 80 1.72 67.84 1.08 42.4 2.1 6.89 3.7 12.14
2.29 90 1.94 76.32 1.21 47.7 2.3 7.55 4.1 13.45
2.54 100 2.15 84.8 1.35 53 2.6 8.53 4.6 15.09
3.05 120 2.58 101.76 1.62 63.6 3.1 10.17 5.5 18.04
3.81 150 3.23 127.2 2.02 79.5 3.9 12.80 6.9 22.64
4.57 180 3.88 152.64 2.42 95.4 4.6 15.09 8.3 27.23
5.08 200 4.31 169.6 2.69 106 5.2 17.06 9.2 30.18
6.35 250 5.38 212 3.37 132.5 6.4 21.00 / /
7.62 300 6.46 254.4 4.04 159 7.7 25.26 / /
Lens Shift Range
PJ lens Center to top of image Image Shift Range
Vertical +
(Max) (A)
58.2 48.5 9.7 8.6 7.8 7.8
64.6 53.9 10.8 9.7 8.6 8.6
80.8 67.3 13.5 12.1 10.8 10.8
96.9 80.8 16.2 14.6 12.9 12.9
113.1 94.2 18.9 16.9 15.1 15.1
129.2 107.7 21.5 19.4 17.2 17.2
145.4 121.2 24.2 21.8 19.4 19.4
161.5 134.6 26.9 24.3 21.5 21.5
193.9 161.5 32.3 29.2 25.9 25.9
242.3 201.9 40.4 36.4 32.3 32.3
290.8 242.3 48.5 43.6 38.8 38.8
323.1 269.2 53.9 48.4 43.1 43.1
403.9 336.6 67.3 60.7 53.9 53.9
484.6 403.9 80.8 72.7 64.6 64.6
Vertical -
(Min) (B)
Vertical range
at the center of
Horizontal shif
(D) = (A) - (B)
Vertical range at
1% Horizontal
position
Horizontal +
(Right)
Horizontal -
Vertical Shift Range = Image Height in meters * 100 * ( 0.1 – 0.1/0.1* (Horizontal Position in Centimeters /Note:
Image Width in Centimeters).
(Left)
English
71
ADDITIONAL INFORMATION
(1080P)
Desired Image Size Projection Distance (C)
Diagonal Width Height Wide Tele
m inch m inch m inch m feet m feet
0.91 36 0.80 31.38 0.45 17.65 1.0 3.28 1.7 5.58
1.02 40 0.89 34.86 0.5 19.6 1.1 3.61 1.8 5.91
1.27 50 1.11 43.58 0.62 24.5 1.3 4.27 2.3 7.55
1.52 60 1.33 52.29 0.75 29.4 1.6 5.25 2.8 9.19
1.78 70 1.55 61.01 0.87 34.3 1.9 6.23 3.2 10.50
2.03 80 1.77 69.73 1 39.2 2.1 6.89 3.7 12.14
2.29 90 1.99 78.44 1.12 44.1 2.4 7.87 4.1 13.45
2.54 100 2.21 87.16 1.25 49 2.6 8.53 4.6 15.09
3.05 120 2.66 104.59 1.49 58.8 3.2 10.50 5.5 18.04
3.81 150 3.32 130.74 1.87 73.5 4.0 13.12 6.9 22.64
4.57 180 3.98 156.88 2.24 88.2 4.8 15.75 8.3 27.23
5.08 200 4.43 174.32 2.49 98.1 5.3 17.39 9.2 30.18
6.35 250 5.53 217.89 3.11 122.6 6.6 21.65 / /
7.62 300 6.64 261.47 3.74 147.1 7.9 25.92 / /
Lens Shift Range
PJ lens Center to top of image Image Shift Range
Vertical +
(Max) (A)
1.7 5.58 8.0 8.0 7.8 7.8
1.9 6.23 8.9 8.9 8.6 8.6
2.4 7.87 11.1 11.1 10.8 10.8
2.8 9.19 13.3 13.3 12.9 12.9
3.3 10.83 15.5 15.5 15.1 15.1
3.8 12.47 17.7 17.7 17.2 17.2
4.2 13.78 19.9 19.9 19.4 19.4
4.7 15.42 22.1 22.1 21.5 21.5
5.7 18.70 26.6 26.6 25.9 25.9
7.1 23.29 33.2 33.2 32.3 32.3
8.5 27.89 39.9 39.9 38.8 38.8
9.4 30.84 44.3 44.3 43.1 43.1
/ / 55.4 55.4 53.9 53.9
/ / 66.4 66.4 64.6 64.6
Vertical -
(Min) (B)
Vertical range
at the center of
Horizontal shif
(D) = (A) - (B)
Vertical range at
1% Horizontal
position
Horizontal +
(Right)
Horizontal -
Vertical Shift Range = Image Height in meters * 100 * ( 0.1 – 0.1/0.1* (Horizontal Position in Centimeters / Note:
Image Width in Centimeters).
(Left)
English
72
ADDITIONAL INFORMATION
(WXGA)
Desired Image Size Projection Distance (C)
Diagonal Width Height Wide Tele
m inch m inch m inch m feet m feet
0.91 36 0.78 30.53 0.48 19.08 1.0 3.28 / /
1.02 40 0.86 33.92 0.54 21.2 1.1 3.61 / /
1.27 50 1.08 42.4 0.67 26.5 1.4 4.59 2.4 7.87
1.52 60 1.29 50.88 0.81 31.8 1.6 5.25 2.9 9.51
1.78 70 1.51 59.36 0.94 37.1 1.9 6.23 3.4 11.15
2.03 80 1.72 67.84 1.08 42.4 2.2 7.22 3.9 12.80
2.29 90 1.94 76.32 1.21 47.7 2.4 7.87 4.3 14.11
2.54 100 2.15 84.8 1.35 53 2.7 8.86 4.8 15.75
3.05 120 2.58 101.76 1.62 63.6 3.2 10.50 5.8 19.03
3.81 150 3.23 127.2 2.02 79.5 4.1 13.45 7.2 23.62
4.57 180 3.88 152.64 2.42 95.4 4.9 16.08 8.7 28.54
5.08 200 4.31 169.6 2.69 106 5.4 17.72 9.6 31.50
6.35 250 5.38 212 3.37 132.5 6.8 22.31 12.0 39.37
7.62 300 6.46 254.4 4.04 159 8.1 26.57 / /
Lens Shift Range
PJ lens Center to top of image Image Shift Range
Vertical +
(Max) (A)
60.6 50.9 9.7 8.6 7.8 7.8
67.3 56.5 10.8 9.7 8.6 8.6
84.1 70.7 13.5 12.1 10.8 10.8
101.0 84.8 16.2 14.6 12.9 12.9
117.8 99.0 18.8 16.9 15.1 15.1
134.6 113.1 21.5 19.4 17.2 17.2
151.5 127.2 24.2 21.8 19.4 19.4
168.3 141.4 26.9 24.3 21.5 21.5
201.9 169.6 32.3 29.2 25.9 25.9
252.4 212.0 40.4 36.4 32.3 32.3
302.9 254.4 48.5 43.6 38.8 38.8
336.6 282.7 53.9 48.4 43.1 43.1
420.7 353.4 67.3 60.7 53.9 53.9
504.8 424.1 80.8 72.7 64.6 64.6
Vertical -
(Min) (B)
Vertical range
at the center of
Horizontal shif
(D) = (A) - (B)
Vertical range at
1% Horizontal
position
Horizontal +
(Right)
Horizontal -
Vertical Shift Range = Image Height in meters * 100 * ( 0.1 – 0.1/0.1* (Horizontal Position in Centimeters / Note:
Image Width in Centimeters).
(Left)
English
73
ADDITIONAL INFORMATION
A
V
5.2 cm
H
C
B
V+
V-
1
4
3
3
2
Wall
Center of projection lens.1.
Projection image while lens shift 2.
at the highest position.
Horizontal shift range: 10% H.3.
Vertical shift range.4.
V+
V-
W1
Base
Determining the lens shift center position
Horizontal Lens Shift Center
Adjust the V. Shift until the image reaches the maximum range on the bottom end.1.
Adjust the H. Shift until the image reaches the maximum shift range towards the left.2.
Maximum shift to the left
Bottom end
Mark A here
English
74
ADDITIONAL INFORMATION
A
B
Adjust the H. Shift until the image reaches the maximum shift range to the right.3.
Maximum shift to the right
Mark B here
Measure the distance between Mark 4. A and Mark B, then divide it by 2 and position the image back to
Mark A/B to the left. The image will be at the center of its Horizontal shift.
Total shift = Distance between A to B
Center = A/B
Vertical Lens Shift Center
Image must be at the center of its Horizontal shift before adjusting the image to the center of its 1.
Vertical shift.
Adjust the V. Shift until the image reaches the maximum shift range towards the bottom.2.
Mark A here
Maximum shift to the bottom
English
75
ADDITIONAL INFORMATION
A
B
Adjust the V. Shift until the image reaches the maximum shift range to the top.3.
Measure the distance between Mark 4. A and Mark B, then divide it by 2 and position the image back to
Mark A/B to the bottom. The image will be at the center of its Vertical shift.
Mark B here
Maximum shift to the top
Center = A/B
Total shift = Distance between A to B
English
76
ADDITIONAL INFORMATION
423.90
100.00 100.00
185.0093.22 70.46
330.91
294.43129.47
81.02 62.35
15.71
Projector dimensions and ceiling mount installation
To prevent damage to your projector, please use the Optoma ceiling mount.1.
If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to 2.
the projector meet the following specications:
Screw type: M4*3
Minimum screw length: 10mm
Please note that damage resulting from incorrect installation will void the warranty.Note:
Warning:
Lens
Unit: mm
If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
Avoid installing the projector near a heat source.
English
77
ADDITIONAL INFORMATION
RS232 protocol function list
Baud Rate : 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control : None
UART16550 FIFO: Disable
Projector Return (Pass): P
Projector Return (Fail): F XX=01-99, projector's ID, XX=00 is for all projectors
There is a <CR> after all ASCII commands 0D is the HEX code for <CR> in ASCII code.Note:
SEND to projector
232 ASCII
Code
~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible)
~XX00 1
~nnnn
~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On
~XX02 0 7E 30 30 30 32 20 30 0D Off (0/2 for backward compatible)
~XX03 1 7E 30 30 30 33 20 31 0D Mute On
~XX03 2 7E 30 30 30 33 20 30 0D Off (0/2 for backward compatible)
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze (0/2 for backward compatible)
~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus
~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Commands HDMI1
~XX12 15 7E 30 30 31 32 20 31 35 0D HDMI2
~XX12 20 7E 30 30 31 32 20 32 30 0D Displayport
~XX12 5 7E 30 30 31 32 20 35 0D VGA1
~XX12 8 7E 30 30 31 32 20 38 0D VGA1 Component
~XX12 6 7E 30 30 31 32 20 36 0D VGA 2
~XX12 13 7E 30 30 31 32 20 31 33 0D VGA2 Component
~XX12 9 7E 30 30 31 32 20 39 0D S-Video
~XX12 10 7E 30 30 31 32 20 31 30 0D Video
~XX12 21 7E 30 30 31 32 20 32 31 0D HDBaseT (only exists in "T" SKU)
~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation
~XX20 2 7E 30 30 32 30 20 32 0D Bright
~XX20 3 7E 30 30 32 30 20 33 0D Movie
~XX20 4 7E 30 30 32 30 20 34 0D sRGB
~XX20 5 7E 30 30 32 30 20 35 0D User
~XX20 7 7E 30 30 32 30 20 37 0D Blackboard
~XX20 13 7E 30 30 32 30 20 31 33 0D DICOM SIM.
~XX20 9 7E 30 30 32 30 20 39 0D 3D
~XX21 n 7E 30 30 32 31 20 a 0D Brightness n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX22 n 7E 30 30 32 32 20 a 0D Contrast n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n = 1 (a=31) ~ 15 (a=31 35)
~XX45 n 7E 30 30 34 34 20 a 0D Color (Saturation) n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX44 n 7E 30 30 34 34 20 a 0D Tint n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX196 n
~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor
~XX191 1 7E 30 30 31 39 31 20 31 0D DynamicBlack On
~XX191 0 7E 30 30 31 39 31 20 30 0D Off(0/2 for backward compatible)
~XX35 1 7E 30 30 33 35 20 31 0D Gamma Film
~XX35 3 7E 30 30 33 35 20 33 0D Graphics
~XX35 7 7E 30 30 33 35 20 37 0D 2.2
~XX35 5 7E 30 30 33 35 20 35 0D 1.8
~XX35 6 7E 30 30 33 35 20 36 0D 2.0
HEX Code Function Description
7E 30 30 30 30 20 31 20
a 0D
7E 30 30 31 39 36 20 a 0D Noise Reduction n = 1 (a=31) ~ 10 (a=31 30)
Power ON with Password ~nnnn = ~0000 (a=7E 30 30 30 30)
~9999 (a=7E 39 39 39 39)
TM
n = 1 (a=31) ~ 10 (a=31 30)
English
78
ADDITIONAL INFORMATION
232 ASCII
Code
~XX35 8 7E 30 30 33 35 20 38 0D 2.6
~XX35 10 7E 30 30 33 35 20 31 30 0D Blackboard
~XX35 11 7E 30 30 33 35 20 31 31 0D DICOM
~XX36 4 7E 30 30 33 36 20 34 0D Color Temp. Warm
~XX36 1 7E 30 30 33 36 20 31 0D Standard
~XX36 2 7E 30 30 33 36 20 32 0D Cool
~XX36 3 7E 30 30 33 36 20 33 0D Cold
~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto
~XX37 2 7E 30 30 33 37 20 32 0D RGB\ RGB(0-255)
~XX37 3 7E 30 30 33 37 20 33 0D YUV
~XX37 4 7E 30 30 33 37 20 34 0D RGB(16 - 235)
~XX24 n 7E 30 30 32 34 20 a 0D RGB Gain/Bias Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n 7E 30 30 32 35 20 a 0D Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n 7E 30 30 32 36 20 a 0D Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX27 n 7E 30 30 32 37 20 a 0D Red Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX28 n 7E 30 30 32 38 20 a 0D Green Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX29 n 7E 30 30 32 39 20 a 0D Blue Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX327 n 7E 30 30 33 32 37 20 a 0D Color Matching Red Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX333 n 7E 30 30 33 33 33 20 a 0D Red Saturation n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX339 n 7E 30 30 33 33 39 20 a 0D Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX328 n 7E 30 30 33 32 38 20 a 0D Green Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX334 n 7E 30 30 33 33 34 20 a 0D Green
~XX340 n 7E 30 30 33 34 30 20 a 0D Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX329 n 7E 30 30 33 32 39 20 a 0D Blue Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX335 n 7E 30 30 33 33 35 20 a 0D Blue Saturation n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX341 n 7E 30 30 33 34 31 20 a 0D Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX330 n 7E 30 30 33 33 30 20 a 0D Cyan Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX336 n 7E 30 30 33 33 36 20 a 0D Cyan
~XX342 n 7E 30 30 33 34 32 20 a 0D Cyan Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX331 n 7E 30 30 33 33 31 20 a 0D Yellow Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX337 n 7E 30 30 33 33 37 20 a 0D Yellow
~XX343 n 7E 30 30 33 34 33 20 a 0D Yellow Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX332 n 7E 30 30 33 33 32 20 a 0D Magenta Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX338 n 7E 30 30 33 33 38 20 a 0D Magenta
~XX344 n 7E 30 30 33 34 34 20 a 0D Magenta Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX345 n 7E 30 30 33 34 35 20 a 0D White Red n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX346 n 7E 30 30 33 34 36 20 a 0D Green n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX347 n 7E 30 30 33 34 37 20 a 0D Blue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX215 1 7E 30 30 32 31 35 20 31 0D Reset
~XX73 n 7E 30 30 37 33 20 a 0D Signal (RGB) Frequency n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX91 1 7E 30 30 39 31 20 31 0D Automatic On
~XX91 0 7E 30 30 39 31 20 30 0D Off (0/2 for backward compatible)
~XX74 n 7E 30 30 37 34 20 a 0D Phase n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n 7E 30 30 37 35 20 a 0D H. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n 7E 30 30 37 36 20 a 0D V. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX200 n 7E 30 30 32 30 30 20 a 0D Signal(Video) White Level n = 0 (a=30) ~ 31 (a=33 31)
~XX201 n 7E 30 30 32 30 31 20 a 0D Black Level n = -5 (a=2D 35) ~ 5 (a=35)
~XX204 1 7E 30 30 32 30 30 24 20
~XX204 0 7E 30 30 32 30 30 24 20
~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3
~XX60 2 7E 30 30 36 30 20 32 0D 16:9
~XX60 3 7E 30 30 36 30 20 33 0D 16:10(WXGA, WUXGA)
~XX60 5 7E 30 30 36 30 20 35 0D LBX
HEX Code Function Description
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
Saturation
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
Saturation
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
Saturation
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
Saturation
0 IRE
31 0D
7.5 IRE
30 0D
English
79
ADDITIONAL INFORMATION
232 ASCII
Code
~XX60 6 7E 30 30 36 30 20 36 0D Native
~XX60 7 7E 30 30 36 30 20 37 0D Auto
~XX61 n 7E 30 30 36 31 20 a 0D Edge mask n = 0 (a=30) ~ 10 (a=31 30)
~XX62 n 7E 30 30 36 32 20 a 0D Zoom n = -5 (a=2D 35) ~ 25 (a=32 35)
~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX65 n 7E 30 30 36 35 20 a 0D H Keystone n = -30 (a=2D 33 30) ~ 40 (a=33 30)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -30 (a=2D 33 30) ~ 40 (a=33 30)
~XX69 1 7E 30 30 36 39 20 31 0D Auto V.Keystone On
~XX69 0 7E 30 30 36 39 20 30 0D Auto V. Keystone Off
~XX59 1 7E 30 30 35 39 20 31 0D Four corners (Top-Left) Right+
~XX59 2 7E 30 30 35 39 20 32 0D Left+
~XX59 3 7E 30 30 35 39 20 33 0D Up+
~XX59 4 7E 30 30 35 39 20 34 0D Down+
~XX59 5 7E 30 30 35 39 20 35 0D (Top-Right) Right+
~XX59 6 7E 30 30 35 39 20 36 0D Left+
~XX59 7 7E 30 30 35 39 20 37 0D Up+
~XX59 8 7E 30 30 35 39 20 38 0D Down+
~XX59 9 7E 30 30 35 39 20 39 0D (Bottom-Left) Right+
~XX59 10 7E 30 30 35 39 20 31 30 0D Left+
~XX59 11 7E 30 30 35 39 20 31 31 0D Up+
~XX59 12 7E 30 30 35 39 20 31 32 0D Down+
~XX59 13 7E 30 30 35 39 20 31 33 0D (Bottom-Right) Right+
~XX59 14 7E 30 30 35 39 20 31 34 0D Left+
~XX59 15 7E 30 30 35 39 20 31 35 0D Up+
~XX59 16 7E 30 30 35 39 20 31 36 0D Down+
~XX230 1 7E 30 30 32 33 30 20 31 0D 3D Mode DLP-Link
~XX230 3 7E 30 30 32 33 30 20 31 0D VESA 3D
~XX230 0 7E 30 30 32 33 30 20 30 0D Off (0/2 for backward compatible)
~XX400 0 7E 30 30 34 30 30 20 30 0D 3D->2D 3D
~XX400 1 7E 30 30 34 30 30 20 31 0D L
~XX400 2 7E 30 30 34 30 30 20 32 0D R
~XX405 0 7E 30 30 34 30 35 20 30 0D 3D Format Auto
~XX405 1 7E 30 30 34 30 35 20 31 0D SBS
~XX405 2 7E 30 30 34 30 35 20 32 0D Top and Bottom
~XX405 3 7E 30 30 34 30 35 20 33 0D Frame sequential
~XX231 0 7E 30 30 32 33 31 20 30 0D 3D Sync Invert On
~XX231 1 7E 30 30 32 33 31 20 31 0D 3D Sync Invert Off
~XX70 1 7E 30 30 37 30 20 31 0D Language English
~XX70 2 7E 30 30 37 30 20 32 0D German
~XX70 3 7E 30 30 37 30 20 33 0D French
~XX70 4 7E 30 30 37 30 20 34 0D Italian
~XX70 5 7E 30 30 37 30 20 35 0D Spanish
~XX70 6 7E 30 30 37 30 20 36 0D Portuguese
~XX70 7 7E 30 30 37 30 20 37 0D Polish
~XX70 8 7E 30 30 37 30 20 38 0D Dutch
~XX70 9 7E 30 30 37 30 20 39 0D Swedish
~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish
~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish
~XX70 12 7E 30 30 37 30 20 31 32 0D Greek
~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese
~XX70 14 7E 30 30 37 30 20 31 34 0D Simplied Chinese
~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese
~XX70 16 7E 30 30 37 30 20 31 36 0D Korean
~XX70 17 7E 30 30 37 30 20 31 37 0D Russian
~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian
HEX Code Function Description
English
80
ADDITIONAL INFORMATION
232 ASCII
Code
~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak
~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic
~XX70 21 7E 30 30 37 30 20 32 31 0D Thai
~XX70 22 7E 30 30 37 30 20 32 32 0D Turkish
~XX70 23 7E 30 30 37 30 20 32 33 0D Farsi
~XX70 25 7E 30 30 37 30 20 32 33 0D Vietnamese
~XX70 26 7E 30 30 37 30 20 32 33 0D Indonesian
~XX70 27 7E 30 30 37 30 20 32 33 0D Romanian
~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop
~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop
~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling
~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling
~XX90 1 7E 30 30 39 30 20 31 0D Screen Type (WXGA/WUXGA) 16:10
~XX90 0 7E 30 30 39 30 20 30 0D 16:9
~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left
~XX72 2 7E 30 30 37 32 20 32 0D Top Right
~XX72 3 7E 30 30 37 32 20 33 0D Centre
~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left
~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right
~XX77 n 7E 30 30 37 37 20 aabbcc 0DSecurity Security Timer Month/Day/Hour n = mm/dd/hh
~XX78 1 7E 30 30 37 38 20 31 0D Security On
~XX78 0
~nnnn
~XX79 n 7E 30 30 37 39 20 a 0D Projector ID n = 00 (a=30 30) ~ 99 (a=39 39)
~XX310 0 7E 30 30 33 31 30 20 30 0D Internal Speaker Off
~XX310 1 7E 30 30 33 31 30 20 31 0D On
~XX80 1 7E 30 30 38 30 20 31 0D Mute On
~XX80 0 7E 30 30 38 30 20 30 0D Off (0/2 for backward compatible)
~XX81 n 7E 30 30 38 31 20 a 0D Volume(Audio) n = 0 (a=30) ~ 10 (a=31 30)
~XX93 n 7E 30 30 39 33 20 a 0D Volume(Mic) n = 0 (a=30) ~ 10 (a=31 30)
~XX89 0 7E 30 30 38 39 20 30 0D Audio Input Default
~XX89 1 7E 30 30 38 39 20 31 0D Audio1
~XX89 3 7E 30 30 38 39 20 33 0D Audio2
~XX89 4 7E 30 30 38 39 20 34 0D Audio3
~XX82 1 7E 30 30 38 32 20 31 0D Logo Default
~XX82 2 7E 30 30 38 32 20 32 0D User
~XX82 3 7E 30 30 38 32 20 33 0D Neutral
~XX83 1 7E 30 30 38 33 20 31 0D Logo Capture
~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning Off
~XX88 1 7E 30 30 38 38 20 31 0D cc1
~XX88 2 7E 30 30 38 38 20 32 0D cc2
~XX454 0 7E 30 30 34 35 34 20 30(32) 0DCrestron Off
HEX Code Function Description
7E 30 30 37 38 20 30 20
a 0D
Off (0/2 for backward compatible)
~nnnn = ~0000 (a=7E 30 30 30 30)
~9999 (a=7E 39 39 39 39)
mm= 00 (aa=30 30) ~ 12 (aa=31 32)dd = 00
(bb=30 30) ~ 30 (bb=33 30) hh= 00 (cc=30 30) ~
24 (cc=32 34)
~XX454 1 7E 30 30 34 35 34 20 31 0D On
~XX455 0 7E 30 30 34 35 35 20 30(32)
~XX455 1 7E 30 30 34 35 35 20 31 0D On
~XX456 0 7E 30 30 34 35 36 20 30(32)
~XX456 1 7E 30 30 34 35 36 20 31 0D On
~XX457 0 7E 30 30 34 35 37 20 30(32)
~XX457 1 7E 30 30 34 35 37 20 31 0D On
~XX458 0 7E 30 30 34 35 38 20 30(32)
0D
0D
0D
0D
Extron Off
PJLink Off
AMX Device Discovery Off
Telnet Off
English
81
ADDITIONAL INFORMATION
232 ASCII
Code
~XX458 1 7E 30 30 34 35 38 20 31 0D On
~XX459 0 7E 30 30 34 35 38 20 30 0D HTTP Off
~XX459 1 7E 30 30 34 35 38 20 31 0D On
~XX39 1 7E 30 30 33 39 20 31 0D Input Source HDMI1
~XX39 7 7E 30 30 33 39 20 37 0D HDMI2
~XX39 15 7E 30 30 33 39 20 31 35 0D Displayport
~XX39 5 7E 30 30 33 39 20 35 0D VGA1
~XX39 6 7E 30 30 33 39 20 36 0D VGA2
~XX39 9 7E 30 30 33 39 20 39 0D S-Video
~XX39 10 7E 30 30 33 39 20 31 30 0D Video
~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock On
~XX100 0 7E 30 30 31 30 30 20 30 0D Off (0/2 for backward compatible)
~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On
~XX101 0 7E 30 30 31 30 31 20 30 0D Off (0/2 for backward compatible)
~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide On
~XX102 0 7E 30 30 31 30 32 20 30 0D Off (0/2 for backward compatible)
~XX103 1 7E 30 30 31 30 33 20 31 0D Keypad Lock On
~XX103 0 7E 30 30 31 30 33 20 30 0D Off (0/2 for backward compatible)
~XX348 1 7E 30 30 33 34 38 20 31 0D Display Mode Lock On
~XX348 0 7E 30 30 33 34 38 20 30 0D Off (0/2 for backward compatible)
~XX195 0 7E 30 30 31 39 35 20 30 0D Test Pattern None
~XX195 1 7E 30 30 31 39 35 20 31 0D Grid
~XX195 2 7E 30 30 31 39 35 20 32 0D White Pattern
~XX104 1 7E 30 30 31 30 34 20 31 0D Background Color Blue
~XX104 2 7E 30 30 31 30 34 20 32 0D Black
~XX104 3 7E 30 30 31 30 34 20 33 0D Red
~XX104 4 7E 30 30 31 30 34 20 34 0D Green
~XX104 5 7E 30 30 31 30 34 20 35 0D White
~XX11 0 7E 30 30 31 31 20 30 0D IR Function Off
~XX11 1 7E 30 30 31 31 20 31 0D On
~XX11 2 7E 30 30 31 31 20 32 0D Front
~XX11 3 7E 30 30 31 31 20 33 0D Top
~XX350 n 7E 30 30 33 35 30 20 a 0D Remote Code n = 00 (a=30 30) ~ 99 (a=39 39)
~XX192 0 7E 30 30 31 39 32 20 30 0D 12V Trigger Off
~XX192 1 7E 30 30 31 39 32 20 31 0D On
~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced
~XX105 0 7E 30 30 31 30 35 20 30 0D Off (0/2 for backward compatible)
~XX113 0 7E 30 30 31 31 33 20 30 0D
~XX113 1 7E 30 30 31 31 33 20 31 0D On
~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off
~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer
~XX507 1 7E 30 30 35 30 37 20 31 0D Sleep Timer
~XX507 0 7E 30 30 35 30 37 20 30 0D Off
~XX115 1 7E 30 30 31 31 35 20 31 0D Quick Resume On
~XX115 0 7E 30 30 31 31 35 20 30 0D Off (0/2 for backward compatible)
~XX114 1 7E 30 30 31 31 34 20 31 0D Power
~XX114 0 7E 30 30 31 31 34 20 30 0D Active (0/2 for backward compatible)
~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder On
~XX109 0 7E 30 30 31 30 39 20 30 0D Off (0/2 for backward compatible)
~XX110 1 7E 30 30 31 31 30 20 31 0D Lamp Mode Bright
~XX110 2 7E 30 30 31 31 30 20 32 0D Eco
~XX110 5 7E 30 30 31 31 30 20 35 0D Power
HEX Code Function Description
Direct Power On
Signal Power On
(min)
(min
Repeat
Mode(Standby)
On
Off
n = 0 (a=30) ~ 180 (a=31 38 30)
(5 minutes for each step).
n = 0 (a=30) ~ 990 (a=39 39 30)
(10 minutes for each step).
On
Eco.(<=0.5W)
English
82
ADDITIONAL INFORMATION
232 ASCII
Code
~XX326 n 7E 30 30 33 32 36 20 a 0D Power 365W/350W/330W/310W/300W/280W
~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset Yes
~XX111 0 7E 30 30 31 31 31 20 30 0D No (0/2 for backward compatible)
~XX320 1 7E 30 30 33 32 30 20 31 0D Optional Filter Installed Yes
~XX320 0 7E 30 30 33 32 30 20 30 0D No (0/2 for backward compatible)
~XX322 0 7E 30 30 33 32 32 20 30 0D Filter Reminder Off
~XX322 1 7E 30 30 33 32 32 20 31 0D 300 hrs
~XX322 2 7E 30 30 33 32 32 20 32 0D 500 hrs
~XX322 3 7E 30 30 33 32 32 20 33 0D 800 hrs
~XX322 4 7E 30 30 33 32 32 20 34 0D 1000 hrs
~XX323 1 7E 30 30 33 32 33 20 31 0D Filter Reset Yes
~XX323 0 7E 30 30 33 32 33 20 30 0D No (0/2 for backward compatible)
~XX313 1 7E 30 30 33 31 33 20 31 0D Information menu On
~XX313 0 7E 30 30 33 31 33 20 30 0D Off(0/2 for backward compatible)
~XX112 1 7E 30 30 31 31 32 20 31 0D Reset Yes
~XX210 n 7E 30 30 32 30 30 20 n 0D Display message on the OSD n: 1-30
SEND to emulate Remote
~XX140 10 7E 30 30 31 34 30 20 31
~XX140 11 7E 30 30 31 34 30 20 31
~XX140 12 7E 30 30 31 34 30 20 31
~XX140 13 7E 30 30 31 34 30 20 31
~XX140 14 7E 30 30 31 34 30 20 31
~XX140 15 7E 30 30 31 34 30 20 31
~XX140 16 7E 30 30 31 34 30 20 31
~XX140 17 7E 30 30 31 34 30 20 31
~XX140 18 7E 30 30 31 34 30 20 31
~XX140 20 7E 30 30 31 34 30 20 32
~XX140 47 7E 30 30 31 34 30 20 34
SEND from projector automatically
232 ASCII
Code
when Standby/Cooling/Out of
Range/Lamp fail/Fan Lock/Over
Temperature/
Lamp Hours Running Out/Cover Open
READ from projector
232 ASCII
Code
~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands Okn n = 0 None
HEX Code Function Description
(n=0/n=1/n=2/n=3/n=4/n=5/)
characters
30 0D
31 0D
32 0D
33 0D
34 0D
35 0D
36 0D
37 0D
38 0D
30 0D
37 0D
HEX Code Function
HEX Code Function
Up
Left
Enter (for projection MENU)
Right
Down
V Keystone +
V Keystone -
Volume -
Volume +
Menu
Source
Projector Return
INFOn n : 0/1/2/3/4/6/7/8/9 =
Projector Return
Description
Standby/Cooling/Out of Range/Lamp fail/Fan
Lock/Over Temperature/Lamp Hours Running
Out/Cover Open
Description
n = 7 HDMI1
n = 8 HDMI2
n = 15 Displayport
n = 2 VGA1
n = 3 VGA2
n = 5 Video
n = 4 S-Video
n = 16 HDbaseT
English
83
ADDITIONAL INFORMATION
232 ASCII
Code
~XX122 1 7E 30 30 31 32 32 20 31 0D Sofware Version OKdddd dddd: FW version
~XX357 1 7E 30 30 33 35 34 20 31 0D LAN FW version Okeeeee eeeee: LAN FW version
~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode Okn n = 0 None
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n : 0/1 = Off/On
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn
~XX127 1 7E 30 30 31 32 37 20 31 0D Format OKn n = 1 4:3
*16:9 or 16:10 depend on Screen Type setting
~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature Okn n = 0 Standard
~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n = 0 Front-Desktop
~XX150 1 7E 30 30 31 35 30 20 31 1D Information Okabbbbbccd
HEX Code Function
Projector Return
ddde
Description
n = 1 Presentation
n = 2 Bright/
n = 3 Movie
n = 4 sRGB
n = 5 User
n= 7 Blackboard
n = 12 DICOM SIM.
n = 9 3D
n = 2 16:9
n = 3 16:10
n = 5 LBX
n = 6 Native
n = 7 Auto
n = 1 Cool
n = 2 Cold
n = 3 Warm
n = 1 Rear-Desktop
n = 2 Front-Ceiling
n = 3 Rear-Ceiling
a = Power Status
a = 0 Power Off
a = 1 Power On
b = Lamp Hour
bbbbb Lamp Hour
cc = Source
cc = 00 None
cc = 02 VGA1
cc = 03 VGA2
cc = 04 S-Video
cc = 05 Video
cc = 07 HDMI1
cc = 08 HDMI2
cc = 15 Displayport
cc = 16 HDBaseT
d = Firmware Version
dddd Firmware Version
e = Display mode
ee=00 None
ee=01 Presentation
ee=02 Bright
ee=03 Movie
ee=04 sRGB
ee=05 User
ee=07 Blackboard
ee=09 3D
ee=12 DICOM SIM.
English
84
ADDITIONAL INFORMATION
232 ASCII
Code
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKn n = 3 WXGA
~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours OKbbbb bbbb: LampHour
~XX108 2 7E 30 30 31 30 38 20 32 0D Cumulative Lamp Hours OKbbbbb bbbbb: (5 digits) Total Lamp Hours
~XX321 1 7E 30 30 33 32 31 20 31 0D Filter Usage Hours OKbbbb bbbb: Filter Usage Hours
~XX87 1 7E 30 30 38 37 20 31 0D Network Status Okn n=0/1 Disconnected/Connected
~XX87 3 7E 30 30 38 37 20 33 0D IP Address Okaaa_bbb_ccc_ddd
~XX351 0 7E 30 30 33 35 31 20 30 0D Fan1 speed(blower) Okaaaa a=0000~9999
~XX352 1 7E 30 30 33 35 32 20 31 0D System temperature Okaaa a=000~999
~XX353 1 7E 30 30 33 35 33 20 31 0D Serial number Okaaaaaaaaaa
~XX354 1 7E 30 30 33 35 34 20 31 0D Closed Captioning Oka a: 0/1/2 = off/cc1/cc2
~XX355 1 7E 30 30 33 35 35 20 31 0D AV Mute Oka a : 0/1 = Off/On
~XX356 1 7E 30 30 33 35 36 20 31 0D Mute Oka a : 0/1 = Off/On
~XX358 1 7E 30 30 33 35 38 20 31 0D Current Lamp Watt Okaaaa aaaa=0000~9999
HEX Code Function
Projector Return
aaaaaaa
Description
n = 4 1080p
n = 5 WUXGA
a=serial number string
English
85
ADDITIONAL INFORMATION
On
Test
Mode
Pattern
Mouse
Switch
Off
F1 F2
AV Mute
ENTER
Source
Volume V Keystone
Info.
VGA11S-Video2HDMI13HDMI2
Format Zoom Remote
ID All
VGA24Video5DVI
6
BNC7YPbPr8DisplayPort93D
0
Re-Sync
Menu Pg
IR remote codes
Power On 2 On
Power Off 2E Off
Test Pattern 34 Test Pattern Test pattern.
Mouse Switch 3E Switch Press to switch the USB mouse on/ off.
F1 26 F1 Programmable function button.
F2 27 F2 Programmable function button.
Mouse left click CB L Use as mouse left click when mouse is switched on.
Mode 95 Mode Display mode menu on/ off.
Four
directional
select keys
AV Mute 3 AV Mute Press to turn off/ on projector built-in speaker
Key Key code
C6 Up arrow
C7 Down arrow
C8 Left arrow
C9 Right arrow
Printing-key
denition
Description
Refer to the "Power On/ Off the Projector" section on
pages 18-19.
Refer to the "Power On/ Off the Projector" section on
pages 18-19.
Use to select items or make adjustments to
your selection.
English
86
ADDITIONAL INFORMATION
Key Key code
Mouse right
click
ENTER C5 Enter Conrm your item selection.
Info. 25 Info. Display projector information.
Laser N/A Laser Use as laser pointer.
Re-Sync
Source Source 18 Source Press "Source" to select an input signal.
Volume
Menu Menu 88 Menu
V Keystone + 85 V Keystone +
Page Up 0A Page + Use to navigate page up.
V Keystone - 84 V Keystone -
Page Down 0D Page - Use to navigate page down.
Format 15 Format Press to choose the projector format.
Zoom 61 Zoom Zoom in/out the projected image.
Remote
VGA1 / 1 8E 1/VGA1
S-Video / 2 1D 2/S-Video
HDMI1 / 3 16 3/HDMI1
HDMI2 9B HDMI2 Press to choose HDMI source.
VGA2 / 4 9A 4/VGA2
Video / 5 1C 5/Video
DVI / 6 19 6/DVI
BNC / 7 1A 7/BNC
YPbPr / 8 17 8/YPbPr
Display Port / 9 9F 9/DisplayPort
3D / 0 89 0/3D
ReSync
ID
ALL 32CD Press to set remote code to all.
CC R Use as mouse right click when mouse is switched on.
4 Re-Sync
9 Volume +
0C Volume -
3201~
3299
Printing-key
denition
Description
Automatically synchronize the projector to the input
source.
Press to increase the volume.
Press to decrease the volume.
Press "Menu" to launch the on-screen display (OSD)
menu. To exit OSD, Press "Menu" again.
Use to adjust image distortion caused by tilting the
projector.
Use to adjust image distortion caused by tilting the
projector.
Press until Power LED is ashing then press 01~99 to set
the particular remote code.
Press to choose VGA source.
Use as numeric keypad number "1".
Press to choose S-video source.
Use as numeric keypad number "2".
Press to choose HDMI source.
Use as numeric keypad number "3".
Press to choose VGA2 source.
Use as numeric keypad number "4".
Press to choose composite video source.
Use as numeric keypad number "5".
Press to choose DVI source.
Use as numeric keypad number "6".
Press to choose BNC source.
Use as numeric keypad number "7".
Press to choose component video source.
Use as numeric keypad number "8".
Press to choose Display port.
Use as numeric keypad number "9".
Press to choose 3D source.
Use as numeric keypad number "0".
English
87
ADDITIONAL INFORMATION
Note:
If the projector supports Dynamic Eco / Image Care features and AV Mute is pressed, the power
consumption of the lamp becomes 30%.
Remote mouse feature simulation specication
The remote mouse feature is supported only when a computer source is selected, for example VGA or
HDMI.
If you press the “Switch” key on the remote control, you will see the cursor being displayed on the right
top corner of the screen for 15 seconds.
In remote mouse mode the cursor should move smoothly and continuously on the screen.
If you press the “Switch” key on the remote control, the V keystone will switch to page up/ page down
mode.
English
88
ADDITIONAL INFORMATION
Using the Information button
The Information function ensures easy setup and operation. Press the “?” button on the keypad to open the
Information menu.
Information button functions only when no input source is detected.
Information
S/N Number
F/W Version
Current Input Source
Resolution
Refresh Rate
Lamp Hours
Filter Hour
Projector ID
Remote Code
Remote Code (Active)
IP Address
Network Status
Main
MCU
LAN
Bright
Eco
Power
Connected
Exit
English
89
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.
Image problems
No image appears on-screen
Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
Ensure the pins of connectors are not crooked or broken.
Check if the projection lamp has been securely installed. Please refer to the "Replacing the Lamp"
section.
Make sure you have removed the lens cap and the projector is switched on.
Ensure that the "AV Mute" feature is not turned on.
Image is out of focus
Make sure the Lens cap is removed.
Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance from the projector. (Please refer to
pages 70-73).
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16:9 format on
projector side.
If you play the LBX format DVD title, please change the format as LBX in projector OSD.
If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
Adjust the zoom lever on the top of the projector.
Move the projector closer to or further from the screen.
Press "Menu" on the projector panel, go to "Display-->Format". Try the different settings.
Image has slanted sides:
If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Use "Display-->V Keystone" from the OSD to make an adjustment.
Image is reversed
Select "Setup-->Projection" from the OSD and adjust the projection direction.
English
90
ADDITIONAL INFORMATION
Blurry double image
Press "3D Format" button and switch to "Off" to avoid normal 2D image is blurry double image.
Two images, side-by-side format
Press "3D Format" button and switch to "SBS" for input signal is HDMI 1.3 2D 1080i side-by-side.
Image does not display in 3D
Check if the battery of 3D glasses is drained.
Check if the 3D glasses is turned on.
When the input signal is HDMI 1.3 2D (1080i side-by-side half), press "3D Format" button and switch
to "SBS".
Other problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this
happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp,
follow the procedures in the "Replacing the Lamp" section on pages 64-65.
Remote control problems
If the remote control does not work
Check the operating angle of the remote control is within ±15° both horizontally and vertically of on of
the IR receivers on the projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within
5 m (16 ft) of the projector.
Make sure batteries are inserted correctly.
Replace batteries if they are exhausted.
English
91
ADDITIONAL INFORMATION
Warning indicators
When the warning indicators (see below) come on, the projector will automatically shutdown:
"LAMP" LED indicator is lit red and if "On/Standby" indicator ashes amber.
"TEMP" LED indicator is lit red and if "On/Standby" indicator ashes amber. This indicates the
projector has overheated. Under normal conditions, the project can be switched back on.
"TEMP" LED indicator ashes red and if "On/Standby" indicator ashes amber.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator lights up again,
please contact your nearest service center for assistance.
LED lightning messages
Message
Standby state
(Input power cord)
Power on (Warming)
Lamp lighting Steady light
Power off (Cooling)
Quick Resume (100
secs)
Error (Over temp.) Flashing Red
Error (Fan failure) Flashing Red Flashing
Error (Lamp failure) Flashing Red
Power LED Power LED
(Red) (Green) (Red) (Red)
Steady light
Flashing
(0.5 sec off /
0.5 sec on)
Flashing
(0.5 sec off /
0.5 sec light). Back
to red steady light
when cooling fan
turns off.
Flashing
(0.25 sec off /
0.25 sec light)
Temp-LED
Lamp-LED
English
92
ADDITIONAL INFORMATION
Power off:
Power Off?
Press Power key again
Lamp warning:
Lamp Warning
Lamp life exceeded.
Temperature warning:
Warning! TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
Fan failed:
Warning! FAN LOCKED
The projector will switch off automatically..
Please contact a service center for repair.
Out of display range:
Out Of Range
English
93
ADDITIONAL INFORMATION
Specications
Optical Description
Maximum resolution
- 1920x1200/85HzRB (max bandwidth: 282MHz) for DP
- 1080p/75Hz (max bandwidth: 225MHz) for HDMI
- Manual zoom and manual focus
Lens
Lamp
Light output
(Determining the lens shift
center position.)
Image size (diagonal)
Projection distance
Electrical Description
Inputs
Outputs
Wired LAN port 1 x RJ-45 (10/100 BASE-T/100 BASE-TX)
Service port USB Power Out (1.5A)
Color reproduction 1073.4 Million color
Scan rate
Sync compatibility Separate Sync
Built-in speaker Yes, 10W
Power requirement 100 - 240V AC 50/60Hz
Input current 2.5-1.0 A
Power consumption (typical value)
ECO mode off
ECO mode
- 15.94~25.5 mm
- WXGA/1080P: 20.77~31.13 mm
- ECO Mode < = 0.5 W @110/220VAC
- Active Mode (>0.5W; <3W) @110/220VAC
- 1080P/WXGA: 5000 lumens (typical)
- WUXGA: 5200 lumens (typical)
- WXGA: 24.7"~302.7"
- 1080P: 25.1"~309.4"
- WUXGA: 25.8"~318"
- 2.49 (Wide.)~3.42 (Tele)
- WXGA: 2.49 (Wide.)~3.42 (Tele)
- 1080p: 2.49 (Wide.)~3.42 (Tele)
- WUXGA: 2.49 (Wide.)~3.42 (Tele)
VGA2 In/YPbPr connector, VGA2 In/YPbPr connector, Audio3-In (Video/S-Video)
port, Audio1-In(VGA1), Audio2-In(VGA2) port
RJ-45 connector, USB-B mini connector (Firmware upgrade), HDMI connector,
Display port, VGA out connector, S-video port, Audio-Out port, USB Power Out
(1.5A), Video port, RS232C connector
- Horizontal Scan rate: 15.375~91.146 KHz
- Vertical Scan rate: 24~ 85 Hz (120Hz for 3D feature)
- Typical 445W MAX 490W @ 110VAC
- Typical 425W MAX 470W @ 220VAC
- Typical 355W MAX 390W @ 110VAC
- Typical 340W MAX 375W @ 220VAC
English
94
ADDITIONAL INFORMATION
Mechanical Description
Installation orientation Desktop/Front, Desktop/Rear, Ceiling/Front, Ceiling/Rear
Dimensions 415.4 mm (W) x 336 mm (D) x 117 mm (H)
Weight 5.2 kg
Operating: 5 ~ 40°C in Bright mode (normal mode) 10% to 85% humidity (non-
Environmental conditions
All specications are subject to change without notice.Note:
condensing)
Operating: 5 ~ 45° C in ECO mode 10% to 85% humidity (non-condensing)
English
95
ADDITIONAL INFORMATION
Optoma global ofces
For service or support, please contact your local ofce.
