Optoma W490 Product Sheet

Digital

Cameras

Camcorders

Apple TV

Chromecast

™

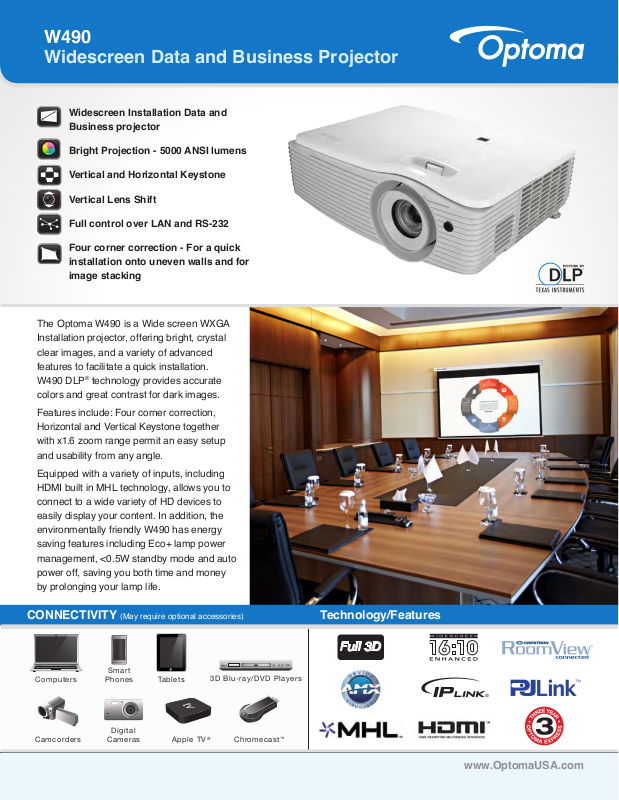

W490

Widescreen Data and Business Projector

Widescreen Installation Data and Business projector

Bright Projection - 5000 ANSI lumens

Vertical and Horizontal Keystone

Vertical Lens Shift

Full control over LAN and RS-232

Four corner correction - For a quick installation onto uneven walls and for image stacking

The Optoma W490 is a Wide screen WXGA Installation projector, offering bright, crystal clear images, and a variety of advanced features to facilitate a quick installation. W490 DLP® technology provides accurate colors and great contrast for dark images.

Features include: Four corner correction, Horizontal and Vertical Keystone together with x1.6 zoom range permit an easy setup and usability from any angle.

Equipped with a variety of inputs, including HDMI built in MHL technology, allows you to connect to a wide variety of HD devices to easily display your content. In addition, the environmentally friendly W490 has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money by prolonging your lamp life.

CONNECTIVITY (May require optional accessories) Technology/Features

Computers

Smart

Phones

Tablets

3D Blu-ray/DVD Players

Camcorders

Digital

Cameras

Apple TV

Chromecast

™

www.OptomaUSA.com

WXGA (1280 x 800) Installation DLP projector — W490

6 7 8

Lock Por t

1. Power

2. Kensington

4 5

™

3. USB (Power 1.5A)

4. LAN

5. mini USB (mouse /ser vice)

6. HDM I1-In

7. HDMI2- In (MHL)

8. VGA1-In (YPbPr)

9. VGA-Out

10. RS-232C

11. Composite Video

12.Audio1-In (3.5 mm)

13.Audio2-In (3.5 mm)

14.Audio -Out (3.5 mm)

15. 3D Sync

16. HDMI3- In (MHL)

17. USB Powered Cable

14. 5"

5.2"

12"

OPTICAL/TECHNICAL SPECIFICATIONS

Display Technology Single 0.65" WXGA chip,

Native Resolution

WXGA (1280 x 800)

Maximum Resolution 1080p (1920 x 1080)

Brightness

5000 ANSI Lumens

Contrast Ratio 10,000:1 (full on/full off)

Displayable Colors 1.07 Billion

Lamp Life 3000/3500 Hrs (Bright/Eco Mode)

Lamp Type1 310-Watt

Projection Method Front, rear, ceiling mount, table top

Keystone Correction ±30° Vertical; ±30° Horizontal

Uniformity 70%

Offset 96% –112%

Lens Shift Vertical: +16%

Geometry Four corner adjustment for each individual point

Aspect Ratio 16:10 (Native), 4:3, 16:9, Auto

Throw Ratio

1.48:1~ 2.35:1

Projection Distance 51.18"–377" (1.3 – 9.6 m)

Image Size 25.6"~ 301.1" (0.65–7.64 m), Diagonal 16:10

Projection Lens F=2.5 ~ 3.26, f=20.91~ 32.63 mm; manual focus

Optical Zoom

1.6x Manual zoom

Digital Zoom 0.8 – 2.0

Speaker

Two 16-Watt Speaker

Noise Level 29dB

Remote Control IR remote

Operating Temperature

Power Supply AC input 100– 240V, 50– 60 Hz, auto-switching

Power Consumption

High Altitude

421W Max (Bright), 329W Max (ECO), <0.5W (Standby)

Operating Temperature at sea level 10,000 feet =

Technology from Texas Instruments™

DLP

(constraints apply see user manual for details)

41–113°F (5–45°C), 85% max humidity

73.4°F (23°C) max; must manually switch to high altitude mode at 5,000 feet

PHYSICAL SPECIFICATIONS

Security Kensington® lock port, security bar, and keypad lock

Weight

10.2 lb (4.6 kg)

Dimensions (W x H x D) 14.5" x 5.2" x 12" (369 x 132 x 295 mm)

COMPATIBILITY SPECIFICATIONS

Computer Compatibility

Video Input Compatibility PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz,

3D Compatibility

Vertical Scan Rate 24– 85 Hz (120 Hz for 3D feature projector)

Horizontal Scan Rate 15.375– 91.146 KHz

User Controls Complete on-screen menu, adjustments in 26 languages

I/O Connection Ports 3x HDMI 1.4a (2 with MHL, 2 rear and 1 on top), 1x VGA-In,

Wireless Compatibility

Warranty

3-Year Optoma Express Service, 1-Year on Lamp

In the Box (Standard Accessories)

W490 projector, AC power cord, VGA cable, remote control, batteries, multilingual CDROM user’s manual, basic user manual and warranty card

Optional Accessories

Universal ceiling mount, Optoma screen, DLP

Accessory Part Numbers

Lamp: SP.70B01GC01 Remote: SP.70B01GC01 RF 3D Glasses: ZF2300Glasses RF 3D Emitter: BC300

Link™ 3D glasses: ZD302

DLP Wireless HDMI system: WHD200, HDCast PRO - BLACK Universal ceiling mount: OCM815B, OCM815W, OCM818B-RU, OCM818W-RU

UPC 796435 41 980 6

UXGA, SXGA, XGA, SVGA, VGA, WXGA, 1080p, Mac

4.443MHz), SECAM (B, D, G, K, K1, L, 4.25,MHz,

4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)

Side-by-Side:1080i(50/60Hz)

Frame-pack: 1080p(24Hz), 720p(50/60Hz) Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz) 3D glasses are needed and are sold separately. Refer to user manual for details.

1x VGA-Out,1x Composite Video (RCA-Y), 2x Audio-In (3.5mm jack), 1x Audio-Out (3.5mm jack), 1x RS-232C (9pin d-sub), 1x mini-USB (service/control), 1x USB-A (5V/1.5A out), RJ45 (LAN), 1x 3D vesa port, AC power (3 pin)

WHD200 (Source lock on), Chromecast™, FireTV™ Stick,

HDCast PRO - BLACK

Link™ 3D glasses, wireless HDMI system

Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time

3D content can be viewed with RF of DLP® Link active shutter 3D glasses when projector is used with a compatible 3D player. RF 3D glasses require the use of an RF 3D emitter and a projector with a 3D VESA Sync port. Please visit www.OptomaUSA.com for more information.

±5% variance

www.OptomaUSA.com

trademarks of Texas Instruments™. All other trademarks are the property of their

respective owners. All specications subject to change at any time. 11122015
