Optoma W320USTi, W320UST, EH320USTi, EH320UST, EH319USTi User Manual

Download

English

Table of Contents ............................1

Usage Notice ...................................2

Safety Information ...............................2

Precautions .........................................3

Eye Safety Warnings ...........................5

Product Features ................................5

Introduction ......................................6

Package Overview ..............................6

Product Overview ................................7

Main Unit .............................................. 7

Control Panel ....................................... 8

Input/Output Connections .................... 9

Remote Control .................................. 10

Installation .....................................11

Connecting to the Projector ..............11

Connecting a Computer/Notebook ....11

Connecting a Video source ................ 12

Connect to 3D Video Devices ...........13

Using the 3D glasses ........................15

Powering On/Off the Projector ..........16

Powering On the Projector ................. 16

Powering Off the Projector ................. 17

Warning Indicator ............................... 18

Adjusting the Projected Image ..........19

Adjusting the Projector’s Height ........ 19

Adjusting the Projector’s Focus.......... 20

Adjusting Projection Image Size ........ 20

User Controls.................................23

Control Panel & Remote Control .......23

Control Panel ..................................... 23

Remote Control .................................. 24

On-screen Display Menus .................27

How to operate ..................................27

Menu Tree .......................................... 28

IMAGE ............................................... 35

IMAGE | Advanced ............................38

DISPLAY ............................................43

DISPLAY | 3D ................................... 48

SETUP ............................................... 50

SETUP | Audio Settings .....................53

SETUP | Security ............................... 55

SETUP | Network ...............................57

SETUP | Network|LAN Settings ......... 58

SETUP | Network|Control Settings .... 60

SETUP | Signal (RGB) .......................70

SETUP | Signal (Video) .....................72

SETUP | Advanced ............................ 73

OPTIONS ........................................... 75

OPTIONS | Lamp Settings .................79

OPTIONS | Advanced ........................81

OPTIONS | Remote Settings ............. 83

OPTIONS | Filter Settings ..................84

Appendices ....................................85

Troubleshooting .................................85

Image Problems ................................. 85

Other Problems .................................. 87

Remote Control Problems .................87

LED Lighting Messages ..................... 88

On Screen Messages ........................ 89

Replacing the Lamp ..........................90

Installing and Cleaning the

Dust Filter .........................................92

Compatibility Modes .........................93

RS232 Commands and

Protocol Function List .......................95

RS232 Pin Assignments .................... 95

RS232 Protocol Function List ............ 96

Ceiling Mount Installation ................104

Optoma Global Offices ...................105

Regulation & Safety Notices ...........107

FCC Notice ...................................... 107

Declaration of Conformity for

EU countries .................................... 108

English

Usage Notice

Safety Information

The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.

2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.

3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.

4. Clean only with dry cloth.

5. Only use attachments/accessories specified by the manufacturer.

6. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

Unit has been dropped. Power supply cord or plug has been damaged. Liquid has been spilled on to the projector. Projector has been exposed to rain or moisture. -

Something has fallen in the projector or something is loose inside. Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.

7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

8. See projector enclosure for safety related markings.

9. The unit should only be repaired by appropriate service personnel.

English

Usage Notice

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user’s guide.

When the lamp  reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 90-91.

Warning-

Warning- When replacing the lamp, please allow the unit

Warning-

Warning- Reset the “Lamp Reset” function from the on-

Warning-

Do not look into the projector’s lens when the lamp is on. The bright light may hurt your eyes.

To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.

Please do not open or disassemble the projector as this may cause electric shock.

to cool down. Follow instructions as described on pages 90-91.

This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.

screen display “Options|Lamp Settings” menu after replacing the lamp module (refer to page

79).

When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.

When the lamp is approaching to the end of its life time, the message “Lamp life exceeded.” will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.

English

Usage Notice

Do:

Turn off and unplug the power plug from the AC outlet before  cleaning the product. Use a soft dry cloth with mild detergent to clean the display hous-  ing. Disconnect the power plug from AC outlet if the product is not be-  ing used for a long period of time.

Do not:

Block the slots and openings on the unit provided for ventilation.  Use abrasive cleaners, waxes or solvents to clean the unit.  Use under the following conditions: 

In extremely hot, cold or humid environments. -

Ensure that the ambient room temperature is within 5 ` C ~ 40 C

Relative humidity is 10% ~ 85% ` In areas susceptible to excessive dust and dirt. Near any appliance generating a strong magnetic field. In direct sunlight. -

English

Usage Notice

Eye Safety Warnings

Avoid staring/facing directly into the projector beam at all  times. Keep your back to the beam as much as possible.

When projector is used in a classroom, adequately super-  vise students when they are asked to point out something on the screen.

In order to minimize the lamp power, use room blinds to  reduce ambient light levels.

Product Features

Product features  may vary depending on model.

1080p (1920x1080) 

XGA (1024x768) / WXGA (1280x800) Native resolution 

HD compatible – 720p and 1080p supported 

BrilliantColor 

Kensington Lock 

RS232 control 

Rapid shutdown 

Full 3D (See page 94) 

Crestron/Extron/ PJLink 

Eco+ mode for more economic usage 

USB Power Charger 

Interactivity Support (Only for Interactive version) 

Technology

compatibility.

English

Introduction

Freeze

Power Switch

Keystone Volume

Page

-+-

1 2

Menu33D

HDMI5VGA6Video

User18User29User3

Source0Resync

Page+Laser

Enter

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact Optoma customer service.

Standard Accessories

For other laser  curtain accessories, please refer to the laser curtain user manual.

Optional  accessories vary depending on model, specification and region.

Projector

Power Cord Remote

CD User Manual



Warranty Card



Basic User Manual



Laser Curtain Module

2 × AAA Batteries Documentation

(for interactivity

version only)

Optional Accessories

HDMI Cable VGA Cable

English

Introduction

Product Overview

Main Unit

Do not block  projector in/out air vents.

Lamp Cover1. Control Panel2. Focus Switch3. IR Receiver4. Input/Output Connections5.

Lens6. Power Socket7. Speaker8. IR Camera (Only for 9. interactive version)

English

Introduction

Control Panel

1 3 5

Power1. Source2. Lamp Indicator3. Temperature (Temp) Indicator4. IR Receiver5.

2 4

English

Introduction

Input/Output Connections

Remote mouse  requires special remote.

2 31

Power Socket1. Kensington2.

Lock Port RJ45 Connector3. USB Power Connector (5V/2A Max.)4. 3D Sync Connector (5V)5. RS-232C Connector (9-pin DIN Type) 6. 12V Audio Out Connector7. USB Connector (Connect to PC for Remote Mouse 8. function) VGA-Out/VGA2-In Connector9. VGA1-In/YPbPr Connector (PC Analog Signal/Component 10. Video Input/HDTV/YPbPr) Composite Video Input Connector11. HDMI2 Input Connector12. HDMI1 Input Connector13. Audio 2 In Connector (3.5mm mini Jack)14. Composite Audio Input (right/left) Connector15. Audio Input Connector (microphone)16. Audio Output Connector (3.5mm mini Jack)17.

10 9 8

11121314151617

7654

English

Introduction

Freeze

Power Switch

Keystone Volume

Page

1 2

Menu33D

HDMI5VGA6Video

User18User29User3

Source

Resync

Page+Laser

Enter

Some keys may  have no function for models which do not support these features.

Remote Control

Power on / off1. Freeze2.

Display blank / audio 3. mute

Mouse left click4. Enter5. Laser6. Page -7. Keystone - / +8. Menu9. Aspect ratio10. HDMI11. User 212. User 113. Source14. Brightness mode15. Mouse on / off16. Mute17. Mouse right click18. Four directional 19. select keys Page +20. Volume - / +21. 3D menu on / off22. VGA23. Video24. User 325. Numeric keypad 26. (0-9) Re-sync27.

English

Installation

E62405SP

MOLEX

Connecting to the Projector

Connecting a Computer/Notebook

Due to the  difference in applications for each country, some regions may have different accessories. (*)  Optional accessory

3D glasses

1.............................................................................................. RS-232C cable

2. ........................................................................... Remote Mouse USB cable

3. ...................................................................................VGA1-In/YPbPr cable

4. ................................................................................................. *HDMI cable

5. ............................................................................................ Audio 2 In cable

6.....................................................................................................Power cord

7............................................................................................. Audio Out cable

8..........................................................................Audio In (microphone) cable

9................................................................................................... RJ-45 cable

10.........................................................................................*3D emitter cable

11..............................................................................VGA-Out/VGA2-In cable

Audio output

Microphone input

English

Installation

E62405SP

Connecting a Video source

DVD player, Blu-ray player, Set-top box, HDTV receiver, Games console

Due to the  difference in applications for each country, some regions may have different accessories. (*)  Optional accessory

3D glasses

1............................................................................. *3 RCA Component cable

2. ................................................................................................. *HDMI cable

3. ......................................................................................... *Audio2 In cable

4. ............................................................................................... Audio In cable

5. ....................................................................................................Power cord

6............................................................................................*Audio Out cable

7...................................................................................... Microphone In cable

8....................................................................................................Video cable

9...........................................................................................*3D emitter cable

DVD player, Set-top box, HDTV receiver

Audio output

English

Installation

The 3D video  source device must be powered on before the 3D projector.

If input video  is normal 2D, please press “3D Format” and switch to “Auto”. If “SBS Mode”  is active, 2D video content will not display correctly.

Connect to 3D Video Devices

Once you have connected your devices together with HDMI cables, as shown in the diagram, you are ready to begin. Power ON your 3D video source and your 3D projector.

PlayStation® 3 Games

Make sure that you have updated your console to the latest soft- y ware version. Go to the “Settings menu -> Display settings -> Video output -> y HDMI”. Select “Automatic” and follow the on-screen instructions. Insert your 3D game disc. Alternatively you can download games y (and 3D updates) via the PlayStation® network. Launch the game. In the in-game menu, select “Play in 3D”. y

Blu-ray 3D™ Player

Make sure that your player can support 3D Blu-ray™ disc and that y 3D output is enabled. Insert the 3D Blu-ray™ disc into the player, press “Play”. y

3D TV (e.g. SKY 3D, DirecTV)

Contact your TV service provider to enable any 3D channels on y your channel package. Once enabled, switch to the 3D channel. y You should see two images side-by-side. y Switch to the “SBS Mode” of the 3D projector. The option is lo- y cated in the “Display” section of the projector OSD menu.

3D Device (e.g. 3D DV/DC) with 2D 1080i side by side signal output

Connect your 3D device and switch to out 3D content with 2D y side-by-side output to 3D Projector.

You should see two images side-by-side. Switch to the “SBS Mode” of the 3D projector. The option is lo- y cated in the “Display” section of the projector OSD menu.

If watching 3D content from an HDMI 1.4a source (e.g. 3D Blu-ray) your 3D glasses should always be in sync. If watching 3D content from an HDMI 1.3 source (e.g. 3D broadcast using SBS mode) it may be necessary to use the projector’s 3D Sync-Invert option to optimize your 3D experience. The option is located in the “Display ->3D” section of the projector OSD menu.

English

Installation

3D Broadcast 3D Blu-ray™ Disc 3D Console Games

SKY+HD, cable/satellite

box

3D DLP®Link™ Glasses

3D RF Glasses 3D Emitter

3D Blu-ray™ Player

Full 3D 1080p DLP® Projector

PlayStation® 3

English

Installation

Using the 3D glasses

For more de-  tailed information, please refer to 3D glasses user’s guide.

To turn ON 3D glasses.1. Verify that 3D content is being sent to the projector and 2.

signal is compatible with projector specifications.

Turn on the “3D Mode” (Off/DLP-Link/VESA 3D - depend-3.

ing on which type of glasses you are using) of the 3D projector. The option is located in the “Display” section of the projector OSD menu.

Turn on 3D glasses and verify image appears in 3D with-4.

out eyestrain.

If the image does not appear in 3D, please check 3D 5.

device set up correctly to send out 3D image or not. Or “SBS Mode” should turn on when input signal is 2D 1080i side-by-side and repeat previous steps 1 ~ 4.

It may be necessary to use projector’s “3D Sync-Invert” 6.

option to optimize your 3D experience. The option is located in the “Display” section of the projector OSD menu.

To turn OFF 3D glasses: Press the “Power” button and 7.

hold until the LED switches off.

For more detailed information, please refer to the 3D 8.

glasses user’s guide, or manufacturer's Website.

English

Installation

Freeze

Power Switch

Powering On/Off the Projector

Powering On the Projector

1. Securely connect the power cord and signal cable. When connected, the On/Standby LED will turn Red.

2. Turn on the lamp by pressing “ ” button either on the top of the projector or on the remote. The On/Standby LED will now turn Blue.

The startup screen will display in approximately 10 seconds.

The first time you use the projector, you will be asked to select the preferred language and power saving mode.

3. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to “OPTIONS”. Make sure that the “Source Lock” has been set to “Off ”.

If you connect multiple sources at the same time, press the

“SOURCE” button on the Remote Control or direct source keys on the remote control to switch between inputs.

Turn on the projec-  tor first and then select the signal sources. (*) Optional  accessory.

English

Installation

Powering Off the Projector

1. Press the “ ” button on the remote control or on the Control Panel to turn off the projector. The following message will be displayed on the screen.

Power Off?

Press Power again

Press the “ ” button again to confirm otherwise the

message will disappear after 15 seconds. When you press the “ ” button for the second time, the projector will display countdown timer and will shut down.

2. The cooling fans continue to operate for about 10 seconds for cooling cycle and the On/Standby LED will flash Blue. When the On/Standby LED lights solid Red, the projector has entered standby mode.

If you wish to turn the projector back on, you must wait

until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press “ ” button to restart the projector.

3. Disconnect the power cord from the electrical outlet and the projector.

4. Do not turn on the projector immediately following a power off procedure.

English

Installation

Warning Indicator

When the warning indicators (see below) come on,

the projector will automatically shutdown:

Contact the  nearest service center if the projector displays these symptoms. See pages 105106 for more information.

 “LAMP” LED indicator is lit red and if “On/Standby” indicator

flashes red.

 “TEMP” LED indicator is lit red and if “On/Standby” indicator

flashes red. This indicates the projector has overheated. Under normal conditions, the projector can be switched back on.

 “TEMP” LED indicator flashes red and if “On/Standby”

indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds

and try again. If the warning indicator light up again, please contact your nearest service center for assistance.

English

Installation

Adjusting the Projected Image

Adjusting the Projector’s Height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to modify on the underside of the projector.

2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed.

Tilt-Adjustment Feet

Tilt-Adjustment Ring

English

Installation

Adjusting the Projector’s Focus

To focus the image, slide the focus switch until the image is clear.

Standard throw series (XGA): The projector will focus at dis-



tances from 1.55 to 2.21 feet (0.47 to 0.68 meters) counted from the center of lens..

Standard throw series (WXGA): The projector will focus



at distances from 1.59 to 2.15 feet (0.49 to 0.66 meters) counted from the center of lens..

Standard throw series (1080p): The projector will focus



at distance from 1.46 to 1.83 feet (0.45 to 0.56 meters) counted from the center of lens.

Focus Switch

Adjusting Projection Image Size

Projection Image Size (XGA) from 70”-100” (1.78 to 2.54



meters).

Projection Image Size (WXGA) from 85”-115” (2.16 to 2.92



meters).

Projection Image Size (1080p) from 80”-100” (2.03 to 2.54



meters).

English

Installation

(H)

(W)

(H)

(W)

Variables:

“a”: Image Offset (m) from the center of the lens to the top of the vertical image. “b”: Distance from the center of the lens to the bottom of the projector. “c”: Distance between the wall (projection surface) to the back of the projector. “d”: Image Diagonal. “g”: Distance between the center of the lens and wall (projection surface). “m”: Distance between the wall (projection surface) and the front of the projector. “p”: Distance from top of projector to the mounting hole. “H”: Height of the Image. “W”:Width of the image.

English

Installation

Standard throw XGA (4:3)

a b c d W H g m P

Distance

Image Offset

from the center

of the lens to the

top of the vertical

Distance from center

of lens to the bottom

image (m)

0.181 0.0631 0.219 70 56.0 1.42 42.0 1.07 1.55 0.47

0.192 0.0631 0.246 74 59.2 1.50 44.4 1.13 1.64 0.50

0.207 0.0631 0.287 80 64.0 1.63 48.0 1.22 1.77 0.54

0.233 0.0631 0.354 90 72.0 1.83 54.0 1.37 1.99 0.61

0.259 0.0631 0.422 100 80.0 2.03 60.0 1.52 2.21 0.68

of projector (m)

Distance between

the wall (projection

surface) to the back

of projector (m)

Image Diagonal

(inch)

Width of Image

(inch) (m) (inch) (m) (feet) (m)

Size

Height of Im-

age Size

Standard throw WXGA (16:10)

a b c d W H g m P

Image Offset

from the center

of the lens to the

top of the vertical

Distance from center

of lens to the bottom

image (m)

0.172 0.0631 0.232 85 72.1 1.83 45.0 1.14 1.59 0.49

0.176 0.0631 0.245 87 74.0 1.88 46.2 1.17 1.63 0.50

0.182 0.0631 0.261 90 76.4 1.94 47.7 1.21 1.69 0.51

0.202 0.0631 0.318 100 84.8 2.15 53.0 1.35 1.87 0.57

0.222 0.0631 0.375 110 93.3 2.37 58.3 1.48 2.06 0.63

0.232 0.0631 0.403 115 97.5 2.48 60.9 1.55 2.15 0.66

of projector (m)

Distance between

the wall (projection

surface) to the back

of projector (m)

Image Diagonal

(inch)

Width of Image

(inch) (m) (inch) (m) (feet) (m)

Size

Height of Im-

age Size

between

the center

of lens and

wall(projection

surface)

Distance

between

the center

of lens and

wall(projection

surface)

Distance between

the wall(projection

surface) and the

front of the projec-

tor (m)

0.5289 0.119

0.5559 0.119

0.5969 0.119

0.6639 0.119

0.7319 0.119

Distance between

the wall(projection

surface) and the

front of the projec-

tor (m)

0.5419 0.119

0.5549 0.119

0.5709 0.119

0.6279 0.119

0.6849 0.119

0.7129 0.119

Distance from top

of projector to

mounting hole (m)

Distance from top

of projector to

mounting hole (m)

Standard throw 1080p (16:9)

a b c d W H g m P

Distance

Image Offset

from the center

of the lens to the

top of the vertical

Distance from center

of lens to the bottom

image (m)

0.179 0.0631 0.193 80 69.7 1.77 39.2 1.00 1.46 0.45

0.200 0.0631 0.244 89 77.6 1.97 43.7 1.11 1.63 0.50

0.202 0.0631 0.249 90 78.4 1.99 44.1 1.12 1.65 0.50

0.224 0.0631 0.305 100 87.2 2.21 49.0 1.25 1.83 0.56

of projector (m)

Distance between

the wall (projection

surface) to the back

of projector (m)

Image Diagonal

(inch)

Width of Image

(inch) (m) (inch) (m) (feet) (m)

Size

Height of Im-

age Size

between

the center

of lens and

wall(projection

surface)

Distance between

the wall(projection

surface) and the

front of the projec-

tor (m)

0.5029 0.119

0.5539 0.119

0.5589 0.119

0.6149 0.119

 These tables are for user's reference only.

Distance from top

of projector to

mounting hole (m)

English

Control Panel & Remote Control

Control Panel

Using the Control Panel

User Controls

POWER

SOURCE

Lamp LED Indicate the projector’s lamp status.

Temp LED Indicate the projector’s temperature status.

IR Receiever

Refer to the “Power On/Off the Projector” section on pages 16-17.

Press to select an input signal.

Receives infrared signals from the remote control.

English

User Controls

Freeze

Power Switch

Keystone Volume

Page

1 2

Menu33D

HDMI5VGA6Video

User18User29User3

Source

Resync

Page+Laser

Enter

Remote Control

Using the Remote Control

Power

Switch

Display blank / audio mute

Freeze

Mute

Mouse left click

Mouse right click

Four directional select keys

Enter

Page -

Laser

Page +

Keystone

Press to turn on / off the projector.

Press to switch the USB mouse on / off.

Press to hide / unhide the screen picture and turn off / on audio.

Press to freeze the projector image.

Press to momentarily turn off / on the audio.

Use as mouse left click.

Use as mouse right click.

Use to select items or make adjustments to your selection.

Confirm your item selection.

Press to page down.

Use as laser pointer.

Press to page up.

Press to adjust image distortion caused by tilting the projector.

Volume

Aspect ratio / 1

Menu / 2

Press to adjust to increase / decrease the volume.

Press to change aspect ratio of a dis- ` played image. Use as numeric keypad number “1”. `

Press to display or exit the on-screen ` display menus for projector. Use as numeric keypad number “2”. `

English

User Controls

Freeze

Power Switch

Keystone Volume

Page

1 2

Menu33D

HDMI5VGA6Video

User18User29User3

Source

Resync

Page+Laser

Enter

Using the Remote Control

Press to manually select a 3D mode that `

3D / 3

matches your 3D content. Use as numeric keypad number “3”. `

HDMI / 4

VGA / 5

Video / 6

User1 / 7; User2 / 8; User3 / 9

Source

Press to choose HDMI source. ` Use as numeric keypad number “4”. `

Press to choose VGA source. ` Use as numeric keypad number “5”. `

Press to choose composite video source. ` Use as numeric keypad number “6”. `

User defined keys. ` Use as numeric keypad numbers “7”, “8”, ` and “9” accordingly.

Press to select an input signal.

Press to automatically adjust the picture `

Brightness mode / 0

brightness to give an optimum contrast performance. Use as numeric keypad number “0”. `

Re-sync

Press to automatically synchronize the projector to the input source.

English

User Controls

Installing Batteries

Two size AAA batteries are supplied for Remote Control.

Replace only with the same or equivalent type recommended by the manufacturer.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

Do not mix batteries of different types. Different types of batteries have different characteristics.

Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

If you will not be using the remote control unit for an extended period of time, remove batteries from it.

When you dispose of the battery, you must obey the law in the relative area or country.

English

User Controls

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

How to operate

1. To open the OSD menu, press “Menu” on the Remote Control or Control Panel.

2 When OSD is displayed, use keys to select any item in the

main menu. While making a selection on a particular page, press

or “Enter” key to enter sub menu.

3. Use keys to select the desired item in the sub menu and then press or “Enter” key to view further settings. Adjust the settings by key.

4. Select the next item to be adjusted in the sub menu and adjust as described above.

5. Press “Enter” or “Menu” to confirm, and the screen will return to the main menu.

6. To exit, press “Menu” again. The OSD menu will close and the projector will automatically save the new settings.

Main Menu

Sub Menu

DIsplay Mode

Brightness

Contrast

Sharpness

Color

Tint

Advanced


Presentation

Settings

English

User Controls

Menu Tree

Main


Sub Menu Advanced Menu Parameter Single Item in the Menu

Display Mode

Brightness -50~ +50

Contrast -50~ +50

Sharpness 1~ 15

Color -50~ +50

Tint -50~ +50

Noise Reduction 0~10

BrilliantColor™ 1~10

Gamma

Color Temp. Standard/Cool / Cold

Color Space

Red Gain

Advanced

RGB Gain/Bias

Color Matching

Green Gain

Blue Gain

Red Bias

Green Bias

Blue Bias

Reset

Exit

Red

Green

Blue

Presentation / Bright / Movie / sRGB / Blackboard / DICOM SIM. / 3D / User

Film/ Graphic/1.8/2.0/2.2/2.6/ Blackboard / DICOM SIM./3D

Not HDMI Input: Auto / RGB / YUV

HDMI Input: Auto/ RGB(0~255) / RGB(16~235)/ YUV

Hue/ Saturation /Gain/ Exit

Value or

Default

Auto

-50~ +50

Notes

Each mode can adjust and save to user mode.

All gamma could be selected for all display modes.

To reset current source with current display mode for RGB Gain/Bias

English

User Controls

Main


DISPLAY

IMAGE 3D

Sub Menu Advanced Menu Parameter Single Item in the Menu

Cyan

Magenta

Advanced

Reset Yes/No

Format

Zoom -5 ~ +25

Edge Mask 0 ~ 10

Image Shift

V Keystone -15~ +15 1080p: -5~+5

Color Matching

Exit

H -50~ +50

V -50~ +50

3D Mode

3D->2D 3D/ L/ R

3D Format

3D Sync Invert On/Off Off

Exit

Yellow

White R/G/B/Exit -50~ +50

Reset To reset current

Exit

Hue/ Saturation /Gain/ Exit

4:3

16:9/16:10[WXGA]

LBX

Native

Auto

DLP-Link/ VESA 3D /Off (For projector don’t have VESA port, use “ IR “)

Auto/SBS/Top and Bottom/Frame Sequntail

Value or

Default

-50~ +50

Auto

Default is “Auto”

DLPLink

Notes

source with current display mode for CMS settings

To reset current source with current display mode for image settings.

Up/Down/Right/ Left(Icon in center)

The items would be greyed out when 3D mode sets to Off.

English

User Controls

Main Menu

SETUP

Sub Menu Advanced Menu Parameter Single Item in the Menu

English / Deutsch / Français / Italiano / Español / Português / Polski / Nederlands /

Language

Projection

Screen Type

Menu Location

Svenska / Norsk/Dansk /

Suomi / ελληνικά / 繁體中文 / 簡体中文 / 日本語 /

한국어 / Русский / Magyar / Čeština / عربي / Türkçe

/ Farsi / Romanian/ Slovakian

Front-Desktop

Rear-Desktop

Front-Ceiling

Rear-Ceiling

16:10/16:9 (WXGA MODEL)

Top Left

Top Right

Center

Bottom Left

Bottom Right

Value or

Default

English

Front Ceiling

Default is “16:10”

Center

Notes

English

User Controls

Main

SETUP

Sub Menu Advanced Menu Parameter Single Item in the Menu

Security Setting On/Off Off

Month 0~12

Security

Signal (RGB)

Signal (Video)

Projector ID 00~99

Auto Settings

Advanced

Security Timer

Change Password

Exit

Frequency -5~+5

Phase 0~63

H. Position -5~+5

V. Position -5~+5

Automatic

Exit

White Level -50~+50

Black Level -50~+50

Exit

Internal Speaker On/Off On

Mute On/Off Off

Volume

Audio Input Default/Audio 1/Audio 2 Default

Exit

Logo Optoma/ Neutral /User Optoma

Logo Capture

Closed Captioning CC1/CC2/Off Off

Exit

Enable/ Disable

Audio 0-10

MIC 0-10

Day 0~30

Hour 0~24

Exit

Value or

Default

Notes

Password is required if “Security” is selected.

Depends on signal

Audio 1 (RCA) for Composite Audio 2 (Mini jack) for VGA

English

User Controls

Main

SETUP Network

OPTIONS

Sub Menu Advanced Menu Parameter Single Item in the Menu

Input Source

Source Lock On/Off Off

High Altitude On/Off Off

Information Hide

Keypad Lock On/Off Off

Test Pattern

Background Color

12V Trigger On/Off On

VGA2 Switch In/Out Out

LAN Settings

Control Settings

Network Status

DHCP On/Off

IP Address

Subnet Mask

Gateway

DNS

Apply Yes/No

MAC Address

Exit

Crestron On/Off On

Extron On/Off On

PJ Link On/Off On

AMX Device Discovery

Telnet On/Off On

Exit

Read-Only

On/Off On

HDMI 1/HDMI 2/VGA 1/ VGA 2/Video

Exit

On/Off Off

None / Grid(white) / Grid(Green) / Grid(Magenta)/ White

Blue / Black / Red / Green / White

Value or

Default

None

Blue Default is Blue

Notes

Never time-out on this page.

When no signal input, user still could do selection for “Input Source” from OSD.

English

User Controls

Main

OPTIONS

Sub Menu Advanced Menu Parameter Single Item in the Menu

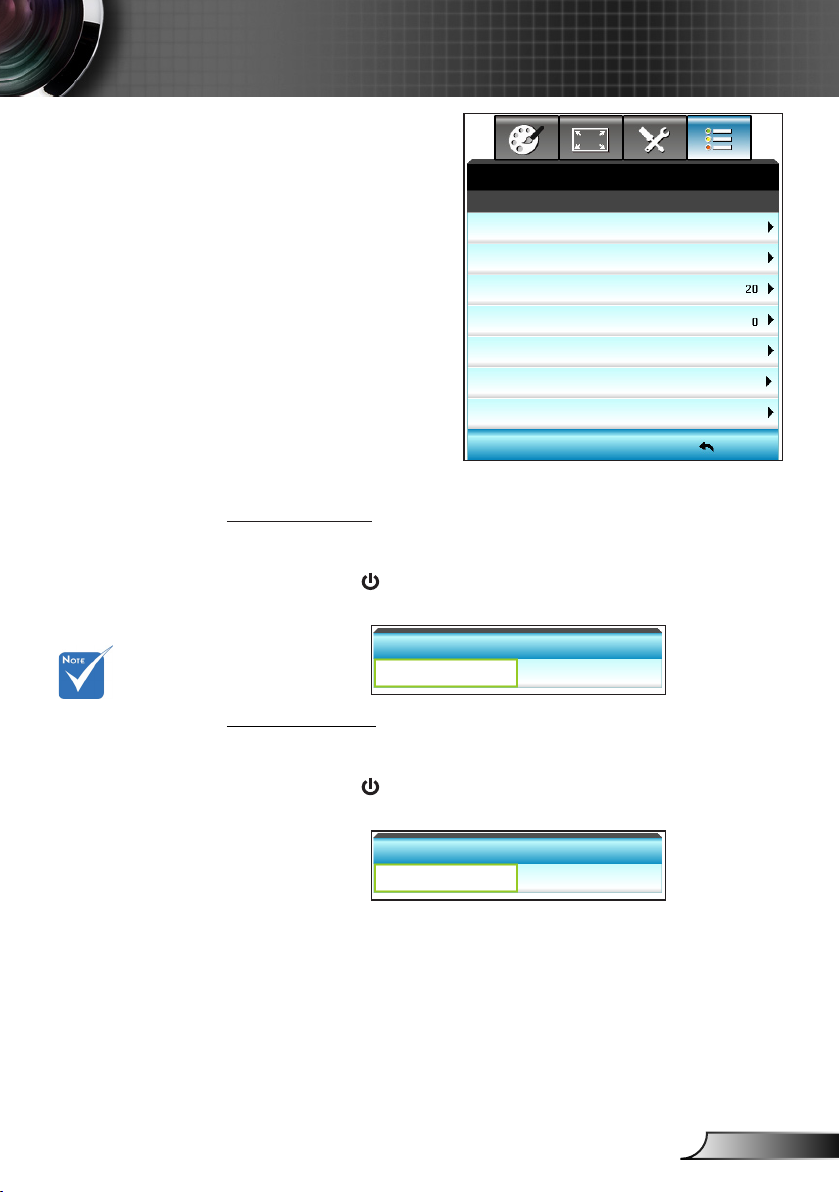

Direct Power On On/Off

Signal Power on On/Off

Auto Power Off (min)

Sleep Timer (min) 0~990

Advanced

Lamp Settings

Filter Settings

Power Mode ( Standby)

Quick Resume On/Off Off

User 1

Remote Settings

Exit

Lamp Hour Read-Only[Range 0~ 9999]

Lamp Reset Yes/No No

Lamp Reminder On/Off On

Brightness Mode

Exit

Filter Usage Hours Read-Only [Range 0~ 9999]

Filter Reminder

Filter Reset Yes/No No

Exit

User 2

User 3

Active/ Eco. Eco.

HDMI2/VGA2/Test Pattern/LAN/Brightness/ Contrast/Sleep Timer/ Color Matching/Color Temp/Gamma/ Source Lock /Projection/Lamp Settings/Zoom/Freeze

Bright/Eco./Dynamic/ Eco+

Off/ 300hr/500hr/800hr/1000hr

Value or

Default

0~180

HDMI2

VGA2

Test Pattern

Bright

500hr

Notes

English

User Controls

Main

OPTIONS Reset Current/All

Sub Menu Advanced Menu Parameter Single Item in the Menu

Value or

Default

Notes

The denition of

Current: To reset all OSD settings to be default for current source and current timing.

The denition of

All: To reset all OSD settings to be default for all source and all timing..

English

User Controls


DIsplay Mode


Brightness

Contrast

Sharpness

Color

Tint

Advanced

Display Mode

There are many factory presets optimized for various types of images.

Presentation: This mode is suitable for showing in front of public ` in connection to the PC.

Bright: Maximum brightness from PC input. ` Movie: This mode is suitable for watching video. ` User: Memorize user’s settings. ` Blackboard: This mode should be selected to achieve optimum ` color settings when projecting onto a blackboard (green). DICOM SIM.: This mode can project a monochrome medical ` image such as an X ray radiography, MRI, etc. sRGB: Standardized accurate color. ` 3D: To experience the 3D effect, you need to have 3D glasses, ` make sure your PC/portable device has a 120 Hz signal output quad buffered graphics card and have a 3D Player installed.

Presentation

English

User Controls

Brightness

Adjust the brightness of the image.

Press the ` to darken image.

Press the► ` to lighten the image.

Brightness

Presentation

Bright

Movie

User

Blackboard

DICOM SIM.

sRGB

User

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Press the ` to decrease the contrast. Press the ` to increase the contrast.

Contrast

English

User Controls

Sharpness

Adjust the sharpness of the image.

Press the ` to decrease the sharpness. Press the ` to increase the sharpness.

Sharpness

Color

Adjust a video image from black and white to fully saturated color.

Press the ` to decrease the amount of saturation in the im- age. Press the ` to increase the amount of saturation in the im- age.

Color

Tint

Adjust the color balance of red and green.

Press the ` to increase the amount of green in the image. Press the ` to increase the amount of red in the image.

Tint

Reset

Choose “Yes” to return the factory default settings for “IMAGE”.

Exit

Choose “Exit” to exit the menu.

English

User Controls


Advanced

IMAGE | Advanced

Noise Reduction

Selects a filter sensitivity to noise. A higher value may improve noisy sources, but it will soften the image.

Press the ` to decrease the noise in the image. Press the ` to increase the noise in the image.

Noise Reduction

Gamma

This allows you to set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.

Film: for home theater. ` Graphics: for PC / Photo source. ` Blackboard: This mode should be selected to achieve optimum ` color settings when projecting onto a blackboard (green). DICOM SIM.: This mode can project a monochrome medical ` image such as an X ray radiography, MRI, etc.

Press the or to select the mode.

Noise Reduction

Gamma

Brilliant Color

RGB Gain/Bias

Color Temp.

Color Matching

Color Space

Film

Cool

Auto

Exit

Gamma

Film

English

User Controls

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture.

Press the ` to stronger enhance the image. Press the ` to less enhance the image.

Brilliant Color

RGB Gain/Bias

This settings allows to configure the brightness (gain) and contrast (bias) of an image.

Press the ` to decrease a chosen color gain and bias. Press the ` to increase a chosen color gain and bias.

RGB Gain/Bias

Red Gain

Green Gain

Blue Gain

Red Bias

Green Bias

Blue Bias

Reset

Exit

Color Temp.

Press the or to select a color temperature from Standard, Cool and Cold.

Color Temp.

Cool

English

User Controls

Color Matching

Press the into the next menu and then use or or or

to select the item.

Color Matching

Red ` : Press the or to select Hue, Saturation and Gain

Colors. Then press the or to decrease or increase the value respectively.

Red

Hue

Saturation

Gain

Red

Green

Blue

White

Cyan

Magenta

Yellow

Reset

Exit

Cyan ` : Press the or to select Hue, Saturation and Gain

Colors. Then press the or to decrease or increase the value respectively.

Cyan

Hue

Saturation

Gain

Exit

English

User Controls

Green ` : Press the or to select Hue, Saturation and Gain Colors. Then press the or to decrease or increase the value respectively.

Green

Hue

Saturation

Gain

Exit

Magenta ` : Press the or to select Hue, Saturation and

Gain Colors. Then press the or to decrease or increase the value respectively.

Magenta

Hue

Saturation

Gain

Exit

Blue ` : Press the or to select Hue, Saturation and Gain

Colors. Then press the or to decrease or increase the value respectively.

Blue

Hue

Saturation

Gain

Exit

Yellow ` : Press the or to select Hue, Saturation and Gain

Colors. Then press the or to decrease or increase the value respectively.

Yellow

Hue

Saturation

Gain

Exit

English

User Controls

White ` : Press the or to select Hue, Saturation and Gain

Colors. Then press the or to decrease or increase the value respectively.

White

Hue

Saturation

Gain

Reset: Choose “ ` Reset” to return the factory default settings for color adjustments.

Color Space

Press the or to select an appropriate color matrix type

from the following:

Non-HDMI Input: Auto, RGB or YUV ` HDMI Input: Auto, RGB(0-255), RGB(16-235) or YUV. `

Color Space

Exit

Auto

Reset

Current: Choose “Yes” to return the display parameters on this ` menu to the factory default settings. All: Choose “Yes” to return the display parameters on all menus ` to the factory default settings.

Exit

Choose “Exit” to exit the menu.

English

User Controls

DISPLAY

Format

DISPLAY

Format

Press the or to choose your desired aspect ratio between 4:3, 16:9/16:10 (WXGA), LBX, Native, and Auto.

Format

XGA

4:3: This format is for 4:3 input sources. `

16:9: This format is for 16:9 input sources, like HDTV and ` DVD enhanced for Wide screen TV.

Native: This format displays the original image without any `

scaling.

AUTO: Automatically selects the appropriate display format. `

Source 480i/p 576i/p 1080i/p 720p

4:3 Scale to 1024 x 768

16:9 Scale to 1024 x 576

Native

Auto

No scaling will be made; the resolution is dependent on which input source and is then displayed.

If source is 4:3, it will be auto resized to 1024 x 768 ` If source is 16:9, it will be auto resized to 1024 x 576 ` If source is 15:9, it will be auto resized to 1024 x 614 ` If the source is 16:10, it will be auto resized to 1024 x 640 `

Zoom

Edge Mask

Image Shift

V. Keystone

Exit

English

User Controls

WXGA

4:3: ` This format is for 4:3 input sources.

16:9: This format is for 16:9 input sources, like HDTV and ` DVD enhanced for Wide screen TV. 16:10: This format is for 16:10 input sources, like widescreen `

laptops. LBX: This format is for non-16x9, letterbox source and for us- ` ers who use external 16x9 lens to display 2.35:1 aspect ratio using full resolution.

Native: This format displays the original image without any ` scaling. AUTO: Automatically selects the appropriate display format. `

Detail informations about LBX mode:

Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. 1. In this situation, the image will not look right when displayed in 16:9 mode. In this situation, please try to using the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of content, you can use LBX mode to fill the image on the 16:9 display. If you use an external anamorphic lens, this LBX mode also 2. allows you to watch a 2.35:1 content (include Anamorphic DVD and HDTV film source) that support anamorphic wide is enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp power and vertical resolution are fully utilized.

16:9 Screen 480i/p

4:3

16:9 Scale to 1280 x 720

LBX

Native

Auto

Scale to 960 x 720

Scale to 1280 x 960, in order to get the central 1280 x 720 image displayed on the screen.

1:1 mapping centered

If this format is selected, the screen type will automati- ` cally set to 16:9 (1280 x 720) If source is 4:3, it will be auto resized to 960 x 720 ` If source is 16:9, it will be auto resized to 1280 x 720 ` If source is 15:9, it will be auto resized to 1200 x 720 ` If the source is 16:10, it will be auto resized to 1152 x 720 `

576i/p

1080i/p

1:1 mapping display 1280 x 720

720p PC

1280 x 720 centered

1:1 mapping centered

English

User Controls

16:10 Screen 480i/p 576i/p 1080i/p 720p PC

4:3 Scale to 1066 x 800

16:10 Scale to 1280 x 800

LBX

Native

Auto

4:3: ` This format is for 4:3 input sources.

16:10: This format is for 16:10 input sources, like widescreen `

laptops. LBX: This format is for non-16x9, letterbox source and for us- ` ers who use external 16x9 lens to display 2.35:1 aspect ratio using full resolution.

Native: This format displays the original image without any ` scaling. AUTO: Automatically selects the appropriate display format. `

16:9 Screen 480i/p 576i/p 1080i/p 720p PC

4:3 Scale to 1440 x1080

16:10 Scale to 1920x1080

LBX

Native

Auto

Scale to 1280 x 960, in order to get the central 1280 x 800 image displayed on the screen.

1:1 mapping centered

Input source will be fit into 1280x800 display area and be ` kept its original aspect ratio If source is 4:3, auto resize to 1066 x 800 ` If source is 16:9 auto resize to 1280 x 720 ` If source is 15:9 auto resize to 1280 x 768 ` If source is 16:10 auto resize to 1280 x 800 `

1:1 mapping display 1280 x 800

1280 x 720 centered

1080P

Scale to 1920 x 1440, in order to get the central 1920 x 1080 image displayed on the screen.

1:1 mapping centered No scaling will be made; the resolution is dependent on which input source and is then displayed.

If this format is selected, the screen type will automatically ` become 16:9 If source is 4:3, auto resize to 1440 x 1080 ` If source is 16:9 auto resize to 1920 x 1080 ` If source is 16:10 auto resize to 1920 x 1200 and cut to ` 1920 x x1080 area display

1:1 mapping centered

English

User Controls

Zoom

Press the ` to reduce the size of an image. Press the ` to magnify an image on the projection screen.

Edge Mask

Edge mask the image to remove video encoding noise on the edge of video source.

Press the ` to decrease the edge mask in image. Press the ` to increase the edge mask in image.

Image Shift

Press the into the next menu as below and then press the

Each I/O has  different setting of “Edge Mask”. “Edge Mask” and  “Zoom” can’t work at same time.

or or or to select item.

Zoom

Edge Mask

Image Shift

H: Press the ` to shift the projected image position horizontally. V: Press the ` to shift the projected image position verti- cally.

English

User Controls

V Keystone

Press the or to adjust image distortion vertically and make a squarer image.

V. Keystone

Exit

Choose “Exit” to exit the menu.

English

User Controls

DISPLAY | 3D

3D Mode

DISPLAY

DLP - Link

3D Format is only  supported on 3D Timing on page

94. “3D Format” is  only supported on non-HDMI 1.4a 3D timing.

3D Mode

Off: ` Select “Off ” to turn off 3D mode.

Press the ` or to select the 3D mode.

3D Mode

DLP-Link: Select “DLP-Link” to use optimized settings for DLP ` Link 3D Glasses. (refer to page 15).

VESA 3D: Select “VESA 3D” to use optimized setting for VESA ` 3D Glasses. (refer to page 15).

3D -> 2D

Press the ` or to select 3D -> 2D.

3D: Display 3D signal. ` L (Left): Display the left frame of 3D content. ` R (Right): Display the right frame of 3D content. `

3D Format

3D Sync. Invert

DLP - Link

Frame Sequential

Off

Exit

English

User Controls

3D Format

Press the ` or to select 3D format.

3D Format

Frame Sequential

Auto: When a 3D identification signal is detected, the 3D for- ` mat is selected automatically. SBS: Display 3D signal in “Side-by-Side” format. ` Top and Bottom: Display 3D signal in “Top and Bottom” format. ` Frame Sequential: Display 3D signal in “Frame Sequential” ` format.

3D Sync. Invert

Press the ` or to select 3D sync. invert.

3D Sync. Invert

Off

Press the “On” to invert left and right frame contents. ` Press the “Off” for default frame contents. `

Exit

Choose “Exit” to exit the menu.

English

User Controls

SETUP

Language

Projection

Menu Location

Audio Settings

Sceen Type

Security

Projector ID

Signal (RGB)

Advanced

Network

Signal (Video)

Advanced

Network

English

Exit

English

User Controls

Language

Choose the multilingual OSD menu. Press into the sub menu and then press the or or or ►key to select your preferred language. Press “Enter” to finalize the selection.

Language

Exit

Projection

Press the or or or ►key to select the preferred projection.

Rear-Desktop and  Rear-Ceiling are to be used with a translucent screen.

Projection

Exit

` Front-Projection

This is the default selection. The image is projected straight on the screen.

` Rear-Desktop

When selected, the image will appear reversed.

` Front-Ceiling

When selected, the image will turn upside down.

` Rear-Ceiling

When selected, the image will appear reversed in upside down position

English

User Controls

Menu Location

Press the or or or ►key to select the preferred menu location.

Menu Location

Screen Type

Press the or to choose the screen type from16:10* or 16:9.

Exit

*This screen type  applies to WXGA only.

Screen Type

Projector ID

ID definition can be set up by menu (range 0-99), and allow user control an individual projector by RS232.

Press the ` to decrease the projector ID number. Press the ` to increase the projector ID number.

Projector ID

Exit

Choose “Exit” to exit the menu.

English

User Controls

SETUP |

Audio Settings

Internal Speaker

Choose the “On” or “Off” to turn on or off the internal speaker.

SETUP

Audio Settings

Internal Speaker

Mute

Volume

Audio Input

Default

Exit

Off

“Mute” function  affects both internal and external speaker volume.

Internal Speaker

Off

Mute

Choose the “On” to turn mute on. ` Choose the “Off” to turn mute off. `

Mute

Off

Volume

Press the ` to decrease the volume. Press the ` to increase the volume.

Volume

Audio

Mic

Exit

English

User Controls

Audio Input

The default audio settings are on the back panel of the projector. Use this option to reassign any of the Audio Inputs (1 or 2) to the current image source. Each Audio input can be assigned to more than one video source.

Press ` or to select audio input.

Default. ` Audio 1: (RCA) for Composite ` Audio 2: (Mini jack) for VGA `

Exit

Choose “Exit” to exit the menu.

Audio Input

Default

English

User Controls

SETUP | Security

Security

On: Choose “On” to use security verification when the turning ` on the projector. Off: Choose “Off” to be able to switch on the projector without ` password verification.

Security

Security Timer

Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Press the or to set the month, day, and hour.

SETUP

Security

Security Timer

Change Passwords

Off

Exit

Security Timer

Month

Day

Hour

Exit

English

User Controls

Change Password

First time: `

Pass-code default  value is “1234” (first time).

Enter Security Code (4 digits)

REMOTE

Press “Enter” key to set the password.1. The password has to be 4 digits. 2.

Use number button on the remote or on-screen numeric key-3. pad to enter your new password and then press “Enter” key to confirm your password.

Change Password: ` (If your remote does not have a number keypad, please use the up/down arrows to change each digit of the password, then press enter to confirm) Press “Enter” to input old password.1.

Use number button 2. or on-screen numeric keypad to enter current password and then press “Enter” to confirm. Enter new password (4 digits in length) using the number but-3. tons on the remote, then press “Enter” to confirm. Enter new password again and press “Enter” to confirm.4.

If the incorrect password is entered 3 times, the projector will ` automatically shut down. If you have forgotten your password, please contact your local ` office for support.

Exit

Choose “Exit” to exit the menu.

English

User Controls

SETUP | Network

LAN Settings

For more information on LAN Settings, refer to page 58-59, and 62-69

Control Settings

For more information on Control Settings, refer to page 60-69.

SETUP

Network

LAN Settings

Control Settings

Exit

Loading network configuration

Please wait...

English

User Controls

SETUP |

Network|LAN

Settings

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

DHCP

Network LAN Settings

Network Status

MAC Address

DHCP

IP Address

Subnet Mask

Gateway

DNS

Apply

SETUP

Connected

Off

Exit

DHCP

Off

On: Projector will obtain an IP address automatically from your ` network. Off: To assign IP, Subnet Mask, Gateway and DNS ` configuration manually.

Exiting OSD will automatically apply the entered values.

IP Address

Display the IP address.

English

User Controls

Subnet Mask

Display subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display DNS number.

Apply

Press and then choose “Yes” to apply the selection.

Apply

No Yes

Exit

Choose “Exit” to exit the menu.

English

User Controls

SETUP |

Network|Control

Settings

Crestron

Use this function to select the network function (port: 41794). For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.

On: The Crestron function is active. ` Off: The Crestron function is inactive. `

Extron

Off

SETUP

Network: Control Settings

Crestron

Extron

PJ Link

AMX Device Discovery

Telnet

Off

Exit

Extron

Off On

Use this function to select the network function (port: 2023).

On: The Extron function is active. ` Off: The Extron function is inactive. `

PJ Link

Off

Use this function to select the network function (port: 4352).

On: The PJ Link function is active. ` Off: The PJ Link function is inactive. `

English

User Controls

AMX Device Discovery

Off

Use this function to select the network function (port: 1023).

On: The AMX Discovery function is active. ` Off: The AMX Discovery function is inactive. `

Telnet

Off

Use this function to select the network function (port: 23).

On: Telnet is enabled. ` Off: Telnet is disabled. `

Exit

Choose “Exit” to exit the menu.

English

User Controls

LAN_RJ45 Function

For simplicity and ease of operation, the W320UST projector provides diverse networking and remote management features. The LAN/RJ45 function of the projector through a network, such

Use Ethernet Nor-  mal Cable to connect the projector to LAN..

as remotely manage: Power On/Off, Brightness and Contrast settings. Also, projector status information, such as: VideoSource, Sound-Mute, etc.

Projector

Wired LAN Terminal Functionalities

This projector can be controlled by using a PC (laptop) or other external device via LAN/RJ45 port and compatible ith Crestron / Extron / AMX (Device Discovery) / PJLink.

Crestron is a registered trademark of Crestron Electronics, Inc. ` of the United States. Extron is a registered trademark of Extron Electronics, Inc. of ` the United States. AMX is a registered trademark of AMX LLC of the United ` States. PJLink applied for trademark and logo registration in Japan, ` the United States of America, and other countries by JBMIA.

Wired LAN Terminal Functionalities

W320UST projector is supported by the specified commands of the Crestron Electronics controller and related software, for example RoomView®. http://www.crestron.com/ This projector is compliant to support Extron device(s) for reference. http://www.extron.com/ This projector is supported by AMX ( Device Discovery ). http://www.amx.com/

(Ethernet)

English

User Controls

This projector supports all commands of PJLink Class1 (Version

1.00). http://pjlink.jbmia.or.jp/english/ For more detailed information about the various types of external devices which can be connected to the LAN/RJ45 port and remote/control the project, as well as the supported commands for these external devices, please contact the Support-Service directly.

LAN RJ45

Connect an RJ45 cable to RJ45 ports on the projector and the 1. PC (laptop).

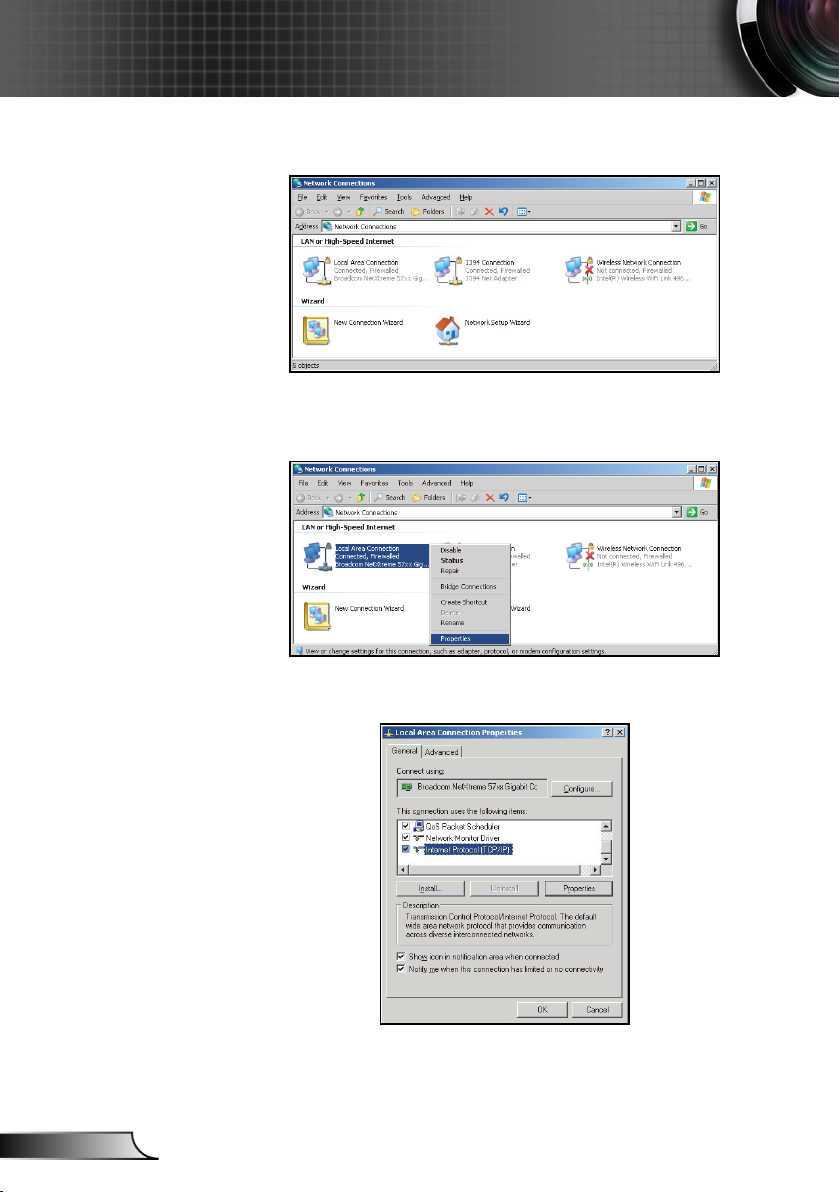

On the PC (Laptop), select Start > Control Panel > Network 2. Connections.

English

User Controls

Right-click on the Local Area Connection, and select Property.3.

In the Properties window, select the General tab, and select 4. Internet Protocol (TCP/IP).

Click “Properties”.5.

English

User Controls

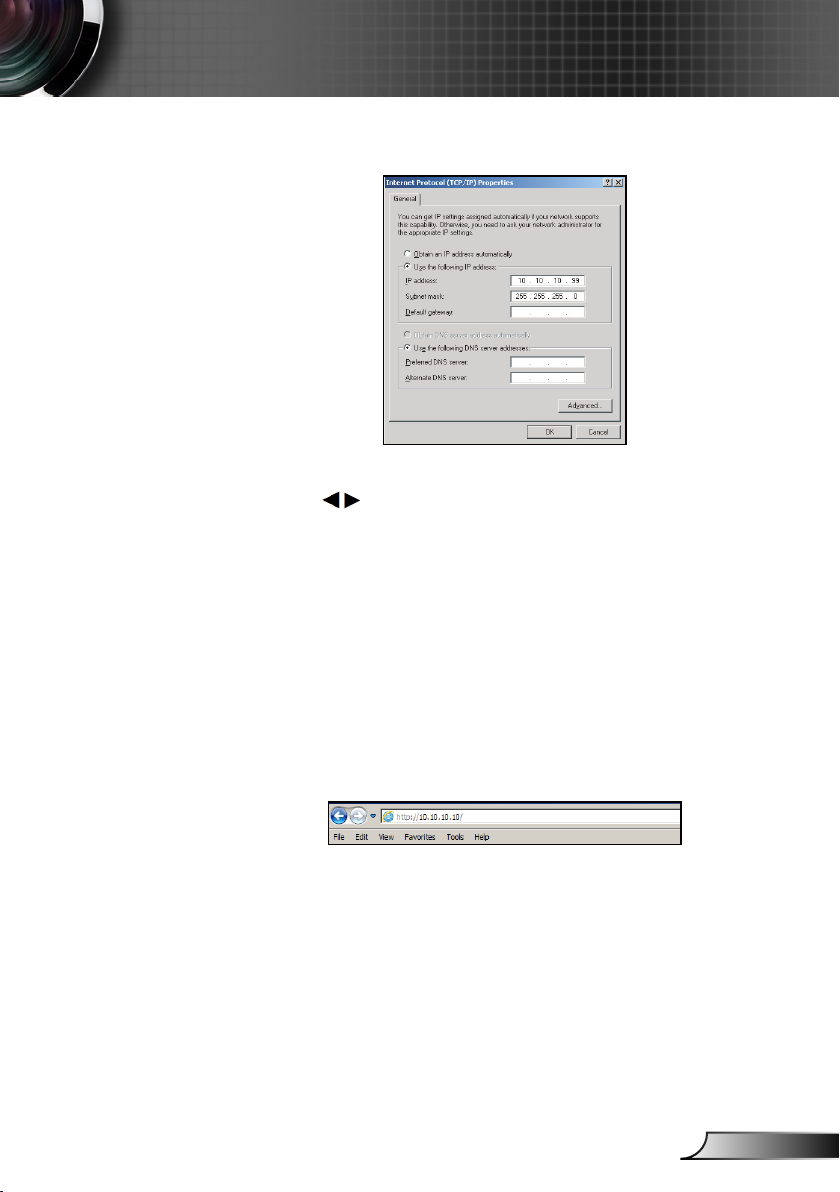

Type in the IP address and Subnet mask, then press “OK”.6.

Press the “Menu” button on the projector.7. Use 8. keys to select SETUP > Network > LAN Settings. After getting into LAN Settings, input the following connection 9. parameters:

DHCP: Off ` IP Address: 10.10.10.10 ` Subnet Mask: 255.255.255.255 ` Gateway: 0.0.0.0 `

DNS: 0.0.0.0 ` Press “Enter” to confirm settings.10. Open a web browser, for example Microsoft Internet Explorer.11. with Adobe Flash Player 9.0 or higher installed. In the Address bar, input the projector’s IP address: 12.

10.10.10.10.

English

User Controls

Press “Enter”.13. The projector is setup for remote management. The LAN/RJ45 function displays as follows:

Information Page

Main Page

English

User Controls

Tool Page

Contact IT Helpdesk

RS232 by Telnet Function

There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN/RJ45 interface.

English

User Controls

Quick Start-Guide for “RS232 by Telnet”

Check and get the IP address on OSD of the projector. ` Make sure that the PC/laptop can access the web-page of the ` projector. Make sure that "Windows Firewall" setting is set disabled in ` case of "TELNET" function filtering out by PC/laptop. .

Start > All Programs.> Accessories > Command Prompt.1.

Input the command format as follows:2. telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed) (ttt.xxx.yyy.zzz: IP-Address of the projector) If Telnet-Connection ready, and user can have RS232 com-3. mand input, then “Enter” key pressed, the RS232 command will be workable.

English

User Controls

In Windows XP  built-in “TELNET. exe” utility, “Enter” key pressed will have “Carriage-Return” and “New-Line” code.

Specification for “RS232 by TELENT”:

Telnet: TCP.1. Telnet port: 23 (for more detail, kindly please get contact with 2. the service agent or team). Telnet utility: Windows “TELNET.exe” (console mode).3. Disconnection for RS232-by-Telnet control normally: Close4. Windows Telnet utility directly after TELNET connection ready.5.

Limitation 1 for Telnet-Control: there is less than 50 bytes for `

successive network payload for Telnet-Control application.

Limitation 2 for Telnet-Control: there is less than 26 bytes for `

one complete RS232 command for Telnet-Control.

Limitation 3 for Telnet-Control: Minimum delay for next `

RS232 command must be more than 200 (ms).

English

User Controls

SETUP |

Signal (RGB)

Automatic

“Signal” is only sup-  ported in Analog VGA (RGB) signal. If “Signal” is auto-  matic, the phase, frequency items are grayed out, and if “Signal” is not automatic, the phase, frequency items will appear for the user to manually tune and are saved in the settings after that for the next time projector is turned off and on again.

Automatically selects the signal. If you use this function, the Phase, frequency items are grayed out, and if Signal is not automatic, the phase, frequency items will appear for user to manually tune and saved in settings after that for next time projector turns off and on again

Phase

Automatic

Phase

Frequency

H. Position

V. Position

SETUP

Signal (RGB)

SETUP

Signal (RGB)

Disable

Exit

Disable

Exit

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

Press the ` to decrease the phase value. Press the ` to increase the phase value.

English

User Controls

Frequency

Change the display data frequency to match the frequency of your computer’s graphic card. Use this function only if the image appears to flicker vertically.

Press the ` to decrease the frequency. Press the ` to increase the frequency.

H. Position (Horizontal Position)

H. Position

Press the ` to move the image left.

Press the ` to move the image right.

V. Position (Vertical Position)

V. Position

Press the ` to move the image down. Press the ` to move the image up.

Exit

Choose “Exit” to exit the menu.

English

User Controls

SETUP |

Signal (Video)

White Level

Adjust the overall white level of the projected image by applying a gain to the input image.

Press the ` to decrease the white level.

Press the ` to increase the white level.

Black Level

SETUP

Signal (Video)

White Level

Black Level

Exit

Black Level

Adjust the overall black level of the projected image by applying a offset to the input image.

Press the ` to decrease the black level.

Press the ` to increase the black level.

Exit

Choose “Exit” to exit the menu.

English

User Controls

SETUP |

Advanced

Logo

SETUP

Advanced

Logo

Logo Capture

Closed Captioning

For a successful  logo capture, ensure that the on-screen image does not exceed the projector native resolution. (1280 x 800).

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Neutral: Logo is not displayed on startup screen. ` Optoma: Optoma logo is displayed on startup screen. ` User: User-defined background is shown on startup screen. `

Logo Capture

Off

Do you want to capture the image?

Logo Capture

Processing ...

Yes

English

User Controls

Choose “On” and “Yes” to capture an image of the picture currently displayed on screen.

Closed Captioning

Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and watch the channels. Press or to select between CCI, or CC2. Choose Off to disable this function.

Exit

Choose “Exit” to exit the menu.

Off

English

User Controls

“VGA2” depends  on the settings of “VGA2 Switch”.

OPTIONS

Input Source

OPTIONS

Input Source

Use this option to enable/disable input sources. Press ► to enter the sub menu and select which sources you require. Press “Enter” to finalize the selection. The projector will only search for inputs that are enabled.

Input Source

Source Lock

High Altitude

Information Hide

Keypad Lock

Test Pattern

12V Trigger

None

Off

Video

Exit

Source Lock

On: ` The projector will only search current input connection. Off: The projector will search for other signals if the current ` input signal is lost.

Source Lock

Off On

High Altitude

When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

High Altitude

Off

English

User Controls

Information Hide

On: Choose “On” to hide the info message. ` Off: Choose “Off” to show the “searching” message. `

Information Hide

Off

Keypad Lock

When the keypad lock function is “On”, the Keypad will be locked however, the projector can be operated by the remote control. By selecting “Off”, you will be able to unlock the Keypad.

Keypad Lock

Off

Test Pattern

Display a test pattern. There are Grid, White Pattern and None.

Test Pattern

12V Trigger

Off: Choose “Off” to disable the trigger. ` On: Choose “On” to enable the trigger. `

None

12V Trigger

English

User Controls

OPTIONS

Background Color

OPTIONS

VGA2 Switch

Lamp Settings

Advanced

Filter Settings

Reset

Background Color

Use this feature to display a “Black”, “Red”, “Blue”, “Green” or “White”, screen when no signal is available.

Background Color

White

VGA2 Switch

When the “VGA2 Switch” feature is “In” then VGA2 port functions as input port. If the “VGA2 Switch” is “Out” then the port functions as output port for VGA1.

VGA2 Switch

Out

Black

Out

Exit

English

User Controls

Reset

Reset ?

Exit

Choose “Exit” to exit the menu.

Reset

Processing ...

Yes

English

User Controls

Lamp Settings

When ambient  temperature is over 40 C in operating, the projector will switch to Eco automatically. Dynamic mode-  lamp power can be dynamically adjusted from 100% to 30%.

OPTIONS

Lamp Settings

OPTIONS |

Lamp Hours

Display the projection time.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.

Lamp Reminder

Off

Brightness Mode

Bright: ` Choose “Bright” to increase the brightness. Eco.: ` Choose “Eco.” to dim the projector lamp which will lower power consumption and extend the lamp life. Dynamic: Choose “Dynamic” to dim the lamp power which will ` be based on brightness level of the content and adjust lamp power consumption between 100% and 30% dynamically. The lamp life will be extended. Eco+: When Eco+ mode is activated, the brightness level of ` the content is automatically detected to significantly reduced lamp power consumption (up to 70%) during periods of inactivity.

Lamp Hour

Lamp Reminder

Brightness Mode

Lamp Reset

Off

Dynamic

Exit

Brightness Mode

Eco.

English

User Controls

Lamp Reset

Resets the lamp hour counter after replacing the lamp.

Exit

Choose “Exit” to exit the menu.

Lamp Behavior in different mode and function:

Brightness Mode Bright Eco Dynamic Eco+

White Pattern 100% 80% 100% 80%

Dimming range N/A N/A 100%~30% 80%~30%

Black Pattern 100% 80%

AV Mute

Quick Resume

Lamp Reset

30% (Sleep

mode)

30% (Sleep

mode)

Lamp Reset ?

No Yes

30% (Sleep

mode)

30% (Sleep

mode)

Yes

30% (Sleep

mode)

30% (Sleep

mode)

30% (Sleep

mode)

30% (Sleep

mode)

30% (Sleep

mode)

30% (Sleep

mode)

English

User Controls

OPTIONS

Advanced

Direct Power On

OPTIONS |

Advanced

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “ ” key on the projector Control Panel or on the remote control.

Direct Power On

Signal Power On

Auto Power Off (min)

Sleep Timer (min))

Quick Resume

Power Mode (Standby)

Remote Settings

Off

Eco.

Exit

The Signal Power  On function is not applicable if the input source is Video.

Signal Power On

Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected, without pressing the “ ” key on the projector Control Panel or on the remote control.

Signal Power On

Off

English

User Controls

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start,

The value of  sleep timer will be reset to zero after the projector power off.

when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Press the ` to decrease the timer interval. Press the ` to increase the timer interval.

Sleep Timer (min)

Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Press the ` to decrease the timer interval. Press the ` to increase the timer interval.

Quick Resume

On: If the projector is accidentally turned off, this feature allows ` the projector to be instantly powered on again, if selected within a period of 100 seconds. Off: The fan will start cooling the system after 10 seconds ` when user turns off the projector.

Auto Power Off (min)

Sleep Timer (min))

Quick Resume

Off

Power Mode (Standby)

Eco.: Choose “Eco.” to save power dissipation further < 0.5W. ` Active: Choose “Active” to return to normal standby. `

Power Mode (Standby)

Active

Exit

Choose “Exit” to exit the menu.

Eco.

English

User Controls

OPTIONS | Remote

Settings

USER 1

The default value is HDMI2.

USER 1

Press the into the next menu and then press the or to select HDMI2/VGA2/Test Pattern/LAN/Brightness/Contrast/Sleep Timer/ Color Matching/Color Temp/Gamma/ Source Lock /Projection/Lamp Settings/Zoom/Freeze.

USER 2

The default value is VGA2.

OPTIONS

Remote Settings

USER 1

USER 2

USER 3

HDMI2

Test Pattern

Exit

USER 2

VGA2

USER 3

The default value is Test Pattern.

USER 3

Test Pattern

English

User Controls

OPTIONS | Filter

Settings

Filter Usage Hours

Display the filter time.

Filter Settings

Filter Usage Hours

Filter reminder

Filter Reset

OPTIONS

1000 hrs

Exit

“Filter Usage  Hours / Filter Reminder / Filter Reset” will only appear when “Optional Filter Installed” is “Yes”.

Filter Reminder

Choose this function to show or hide the warning message when the changing filter message is displayed. (Factory default setting: 1000 hours)

Filter reminder

1000 hr

Press the ` to decrease the time period. Press the ` to increase the time period.

Filter Reset

Reset the dust filter counter after replacing or cleaning the dust

filer.

Filter Reset

Yes

Exit

Choose “Exit” to exit the menu.

English

Appendices

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image Problems

No image appears on-screen

Ensure all the cables and power connections are correctly and ` securely connected as described in the “Installation” section. Ensure the pins of connectors are not crooked or broken. ` Check if the projection lamp has been securely installed. ` Please refer to the “Replacing the Lamp” section. Make sure the projector is switched on. ` ` Ensure that the “AV Mute” feature is not turned on.

Image is out of focus

Make sure the projection screen is between the required dis- ` tance from the projector. (refer to pages 19-22)

The image is stretched when displaying 16:9 DVD title

When you play anamorphic DVD or 16:9 DVD, the projector ` will show the best image in 16: 9 format on projector side. If you play the LBX format DVD title, please change the format ` as LBX in projector OSD. If you play 4:3 format DVD title, please change the format as ` 4:3 in projector OSD. If the image is still stretched, you will also need to adjust the ` aspect ratio by referring to the following: Please setup the display format as 16:9 (wide) aspect ratio ` type on your DVD player.

Image is too small or too large

Move the projector closer to or further from the screen. ` Press “Menu” on the projector panel, go to “Display-->Format”. ` Try the different settings.

English

Appendices

Image has slanted sides:

If possible, reposition the projector so that it is centered on the ` screen and below the bottom of the screen. Use “Display-->V Keystone” from the OSD to make an adjust- ` ment.

Image is reversed

Select “Setup-->Projection” from the OSD and adjust the pro- ` jection direction.

Blurry double image

Press “3D Format” button and switch to “Off” to avoid normal ` 2D image is blurry double image.

Two images, side-by-side format

Press “3D Format” button and switch to “SBS” for input signal ` is HDMI 1.3 2D 1080i side-by-side.

Image does not display in 3D

Check if the battery of 3D glasses is drained. ` Check if the 3D glasses is turned on. ` When the input signal is HDMI 1.3 2D (1080i side-by-side ` half), press “3D Format” button and switch to “SBS”.

English

Appendices

Remote Control Problems

If the remote control does not work

Check the operating angle of the remote control is within ±15° ` both horizontally and vertically of on of the IR receivers on the projector. Make sure there are not any obstructions between the remote ` control and the projector. Move to within 6 m (20 ft) of the projector. Make sure batteries are inserted correctly. ` Replace batteries if they are exhausted. `

English

Appendices

LED Lighting Messages

Steady light  No light 



Message

Standby state (Input power cord)

Power on (Warming)

Lamp lighting Blue

Power off (Cooling)

Quick Resume (100 secs)

Error (Over temp.) Flashing Red

Error (Fan failure) Flashing Red Flashing

Power LED

(Red/Green/Blue) (Red) (Red)

Red

Flashing Blue

Flashing Blue.

Red (cooling fan has

turned off)

Flashing Blue

Temp-LED Lamp-LED

Error (Lamp failure) Flashing Red

English

Appendices

On Screen Messages

Power off: 

Power Off?

Press Power Key again

Lamp warning: 

Lamp Warning

Lamp life exceeded.

Temperature warning: 

Warning TEMPERATURE TOO HIGH

Please

1. Make sure air in and outlets are not blocked.

2. Make sure the environment temperature is under 45 degree C.

If the problem persists in spite of the above.

Please contact local service centre for repair.

Fan failed: 

Warning FAN LOCKED

The Projector will switch off automatically.

Please contact local service centre for repair.

Out of display range: 

HDMI

Out Of Range

English

Appendices

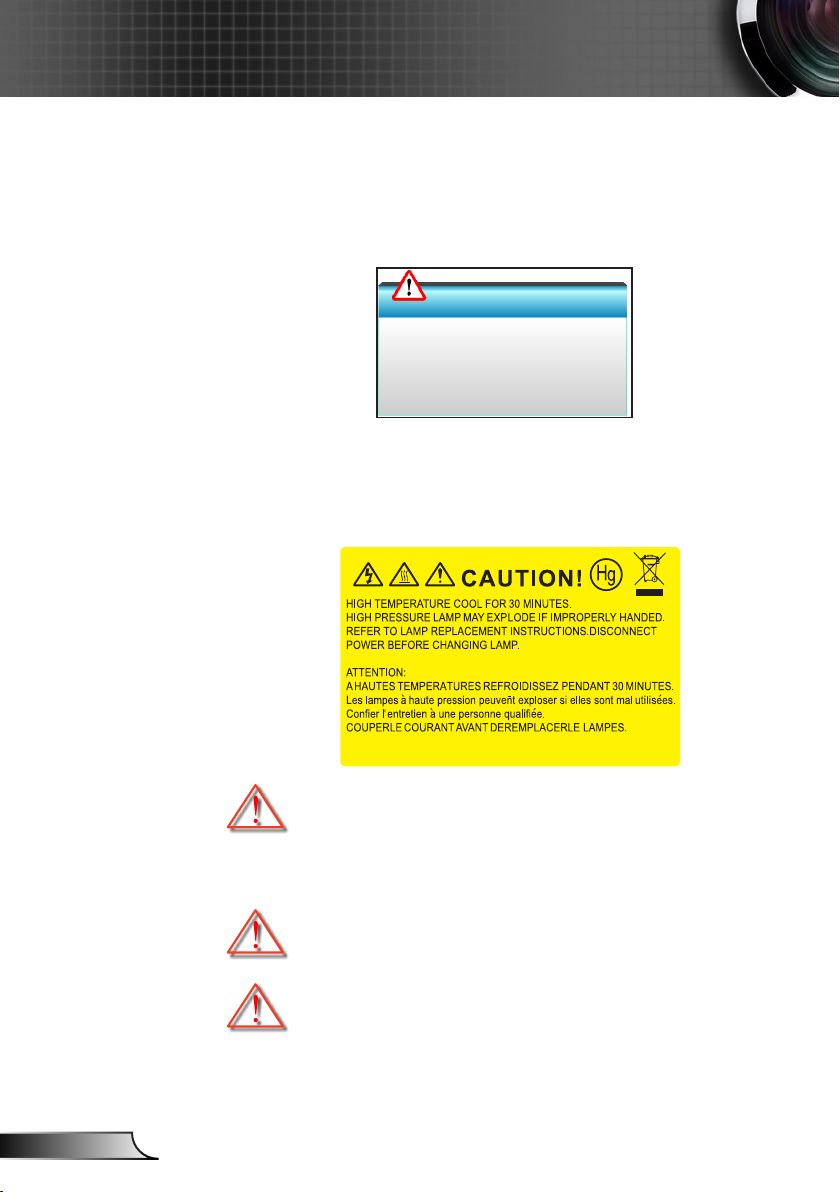

Replacing the Lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message.

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

Lamp Warning

Lamp life exceeded.

Warning: If ceiling mounted, please use caution when open-

ing the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. “Caution must be used to prevent any loose parts from falling out of projector.”

Warning: Lamp compartment is hot! Allow it to cool down

before changing lamp!

Warning: To reduce the risk of personal injury, do not drop

the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

English

Appendices

The screw on the

lamp cover and the lamp cannot be removed.

The projector

cannot be turned on if the lamp cover has not been placed back on the projector.

Do not touch the

glass area of the lamp. Hand oil can cause the lamp to shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the “ ” button on the remote control or on the Control Panel of the projector.

2. Allow the projector to cool down for at least 30 minutes.

3. Disconnect the power cord.

4. Press the release button to disengage the lamp cover from the main unit. 1

5. Use your fingernail to pry the lamp cover loose and then remove it. 2

6. Unscrew the two screws on the lamp module. 3

7. Lift up the lamp handle 4 and remove the lamp module slowly and carefully. 5

To replace the lamp module, reverse the previous steps.

10. Turn on the projector and reset the lamp timer.

Lamp Reset: (i) Press “Menu”  (ii) Select “OPTIONS”  (iii) Select

“Lamp Settings”  (iv) Select “Lamp Reset”  (v) Select “Yes”.

English

Appendices

Installing and Cleaning the Dust Filter

Dust filters are

only required/supplied in selected regions with excessive dust.

We recommend you clean the dust filter every 500 hours of operation, or more often if you are using the projector in a dusty environment.

When the warning message appears on the screen, do the following to clean the air filter:

Air Filter Cleaning Procedure:

1. Switch off the power to the projector by pressing the “ ” button on the remote control or on the Control Panel of the projector.

2. Disconnect the power cord.

3. Pull out the latch to remove the dust filter compartment, as shown in the illustration. 1

4. Carefully remove the air filter. Then clean or replace the dust filter. 2

To install the dust filter, reverse the previous steps.

5. Turn on the projector and reset the filter usage counter after the dust filter is replaced.

English

Appendices

Compatibility Modes

HDMI Compatibility

Digital

B0/Established timing B0/Standard timing B0/Detail timing:

720 x 400 @ 70Hz

640 x 480 @ 60Hz

640 x 480 @ 67Hz

640 x 480 @ 72Hz

640 x 480 @ 75Hz

800 x 600 @ 56Hz

800 x 600 @ 60Hz

800 x 600 @ 72Hz

800 x 600 @ 75Hz

1024 x 768 @ 60Hz

1024 x 768 @ 70Hz

1024 x 768 @ 75Hz

1280 x 1024 @ 75Hz

XGA / WXGA

1440 x 900 @60Hz

1024 x 768 @120Hz

1280 x 800 @60Hz

1280 x 1024 @60Hz

1680 x 1050 @60Hz

1280 x 720 @60Hz

1280 x 720 @120Hz

1600 x 1200 @60Hz

1080P

1280 x 720 @ 60Hz

1280 x 800 @ 60Hz

1280 x1024 @ 60Hz

1400 x 1050 @ 60Hz

1600 x 1200 @ 60Hz

1440 x 900 @60Hz

B1/Video mode B1/Detail timing:

640 x 480p @ 60Hz

720 x 480p @ 60Hz

1280 x 720p @ 60Hz

1920 x 1080i @ 60Hz

720(1440) x 480i @ 60Hz

1920 x 1080p @ 60Hz

720 x 576p @ 50Hz

1280 x 720p @ 50Hz

1920 x 1080i @ 50Hz

720(1440) x 576i @ 50Hz

1920 x 1080p @ 50Hz

1920 x 1080p @ 24Hz

1920 x 1080p @ 30Hz

720 x 480p @ 60Hz

1280 x 720p @ 60Hz

1366 x 768 @ 60Hz

1920 x 1080i @ 50Hz

1920 x 1080p @ 60Hz

Native timing:

XGA: 1024 x 768 @60Hz

WXGA: 1280 x 800 @60Hz

1080P: 1920 x 1080 @60Hz

English

Appendices

True 3D Video Compatibility

Input

resolution

HDMI 1.4b 3D

Input

HDMI 1.3

Input timing

1280 x 720p @ 50Hz Top-and-Bottom

1280 x 720p @ 60Hz Top-and-Bottom

1280 x 720p @ 50Hz Frame packing

1280 x 720p @ 60Hz Frame packing

1920 x 1080i @ 50 Hz Side-by-Side (Half)

1920 x 1080i @ 60 Hz Side-by-Side (Half)

1920 x 1080p @ 24 Hz Top-and-Bottom

1920 x 1080p @ 24 Hz Frame packing

1920 x 1080i @ 50Hz

1920 x 1080i @ 60Hz

1280 x 720p @ 50Hz

1280 x 720p @ 60Hz

1920 x 1080i @ 50Hz

1920 x 1080i @ 60Hz

1280 x 720p @ 50Hz

1280 x 720p @ 60Hz

480i HQFS

Side-by-Side

(Half)

Top-and-Bottom

While 3D Format is

“Top and Bottom”

While 3D Format is

“Frame sequential”

“SBS”

English

Appendices

RS232 shell is

12345

6789

grounded.

RS232 Commands and Protocol Function List

RS232 Pin Assignments

Pin no.

1 N/A

2 RXD

3 TXD

4 N/A

5 GND

6 N/A

7 N/A

8 N/A

9 N/A

Spec.

(from projector side)

English

Appendices

RS232 Protocol Function List

Baud Rate : 9600

1. There is a <CR> after all ASCII commands.

2. 0D is the HEX code for <CR> in ASCII code.

SEND to projector

232 ASCII Code HEX Code Function Description

~XX00 1 7E 30 30 30 30 20 31 0D Power ON

~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible)

~XX00 1 ~nnnn 7E 30 30 30 30 20 31 20 a 0D Power ON with Password ~nnnn = ~00000 (a=7E 30 30 30 30 30)

~XX01 1 7E 30 30 30 31 20 31 0D Resync

~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On

~XX02 0 7E 30 30 30 32 20 30 0D Off (0/2 for backward compatible)

~XX03 1 7E 30 30 30 33 20 31 0D Mute On

~XX03 0 7E 30 30 30 33 20 30 0D Off (0/2 for backward compatible)

~XX04 1 7E 30 30 30 34 20 31 0D Freeze

~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze (0/2 for backward compatible)

~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus

~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus

~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Commands HDMI1

~XX12 15 7E 30 30 31 32 20 31 35 0D HDMI2

~XX12 5 7E 30 30 31 32 20 35 0D VGA1

~XX12 6 7E 30 30 31 32 20 36 0D VGA 2

~XX12 8 7E 30 30 31 32 20 38 0D VGA1 Component

~XX12 10 7E 30 30 31 32 20 31 30 0D Video

~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation

~XX20 2 7E 30 30 32 30 20 32 0D Bright

~XX20 3 7E 30 30 32 30 20 33 0D Movie

~XX20 4 7E 30 30 32 30 20 34 0D sRGB

~XX20 5 7E 30 30 32 30 20 35 0D User

~XX20 7 7E 30 30 32 30 20 37 0D Blackboard

~XX20 13 7E 30 30 32 30 20 31 33 0D DICOM SIM.

~XX20 9 7E 30 30 32 30 20 39 0D 3D

~XX21 n 7E 30 30 32 31 20 a 0D Brightness n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX22 n 7E 30 30 32 32 20 a 0D Contrast n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n = 1 (a=31) ~ 15 (a=31 35)

~XX44 n 7E 30 30 34 34 20 a 0D Tint n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX45 n 7E 30 30 34 35 20 a 0D Color n = -50 (a=2D 35 30) ~ 50 (a=35 30)

Data Bits: 8 Parity: None Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable Projector Return (Pass): P Projector Return (Fail): F XX=01-99, projector's ID, XX=00 is for all projectors

~99999 (a=7E 39 39 39 39 39)

English

Appendices

~XX327 n 7E 58 58 33 32 37 20 a 0D Color Matching Red Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX328 n 7E 58 58 33 32 38 20 a 0D Green Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX329 n 7E 58 58 33 32 39 20 a 0D Blue Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX330 n 7E 58 58 33 33 30 20 a 0D Cyan Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX331 n 7E 58 58 33 33 31 20 a 0D Yellow Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX332 n 7E 58 58 33 33 32 20 a 0D Magenta Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX333 n 7E 58 58 33 33 33 20 a 0D Red Saturation n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX334 n 7E 58 58 33 33 34 20 a 0D Green

~XX335 n 7E 58 58 33 33 35 20 a 0D Blue Saturation n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX336 n 7E 58 58 33 33 36 20 a 0D Cyan

~XX337 n 7E 58 58 33 33 37 20 a 0D Yellow

~XX338 n 7E 58 58 33 33 38 20 a 0D Magenta

~XX339 n 7E 58 58 33 33 39 20 a 0D Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX340 n 7E 58 58 33 34 30 20 a 0D Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX341 n 7E 58 58 33 34 31 20 a 0D Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX342 n 7E 58 58 33 34 32 20 a 0D Cyan Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX343 n 7E 58 58 33 34 33 20 a 0D Yellow Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX344 n 7E 58 58 33 34 34 20 a 0D Magenta Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX345 n 7E 58 58 33 34 35 20 a 0D White/R n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX346 n 7E 58 58 33 34 36 20 a 0D White/G n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX347 n 7E 58 58 33 34 37 20 a 0D White/B n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX215 1 7E 30 30 32 31 35 20 31 0D Reset

~XX24 n 7E 30 30 32 34 20 a 0D RGB Gain/Bias Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX25 n 7E 30 30 32 35 20 a 0D Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX26 n 7E 30 30 32 36 20 a 0D Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX27 n 7E 30 30 32 37 20 a 0D Red Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX28 n 7E 30 30 32 38 20 a 0D Green Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX29 n 7E 30 30 32 39 20 a 0D Blue Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)

~XX33 n 7E 30 30 33 33 20 a 0D Reset

~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor

~XX196 n 7E 30 30 31 39 36 20 a 0D Noise Reduction n = 1 (a=31) ~ 10 (a=31 30)

~XX35 1 7E 30 30 33 35 20 31 0D

~XX35 3 7E 30 30 33 35 20 33 0D Graphics

~XX35 5 7E 30 30 33 35 20 35 0D 1.8

~XX35 6 7E 30 30 33 35 20 36 0D 2.0

~XX35 7 7E 30 30 33 35 20 37 0D 2.2

~XX35 8 7E 30 30 33 35 20 38 0D 2.6

~XX35 9 7E 30 30 33 35 20 39 0D 3D

~XX36 0 7E 30 30 33 36 20 31 0D Color Temp. Medium

~XX36 1 7E 30 30 33 36 20 32 0D Cool

~XX36 2 7E 30 30 33 36 20 33 0D Cold

~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto

~XX37 2 7E 30 30 33 37 20 32 0D RGB\ RGB(0-255)

~XX37 3 7E 30 30 33 37 20 33 0D YUV

~XX37 4 7E 30 30 33 37 20 34 0D RGB(16 - 235)

Gamma Film

Saturation

n = -50 (a=2D 35 30) ~ 50 (a=35 30)

n = 1 (a=31) ~ 10 (a=31 30)

English

Appendices

~XX73 n 7E 30 30 37 33 20 a 0D Signal (RGB) Frequency n = -5 (a=2D 35) ~ 5 (a=35) By signal

~XX74 n 7E 30 30 37 34 20 a 0D Phase n = 0 (a=30) ~ 31 (a=33 31) By

~XX91 1 7E 30 30 39 31 20 31 0D Automatic Enable

~XX91 0 7E 30 30 39 31 20 30 0D Disable

~XX75 n 7E 30 30 37 35 20 a 0D H. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing

~XX76 n 7E 30 30 37 36 20 a 0D V. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing

~XX200 n 7E 30 30 32 30 30 20 a 0D Signal(Video) White Level

~XX201 n 7E 30 30 32 30 31 20 a 0D Black Level

~XX204 1 7E 30 30 32 30 30 21 31 0D 0

~XX204 0 7E 30 30 32 30 30 21 30 0D 7.5

~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3

~XX60 2 7E 30 30 36 30 20 32 0D 16:9

~XX60 3 7E 30 30 36 30 20 33 0D 16:10(WXGA Model)

~XX60 5 7E 30 30 36 30 20 35 0D LBX

~XX60 6 7E 30 30 36 30 20 36 0D Native

~XX60 7 7E 30 30 36 30 20 37 0D Auto

~XX62 n 7E 30 30 36 32 20 a 0D Digital Zoom Zoom n = -5 (a=2D 35) ~ 25 (a=32 35)

~XX61 n 7E 30 30 36 31 20 a 0D Edge mask n = 0 (a=30) ~ 10 (a=31 30)

~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)

~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)

~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30)

~XX230 1 7E 30 30 32 33 30 20 31 0D 3D Mode DLP-Link

~XX230 3 7E 30 30 32 33 30 20 33 0D VESA

~XX230 0(or2) 7E 30 30 32 33 30 20 30(32) 0D Off

~XX400 0 7E 30 30 34 30 30 20 30 0D 3D->2D 3D

~XX400 1 7E 30 30 34 30 30 20 31 0D L

~XX400 2 7E 30 30 34 30 30 20 32 0D R

~XX405 0 7E 30 30 34 30 35 20 30 0D 3D Format Auto

~XX405 1 7E 30 30 34 30 35 20 31 0D SBS

~XX405 2 7E 30 30 34 30 35 20 32 0D Top and Bottom

~XX405 3 7E 30 30 34 30 35 20 33 0D Frame sequential

~XX231 0 7E 30 30 32 33 31 20 30 0D 3D Sync Invert On

~XX231 1 7E 30 30 32 33 31 20 31 0D Off

~XX70 1 7E 30 30 37 30 20 31 0D Language English

~XX70 2 7E 30 30 37 30 20 32 0D German

~XX70 3 7E 30 30 37 30 20 33 0D French

~XX70 4 7E 30 30 37 30 20 34 0D Italian

~XX70 5 7E 30 30 37 30 20 35 0D Spanish

~XX70 6

~XX70 7 7E 30 30 37 30 20 37 0D Polish

~XX70 8 7E 30 30 37 30 20 38 0D Dutch

~XX70 9 7E 30 30 37 30 20 39 0D Swedish

~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish

~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish

~XX70 12 7E 30 30 37 30 20 31 32 0D Greek

~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese

~XX70 14 7E 30 30 37 30 20 31 34 0D Simplified Chinese

7E 30 30 37 30 20 36 0D Portuguese

signal

English

Appendices

~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese

~XX70 16 7E 30 30 37 30 20 31 36 0D Korean

~XX70 17 7E 30 30 37 30 20 31 37 0D Russian

~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian

~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak

~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic

~XX70 22 7E 30 30 37 30 20 32 32 0D Turkish

~XX70 23 7E 30 30 37 30 20 32 33 0D Farsi

~XX70 27 7E 30 30 37 30 20 32 37 0D Romanian

~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop

~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop

~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling

~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling

~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left

~XX72 2 7E 30 30 37 32 20 32 0D Top Right

~XX72 3 7E 30 30 37 32 20 33 0D Centre

~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left

~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right

(WXGA/ Model)

~XX90 1 7E 30 30 39 30 20 31 0D Screen Type 16:10

~XX90 0 7E 30 30 39 30 20 30 0D 16:9

~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh

~XX78 1 7E 30 30 37 38 20 31 0D Security Settings On

~XX78 0 ~nnnn 7E 30 30 37 38 20 30 20 a 0D Off(0/2 for backward compatible)

~XX79 n 7E 30 30 37 39 20 a 0D Projector ID n = 00 (a=30 30) ~ 99 (a=39 39)

~XX80 1 7E 30 30 38 30 20 31 0D Mute On

~XX80 0 7E 30 30 38 30 20 30 0D Off (0/2 for backward compatible)

~XX310 0 7E 30 30 33 31 30 20 30 0D Internal Speaker Off

~XX310 1 7E 30 30 33 31 30 20 31 0D On

~XX81 n 7E 30 30 38 31 20 a 0D Volume(Audio) n = 0 (a=30) ~ 10 (a=31 30)

~XX89 0 7E 30 30 38 39 20 30 0D Audio Input Default

~XX89 1 7E 30 30 38 39 20 31 0D Audio1

~XX89 3 7E 30 30 38 39 20 33 0D Audio2

~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma

~XX82 2 7E 30 30 38 32 20 32 0D User

~XX82 3 7E 30 30 38 32 20 33 0D Neutral

~XX83 1 7E 30 30 38 33 20 31 0D Logo Capture

~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning Off

~XX88 1 7E 30 30 38 38 20 31 0D cc1

~XX88 2 7E 30 30 38 38 20 32 0D

~XX87 1 7E 30 30 38 37 20 31 0D Network Status(Read only Return :Oka, a=0/1 Disconnected/ Connected

~XX87 3 7E 30 30 38 37 20 33 0D IP Address(Read only) Return: "Okaaa_bbb_ccc_ddd"

~XX454 0/2 7E 30 30 34 35 34 20 30(32) 0D Crestron Off

~XX454 1 7E 30 30 34 35 34 20 31 0D On

~nnnn = ~0000 (a=7E 30 30 30 30) ~9999 (a=7E 39 39 39 39)

cc2

mm= 00 (aa=30 30) ~ 12 (aa=31 32) dd = 00 (bb=30 30) ~ 30 (bb=33 30) hh= 00 (cc=30 30) ~ 24 (cc=32 34)

100

English

Appendices

~XX455 0/2 7E 30 30 34 35 35 20 30(32) 0D Extron Off

~XX455 1 7E 30 30 34 35 35 20 31 0D On

~XX456 0/2 7E 30 30 34 35 36 20 30(32) 0D PJLink Off

~XX456 1 7E 30 30 34 35 36 20 31 0D On

~XX457 0/2 7E 30 30 34 35 37 20 30(32) 0D AMX Device Discovery Off

~XX457 1 7E 30 30 34 35 37 20 31 0D On

~XX458 0/2 7E 30 30 34 35 38 20 30(32) 0D Telnet Off

~XX458 1 7E 30 30 34 35 38 20 31 0D On

~XX39 1 7E 30 30 33 39 20 31 0D Input Source HDMI1

~XX39 7 7E 30 30 33 39 20 37 0D HDMI2

~XX39 5 7E 30 30 33 39 20 35 0D VGA1

~XX39 6 7E 30 30 33 39 20 36 0D VGA2

~XX39 10 7E 30 30 33 39 20 31 30 0D Video

~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock On

~XX100 0 7E 30 30 31 30 30 20 30 0D Off (0/2 for backward compatible)

~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On

~XX101 0 7E 30 30 31 30 31 20 30 0D Off (0/2 for backward compatible)

~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide On

~XX102 0 7E 30 30 31 30 32 20 30 0D Off (0/2 for backward compatible)

~XX103 1 7E 30 30 31 30 33 20 31 0D Keypad Lock On

~XX103 0 7E 30 30 31 30 33 20 30 0D Off (0/2 for backward compatible)

~XX348 0 7E 30 30 33 34 38 20 30 0D Display Mode Lock Off (0/2 for backward compatible)

~XX348 1 7E 30 30 33 34 38 20 31 0D On

~XX195 0 7E 30 30 31 39 35 20 30 0D Test Pattern None

~XX195 1 7E 30 30 31 39 35 20 31 0D Grid(White)

~XX195 3 7E 30 30 31 39 35 20 33 0D Grid(Green)

~XX195 4 7E 30 30 31 39 35 20 34 0D Grid(Magenta)

~XX195 2 7E 30 30 31 39 35 20 32 0D White

~XX192 0 7E 30 30 31 39 32 20 30 0D 12V Trigger Off

~XX192 1 7E 30 30 31 39 32 20 31 0D On

~XX104 1 7E 30 30 31 30 34 20 31 0D Background Color Blue

~XX104 2 7E 30 30 31 30 34 20 32 0D Black

~XX104 3 7E 30 30 31 30 34 20 33 0D Red

~XX104 4 7E 30 30 31 30 34 20 34 0D Green

~XX104 5 7E 30 30 31 30 34 20 35 0D White

~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced

~XX105 0 7E 30 30 31 30 35 20 30 0D Off (0/2 for backward compatible)

~XX113 0 7E 30 30 31 31 33 20 30 0D

~XX113 1 7E 30 30 31 31 33 20 31 0D On

~XX106 n 7E 30 30 31 30 36 20 a 0D

~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer

~XX115 1 7E 30 30 31 31 35 20 31 0D Quick Resume On

~XX115 0 7E 30 30 31 31 35 20 30 0D Off (0/2 for backward compatible)

~XX114 1 7E 30 30 31 31 34 20 31 0D Power

~XX114 0 7E 30 30 31 31 34 20 30 0D Eco. (0/2 for backward compatible)

Direct Power On

Signal Power On

Auto Power Off (min)

(min

Mode(Standby)

Off

n = 0 (a=30) ~ 180 (a=31 38 30) (5 minutes for each step).

n = 0 (a=30) ~ 990 (a=39 39 30) (30 minutes for each step).

Active (<=0.5W)

Optoma W320USTi, W320UST, EH320USTi, EH320UST, EH319USTi User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Usage Notice

Safety Information

Precautions

Eye Safety Warnings

Product Features

Introduction

Package Overview

Product Overview

Main Unit

Control Panel

Input/Output Connections

Remote Control

Installation

Connecting to the Projector

Connecting a Computer/Notebook

Connecting a Video source

Connect to 3D Video Devices

Using the 3D glasses

Powering On/Off the Projector

Powering On the Projector

Powering Off the Projector

Warning Indicator

Adjusting the Projected Image

Adjusting the Projector’s Height

Adjusting the Projector’s Focus

Adjusting Projection Image Size

Control Panel & Remote Control

Control Panel

User Controls

Remote Control

On-screen Display Menus

How to operate

Menu Tree


IMAGE | Advanced

DISPLAY

DISPLAY | 3D

SETUP

SETUP | Security

SETUP | Network

OPTIONS

Appendices

Troubleshooting

Image Problems

Other Problems

Remote Control Problems

LED Lighting Messages

On Screen Messages

Replacing the Lamp

Installing and Cleaning the Dust Filter

Compatibility Modes

RS232 Commands and Protocol Function List

RS232 Pin Assignments

RS232 Protocol Function List
