Optoma UHZ65 User Manual

Download
DLP® Projector
User manual
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
INTRODUCTION .................................................................................. 8
Connections.............................................................................................................................. 10
Keypad ..................................................................................................................................... 11
Remote control ......................................................................................................................... 12
SETUP AND INSTALLATION ............................................................. 13
Installing the projector .............................................................................................................. 13
Connecting sources to the projector ......................................................................................... 14
Adjusting the projector image ................................................................................................... 15
Remote setup ........................................................................................................................... 16
USING THE PROJECTOR .................................................................. 18
Powering on / off the projector.................................................................................................. 18
Selecting an input source ......................................................................................................... 19
USING THE PROJECTOR .................................................................. 20
Menu navigation and features .................................................................................................. 20
OSD Menu tree......................................................................................................................... 21
Display image settings menu.................................................................................................... 29
Display 3D menu ...................................................................................................................... 32
Display aspect ratio menu ........................................................................................................ 32
Display edge mask menu ......................................................................................................... 33
Display digital zoom menu........................................................................................................ 33
Display image shift menu ......................................................................................................... 33
Audio internal speaker menu .................................................................................................... 34
Audio mute menu ..................................................................................................................... 34
Audio volume menu .................................................................................................................. 34
Setup projection menu.............................................................................................................. 34
2
English
Setup lter settings menu ......................................................................................................... 34
Setup power settings menu ...................................................................................................... 35
Setup security menu ................................................................................................................. 35
Setup test pattern menu ........................................................................................................... 35
Setup remote settings menu..................................................................................................... 36
Setup projector ID menu........................................................................................................... 36
Setup 12V trigger menu............................................................................................................ 36
Setup options menu.................................................................................................................. 36
Setup reset OSD menu ............................................................................................................ 37
Network LAN menu .................................................................................................................. 37
Network control menu............................................................................................................... 39
Setup network control settings menu ....................................................................................... 39
Info menu.................................................................................................................................. 45
MAINTENANCE .................................................................................. 46
Installing and cleaning the dust lter ........................................................................................ 46
ADDITIONAL INFORMATION ............................................................ 47
Compatible resolutions ............................................................................................................. 47
Image size and projection distance .......................................................................................... 48
Projector dimensions and ceiling mount installation ................................................................. 50
IR remote codes ....................................................................................................................... 51
Troubleshooting ........................................................................................................................ 53
Warning indicators .................................................................................................................... 54
Specications ........................................................................................................................... 56
Optoma global ofces ............................................................................................................... 57
English
3

SAFETY

The lightning ash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
Important Safety Instruction
Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
4
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and may melt, cause burns or start a re.
Please do not open or disassemble the projector as this may cause electric shock.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings.
The unit should only be repaired by authorized service personnel.
Only use attachments/accessories specied by the manufacturer.
Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
English
This projector will detect the life of the light source itself.
When switching the projector off, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Do not setup the projector in places where it might be subjected to vibration or shock.
Do not touch the lens with bare hands.
Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely affect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may affect the
projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.
Laser Radiation Safety Information
This product is classied as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC60825-1 : 2014 and
also complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser Illuminated Projector) as dened in IEC 62471:2006 except for deviations pursuant to Laser Notice No. 50, dated June 24,
2007.
Failure to comply with the following could result in death or serious injury.
This projector has built-in Class 4 laser module. Disassembly or modication is very dangerous and
should never be attempted.
Any operation or adjustment not specically instructed by the user’s guide creates the risk of
hazardous laser radiation exposure.
Do not open or disassemble the projector as htis may cause damage by the exposure of laser
radiation.
Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
When turning on the projector, make sure no one within projection range is looking at the lens.
Without following the control, adjustment or operation procedure may cause damage by the exposure
of laser radiation.
Adequate instructions for assembly, operation, and maintenance, including clear warnings concerning
precautions to avoid possible exposure to laser.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.
© Copyright 2017
English
5

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specically disclaims any implied warranties of merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
DLP®, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColorTM is a
trademark of Texas Instruments.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.
MHL, Mobile High-Denition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
English
6

Declaration of Conformity for EU countries

EMC Directive 2014/30/EC (including amendments)
Low Voltage Directive 2014/35/EC
R & TTE Directive 1999/5/EC (if product has RF function)

WEEE

Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
English
7

INTRODUCTION

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specication and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.

Standard accessories

ON
OFF
User2
User1
User3
Contrast
Brightness
Mode
Aspect ratio
Keystone
3D
DB
Sleep Timer
Mute
Volume
Source
Re-sync
Menu
Volume
HDMI1
HDMI2
VGA1
VGA2 Video YPbPr
Projector Remote control Power lead Documentation
Warranty Card*(1)

Basic User Manual

Paper UM*(2)

Note:
The remote control is shipped with the battery.
*(1) For European warranty Information, please visit www.optoma.com.
*(2) Available only for Asian region.
*(3) Available only for USA and Asian regions.

Optional accessories

Lens cap CD user manual*(3)
Note: Optional accessories vary depending on model, specication and region.
8
English
INTRODUCTION

Product Overview

11
Minimum 100mm
6
721 53 4
11
Minimum 100mm
8 9
4
5
10
Minimum 100mm
Minimum 300mm
Minimum 300mm
Minimum 100mm
Note:
Do not block projector intake and exhaust vents.
When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.
No Item No Item
1. Top Cover 7. Ventilation (inlet)
2.
Focus Ring
Zoom Lever
8.
3. Lens 9. Lens Shift Dial
4. IR Receiver 10. Ventilation (outlet)
5. Keypad 11. Tilt-Adjustment Foot
6. Input / Output
English
9
INTRODUCTION

Connections

1 6 743 5 9 10 118
No Item No Item
1. KensingtonTM Lock Port 8. AUDIO IN Connector
2. Power Socket 9. 12V OUT Connector
3. RJ-45 Connector 10. USB Type A / Service Connector
4. RS232 Connector 11. S/PDIF Connector
5. HDMI 1 Connector 12. USB Power Out (5V 1.5A)
HDMI 2 (HDCP2.2) / MHL
6. Connector (*)
7. VGA Connector
2
13
12
13. AUDIO OUT Connector
Note:
USB Type A supports mouse / service capability.
Remote mouse requires special remote control.
(*)Only HDMI 2 (HDCP2.2) connector supports 4K (Ultra HD) at 60Hz refresh rate.
10
English
INTRODUCTION

Keypad

8
7
1 2 43
56
No Item No Item
Power and On/Standby LED
1.
Source
2.
Menu
3.
Enter
4.
Re-Sync
5.
Four Directional Select Keys
6.
Laser LED
7.
Temp LED
8.
English
11
INTRODUCTION

Remote control

10
11
12
1
ON
OFF
14
2
3
User1
Brightness
User2
Contrast
User3
Mode
4
Mute
Source
Aspect ratio
DB
Volume
3D
Sleep Timer
Re-sync
5
Keystone
6
7
8
15
16
17
18
19
20
21
22
9
Menu
HDMI1
Volume
HDMI2
23
24
25
VGA1
VGA2 Video YPbPr
26
13
27
No Item No Item
1. Power On 15. User 3
User 2 16. Contrast
2.
3. User 1 17. Display Mode
4. Brightness 18. Aspect Ratio
5. Keystone (not supported) 19. 3D Menu On / Off (not supported)
6. Mute 20. Sleep Timer
7. DB (Dynamic Black) 21. Volume +
8. Source 22. Re-Sync
9. Enter 23. Four Directional Select Keys
10. Menu 24. Volume -
11. HDMI1 25. HDMI2
12. VGA1 26. YPbPr (not supported)
13. VGA2 (not supported) 27. Video (not supported)
14. Power Off
Note: Some keys may have no function for models that do not support these features.
English
12

SETUP AND INSTALLATION

Installing the projector

Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
How to determine projector location for a given screen size, please refer to distance table on pages
48-49.
How to determine screen size for a given distance, please refer to distance table on pages 48-49.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
offset also increases proportionally.
IMPORTANT!
Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector light source or the projector itself. For none standard installation advise please contact Optoma.
English
13
SETUP AND INSTALLATION

Connecting sources to the projector

1
2
3
4
5
6
14
13
12
MOLEX
11
10
9
MOLEX
7
8
14
English
No Item No Item
1. HDMI Cable 8. S/PDIF Out Cable
HDMI / MHL Cable
2.
USB Power Cable
9.
3. RCA Component Cable 10. Audio Out Cable
4. VGA In Cable 11. HDMI Dongle
5. Audio In Cable 12. RS232 Cable
6. 12V DC Jack 13. RJ-45 Cable
7. USB Cable 14. Power Cord
SETUP AND INSTALLATION

Adjusting the projector image

Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Zoom, lens shift, and focus
To adjust the image size and position, do the following:
a. Push down rmly on the middle of the top cover to unlock the latch. Then open the top cover.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom Lever
Lens Shift
b. To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
c. To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
English
15
SETUP AND INSTALLATION
To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and
legible.
Note: The projector will focus at a distance of 1.3m to 9.3m.

Remote setup

Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
Focus Ring
1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.
Note: Replace only with the same or equivalent type batteries.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
Do not mix batteries of different types. Different types of batteries have different characteristics.
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact
with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
16
If you will not be using the remote control for an extended period of time, remove the batteries.
When you dispose of the batteries, you must obey the law in the relative area or country.
English
SETUP AND INSTALLATION
Effective range
Infra-Red (IR) remote control sensor is located on the front side and rear side of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector’s IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 7 meters (~ 23 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
Please keep the remote controller away from uorescent lamps for over 2 meters or the remote
controller might become malfunction.
If the remote control is closed to Inverter-Type uorescent lamps, it might become ineffective from time
to time.
If the remote control and the projector are within a very short distance, the remote control might
become ineffective.
When you aim at the screen, the effective distance is less than 5 meters from the remote control to the
screen and reecting the IR beams back to the projector. However, the effective range might change according to screens.
Approx. ±15°
Menu
HDMI1
VGA1
HDMI2
VGA2
Video
YPbPr
Approx. ±15°
ON
User1
Brightne ss
User2
OFF
Contrast
Keystone
Aspect r atio
User3
Mute
Mode
DB
Source
Volume
3D
Sleep Ti mer
Re-sync
Volume
ON
User1
Brightne ss
User2
OFF
Contrast
Keystone
Aspect r atio
User3
Mute
Mode
DB
Source
Volume
3D
Sleep Ti mer
Menu
Re-sync
Volume
HDMI1
VGA1
HDMI2
VGA2
Video
YPbPr
English
17
USING THE PROJECTOR
ON
OFF
User2
User1
User3

Powering on / off the projector

or
ON
User1
Brightness
Keystone
Source
VGA1
Mute
Menu
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Volume
HDMI2
VGA2 Video YPbPr
User3
Mode
3D
Sleep Timer
Re-sync
OFF
Powering on
1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red.
2. Turn on the projector by pressing the " " on the projector keypad or the remote control.
3. A start up screen will display in approximately 10 seconds and the On/Standby LED will be ashing blue.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language, projection
orientation, and other settings.
Powering off
1. Turn off the projector by pressing the " " on the projector keypad or the “ ” on the remote control.
2. The following message will be displayed:
Power Off?
Press power key again.
3. Press the " " or the “ ” button again to conrm, otherwise the message will disappear after 15 seconds. When you press the " " or the “ ” button for the second time, the projector will shut down.
4. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/ Standby LED will ash blue. When the On/Standby LED turns solid red, this indicates the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has nished and the projector has entered standby mode. When the projector is in standby mode, simply press the " " button again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.
18
English
USING THE PROJECTOR
ON
OFF
Menu
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer

Selecting an input source

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on the projector keypad or the remote control to select the desired input.
or
ON
OFF
User2
User1
User3
Contrast
Brightness
Mode
Aspect ratio
Keystone
3D
DB
Sleep Timer
Mute
Volume
Source
Re-sync
Menu
Volume
HDMI1
HDMI2
VGA1
VGA2 Video YPbPr
English
19

USING THE PROJECTOR

Menu navigation and features

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.
1. To open the OSD menu, press on the remote control or the projector keyboard.
2. When OSD is displayed, use keys to select any item in the main menu. While making a selection on a particular page, press or key to enter sub menu.
3. Use keys to select the desired item in the sub menu and then press or key to view further settings. Adjust the settings by using keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press the or to conrm, and the screen will return to the main menu.
6. To exit, press the or again. The OSD menu will close and the projector will automatically save the new settings.
Main Menu
Sub Menu
Display
Image Settings
3D
Aspect Ratio
Edge Mask
Digital Zoom
Image Shift
Select Exit Enter
Navigation guide
Settings
20
English
USING THE PROJECTOR

OSD Menu tree

Main
Menu
Display Image Settings
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Cinema
HDR
HDR SIM.
Game
Reference
Display Mode
Wall Color
HDR
Dynamic Range
HDR Picture Mode
Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Color -50 ~ 50
Tint -50 ~ 50
Film
Video
Graphics
Gamma
Color Settings BrilliantColor
Standard(2.2)
1.8
2.0
2.4
3D
TM
Bright
User
3D
ISF Day
ISF Night
ISF 3D
Off [Default]
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Gray
Off
On [Default]
Bright
Standard [Default]
Film
Detail
1 ~ 10
English
21
USING THE PROJECTOR
Main
Menu
Display Image Settings Color Settings
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Color Temperature
Color Gamut
CMS
RGB Gain/Bias
Color Space [Not HDMI Input]
Color Space [HDMI Input]
D55
D65
D75
D83
D93
Native
Native
HDTV
Presentation
Cinema
Game
R [Default]
G
B
Color
x offset -50 ~ 50 [Default:0]
y offset -50 ~ 50 [Default:0]
Brightness -50 ~ 50 [Default:0]
Reset
Exit
Red Gain -50 ~ 50
Green Gain -50 ~ 50
Blue Gain -50 ~ 50
Red Bias 0 ~ 100
Green Bias 0 ~ 100
Blue Bias 0 ~ 100
Reset
Exit
C
Y
M
W
Cancel [Default]
Yes
Cancel [Default]
Yes
Auto [Default]
RGB
YUV
Auto [Default]
RGB(0~255)
RGB(16~235)
YUV
22
English
USING THE PROJECTOR
Main
Menu
Display Image Settings
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Signal
UltraDetail
Brightness Mode
PureEngine
Reset
Automatic
Frequency
Phase
H. Position
V. Position
Exit
PureContrast
PureColor
PureMotion
PureMotion Demo
Off
On [Default]
-50 ~ 50 (depends on signal) [Default:0]
0~31 (depends on signal) [Default:0]
-50 ~ 50 (depends on signal) [Default:0]
-50 ~ 50 (depends on signal) [Default:0]
Off
1
2
3
DynamicBlack 1
DynamicBlack 2
DynamicBlack 3
Power (Power = 100%/ 95%/ 90%/ 85%/ 80%/ 75%/ 70%/ 65%/ 60%/ 55%/ 50%)
Off
On
Off
1
2
3
4
5
Off
1
2
3
Off [Default]
H Split
V Split
English
23
USING THE PROJECTOR
Main
Menu
Display
Audio
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
3D Mode
3D
3D Sync Invert
Aspect Ratio
Edge Mask 0 ~ 10 [Default: 0]
Digital Zoom -5 ~ 25 [Default: 0]
Image Shift
Internal Speaker
Mute
Volume 0 ~ 10 [Default: 5]
H
V
Off [Default]
On
Off [Default]
On
4:3
16:9
LBX
Superwide
Native
Auto
-100 ~ 100 [Default: 0]
-100 ~ 100 [Default: 0]
Auto [Default]
Off
On
Off [Default]
On
Setup
Projection
Filter Settings
Filter Usage Hours
Optional Filter Installed
Filter Reminder
Filter Reset
Front [Default]
Rear
Ceiling-top
Rear-top
(read only)
Yes
No
Off
300hr
500hr [Default]
800hr
1000hr
Cancel [Default]
Yes
24
English
USING THE PROJECTOR
Main
Menu
Setup
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Off [Default]
On
0 ~ 180 (5 min increments) [Default: 0]
0 ~ 990 (30 min increments) [Default: 0]
No [Default]
Yes
Active
Eco [Default]
Off
On
Green Grid
Magenta Grid
White Grid
White
Off
On
Front
Back
Off
Test Pattern
LAN
CMS
Color Temp
Gamma
Auto Source
Projection
Zoom
MHL
Dynamic Range [Default]
Info
PureEngine
Power Settings
Security
Test Pattern
Remote Settings
[depends on remote]
Direct Power On
Auto Power Off (min.)
Sleep Timer (min.)
Power Mode (Standby)
Security
Security Timer
Change Password
IR Function
User1
Always On
Month
Day
Hour
English
25
USING THE PROJECTOR
Main
Menu
Setup
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Test Pattern
LAN
CMS
Color Temp
Gamma
User2
Remote Settings
[depends on remote]
User3
User3
Projector ID 00 ~ 99
12V Trigger 12V Trigger
Options Language
Auto Source
Projection
Zoom
MHL [Default]
Dynamic Range
Info
PureEngine
Test Pattern
LAN
CMS
Color Temp
Gamma
Auto Source
Projection
Zoom
MHL
Dynamic Range
Info [Default]
PureEngine
On
Off
English [Default]
Deutsch
Français
Italiano
Español
Português
簡体中文
日本語
한국어
Русский
26
English
USING THE PROJECTOR
Main
Menu
Setup
Network LAN
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Options
Reset
Top left
Top right
Menu Location
Menu Settings
Menu Timer
Auto Source
Input Source
High Altitude
Display Mode Lock
Keypad Lock
Information Hide
Logo
Background Color
HDMI 1 EQ 1 ~ 7 [Default: 4]
HDMI 2 EQ 1 ~ 7 [Default: 4]
Reset OSD
Reset to Default
Network Status (read only)
MAC Address (read only)
DHCP
IP Address 192.168.0.100 [Default]
Subnet Mask 255.255.255.0 [Default]
Gateway 192.168.0.254 [Default]
DNS 192.168.0.51 [Default]
Reset
Center [Default]
Bottom left
Bottom right
Off
5sec
10sec [Default]
Off [Default]
On
HDMI1
HDMI2/MHL
VGA
Off [Default]
On
Off [Default]
On
Off [Default]
On
Off [Default]
On
Default [Default]
Neutral
None [Default]
Blue
Red
Green
Gray
Cancel [Default]
Yes
Cancel [Default]
Yes
Off [Default]
On
English
27
USING THE PROJECTOR
Main
Menu
Network Control
Information
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Regulatory
Serial Number
Source
Resolution 00x00
Refresh Rate 0.00Hz
Color Depth
Color Format
Display Mode
Power Mode (Standby)
Light Source Hours
Network Status
IP Address
Projector ID 00 ~ 99
Filter Usage Hours
Brightness Mode
FW Version
Crestron
Extron
PJ Link
AMX Device Discovery
Telnet
HTTP
System
LAN
MCU
EDID
Off
On [Default]
NOTE: Port 41794
Off
On [Default]
NOTE: Port 2023
Off
On [Default]
NOTE: Port 4352
Off
On [Default]
NOTE: Port 9131
Off
On [Default]
NOTE: Port 23
Off
On [Default]
NOTE: Port 80
28
English
USING THE PROJECTOR

Display menu

Display image settings menu
Display Mode
There are many factory presets optimized for various types of images.
Cinema: Provides the best colours for watching movies.
HDR: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest
whites, and vivid cinematic color using REC.2020 color gamut. This mode will be automatically enabled if HDR is set to ON (and HDR Content is sent to projector – 4K UHD Blu-ray, 1080p/4K UHD HDR Games, 4K UHD Streaming Video). While HDR mode is active, other display modes (Cinema, Reference, etc.) cannot be selected as HDR delivers color that is highly accurate, exceeding the color performance of the other display modes.
HDR SIM.: Enhances non-HDR content with simulated High Dynamic Range (HDR). Choose this
mode to enhance gamma, contrast, and color saturation for non-HDR content (720p and 1080p Broadcast/Cable TV, 1080p Blu-ray, non-HDR Games, etc). This mode can ONLY be used with non­HDR content.
Game: Select this mode to increase the brightness and response time level for enjoying video games.
Reference: This mode is intended to reproduce as close as possible the image the way the movie
director intended. Color, color temperature, brightness, contrast and gamma settings are all congured to standard reference levels. Select this mode to watch a video.
Bright: Maximum brightness from PC input.
User: Memorize user’s settings.
3D: To experience the 3D effect, you need to have 3D glasses, make sure your PC/portable device
has a 120 Hz signal output quad buffered graphics card and have a 3D Player installed.
ISF Day: Optimize the image with the ISF Day mode to be perfectly calibrated and high picture quality.
ISF Night: Optimize the image with the ISF Night mode to be perfectly calibrated and high picture
quality.
ISF 3D: Optimize the image with the ISF 3D mode to be perfectly calibrated and high picture quality.
Note: For access and calibration of ISF daytime and night viewing modes, please contact your local dealer.
Wall Color
Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard, light yellow, light green, light blue, pink, and gray.
Dynamic Range
Congure the High Dynamic Range (HDR) setting and its effect when displaying video from 4K Blu-ray players and streaming devices.
HDR
± Off: Turn off HDR Processing. When set to Off, the projector will NOT decode HDR content.
± On: Turn on HDR Processing. When set to On, the projector will decode ALL HDR content (4K
UHD Blu-ray, 1080p/4K UHD HDR Games, 4K UHD Streaming Video).
HDR Picture Mode
± Bright: Choose this mode for brighter more saturated colors.
± Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.
± Film: Choose this mode for improved detail and image sharpness.
± Detail: Choose this mode for improved detail and image sharpness in dark scenes.
English
29
USING THE PROJECTOR
HDR Compatibility
± The projector is compatible with HDR10 metadata. The projector does not support Dolby Vision
HDR metadata.
Brightness
Adjust the brightness of the image.
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture.
Sharpness
Adjust the sharpness of the image.
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
Gamma
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.
Film: For home theater.
Video: For video or TV source.
Graphics: For PC / Photo source.
Standard(2.2): For standardized setting.
1.8 / 2.0 / 2.4: For specic PC / Photo source.
3D: For 3D source.
Note: 3D gamma option is visible and available only for 3D sources.
Color Settings
Congure the color settings.
BrilliantColorTM: This adjustable item utilizes a new color-processing algorithm and enhancements to
enable higher brightness while providing true, more vibrant colors in picture.
Color Temperature: Select a color temperature from D55, D65, D75, D83, D93, or Native.
Color Gamut: Select an appropriate color gamut from Native, HDTV, Presentation, Cinema, or Game.
CMS (Color Management System): Select one of the colors (R/G/B/C/Y/M/W) to adjust its x/y offset
and brightness.
± Color: Select between red (R), green (G), blue (B), cyan (C), yellow (Y), magenta (M), and white
(W) color.
30
± x offset: Adjust the x offset value of the selected color.
± y offset: Adjust the y offset value of the selected color.
± Brightness: Adjust the brightness value of the selected color.
± Reset: Return the factory default settings for color adjustments.
± Exit: Exit the “CMS” menu.
RGB Gain/Bias: This settings allows to congure the brightness (gain) and contrast (bias) of an
image.
English
USING THE PROJECTOR
± Reset: Return the factory default settings for RGB gain/bias.
± Exit: Exit the “RGB Gain/Bias” menu.
Color Space (non-HDMI input only): Select an appropriate color matrix type from the following:
AUTO, RGB, or YUV.
Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto,
RGB(0-255), RGB(16-235), and YUV.
Signal
Adjust the signal options.
Automatic: Congure automatically the signal (the frequency and phase items are grayed out). If
automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
Frequency: Change the display data frequency to match the frequency of your computer’s graphic
card. Use this function only if the image appears to icker vertically.
Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be
unstable or ickers, use this function to correct it.
H. Position: Adjust the horizontal positioning of the image.
V. Position: Adjust the vertical positioning of the image.
Exit: Exit the “Signal” menu.
Note: This menu is only available if the input source is RGB/Component.
UltraDetail
Adjust the edges of the projected image in order to provide more perceived details.
Brightness Mode
Adjust the brightness mode settings.
DynamicBlack 1/ DynamicBlack 2/ DynamicBlack 3: Use to automatically adjust the picture
brightness in order to give optimum contrast performance.
Power: Choose the power percentage for brightness mode.
PureEngine
Adjust the PureEngine parameters.
PureContrast: Use to automatically optimize the brightness of the display during dark / light movie
scenes to be shown in incredible detail.
PureColor: Use to signicantly increase the image’s vividness.
PureMotion: Use to preserve a natural motion of the displayed image.
PureMotion Demo: This feature enables you to see the difference in the image quality between the
raw unprocessed image and the image processed as processed by the PureMotion. Use this mode to check the adjustments that you make to the PureMotion settings.
Note: This menu is only available for certain models.
Reset
Return the factory default settings for color settings.
English
31
USING THE PROJECTOR
Display 3D menu
Note:
This projector is a 3D ready projector with DLP-Link 3D solution.
Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video.
This projector supports frame sequential (page-ip) 3D via HDMI1/HDMI2/VGA ports.
To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not
supported.
To reach the best performance, resolution 1920x1080 is recommended, please be noted that 4K
(3840x2160) resolution is not supported in 3D mode.
3D Mode
Switch the 3D mode on or off.
3D Sync Invert
Press the “On” to invert left and right frame contents.
Press the “Off” for default frame contents.
Display aspect ratio menu
Aspect Ratio
Select the aspect ratio of the displayed image between the following options:
4:3: This format is for 4:3 input sources.
16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
LBX: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1
aspect ratio in full resolution.
Superwide: Use this special 2.0:1 aspect ratio to display both 16:9 and 2.35:1 aspect ratio movies
without black bars at the top and bottom of the screen.
Native: This format displays the original image without any scaling.
Auto: Automatically selects the appropriate display format.
Note:
Detailed informations about LBX mode:
± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image
will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image
in 16:9 display. For this type of content, you can use LBX mode to ll the image on the 16:9
display.
± If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1
content (include Anamorphic DVD and HDTV lm source) that supports anamorphic wide is
enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Light source power and vertical resolution are fully utilized.
32
To use the superwide format, do the following:
a) Set the screen aspect ratio to 2.0:1.
b) Select “Superwide” format.
c) Align the projector image correctly on the screen.
English
USING THE PROJECTOR
4K UHD scaling table:
16 : 9 screen 480i/p 576i/p 720p 1080i/p
4x3 Scale to 2880 x 2160.
16x9 Scale to 3840 x 2160.
LBX Get the central 3840 x 1620 image, and then scale to 3840 x 2160 for display.
Native mode 1:1 mapping centered.
No scaling will be made; the displayed resolution depends on input source.
Auto -If source is 4:3, the screen type will be scaled to 2880 x 2160.
-If source is 16:9, the screen type will be scaled to 3840 x 2160.
-If source is 15:9, the screen type will be scaled to 3600 x 2160.
-If source is 16:10, the screen type will be scaled to 3456 x 2160.
Auto mapping rule:
Input resolution Auto/Scale
H-resolution V-resolution 3840 2160
640 480 2880 2160
800 600 2880 2160
4:3
Wide Laptop
SDTV
HDTV
1024 768 2880 2160
1280 1024 2880 2160
1400 1050 2880 2160
1600 1200 2880 2160
1280 720 3840 2160
1280 768 3600 2160
1280 800 3456 2160
720 576 2700 2160
720 480 3240 2160
1280 720 3840 2160
1920 1080 3840 2160
2160p
Display edge mask menu
Edge Mask
Use this function to remove the video encoding noise on the edge of video source.
Display digital zoom menu
Digital Zoom
Use to reduce or magnify an image on the projection screen.
Display image shift menu
Image Shift
Adjust the projected image position horizontally (H) or vertically (V).
English
33
USING THE PROJECTOR

Audio menu

Audio internal speaker menu
Internal Speaker
Use this option to turn on or off the internal speaker.
Auto: Choose “Auto” to automatically turn off the internal speaker when an external speaker is
connected to the projector.
Off: Choose “Off” to turn off the internal speaker.
On: Choose “On” to turn on the internal speaker.
Audio mute menu
Mute
Use this option to temporarily turn off the sound.
On: Choose “On” to turn mute on.
Off: Choose “Off” to turn mute off.
Note: “Mute” function affects both internal and external speaker volume.
Audio volume menu
Volume
Adjust the volume level.

Setup menu

Setup projection menu
Projection
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Setup lter settings menu
Filter Usage Hours
Display the lter time.
Optional Filter Installed
Set the warning message setting.
Yes: Display warning message after 500 hours of use.
Note: “Filter Usage Hours / Filter Reminder / Filter Reset” will only appear when “Optional Filter
Installed” is “Yes”.
No: Turn off warning message.
Filter Reminder
Choose this function to show or hide the warning message when the changing lter message is displayed. The available options include 300hr, 500hr, 800hr, and 1000hr.
English
34
USING THE PROJECTOR
Filter Reset
Reset the dust lter counter after replacing or cleaning the dust lter.
Setup power settings menu
Direct Power On
Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control.
Auto Power Off (min.)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has nished (in minutes).
Sleep Timer (min.)
Congure the sleep timer.
Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or without
a signal being sent to the projector. The projector will automatically power off when the countdown has nished (in minutes).
Note: The Sleep Timer is reset every time when the projector is powered off.
Always On: Check to set the sleep timer always on.
Power Mode (Standby)
Set the power mode setting.
Active: Choose “Active” to return to normal standby.
Eco: Choose “Eco.” to save power dissipation further < 0.5W.
Setup security menu
Security
Enable this function to prompt for a password before using the projector.
On: Choose “On” to use security verication when the turning on the projector.
Off: Choose “Off” to be able to switch on the projector without password verication.
Security Timer
Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.
Change Password
Use to set or modify the password that is prompted when turning the projector on.
Setup test pattern menu
Test Pattern
Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (off).
English
35
USING THE PROJECTOR
Setup remote settings menu
IR Function
Set the IR function setting.
On: Choose “On”, the projector can be operated by the remote control from top and front IR receivers.
Front: Choose “Front”, the projector can be operated by the remote control from the front IR receiver.
Back: Choose “Back”, the projector can be operated by the remote control from the rear IR receiver.
Off: Choose “Off”, the projector can’t be operated by the remote control. By selecting “Off”, you will be
able to use the Keypad keys.
User1/ User2/ User3
Assign the default function for User1, User2, or User3 between Test Pattern, LAN, CMS, Color Temp, Gamma, Auto Source, Projection, Zoom, MHL, Dynamic Range, Info, or PureEngine.
Setup projector ID menu
Projector ID
ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.
Setup 12V trigger menu
12V Trigger
Use this function to enable or disable the trigger.
Reserved
IR_IN & detect
GND
Off: Choose “Off” to disable the trigger.
On: Choose “On” to enable the trigger.
Setup options menu
Language
Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Simplied Chinese, Japanese, Korean, and Russian.
Menu Settings
Set the menu location on the screen and congure menu timer settings.
Menu Location: Select the menu location on the display screen.
Menu Timer: Set the duration where the OSD menu stays visible on the screen.
Auto Source
Choose this option to let the projector automatically nd an available input source.
Input Source
Select the input source between HDMI1, HDMI2/MHL, and VGA.
High Altitude
When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
English
36
USING THE PROJECTOR
Display Mode Lock
Choose “On” or “Off” to lock or unlock adjusting display mode settings.
Keypad Lock
When the keypad lock function is “On”, the Keypad will be locked. However, the projector can be operated by the remote control. By selecting “Off”, you will be able to reuse the Keypad.
Information Hide
Enable this function to hide the information message.
Off: Choose “On” to hide the info message.
On: Choose “Off” to show the “searching” message.
Logo
Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on.
Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.
Background Color
Use this function to display a blue, red, green, gray color, or none when no signal is available.
HDMI 1 EQ
Set the HDMI port EQ value for HDMI1.
HDMI 2 EQ
Set the HDMI port EQ value for HDMI2/MHL.
Note:
HDMI EQ analyses the signal data and eliminates distortion due to signal loss when using long HDMI
cables. The HDMI receiver also includes a timing adjustment circuit that removes timing jitter, restoring the HDMI signal to optimal transmission levels.
3840x2160@60Hz suggests using the HDMI cable under 5 meters.
3840x2160@30Hz/25Hz/24Hz suggests using the HDMI cable under 15 meters.
Setup reset OSD menu
Reset OSD
Return the factory default settings for OSD menu settings.
Reset to Default
Return the factory default settings for all settings.

Network menu

Network LAN menu
Network Status
Display the network connection status (read-only).
MAC Address
Display the MAC address (read-only).
English
37
USING THE PROJECTOR
DHCP
Use this option to enable or disable the DHCP function.
Off: To assign IP, subnet mask, gateway, and DNS conguration manually.
On: Projector will obtain an IP address automatically from your network.
Note: Exiting OSD will automatically apply the entered values.
IP Address
Display the IP address.
Subnet Mask
Display subnet mask number.
Gateway
Display the default gateway of the network connected to the projector.
DNS
Display the DNS number.
How to use web browser to control your projector
1. Turn “On” the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector’s IP address (“Network > LAN > IP Address”).
3. Enter the user name and password, and click “Login”. The projector’s conguration web interface opens.
Note:
The default user name and password is “admin”.
The steps in this section is based on Windows 7 operating system.
Making a direct connection from your computer to the projector*
1. Turn “Off” the DHCP option on the projector.
2. Congure the IP address, Subnet Mask, Gateway, and DNS on projector (“Network > LAN”).
3. Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector. Click “OK” to save the parameters.
38
4. Open the web browser on your PC and type in to the URL eld the IP address, assigned in step 3. Then press “Enter” key.
English
USING THE PROJECTOR
Reset
Reset all values for LAN parameters.
Network control menu
Crestron
Use this function to select the network function (port: 41794).
For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.
Extron
Use this function to select the network function (port: 2023).
PJ Link
Use this function to select the network function (port: 4352).
AMX Device Discovery
Use this function to select the network function (port: 9131).
Telnet
Use this function to select the network function (port: 23).
HTTP
Use this function to select the network function (port: 80).
Setup network control settings menu
LAN_RJ45 function
For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.
Projector
(Ethernet)
English
39
USING THE PROJECTOR
Wired LAN terminal functionalities
This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible with Crestron / Extron / AMX (Device -Discovery) / PJLink.
Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
Extron is a registered trademark of Extron Electronics, Inc. of the United States.
AMX is a registered trademark of AMX LLC of the United States.
PJLink applied for trademark and logo registration in Japan, the United States of America, and other
countries by JBMIA.
The projector is supported by the specied commands of the Crestron Electronics controller and related software, for example RoomView®.
http://www.crestron.com/
This projector is compliant to support Extron device(s) for reference.
http://www.extron.com/
This projector is supported by AMX ( Device Discovery ).
http://www.amx.com/
This projector supports all commands of PJLink Class1 (Version 1.00).
http://pjlink.jbmia.or.jp/english/
For more detailed information about the various types of external devices which can be connected to the LAN / RJ45 port and remote control the projector, as well as the supported commands for these external devices, please contact the Support-Service directly.
LAN RJ45

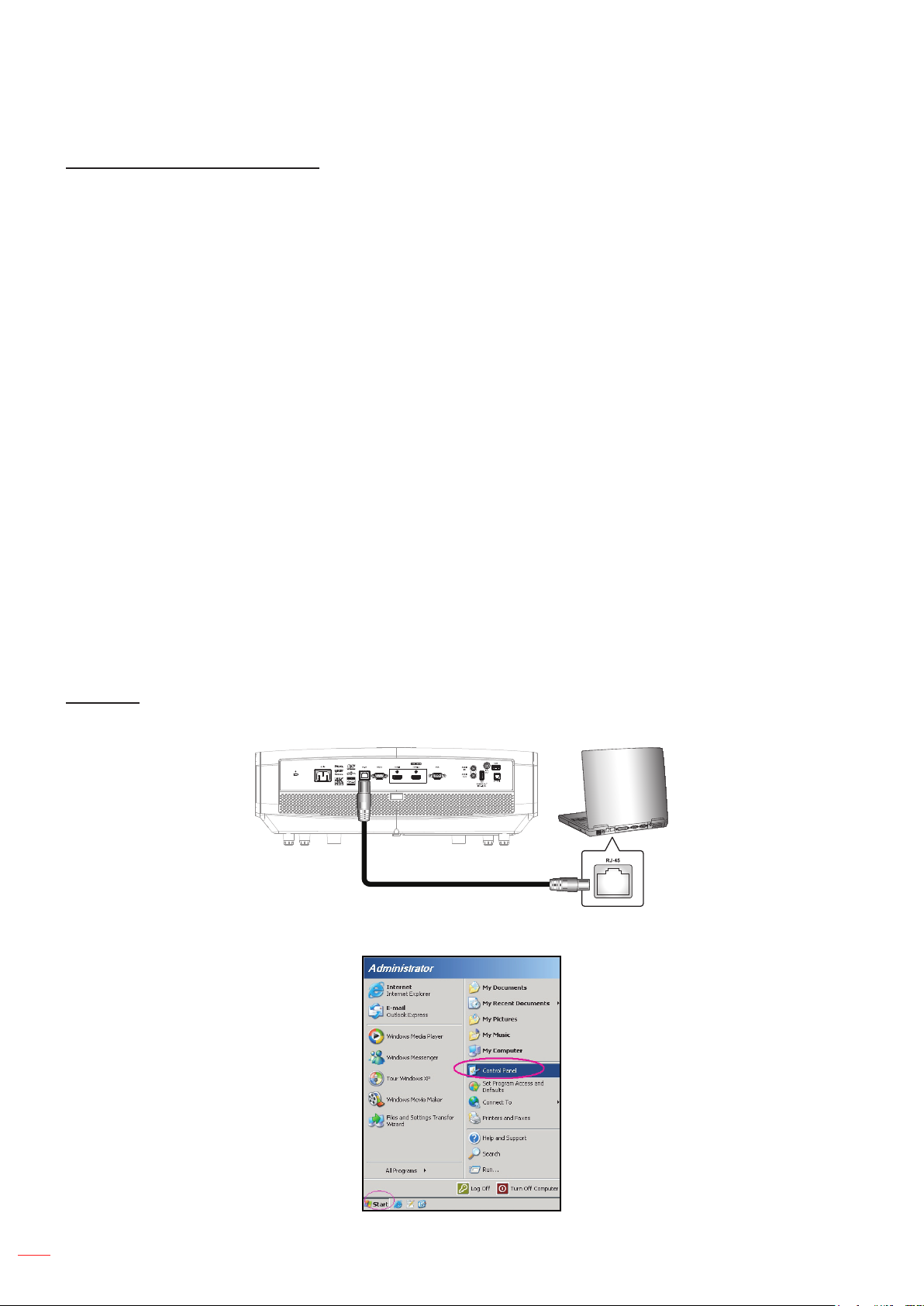

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).

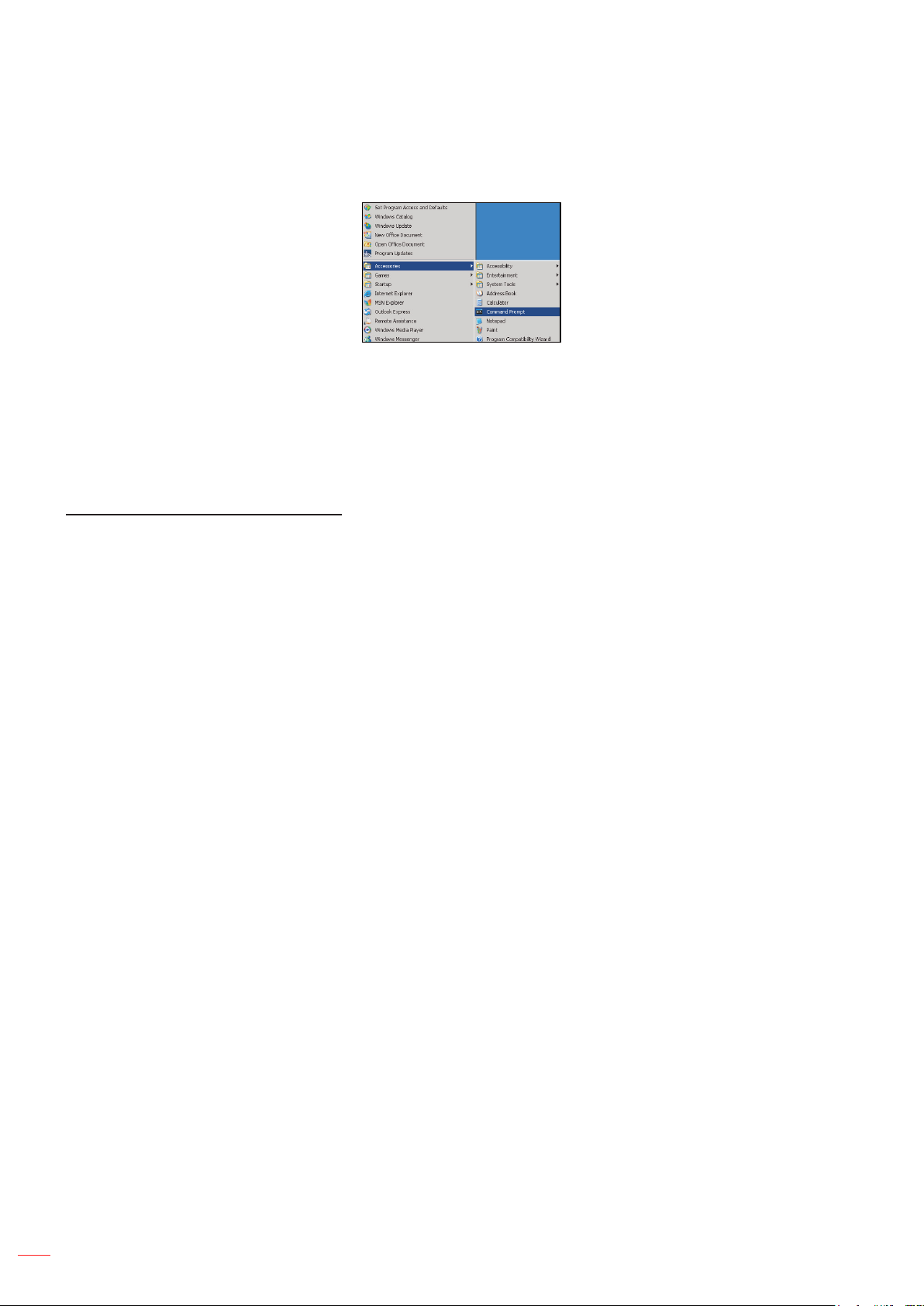

2. On the PC (Laptop), select Start > Control Panel > Network Connections.
40
English
USING THE PROJECTOR
3. Right-click on the Local Area Connection, and select Property.
4. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).
5. Click “Properties”.
6. Type in the IP address and Subnet mask, then press “OK”.
English
41
USING THE PROJECTOR
7. Press the “Menu” button on the projector.
8. Open on projector Network > LAN.
9. Enter the following connection parameters:
± DHCP: Off
± IP Address: 192.168.0.100
± Subnet Mask: 255.255.255.0
± Gateway: 192.168.0.254
± DNS: 192.168.0.51
10. Press “Enter” to conrm settings.
11. Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher installed.
12. In the Address bar, input the projector’s IP address: 192.168.0.100.
13. Press “Enter”. The projector is setup for remote management. The LAN / RJ45 function displays as follows:

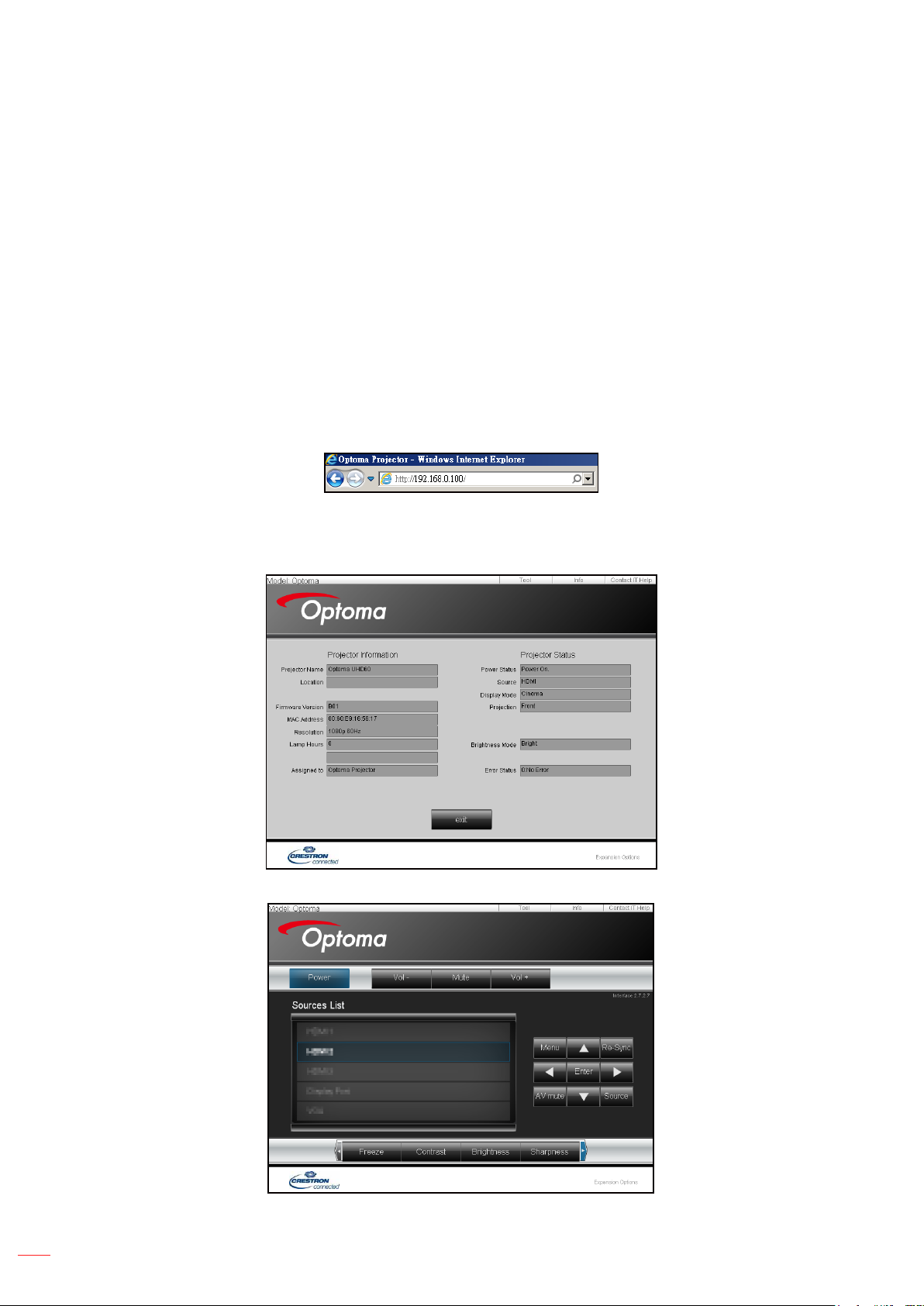

Information page
42
Main page
English
USING THE PROJECTOR
Tool page
Contact IT helpdesk
RS232 by Telnet Function
There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface.
Quick Start-Guide for “RS232 by Telnet”
Check and get the IP address on OSD of the projector.
Make sure that the PC / laptop can access the web-page of the projector.
Make sure that “Windows Firewall” setting is set disabled in case of “TELNET” function ltering out by
PC / laptop.
.
English
43
USING THE PROJECTOR
1. Select Start > All Programs.> Accessories > Command Prompt.
2. Input the command format as follows:
± telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed)
± (ttt.xxx.yyy.zzz: IP-Address of the projector)
3. If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the RS232 command will be workable.
Specication for “RS232 by TELNET”:
1. Telnet: TCP.
2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).
3. Telnet utility: Windows “TELNET.exe” (console mode).
4. Disconnection for RS232-by-Telnet control normally: Close
5. Windows Telnet utility directly after TELNET connection ready.
± Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for
Telnet-Control application.
± Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for
Telnet-Control.
± Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).
44
English
USING THE PROJECTOR

Info menu

Info menu
View the projector information as listed below:
Regulatory
Serial Number
Source
Resolution
Refresh Rate
Color Depth
Color Format
Display Mode
Power Mode (Standby)
Light Source Hours
Network Status
IP Address
Projector ID
Filter Usage Hours
Brightness Mode
FW Version
English
45

MAINTENANCE

Installing and cleaning the dust lter
Installing the dust lter
Note: Dust lters are only required/supplied in the selected regions with excessive dust.
Cleaning the dust lter
We recommend you to clean the dust lter every three months. Clean it more often if the projector is used in a dusty environment.
Procedure:
1. Switch off the power to the projector by pressing the " " button on the projector keypad or the “ ” button on the remote control.
2. Disconnect the power cord.
3. Pull the dust lter compartment downwards to remove it out from the bottom of the projector. 1
4. Carefully remove the air lter. Then clean or replace the dust lter. 2
5. To install the dust lter, reverse the previous steps.
46
1
2
English

ADDITIONAL INFORMATION

Compatible resolutions

Digital (HDMI 1.4)
Native resolution: 1920 x 1080 @ 60Hz
Established Timing Standard Timing Descriptor Timing Supported Video Mode Detail Timing
720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz
(default)
640 x 480 @ 60Hz 1280 x 800 @ 60Hz 720 x 480p @ 60Hz 4:3
640 x 480 @ 67Hz 1280 x 1024 @ 60Hz 720 x 480p @ 60Hz 16:9
640 x 480 @ 72Hz 1920 x 1200 @ 60Hz
(reduced)
640 x 480 @ 75Hz 1366 x 768 @ 60Hz 720 x 576p @ 50Hz 4:3
800 x 600 @ 56Hz 720 x 576p @ 50Hz 16:9
800 x 600 @ 60Hz 1280 x 720p @ 60Hz 16:9
800 x 600 @ 72Hz 1280 x 720p @ 50Hz 16:9
800 x 600 @ 75Hz 1920 x 1080i @ 60Hz 16:9
832 x 624 @ 75Hz 1920 x 1080i @ 50Hz 16:9
1024 x 768 @ 60Hz 1920 x 1080p @ 60Hz 16:9
1024 x 768 @ 70Hz 1920 x 1080p @ 50Hz 16:9
1024 x 768 @ 75Hz 1920 x 1080p @ 24Hz 16:9
1280 x 1024 @ 75Hz 3840 x 2160 @ 24Hz
1152 x 870 @ 75Hz 3840 x 2160 @ 25Hz
720 x 480i @ 60Hz 16:9 1920 x 1080p @ 60Hz
720 x 576i @ 50Hz 16:9
3840 x 2160 @ 30Hz
4096 x 2160 @ 24Hz
Digital (HDMI 2.0)
Native resolution: 1920 x 1080 @ 60Hz
B0 / Established Timing B0 / Standard Timing B1 / Video Mode B1 / Detail Timing
720 x 400 @ 70Hz 1280 x 720 @ 60Hz 720 x 480i @ 60Hz 16:9 1920 x 1080p @ 60Hz
640 x 480 @ 60Hz 1280 x 800 @ 60Hz 720 x 480p @ 60Hz 4:3
640 x 480 @ 67Hz 1280 x 1024 @ 60Hz 720 x 480p @ 60Hz 16:9
640 x 480 @ 72Hz 1920 x 1200 @ 60Hz (reduced) 720 x 576i @ 50Hz 16:9
640 x 480 @ 75Hz 1366 x 768 @ 60Hz 720 x 576p @ 50Hz 4:3
800 x 600 @ 56Hz 720 x 576p @ 50Hz 16:9
800 x 600 @ 60Hz 1280 x 720p @ 60Hz 16:9
800 x 600 @ 72Hz 1280 x 720p @ 50Hz 16:9
800 x 600 @ 75Hz 1920 x 1080i @ 60Hz 16:9
832 x 624 @ 75Hz 1920 x 1080i @ 50Hz 16:9
1024 x 768 @ 60Hz 1920 x 1080p @ 60Hz 16:9
1024 x 768 @ 70Hz 1920 x 1080p @ 50Hz 16:9
1024 x 768 @ 75Hz 1920 x 1080p @ 24Hz 16:9
1280 x 1024 @ 75Hz 3840 x 2160 @ 24Hz
1152 x 870@ 75Hz 3840 x 2160 @ 25Hz
3840 x 2160 @ 30Hz
3840 x 2160 @ 50Hz
3840 x 2160 @ 60Hz
4096 x 2160 @ 24Hz
4096 x 2160 @ 25Hz
English
47
ADDITIONAL INFORMATION
B0 / Established Timing B0 / Standard Timing B1 / Video Mode B1 / Detail Timing
4096 x 2160 @ 30Hz
4096 x 2160 @ 50Hz
4096 x 2160 @ 60Hz
Note: Support 1920 x 1080 @ 50Hz.
Analog
Native resolution: 1920 x 1080 @ 60Hz
B0 / Established Timing B0 / Standard Timing B0 / Detail Timing B1 / Detail Timing
720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz (default) 1366 x 768 @ 60Hz
640 x 480 @ 60Hz 1280 x 800 @ 60Hz
640 x 480 @ 67Hz 1280 x 1024 @ 60Hz
640 x 480 @ 72Hz 1400 x 1050 @ 60Hz
640 x 480 @ 75Hz 1600 x 1200 @ 60Hz
800 x 600 @ 56Hz
800 x 600 @ 60Hz
800 x 600 @ 72Hz
800 x 600 @ 75Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz
1024 x 768 @ 70Hz
1024 x 768 @ 75Hz
1280 x 1024 @ 75Hz
1152 x 870 @ 75Hz
Note: Support 1920 x 1080 @ 50Hz.

Image size and projection distance

(image size and distance in meters and feet)
Diagonal
length
(inch)
size of
16:9
Screen
30.00 0.66 0.37 2.18 1.23 0.92 1.47 3.02 4.82 0.00 0.00 0.06 0.18
40.00 0.89 0.50 2.91 1.63 1.23 1.97 4.04 6.46 0.00 0.00 0.07 0.25
60.00 1.33 0.75 4.36 2.45 1.85 2.95 6.07 9.68 0.00 0.00 0.11 0.37
70.00 1.55 0.87 5.08 2.86 2.15 3.44 7.05 11.29 0.00 0.00 0.13 0.43
80.00 1.77 1.00 5.81 3.27 2.46 3.93 8.07 12.89 0.00 0.00 0.15 0.49
90.00 1.99 1.12 6.54 3.68 2.77 4.42 9.09 14.50 0.00 0.00 0.17 0.55
100.00 2.21 1.25 7.26 4.09 3.08 4.91 10.10 16.11 0.00 0.00 0.19 0.61
120.00 2.66 1.49 8.72 4.90 3.69 5.9 12.11 19.36 0.00 0.00 0.22 0.74
150.00 3.32 1.87 10.89 6.13 4.62 7.37 15.16 24.18 0.00 0.00 0.28 0.92
180.00 3.98 2.24 13.07 7.35 5.54 8.85 18.18 29.04 0.00 0.00 0.34 1.10
250.00 5.53 3.11 18.16 10.21 7.69 12.29 25.23 40.32 0.00 0.00 0.47 1.53
300.00 6.64 3.74 21.79 12.26 9.23 14.74 30.28 48.36 0.00 0.00 0.56 1.84
Width Height Width Height Wide Tele Wide Tele (m) (feet) (m) (feet)
Screen Size W x H Projection Distance (D)
(m) (feet) (m) (feet)
Min Offset (Hd) Max Offset (Hd)
(image size and distance in meters and inches)
English
48
ADDITIONAL INFORMATION
Diagonal
length
(inch)
Screen Size W x H Projection Distance (D)
(m) (inch) (m) (inch)
Min Offset (Hd) Max Offset (Hd)
size of
16:9
Width Height Width Height Wide Tele Wide Tele (m) (inch) (m) (inch)
Screen
30.00 0.66 0.37 26.15 14.71 0.92 1.47 36.22 57.87 0.00 0.00 0.06 2.21
40.00 0.89 0.50 34.86 19.61 1.23 1.97 48.43 77.56 0.00 0.00 0.07 2.94
60.00 1.33 0.75 52.29 29.42 1.85 2.95 72.83 116.14 0.00 0.00 0.11 4.41
70.00 1.55 0.87 61.01 34.32 2.15 3.44 84.65 135.43 0.00 0.00 0.13 5.15
80.00 1.77 1.00 69.73 39.22 2.46 3.93 96.85 154.72 0.00 0.00 0.15 5.88
90.00 1.99 1.12 78.44 44.12 2.77 4.42 109.06 174.02 0.00 0.00 0.17 6.62
100.00 2.21 1.25 87.16 49.03 3.08 4.91 121.26 193.31 0.00 0.00 0.19 7.35
120.00 2.66 1.49 104.59 58.83 3.69 5.9 145.28 232.28 0.00 0.00 0.22 8.82
150.00 3.32 1.87 130.74 73.54 4.62 7.37 181.89 290.16 0.00 0.00 0.28 11.03
180.00 3.98 2.24 156.88 88.25 5.54 8.85 218.11 348.43 0.00 0.00 0.34 13.24
250.00 5.53 3.11 217.89 122.57 7.69 12.29 302.76 483.86 0.00 0.00 0.47 18.38
300.00 6.64 3.74 261.47 147.08 9.23 14.74 363.39 580.31 0.00 0.00 0.56 22.06
Top View
Screen
Screen (W)
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen (H)
Offset (Hd)
Diagonal
Height
Width
English
49
ADDITIONAL INFORMATION

Projector dimensions and ceiling mount installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specications:
Screw type: M6*10
Minimum screw length: 10mm
171.00
151.00
252.50
Lens
20.00
76.91 74.39
138.50
3.00
249.016
498.03
380.00
220.00
252.50
324.00
Note: Please note that damage resulting from incorrect installation will void the warranty.
Warning:
If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
Avoid installing the projector near a heat source.
English
50
Unit: mm
ADDITIONAL INFORMATION

IR remote codes

ON
User1
Brightness
Keystone
Mute
Source
Menu
HDMI1
VGA1
OFF
User2
Contrast
Aspect ratio
Volume
Volume
HDMI2
VGA2 Video YPbPr
DB
User3
Mode
3D
Sleep Timer
Re-sync
Data
code
Printing-key
denition
Description
Key
Custom code
Byte 1 Byte 2 Byte 3
Power on 32 CD 02 ON Press to turn on the projector.
Power off 32 CD 2E OFF Press to turn off the projector.
User 1 32 CD 36 User1
User 2 32 CD 65 User2
User dened keys. Please see page 36 to setup.
User 3 32 CD 66 User3
Brightness 32 CD 41 Brightness Adjust the brightness of the image.
Contrast 32 CD 42 Contrast
Display mode 32 CD 05 Mode
Control the degree of difference between the lightest and darkest parts of the picture.
Select a display mode for optimized settings for different applications. Please see page 29.
Keystone 32 CD 07 Keystone No function
Aspect ratio 32 CD 64 Aspect ratio
Press to change aspect ratio of a displayed image.
3D 32 CD 89 3D No function
Mute 32 CD 52 Mute Momentarily turns off / on the audio.
English
51
ADDITIONAL INFORMATION
Key
DB (Dynamic Black)
Sleep timer 32 CD 63 Sleep Timer Sets the countdown timer interval.
Volume + 32 CD 09 Volume + Adjust to increase volume.
Four direction keys
Source 32 CD 18 Source Press “Source” to select an input signal.
Enter key 32 CD 0F Conrm your item selection.
Re-sync 32 CD 04 Re-sync
Volume - 32 CD 0C Volume - Adjust to decrease volume.
Menu 3 2 CD 0E Menu
HDMI 1 32 CD 16 HDMI1
HDMI 2 32 CD 30 HDMI2
VGA 1 32 CD 1B VGA1
VGA 2 32 CD 1E VGA2 No function
Custom code
Byte 1 Byte 2 Byte 3
32 CD 44 DB
32 CD 11 ▲
32 CD 10 ◄
32 CD 12 ►
32 CD 14 ▼
Data
code
Printing-key
denition
Description
Automatically adjusts the picture brightness to give optimum contrast performance.
Use ▲, ◄, ►, or ▼ to select items or make adjustments to your selection.
Automatically synchronizes the projector to the input source.
Display or exit the on-screen display menus for projector.
Press “HDMI1” to choose source from HDMI 1 connector.
Press “HDMI2” to choose source from HDMI 2 connector.
Press “VGA1” to choose source from VGA connector.
Video 32 CD 1C Video No function
YPbPr 32 CD 17 YPbPr No function
52
English
ADDITIONAL INFORMATION

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.
Image problems
No image appears on-screen
Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
Ensure the pins of connectors are not crooked or broken.
Ensure that the "Mute" feature is not turned on.
Image is out of focus
Adjust the Focus Ring on the projector lens. Please see page 16.
Make sure the projection screen is between the required distance from the projector. (Please refer to
pages 48-49).
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
If you play the LBX format DVD title, please change the format as LBX in projector OSD.
If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
Adjust the zoom lever on the top of the projector.
Move the projector closer to or further from the screen.
Press "Menu" on the projector panel, go to "Display-->Aspect Ratio". Try the different settings.
Image has slanted sides:
If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Image is reversed
Select "Setup-->Projection" from the OSD and adjust the projection direction.
Other problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
English
53
ADDITIONAL INFORMATION
Remote control problems
If the remote control does not work
Check the operating angle of the remote control is pointed within ±15° to the IR receiver on the
projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within
7 m (23 ft) of the projector.
Make sure batteries are inserted correctly.
Replace batteries if they are exhausted.

Warning indicators

When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
"LASER" LED indicator is lit red and if "On/Standby" indicator ashes red.
"TEMP" LED indicator is lit red and if "On/Standby" indicator ashes red. This indicates the projector
has overheated. Under normal conditions, the project can be switched back on.
"TEMP" LED indicator ashes red and if "On/Standby" indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or ash, please contact your nearest service center for assistance.
LED lightning messages
Message
Standby state (Input power cord)
Power on (Warming)
Power on and laser lighting Steady light
Power off (Cooling)
Error (Laser failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light
Standby State (Burn in mode)
Burn in (Warming) Flashing
Burn in (Cooling) Flashing
Burn in (Laser lighting)
Burn in (Laser off)
Steady light
On/Standby LED Temp LED Laser LED
(Red) (Blue) (Red) (Red)
Flashing
(0.5 sec off / 0.5 sec
on)
Flashing
(0.5 sec off / 0.5 sec
light). Back to red steady light when
cooling fan turns off.
Flashing
Flashing
(3 sec on / 1 sec off)
Flashing
(1 sec on / 3 sec off)
54
English
ADDITIONAL INFORMATION
Power off:
Power Off?
Press power key again.
Temperature warning:
Warning! Dust Filters
The usage time of the dust lter is reached.
Please clean the dust lters for better performance.
English
55
ADDITIONAL INFORMATION
Specications
Optical Description
- Graphic up to 2160p @ 60Hz
Maximum resolution
Native resolution (w/o actuator) 2716 x 1528
Lens Manual zoom and manual focus
Image size (diagonal) 26.45”~302.2” focus range optimized to the image size 60”
Projection distance 1.3m ~ 9.3m focus range optimized @ wide 1.846m
Electrical Description
Inputs
Outputs
- Maximum Resolution: HDMI1 : 1920 x 1200 @ 60Hz(RB)
HDMI2 : 2160p @ 60Hz
- HDMI 1.4a
- VGA IN
- Audio In 3.5mm
- HDMI V2.0 HDCP2.2 / MHL 2.1
- USB-A
- USB2.0 USB-A for 5V PWR 1.5A
- RS232C male (9-pin D-SUB)
- RJ-45 (support web control)
- Audio Out 3.5mm
- SPDIF Out
- 12V Trigger (3.5mm jack)
Control USB type A for mouse / service
Color reproduction 1073.4 Million color
Scan rate
Built-in speaker Yes, 4W
Power requirement 100 - 240V ±10%, AC 50/60Hz
Input current 4.5A
Mechanical Description
Installation orientation Front, Rear, Ceiling - Front, Rear - top
Dimensions 498.1 mm (W) x 331 mm (D) x 154 mm (H) (without feet)
Weight <10 kg
Environmental conditions Operating in 5 ~ 40°C , 10% to 85% humidity (non-condensing)
Note: All specications are subject to change without notice.
Horizontal scan rate:31.000 ~ 135.000 KHz
Vertical scan rate: 24 ~ 120 Hz
56
English
ADDITIONAL INFORMATION
Optoma global ofces
For service or support, please contact your local ofce.
USA
3178 Laurelview Ct. 888-289-6786 Fremont, CA 94538, USA 510-897-8601 www.optomausa.com services@optoma.com
Canada
3178 Laurelview Ct. 888-289-6786 Fremont, CA 94538, USA 510-897-8601 www.optomausa.com services@optoma.com
Latin America
3178 Laurelview Ct. 888-289-6786 Fremont, CA 94538, USA 510-897-8601 www.optomausa.com services@optoma.com
Europe
Unit 1, Network 41, Bourne End Mills Hemel Hempstead, Herts, HP1 2UJ, United Kingdom +44 (0) 1923 691 800 www.optoma.eu +44 (0) 1923 691 888 Service Tel : +44 (0)1923 691865 service@tsc-europe.com
Benelux BV
Randstad 22-123 +31 (0) 36 820 0252 1316 BW Almere +31 (0) 36 548 9052 The Netherlands www.optoma.nl
Japan
東京都足立区綾瀬3-25-18 株式会社オーエス info@os-worldwide.com コンタクトセンター:0120-380-495 www.os-worldwide.com
Taiwan
12F., No.213, Sec. 3, Beixin Rd., +886-2-8911-8600 Xindian Dist., New Taipei City 231, +886-2-8911-6550 Taiwan, R.O.C. services@optoma.com.tw www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre, 79 Wing Hong Street, +852-2396-8968 Cheung Sha Wan, +852-2370-1222 Kowloon, Hong Kong www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., +86-21-62947376 Changning District +86-21-62947375 Shanghai, 200052, China www.optoma.com.cn
France
Bâtiment E +33 1 41 46 12 20 81-83 avenue Edouard Vaillant +33 1 41 46 94 35 92100 Boulogne Billancourt, France savoptoma@optoma.fr
Spain
C/ José Hierro,36 Of. 1C +34 91 499 06 06 28522 Rivas VaciaMadrid, +34 91 670 08 32 Spain
Deutschland
Wiesenstrasse 21 W +49 (0) 211 506 6670 D40549 Düsseldorf, +49 (0) 211 506 66799 Germany info@optoma.de
Scandinavia
Lerpeveien 25 +47 32 98 89 90 3040 Drammen +47 32 98 89 99 Norway info@optoma.no
PO.BOX 9515 3038 Drammen Norway
Korea
WOOMI TECH.CO.,LTD. +82+2+34430004 4F, Minu Bldg.33-14, Kangnam-Ku, +82+2+34430005 Seoul,135-815, KOREA korea.optoma.com
English
57
www.optoma.com
*36.7AL01G001-A*
P/N:36.7AL01G001-A
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
