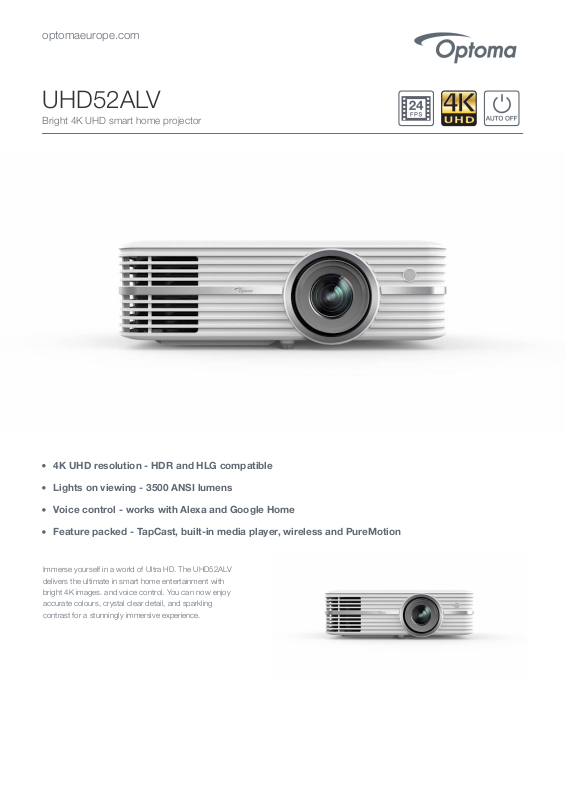

UHD52ALV
Bright 4K UHD smart home projector
4K UHD resolution - HDR and HLG compatible
Lights on viewing - 3500 ANSI lumens
Voice control - works with Alexa and Google Home
Feature packed - TapCast, built-in media player, wireless and PureMotion
Immerse yourself in a world of Ultra HD. The UHD52ALV
delivers the ultimate in smart home entertainment with
bright 4K images. and voice control. You can now enjoy
accurate colours, crystal clear detail, and sparkling
contrast for a stunningly immersive experience.
Specifications
Display/image
Display technology
DLP
Resolution
UHD (3840x2160)
Brightness
3,500 lumens
Contrast ratio
500,000:1
Native aspect ratio
16:9
Aspect ratio - compatible
4:3
Horizontal scan rate
31 ~ 135Khz
Vertical scan rate
24 ~ 120Hz
Uniformity
75%
Screen size
0.87m ~ 7.68m (34.1" ~ 302.4") diagonal
Lamp info
Light source type
Lamp
Lamp watts
240
Lamp life hours (up to)
4000 (Bright), 15000 (Dynamic), 10000 (Eco)
Optical
Throw ratio
1.21:1 ~ 1.59:1
Projection distance (m)
1.2m - 8.1m
Zoom
1.3
Zoom type
Manual
Focal length (mm)
12.81 ~ 16.74
Lens shift
Vertical +10%
Native offset
105%
Connectivity
Connections
Inputs
2 x HDMI 2.0, 1 x VGA (YPbPr/RGB), 1 x Audio
3.5mm
Outputs
1 x Audio 3.5mm, 1 x S/PDIF, 1 x USB-A power
1.5A
Control
1 x USB-A service, 1 x RS232, 1 x RJ45, 1 x 12V
trigger, 1 x USB-A reader/wireless, 1 x USB-A wireless
Alexa
General
Noise level (typical)
25dB
PC compatibility
UHD, WQHD, WUXGA, FHD, UXGA, SXGA, WXGA, HD,
XGA, SVGA, VGA, Mac
2D compatibility
480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz),
1080p(50/60Hz), 2160p(50/60Hz)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack:
1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
OSD / display languages
10 languages: English, French, German, Italian, Japanese,
Portuguese, Russian, Chinese (simplified), Spanish
Operating conditions
5°C ~ 40°C, Max. Humidity 85%, Max. Altitude 3000m
Remote control
Backlit home remote
Speaker count
2
Watts per speaker
5W
In the box
Lens cap
AC power cord
Remote control
2x AAA batteries
Basic user manual
Wireless USB adapter - WUSB
Optional wireless models
WUSB
Power
Power supply
100 ~ 240V, 50 ~ 60Hz
Power consumption
(standby)
0.5W
Power consumption (min)
249W
Power consumption (max)
305W
Weight and dimensions
Net weight
5.22kg
Dimensions (W x D x H)
mm
392 x 281 x 118
