Page 1

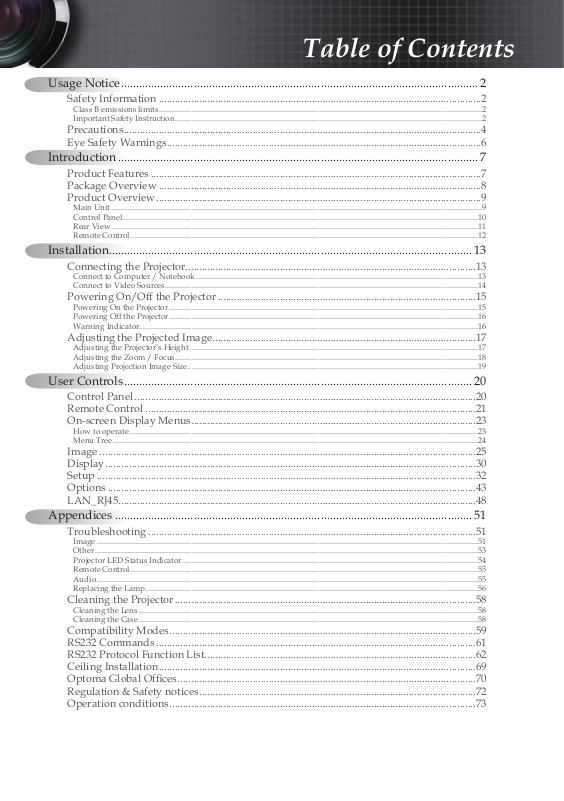

Table of Contents
Usage Notice ...................................................................................................................... 2
Safety Information ........................................................................................................................2
Class B emissions limits ................................................................................................................................................................ 2
Important Safety Instruction ........................................................................................................................................................ 2
Precautions .....................................................................................................................................4
Eye Safety Warnings .....................................................................................................................6
Introduction ....................................................................................................................... 7
Product Features ...........................................................................................................................7
Package Overview ........................................................................................................................8
Product Overview .........................................................................................................................9
Main Unit ........................................................................................................................................................................................9
Control Panel ................................................................................................................................................................................ 10
Rear View ......................................................................................................................................................................................11
Remote Control ............................................................................................................................................................................12
Installation ........................................................................................................................ 13
Connecting the Projector ............................................................................................................13
Connect to Computer / Notebook ............................................................................................................................................ 13
Connect to Video Sources ........................................................................................................................................................... 14
Powering On/Off the Projector ................................................................................................15
Powering On the Projector .........................................................................................................................................................15
Powering Off the Projector ......................................................................................................................................................... 16
Warning Indicator........................................................................................................................................................................16
Adjusting the Projected Image ..................................................................................................17
Adjusting the Projector’s Height ...............................................................................................................................................17
Adjusting the Zoom / Focus ...................................................................................................................................................... 18
Adjusting Projection Image Size ................................................................................................................................................19
User Controls ................................................................................................................... 20
Control Panel ...............................................................................................................................20
Remote Control ...........................................................................................................................21
On-screen Display Menus ..........................................................................................................23
How to operate .............................................................................................................................................................................23

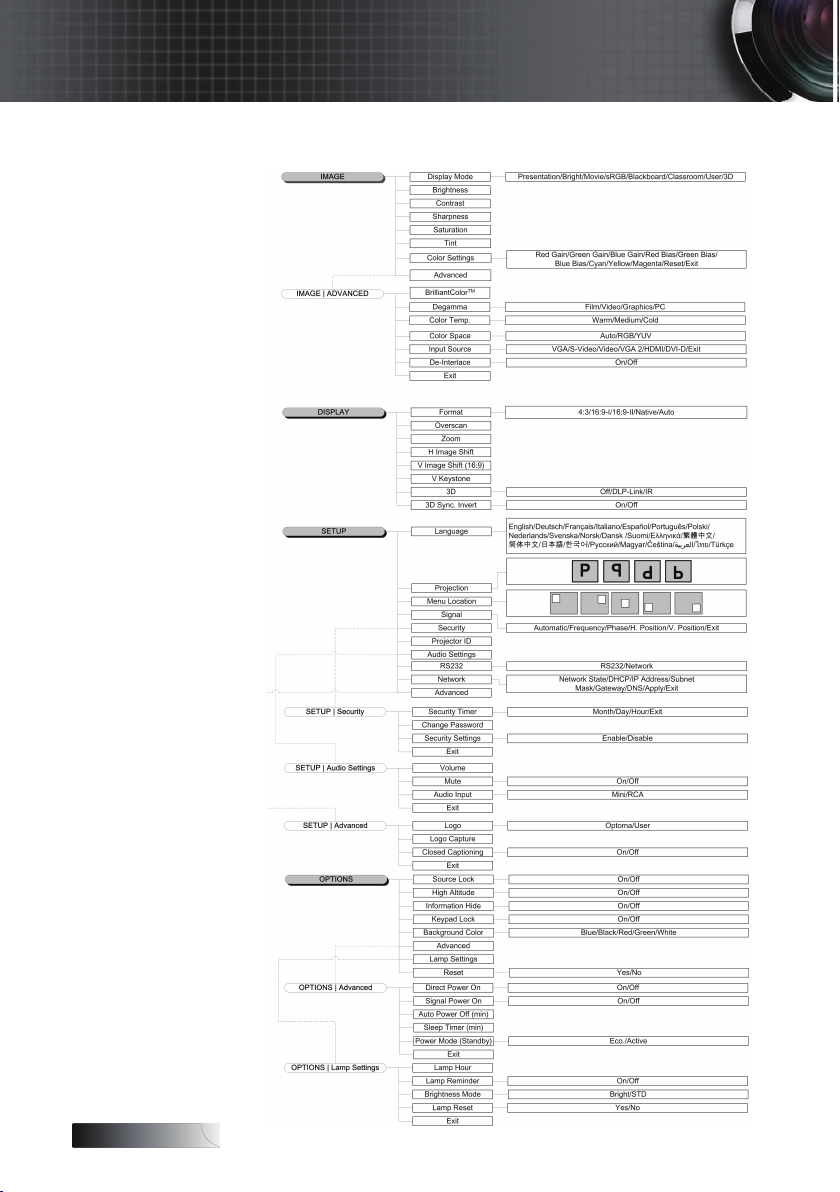

Menu Tree ..................................................................................................................................................................................... 24
Image ............................................................................................................................................25
Display ..........................................................................................................................................30
Setup .............................................................................................................................................32
Options .........................................................................................................................................43
LAN_RJ45 .....................................................................................................................................48
Appendices ...................................................................................................................... 51
Troubleshooting ..........................................................................................................................51
Image .............................................................................................................................................................................................51
Other .............................................................................................................................................................................................. 53
Projector LED Status Indicator ..................................................................................................................................................54
Remote Control ............................................................................................................................................................................55
Audio ............................................................................................................................................................................................. 55
Replacing the Lamp .....................................................................................................................................................................56
Cleaning the Projector ................................................................................................................58
Cleaning the Lens ........................................................................................................................................................................58
Cleaning the Case ........................................................................................................................................................................58
Compatibility Modes ..................................................................................................................59
RS232 Commands .......................................................................................................................61
RS232 Protocol Function List .....................................................................................................62
Ceiling Installation ......................................................................................................................69
Optoma Global Ofces ...............................................................................................................70
Regulation & Safety notices .......................................................................................................72
Operation conditions ..................................................................................................................73
Page 2
English
Usage Notice
Safety Information
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THE PROJECTOR TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Read these instructions –before using this projector.
2. Keep these instructions –for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions :
A. Do not block any ventilation openings. To ensure reliable op-
eration of the projector and to protect it from overheating, put
the projector in a position and location that will not
interfere with its proper ventilation. For example, do not place
the projector on a bed, sofa, carpet, or similar surface that
may block the ventilation openings. Do not put it in an enclosure, such as a bookcase or a cabinet that may keep air from
owing through its ventilation openings.
B. Do not use this projector near water or moisture. To reduce
the risk of re or electric shock, do not expose the projector to
rain or moisture.
C. Do not install near any heat sources, such as radiators, heaters,
stoves or other apparatus (including ampliers) that produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the manufacturer.
7. Refer all servicing to qualied service personnel. Servicing is required
when the projector has been damaged in any way, such as:
r Power supply cord or plug is damaged.
r Liquids have spilled or objects have fallen into the apparatus.
r The projector has been exposed to rain or moisture, does not
operate normally, or has been dropped.
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sucient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of import operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
2
Page 3
English
Usage Notice
Do not attempt to service this projector yourself. Opening or
removing covers may expose you to dangerous voltages or
other hazards. Please call Optoma to be referred to an
authorized service center near you.
8. Do not let objects or liquids enter the projector as they may touch
dangerous voltage points or short-out parts that could result in a
re or electric shock.
9. See projector enclosure for safety related markings.
10. The projector should not be adjusted or repaired by anyone
except properly qualied service personnel.
3
Page 4
English
Usage Notice
Precautions
▀■ Warning - Do not look into the projector’s lens when the lamp is
▀■ Warning - To reduce the risk of re or electric shock, do not
▀■ Warning - Please do not open or disassemble the projector as
▀■ Warning - When replacing the lamp, please allow unit to cool down,
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
on. The bright light may damage your eyes.
expose this projector to rain or moisture.
this may cause electric shock.
and follow all replacement instructions. See pages 56.
When the
v
lamp reaches
the end of its
life, the
projector will
not turn back
on until the
lamp module
has been
replaced. To
replace the
lamp, follow
the procedures
listed under
“Replacing the
Lamp” section
on page 56.
▀■ Warning - This projector will detect the life of the lamp itself. Please
be sure to change the lamp when it shows warning
messages.

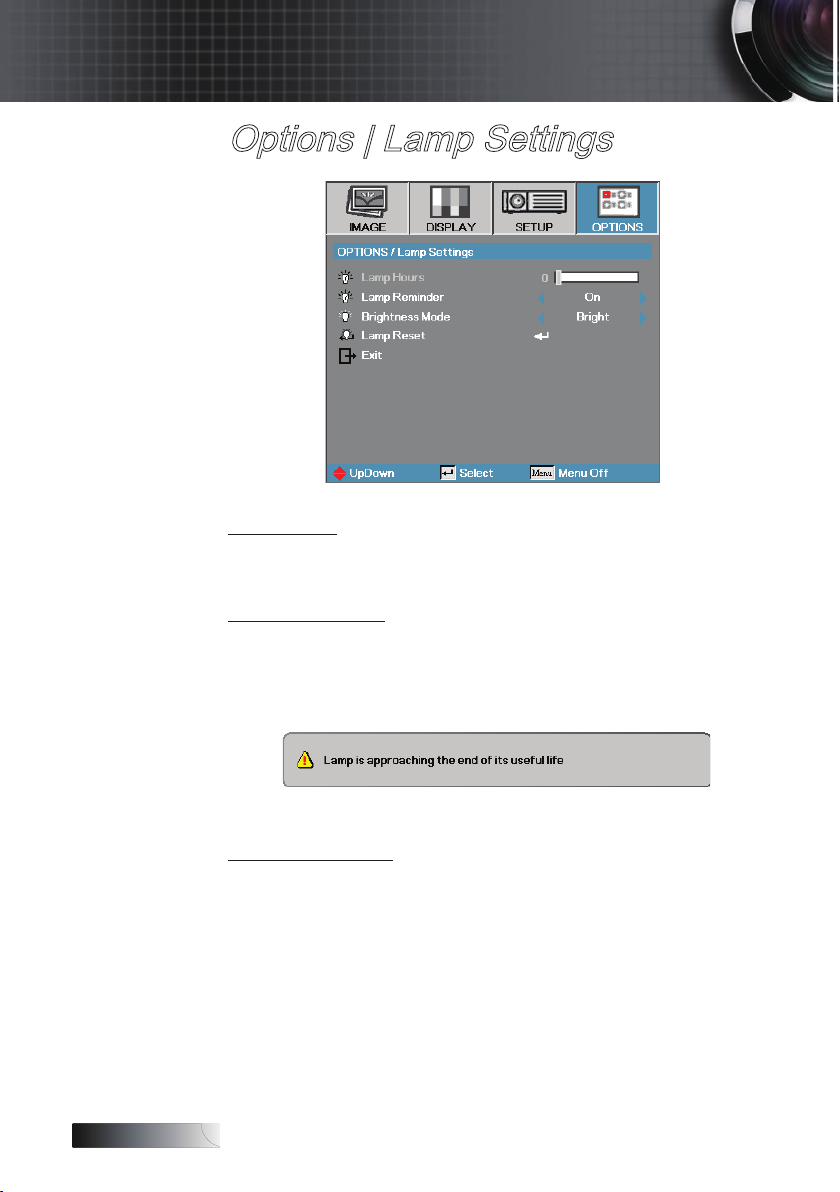

▀■ Warning - Use the “Lamp Reset” function from the on-screen dis-
play “Options|Lamp Setting” menu after replacing the lamp
module (see page 47).
▀■ Warning - When switching the projector o, please ensure the
cooling cycle has been completed before disconnecting
the power. Allow 90 seconds for the projector to cool
down.
▀■ Warning - Do not use the lens cap when projector is in operation.
▀■ Warning - When the lamp is approaching the end of its life, the
message “Lamp is approaching the end of its useful
life” displays on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.
▀■ Warning - To reduce the risk of injury to the eyes, do not look directly
into the laser beam on the remote control and do not point
the laser beam into anyone’s eyes. This remote control is
equipped with a Class II laser that emits radiation.
4
Page 5
English
Usage Notice
Do:
v Turn o the product before cleaning.
v Use a soft cloth moistened with a mild detergent to clean the
display housing.
v Disconnect the power plug from the AC outlet if the product is
not being used for a long period of time.
Do not:
v Block the ventilation slots and openings on the unit.
v Use abrasive cleaners, waxes or solvents to clean the unit.
v Use under the following conditions:
- In extremely hot, cold or humid environments. Ensure that
the ambient room temperature is within 5-40 °C and relative
humidity is 10-85% (max.), non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic eld.
- In direct sunlight.
5
Page 6
English
Usage Notice
Eye Safety Warnings
▀■ Avoid staring directly into the projector’s beam of light at all times.
▀■ Minimize standing facing into the beam. Keep your back to the
beam as much as possible.
▀■ Using a stick or laser pointer is recommended to avoid the need
for the presenter to enter the beam.
▀■ Ensure that projectors are located out of the line of sight from
the screen to the audience; this ensures that, when presenters
look at the audience, they do not also have to stare at the
projector lamp. The best way to achieve this is by ceilingmounting the projector rather than placing it on oor or table
top.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■ In order to minimize the lamp power needed, use room blinds to
reduce ambient light levels.
6
Page 7
English
Introduction
Product Features
This product is a single chip 0.7” XGA DLP® projector. Outstanding
features include:
u Texas Instruments Single chip DLP® Technology
u Computer Compatibility:
Apple Macintosh, iMac, and VESA Standards:
UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA
u Video Compatibility:
■
NTSC, NTSC4.43
■
PAL/PAL-M/PAL-N/SECAM
■
SDTV and EDTV compatible
■
HDTV compatible (720p, 1080i, 1080p)
u Auto source detection with user denable settings
u
Fully featured IR remote control with laser pointer and
mouse control
u User friendly multilingual On Screen Menu
u Advanced digital keystone correction and high
quality full screen image re-scaling
u User friendly control panel
u Macintosh and PC compatible
u HDMI 1.3 compatible
u Closed Captioning equipped
7
Page 8
English
HDMI
Introduction
Package Overview
This projector comes with all the items shown below. Check to
make sure your unit is complete. Contact your dealer
immediately if anything is missing.
Due to the
v
dierence in
applications
for each
country,
some
regions may
have
dierent
accessories.
Projector with lens cap
Carrying Case Power Cord 1.8m VGA Cable 1.8m
USB Cable
(A to B) 1.8m
(optional)
Documentation:
User’s Manual
þ
Warranty Card
þ
Quick Start Card
þ
WEEE Card
þ
SCART to RGB &
S-Video Adapter
(optional)
IR Remote Control
(with 2 x AAA Batteries)
8
Page 9
English
Product Overview
Main Unit
Introduction
Elevator Button
1.
Elevator Foot
2.
Lens CAP
3.
LED Indicators 12. Kensington™ Lock
4.
Power Button 13. Tilt-Adjustment Foot
5.
Control Panel 14. Built-in Speaker
6.
Zoom 15. Back IR Receiver
7.
Focus 16. Power Socket
8.
Front IR Receiver
9.
10. Lens
Input/Output Connections
11.
9
Page 10
English
Source
Enter
Menu
Re−sync
Introduction
Control Panel
1.
Keystone
Power Button
2.
Power LED
3.
Lamp LED
4.
Temp LED 11.
5.
/ ▲
6. Menu
10
7. Source
8. Vol - / ◄
9. Enter
10.
Vol + /
Re-Sync
12.
Keystone / ▼
►
Page 11
English
Introduction
Rear View
1. USB Connector 9. 12V DC Connector
2. VGA OUT 10. Kensington Lock
(External monitor connection for 11. Built-in Speaker
VGA 1 signal) 12. Back IR Receiver
3. VGA-1 IN/ SCART/ YPbPr Connector 13. AUDIO IN L/R Connectors
4. VGA-2 IN/ YPbPr Connector 14. AUDIO IN Connector
5. DVI-D Connector 15. RS-232 Connector
6. HDMI Connector 16. AUDIO OUT 3.5mm Jack
7. S-VIDEO Connector 17. LAN Connector
8. VIDEO Connector 18. Power Socket
11
Page 12
English
Introduction
Due to the
v
dierence in
applications
for each
country,
some
regions may
have
dierent
accessories.
Remote Control
1. Laser
2. Status LED
3. Power On/O
4. PC/Mouse Control
5. Mouse Left Click
6. Enter
7. Source / ◄
8. Keystone +/-
9. Menu/2
10. DVI-D/YPbPr/1
11. HDMI/4
12. S-Video/7
13. IR Transmitter
14. Laser
15. Mouse Right Click
16. ▲ / Page +
17. Re-Sync / ►
18. ▼ / Page -
19. Volume +/-
20. ZOOM/3
21. AV mute/6
22. Video/9
23. Freeze/5
24. VGA/8
12
Page 13
English
1
Audio Out
L R
Audio In
Audio - Out
3
3 4
2 3
5
78
7
6
v Due to the
dierence in
applications for
each
country, some
regions may
have dierent
accessories.
Connecting the Projector
Connect to Computer / Notebook
1. Power Cord
2. USB Cable (Optional)
3. VGA Cable
4. DVI-D Cable (Optional)
5. Audio Cable (Optional)
6. HDMI Cable (Optional)
7. Audio Cable (Optional - RCA to mini-jack)
8. RS232 Cable (Optional)
Installation
13
Page 14
English
4
DVD Player, Set-top Box,
HDTV receiver
DVD Player, Set-top Box,
HDTV receiver
Video Output
10
11
1
32 4 5
5
8
9
6
7
Installation
Connect to Video Sources
Due to the
v
dierence in
applications
for each
country,
some regions may
have dierent
accessories.
1. Power Cord
2. Audio-in Cable (Optional)
3. DVI-D Cable (Optional)
4. HDMI Cable (Optional)
5. S-Video Cable (Optional)
6. Video Cable (Optional)
7. Audio-in Cable (Optional)
8. VGA Cable
SCART to RGB & S-Video Adapter (Optional)
9.
RGB to Component Adapter (Optional)
10.
Component Cable (Optional)
11.
14
Page 15
English
v Turn on the
projector rst
and then
select the
signal sources.
Installation
Powering On/O the Projector
Powering On the Projector
1. Remove the lens cover.
2. Connect the power cord to the projector.
3. Turn On the connected devices.
4. Ensure the Power LED is ashing and then press the
button to turn On the projector.
The projector’s startup logo screen displays and connected devices
are detected.
If the connected device is a laptop, press the appropriate keys on
the computer keyboard to switch the display output to the projector.
(Check the user manual of the laptop to determine the appropriate
Fn key combination to change display output.)
See Security Settings on page 36 if security lock is enabled.
Power
5. If more than one input device is connected, press the “Source”
button sequentially to switch between devices.
For direct source selection, see page 21.
15
Page 16
English
Installation
Powering O the Projector
1. Press Power to turn o the projector lamp, a message displays on the
projector’s screen.
2. Press Power again to conrm, otherwise the message disappears
after 5 seconds.
3.
The cooling fans continue to operate for about 10 seconds for
cooling cycle
(If you wish to turn the projector back on, you must wait until the
projector has completed the cooling cycle and has entered standby
mode. Once in standby mode, simply press Power to restart the
projector.)
4. Turn o the main power switch. Disconnect the power cord from
the electrical outlet and the projector.
Warning Indicator
v When the Lamp LED indicator lights red, the projector will
automatically shut itself down. Please contact your local reseller
or service center. See pages 54.
v When the Temp LED is on a steady (not ashing) red, the
projector will automatically shut itself down. Under normal
conditions, the projector can be switched on again after it has
cooled down. If the problem persists, you should contact your
local dealer or our service center. See pages 54.
.
16
Page 17
English
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator foot for adjusting the image height.
To raise the image:
1. Lift the projector u.
2. Press the elevator button v.
3. Raise the image to the desired height angle, the elevator foot
drops down w.
3. Fine-tune the display angle and then release the button to lock
the elevator foot into position.
To lower the image:
Press the height-adjuster button and push down on the top of the
projector.
To adjust the angle of the image:
Turn the tilt-adjuster x right or left until the desired angle has
been achieved.
17
Page 18
English
Source
Enter
Menu
Re−sync
HDMI
Installation
Adjusting the Zoom / Focus
You may turn the zoom ring to zoom in or out. To focus the image,
rotate the focus ring until the image is clear. The projector will focus
at distances. See pages 19.
Use the keystone buttons to
correct image distortion. They can be found on the remote
control and on the projector’s control panel.
18
Page 19
English
Height
Diagonal
Width
Hd
3.6' (1.09m)
9.7' (2.93m)
18.1' (5.49m)
24.2' (7.32m)
30.2' (9.14m)
36.3' (11m)
Hd
30"
(76.2cm)
80"
(203.2cm)
150"
(381cm)
200"
(508cm)
250"
(635cm)
214.3"
(544.3cm)
300"
(762cm)
25.7"
(65.3cm)
68.6"
(174.2cm)
128.6"
(326.6cm)
171.4"
(427.4cm)
257.1"
(653.1cm)
Screen
(Diagonal)
Screen
size
Hd
Distance
Installation
Adjusting Projection Image Size
30” 80” 150” 200” 250” 300”
Max.
76.2cm 203.2cm 381cm 508cm 635cm 762cm
25.7” 68.6” 128.6” 171.4” 214.3” 257.1”
Min.
65.3cm 174.2cm 326.6cm 427.4cm 544.3cm 653.1cm
24x18” 64x48” 120x90” 160x120” 200x150” 240x180”
Max
61x45.7cm 162.6x121.9cm 304.8x228.6cm 406.4x304.8cm 508x381cm 609x457cm
(WxH).
20.6x15.4” 54.9x41.4” 102.9x77.1” 137.1x102” 171.4x128.6” 205.7x154.3”
Min.
(WxH)
52.2x39.2cm 139.3x104.5cm 261.3x195.9cm 348.3x261.3cm 435.4x326.6cm 522.5x391.9cm
2.2” 5.8” 10.8” 14.4” 18” 21.6”
Max.
5.5cm 14.6cm 27.4cm 36.3cm 45.7cm 54.3cm
1.9” 4.9” 9.3” 12.3” 15.4” 18.5”
Min.
4.7cm 12.5cm 23.5cm 31.4cm 39.2cm 47cm
3.6’(1.09m) 9.7’(2.93m) 18.1’(5.49m) 24.2’(7.32m) 30.2’(9.14m) 36.3’(11m)
19
Page 20
English
Source
Enter
Menu
Re−sync
User Controls
Control Panel
Using the Control Panel
Green Power On
Power LED
Lamp LED Red Error code
Temp LED
Power Turn the projector On or O.
▲/Keystone
(Up arrow)
◄/Vol -
(Left arrow)
Source
Menu
Enter Conrm your item selection.
Re-Sync Automatically synchronizes the projector to the input source.
►/Vol +
(Right arrow)
▼/Keystone
(Up arrow)
O Power O (AC O)
Flashing Standby
Red Error code
Flashing Error code
•Adjust the image Keystone positively.
•
Navigates and changes settings in the OSD.
•Volume down
•
Navigates and changes settings in the OSD.
Press Source to select an input signal.
Press
Menu
OSD, Press
•Volume up
Navigates and changes settings in the OSD.
•
•Adjust the image Keystone positively.
•
Navigates and changes settings in the OSD.
to launch the on-screen display (OSD) menu. To exit
Menu
again.
20
Page 21
English
Remote Control
Using the Remote Control
Power On/O
Laser
Up
User Controls
Refer to the "Power On the
Projector" section on page 15.
Refer to the "Power O the
Projector" section on page 16.
Press to operate the on-screen
pointer.
Up arrow when connected through
USB to a PC.
Left
Down
Right
Enter
L
p
Page+
R
Source
Left
Directional
Select Key
Enter
Left arrow when connected
through USB to a PC.
Down arrow when connected
through USB to a PC.
Right arrow when connected
through USB to a PC.
Enter key when connected
through USB to a PC.
L key for emulation of USB mouse
left click via USB.
Up selection when OSD on.
Page Up key for emulation of USB
keyboard via USB when OSD o.
R key for emulation of USB
mouse right click via USB
Press "Source" to choose RGB,
DVI-D, Component, S-Video,
Composite Video, and HDMI
source.
Use directional select keys to
select items or make adjustments
to your selection.
Conrm your item selection.
21
Page 22
English
User Controls
Using the Remote Control
Re-Sync
Right
Directional
Select Key
q
Page-
Keystone +/-
Volume +/-
DVI-D/YPbPr/1
Menu/2
ZOOM/3
HDMI/4
Freeze/5
AV Mute/6
S-Video/7
VGA/8
Video/9
Automatically synchronize the
projector to the input source.
Use directional select keys to
select items or make adjustments
to your selection.
Down selection when OSD on.
Page Down key for emulation
of USB keyboard via USB when
OSD o.
Press Keystone +/- to correct
image-trapezoid
(wider top/bottom) eect.
Press Volume +/- to adjust
volume.
Press DVI-D/YPbPr to choose
Component Video source.
(DVI-D function available in this
model)
Display or exit the on-screen
display menus for projector.
Press ZOOM to zoom in or out
images.
Press HDMI to choose source
from HDMI connectors.
Press Freeze to freeze or unfreeze
the on-screen picture.
Press AV mute to mute the built-in
speaker.
Press S-Video to choose S-video
source.
Press VGA to choose source from
VGA connector.
Press Video to choose Composite
Video source.
22
Page 23
English
0DLQ0HQX
6XE0HQX
6HWWLQJ
User Controls
On-screen Display Menus
The Projector has multilingual On-screen Display menus that allow you to
make image adjustments and change a variety of settings. The projector will
automatically detect the source.
How to operate
1. To open the OSD menu, press Menu on the Remote Control or
Projector Keypad.
2. When OSD is displayed, use ◄► keys to select any item in the
main menu. While making a selection on a particular page, press
Enter to enter sub menu.
▼ or
3. Use ▲▼ keys to select the desired item and adjust the settings by
◄► key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press
6. To exit, press
Enter to conrm, and the screen will return to the main
menu.
Menu again. The OSD menu back to last level
projector will automatically save the new settings.
23
Page 24
English
User Controls
Menu Tree
24
Page 25
English
User Controls
Display Mode
There are many factory presets optimized for various types of images.
Presentation: Good color and brightness from PC input.
4
Bright: Maximum brightness from PC input.
4
Movie: For home theater.
4
sRGB: Standardised accurate color.
4
Blackboard: Tuned for blackboard usage.
4
Classroom: Recommended settings for classroom.
4
User: User’s own settings.
4
The initial default settings of this mode is from Presentation / Movie
mode.
Any further adjustments by the user will be saved in this mode for future
use.
3D: Recommand setting for 3D mode enabled (DLP-Link / IR).
4
Brightness
Adjust the brightness of the image.
Press ◄ to darken image.
4
Press ► to lighten the image.
4
Contrast
The contrast controls the degree of dierence between the lightest and
darkest parts of the picture.
Press ◄ to decrease the contrast.
4
Press ► to increase the contrast.
4
Sharpness
Adjusts the sharpness of the image.
Press ◄ to decrease the sharpness.
4
Press ► to increase the sharpness.
4
25
Page 26
English
User Controls
Saturation
Adjusts a video image from black and white to full color saturation.
Press ◄ to decrease the amount of saturation in the image.
4
Press ► to increase the amount of saturation in the image.
4
Tint
Adjusts the color balance of red and green.
Press ◄ to increase the amount of green in the image.
4
Press ► to increase the amount of red in the image.
4
Color Setting
Enter the Color Setting menu. Select the Red/Green/Blue Gain for
brightness adjustments and Bias for contrast adjustments for the whole
picture. Individual color adjustments for Cyan, Magenta, Yellow can also
be adjusted. See page 27 for more details.
Advanced
Enter the Advanced menu. Select advanced display options such as
BrilliantColorTM, Degamma, Color Temp., Color Space, Input Source,
De-Interlace, and Exit. See page 28 for more information.
26
Page 27
English
User Controls
Image | Color Settings
Gain
Set RGB Gain to adjust the Brightness of the follow in Colors:
Red—increase or decrease the gain value for red.
4
Green—increase or decrease the gain value for green.
4
Blue—increase or decrease the gain value for blue.
4
Bias
Set RGB Bias to adjust the Contrast of the follow in Colors:
Red—increase or decrease the bias value for red.
4
Green—increase or decrease the bias value for green.
4
Blue—increase or decrease the bias value for blue.
4
Color
Set values to adjust the level of the following colors:
Yellow—increase or decrease the color value for yellow.
4
Cyan—increase or decrease the color value for cyan.
4
Magenta—increase or decrease the color value for magenta.
4
Reset
Reset all Color Setting values to the factory default.
27
Page 28
English
User Controls
Image | Advanced
De-interlace
v
only support
480i/576i
signal via
Component/
S-video/
Video.
BrilliantColor
This adjustable item utilizes a new color-processing algorithm and
system level enhancements to enable higher brightness while providing
true, more vibrant colors in picture. The range is from 0 to 10. If you
prefer a stronger enhanced image, adjust toward the maximum setting.
For a smoother, more natural image, adjust toward the minimum setting.
TM
Degamma
This allows you to choose a degamma table that has been ne-tuned to
bring out the best image quality for the input.
Film—for home theater.
4
Video—for video or TV source.
4
Graphics—for image source.
4
PC—for PC or computer source.
4
Color Temp
Adjust the color temperature. Cold temperature, the screen looks colder;
with Warm temperature, the screen looks warmer.
Color Space
Select an appropriate color matrix type from AUTO, RGB, YUV.
Input Source
Enter the Input Source submenu. Select the sources to scan for at startup.
See page 29 for more information.
De-interlace
Press the cursor ◄ or ► button to select dierent De-interlace modes. This
function converts an interlaced video signal into progressive signal.
On: Use this mode for Films.
4
O: Use this mode for Video or TV sources.
4
28
Page 29
English
v If all sources
are deselected,
the projector
cannot display
any images.
Always leave
at least one
source selected.
User Controls
Image | Advanced | Input Source
Input Source
Use this option to enable / disable input sources. Press ▲ or ▼ to select
a source, then press Enter to enable / disable it. The projector will not
search inputs that are de-selected.
29
Page 30
English
User Controls
Display
Format
Use this function to choose your desired aspect ratio.
4:3: This format is for 4x3 input sources not enhanced for Wide screen TV.
4
16:9 I (XGA): This format is for 16x9 input sources, like HDTV and
4
DVD enhanced for Wide screen TV.
16:9 II (XGA): The non-standard wide-screen
4
display format of the projector. Part of the original image will be cut if
the image aspect ratio is less than 1.67:1.
Native: Depends on the resolution of the input source – No scaling is
4
performed.
Auto: Automatically selects the appropriate format.
4
30
Page 31
English
User Controls
Display
Overscan
Overscan function removes the noise in a video image. Overscan the
image to remove video encoding noise on the edge of video source.
Zoom
Press ◄ to reduce the size of the image.
4
Press ► to magnify an image on the projected screen.
4
H Image Shift
Shifts the projected image position horizontally.
Press ◄ to move the image left on the projected screen.
4
Press ► to move the image right on the projected screen.
4
V Image Shift (16:9 only)
Shifts the projected image position vertically (in 16:9 format only).
Press ► to move the image up on the projected screen.
4
Press ◄ to move the image down on the projected screen.
4
V Keystone
Press ◄ or ► to compensate for vertical images distortion when the
projector is positioned at an angle to the screen.
3D
Press ◄ or ► to select dierent 3D functions.
3D Sync invert
Press ◄ or ► to enable or disable the 3D Sync invert function to invert
images.
31
Page 32
English
User Controls
Setup
Language
Enter the Language menu. Select the multilingual OSD menu.
See page 34 for more information.
Projection
Select projection method:
Front Desktop
4
The factory default setting.
Rear Desktop
4
When you select this function, the projector reverses the image so
you can project from behind a translucent screen.
Front Ceiling
4
When you select this function, the projector turns the image upside
down for ceiling-mounted projection.
Rear Ceiling
4
When you select this function, the projector reverses and turns the
image upside down at same time. You can project from behind a
translucent screen with ceiling mounted projection.
Menu Location
Choose the menu location on the display screen.
32
Page 33
English
User Controls
Setup
Signal
Enter the Signal menu. Set projector signal properties.
See page 35 for more information.
Security
Enter the Security menu. Access the projector’s security features.
See page 36 for more information.
Projector ID
Select a two digit projector ID from 0 through 99.
Audio Settings
Enter the Audio Settings menu. Set audio level properties. See page 39
for more information.
RS232
Allows RS232 control of an individual projector.
Network
Allows LAN via web browser (Internet Explore) to control of projector. See
pages 40 for more information.
Advanced
Enter the Advanced menu. Select the screen display during startup.
See page 42 for more information.
33
Page 34
English
User Controls
Setup | Language
Language
Choose the multilingual OSD menu. Press ENTER ( ) into the sub
menu and then use the Left (◄) or Right (►) key to select your preferred
language.
34
Page 35
English
User Controls
Setup | Signal
Automatic
Enable or disable Automatic to automatically select the appropriate
settings.
Enabled - the projector will automatically select the appropriate settings.
4
Disabled - the projector won’t automatically select the appropriate settings.
4
Frequency
Change the display data frequency to match the frequency of your
computer’s graphics card. If you experience a vertical ickering bar, use
this function to make an adjustment.
Phase
Phase synchronizes the signal timing of the display with the graphics
card. If you experience an unstable or ickering image, use this function
to correct it.
H. Position
Press ◄ to move the image left.
4
Press ► to move the image right.
4
V. Position
Press ◄ to move the image down.
4
Press ► to move the image up.
4
35
Page 36
English
User Controls
Setup | Security
Security Timer
Enter the Security Timer sub menu.
v No password
is required to
access Setup
| Security
unless the
Security Timer
or Security
Setting are
enabled.
Enter the Months, Days, and Hours that the projector can be used without
entering the password. Exiting to the Setup menu activates the Security
Timer.
Once activated, the projector requires a password on the specied dates
and times to allow power on and access to the security menu.
If the projector is in use and the Security Timer is active, the following
screen displays 60 seconds before the password is required.
36
Page 37
English
v If the incorrect
password is
entered three
times, the
device auto
shutdowns after
10 seconds.
User Controls
Setup | Security
Change Password
Use this submenu to change the security password for the projector.
1. Select Change Password from the Security submenu. The Conrm
Change Password dialog box displays.
2. Select
Yes.
v If the new
passwords
do not match,
the password
screen
redisplays.
3. Enter the default password <1> <2> <3> <4> <5>.
A second password screen displays.
4. Enter the new password twice for verication.
37
Page 38
English
User Controls
Setup | Security
Security Settings
Enable or disable the security password.
Enabled—the current password is required to power on the projector
4
and access the Security menu.
Disabled—no password is required for any function.
4
When security is enabled, the following screen displays at startup and
before access to the Security menu is allowed:
38
Page 39
English
User Controls

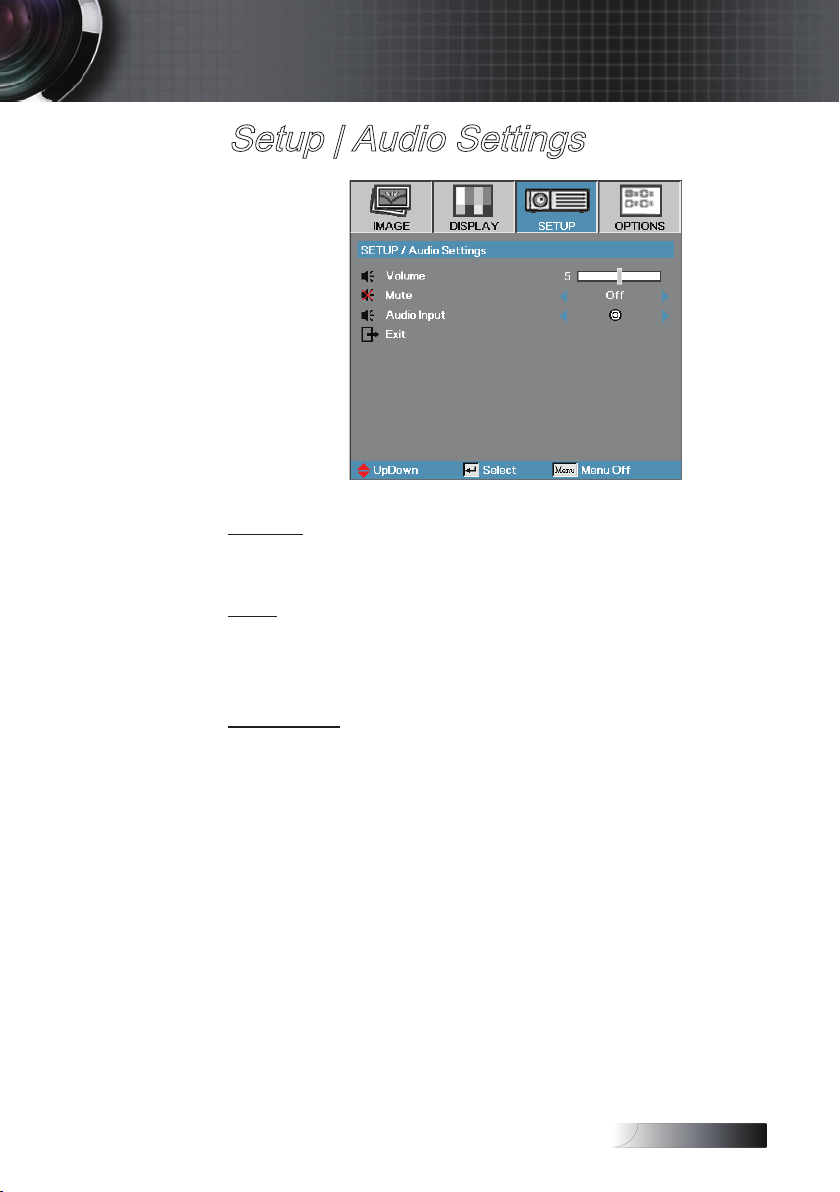

Setup | Audio Settings
Volume
Press ◄ to decrease the volume of voice.
Press ► to increase the volume of voice.
Mute
Toggle the audio on or o.
O—the speaker volume is turned on.
4
On–the speaker volume is turned o.
4
Audio Input
Press ◄ or ► to select the audio input source.
39
Page 40
English
User Controls
Setup | Network
Network
v Use
straight-thru
cable when
connecting to
a hub, switch
or a router.
v Use crossover
cable for direct
PC to projector
connection.
Press Enter to apply Network settings. If the connection is successful,
the OSD display will show the following dialogue box.
Network State—to display network information.
4
DHCP:
4
On: Assign an IP address to the projector from the DHCP server
O: Assign an IP address manually.
IP Address—Select an IP address
4
Subnet Mask—Select subnet mask number.
4
Gateway—Select the default gateway of the network connected to the
4
projector.
DNS—Select DNS number.
4
Apply—Press Enter to apply the selection.
4
automatically.
40
Page 41
English
User Controls
Setup | RS232
RS232
Press Enter to enter the RS232 sub menu and use the Left (◄) or Right (►)
key to select your preferred RS232 control.
When selecting Network, a message displays as below:
41
Page 42
English
User Controls

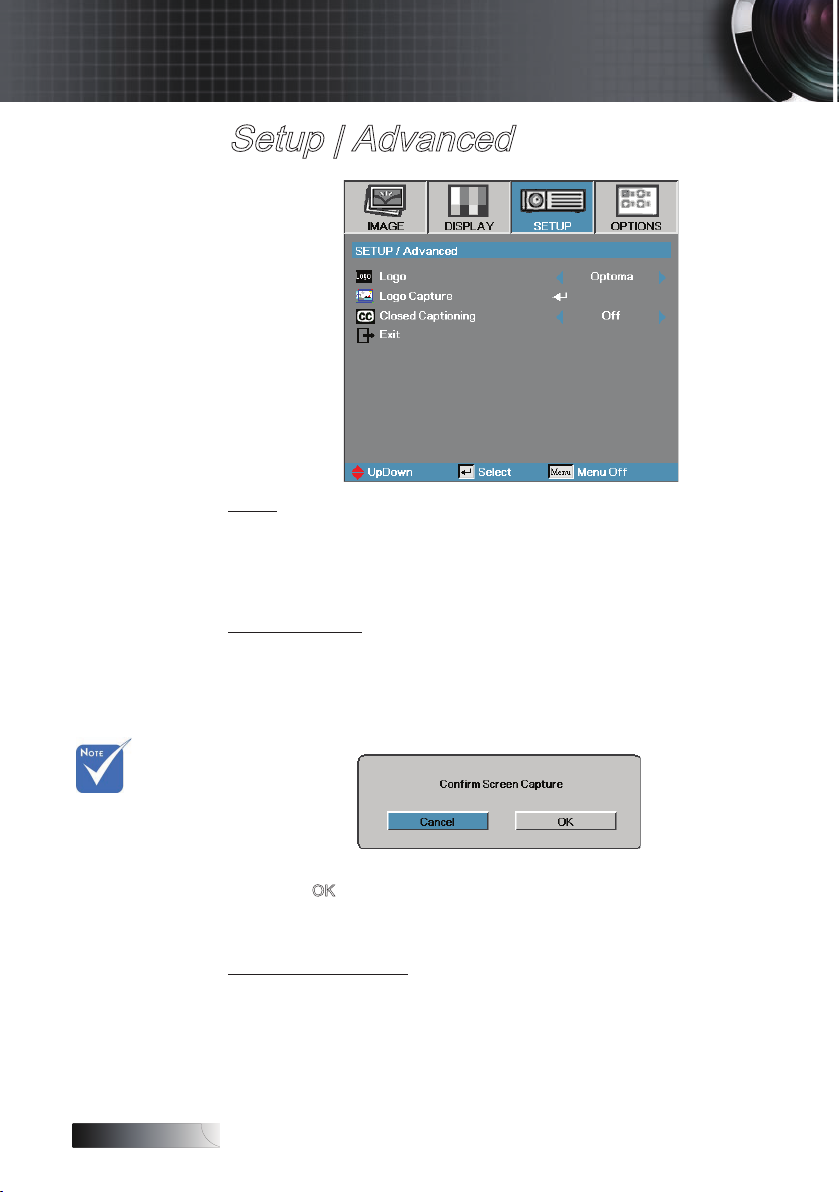

Setup | Advanced
Logo
Select the screen to display during startup.
Optoma—the supplied default startup screen.
4
User—customized screen capture using the Logo Capture function.
4
Logo Capture
v Only one
startup screen
can be saved
at once.
Subsequent
captures
overwrite
previous les.
Capture a displayed screen to use as the startup screen.
1. Display the desired screen on the projector.
2. Select Logo Capture from the Advanced menu.
A conrmation screen displays.
3. Select
OK. Screen capture in progress will display.
When nished, Screen capture Succeeded will display.
The captured screen is saved as User in the logo menu.
Closed Captioning
Select the screen to display closed captioning
O–the supplied default setting.
4
On-close captioning text is displayed if available.
4
42
Page 43
English
User Controls
Options
Source Lock
Lock the current source as the only available source, even if the cable is
unplugged.
On—only the current source is recognized as an input source.
4
O—all sources selected in Image | Advanced | Input Source are
4
recognized as an input source.
High Altitude
Adjust the fan speed to reect the environment.
On—increases fan speed for high temperature, humidity, or altitude.
4
O—regular fan speed for normal conditions.
4
Information Hide
Suppress informational messages on the projected screen.
On—no status messages appear on screen during operation.
4
O— status messages appear as normal on screen during operation.
4
Keypad Lock
Lock the buttons on the projector top panel.
On—a warning message displays to conrm keypad lock.
4
O—projector keypad functions as normal.
4
43
Page 44
English
User Controls
Options
Background Color
Select the desired background color for the projected image when no
source is detected.
Advanced
Enter the Advanced menu. See page 45 for more details.
Lamp Settings
Enter the Lamp Setting menu. See pages 46-47 for more details.
Reset
Reset all Options to default factory settings.
44
Page 45
English
User Controls
Options | Advanced
Direct Power On
Enable or disable Direct Power On.
On— the projector powers on automatically when AC power is supplied.
4
O— the projector must be powered on as normal.
4
Signal Power On
Enable or disable Signal Power On.
On— the projector turns on automatically when an active signal is detected.
4
O— the projector can be turned on by pressing the "Power" button.
4
Auto Power O (min)
Set the Auto Power O interval. The projector powers o the lamp after
30 minutes of no signal by default. The following warning is displayed 60
seconds before power o.
v When Power
mode (Standby)
is set to Eco, the
VGA & Audio
pass-through,
RS232 and
RJ45 will be
deactivated
when the
projector is in
standby.
Sleep Timer (min)
Set the Sleep Timer interval. The projector powers o after the specied
time period of inactivity (regardless of signal). The following warning is
displayed 60 seconds before power o.
Power Mode (Standby)
Eco.: Choose “Eco.” to save power dissipation further < 1W.
4
Active: Choose “Active” to return to normal standby and the VGA out
4
port will be enabled.
45
Page 46
English
User Controls
Options | Lamp Settings
Lamp Hour
Displays the number of hours the lamp has been active. This item is for
display only.
Lamp Reminder
Enable or disable the lamp life span reminder.
On—a warning message displays when remaining lamp life is less than
4
30 hours.
O—no warning message displays.
4
Brightness Mode
Select the lamp brightness mode.
Bright—the default setting.
4
STD—lower brightness setting to conserve lamp life.
4
46
Page 47
English
User Controls
Options | Lamp Settings
Lamp Reset
After replacing the lamp, reset the lamp counter to accurately reect the
new lamp’s life span.
1. Select Lamp Reset.
A conrmation screen displays.
2. Select
Yes to reset the lamp counter to zero.
47
Page 48
English
User Controls

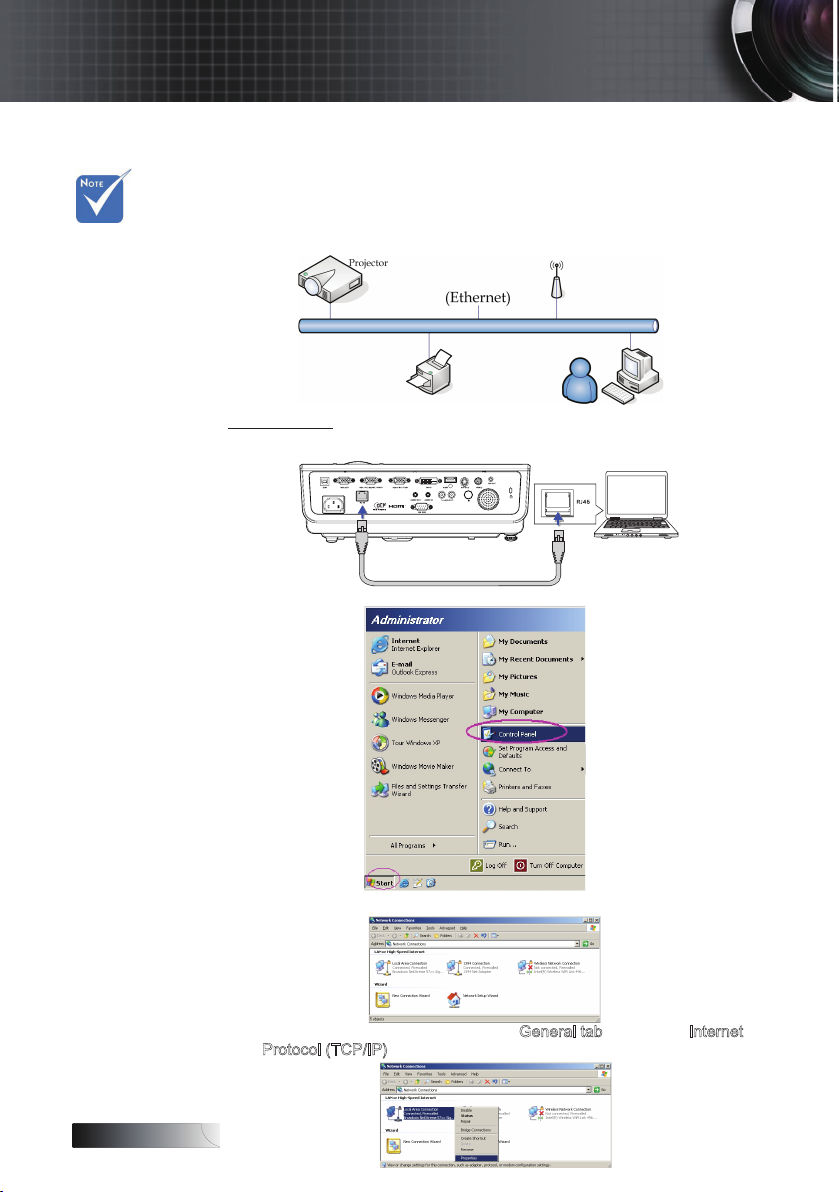

LAN_RJ45
For simplicity and ease of operation, the Optoma projector provides
diverse networking and remote management features.
The LAN/RJ45 function of the projector through a network, such as
v Projector
connects to
LAN, please
use Ethernet
Normal Cable.
v Peer-to-peer
(PC connects
to Projector
directly),
please use
Ethernet
Crossover
Cable.
remotely manage: Power On/O, Brightness and Contrast settings. Also,
projector status information, such as: Video-Source, Sound-Mute, etc.
LAN_RJ45
1.
Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).
2.
On the PC (Laptop), select Start -> Control Panel-> Network Connections.
3. Right Click on your Local Area Connection, and select Property.
4. In the Properties window, select the
Protocol (TCP/IP).
48
General tab, and select Internet
Page 49
English
User Controls
5. Click Properties.
6. Fill in the IP address and Subnet mask, then press OK.
7. Press the
8. Select OSD-> SETUP-> Network-> Enabled.
9. Input the following:
IP Address: 10.10.10.10
4
Subnet Mask: 255.255.255.0
4
Gateway: 0.0.0.0
4
DNS: 0.0.0.0
4
10. Press Apply (Enter) to conrm settings.
11. Open a web browser (ex, Microsoft Internet Explorer with Adobe
Flash Player 9.0 or higher).
Menu button on the projector.
49
Page 50
English
User Controls
12. In the Address bar, input the IP address: 10.10.10.10.
13. Press Apply.
The projector is setup for remote management. The LAN/RJ45 function
displays as follows.
v For more
information,
please visit
http://www.
crestron.com
14. Based on network web-page for the input-string in [tools] tab, the
limitation for Input-Length is in the below list (“space” and the other
punctuation key included):
Category Item Input-Length (characters)
Crestron Control
Projector
Network Conguration
User Password
Admin Password
IP Address 15
IP ID 2
Port 5
Projector Name 10
Location 9
Assigned To 9
DHCP (Enabled) (N/A)
IP Address 15
Subnet Mask 15
Default Gateway 15
DNS Server 15
Enabled (N/A)
New Password 15
Conrm 15
Enabled (N/A)
New Password 15
Conrm 15
50
Page 51
English
Appendices
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or
service center.
No image appears on-screen
Ensure all the cables and power connections are correctly and
4
securely connected as described in the Installation section.
Ensure all the pins of connectors are not bent or broken.
4
Check if the projection lamp has been securely installed. Please
4
refer to the Replacing the lamp section.
Make sure you have removed the lens cap and the projector
4
is switched on.
Partial, scrolling or incorrectly displayed image
Press “Re-Sync” on the remote.
4
If you are using a PC:
4
For Windows 95, 98, 2000, XP:
1. Open the
then double click on the Display icon.
2. Select the
3. Verify that your display resolution setting is lower than or
equal to UXGA (1600 x 1200).
4. Click on the
If the projector is still not projecting the whole image, you will
also need to change the monitor display you are using. Refer
to the following steps.
5. Verify the resolution setting is lower than or equal to UXGA
(1600 x 1200).
6. Select the
7. Click on
types under the SP box; choose the resolution mode you
need under the “Models” box.
8. Verify that the resolution setting of the monitor display is
lower than or equal to UXGA (1600 x 1200). (*)
My Computer icon, the Control Panel folder, and
Settings tab.
Advanced Properties button.
Change button under the Monitor tab.
Show all devices. Next, select Standard monitor
51
Page 52
English
Acer
�
[Fn]+[F5]
Asus � [Fn]+[F8]
Dell
�
[Fn]+[F8]
Gateway � [Fn]+[F4]
Mac Apple:
System Preference � Display � Arrangement � Mirror
display
IBM/Lenovo �[Fn]+[F7]
[Fn]+[F4]
HP/Compaq
NEC �� [Fn]+[F3]
Toshiba � [Fn]+[F5]
Appendices
4
The screen of the Notebook or PowerBook computer is
not displaying your presentation
4
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the
computer.
2. Press the toggle output settings. Example: [Fn]+[F4]
If you experience diculty changing resolutions or your
monitor freezes, restart all equipment including the projector.
If you are using a Notebook:
Some Notebooks may deactivate their own screens when a
second display device is in use. Each has a dierent way to
be reactivated. Refer to your computer’s manual for detailed
information.
Image is unstable or ickering
Use Phase to correct it. See page 35 for more information.
4
Change the monitor color setting on your computer.
4
Image has vertical ickering bar
Use Frequency to make an adjustment. See page 35 for more
4
information.
Check and recongure the display mode of your graphic card
4
to make it compatible with the projector.
Image is out of focus
Make sure the lens cap is removed.
4
Adjusts the Focus Ring on the projector lens.
4
Make sure the projection screen is between the required
4
distances from the projector. See page 19 for more
information.
52
Page 53
English
Appendices
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will
show the best image in 16:9 format in OSD. If you play 4:3 format
DVD title, please change the format as 4:3 in projector OSD. If the
image is still stretched, you will also need to adjust the aspect ratio
by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type
4
on your DVD player.
Image is too small or too large
Adjust the Zoom Ring on the top of the projector.
4
Move the projector closer to or further from the screen.
4
Press [Menu] button on the remote control or projector panel,
4
go to Display | Format and try the dierent settings.
Image has slanted sides
If possible, reposition the projector so that it is centered on the
4
screen and below the bottom of the screen.
Press [Keystone +/-] on the remote control until the sides are
4
vertical.
Image is reversed
Select Setup | Projection from the OSD and adjust the
4
projection direction.
Other
The projector stops responding to all controls
If possible, turn o the projector, then unplug the power cord
4
and wait at least 60 seconds before reconnecting power.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
4
make a loud popping sound. If this happens, the
projector will not turn on until the lamp module has been
replaced. To replace the lamp, follow the procedures in
Replacing the Lamp on page 56.
53
Page 54
English
Steady light
�
No light
�
Appendices
Projector LED Status Indicator
Message
Standby State (Input power cord)
Power on (Warming)
Power on & Lamp lighting
Power o (Cooling)
Error (Lamp fail)
Error (Fan fail)
Error (Over Temp)
Power LED
(Green)
Slow Flashing
2 sec o
2 sec on
Flashing
0.5 sec o
0.5 sec on
Flashing
1 sec o
1 sec on
< 10 sec to o
Flashing
0.5 sec o
0.5 sec on
Flashing
0.5 sec o
0.5 sec on
Flashing
0.5 sec o
0.5 sec on
Temp LED
(Red)
Flashing
0.5 sec o
0.5 sec on
Lamp LED
(Red)
54
Page 55
English
Appendices
Message Reminders
Replacing the lamp:
4
Out of range: (see the following for more information)
4
Remote Control
If the remote control does not work
Check the operating angle for the remote control is
4
approximately ±15°.
Make sure there are no obstructions between the remote control
4
and the projector. Move to within 7m (23 ft) of the projector.
Make sure the batteries are inserted correctly.
4
Replace weak batteries in the remote control.
4
Audio
There is no sound
Adjust the volume on the remote control.
4
Adjust the volume of the audio source.
4
Check the audio cable connection.
4
Test the source audio output with other speakers.
4
Have the projector serviced.
4
The sound is distorted
Check the audio cable connection.
4
Test the source audio output with other speakers.
4
Have the projector serviced.
4
55
Page 56
English
Appendices
Replacing the Lamp
The projection lamp should be replaced when it burns out. It should
only be replaced with a certied replacement part, which you can
order from your local dealer.
Important:
4
4
4
The lamp contains a certain amount of mercury and should be
disposed of according to local ordinance regulations.
Avoid touching the glass surface of the new lamp, doing so may
shorten its operation life.
Warning:
Be sure to turn o and unplug the projector at least an hour before
replacing the lamp. Failure to do so could result in a severe burn.
1
2
3
56
Page 57
English
Appendices
4
5
1. Switch o the power to the projector by pressing the Power button.
2. Allow the projector to cool down at least 30 minutes.
3. Disconnect the power cord.
4. Open the screw cover.
5. Remove the single screw on the lamp compartment cover.
Remove the lamp compartment cover.
6.
7. Remove the three screws from the lamp module.
Lift the module handle up.
8.
Pull rmly on the module handle to remove the lamp module.
To replace the lamp module, reverse the previous steps. While
installing, align the lamp module with the connector and ensure it is
level to avoid damage.
9. Turn on the projector and do "Lamp Reset" after the lamp
module is replaced.
Lamp Reset: See page 47 for more information.
57
Page 58
English
Appendices
Cleaning the Projector
Cleaning the projector to remove dust and grime will help ensure
trouble-free operation.
Warning:
4
4
4
4
Cleaning the Lens
You can purchase optic lens cleaner from most camera stores. Refer
to the following to clean the pro-jector lens.
1. Apply a little optic lens cleaner to a clean soft cloth.
(Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.
Caution:
4
4
Be sure to turn o and unplug the projector at least an hour before
cleaning. Failure to do so could result in a severe burn.
Use only a dampened cloth when cleaning. Do not allow water to
enter the ventilation openings on the projector.
If a little water gets into the projector interior while cleaning, leave
unplugged in a well-ventilated room for several hours before using.
If a lot of water gets into the projector interior when cleaning, have
the projector serviced.
Do not use abrasive cleaners or solvents.
To prevent discoloration or fading, avoid getting cleaner on the
projector case.
Cleaning the Case
Refer to the following to clean the projector case.
1. Wipe o dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as
used to wash dishes), and then wipe the case.
3. Rinse all detergent from the cloth and wipe the projector again.
Caution:
To prevent discoloration or fading of the case, do not use abrasive
alcohol-based cleaners.
58
Page 59
English
v For wide
screen
resolution
(WXGA), the
compatibility
support is
dependent on
Notebook/PC
models.
v 120Hz input
signals may be
dependent on
graphic cards
support.
Appendices
Compatibility Modes
Computer Compatibility
Signal Resolution Refresh Rate (Hz)
NTSC - 60
PAL/SECAM - 50
VESA 640 x 350 70.1/ 85.1
640 x 400 70.1 / 85.1
720 x 350 70
720 x 400 70/ 85
720 x 576 50/ 60
VGA 640 x 480 60/ 67/ 72.8/ 75/ 85
SVGA 800 x 600 56.3/ 60.3/ 75/ 72.2/ 80/ 85.1/ 120
832 x 624 72/ 75
1024 x 576 50/ 60
XGA 1024 x 768 60/ 70.1/ 72/ 75/ 85/ 120
1152 x 864 60/ 70/ 75/85
HD720 1280 x 720 50/ 60/ 75/ 85/ 120
WXGA 1280 x 768 60/ 70/ 75/ 85
WXGA-800 1280 x 800 60
SXGA 1280 x 1024 60/ 75/85
SXGA+ 1400 x 1050 60
UXGA 1600 x 1200 60
1600 x 1050 60
HDTV 1920 x 1080 25/30
1920 x
1080i
1920 x
1080p
1280 x 720 60
1280 x 720p 50/ 60
SDTV 720 x 576 50
720 x 576i 50
720 x 576p 50
50/ 60
24/25/30/50/ 60
59
Page 60
English
Appendices
Apple Mac Compatibility
Signal Resolution Refresh Rate (Hz)
720 x 480 60
720 x 480i 60
720 x 480p 60
Resolution Macbook
Hz- Analog Analog Analog Analog
800x600 60 o o - 800x600 72 o o o o
800x600 75 o o o o
800x600 85 o o o o
1024x768 60 o o o o
1024x768 70 o o o o
1024x768 75 o o o o
1024x768 85 o o o o
1280x720 60 o o o o
1280x720 75 o o - o
1280x720 85 o o - o
1280x768 60 o o - o
1280x768 75 o o o o
1280x768 85 o o - o
1280x800 60 o o o o
1280x1024
1280x1024
1680x1050
1920x1200
60 - o o o
75 - o o 60 o o - 60 o o - -
Macbook Pro
(Intel)
Power Mac G5Power Mac
G4
60
Page 61
English
RS232 Commands
6 7 8 9
1 2 3 4 5
RS232 Connector (projector side)
Pin No Specication
1 N/A
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 N/A
Appendices
61
Page 62
English
Baud Rate 9600
Data Bits 8
Parity Check None
Stop Bits 1
Flow Control None
UART16550 FIFO Disable
Lead Code Projector ID Command ID space variable carriage return
~ X X X X X n CR
Fix code
One Digit
Set in OSD
00~99
Two Digit
00 is for universal use
Defined by Optoma
2 or 3 Digit
See the Follow content
One Digit
Per item
Definition
Fix code
One Digit
Item Key Definition ASCII Pass Fail
1 Power n=1 ~XX140 n P F
2 Laser N/A
3 Remote Mouse Up n=3 ʳ P F
4 Remote Mouse Left n=4 ʳ P F
5 Remote Mouse Enter n=5 ʳ P F
6 Remote Mouse Right n=6 ʳ P F
7 Remote Mouse Down n=7 ʳ P F
8 Mouse Left Click n=8 ʳ P F
9 Mouse Right Click n=9 ʳ P F
10 Up/Page + n=10 ʳ P F
11 Left/Source n=11 ʳ P F
12 Enter (for projection MENU) n=12 ʳ P F
13 Right/Re-SYNC n=13 ʳ P F
14 Down/Page - n=14 ʳ P F
15 Keystone + n=15 ʳ P F
16 Keystone - n=16 ʳ P F
17 Volume - n=17 ʳ P F
18 Volume + n=18 ʳ P F
19 DVI-D/YPbPr/1 n=19 ʳ P F
20 Menu/2 n=20 ʳ P F
21 Zoom/3 n=21 ʳ P F
22 HDMI n=22 P F
23 Freeze/5 n=23 ʳ P F
24 AV Mute/6 n=24 ʳ P F
25 S-Video/7 n=25 ʳ P F
26 VGA/8 n=26 ʳ P F
27 Video/9 n=27 ʳ P F
Appendices
RS232 Protocol Function List
RS232 Commands
v
Due to the
dierence
application
for each
model.
Function is
dependent
on the model
purchased.
62
Page 63
English
Keypad Command
Function ASCII Pass Fail
Power On/Off n=1/n=2 & 0 ~XX00 n P F
Power On with Password ~XX00 1nnnnn P F
Re-sync n=1 ~XX01 n P F
AV Mute On/Off n=1/n=2 & 0 ~XX02 n P F
Mute On/Off n=1/n=2 & 0 ~XX03 n P F
Freeze n=1 ~XX04 n P F
UnFreeze n=2 & o ~XX04 n P F
HDMI n=1 ~XX12 n
DVI-D n=2
VGA 1 n=5
VGA 2 n=6
VGA 1 SCART n=7
VGA 1 Component n=8
S-Video n=9
Video n=10
VGA 2 Component n=13
OSD/Image
Function ASCII Pass Fail
Presentation ʳ n=1 ~XX20 n P F
Bright ʳ n=2 ʳ
Movie ʳ n=3 ʳ
sRGB ʳ n=4 ʳ
Classroom n=7
Blackboard n=8
User ʳ n=5 ʳ
Display Mode
3D ʳ n=11 ʳ
Brightness ʳ ʳ n= -50 - +50 ~XX21 n P F
Contrast ʳ ʳ n= -50 - +50 ~XX22 n P F
Sharpness ʳ ʳ n= -15 - +15 ~XX23 n P F
Saturation n= -50 - +50 ~XX45 n P F
Tint n= -50 - +50 ~XX44 n P F
BrilliantColor
TM
ʳ n= 0 - 10 ~XX34 n P F
Film n=1 ~XX35 n P F
Video n=2
Graphics n=3 ʳ
Degamma
PC n=4 ʳ
Warm n=1 ~XX36 n P F
Medium n=2 ʳ
/Advanced
Color Temp.
Cold n=3 ʳ
Appendices
63
Page 64
English
Function
ASCII
Pass
Fail
Red Gain n=-50 ~ 50 ~XX24 n P F
Green Gain n=-50 ~ 50 ~XX25 n P F
Blue Gain n=-50 ~ 50 ~XX26 n P F
Red Bias n=-50 ~ 50 ~XX27 n P F
Green Bias n=-50 ~ 50 ~XX28 n P F
Blue Bias n=-50 ~ 50 ~XX29 n P F
Cyan n=-50 ~ 50 ~XX30 n P F
Yellow n= ~XX31 n P F
Magenta n= ~XX32 n P F
Color Settings
Reset n=1 ~X
X33 n P F
Auto n=1 ~XX37 n P F
RGB n=2 ʳ
/Advanced
Color Space
YUV n=3 ʳ
HDMI n=1 ~XX39 n P F
DVI-D n=2 ʳ
VGA 1 n=5
VGA 2 n=6
S-Video n=9 ʳ
/Advanced
Input Source Filters
Video n=10 ʳ
On n=1 ~XX40 n P F
/Advanced
De-Interlace
Off n
=2 &
0 ʳ
OSD/Display
Function
ASCII
Pass
Fail
4:3 n=1 ~XX60 n P F
16:9 I n=2 ʳ
16:9 II n=3
Native n=6 ʳ
Format
Auto n=7 ʳ
Overscan ʳ n=0-10 ~XX61 n P F
Zoom ʳ n= -30 - +50 ~XX62 n P F
H Image Shift ʳ n= -50 - +50 ~XX63 n P F
V Image Shift (16:9) ʳ n= -24 - +24 ~XX64 n P F
V Keystone ʳ n= -30 - +30 ~XX66 n P F
Off n = 1 ~XX230 n
DLP Link n = 2
3D mode
IR n =3
3D sync invert Off/ON n=2 & 0 ~XX231 n
Appendices
64
Page 65
English
OSD/Setup
Function ASCII Pass Fail
English ʳ n=1 ~XX70 n P F
German ʳ n=2 ʳ
French ʳ n=3 ʳ
Italian ʳ n=4 ʳ
Spanish ʳ n=5 ʳ
Portuguese ʳ n=6 ʳ
Polish ʳ n=7 ʳ
Dutch ʳ n=8 ʳ
Swedish ʳ n=9 ʳ
Norwegian/Danish ʳ n=10 ʳ
Finnish ʳ n=11 ʳ
Greek ʳ n=12 ʳ
Traditional Chinese ʳ n=13 ʳ
Simplified Chinese ʳ n=14 ʳ
Japanese ʳ n=15 ʳ
Korean ʳ n=16 ʳ
Russian ʳ n=17 ʳ
Hungarian ʳ n=18 ʳ
Czechoslovak ʳ n=19 ʳ
Arabic ʳ n=20 ʳ
Thai ʳ n=21
Language
Turkish ʳ n=22 ʳ
Front-Desktop ʳ n=1 ~XX71 n P F
Rear-Desktop ʳ n=2 ʳ
Front-Ceiling ʳ n=3 ʳ
Projection
Rear-Ceiling ʳ n=4 ʳ
Top Left ʳ n=1 ~XX72 n P F
Top Right ʳ n=2 ʳ
Centre ʳ n=3 ʳ
Bottom Left ʳ n=4 ʳ
Menu Location
Bottom Right ʳ n=5 ʳ
Automatic Enable/Disable n=1/n =0 &2 ~XX91 n P F
Frequency ʳ n= 0~31 ~XX73 n P F
Phase ʳ n= -5 - +5 ~XX74 n P F
H. Position ʳ n= -5 - +5 ~XX75 n P F
Signal
V. Position ʳ n= -5
- +5 ~XX76 n P F
Security Timer Hour/Day/Month nnnnnn ~XX77 n P F
Change
Password ʳ ʳ
send back the
password to confirm
Security
Security Settings Enabl
e/Disable n=1/n=2 &0 ~XX78 n P F
Appendices
65
Page 66
English
Function
ASCII
Pass
Fail
Projector ID FPn97XX~99-00=n
FPn08XX~0&2=n/1=nffO/nOetuM
Volume FPn18XX~01-0=n
Mini-jack n=1 ~XX89n P F
Audio Settings
RCA n=2 ~XX89 n P F
FPn28XX~2=n/1=nresU/amotpOogoL
Logo Capture FPn38XX~1=n
Advanced
Closed Captioning On/Off n=1/n=2 &0 ~XX88 n P F
FPn68XX~1=n232SR
RS232
Network n=2 P F
OSD/Option
Function
ASCII
Pass
Fail
Source Lock FPn001XX~0&2=n/1=nffO/nO
HighAltitude FPn101XX~0&2=n/1=nffO/nO
Information Hide FPn201XX~0&2=n/1=nffO/nO
Keypad Lock FPn301XX~0&2=n/1=nffO/nO
Blue n=1 ~XX104 n P F
Black n=2
Red n=3
Green n=4
Background Color
White n=5
Direct Power On On/Off n=1/n=2 &0 ~XX105 n P F
Signal Power On On/Off n=1/n=2 &0 ~XX113n P F
Auto Power Off (min)
n=0-180 ~XX106 n P F
Sleep Timer (min) n=000-995
~XX107 n P F
Advanced
Power Mode(Standby) Eco/Active n=1/n=2 &0
~XX114 n P F
Lamp Hour n=1 ~XX108 n nnnn F
Lamp Reminder On/Off n=1/n=2 &0 ~XX109n P F
Brightness Mode Bright/STD n=1/n=2 ~XX110 n P F
Yes n=1 ~XX111 n P F
Lamp Setting
Lamp Reset
No n=2
Yes n=1 ~XX112 n P F
Reset
No n=2
FPn291XX~1=n/0&2=nnO/ffOreggirTV21
Appendices
66
Page 67
English
Information Format: INFOa Standby Mode a=0
ʳ Warming up a=1
ʳ Cooling Down a=2
ʳ Out of Range a=3
ʳ Lamp Fail a=4
ʳ Lamp Door Open Error / Thermal Switch Error a=5
ʳ Fan Lock a=6
ʳ Over Temperature a=7
ʳ Lamp Hours Running Out a=8
Function RS232 command Response
Information display ~XX150 1 Okabbbbccdddde ʳ ʳ
ʳ ʳ a = Power State On a=1
ʳ ʳ ʳ Off a=0
ʳ ʳ b = Lamp Hour ʳ bbbb
ʳ ʳ c = Input Source None c=0
ʳ ʳ ʳ HDMI c=1
ʳ ʳ ʳ DVI-D c=2
ʳ ʳ ʳ VGA 1 c=3
VGA 2 c=4
ʳ ʳ ʳ S-video c=5
ʳ ʳ ʳ Video c=6
ʳ ʳ d = Firmware Version ʳ dddd
ʳ ʳ e = Display mode None e=0
ʳ ʳ ʳ Presentation e=1
ʳ ʳ ʳ Bright e=2
ʳ ʳ ʳ Movie e=3
ʳ ʳ ʳ sRGB e=4
ʳ ʳ ʳ Blackboard e=5
ʳ ʳ ʳ Classroom e=6
ʳ ʳ ʳ User e=7
ʳ ʳ ʳ 3D e=8
Input Source ~XX121 1 Oka None a=0
ʳ ʳ HDMI a=1
DVI-D a=2
ʳ ʳ VGA 1 a=3
VGA 2 a=4
ʳ ʳ S-video a=5
ʳ ʳ Video a=6
Software Version ~XX122 1 Okdddd ʳ ʳ
Display Mode ~XX123 1 Oka None a=0
ʳ ʳ ʳ Presentation a=1
Appendices
67
Page 68
English
Function RS232 command Response
ʳ ʳ ʳ Bright a=2
ʳ ʳ ʳ Movie a=3
ʳ ʳ ʳ sRGB a=4
ʳ ʳ ʳ Blackboard a=5
ʳ ʳ ʳ Classroom a=6
ʳ ʳ ʳ 3D a=7
ʳ ʳ ʳ User a=8
Power State ~XX124 1 Oka On a=1
ʳ ʳ ʳ Off a=0
Brightness ~XX125 1 Oka ʳ ʳ
Contrast ~XX126 1 Oka ʳ ʳ
Aspect Ratio ~XX127 1 Oka 4:3 a=0
ʳ ʳ ʳ 16:9-I a=1
ʳ ʳ ʳ 16:9-II a=2
ʳ ʳ ʳ Native a=3
Auto a=4
Color Temperature ~XX128 1 Oka Warm a=0
ʳ ʳ ʳ Medium a=1
ʳ ʳ ʳ Cold a=2
Projection Mode ~XX129 1 Oka Front-Desktop a=0
ʳ ʳ ʳ Rear-Desktop a=1
ʳ ʳ ʳ Front-Ceiling a=2
ʳ ʳ ʳ Rear-Ceiling a=3
Model Name ~XX151 1 Oka EX779 a=1
RS232 Version No ~XX152 1 Oka ʳ ʳ
Appendices
68
Page 69
English
v Damage to the
>@
>@
>@
>@
>@
>@
>@
>@
>@
>@
>@
>@
>@
>@
8QLWPP
projector as a
result of
incorrect
installation
voids the
warranty.
Appendices
Ceiling Installation
To prevent damage to your projector please use the recommended
mounting package for installation.
To ensure compliance, only use a UL Listed ceiling mount and
screws that meet the following specications:
Screw Type: M4
4
Maximum screw length: 11 mm
4
Minimum screw length: 9 mm
4
Refer to the following diagram to ceiling mount the projector.
v Ensure at least
10cm clearance between
the ceiling and
the underside
of the projector.
v Avoid locating
the projector
near heat
sources
such as air
conditioning
and heaters.
Excess heat
may cause the
projector to
power o.
69
Page 70
English
Appendices
Optoma Global Oces
For service or support please contact your local oce.
USA
715 Sycamore Drive Tel : 408-383-3700
Milpitas, CA 95035, USA Fax : 408-383-3702
www.optomausa.com
Canada
5630 Kennedy Road, Mississauga, Tel : 905-361-2582
ON, L4Z 2A9, Canada Fax : 905-361-2581
www.optoma.ca
Europe
42 Caxton Way, The Watford Business Park
Watford, Hertfordshire,
WD18 8QZ, UK Tel : +44 (0) 1923 691 800
www.optoma.eu Fax : +44 (0) 1923 691 888
Service Tel : +44 (0)1923 691865
France
Bâtiment E Tel : +33 1 41 46 12 20
81-83 avenue Edouard Vaillant Fax : +33 1 41 46 94 35
92100 Boulogne Billancourt, France
Spain
C/ José Hierro,36 Of. 1C Tel : +34 91 499 06 06
28522 Rivas VaciaMadrid, Fax : +34 91 670 08 32
Spain
Deutschland
Werftstrasse 25 Tel : +49 (0) 211 506 6670
D40549 Düsseldorf, Fax : +49 (0) 211 506 66799
Germany
Optoma Scandinavia AS
Service : [email protected]
Service :
Service : [email protected]
Service : [email protected]
Service : [email protected]
PO.BOX 9515
3038 Drammen
Norway
70
Page 71
English
Appendices
Latin America
715 Sycamore Drive Tel : 408-383-3700
Milpitas, CA 95035, USA Fax: 408-383-3702
www.optoma.com.br www.optoma.com.mx
Taiwan
asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre, 79 Wing Hong Street,
Cheung Sha Wan Kowloon, Hong Kong
Tel : +852-2396-8968 Fax: +852-2370-1222
www.optoma.com.hk
China
上海市长宁区凯旋路1205号5楼 电话：+86-21-62947376
邮编: 200052 传真：+86-21-62947375
www.optoma.com.cn
Japan
東京都足立区綾瀬 3-25-18 サポートセンター: 0120-46-5040
株式会社オーエスエム
E-Mail: [email protected] http://www.os-worldwide.com/
Korea
WOOMI TECH.CO.,LTD.
4F, Minu Bldg.33-14, Nonhyun-Dong, Tel : +82+2+34430004
Kangnam-Ku, seoul, 135-815,
KOREA
Fax: +82+2+34430005
71
Page 72
English
Notice: Shielded cables
$OOFRQQHFWLRQV WR RWKHU FRPSXWLQJ GHYLFHV PXVW EH
PDGH XVLQJ VKLHOGHG FDEOHV WR PDLQWDLQ FRPSOLDQFH
ZLWK)&&UHJXODWLRQV
Caution
&KDQJHVRUPRGLᚏFDWLRQVQRWH[SUHVVO\DSSURYHGE\WKH
PDQXIDFWXUHU FRXOGYRLG WKH XVHUಬVDXWKRULW\ ZKLFKLV
JUDQWHGE\ WKH)HGHUDO &RPPXQLFDWLRQV&RPPLVVLRQ
WRRSHUDWHWKLVSURMHFWRU
Appendices
Regulation & Safety notices
This appendix lists the general notices of your projector.
FCC notice
This device has been tested and found to comply with the limits
for a Class B digital device pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This device
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this device does cause harmful
interference to radio or television reception, which can be
determined by turning the device o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
4
Increase the separation between the device and receiver.
4
Connect the device into an outlet on a circuit dierent from that to
4
which the receiver is connected.
Consult the dealer or an experienced radio/television technician
4
for help.
72
Page 73
English
Appendices
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme
NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2004/108/EC (including amendments)
4
Low Voltage Directive 2006/95/EC
4
R & TTE Directive 1999/5/EC (if product has RF function)
4
73
Loading...
