Optoma TX778W User Manual

Download
Page 1

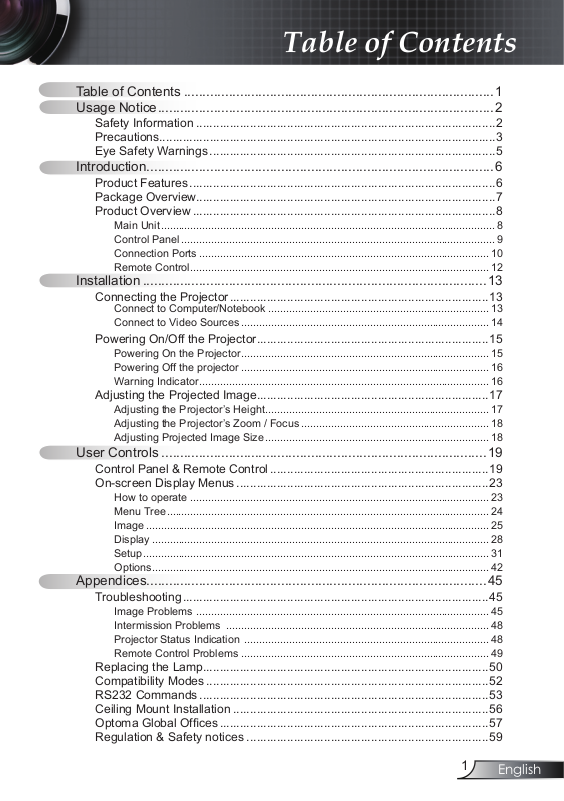

Table of Contents
Table of Contents ...................................................................................1
Usage Notice ..........................................................................................2
Safety Information .........................................................................................2
Precautions....................................................................................................3
Eye Safety Warnings .....................................................................................5
Introduction.............................................................................................6
Product Features ...........................................................................................6
Package Overview.........................................................................................7
Product Overview ..........................................................................................8
Main Unit ................................................................................................................ 8
Control Panel ......................................................................................................... 9
Connection Ports .................................................................................................10
Remote Control .................................................................................................... 12
Installation ............................................................................................13
Connecting the Projector .............................................................................13
Powering On/Off the Projector .....................................................................15
Warning Indicator ................................................................................................. 16
Adjusting the Projected Image.....................................................................17
Adjusting the Projector’s Height ........................................................................... 17
Adjusting the Projector’s Zoom / Focus ............................................................... 18
User Controls .......................................................................................19
Control Panel & Remote Control .................................................................19
On-screen Display Menus ...........................................................................23
How to operate .................................................................................................... 23
Menu Tree ............................................................................................................ 24
Image ................................................................................................................... 25
Display ................................................................................................................. 28
Options ................................................................................................................. 42
Appendices...........................................................................................45
Troubleshooting ...........................................................................................45
Image Problems .................................................................................................. 45
Intermission Problems ........................................................................................ 48
Projector Status Indication .................................................................................. 48
Remote Control Problems ................................................................................... 49
Replacing the Lamp.....................................................................................50
Compatibility Modes ....................................................................................52
RS232 Commands ......................................................................................53
Ceiling Mount Installation ............................................................................56
Optoma Global Ofces ................................................................................57
Regulation & Safety notices ........................................................................59
1
English
Page 2
English
Usage Notice
Safety Informations
The lightning ash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magni­tude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of import operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THE PROJECTOR TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Inter­ference-Causing Equipment Regulations.
Important Safety Instruction
1. Read these instructions –before using this projector.
2. Keep these instructions –for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions : A. Do not block any ventilation openings. To ensure reliable
operation of the projector and to protect it from overheating, put the projector in a position and location that will not interfere with its proper ventilation. For example, do not place the projector on a bed, sofa, carpet, or similar surface that may block the ventilation openings. Do not put it in an enclosure, such as a bookcase or a cabinet that may keep air from owing through its ventilation openings.
B. Do not use this projector near water or moisture. To reduce
the risk of re or electric shock, do not expose the projector to rain or moisture.
C. Do not install near any heat sources, such as radiators, heaters,
stoves or other apparatus (including ampliers) that produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the manufacturer.
7. Refer all servicing to qualied service personnel. Servicing is required when the projector has been damaged in any way, such as:
Power supply cord or plug is damaged.Liquids have spilled or objects have fallen into the apparatus.The projector has been exposed to rain or moisture, does not operate
normally, or has been dropped. Do not attempt to service this projector yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma to be referred to an authorized service center near you.
8. Do not let objects or liquids enter the projector as they may touch dangerous voltage points or short-out parts that could result in a re or electric shock.
9. See projector enclosure for safety related markings.
10. The projector should not be adjusted or repaired by anyone except prop-
2
erly qualied service personnel.
Page 3
3
English
Usage Notice
When the lamp
reaches the end
of its life, the
projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 50-51.
Precautions
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
▀■ Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may damage your eyes.
▀■ Warning- To reduce the risk of  re or electric shock, do not
expose this projector to rain or moisture.
▀■ Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■ Warning- When replacing the lamp, please allow unit to cool
down, and follow all replacement instructions. See pages 50-51.
▀■ Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows warning messages.
▀■ Warning- Use the “Lamp Reset” function from the on-screen
display “Options|Lamp Settings” menu after replacing the lamp module (refer to page 44).
▀■ Warning- When switching the projector off, please ensure the
cooling cycle has been completed before disconnecting the power. Allow 90 seconds for the projector to cool down.
▀■ Warning- Do not use the lens cap when projector is in opera-
tion.
▀■ Warning- When the lamp is approaching to the end of its life,
the message “Lamp Warning: Lamp life exceeded.” will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.
▀■ Warning- To reduce the risk of injury to the eyes, do not look
directly into the laser beam on the remote control and do not point the laser beam into anyone’s eyes. This remote control is equipped with a Class II laser that emits radiation.
Page 4
Usage Notice
Do:
Turn off the product before cleaning.Use a soft cloth moistened with a mild detergent to clean the
display housing.
Disconnect the power plug from the AC outlet if the product
is not being used for a long period of time.
Don’t:
Do not block the ventilation slots and openings on the unit.Do not use abrasive cleaners, waxes or solvents to clean the
unit.
Do not use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5-35℃.
Relative Humidity is 5-35℃, 80% (Max.),
non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic eld.
- In direct sunlight.
English
4
Page 5
Usage Notice
Eye Safety Warnings
▀■ Avoid staring directly into the projector’s beam of light at all
times.
▀■ Minimize standing facing into the beam. Keep your back to
the beam as much as possible.
▀■ Using a stick or laser pointer is recommended to avoid the
need for the presenter to enter the beam.
▀■ Ensure that projectors are located out of the line of sight from
the screen to the audience; this ensures that, when presenters look at the audience, they do not also have to stare at the pro­jector lamp. The best way to achieve this is by ceiling-mount­ing the projector rather than placing it on oor or table top.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the screen.
▀■ In order to minimize the lamp power needed, use room blinds
to reduce ambient light levels.
5
English
Page 6
Introduction
Product Features
This product is a XGA single chip 0.7” DLP® projector. Outstanding features include:
True XGA, 1024 x 768 addressable pixels
Single chip Dark Chip3TM DLP® Technology
Computer Compatibility:
Apple Macintosh, iMac, and VESA Standards:
UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA
Video Compatibility:
NTSC, PAL, SDTV compatible, HDTV compatible
Auto source detection with user denable settings
Full function IR remote control with laser pointer and
mouse control
English
User friendly multilingual On Screen Menu
Advanced digital keystone correction and high quality
full screen image re-scaling
User friendly control panel
Two speakers with 3 watt amplier each
Macintosh and PC compatible
HDMI and DVI-D support (HDCP compliant)
Support Network function (LAN/RS232)
6
Page 7
7
English
Introduction
Power Cord 3.0m
IR Remote Control
Package Overview
This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.
Documentation :

User’s Manual

Warranty Card

Quick Start Card

WEEE Card (for EMEA only)
Due to the
difference in applications for each country,
some regions may
have different accessories.
2 x AAA Batteries
Projector with lens cap
VGA Cable 1.8m
USB Cable 1.8m
RS232 Cable 1.8m
(available in USA and
ASIA regions only)
Page 8
Introduction
Product Overview
Main Unit
2
1
8
9
4
3
5
English
8
1. Control Panel
2. Zoom
3. Focus
4. Zoom Lens
5. IR Receivers
8
6. Connection Ports
7. Power Socket
8. Tilt-Adjustment Feet
9. Lamp Cover
6
7
Page 9
Control Panel
8
Introduction
7
6
9
1
2
1. Power/Standby and Power LED
2. Enter
3. Menu
4. Re-Sync
5. Keystone Correction
6. Source
7. Temp LED
8. Lamp LED
9. Four Directional Select Keys
5
4
3
9
English
Page 10
10
English
Introduction
Connection Ports
1. 12V-Relay Connector
2. Composite Video Input Connector
3. Audio Input Connector (for Composite Video Connector)
4. Lamp Cover screw (for open the top cover)
5. S-Video Input Connector
6. Audio Input Connector (for S-Video Connector)
7. VGA-Out Connector (Monitor Loop-through Output)
8. Audio-Out Connector
9. VGA2-In Connector (PC Analog Signal/Component Video Input/HDTV)
10. Audio Input Connector (for VGA2-In Connector)
11. VGA1-In/SCART Connector (PC Analog Signal/Component Video Input/HDTV/SCART)
12. Audio Input Connector (for VGA1-In Connector)
13. DVI-D Connector (PC Digital (HDCP))
14. Audio Input Connector (for DVI-D Connector)
15. KensingtonTM Lock Port
16. USB Connector (Connect to PC for Remote Mouse function)
17. Power Socket
18. HDMI Connector (HDCP)
19. Networking Connector RJ45
20. RS-232 Connector
5
1
17 20
3 6
12 14 15 16
11 13 18 19
10
2
7 8 9
4
Page 11
11
English
Introduction
Optional
212322
The items below are only for models that operate with optional wireless module:
21. Reset button
22. Status Indicator LED
23. Antenna
Page 12
Introduction
Remote Control
1. Power On/Off
2. Re-Sync
3. Keystone
4. Page Up
5. Page Down
6. Laser LED
7. AV Mute
8. Freeze
9. Laser Button
10. Display Mode
11. Zoom in
12. Zoom out
13. Volume +/-
14. PC/Mouse Control
15. Mouse Right Click
16. Mouse Left Click
17. Enter
18. Menu
19. Four Directional Select
Keys
20. Clear
21. Format
22. HDMI Source
23. Information
24. DVI Source
25. VGA1 Source
26. VGA2 Source
27. Source Lock
28. Video Source
29. S-Video Source
30. Numerical Buttons
31. Wireless (only functional with optional wireless module)
78
1
2
9
10
11
12
13
16
18
20
22
24
31
27
29
30
3
4
5
6
14
15
17
19
21
23
25
26
28
English
12
Page 13
Installation
Connecting the Projector
Connect to Computer/Notebook
Due to the
difference in applications for each country,
some regions may
have different accessories.
3
2
6
1...............................................................................................................Power Cord
2................................................................................................................. USB Cable
3................................................................................................................VGA Cable
4..........................................................................DVI Cable (Optional accessories)
5.................................................................RS232 Cable (for USA and ASIA only)
6........................................................... Audio Input Cable (Optional accessories)
5
4
1
13
English
Page 14
Installation
Connect to Video Sources
Due to the
difference in applications for each country,
some regions may
have different accessories.
+12V Relay Output
2
Video Output
S-Video Output
4
3
DVD Player, Set-top Box,
HDTV receiver
DVD Player, Set-top Box,
HDTV receiver
6
7
5
8
9
10
1
English
1...............................................................................................................Power Cord
2...................................................Composite Video Cable (Optional accessories)
3................................................................... S-Video Cable (Optional accessories)
4...................................................Audio Cable Jack/RCA (Optional accessories)
5............15-Pin to 3 RCA Component/HDTV Adaptor (Optional accessories)
6................................................3 RCA Component Cable (Optional accessories)
7................................................................................................................VGA Cable
8......................................SCART RGB/S-Video Adaptor (Optional accessories)
9......................................................................HDMI Cable (Optional accessories)
10............................................................... Network Cable (Optional accessories)
14
Page 15
Installation
Powering On/Off the Projector
Powering On the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely
connected. The Power LED will be Red.
3. Turn on the lamp by pressing “
of the projector or on the remote. The Power LED will ash Blue.
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you can select your preferred language from quick menu after the startup screen display.
4. Turn on your source (computer, notebook, video player,
etc.). The projector will detect your source automatically.
If you connect multiple sources at the same time, press the
“Source” button on the control panel to switch between inputs.
” button either on the top
Turn on the
projector rst and then select the signal sources.
2
Power/Standby Power LED
1
Lens Cap
15
English
Page 16
Installation
Powering Off the Projector
1. Press the “ ” button to turn off the projector lamp, you
will see a message displayed on the projector’s screen.
Press the “ ” button again to conrm.
2. The cooling fans continue to operate for about 10 seconds
for cooling cycle. When the Power LED turn Red, the projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press “ ” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and
the projector.
4. Do not turn on the projector immediately following a
power off procedure.
English
Warning Indicator
When the “LAMP” indicator lights red, the projector will
automatically shut itself down. Please contact your local reseller or service center. See pages 57-58.
When the “TEMP” indicator lights red, it indicates the pro-
jector has overheated. The projector will automatically shut itself down.
Under normal conditions, the projector can be switched on
again after it has cooled down. If the problem persists, you should contact your local dealer or our service center. See pages 57-58.
When the “TEMP” indicator ashes red, it indicates the fan
has failed. Please contact your local dealer or our service center. See pages 57-58.
16
Page 17
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator feet for adjusting the image height.
To raise the image:
1. Locate the adjustable foot you wish to modify on the underside of the projector.
2. Rotate the four adjustable rings counter clockwise to raise the projector or clockwise to lower it. Repeat with the remaining feet as needed.
3. Reset the projector on its feet and re-adjust as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
17
English
Page 18
18
English
Installation
Focus Ring
Zoom Ring
Adjusting the Projector’s Zoom / Focus
Adjusting Projection Image Size
You may turn the zoom lever to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances from 3.9 to 32.8 feet (1.2 to 10.0 meters).
Hd
68.8"
(174.8cm)
114.7"
(291.4cm)
160.6"
(407.9cm)
206.5"
(524.5cm)
275.3"
(699.3cm)
37.6"
(99.5cm)
106.6"
(270.7cm)
172.4"
(437.9cm)
241.4"
(613.1cm)
307.2"
(780.3cm)
313.5"
(796.2cm)
31.2"
(79.4cm)
3.9'
(1.2m)
32.8'(10.0m)
32.2'(9.8m)
25.3'(7.7m)
18.0'(5.5m)
11.2'(3.4m)
Width
Height
Diagonal
Screen
(Diagonal)
Max.
37.6” (95.5cm) 106.6” (270.7cm) 172.4” (437.9cm) 241.4” (613.1cm) 307.2” (780.3cm) 313.5” (796.2cm)
Min.
31.2” (79.4cm) 68.8” (174.8cm) 114.7” (291.4cm) 160.6” (407.9cm) 206.5” (524.5cm) 275.3” (699.3cm)
Screen
Size
Max.
(WxH)
30.1” x 22.6”
76.4 x 57.3cm
85.3” x 63.9”
216.6 x 162.4cm
137.9” x 103.4”
350.3 x 262.7cm
193.1” x 144.8”
490.4 x 367.8cm
245.7” x 184.3”
624.2 x 468.2cm
250.8” x 188.1”
636.9 x 477.7cm
Min.
(WxH)
25.0” x 18.7”
63.5 x 47.6cm
70.8” x 53.1”
179.9 x 134.9cm
114.6” x 85.9”
291.0 x 218.3cm
160.4” x 120.3”
407.4 x 305.6cm
204.1” x 153.1”
518.5 x 388.9cm
208.3” x 156.2”
529.1 x 396.8cm
Hd
Max.
2.26” (5.7cm) 6.39” (16.2cm) 10.34” (26.3cm) 14.48” (36.8cm) 18.43” (46.8cm) 18.81” (47.8cm)
Min.
1.87” (4.76cm) 5.31” (13.49cm) 8.59” (21.83cm) 12.03” (30.56cm) 15.31” (38.89cm) 15.62” (39.68cm)
Distance
3.9’ (1.2m) 11.2’ (3.4m) 18.0’ (5.5m) 25.3’ (7.7m) 32.2’ (9.8m) 32.8’ (10.0m)
This graph is for user’s reference only.
Page 19
User Controls
Control Panel & Remote Control
There are two ways for you to control the functions: Control Panel and Remote Control.
Control Panel
Using the Control Panel
Power
Standby Power LED
Enter
Menu
Re-Sync
Source
Four Directional Select Keys
Keystone
Lamp LED
Temp LED
Refer to the “Power On/Off the Projector” section on pages 15-16.
Indicate the projector’s status.
Conrm your item selection.
Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, Press “Menu” again.
Automatically synchronize the projector to the input source.
Press “Source” to select an input signal.
Use to select items or make adjustments to your selection.
Use to adjust image distortion caused by tilting the projector. (±16 degrees)
Indicate the projector’s lamp status.
Indicate the projector’s temperature status.
19
English
Page 20
User Controls
Mod el No .: T SFN- IR01
The de vice com plies wi th part 1 5 o f the FCC Ru les See in struct ion man ual.
LASE R RADIATI ON­DO NOT STA RE INTO B EAM
Using the Remote Control
Remote Control
Power
Laser Button
AV Mute
Re-Sync
Display Mode
Freeze
Keystone
Zoom in
Zoom out
Volume +/-
Page
Refer to the “Power On/Off the Projector” section on pages 15-16.
Aim the remote at the viewing screen, press and hold this button to activate the laser pointer.
Momentarily turn off/on the audio and video.
Automatically synchronize the projector to the input source.
Select the display mode from Presentation, Bright, Movie, sRGB, User1 and User2.
Press “Freeze” to pause the screen.
Press this button again to unlock.
Adjust image distortion caused by tilting the projector. (±16 degrees)
Zoom in to magnify the image.
Zoom out to reduce the image.
Adjust to increase/decrease the volume.
Use this button to page up.
English
20
Page
Laser Indicator
LED
PC/Mouse control
L Button
R Button
Use this button to page down.
Indicate the laser’s status.
The PC/Mouse control can be used to control mouse movement. The mouse function is enabled using the USB cable to connect your computer and the projector.
Mouse left click.
Mouse right click.
Page 21
User Controls
Mod el No .: T SFN- IR01
The de vice com plies wi th part 1 5 o f the FCC Ru les See in struct ion man ual.
LASE R RADIATI ON­DO NOT STA RE INTO B EAM
Using the Remote Control
Remote Control
Menu
Enter
Four Directional Select Keys
Clear
Format
HDMI
Source Lock
Info.
DVI
Video
S-Video
Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, Press “Menu” again.
Conrm your item selection.
Use to select items or make adjust­ments to your selection.
Clear your selection.
Display the “Format” section of the onscreen display menu to select the desired aspect ratio.
Press “HDMI” to choose HDMI source.
Select auto detection all connector ports or lock current connector port. (See page 42 for more)
To display the projector information on the screen.
Press “DVI” to choose DVI-In source.
Press “Video” to choose Composite video source.
Press “S-Video” to choose S-Video source.
VGA1
VGA2
Wireless
Press “VGA1” to choose source from VGA1-In/SCART connector.
Press “VGA2” to choose source from VGA2-In connector.
Press “Wireless” to choose Wireless source. (only functional with optional wireless module)
21
English
Page 22
User Controls
Using the USB Remote Mouse Control
The remote control for this projector can be used as a remote mouse control with the USB cable.
When the projector is connected to PC via the USB cable, the
remote will work as a mouse for control.
English
22
Page 23
User Controls
On-screen Display Menus
The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect
the source.
How to operate
1. To open the OSD menu, press “Menu” on the Remote Control or
Projector Keypad.
2 When OSD is displayed, use
main menu. While making a selection on a particular page, press
or “Enter” key to enter sub menu.
3. Use
by key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press “Enter” to conrm, and the screen will return to the main
menu.
6. To exit, press “Menu” again. The OSD menu will close and the
projector will automatically save the new settings.
keys to select the desired item and adjust the settings
keys to select any item in the
Main Menu
Sub Menu
23
Setting
English
Page 24
User Controls
Menu Tree
(*) “Signal” menu is
only supported in Analog VGA (RGB) signal.
*
(**) “Wireless” is
only functional with optional wireless module.
English
24
**
Page 25
User Controls
Display Mode
There are many factory presets optimized for various types of images.
Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
Movie: For home theater.
sRGB: Standardised accurate color.
User1: User’s own settings.
User2: The initial default settings of this mode is from Movie
mode. Any further adjustments by the user in User2 will be saved in this mode for future use.
Brightness
Adjust the brightness of the image.
Press the to darken image.
Press the to lighten the image.
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.
Press the to decrease the contrast.
Press the to increase the contrast.
Sharpness
Adjust the sharpness of the image.
Press the to decrease the sharpness.
Press the to increase the sharpness.
25
English
Page 26
User Controls
Image | Color
Color
Adjust the Red, Green, Blue, Cyan, Magenta and Yellow colors or returns to the factory default settings for advanced adjustment of the individual colors.
Reset
Choose “Yes” to return the factory default settings for color
adjustments.
English
26
Hue
Adjust the color balance of red and green.
Press the to increase the amount of green in the image.
Press the to increase the amount of red in the image.
Saturation
Adjust a video image from black and white to fully saturated color.
Press the to decrease the amount of saturation in the image.
Press the to increase the amount of saturation in the image.
Gain
Use or to adjust Red, Green, Blue, Cyan, Magenta and Yellow
colors for brightness (Gain).
Page 27
Image | Advanced
Degamma
This allows you to choose a degamma table that has been ne-tuned to bring out the best image quality for the input.
Film: for home theater.
Video: for video or TV source.
Graphics: for image source.
PC: for PC or computer source.
White Peaking
This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from “0” to “10”. If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.
User Controls
Color Temp
Adjust the color temperature. With cold temperature, the screen looks colder; with Warm temperature, the screen looks warmer.
Color Space
Select an appropriate color matrix type from AUTO, RGB or YUV.
27
English
Page 28
User Controls
Display
Format
Use this function to choose your desired aspect ratio.
4:3: This format is for 4x3 input sources not enhanced for Wide
screen TV.
16:9 I: This format is for 16x9 input sources, like HDTV and
DVD enhanced for Wide screen TV. (576i/p)
16:9 II: This format is for 16x9 input sources, like HDTV and
DVD enhanced for Wide screen TV. (480i/p)
Window: When a 4:3 image is bigger than a 16:9 screen, select
the “Window” mode to t the image onto the screen without changing the projection distance.
English
Source 480i/p 576i/p 720p 1080i PC
4:3 Scale to 1024 x 768
16:9 I Scale to 1024 x 576
16:9 II Scale to 854 x 480
Window Scale to 800 x 600
28
Page 29
window format
16 : 9-I format
or
or
16 : 9-II format
4 : 3 format
Input Signal
User Controls
Display area Picture area
Display on Screen
29
English
Page 30
User Controls
Display
Overscan
Overscan function removes the noise in a video image. Overscan the image to remove video encoding noise on the edge of video
source.
Zoom
Press the to reduce the size of an image.
Press the to magnify an image on the projection screen.
V Image Shift
Shift the projected image position vertically.
English
30
V Keystone
Press the or to adjust image distortion vertically and makes a
squarer image.
Page 31
Setup | Language
Language
Choose the multilingual OSD menu. Press or into the sub menu and then use the or key to select your preferred language. Press “Enter” to nalize the selection.
User Controls
31
English
Page 32
User Controls
Setup
Projection
Front-Desktop
The factory default setting.
Rear-Desktop
When you select this function, the projector reverses the image so you can project behind a translucent screen.
English
32
Front-Ceiling
When you select this function, the projector turns the image upside down for ceiling-mounted projection.
Rear-Ceiling
When you select this function, the projector reverses and turns the image upside down at same time. You can project from behind a translucent screen with ceiling mounted projection.
Page 33
User Controls
Setup
Setup
Menu Location
Choose the menu location on the display screen.
Mute
Choose the “On” to turn mute on.
Choose the “Off” to turn mute off.
Volume
Press the to decrease the volume.
Press the to increase the volume.
Projector ID
Allow the RS232 control of an individual projector. Range 01-99.
33
English
Page 34
User Controls
Setup | Signal
“Signal” menu is
only supported in Analog VGA (RGB) signal.
Phase
Synchronize the signal timing of the display with the graphic card. If you experience an unstable or ickering image, use this function to correct it.
Frequency
Change the display data frequency to match the frequency of your computer’s graphic card. If you experience a vertical ickering bar, use this function to make an adjustment.
H. Position
Press the to move the image left.
Press the to move the image right.
V. Position
Press the to move the image down.
Press the to move the image up.
English
34
Page 35
“Wireless” is only
functional with optional wireless module.
User Controls
Setup
RS232
RS232: Allow RS232 control of an individual projector.
Network: Allow projector control via web browser (Internet Ex-
plorer) using the network (Default setting).
Wireless
Choose “On” to turn on the wireless mode.
35
English
Page 36
User Controls
Setup | Advanced
Logo
Use this function to select your desired startup screen. If you change the setting from one to another, when you exit the OSD menu, the new setting will take effect on next open.
Optoma: The default startup screen of Optoma projector.
User: Use memorize picture from “Logo Capture” function.
Logo Capture
Press “Enter” to immediately capture a picture what on the dis­play screen.
English
36
Page 37
Setup | Network
Network State
To display network information.
DHCP
Use this function to select your desired startup screen. If you change the setting from one to another, when you exit the OSD menu, the new setting will take effect on next open.
On: Assign an IP address to the projector from the DHCP
server automatically.
Off: Assign an IP address manually.
IP Address
Select an IP address.
User Controls
Subnet Mask
Select subnet mask number.
Gateway
Select the default gateway of the network connected to the
projector.
DNS
Select DNS number.
Apply
Press “ ” to apply the selection.
37
English
Page 38
38
English
User Controls

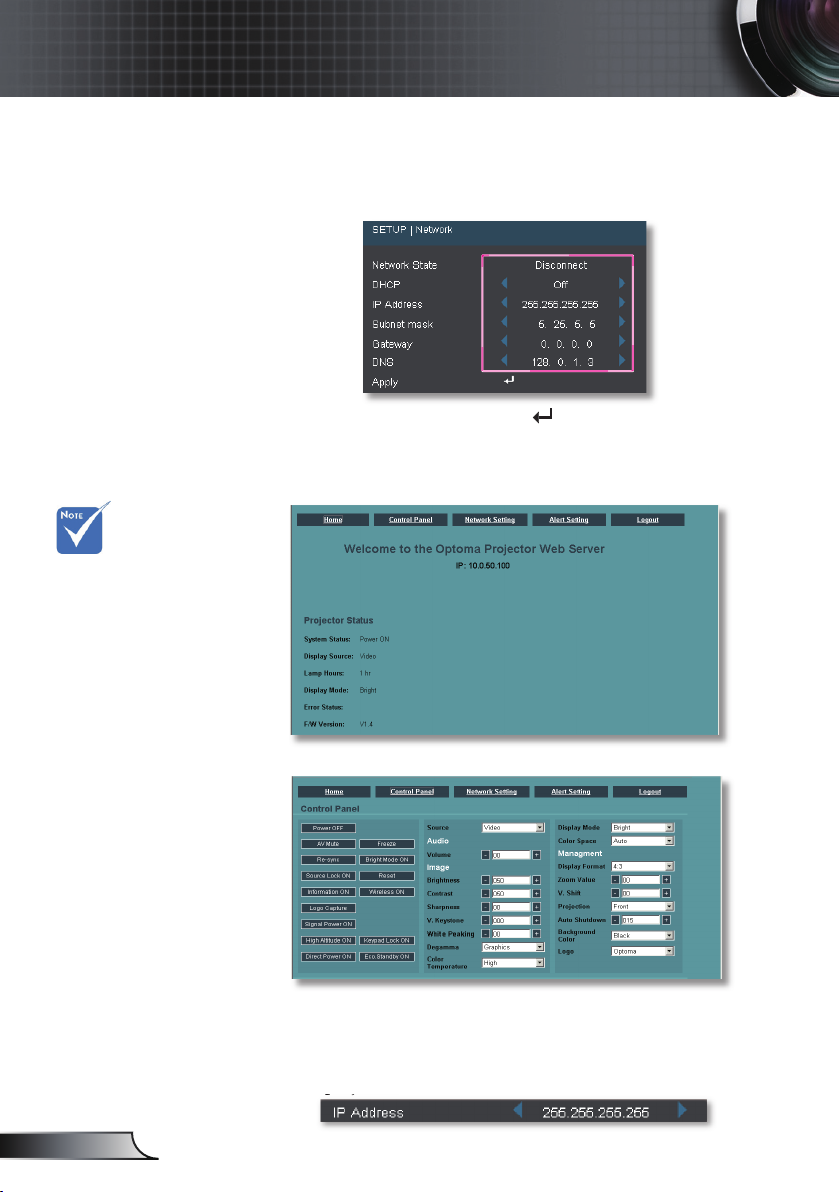

1. Fill in a new IP, a subnet mask, a gateway and a DNS in the dialogue box.
2. Then choose apply and press “ ” botton to effectuate the con guration process.
3. Open your web browser and type in from the OSD LAN screen then the web page will display as below:
4. Open “Control Panel” to control your projector.
For example: Use Microsoft Internet Explorer (IE) web browser
to control the projector , the IP address is http: //
10.0.50.100.
Step 1: Find an IP Address (10.0.50.100) from LAN function of
projector.
projector.
How to use web browser to control your projector
When you used
the projector IP address, you will can not link to your service server.
Page 39
39
English
User Controls

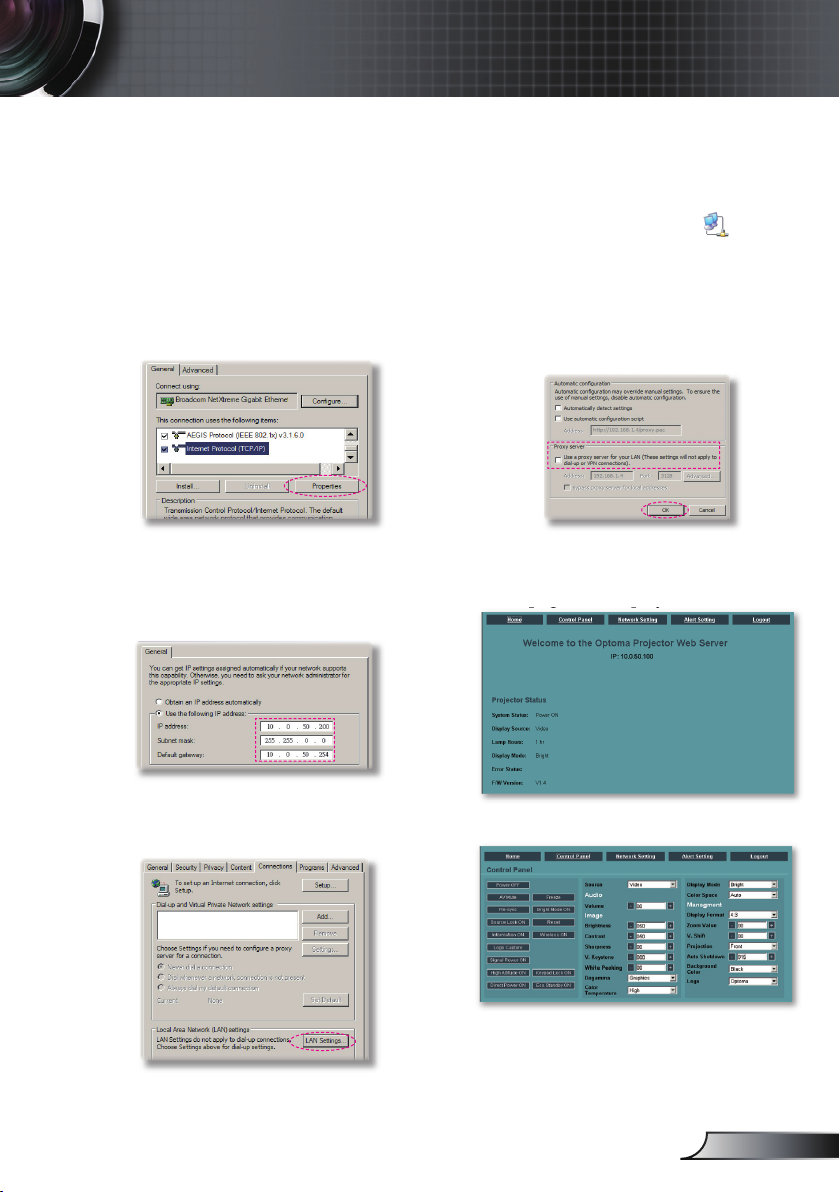

Step 2: Select apply and press “Enter” button to submit function or press “menu” key to
exit.
Step 3: To open Network Connections, click
Start
, click
Control Panel
, click
Network
and Internet Connections
, and then click
Network Connections
. Click the
connection you want to con gure, and then, under
Network Tasks
, click
Change settings of this connection
.
Step 4: On the
General
tab, under
This connection uses the following items
, click
Internet Protocol (TCP/IP)
, and
then click “Properties.”
Ste p 5: Cl ick
Use the fol low ing IP
address
, and type in as below:
1) IP address: 10.0.50.XXX
2) Subnet mask: 255.255.0.0
3) Default gateway: 10.0.50.254
Step 6: To open Internet Options, click
IE we b browser, click Internet Options, click the
Connections tab
and click “LAN Settings...”
Step 7: The
Local Area Network (LAN)
Setting
dialog box appears, In
the
Proxy Server area
, cancel the
Use a proxy server for your LAN check box
., then click “OK” button
twice.
Step 8: Open your IE and type in the IP
address of 10.0.50.100 in the URL then press “Enter” key. The web page will display as below:
page will display as below:
Step 9: Open “Control Panel” to control
your projector.
Page 40
User Controls

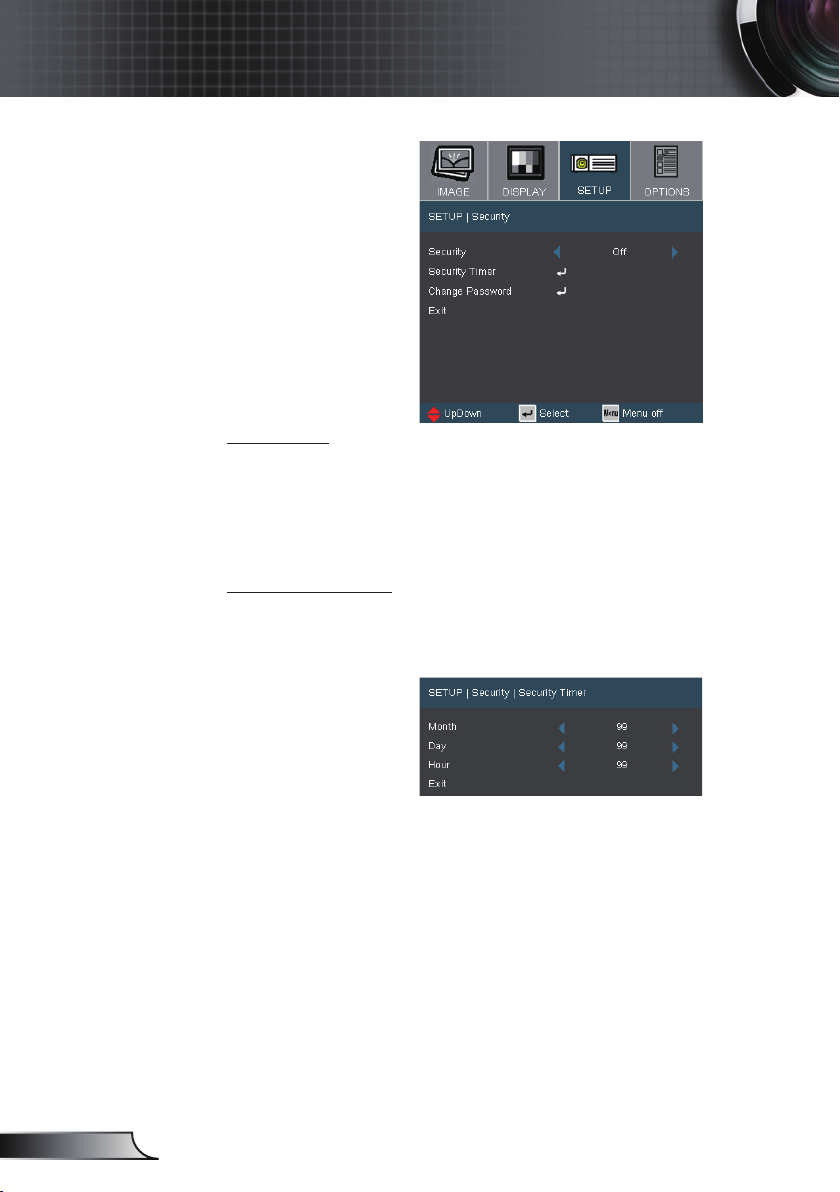

Setup | Security
Security
On: Choose “On” to use security verication when the turning
Security Timer
on the projector.
Off: Choose “Off” to be able to switch on the projector without
password verication.
Select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.
English
40
Page 41

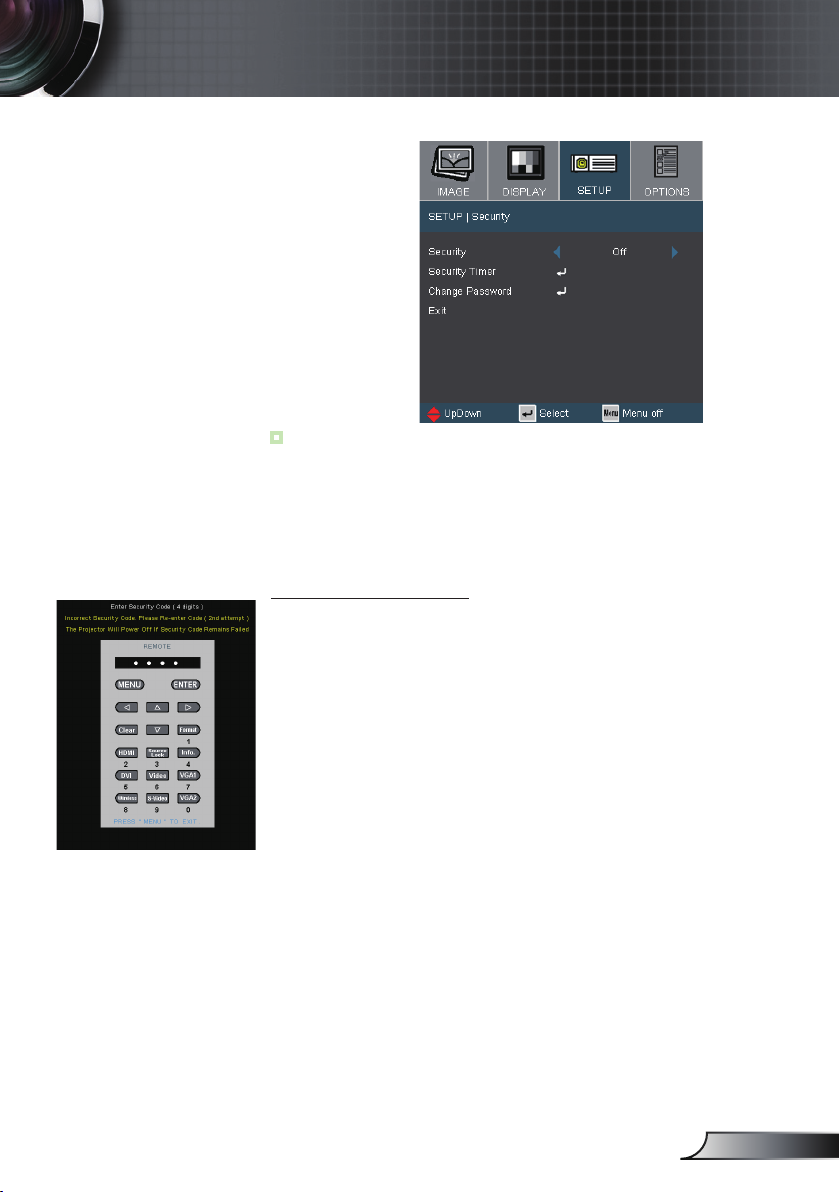

Setup | Security
■ First Time:
1.ThePasswordis4digits,DEFAULTVALUEis“1234”.(rsttime)
2. Use number buttons on the remote to select your password, and then
press “Enter”keytoconrmyourselection.
Change Password
1. Press “Enter” to input old password.
2. Use number button to enter current password, and then press “Enter” key again to reveal next OSD menu.
3. Scroll down to highlight Password, and then press “Enter” to activate.
4. Enter new password (4 digits in length) using the number buttons on the remote, then press “Enter” to conrm.
5. Enter new password again and press “Enter” to conrm.
User Controls
41
English
Page 42
User Controls
Options
Source Lock
On: The projector will search specied connection port.
Off: The projector will search for other signals if the current
High Altitude
Choose “On” to turn on High Altitude mode. Operates the fans at full speed continuously to allow for proper high altitude cooling of the projector.
input signal is lost.
English
42
Information Hide
On: Choose “On” to hide the searching message.
Off: Choose “Off” to show the searching message.
Keypad Lock
When the keypad lock function is on, the control panel will be locked, but the projector can still be operated by the remote control. If canceling this function, use the remote control or press the “Enter” key on the control panel for 10 seconds to turn it off.
Background Color
Use this feature to display a “Black”, “Red”, “Blue”, “Green” or “White”, screen when no signal is available.
Reset
Choose “Yes” to return the display parameters on all menus to the factory default settings.
Page 43
Options | Advanced
User Controls
When “Signal
Power On” is enabled, the Economic Standby Mode will be auto set as Off (>5W)
When Economic
Standby Mode is enabled (<5W), the Signal Power On function is disabled.
Signal Power On
On: The projector will automatically power on when plug in
any signal source to the projector at standby mode. (*)
Off: Turn on the projector to normal mode.
Direct Power On
Choose “On” to turn on Direct Power On mode. The projector will automatically power on when AC power is supplied, without pressing the “Power/Standby” key on the projector control panel
or
key on the remote control.
“ ”
Auto Power Off
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. Then projector will automatically power off when the countdown has nished (in minutes).
Sleep Timer
Set the countdown timer interval. The timer will begin, with or without a signal input. Then the projector will automatically power off then the sleep timer countdown has nished. (in minutes)
Eco. Standby (5W)
Choose “On” to save power dissipation further(<5W).
Choose “Off” to return to normal standby mode.(*)
43
English
Page 44
User Controls
Options |
Lamp Settings
Lamp Hours
Display the projection time.
Lamp Reminder
Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.
Brightness Mode
STD: Choose “STD” to dim the projector lamp which will lower
power consumption and extend the lamp life by up to 130%.
Bright: Choose “Bright” to increase the brightness.
English
Lamp Reset
Reset the lamp life hour after replacing the lamp.
44
Page 45
Appendices
Troubleshooting
If you experience a problem with your projector,
please refer to the following information. If a problem persists, please contact your local reseller or service center. (See pages 57-58 for details)
Image Problems
No image appears on-screen
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure all the pins of connectors are not bent or broken.
Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is
switched on.
Ensure that the “AV mute” feature is not turned on.
(*) The resolution
XGA (1024 x 768) is recommended for computer signal.
Partial, scrolling or incorrectly displayed image
Press “Re-Sync” on the remote.
If you are using a PC:
For Windows 95, 98, 2000, XP:
1. Open the “My Computer” icon, the “Control Panel” folder, and then double click on the “Display” icon.
2. Select the “Settings” tab.
3. Verify that your display resolution setting is lower than or equal to UXGA (1600 x 1200). (*)
4. Click on the “Advanced Properties” button.
If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the fol­lowing steps.
5. Verify the resolution setting is lower than or equal to UXGA (1600 x 1200).
45
English
Page 46
Appendices
(*) The resolution
XGA (1024 x 768) is recommended for computer signal.
6. Select the “Change” button under the “Monitor” tab.
7. Click on “Show all devices”. Next, select “Standard monitor types” under the SP box; choose the resolution mode you need under the “Models” box.
8. Verify that the resolution setting of the monitor display is lower than or equal to UXGA (1600 x 1200). (*)
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the computer.
2. Press the toggle output settings. Example: [Fn]+[F4]
Acer Asus [Fn]+[F8] Dell [Fn]+[F8] Gateway  [Fn]+[F4]
Mac Apple: System Preference Display Arrangement Mirror display
If you experience difculty changing resolutions or your monitor
freezes, restart all equipment including the projector.
The screen of the Notebook or PowerBook computer is not
[Fn]+[F5]
IBM/Lenovo [Fn]+[F7] HP/Compaq [Fn]+[F4] NEC [Fn]+[F3] Toshiba [Fn]+[F5]
displaying your presentation
If you are using a Notebook PC
Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer’s manual for detailed information.
Image is unstable or ickering
Use “Phase” to correct it. See page 34 for more information.
Change the monitor color setting on your computer.
English
46
Image has vertical ickering bar
Use “Frequency” to make an adjustment. See page 34 for more
information.
Check and recongure the display mode of your graphic card to
make it compatible with the projector.
Page 47
Appendices
Image is out of focus
Make sure the lens cap is removed.
Adjusts the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance
3.9 to 32.8 feet (1.2 to 10.0 meters) from the projector. See page 18.
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16:9 format on projector side.
If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type on
your DVD player.
Image is too small or too large
Adjust the Zoom Ring on the top of the projector.
Move the projector closer to or further from the screen.
Press [Menu] button on the remote control or projector panel, go
to “Display  Format” and try the different settings.
Use of Keystone is
not recommended.
Image has slanted sides
If possible, reposition the projector so that it is centered on the
screen and below the bottom of the screen.
Press [Keystone] button on the remote control or press [ ]
on the projector panel, until the sides are vertical .
Image is reversed
Select “Setup  Projection” from the OSD and adjust the
projection direction.
47
English
Page 48
Appendices
Intermission Problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and
wait at least 60 seconds before reconnecting power.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp” section on pages 50-51.
Projector Status Indication
LED lighting message
English
48
Message
Standby State (Input power cord)
Power on (Warming)
Lamp lighting Blue
Power off (Cooling)
Error (Over Temp.)
Error (Fan fail)
Error (Lamp fail)
Steady light  No light 
Power LED Temp-LED Lamp-LED
(Blue/Red) (Red) (Red)
Red
Flashing
Blue
Flashing
Red
Flashing
(0.5s on, 0.5s off)
Page 49

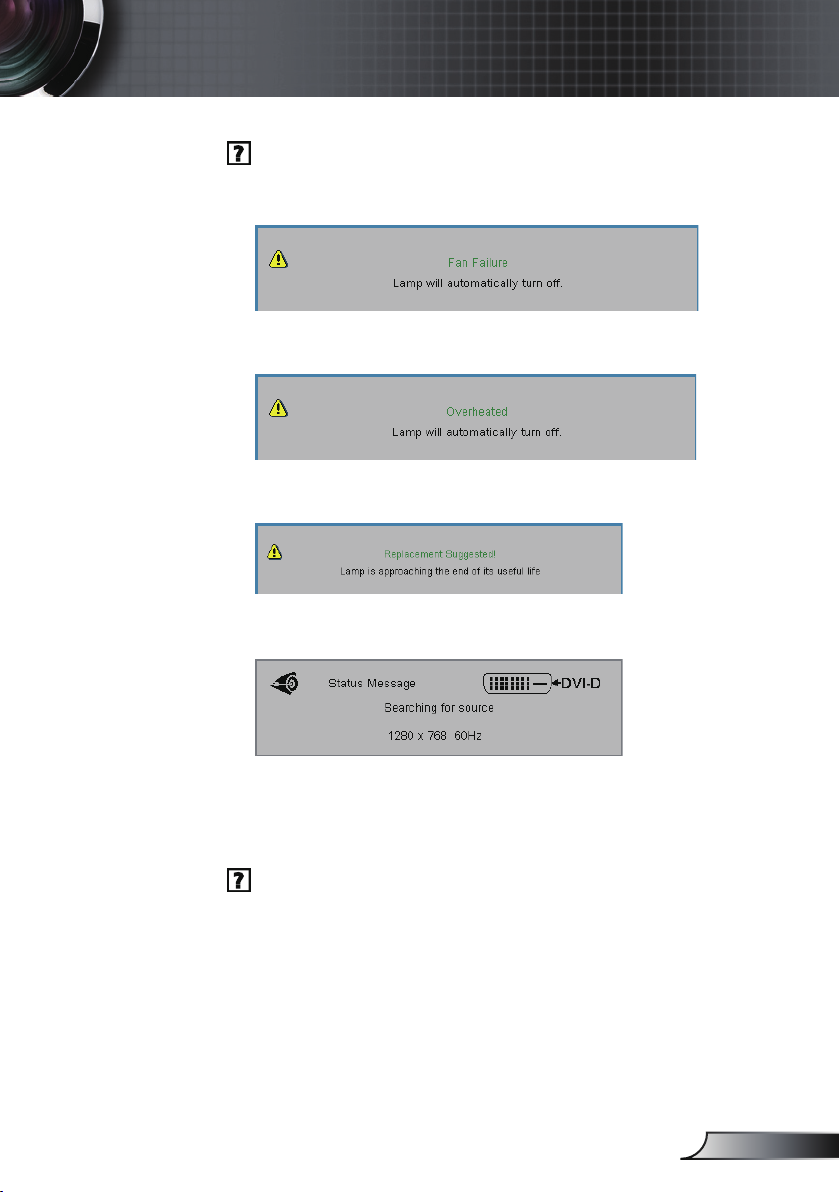

Message Reminders
Fan failed:
Temperature warning:
Replacing the lamp:
Status Message:
Appendices
Remote Control Problems
If the remote control does not work
Check the operating angle for the remote control is approximately
±22.5°.
Make sure there are no obstructions between the remote
control and the projector. Move to within 6 m (20 ft) of the projector.
Make sure the batteries are inserted correctly.
Replace weak batteries in the remote control.
49
English
Page 50
Appendices
Replacing the lamp
The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message.
When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 min- utes before changing the lamp.
English
Warning: If ceiling mounted, please use caution when
opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. “Caution must be used to prevent any loose parts from falling out of projector.”
Warning: Lamp compartment may be hot! Allow it to cool
down before changing the lamp!
Warning: To reduce the risk of personal injury, do not drop
the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.
50
Page 51
51
English
Appendices
Lamp Replacement Procedure:
1. Switch off the power to the projector by pressing the “ ” button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Use a screwdriver to unscrew the screw (Lamp Cover) from the rear side.
5. Press down the two “ ” on the cover simultaneously.
6. Open and remove the top cover.
7. Use a screwdriver to unscrew the 2 screws from the lamp module.
8. Pull up the lamp handle carefully.
9. Remove the lamp module. 
To replace the lamp module, reverse the previous steps.
10. Turn on the projector and use “Lamp Reset” after the lamp module is replaced.
Lamp Reset: (i) Press “Menu” (ii) Select “Options” (iii) Select
“Lamp settings”  (iv) Select “Lamp reset”  (v) Select “Yes”.
3
2
4
5
1
6
7
Page 52
Appendices
For widescreen
resolution (WXGA), the compatibility sup­port is dependent on Notebook/PC models.”
Compatibility Modes
Computer Compatibility
Mode Resolution
VGA 640 x 350 70, 85 70, 85
VGA 640 x 400 85 85
VGA 640 x 480 60, 72, 75, 85 60, 72, 75, 85
VGA 720 x 400 70, 85 70, 85
SVGA 800 x 600 56, 60, 72, 75, 85 56, 60, 72, 75, 85
XGA 1024 x 768 60, 70, 75, 85 60, 70, 75, 85
SXGA 1152 x 864 70, 75, 85 70, 75, 85
SXGA 1280 x 1024 60, 75, 85 60, 75, 85
SXGA+ 1400 x 1050 60 60
UXGA 1600 x 1200 60 60
MAC LC 13” 640 x 480 66.66 ***
MAC II 13” 640 x 480 66.68 ***
MAC 16” 832 x 624 74.55 ***
MAC 19” 1024 x 768 75 ***
MAC 1152 x 870 75.06 ***
MAC G4 640 x 480 60 ***
i MAC DV 1024 x 768 75 ***
i MAC DV 1152 x 870 75 ***
i MAC DV 1280 x 960 60 ***
WXGA 1280 x 720 60 60, 75, 85
WXGA 1280 x 768 60 60, 75, 85
WXGA 1280 x 800 60 60, 75, 85
Analog Digital
V-Sync (Hz)
English
52
Video Compatibility
NTSC M (3.58MHz), 4.43 MHz, 480i/p @60Hz
PAL B, D, G, H, I, M, N, 576i/p @50Hz
SECAM B, D, G, K, K1, L
SDTV/HDTV 480i/p, 576i/p, 720p@50Hz/60Hz, 1080i/p@50Hz/60Hz
Page 53
RS232 Commands
12345
6789
RS232 Pin Assignments
Pin no. Spec.
1
2
3 TXD
4
5 GND
6
7
8
9
Appendices
N/A
RXD
N/A
N/A
N/A
N/A
N/A
53
English
Page 54
Appendices
SEND to projector
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Description
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX00 1 7E 30 30 30 30 20 31 0D Power ON ~XX00 2 7E 30 30 30 30 20 32 0D Power OFF ~XX00 1 ~nnnn Power On with Password
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX01 1 7E 30 30 30 31 20 31 0D Resync ~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On ~XX02 2 7E 30 30 30 32 20 32 0D Off ~XX03 1 7E 30 30 30 33 20 31 0D Mute On ~XX03 2 7E 30 30 30 33 20 32 0D Off ~XX04 1 7E 30 30 30 34 20 31 0D Freeze ~XX04 2 7E 30 30 30 34 20 32 0D Unfreeze ~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus ~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus ~XX07 1 7E 30 30 30 37 20 31 0D Up (Pan under zoom) ~XX08 1 7E 30 30 30 38 20 31 0D Down (Pan under zoom) ~XX09 1 7E 30 30 30 39 20 31 0D Left (Pan under zoom) ~XX10 1 7E 30 30 31 30 20 31 0D Right (Pan under zoom) ~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Commands HDMI ~XX12 2 7E 30 30 31 32 20 32 0D DVI-D ~XX12 5 7E 30 30 31 32 20 35 0D VGA 1 ~XX12 6 7E 30 30 31 32 20 36 0D VGA 2 ~XX12 7 7E 30 30 31 32 20 37 0D VGA 1 SCART ~XX12 8 7E 30 30 31 32 20 38 0D VGA 1 Component ~XX12 9 7E 30 30 31 32 20 39 0D S-Video ~XX12 10 7E 30 30 31 32 20 31 30 0D Video ~XX12 11 7E 30 30 31 32 20 31 31 0D Wireless ~XX12 13 7E 30 30 31 32 20 31 33 0D VGA 2 Component
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation ~XX20 2 7E 30 30 32 30 20 32 0D Bright ~XX20 3 7E 30 30 32 30 20 33 0D Movie ~XX20 4 7E 30 30 32 30 20 34 0D sRGB ~XX20 5 7E 30 30 32 30 20 35 0D User1 ~XX20 6 7E 30 30 32 30 20 36 0D User2
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX21 n 7E 30 30 32 31 20 a 0D Brightness n = 0 (a=30) ~ 100 (a=31 30 30) ~XX22 n 7E 30 30 32 32 20 a 0D Contrast n = 0 (a=30) ~ 100 (a=31 30 30) ~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n = 0 (a=30) ~ 31 (a=33 31)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX170 n 7E 30 30 31 37 30 20 a 0D Color Red Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX171 n 7E 30 30 31 37 31 20 a 0D Red Saturation n = 0 (a=30) ~ 100 (a=31 30 30) ~XX27 n 7E 30 30 32 37 20 a 0D Red Gain n = 0 (a=30) ~ 100 (a=31 30 30) ~XX172 n 7E 30 30 31 37 32 20 a 0D Green Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX173 n 7E 30 30 31 37 33 20 a 0D Green Saturation n = 0 (a=30) ~ 100 (a=31 30 30) ~XX28 n 7E 30 30 32 38 20 a 0D Green Gain n = 0 (a=30) ~ 100 (a=31 30 30) ~XX174 n 7E 30 30 31 37 34 20 a 0D Blue Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX175 n 7E 30 30 31 37 35 20 a 0D Blue Saturation n = 0 (a=30) ~ 100 (a=31 30 30) ~XX29 n 7E 30 30 32 39 20 a 0D Blue Gain n = 0 (a=30) ~ 100 (a=31 30 30) ~XX176 n 7E 30 30 31 37 36 20 a 0D Cyan Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX177 n 7E 30 30 31 37 37 20 a 0D Cyan Saturation n = 0 (a=30) ~ 100 (a=31 30 30) ~XX30 n 7E 30 30 33 30 20 a 0D Cyan Gain n = 0 (a=30) ~ 100 (a=31 30 30) ~XX178 n 7E 30 30 31 37 38 20 a 0D Yellow Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX179 n 7E 30 30 31 37 39 20 a 0D Yellow Saturation n = 0 (a=30) ~ 100 (a=31 30 30) ~XX31 n 7E 30 30 33 31 20 a 0D Yellow Gain n = 0 (a=30) ~ 100 (a=31 30 30) ~XX180 n 7E 30 30 31 38 30 20 a 0D Magenta Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX181 n 7E 30 30 31 38 31 20 a 0D Magenta Saturation n = 0 (a=30) ~ 100 (a=31 30 30) ~XX32 n 7E 30 30 33 32 20 a 0D Magenta Gain n = 0 (a=30) ~ 100 (a=31 30 30) ~XX33 1 7E 30 30 33 33 20 31 0D Reset
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX34 n 7E 30 30 33 34 20 a 0D White Peaking n = 0 (a=30) ~ 10 (a=31 30) ~XX35 1 7E 30 30 33 35 20 31 0D Degamma Film ~XX35 2 7E 30 30 33 35 20 32 0D Video ~XX35 3 7E 30 30 33 35 20 33 0D Graphics ~XX35 4 7E 30 30 33 35 20 34 0D PC
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Warm ~XX36 2 7E 30 30 33 36 20 32 0D Medium ~XX36 3 7E 30 30 33 36 20 33 0D Cold ~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto ~XX37 2 7E 30 30 33 37 20 32 0D RGB ~XX37 3 7E 30 30 33 37 20 33 0D YUV
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3 ~XX60 2 7E 30 30 36 30 20 32 0D 16:9-l ~XX60 3 7E 30 30 36 30 20 33 0D 16:9-ll ~XX60 4 7E 30 30 36 30 20 34 0D Window
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX61 n 7E 30 30 36 31 20 a 0D Overscan n = 0 (a=30) ~ 3 (a=33) ~XX62 n 7E 30 30 36 32 20 a 0D Zoom n = 0 (a=30) ~ 20 (a=32 30) ~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = 0 (a=30) ~ 100 (a=31 30 30) ~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX70 1 7E 30 30 37 30 20 31 0D Language English ~XX70 2 7E 30 30 37 30 20 32 0D German ~XX70 3 7E 30 30 37 30 20 33 0D French ~XX70 4 7E 30 30 37 30 20 34 0D Italian ~XX70 5 7E 30 30 37 30 20 35 0D Spanish ~XX70 6 7E 30 30 37 30 20 36 0D Portuguese ~XX70 7 7E 30 30 37 30 20 37 0D Polish ~XX70 8 7E 30 30 37 30 20 38 0D Dutch ~XX70 9 7E 30 30 37 30 20 39 0D Swedish ~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish ~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish ~XX70 12 7E 30 30 37 30 20 31 32 0D Greek ~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese ~XX70 14 7E 30 30 37 30 20 31 34 0D Simplified Chinese ~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese ~XX70 16 7E 30 30 37 30 20 31 36 0D Korean ~XX70 17 7E 30 30 37 30 20 31 37 0D Russian ~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian ~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak ~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic ~XX70 21 7E 30 30 37 30 20 32 31 0D Thai
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop ~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop ~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling ~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left ~XX72 2 7E 30 30 37 32 20 32 0D Top Right ~XX72 3 7E 30 30 37 32 20 33 0D Centre ~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left ~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
RS232 Protocol Function List
RS232 Commands
Baud Rate : 9600
Data Bits: 8 Parity: None
Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable Projector Return (Pass): P Projector Return (Fail): F
XX=01-99, projector's ID, XX=00 is for all projectors
1. There is a <CR> after all ASCII commands.
2. 0D is the HEX code for
<CR> in ASCII code.
English
54
Page 55
Appendices
SEND to projector
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Description
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX73 n 7E 30 30 37 33 20 a 0D Signal Frequency n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30) ~XX74 n 7E 30 30 37 34 20 a 0D Phase n = 0 (a=30) ~ 63 (a=36 33) ~XX75 n 7E 30 30 37 35 20 a 0D H. Position n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30) ~XX76 n 7E 30 30 37 36 20 a 0D V. Position n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- --------­~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh mm = 00 (aa=30 30) ~ 99 (aa=39 39) dd = 00 (bb=30 30) ~ 29 (bb=32 39) hh = 00 (cc=30 30) ~ 23 (cc=32 33) ~XX78 1 7E 30 30 37 38 20 31 0D Security Settings Enable ~XX78 2 7E 30 30 37 38 20 32 0D Disab le
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX79 n 7E 30 30 37 39 20 a 0D Projector ID n = 01 (a=30 31) ~ 99 (a=39 39)
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX80 1 7E 30 30 38 30 20 31 0D Mute On ~XX80 2 7E 30 30 38 30 20 32 0D Off ~XX81 n 7E 30 30 38 31 20 a 0D Volume n = 0 (a=30) ~ 10 (a=31 30)
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma ~XX82 2 7E 30 30 38 32 20 32 0D User ~XX83 1 7E 30 30 38 33 20 31 0D Logo Capture
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX86 1 7E 30 30 38 36 20 31 0D RS232 Port RS232 ~XX86 2 7E 30 30 38 36 20 32 0D Network
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock On ~XX100 2 7E 30 30 31 30 30 20 32 0D Off ~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On ~XX101 2 7E 30 30 31 30 31 20 32 0D Off ~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide On ~XX102 2 7E 30 30 31 30 32 20 32 0D Off ~XX103 1 7E 30 30 31 30 33 20 31 0D Keypad Lock On ~XX103 2 7E 30 30 31 30 33 20 32 0D Off
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX104 1 7E 30 30 31 30 34 20 31 0D Background Color Blue ~XX104 2 7E 30 30 31 30 34 20 32 0D Black ~XX104 3 7E 30 30 31 30 34 20 33 0D Red ~XX104 4 7E 30 30 31 30 34 20 34 0D Green ~XX104 5 7E 30 30 31 30 34 20 35 0D White
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On On ~XX105 2 7E 30 30 31 30 35 20 32 0D Off ~XX113 1 7E 30 30 31 31 33 20 31 0D Signal Power On On ~XX113 2 7E 30 30 31 31 33 20 32 0D Off ~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 999 (a=39 39 39) ~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer (min) n = 0 (a=30) ~ 999 (a=39 39 39)
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Setting Lamp Hours ~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder On ~XX109 2 7E 30 30 31 30 39 20 32 0D Off ~XX110 1 7E 30 30 31 31 30 20 31 0D Brightness Mode Bright ~XX110 2 7E 30 30 31 31 30 20 32 0D STD ~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset Yes ~XX111 2 7E 30 30 31 31 31 20 32 0D No
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX112 1 7E 30 30 31 31 32 20 31 0D Reset Yes ~XX112 2 7E 30 30 31 31 32 20 32 0D No
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to Remote
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX140 1 7E 30 30 31 34 30 20 31 0D Power ~XX140 2 7E 30 30 31 34 30 20 32 0D Re-sync ~XX140 3 7E 30 30 31 34 30 20 33 0D Keystone ~XX140 4 7E 30 30 31 34 30 20 34 0D AV Mute ~XX140 5 7E 30 30 31 34 30 20 35 0D Freeze ~XX140 6 7E 30 30 31 34 30 20 36 0D Display ~XX140 7 7E 30 30 31 34 30 20 37 0D Zoom in ~XX140 8 7E 30 30 31 34 30 20 38 0D Zoom out ~XX140 9 7E 30 30 31 34 30 20 39 0D Volume + ~XX140 10 7E 30 30 31 34 30 20 31 30 0D Volume - ~XX140 11 7E 30 30 31 34 30 20 31 31 0D Enter ~XX140 12 7E 30 30 31 34 30 20 31 32 0D Menu ~XX140 13 7E 30 30 31 34 30 20 31 33 0D Left ~XX140 14 7E 30 30 31 34 30 20 31 34 0D Up ~XX140 15 7E 30 30 31 34 30 20 31 35 0D Right ~XX140 16 7E 30 30 31 34 30 20 31 36 0D Down ~XX140 17 7E 30 30 31 34 30 20 31 37 0D Clear ~XX140 18 7E 30 30 31 34 30 20 31 38 0D Format (1) ~XX140 19 7E 30 30 31 34 30 20 31 39 0D HDMI (2) ~XX140 20 7E 30 30 31 34 30 20 32 30 0D Source Lock (3) ~XX140 21 7E 30 30 31 34 30 20 32 31 0D Info. (4) ~XX140 22 7E 30 30 31 34 30 20 32 32 0D DVI (5) ~XX140 23 7E 30 30 31 34 30 20 32 33 0D Video (6) ~XX140 24 7E 30 30 31 34 30 20 32 34 0D VGA 1 (7) ~XX140 25 7E 30 30 31 34 30 20 32 35 0D Wireless (8) ~XX140 26 7E 30 30 31 34 30 20 32 36 0D S-Video (9) ~XX140 27 7E 30 30 31 34 30 20 32 37 0D VGA 2 (0)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND from projector automatically
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code
Function Projector Return Description
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­when Standby/Warming/Cooling/Out of Range/Lamp fail INFOn n :
0/1/2/3/4 = Standby/Warming/Cooling/Out of Range/Lamp fail
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
READ from projector
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code
Function Projector Return Description
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands OKn n : 0//1/2/3/4/5/6/7 = None/DVI/VGA1/VGA2/S-Video/Video/ HDMI/Wireless ~XX122 1 7E 30 30 31 32 32 20 31 0D Software Version OKdd ~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode OKn n : 0//1/2/3/4/5 = Presentation/Bright/Movie/sRGB/User1/User2 ~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n : 1/0 = On/Off ~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn ~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn ~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio OKn n : 0//1/2/3 = 4:3/16:9-l/16:9-ll/Window ~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature OKn n : 0//1/2 = Warm/Medium/Cold ~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n : 0//1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/ Rear-Ceiling ~XX150 1 7E 30 30 31 35 30 20 31 0D Information OKabbbbccdddde a : 1/0=On/Off bbbb : LampHour cc : source 00/01/02/030/04/05/06/07 = None/DVI/VGA1/VGA2 /S-Video/Video/HDMI/Wireless dddd : FW version e : Display mode = Presentation/Bright/ Movie/sRGB/User1/User2 ~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKn n : 0/1 = EP776/EP782
55
English
Page 56
Appendices
Please note that
damage result­ing from incorrect installation will invalidate the warranty.
Warning:
1. If you buy the ceiling mount from other company, please ensure that there is at least 10cm distance between the bottom cover of the projector and the ceiling.
2. Avoid placing the projector near sources of heat such as air-conditioning units and heaters, otherwise, it may overheat and shut down automatically.
Ceiling Mount Installation
1. To prevent damaging your projector, please use the Optoma’s recommended mount package for installation.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attached a mount to the projec-
tor met the following specications:
Screw type: M4
Screw length: 8mm
Zoom Lens
English
56
Page 57
Appendices
Optoma Global Ofces
Forserviceorsupportpleasecontactyourlocalofce.
USA
715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax : 408-383-3702 www.optomausa.com Service : [email protected]
Canada
5630 Kennedy Road, Mississauga, ON, L4Z 2A9, Canada Tel : 905-361-2582 www.optoma.ca Fax : 905-361-2581
Europe
42 Caxton Way, The Watford Business Park Watford, Hertfordshire, WD18 8QZ, UK Tel : +44 (0) 1923 691 800 www.optoma.eu Fax : +44 (0) 1923 691 888 Service Tel : +44 (0)1923 691865 Service : [email protected]
France
Bâtiment E Tel.: +33 1 41 46 12 20 81-83 avenue Edouard Vaillant Fax : +33 1 41 46 94 35 92100 Boulogne Billancourt, France Service : [email protected]
Spain
Paseo de la Castellana Tel.: +34 91 790 67 01
135 7 Planta +34 91 790 67 02
Madrid, Spain Fax : + 34 91 790 68 69
Deutschland
Werftstrasse 25 Tel : +49 (0) 211 506 6670 D40549 Düsseldorf, Fax : +49 (0) 211 506 66799 Germany Service : [email protected]
Scandinavia
Grev Wedels Plass 2 Tel : +47 32 26 89 90
3015 Drammen Fax : +47 32 83 78 98 Norway Service : [email protected]
Latin America
715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax : 408-383-3702 www.optoma.com.br www.optoma.com.mx
57
English
Page 58
Appendices
Korean
WOOMI TECH.CO.,LTD. 4F,Minu Bldg.33-14, Kangnam-Ku, Tel : +82+2+34430004 seoul,135-815, KOREA Fax : +82+2+34430005
Japanese
東京都足立区綾瀬3-25-18 オーエス本社ビル E-mail : [email protected] サポートセンター:0120-46-5040 www.os-worldwide.com
Taiwan
5F., No. 108, Minchiuan Rd. Tel : +886-2-2218-2360 Shindian City, Fax : +886-2-2218-2313 Taipei Taiwan 231, R.O.C. Service : [email protected] www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre,
79 Wing Hong Street, Tel : +852-2396-8968
Cheung Sha Wan, Fax : +852-2370-1222 Kowloon, Hong Kong www.optoma.com.hk
English
China
5F, No. 1205, Kaixuan Rd., Tel : +86-21-62947376 Changning District Fax : +86-21-62947375 Shanghai, 200052, China www.optoma.com.cn
58
Page 59
59
English
Appendices
Regulation & Safety notices
This appendix lists the general notices of your projector.
FCC notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Caution
Changes or modi cations not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission,
to operate this computer.
Page 60
60
English
Appendices
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interf erence that may cause undesi red operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
• EMC Directive 89/336/EEC (including amendments)
• Low Voltage Directive 73/23/EEC
(amended by 93/68/EEC)
• R & TTE Directive 1999/EC (if product has RF function)
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
