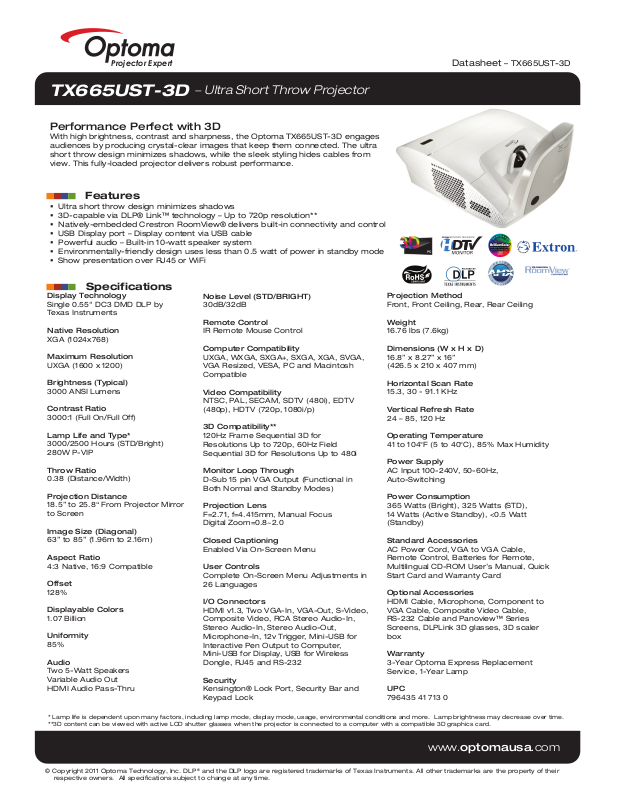

Optoma TX665UST-3D Product Sheet

Projector Expert

Datasheet – TX665UST-3D

TX665UST-3D

− Ultra Short Throw Projector

Performance Perfect with 3D

With high brightness, contrast and sharpness, the Optoma TX665UST-3D engages
audiences by producing crystal-clear images that keep them connected. The ultra
short throw design minimizes shadows, while the sleek styling hides cables from
view. This fully-loaded projector delivers robust performance.

Features

 Ultra short throw design minimizes shadows
 3D-capable via DLP® Link™ technology – Up to 720p resolution**
 Natively-embedded Crestron RoomView® delivers built-in connectivity and control
 USB Display port – Display content via USB cable
 Powerful audio – Built-in 10-watt speaker system
 Environmentally-friendly design uses less than 0.5 watt of power in standby mode
 Show presentation over RJ45 or WiFi

Display Technology

Single 0.55" DC3 DMD DLP by

Texas Instruments

Native Resolution

XGA (1024x768)

Maximum Resolution

UXGA (1600 x 1200)

Brightness (Typical)

3000 ANSI Lumens

Contrast Ratio

3000:1 (Full On/Full Off)

Lamp Life and Type*

3000/2500 Hours (STD/Bright)
280W P-VIP

Throw Ratio

0.38 (Distance/Width)

Projection Distance

18.5” to 25.8“ From Projector Mirror
to Screen

Image Size (Diagonal)

63” to 85” (1.96m to 2.16m)

Aspect Ratio

4:3 Native, 16:9 Compatible

Offset

128%

Displayable Colors

1.07 Billion

Uniformity

85%

Audio

Two 5-Watt Speakers
Variable Audio Out
HDMI Audio Pass-Thru

Specifications

Noise Level (STD/BRIGHT)

30dB/32dB

Remote Control

IR Remote Mouse Control

Computer Compatibility

UXGA, WXGA, SXGA+, SXGA, XGA, SVGA,
VGA Resized, VESA, PC and Macintosh
Compatible

Video Compatibility

NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)

3D Compatibility**

120Hz Frame Sequential 3D for
Resolutions Up to 720p, 60Hz Field
Sequential 3D for Resolutions Up to 480i

Monitor Loop Through

D-Sub 15 pin VGA Output (Functional in
Both Normal and Standby Modes)

Projection Lens

F=2.71, f=4.415mm, Manual Focus
Digital Zoom=0.8~2.0

Closed Captioning

Enabled Via On-Screen Menu

User Controls

Complete On-Screen Menu Adjustments in
26 Languages

I/O Connectors

HDMI v1.3, Two VGA-In, VGA-Out, S-Video,
Composite Video, RCA Stereo Audio-In,
Stereo Audio-In, Stereo Audio-Out,
Microphone-In, 12v Trigger, Mini-USB for
Interactive Pen Output to Computer,
Mini-USB for Display, USB for Wireless
Dongle, RJ45 and RS-232

Security

Kensington® Lock Port, Security Bar and
Keypad Lock

Projection Method

Front, Front Ceiling, Rear, Rear Ceiling

Weight

16.76 lbs (7.6kg)

Dimensions (W x H x D)

16.8” x 8.27” x 16”
(426.5 x 210 x 407 mm)

Horizontal Scan Rate

15.3, 30 - 91.1 KHz

Vertical Refresh Rate

24 – 85, 120 Hz

Operating Temperature

41 to 104°F (5 to 40°C), 85% Max Humidity

Power Supply

AC Input 100-240V, 50-60Hz,
Auto-Switching

Power Consumption

365 Watts (Bright), 325 Watts (STD),
14 Watts (Active Standby), <0.5 Watt
(Standby)

Standard Accessories

AC Power Cord, VGA to VGA Cable,
Remote Control, Batteries for Remote,
Multilingual CD-ROM User’s Manual, Quick
Start Card and Warranty Card

Optional Accessories

HDMI Cable, Microphone, Component to
VGA Cable, Composite Video Cable,
RS-232 Cable and Panoview™ Series
Screens, DLPLink 3D glasses, 3D scaler
box

Warranty

3-Year Optoma Express Replacement
Service, 1-Year Lamp

UPC

796435 41 713 0

* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness may decrease over time.
**3D content can be viewed with active LCD shutter glasses when the projector is connected to a computer with a compatible 3D graphics card.
